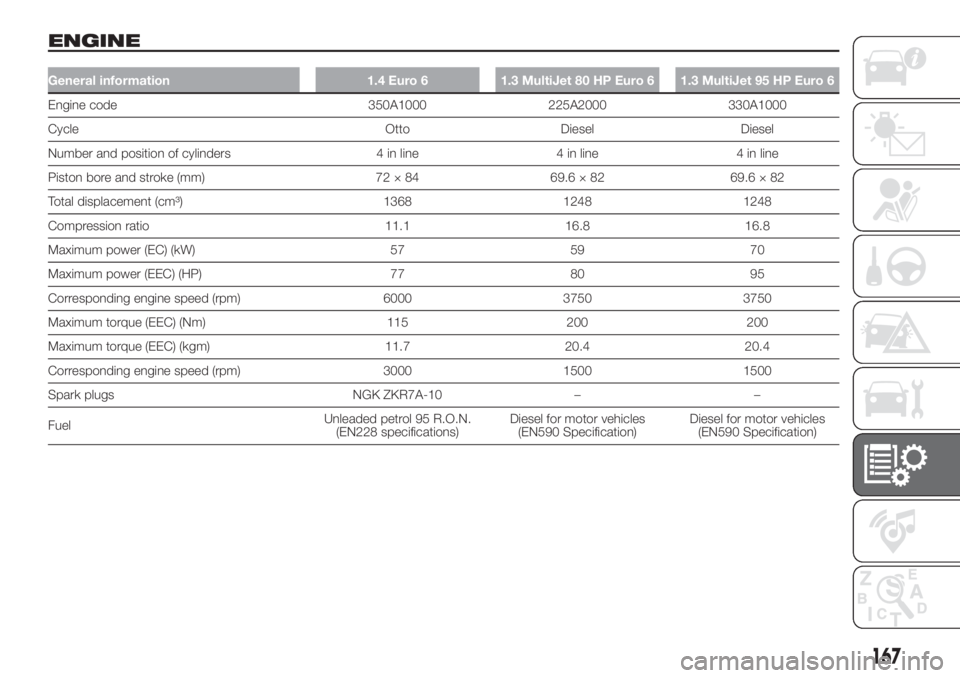

ENGINE
General information 1.4 Euro 6 1.3 MultiJet 80 HP Euro 6 1.3 MultiJet 95 HP Euro 6
Engine code 350A1000 225A2000 330A1000
Cycle Otto Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 72 × 84 69.6 × 82 69.6 × 82
Total displacement (cm³) 1368 1248 1248
Compression ratio 11.1 16.8 16.8
Maximum power (EC) (kW) 57 59 70
Maximum power (EEC) (HP) 77 80 95
Corresponding engine speed (rpm) 6000 3750 3750
Maximum torque (EEC) (Nm) 115 200 200
Maximum torque (EEC) (kgm) 11.7 20.4 20.4
Corresponding engine speed (rpm) 3000 1500 1500
Spark plugs NGK ZKR7A-10 – –
FuelUnleaded petrol 95 R.O.N.
(EN228 specifications)Diesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
167

General information 1.4 Natural Power
Engine code350A1000
CycleOtto
Number and position of cylinders 4 in line
Piston bore and stroke (mm) 72 × 84
Total displacement (cm³) 1368
Compression ratio 11.1±0.2:1
PETROL METHANE
Maximum power (EC) (kW) 57 51
Maximum power (EEC) (HP) 77 70
Corresponding engine speed (rpm) 6000
Maximum torque (EEC) (Nm) 115 104
Maximum torque (EEC) (kgm) 11.7 10.6
Corresponding engine speed (rpm) 3000
Spark plugsNGKZKR7A-10
Fuel Unleaded petrol 95 RON (EN228 standard) Methane
168
TECHNICAL DATA
