technical data FIAT FIORINO 2019 Owner handbook (in English)

Dear Customer,
We would like to congratulate and thank you for choosing a Fiat Fiorino.
We have written this handbook to help you get to know all the features of your vehicle and use it in the best possible way.
Here you will find information, advice and important warnings regarding vehicle use and how to achieve the best performance from the
technical features of your Fiat Fiorino.
You are advised to read it right through before taking to the road for the first time, to become familiar with the controls and above all
with those concerning brakes, steering and transmission; at the same time, you can understand the vehicle behaviour on different road
surfaces.
This document also provides a description of special features and tips, as well as essential information for the safe driving, care and
servicing of your Fiat Fiorino over time.
After reading it, you are advised to keep the handbook inside the vehicle, for an easy reference and for making sure it remains on
board the vehicle should it be sold.
In the attached Warranty Booklet you will also find a description of the Services that Fiat offers to its customers, the Warranty
Certificate, the detail of the terms and conditions for maintaining its validity and the range of additional services available to Fiat
Customers.
We are sure that these will help you to get in touch with and appreciate your new vehicle and the service provided by the people at
Fiat.
Enjoy reading. Happy motoring!
WARNING
This Owner Handbook describes all Fiat Fiorino versions. As a consequence, you should only consider the information
related to the trim level, engine and version that you have purchased. All data contained in this publication are purely
indicative. FCA Italy S.p.A. can modify the specifications of the vehicle model described in this publication at any time, for
technical or marketing purposes. For further information, contact a Fiat Dealership.

KNOWING YOUR VEHICLE
KNOWING THE INSTRUMENT PANEL
SAFETY
STARTING AND DRIVING
IN AN EMERGENCY
SERVICING AND CARE
TECHNICAL DATA
MULTIMEDIA
INDEX
5

117)The space-saver wheel (for
versions/markets, where provided) is
specific to your vehicle, do not use it on
other models, or use the space-saver
wheel of other models on your vehicle. The
space-saver wheel must only be used in
the event of an emergency. Never use it for
more than strictly necessary and never
exceed 80 km/h. "Warning! For temporary
use only! 80km/h max! Replace with
standard wheel as soon as possible. Never
remove or cover the sticker on the
space-saver wheel. Never apply a wheel
cap on a space-saver wheel. The driving
characteristics of the vehicle will be
modified with the space-saver wheel fitted.
Avoid violent acceleration and braking,
abrupt steering and fast cornering.
118)Use your hazard lights, warning
triangle, etc to show that your vehicle is
stationary. Passengers should get out
of the vehicle, particularly if it is heavily
loaded, and wait for the wheel to be
changed away from the traffic. If you are on
a slope or uneven surface, place wedges
or other suitable objects under the wheels
to secure the vehicle. Have the wheel
repaired and refitted as soon as possible.
Do not apply grease to the bolt threads
before fitting: they could come unscrewed.119)The jack is a tool developed and
designed only for changing a wheel, if a
tyre gets punctured or damaged, on the
vehicle with which it is supplied or on other
vehicles of the same model. Any other
use, e.g. to jack up other vehicle models or
different things, is strictly prohibited. Never
use it to carry out maintenance or repairs
under the vehicle or to change summer/
winter wheels and vice versa: we advise
you to contact a Fiat Dealership. Never go
under the raised vehicle: use it only in
the positions indicated. Do not use the jack
for loads higher than the one shown on
its label. Never start the engine with vehicle
raised. If the vehicle is raised more than
necessary, everything can become more
unstable, with the risk of the vehicle
dropping violently. Thus, lift the vehicle only
as needed in order to access the spare
wheel.
120)Incorrect hub cap assembly may
cause it to come off when the vehicle is
moving. Never tamper with the inflation
valve. Never introduce tools of any kind
between rim and tyre. Check tyre and
space-saver wheel pressures regularly,
referring to the values shown in the
"Technical data" chapter.
WARNING
28)When turning the jack handle make
sure that it can turn freely without scraping
your hand against the ground. The moving
components of the jack ("worm screw"
and joints) can also cause injuries: do not
touch them. If you come into contact
with lubricating grease, clean yourself
thoroughly.
29)Contact a Fiat Dealership as soon as
possible to have the correct tightening
of the fixing bolts checked.
121

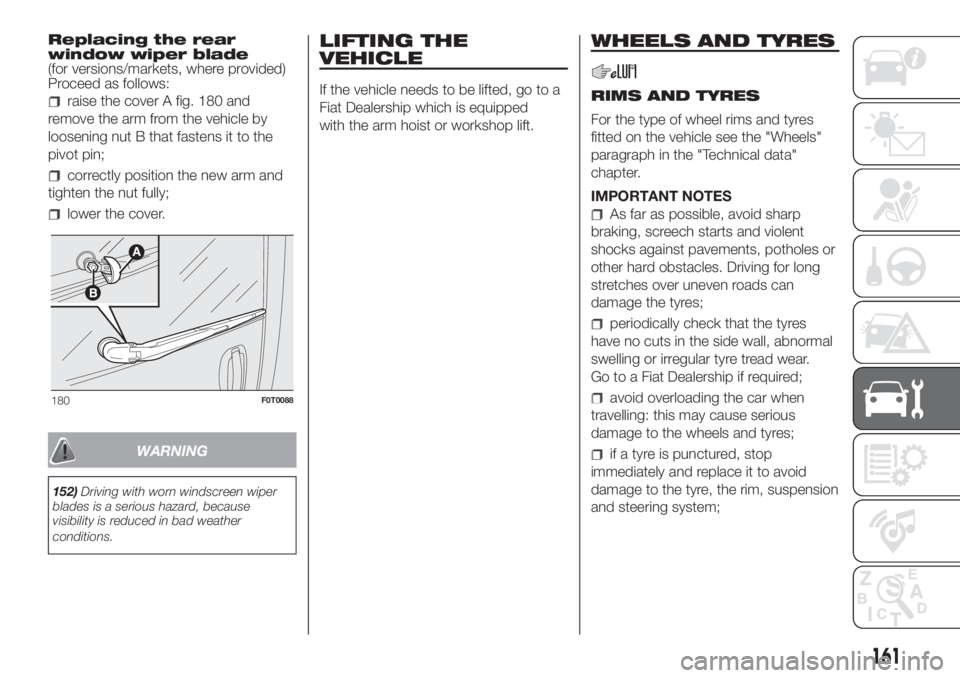

Replacing the rear
window wiper blade
(for versions/markets, where provided)
Proceed as follows:
raise the cover A fig. 180 and
remove the arm from the vehicle by
loosening nut B that fastens it to the
pivot pin;
correctly position the new arm and
tighten the nut fully;
lower the cover.
WARNING
152)Driving with worn windscreen wiper
blades is a serious hazard, because
visibility is reduced in bad weather
conditions.
LIFTING THE
VEHICLE
If the vehicle needs to be lifted, go to a
Fiat Dealership which is equipped
with the arm hoist or workshop lift.
WHEELS AND TYRES
RIMS AND TYRES
For the type of wheel rims and tyres
fitted on the vehicle see the "Wheels"
paragraph in the "Technical data"
chapter.
IMPORTANT NOTES
As far as possible, avoid sharp
braking, screech starts and violent
shocks against pavements, potholes or
other hard obstacles. Driving for long
stretches over uneven roads can
damage the tyres;
periodically check that the tyres
have no cuts in the side wall, abnormal
swelling or irregular tyre tread wear.
Go to a Fiat Dealership if required;
avoid overloading the car when
travelling: this may cause serious
damage to the wheels and tyres;
if a tyre is punctured, stop
immediately and replace it to avoid
damage to the tyre, the rim, suspension
and steering system;
180F0T0088
161

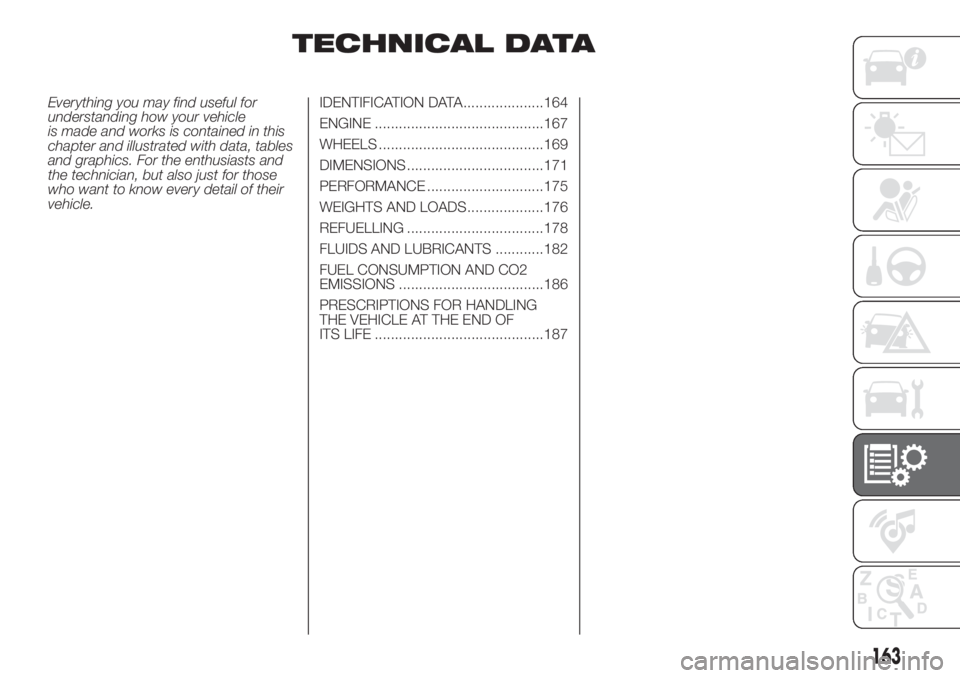

TECHNICAL DATA
Everything you may find useful for
understanding how your vehicle
is made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.IDENTIFICATION DATA....................164
ENGINE ..........................................167
WHEELS .........................................169
DIMENSIONS ..................................171
PERFORMANCE .............................175
WEIGHTS AND LOADS...................176
REFUELLING ..................................178
FLUIDS AND LUBRICANTS ............182
FUEL CONSUMPTION AND CO2
EMISSIONS ....................................186
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF
ITS LIFE ..........................................187
163

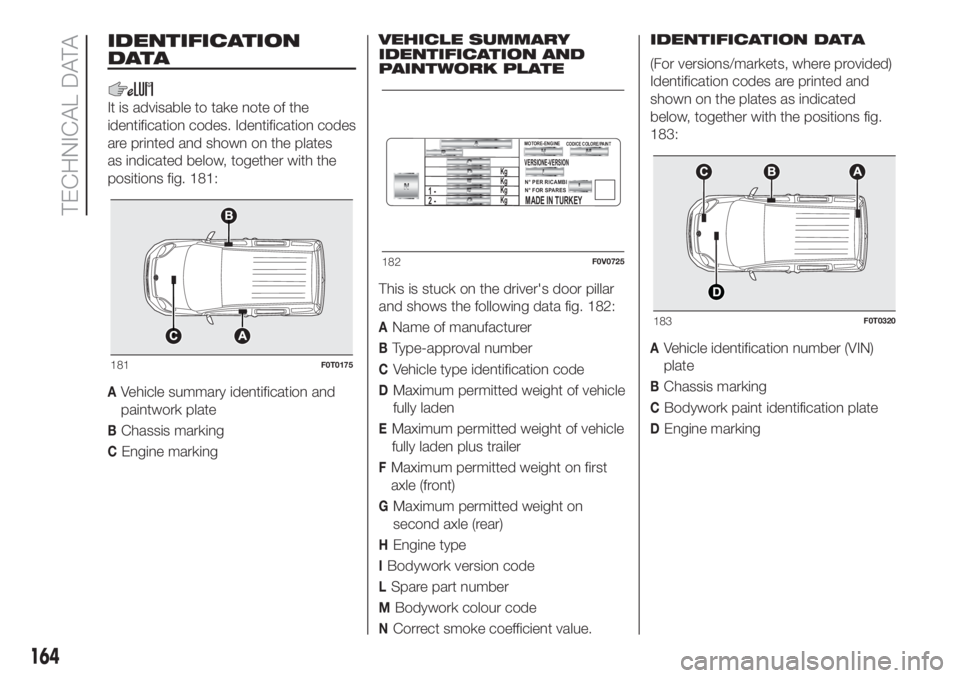

IDENTIFICATION
DATA
It is advisable to take note of the
identification codes. Identification codes
are printed and shown on the plates
as indicated below, together with the
positions fig. 181:
AVehicle summary identification and
paintwork plate
BChassis marking
CEngine markingVEHICLE SUMMARY
IDENTIFICATION AND
PAINTWORK PLATE
This is stuck on the driver's door pillar
and shows the following data fig. 182:
AName of manufacturer
BType-approval number
CVehicle type identification code
DMaximum permitted weight of vehicle
fully laden
EMaximum permitted weight of vehicle
fully laden plus trailer
FMaximum permitted weight on first
axle (front)
GMaximum permitted weight on
second axle (rear)
HEngine type
IBodywork version code
LSpare part number
MBodywork colour code
NCorrect smoke coefficient value.IDENTIFICATION DATA
(For versions/markets, where provided)
Identification codes are printed and
shown on the plates as indicated
below, together with the positions fig.
183:
AVehicle identification number (VIN)
plate
BChassis marking
CBodywork paint identification plate
DEngine marking
181F0T0175
VERSIONE-VERSION
N° PER RICAMBI
N° FOR SPARES
MADE IN TURKEY
MOTORE-ENGINECODICE COLORE/PAINT
2 - 1 -
Kg
Kg
Kg
Kg
182F0V0725
183F0T0320
164
TECHNICAL DATA

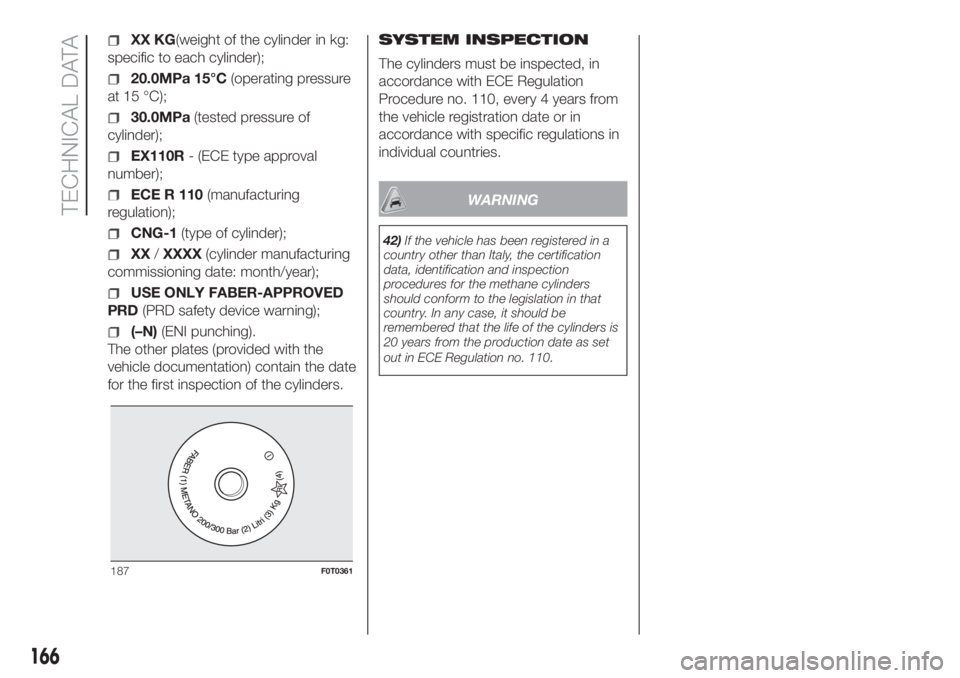

XX KG(weight of the cylinder in kg:
specific to each cylinder);
20.0MPa 15°C(operating pressure
at 15 °C);
30.0MPa(tested pressure of
cylinder);
EX110R- (ECE type approval
number);
ECE R 110(manufacturing
regulation);
CNG-1(type of cylinder);
XX/XXXX(cylinder manufacturing
commissioning date: month/year);
USE ONLY FABER-APPROVED
PRD(PRD safety device warning);
(–N)(ENI punching).
The other plates (provided with the
vehicle documentation) contain the date
for the first inspection of the cylinders.SYSTEM INSPECTION
The cylinders must be inspected, in
accordance with ECE Regulation
Procedure no. 110, every 4 years from
the vehicle registration date or in
accordance with specific regulations in
individual countries.
WARNING
42)If the vehicle has been registered in a
country other than Italy, the certification
data, identification and inspection
procedures for the methane cylinders
should conform to the legislation in that
country. In any case, it should be
remembered that the life of the cylinders is
20 years from the production date as set
out in ECE Regulation no. 110.
187F0T0361
166
TECHNICAL DATA

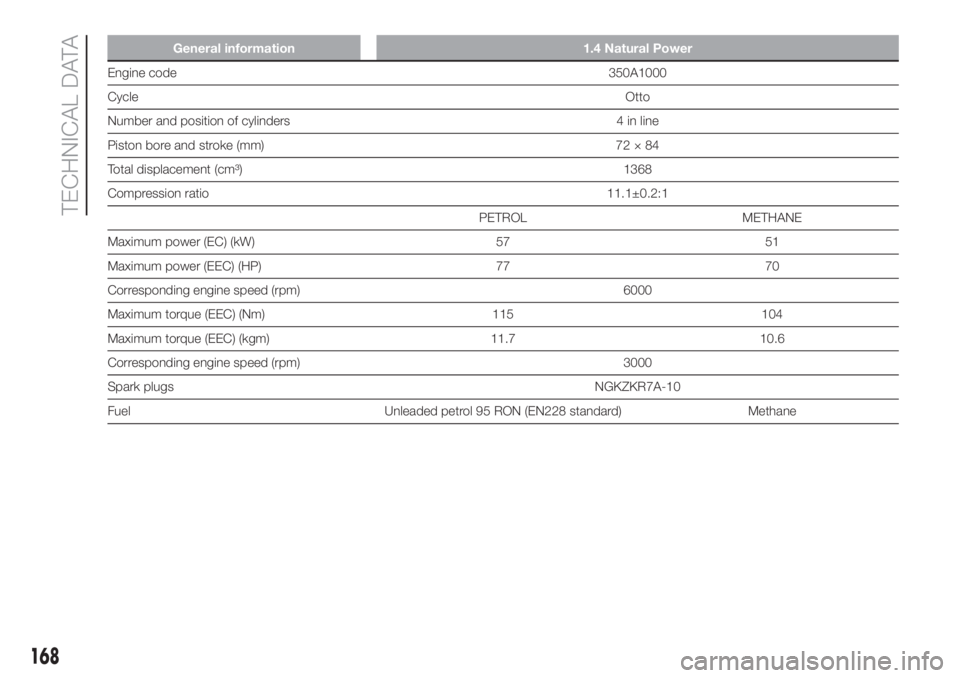

General information 1.4 Natural Power
Engine code350A1000
CycleOtto
Number and position of cylinders 4 in line
Piston bore and stroke (mm) 72 × 84
Total displacement (cm³) 1368
Compression ratio 11.1±0.2:1
PETROL METHANE
Maximum power (EC) (kW) 57 51
Maximum power (EEC) (HP) 77 70
Corresponding engine speed (rpm) 6000
Maximum torque (EEC) (Nm) 115 104
Maximum torque (EEC) (kgm) 11.7 10.6
Corresponding engine speed (rpm) 3000
Spark plugsNGKZKR7A-10
Fuel Unleaded petrol 95 RON (EN228 standard) Methane
168
TECHNICAL DATA

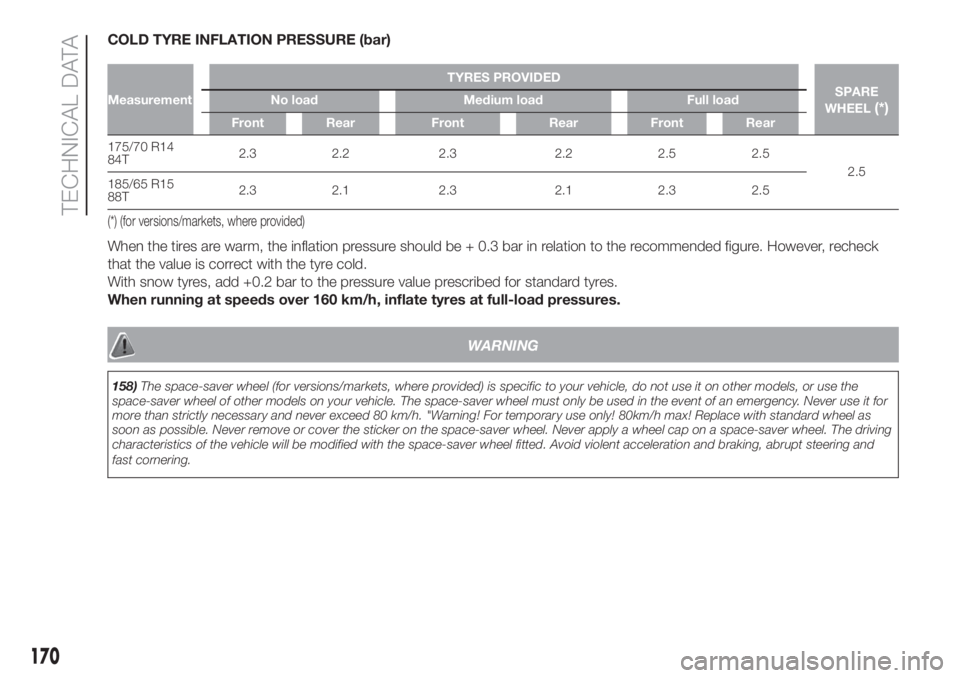

COLD TYRE INFLATION PRESSURE (bar)
MeasurementTYRES PROVIDED
SPARE
WHEEL(*)No load Medium load Full load
Front Rear Front Rear Front Rear
175/70 R14
84T2.3 2.2 2.3 2.2 2.5 2.5
2.5
185/65 R15
88T2.3 2.1 2.3 2.1 2.3 2.5
(*) (for versions/markets, where provided)
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck
that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
When running at speeds over 160 km/h, inflate tyres at full-load pressures.
WARNING
158)The space-saver wheel (for versions/markets, where provided) is specific to your vehicle, do not use it on other models, or use the
space-saver wheel of other models on your vehicle. The space-saver wheel must only be used in the event of an emergency. Never use it for
more than strictly necessary and never exceed 80 km/h. "Warning! For temporary use only! 80km/h max! Replace with standard wheel as
soon as possible. Never remove or cover the sticker on the space-saver wheel. Never apply a wheel cap on a space-saver wheel. The driving
characteristics of the vehicle will be modified with the space-saver wheel fitted. Avoid violent acceleration and braking, abrupt steering and
fast cornering.
170
TECHNICAL DATA

ABCDE FGH
Cargo versions3957/3864(**)854/760(**)2513
590/591(**)1721/1782(*)1469 1716 1465
Cargo Adventure
versions3957 854 2513 5901742/1803
(*)1464 1716 1465
(**) Natural Power versions
(*)With roof bars (for versions/markets where provided)
Natural Power versions
Load compartment volume: 2100 litres
Small variations in size are possible depending on the dimensions of the rims.
172
