technical data FIAT FIORINO 2019 Owner handbook (in English)

Natural Power versions
Luggage compartment capacity:
With rear backrests not folded over:275 litres
With rear backrests folded over:553 litres
Small variations in size are possible depending on the dimensions of the rims.
174
TECHNICAL DATA

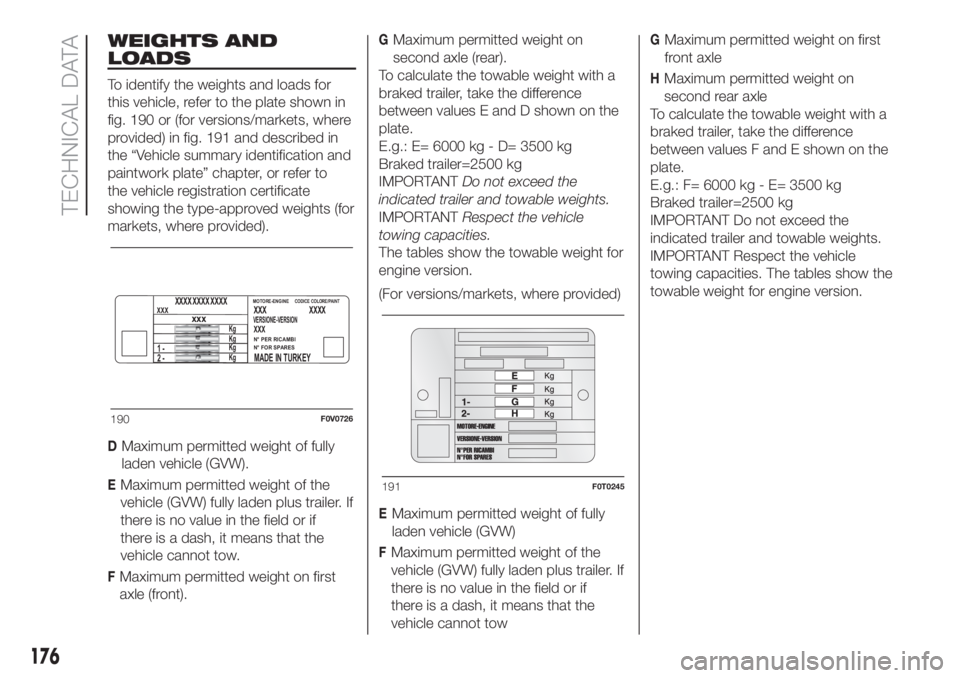

WEIGHTS AND
LOADS
To identify the weights and loads for
this vehicle, refer to the plate shown in
fig. 190 or (for versions/markets, where
provided) in fig. 191 and described in
the “Vehicle summary identification and
paintwork plate” chapter, or refer to
the vehicle registration certificate
showing the type-approved weights (for
markets, where provided).
DMaximum permitted weight of fully
laden vehicle (GVW).
EMaximum permitted weight of the
vehicle (GVW) fully laden plus trailer. If
there is no value in the field or if
there is a dash, it means that the
vehicle cannot tow.
FMaximum permitted weight on first
axle (front).
GMaximum permitted weight on
second axle (rear).
To calculate the towable weight with a
braked trailer, take the difference
between values E and D shown on the
plate.
E.g.: E= 6000 kg - D= 3500 kg
Braked trailer=2500 kg
IMPORTANTDo not exceed the
indicated trailer and towable weights.
IMPORTANTRespect the vehicle
towing capacities.
The tables show the towable weight for
engine version.
(For versions/markets, where provided)
EMaximum permitted weight of fully
laden vehicle (GVW)
FMaximum permitted weight of the
vehicle (GVW) fully laden plus trailer. If
there is no value in the field or if
there is a dash, it means that the
vehicle cannot tow
GMaximum permitted weight on first
front axle
HMaximum permitted weight on
second rear axle
To calculate the towable weight with a
braked trailer, take the difference
between values F and E shown on the
plate.
E.g.: F= 6000 kg - E= 3500 kg
Braked trailer=2500 kg
IMPORTANT Do not exceed the
indicated trailer and towable weights.
IMPORTANT Respect the vehicle
towing capacities. The tables show the
towable weight for engine version.
XXXXXX
XXXVERSIONE-VERSION
N° PER RICAMBI
N° FOR SPARES
MADE IN TURKEY
XXXXxxx
MOTORE-ENGINECODICE COLORE/PAINT
2 - 1 -
Kg
Kg
Kg
Kg
XXXX XXXX XXXX
190F0V0726
191F0T0245
176
TECHNICAL DATA

NOTE For vehicles with tow hook: the vertical static load on the tow hook must be within the maximum permitted weight
declared for the vehicle.
REFUELLING
1.4 Euro 6 1.4 Natural Power
Recommended fuels and
original lubricants
litres kg litres kg
Fuel tank: 45 - 45 -Unleaded petrol with R.O.N. no
lower than 95 (EN228
specifications) including a reserve of: 6/7 - 6/7 -
Methane cylinder capacity
(#) (^):---13
(approximate)Methane
Engine cooling system: 6.64 - 6.6 -Mixture of distilled water and
PARAFLU
UPliquid at 50%(*)
Engine sump: - 2.1 2.4 -SELENIA K P.E.(1.4 Euro 6
version) /SELENIA
MULTIPOWER GAS 5W-40
(1.4 Natural Power version) Engine sump and filter: - 2.25 2.6 -
Gearbox casing/differential: - 1.5 - 1.5TUTELA TRANSMISSION
TECHNYX
Hydraulic power steering: 0.38 0.35 0.38 0.35TUTELA TRANSMISSION
GI/E
Hydraulic brake circuit: - 0.50 - 0.5TUTELA TOP 4orTUTELA
TOP 4/S
Windscreen and rear window washer
fluid reservoir:3.0 - 3.0 -Mixture of water and liquid
PETRONAS DURANCE SC 35
(#) The amount of methane depends on the outside temperature, the supply pressure, the quality of the gas and the type of refuelling system.
(^) Total cylinder volume about 77 litres.
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
178
TECHNICAL DATA

1.3 Multijet 80 HP Euro 6 - 1.3 Multijet 95 HP Euro 6
Recommended fuels and
original lubricants
litres kg
Fuel tank: 45 -
Diesel for motor vehicles
(EN590 Specification)
including a reserve of: 6/7 -
Engine cooling system: 7.6 -Mixture of distilled water and
PARAFLU
UPliquid at 50%(*)
Engine sump without UREA: 3.7 3.13
SELENIA WR FORWARD
Engine sump and filter without UREA: 3.9 3.30
Engine sump with UREA: 3.7 3.13
SELENIA ECO2
Engine sump and filter with UREA: 3.9 3.30
Gearbox casing/differential: 1.84 1.6TUTELA TRANSMISSION
TECHNYX
COMFORT-MATIC transmission
actuation hydraulic system (1.3 Multijet
80 HP Euro 6 versions):0.6 0.5TUTELA CAR CS SPEED
Hydraulic power steering: 0.38 0.35TUTELA TRANSMISSION
GI/E
Hydraulic brake circuit: - 0.5TUTELA TOP 4orTUTELA
TOP 4/S
Windscreen and rear window washer
fluid reservoir:3.0 -Mixture of water and liquid
PETRONAS DURANCE SC
35
UREA tank (for versions/markets, where
provided) approximate capacity:12 -
AdBlue®(water-UREA solu-
tion) DIN 70 070 and ISO
22241-1
159) 160)
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
180
TECHNICAL DATA

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the Service Schedule. Constant use of the prescribed lubricants guarantees the fuel consumption
and emission specifications. Lubricant quality is crucial for engine operation and duration.
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
43)
Use Features SpecificationOriginal fluids and
lubricantsApplications /
Replacement
frequency
Lubricants for petrol
enginesSAE 5W-40 ACEA C3.9.55535-S2SELENIA K P.E.
Contractual Technical
Reference N° F603.C07According to Scheduled
Servicing Plan
Lubricants for diesel
engines without UREASAE 0W-30 ACEA C2.9.55535-DS1SELENIA WR
FORWARD
Contractual Technical
Reference N° F842.F13According to Scheduled
Servicing Plan
Lubricants for diesel
engines with UREASAE 0W-20 ACEA C5.9.55535-DM1SELENIA ECO2
Contractual Technical
Reference N° F049.C18
Lubricants for petrol/
methane enginesSAE 5W-40 ACEA C39.55535-T2SELENIA MULTIPOWER
GAS 5W-40
Contractual Technical
Reference N° F922.E09According to annual
maintenance and
inspection plan
182
TECHNICAL DATA

Use Features SpecificationOriginal fluids and
lubricantsApplications /
Replacement
frequency
Protective agent for
radiatorsRed protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523orMS.90032PARAFLUUP(*)
Contractual Technical
Reference N° F101.M01Percentage of use: 50%
demineralised water 50%
PARAFLU
UP(**)
Fuel additiveAdditive for diesel
antifreeze, protecting
diesel engines.—PETRONAS DURANCE
DIESEL ART(***)Contractual Technical
Reference N° F601.C06To be mixed with diesel
(25 cc per 10 litres)
Windscreen/rear
window washer fluidMixture of alcohol, water
and surfactants CUNA NC
956-II.9.55522orMS.90043PETRONAS DURANCE
SC 35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in windscreen
washer/wiper systems
Additive for diesel
emissions (UREA)Water-UREA solutionDIN 70 070orISO
22241–1
AdBlue®To be used for filling the
tank UREA on vehicles
equipped with system of
Selective Catalytic
Reduction (SCR).
(*)IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
(***) Recommended product.
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up; in this case optimal performance of the engine is not guaranteed.
For petrol engines running on methane, we recommend using the original product formulated specifically for this type of use.
The use of products with specifications below SAE 5W-40 ACEA C3 could cause damage to the engine not covered by the
warranty.
184
TECHNICAL DATA

FUEL CONSUMPTION AND CO2EMISSIONS
The fuel consumption and CO2emission figures declared by the manufacturer are determined on the basis of the type-approval
tests laid down by the applicable standards in the country where the vehicle is registered.
The type of route, traffic situations, weather conditions, driving style, general conditions of the vehicle, trim level/equipment/
accessories, climate control system, vehicle load, roof rack, other situations that affect aerodynamics or air drag may lead
to different fuel consumption levels than those measured. The fuel consumption will only become more regular after driving the
first 3000 km.
To find the specific fuel consumption and CO
2emission figures for this vehicle, please refer to the data in the Certificate of
Conformity, and the related documentation that accompanies the vehicle.
186
TECHNICAL DATA

The data contained in this publication is intended merely as a guide. FCA Italy S.p.A. reserves the right to modify
the models and versions described in this booklet at any time for technical and commercial reasons.
If you have any further questions please consult your FIAT dealer.
Printed in recycled paper without chlorine.
ENGLISH
