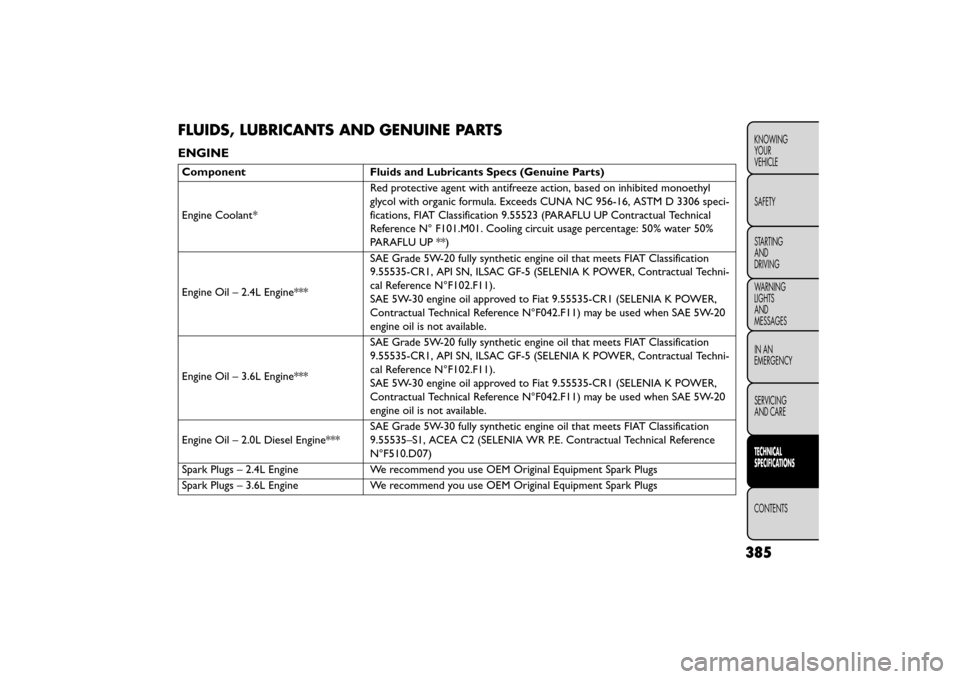

FLUIDS, LUBRICANTS AND GENUINE PARTS
ENGINE
ComponentFluids and Lubricants Specs (Genuine Parts)
Engine Coolant* Red protective agent with antifreeze action, based on inhibited monoethyl
glycol with organic formula. Exceeds CUNA NC 956-16, ASTM D 3306 speci-
fications, FIAT Classification 9.55523 (PARAFLU UP Contractual Technical
Reference N° F101.M01. Cooling circuit usage percentage: 50% water 50%
PARAFLU UP **)
Engine Oil – 2.4L Engine*** SAE Grade 5W-20 fully synthetic engine oil that meets FIAT Classification
9.55535-CR1, API SN, ILSAC GF-5 (SELENIA K POWER, Contractual Techni-
cal Reference N°F102.F11).
SAE 5W-30 engine oil approved to Fiat 9.55535-CR1 (SELENIA K POWER,
Contractual Technical Reference N°F042.F11) may be used when SAE 5W-20
engine oil is not available.
Engine Oil – 3.6L Engine*** SAE Grade 5W-20 fully synthetic engine oil that meets FIAT Classification
9.55535-CR1, API SN, ILSAC GF-5 (SELENIA K POWER, Contractual Techni-
cal Reference N°F102.F11).
SAE 5W-30 engine oil approved to Fiat 9.55535-CR1 (SELENIA K POWER,
Contractual Technical Reference N°F042.F11) may be used when SAE 5W-20
engine oil is not available.
Engine Oil – 2.0L Diesel Engine*** SAE Grade 5W-30 fully synthetic engine oil that meets FIAT Classification
9.55535–S1, ACEA C2 (SELENIA WR P.E. Contractual Technical Reference
N°F510.D07)
Spark Plugs – 2.4L Engine We recommend you use OEM Original Equipment Spark Plugs
Spark Plugs – 3.6L Engine We recommend you use OEM Original Equipment Spark Plugs
385
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

ComponentFluids and Lubricants Specs (Genuine Parts)

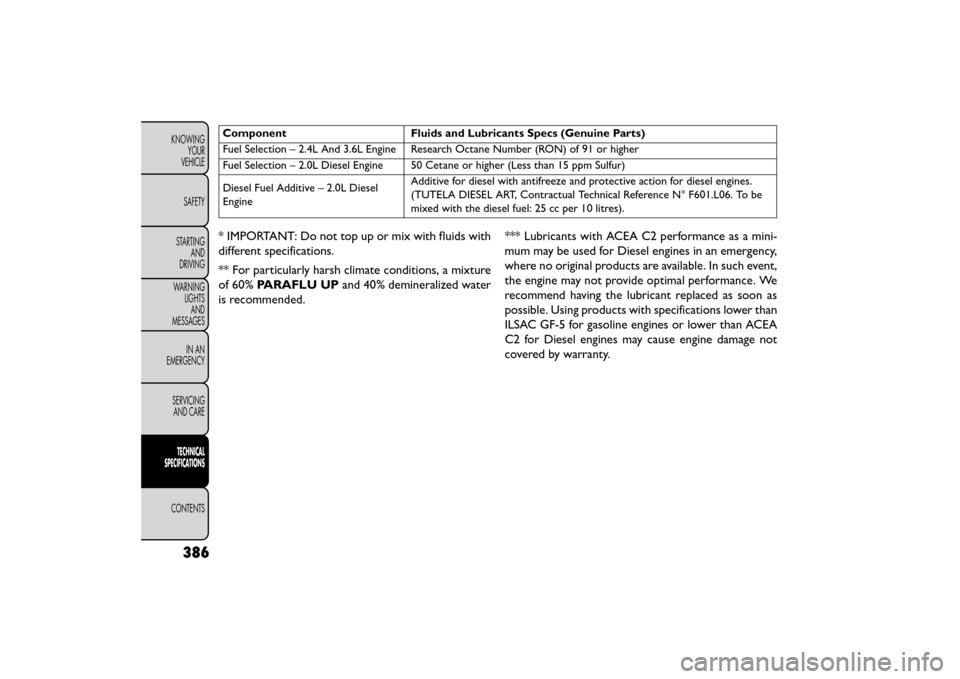

Fuel Selection – 2.4L And 3.6L Engine Research Octane Number (RON) of 91 or higher
Fuel Selection – 2.0L Diesel Engine 50 Cetane or higher (Less than 15 ppm Sulfur)
Diesel Fuel Additive – 2.0L Diesel
Engine Additive for diesel with antifreeze and protective action for diesel engines.
(TUTELA DIESEL ART, Contractual Technical Reference N° F601.L06. To be
mixed with the diesel fuel: 25 cc per 10 litres).
* IMPORTANT: Do not top up or mix with fluids with
different specifications.
** For particularly harsh climate conditions, a mixture
of 60%
PARAFLU UP and 40% demineralized water
is recommended. *** Lubricants with ACEA C2 performance as a mini-
mum may be used for Diesel engines in an emergency,
where no original products are available. In such event,
the engine may not provide optimal performance. We
recommend having the lubricant replaced as soon as
possible. Using products with specifications lower than
ILSAC GF-5 for gasoline engines or lower than ACEA
C2 for Diesel engines may cause engine damage not
covered by warranty.
386
KNOWING
YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICINGAND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

CHASSIS

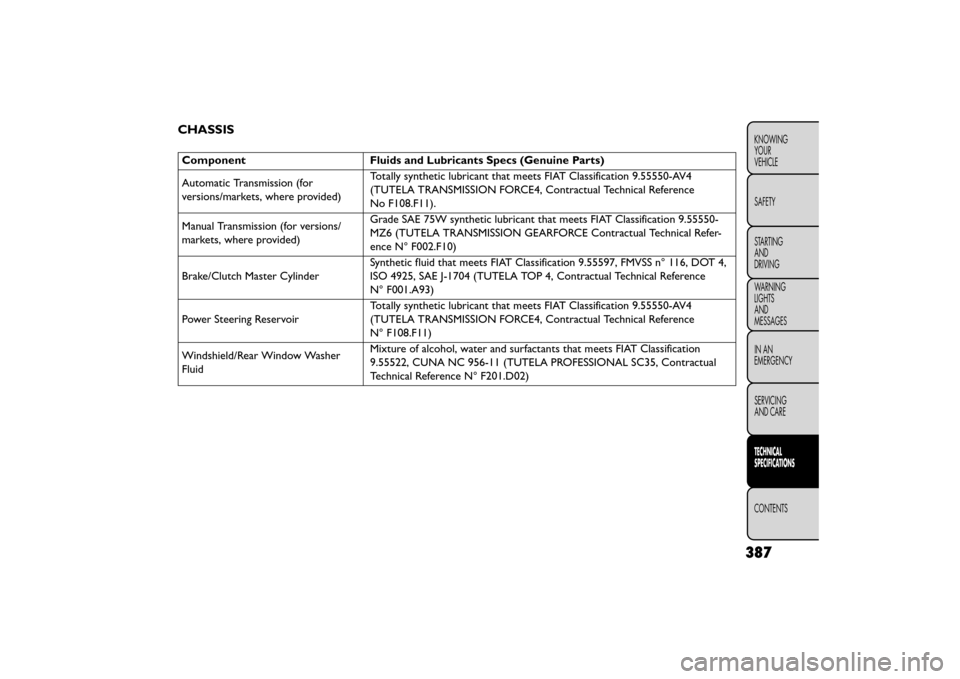

ComponentFluids and Lubricants Specs (Genuine Parts)
Automatic Transmission (for
versions/markets, where provided) Totally synthetic lubricant that meets FIAT Classification 9.55550-AV4
(TUTELA TRANSMISSION FORCE4, Contractual Technical Reference
No F108.F11).
Manual Transmission (for versions/
markets, where provided) Grade SAE 75W synthetic lubricant that meets FIAT Classification 9.55550-
MZ6 (TUTELA TRANSMISSION GEARFORCE Contractual Technical Refer-
ence N° F002.F10)
Brake/Clutch Master Cylinder Synthetic fluid that meets FIAT Classification 9.55597, FMVSS n° 116, DOT 4,
ISO 4925, SAE J-1704 (TUTELA TOP 4, Contractual Technical Reference
N° F001.A93)
Power Steering Reservoir Totally synthetic lubricant that meets FIAT Classification 9.55550-AV4
(TUTELA TRANSMISSION FORCE4, Contractual Technical Reference
N° F108.F11)
Windshield/Rear Window Washer
Fluid Mixture of alcohol, water and surfactants that meets FIAT Classification
9.55522, CUNA NC 956-11 (TUTELA PROFESSIONAL SC35, Contractual
Technical Reference N° F201.D02)
387
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

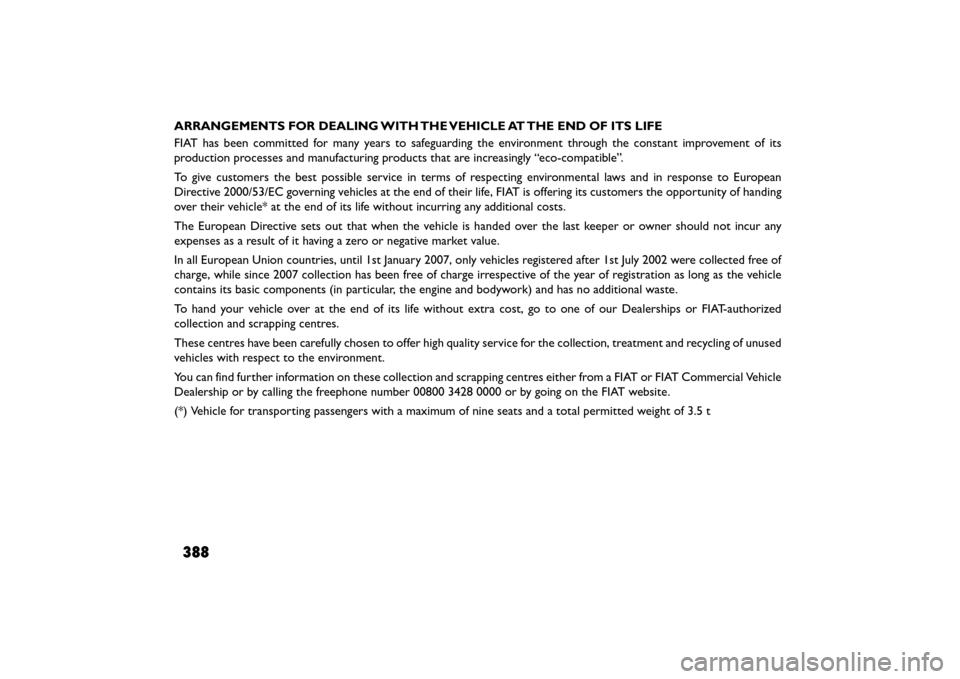

ARRANGEMENTS FOR DEALING WITH THE VEHICLE AT THE END OF ITS LIFE
