remove seats FIAT FREEMONT 2016 1.G Owners Manual

FIAT FREEMONT 2016 1.G Owners Manual FREEMONT 2016 1.G FIAT FIAT https://www.carmanualsonline.info/img/10/4600/w960_4600-0.png FIAT FREEMONT 2016 1.G Owners Manual

Page 60 of 412

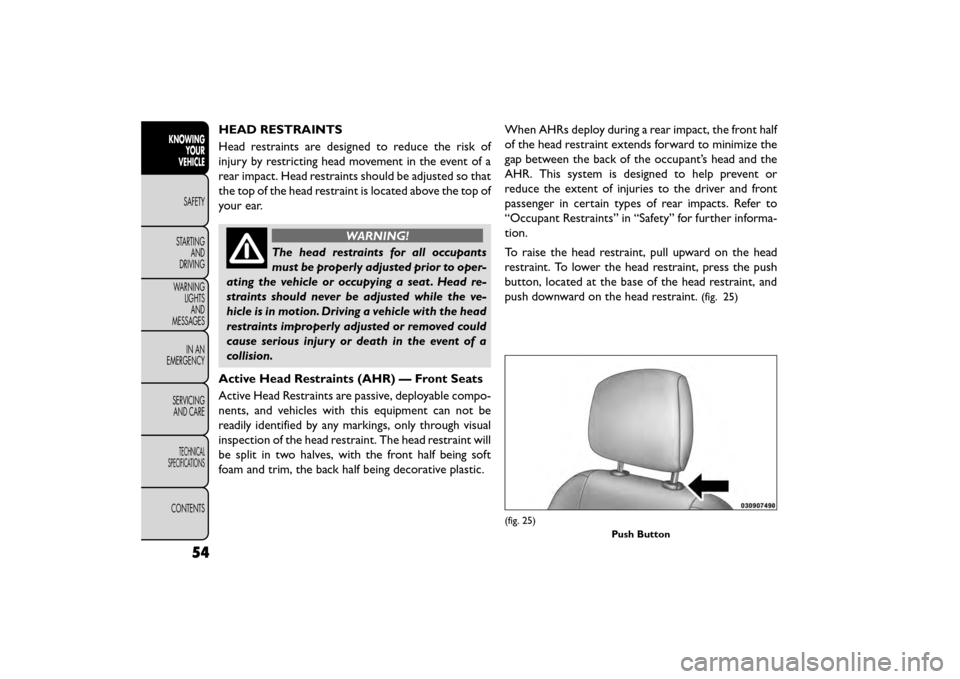

FIAT FREEMONT 2016 1.G Owners Manual HEAD RESTRAINTS
Head restraints are designed to reduce the risk of
injury by restricting head movement in the event of a
rear impact. Head restraints should be adjusted so that
the top of the head res

Page 62 of 412

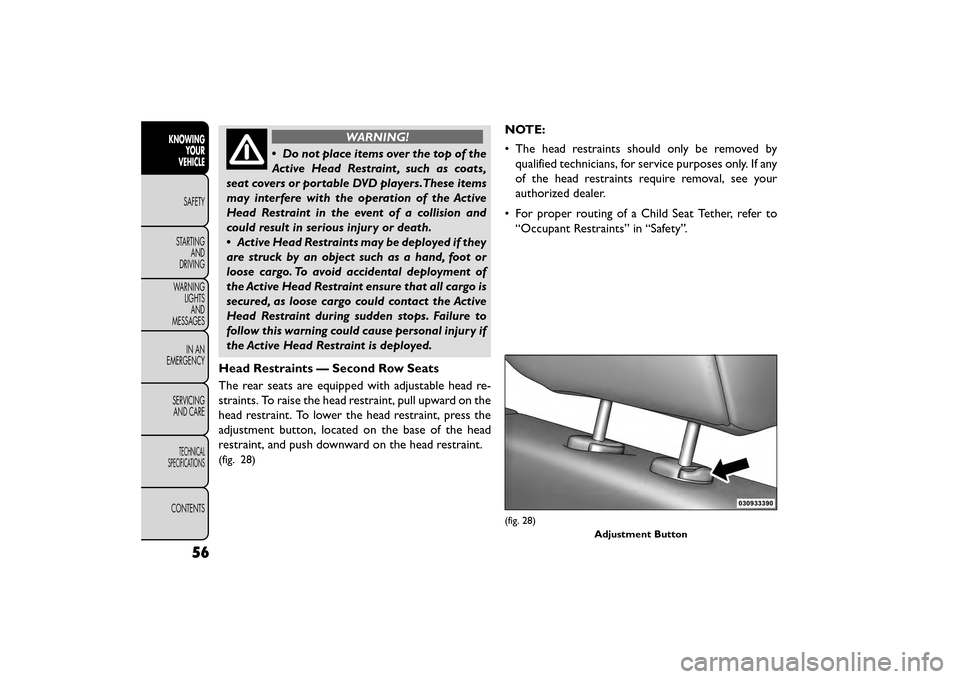

FIAT FREEMONT 2016 1.G Owners Manual WARNING!
• Do not place items over the top of the
A ct

ive Head Restraint , such as coats,
seat covers or portable DVD players.These items
may interfere with the operation of the Active
Head Restra

Page 63 of 412

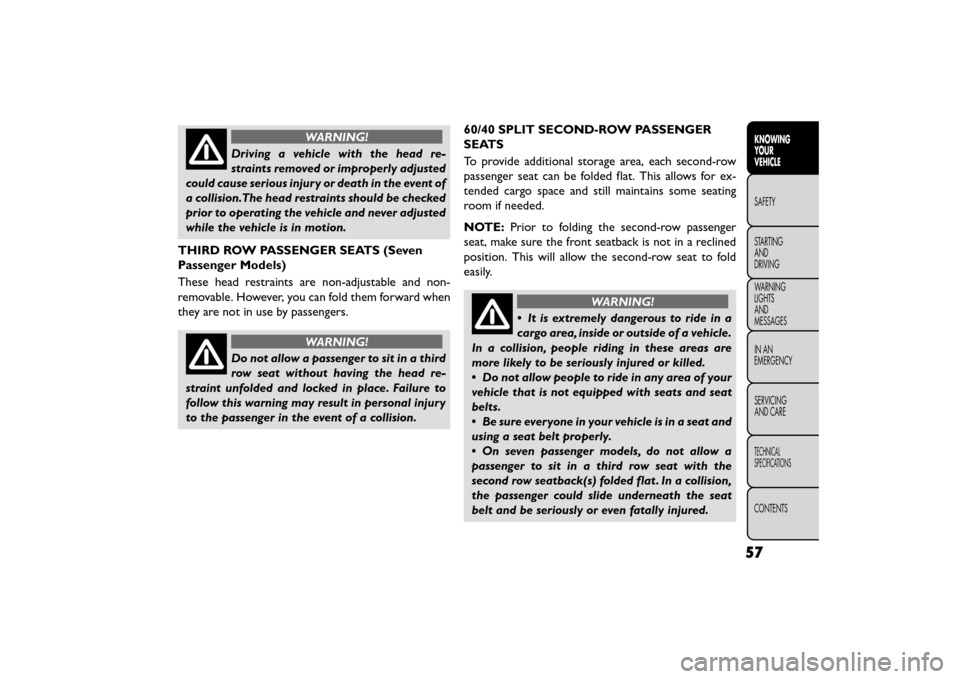

FIAT FREEMONT 2016 1.G Owners Manual WARNING!
Driving a vehicle with the head re-
st r

aints removed or improperly adjusted
could cause serious injury or death in the event of
a collision.The head restraints should be checked
prior to o

Page 140 of 412

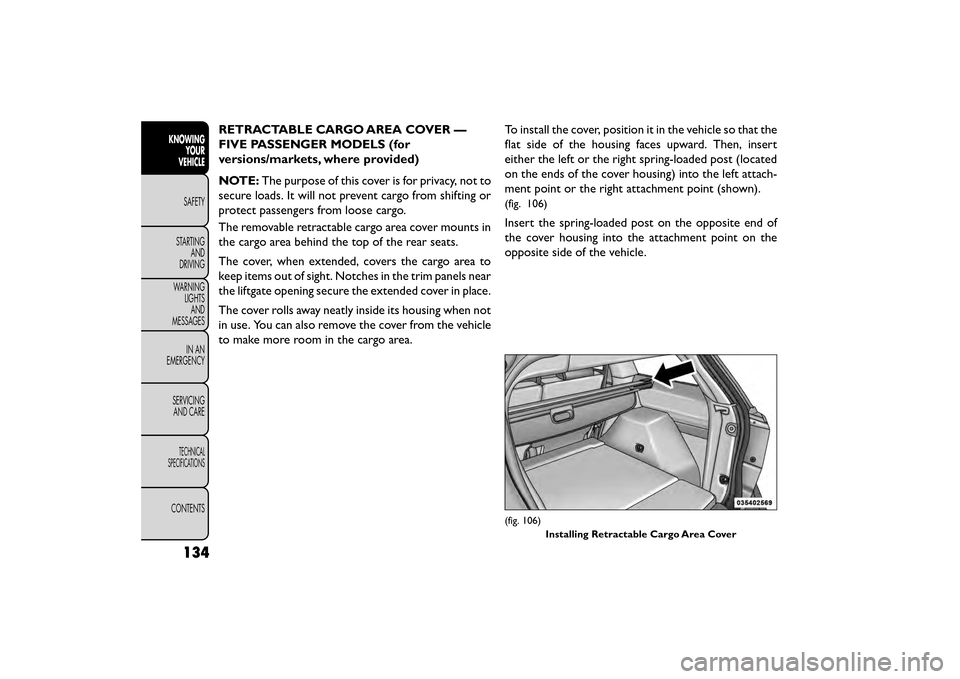

FIAT FREEMONT 2016 1.G Owners Manual RETRACTABLE CARGO AREA COVER —
FIVE PASSENGER MODELS (for
versions/markets, where provided)
NOTE:The purpose of this cover is for privacy, not to
secure loads. It will not prevent cargo from shiftin

Page 228 of 412

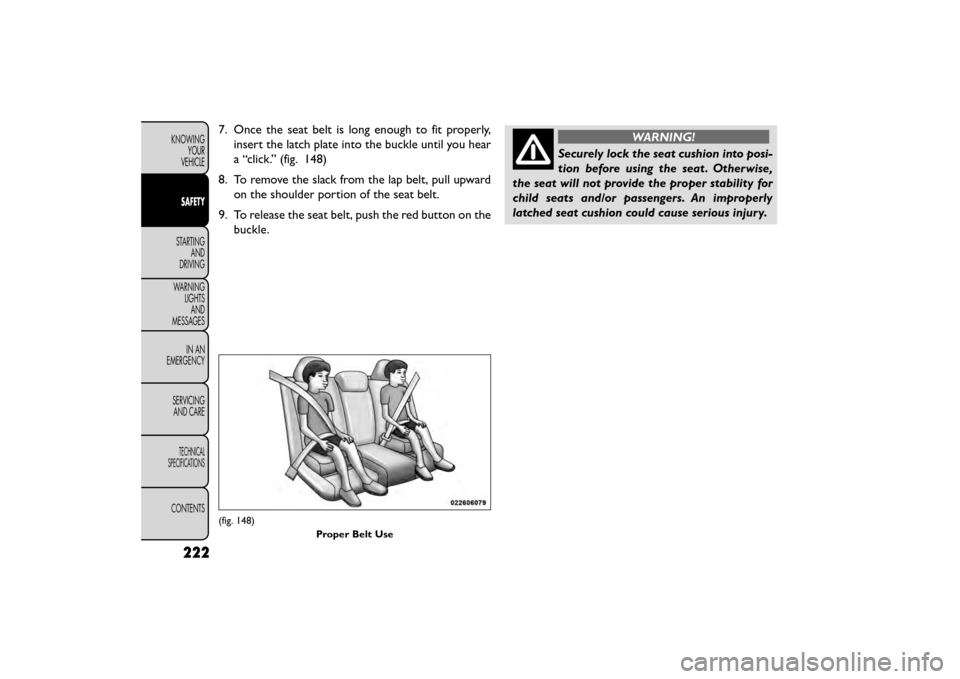

FIAT FREEMONT 2016 1.G Owners Manual 7. Once the seat belt is long enough to fit properly,insert the latch plate into the buckle until you hear
a “click.” (fig. 148)
8. To remove the slack from the lap belt, pull upward on the should

Page 237 of 412

FIAT FREEMONT 2016 1.G Owners Manual TO INSTALL AN ISOFIX CHILD
RESTRAINT:
1. Loosen the adjusters on the lower connectors andon the tether strap of the child seat so that you can
more easily attach the connectors to the vehicle
anchorag

Page 291 of 412

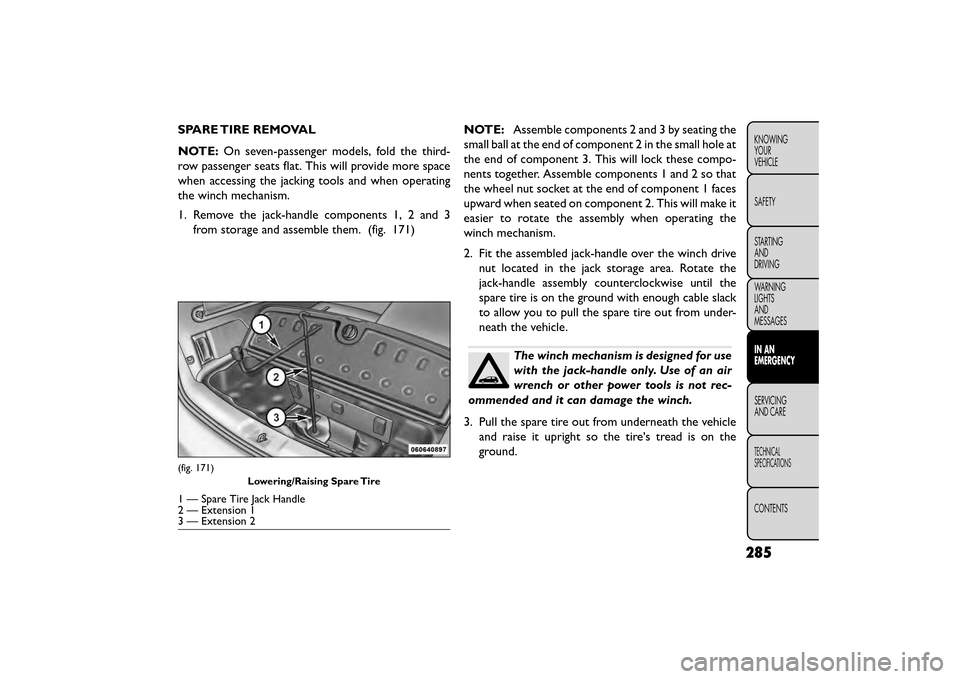

FIAT FREEMONT 2016 1.G Owners Manual SPARE TIRE REMOVAL
NOTE:On seven-passenger models, fold the third-
row passenger seats flat. This will provide more space
when accessing the jacking tools and when operating
the winch mechanism.
1. Re

Page 362 of 412

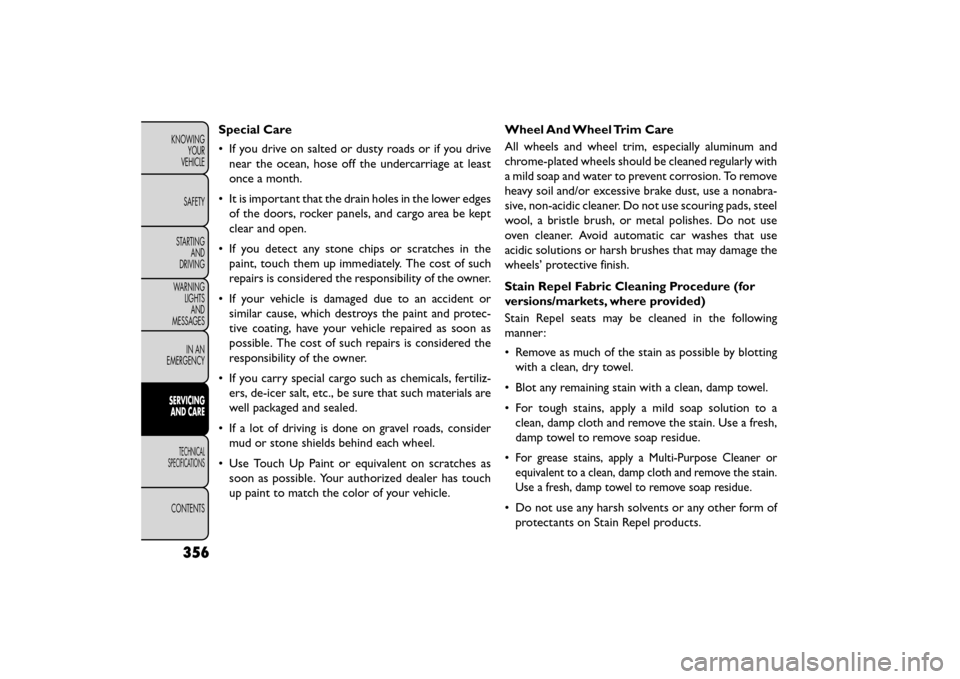

FIAT FREEMONT 2016 1.G Owners Manual Special Care
• If you drive on salted or dusty roads or if you drivenear the ocean, hose off the undercarriage at least
once a month.
• It is important that the drain holes in the lower edges of t
