FIAT FULLBACK 2016 1.G User Guide

GRAPHICAL INDEX
HEADLIGHTSBulb types..................... 213Daytime running lights........... 40Dipper beam headlights......... 40Headlamps..................... 40Bulb replacement.............. 213
WHEELSTyres and wheels.............. 291Tyre pressure.................. 291Replacing a wheel............. 194
OUTSIDE REARVIEW MIRRORSAdjustment..................... 37
DOORSCentral opening/closing......... 28
WINDSCREEN WIPERSOperation....................... 48Blade replacement............. 254
ENGINEChecking levels................ 241Engine specifications.......... 268
3
2
1
1
5
6
4
1FRONTE
9

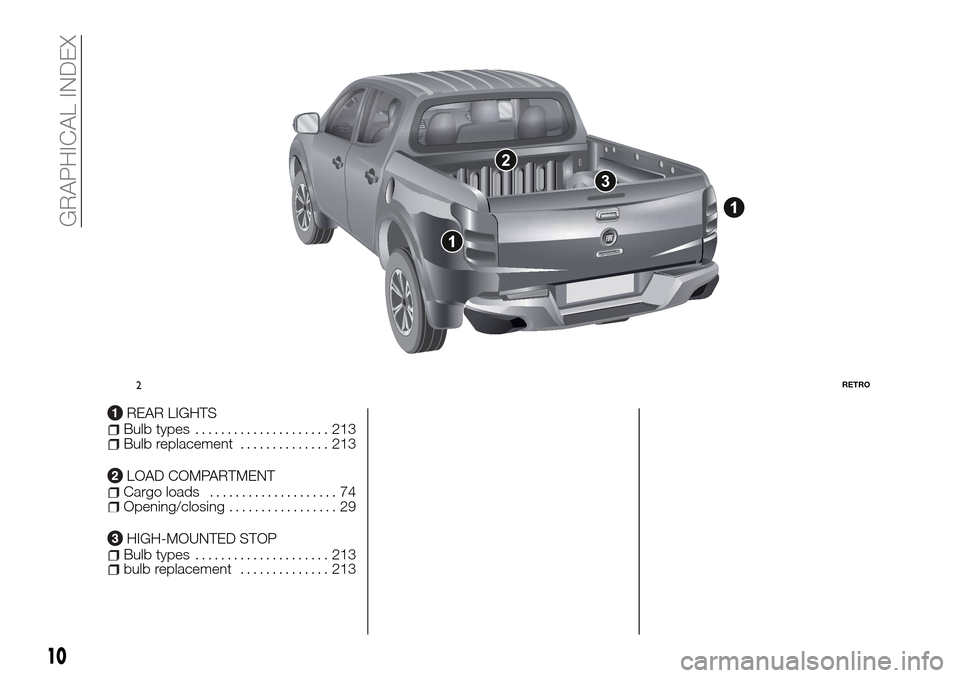

REAR LIGHTSBulb types..................... 213Bulb replacement.............. 213
LOAD COMPARTMENTCargo loads.................... 74Opening/closing................. 29
HIGH-MOUNTED STOPBulb types..................... 213bulb replacement.............. 213
2
3
1
1
2RETRO
10

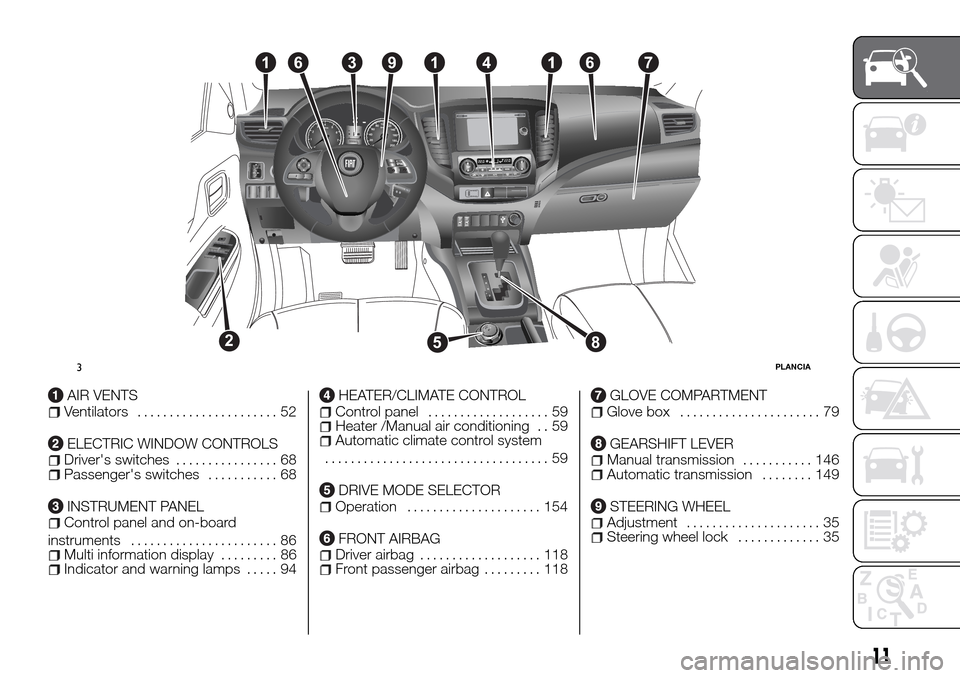

GRAPHICAL INDEX

AIR VENTSVentilators...................... 52
ELECTRIC WINDOW CONTROLSDriver's switches................ 68Passenger's switches........... 68
INSTRUMENT PANELControl panel and on-board
instruments....................... 86
Multi information display......... 86Indicator and warning lamps..... 94
HEATER/CLIMATE CONTROLControl panel................... 59Heater /Manual air conditioning . . 59Automatic climate control system
................................... 59
DRIVE MODE SELECTOROperation..................... 154
FRONT AIRBAGDriver airbag................... 118Front passenger airbag......... 118
GLOVE COMPARTMENTGlove box...................... 79
GEARSHIFT LEVERManual transmission........... 146Automatic transmission........ 149
STEERING WHEELAdjustment..................... 35Steering wheel lock............. 35
16
528
3914167
3PLANCIA
11

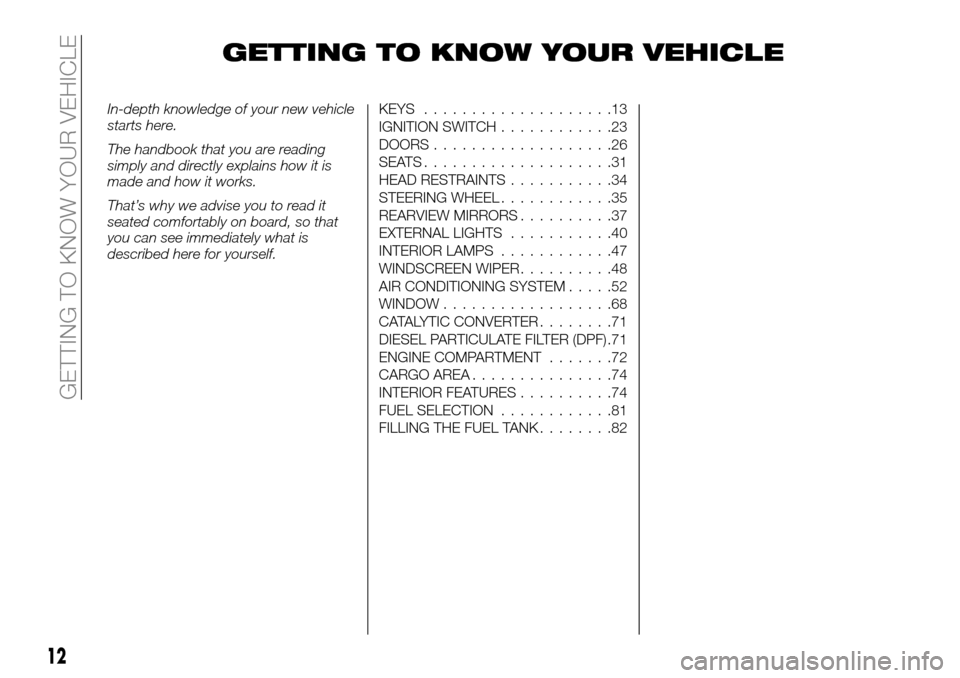

GETTING TO KNOW YOUR VEHICLE
In-depth knowledge of your new vehicle
starts here.
The handbook that you are reading
simply and directly explains how it is
made and how it works.
That’s why we advise you to read it
seated comfortably on board, so that
you can see immediately what is
described here for yourself.KEYS....................13
IGNITION SWITCH............23
DOORS...................26
SEATS....................31
HEAD RESTRAINTS...........34
STEERING WHEEL............35
REARVIEW MIRRORS..........37
EXTERNAL LIGHTS...........40
INTERIOR LAMPS............47
WINDSCREEN WIPER..........48
AIR CONDITIONING SYSTEM.....52
WINDOW..................68
CATALYTIC CONVERTER........71
DIESEL PARTICULATE FILTER (DPF).71
ENGINE COMPARTMENT.......72
CARGO AREA...............74
INTERIOR FEATURES..........74
FUEL SELECTION............81
FILLING THE FUEL TANK........82
12
GETTING TO KNOW YOUR VEHICLE

KEYS
1. Master key 2. Master key (plate)
3. Keyless entry key 4. Keyless
operation key 5. Emergency key
1)
NOTE The key is a precision electronic
part with a built-in signal transmitter.
Please observe the following in order to
prevent a malfunction.
Do not leave anywhere that is
exposed to direct sunlight, for example
on the dashboard.
Do not disassemble or modify.
Do not excessively bend the key or
subject it to a strong impact.
Do not expose to water.
Keep away from magnetic key rings.
Keep away from audio systems,
personal computers, TVs, and any
other equipment that generates amagnetic field.
Keep away from devices that emit
strong electromagnetic waves, such as
cellular phones, wireless devices and
high frequency equipment (including
medical devices).
Do not wash with ultrasonic cleaners
or similar equipment.
Do not leave the key where it may be
exposed to high temperature or high
humidity.
NOTE The engine is designed so that it
will not start if the ID code registered in
the immobilizer computer and the key’s
ID code do not match. Refer to the
section entitled “Electronic immobilizer”
for details and key usage.
KEY NUMBER TAG
The key number is stamped on the tag
as indicated in the illustration. Make a
record of the key number and store the
key and key number tag in separate
places, so that you can order a key
from your Fiat Dealership in the event
the original keys are lost.
ELECTRONIC
IMMOBILIZER
(where provided)
2)
The electronic immobilizer is designed
to reduce significantly the possibility of
vehicle theft. The purpose of the system
is to immobilize the vehicle if an invalid
start is attempted. A valid start attempt
can only be achieved, using a key
“registered” to the immobilizer system.
1
45
2
3
4AH3100320
5AA0109480
13

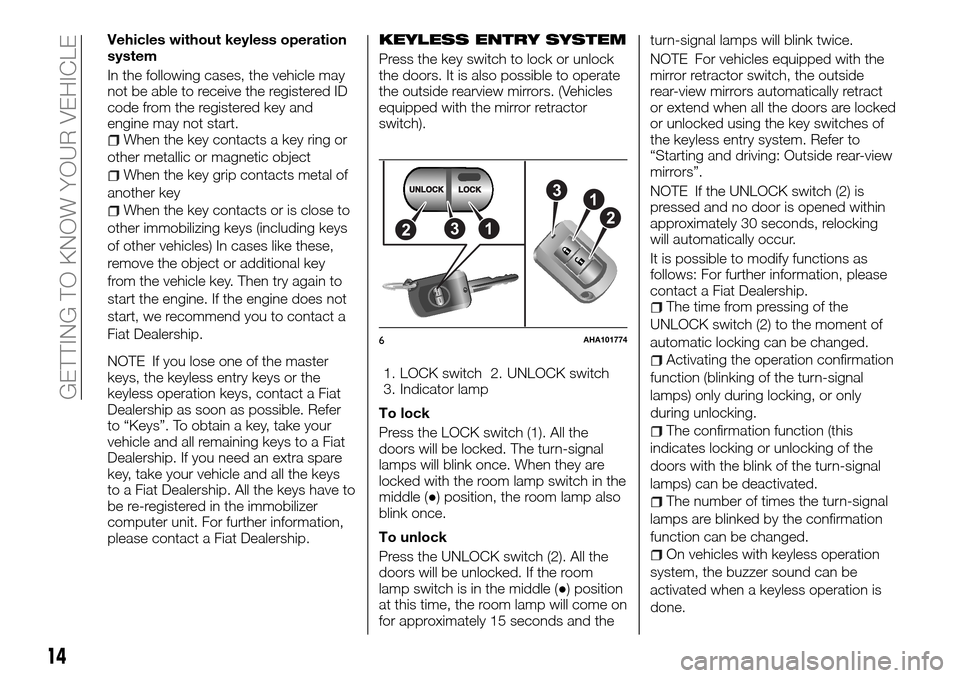

Vehicles without keyless operation
system
In the following cases, the vehicle may
not be able to receive the registered ID
code from the registered key and
engine may not start.
When the key contacts a key ring or
other metallic or magnetic object
When the key grip contacts metal of
another key
When the key contacts or is close to
other immobilizing keys (including keys
of other vehicles) In cases like these,
remove the object or additional key
from the vehicle key. Then try again to
start the engine. If the engine does not
start, we recommend you to contact a
Fiat Dealership.
NOTE If you lose one of the master
keys, the keyless entry keys or the
keyless operation keys, contact a Fiat
Dealership as soon as possible. Refer
to “Keys”. To obtain a key, take your
vehicle and all remaining keys to a Fiat
Dealership. If you need an extra spare
key, take your vehicle and all the keys
to a Fiat Dealership. All the keys have to
be re-registered in the immobilizer
computer unit. For further information,
please contact a Fiat Dealership.
KEYLESS ENTRY SYSTEM
Press the key switch to lock or unlock
the doors. It is also possible to operate
the outside rearview mirrors. (Vehicles
equipped with the mirror retractor
switch).
1. LOCK switch 2. UNLOCK switch
3. Indicator lamp
To lock
Press the LOCK switch (1). All the
doors will be locked. The turn-signal
lamps will blink once. When they are
locked with the room lamp switch in the
middle (●) position, the room lamp also
blink once.
To unlock
Press the UNLOCK switch (2). All the
doors will be unlocked. If the room
lamp switch is in the middle (●) position
at this time, the room lamp will come on
for approximately 15 seconds and theturn-signal lamps will blink twice.
NOTE For vehicles equipped with the
mirror retractor switch, the outside
rear-view mirrors automatically retract
or extend when all the doors are locked
or unlocked using the key switches of
the keyless entry system. Refer to
“Starting and driving: Outside rear-view
mirrors”.
NOTE If the UNLOCK switch (2) is
pressed and no door is opened within
approximately 30 seconds, relocking
will automatically occur.
It is possible to modify functions as
follows: For further information, please
contact a Fiat Dealership.
The time from pressing of the
UNLOCK switch (2) to the moment of
automatic locking can be changed.
Activating the operation confirmation
function (blinking of the turn-signal
lamps) only during locking, or only
during unlocking.
The confirmation function (this
indicates locking or unlocking of the
doors with the blink of the turn-signal
lamps) can be deactivated.
The number of times the turn-signal
lamps are blinked by the confirmation
function can be changed.
On vehicles with keyless operation
system, the buzzer sound can be
activated when a keyless operation is
done.
13
2213
6AHA101774
14
GETTING TO KNOW YOUR VEHICLE

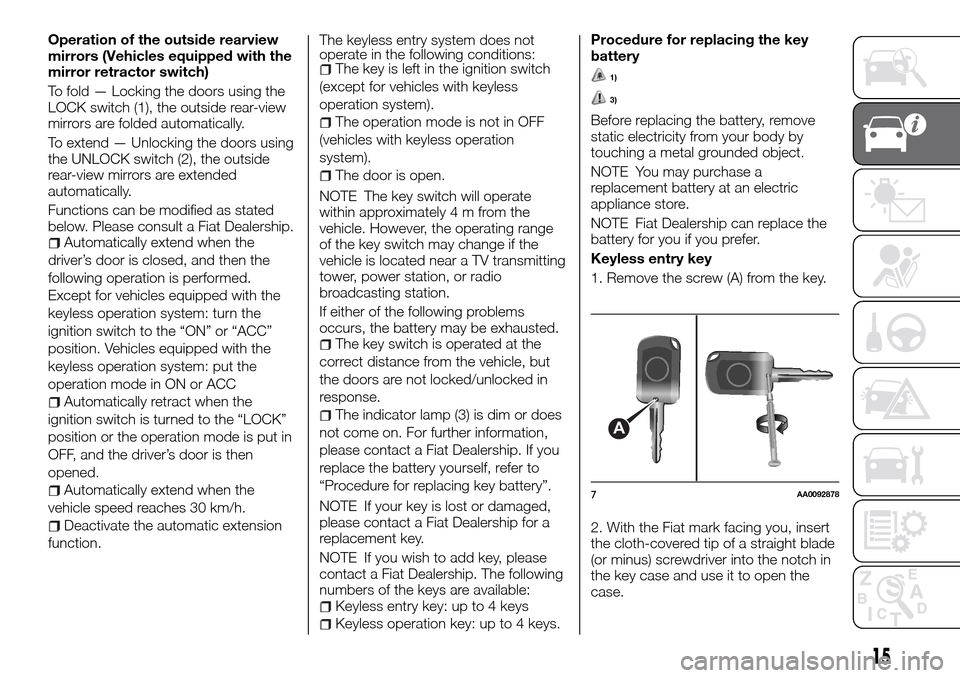

Operation of the outside rearview
mirrors (Vehicles equipped with the
mirror retractor switch)
To fold — Locking the doors using the
LOCK switch (1), the outside rear-view
mirrors are folded automatically.
To extend — Unlocking the doors using
the UNLOCK switch (2), the outside
rear-view mirrors are extended
automatically.
Functions can be modified as stated
below. Please consult a Fiat Dealership.
Automatically extend when the
driver’s door is closed, and then the
following operation is performed.
Except for vehicles equipped with the
keyless operation system: turn the
ignition switch to the “ON” or “ACC”
position. Vehicles equipped with the
keyless operation system: put the
operation mode in ON or ACC
Automatically retract when the
ignition switch is turned to the “LOCK”
position or the operation mode is put in
OFF, and the driver’s door is then
opened.
Automatically extend when the
vehicle speed reaches 30 km/h.
Deactivate the automatic extension
function.The keyless entry system does not
operate in the following conditions:
The key is left in the ignition switch
(except for vehicles with keyless
operation system).
The operation mode is not in OFF
(vehicles with keyless operation
system).
The door is open.
NOTE The key switch will operate
within approximately4mfromthe
vehicle. However, the operating range
of the key switch may change if the
vehicle is located near a TV transmitting
tower, power station, or radio
broadcasting station.
If either of the following problems
occurs, the battery may be exhausted.
The key switch is operated at the
correct distance from the vehicle, but
the doors are not locked/unlocked in
response.
The indicator lamp (3) is dim or does
not come on. For further information,
please contact a Fiat Dealership. If you
replace the battery yourself, refer to
“Procedure for replacing key battery”.
NOTE If your key is lost or damaged,
please contact a Fiat Dealership for a
replacement key.
NOTE If you wish to add key, please
contact a Fiat Dealership. The following
numbers of the keys are available:
Keyless entry key: up to 4 keys
Keyless operation key: up to 4 keys.
Procedure for replacing the key
battery
1)
3)
Before replacing the battery, remove
static electricity from your body by
touching a metal grounded object.
NOTE You may purchase a
replacement battery at an electric
appliance store.
NOTE Fiat Dealership can replace the
battery for you if you prefer.
Keyless entry key
1. Remove the screw (A) from the key.
2. With the Fiat mark facing you, insert
the cloth-covered tip of a straight blade
(or minus) screwdriver into the notch in
the key case and use it to open the
case.
A
7AA0092878
15

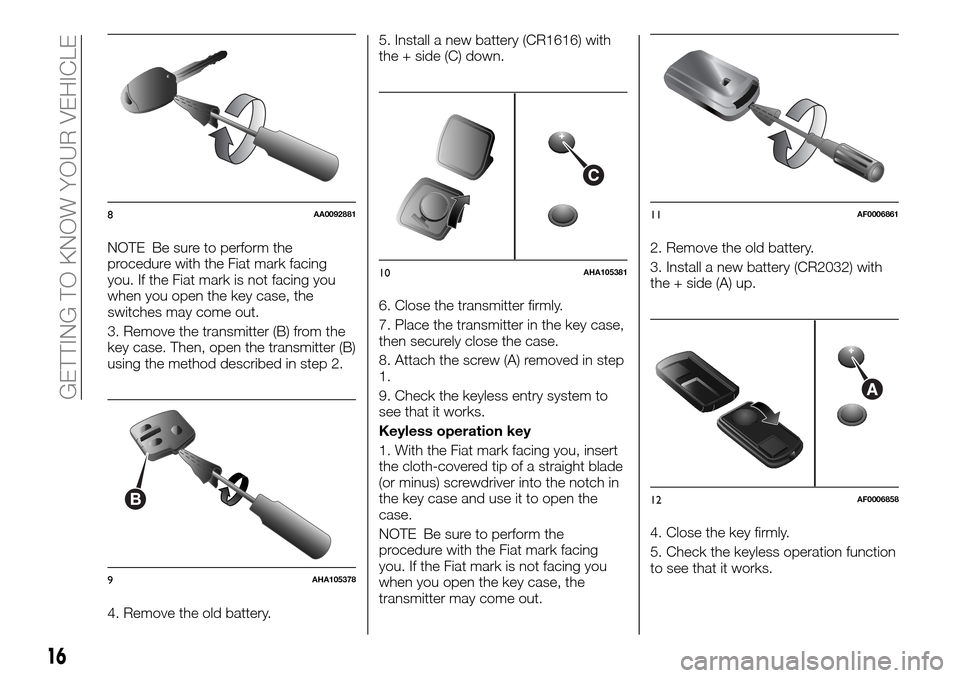

NOTE Be sure to perform the
procedure with the Fiat mark facing
you. If the Fiat mark is not facing you
when you open the key case, the
switches may come out.
3. Remove the transmitter (B) from the
key case. Then, open the transmitter (B)
using the method described in step 2.
4. Remove the old battery.5. Install a new battery (CR1616) with
the + side (C) down.
6. Close the transmitter firmly.
7. Place the transmitter in the key case,
then securely close the case.
8. Attach the screw (A) removed in step
1.
9. Check the keyless entry system to
see that it works.
Keyless operation key
1. With the Fiat mark facing you, insert
the cloth-covered tip of a straight blade
(or minus) screwdriver into the notch in
the key case and use it to open the
case.
NOTE Be sure to perform the
procedure with the Fiat mark facing
you. If the Fiat mark is not facing you
when you open the key case, the
transmitter may come out.2. Remove the old battery.
3. Install a new battery (CR2032) with
the + side (A) up.
4. Close the key firmly.
5. Check the keyless operation function
to see that it works.
8AA0092881
B
9AHA105378
C
10AHA105381
11AF0006861
A
12AF0006858
16
GETTING TO KNOW YOUR VEHICLE

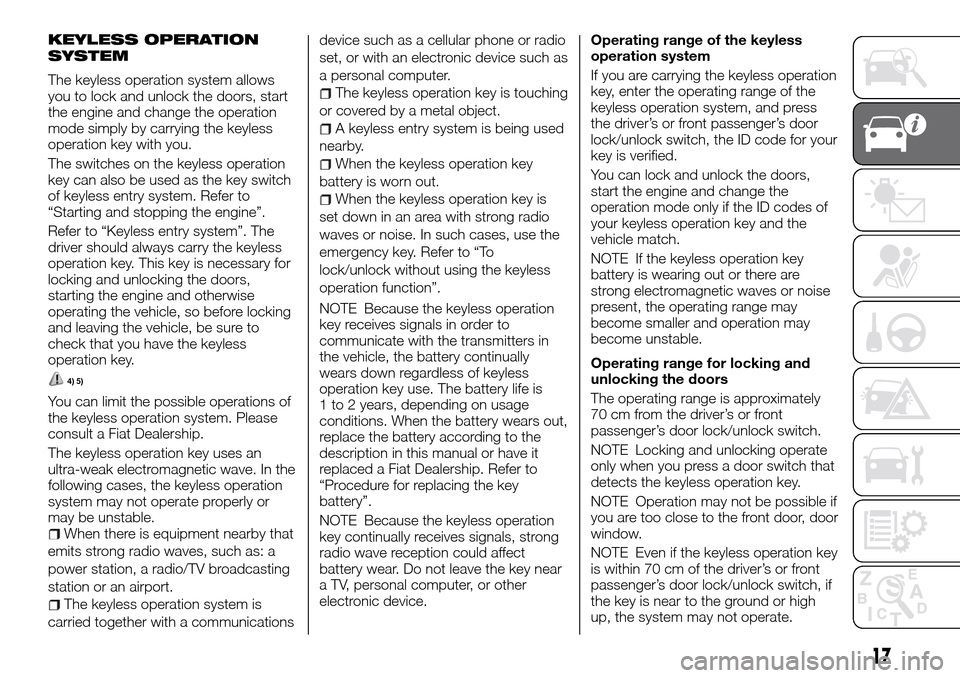

KEYLESS OPERATION
SYSTEM
The keyless operation system allows
you to lock and unlock the doors, start
the engine and change the operation
mode simply by carrying the keyless
operation key with you.
The switches on the keyless operation
key can also be used as the key switch
of keyless entry system. Refer to
“Starting and stopping the engine”.
Refer to “Keyless entry system”. The
driver should always carry the keyless
operation key. This key is necessary for
locking and unlocking the doors,
starting the engine and otherwise
operating the vehicle, so before locking
and leaving the vehicle, be sure to
check that you have the keyless
operation key.
4) 5)
You can limit the possible operations of
the keyless operation system. Please
consult a Fiat Dealership.
The keyless operation key uses an
ultra-weak electromagnetic wave. In the
following cases, the keyless operation
system may not operate properly or
may be unstable.
When there is equipment nearby that
emits strong radio waves, such as: a
power station, a radio/TV broadcasting
station or an airport.
The keyless operation system is
carried together with a communicationsdevice such as a cellular phone or radio
set, or with an electronic device such as
a personal computer.
The keyless operation key is touching
or covered by a metal object.
A keyless entry system is being used
nearby.
When the keyless operation key
battery is worn out.
When the keyless operation key is
set down in an area with strong radio
waves or noise. In such cases, use the
emergency key. Refer to “To
lock/unlock without using the keyless
operation function”.
NOTE Because the keyless operation
key receives signals in order to
communicate with the transmitters in
the vehicle, the battery continually
wears down regardless of keyless
operation key use. The battery life is
1 to 2 years, depending on usage
conditions. When the battery wears out,
replace the battery according to the
description in this manual or have it
replaced a Fiat Dealership. Refer to
“Procedure for replacing the key
battery”.
NOTE Because the keyless operation
key continually receives signals, strong
radio wave reception could affect
battery wear. Do not leave the key near
a TV, personal computer, or other
electronic device.Operating range of the keyless
operation system
If you are carrying the keyless operation
key, enter the operating range of the
keyless operation system, and press
the driver’s or front passenger’s door
lock/unlock switch, the ID code for your
key is verified.
You can lock and unlock the doors,
start the engine and change the
operation mode only if the ID codes of
your keyless operation key and the
vehicle match.
NOTE If the keyless operation key
battery is wearing out or there are
strong electromagnetic waves or noise
present, the operating range may
become smaller and operation may
become unstable.
Operating range for locking and
unlocking the doors
The operating range is approximately
70 cm from the driver’s or front
passenger’s door lock/unlock switch.
NOTE Locking and unlocking operate
only when you press a door switch that
detects the keyless operation key.
NOTE Operation may not be possible if
you are too close to the front door, door
window.
NOTE Even if the keyless operation key
is within 70 cm of the driver’s or front
passenger’s door lock/unlock switch, if
the key is near to the ground or high
up, the system may not operate.
17

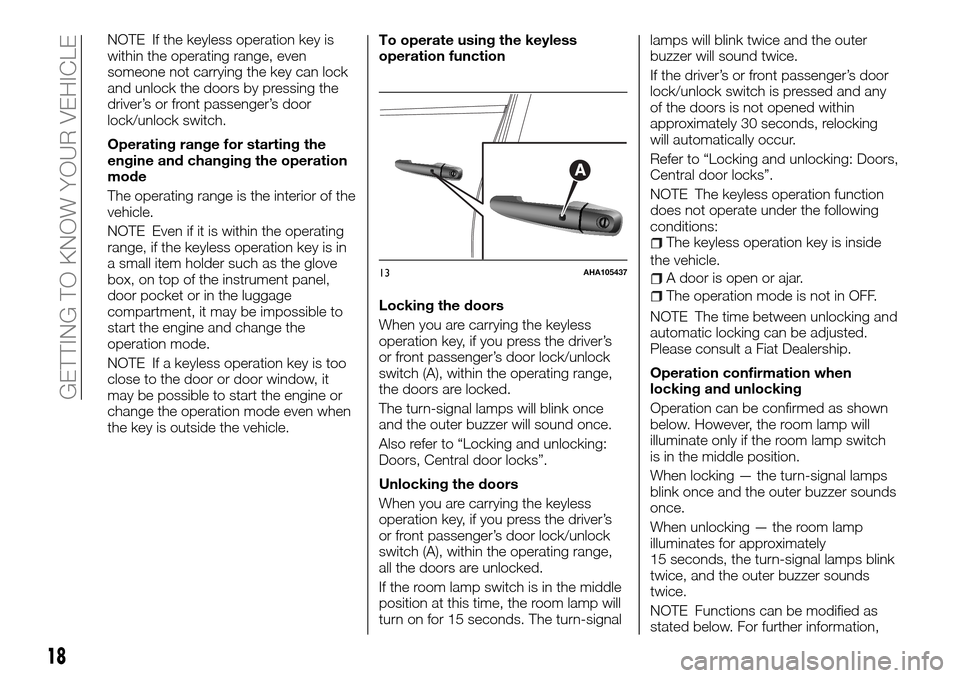

NOTE If the keyless operation key is
within the operating range, even
someone not carrying the key can lock
and unlock the doors by pressing the
driver’s or front passenger’s door
lock/unlock switch.
Operating range for starting the
engine and changing the operation
mode
The operating range is the interior of the
vehicle.
NOTE Even if it is within the operating
range, if the keyless operation key is in
a small item holder such as the glove
box, on top of the instrument panel,
door pocket or in the luggage
compartment, it may be impossible to
start the engine and change the
operation mode.
NOTE If a keyless operation key is too
close to the door or door window, it
may be possible to start the engine or
change the operation mode even when
the key is outside the vehicle.To operate using the keyless
operation function
Locking the doors
When you are carrying the keyless
operation key, if you press the driver’s
or front passenger’s door lock/unlock
switch (A), within the operating range,
the doors are locked.
The turn-signal lamps will blink once
and the outer buzzer will sound once.
Also refer to “Locking and unlocking:
Doors, Central door locks”.
Unlocking the doors
When you are carrying the keyless
operation key, if you press the driver’s
or front passenger’s door lock/unlock
switch (A), within the operating range,
all the doors are unlocked.
If the room lamp switch is in the middle
position at this time, the room lamp will
turn on for 15 seconds. The turn-signallamps will blink twice and the outer
buzzer will sound twice.
If the driver’s or front passenger’s door
lock/unlock switch is pressed and any
of the doors is not opened within
approximately 30 seconds, relocking
will automatically occur.
Refer to “Locking and unlocking: Doors,
Central door locks”.
NOTE The keyless operation function
does not operate under the following
conditions:
The keyless operation key is inside
the vehicle.
A door is open or ajar.
The operation mode is not in OFF.
NOTE The time between unlocking and
automatic locking can be adjusted.
Please consult a Fiat Dealership.
Operation confirmation when
locking and unlocking
Operation can be confirmed as shown
below. However, the room lamp will
illuminate only if the room lamp switch
is in the middle position.
When locking — the turn-signal lamps
blink once and the outer buzzer sounds
once.
When unlocking — the room lamp
illuminates for approximately
15 seconds, the turn-signal lamps blink
twice, and the outer buzzer sounds
twice.
NOTE Functions can be modified as
stated below. For further information,
A
13AHA105437
18
GETTING TO KNOW YOUR VEHICLE
