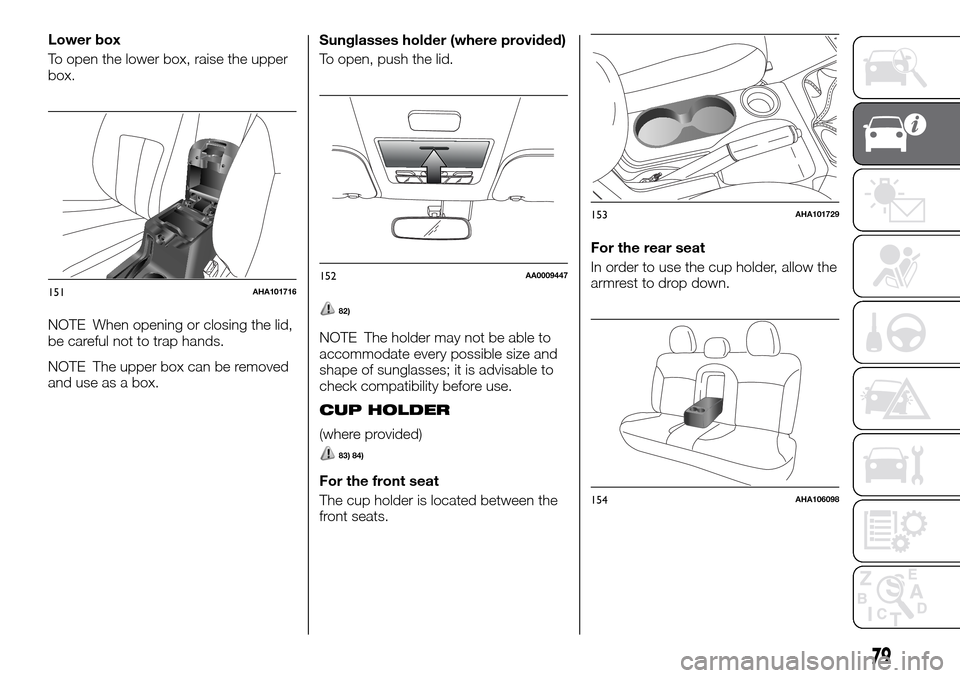

Lower box
To open the lower box, raise the upper
box.
NOTE When opening or closing the lid,
be careful not to trap hands.
NOTE The upper box can be removed
and use as a box.Sunglasses holder (where provided)
To open, push the lid.
82)
NOTE The holder may not be able to
accommodate every possible size and
shape of sunglasses; it is advisable to
check compatibility before use.
CUP HOLDER
(where provided)
83) 84)
For the front seat
The cup holder is located between the
front seats.For the rear seat
In order to use the cup holder, allow the
armrest to drop down.
151AHA101716152AA0009447
153AHA101729
154AHA106098
79

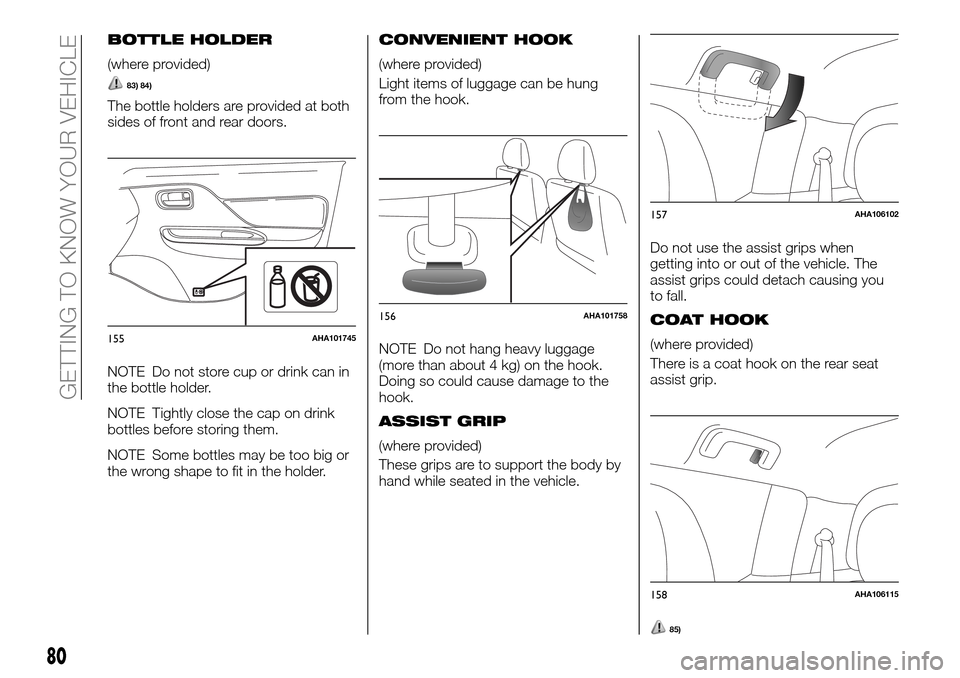

BOTTLE HOLDER
(where provided)
83) 84)
The bottle holders are provided at both
sides of front and rear doors.
NOTE Do not store cup or drink can in
the bottle holder.
NOTE Tightly close the cap on drink
bottles before storing them.
NOTE Some bottles may be too big or
the wrong shape to fit in the holder.
CONVENIENT HOOK
(where provided)
Light items of luggage can be hung
from the hook.
NOTE Do not hang heavy luggage
(more than about 4 kg) on the hook.
Doing so could cause damage to the
hook.
ASSIST GRIP
(where provided)
These grips are to support the body by
hand while seated in the vehicle.Do not use the assist grips when
getting into or out of the vehicle. The
assist grips could detach causing you
to fall.
COAT HOOK
(where provided)
There is a coat hook on the rear seat
assist grip.
85)
155AHA101745
156AHA101758
157AHA106102
158AHA106115
80
GETTING TO KNOW YOUR VEHICLE

WARNING
79)Don’t put papers and other things that
burn into your ashtrays. If you do,
cigarettes or other smoking materials could
set them on fire, causing damage.
80)Do not touch the heating element or
the cigarette lighter housing, hold the knob
only to prevent burns.
81)Keep the lids of storage spaces closed
while driving the vehicle. A lid or the
contents of a storage space could
otherwise cause injuries.
82)The holder should not be used to store
anything heavier than sunglasses. These
objects could drop out.
83)Do not drink beverages while driving.
This is distracting and could cause an
accident.
84)Drinks could be spilled by the vibration
and jolts while driving. If the spilt drink is
very hot, you could be burnt.
85)Do not put a hanger or any heavy or
pointed object on the coat hook. If the
curtain airbag was activated, any such item
could be propelled away with great force
and could prevent the curtain airbag from
inflating correctly. Hang clothes directly on
the coat hook (without using a hanger).
Make sure there are no heavy or sharp
objects in the pockets of clothes that you
hang on the coat hook.
IMPORTANT
27)When the accessory socket is not in
use, be sure to close the lid, because the
socket might become clogged by foreign
material and be short-circuited.
28)Never leave lighters, canned
carbonated beverage, and spectacles in
the cabin when parking the vehicle in hot
sunshine. The cabin will become extremely
hot, so lighters and other flammable items
may catch fire and unopened drink cans
may rupture. Also, spectacles with plastic
lenses or materials could deform or crack.
29)Put out matches and cigarettes before
they are placed in the ashtray.
30)Always close the ashtray. If left open,
other cigarette butts in the ashtray may be
rekindled.
31)Be sure to use a “plug-in” type
accessory operating at 12 V and at 120 W
or less. When using more than one socket
at the same time, make sure that the
electrical accessories are 12 V accessories
and that the total power consumption does
not exceed 120 W.
32)Long use of the electric appliance
without running the engine may run down
the battery.
FUEL SELECTION
RecommendedPetrol-powered vehicles:
Unleaded petrol octane number
90 RON or higher
Diesel-powered vehicles: Cetane
number (EN590) 51 or higher
Ethanol/Gasohol (Petrol-powered
vehicles only)
A mixture of up to 10 % ethanol (grain
alcohol) and 90 % unleaded petrol may
be used in your vehicle, provided the
octane number is at least as high as
that recommended for Fuel selection
unleaded petrol.
33) 34) 35) 36) 37) 38)
In petrol-powered vehicles, repeatedly
driving short distance at low speeds
can cause deposits to form in the fuel
system and engine, resulting in poor
starting and poor acceleration. If these
problems occur, you are advised to add
a detergent additive to the petrol when
you refuel the vehicle. The additive will
remove the deposits, thereby returning
the engine to a normal condition. Be
sure to use a FCA GENUINE FUEL
SYSTEM CLEANER. Using an
unsuitable additive could make the
engine malfunction. For details, please
contact the nearest Fiat Dealership.
Poor quality petrol can cause problems
such as hard starting, stalling, engine
noise and hesitation. If your experience
these problems, try another brand
and/or grade of petrol. If the check
81

engine warning lamp flashes, have the
system checked as soon as possible at
an authorised Fiat Dealership.
In diesel-powered vehicles, in case
cetane number (EN590) 51 or higher is
not available, use cetane number 45 or
higher.
In diesel-powered vehicles, poor-quality
diesel fuel can cause deposits form in
the injector, resulting in black smoke
and rough idling. If these problems
occur, you are advised to add a
cleaning additive to the diesel fuel when
you refuel the vehicle. The additive will
break up and remove the deposits,
thereby returning the engine to a normal
condition. Be sure to use a FCA
GENUINE DIESEL FUEL SYSTEM
CLEANER. Using an unsuitable additive
could make the engine malfunction. For
detailed, please contact the nearest
authorised Fiat Dealership.
IMPORTANT
33)For unleaded petrol-powered vehicles,
the use of leaded fuel can result in serious
damage to the engine and catalytic
converter. Do not use the leaded fuel.
34)Do not use more than 10 %
concentration of ethanol (grain alcohol) by
volume. Use of more than 10 %
concentration may lead to damage to your
vehicle fuel system, engine, engine sensors
and exhaust system.35)Do not operate your vehicle on petrol
containing methanol. Using this type of
alcohol could adversely affect the vehicle’s
performance and damage critical parts of
the vehicle’s fuel system.
36)Diesel-powered vehicles to comply with
the Euro 4 and Euro 5 regulation are
designed to use only diesel fuel that meets
the EN 590 standard. Use of any other type
of diesel fuel would adversely affect the
engine’s performance and durability.
37)Your vehicle is designed to use only
diesel fuel that meets the EN 590 standard.
Use of any other type of diesel fuel (bio
diesel, methylester, etc.) would adversely
affect the engine’s performance and
durability.
38)For diesel engines, only use diesel fuel
for motor vehicles in accordance with EN
590 European specifications. The use of
other products or mixtures may damage
the engine beyond repair and consequently
invalidate the warranty, due to the damage
caused. If you accidentally introduce other
types of fuel into the tank, do not start the
engine. Empty the tank. If the engine has
been run for even an extremely limited
amount of time, you must not only drain the
fuel tank, but the rest of the supply circuit
as well.
FILLING THE FUEL
TANK
86) 87) 88) 89) 90) 91) 92) 93) 94) 95) 96)
Fuel tank capacity: 75 litres.
1. Before filling with fuel, stop the
engine.
2. The fuel tank filler is located on the
rear left side of your vehicle.
Type 1,2
1. Open the fuel tank filler door with the
release lever located below the
instrument panel.
159AHA105802
82
GETTING TO KNOW YOUR VEHICLE

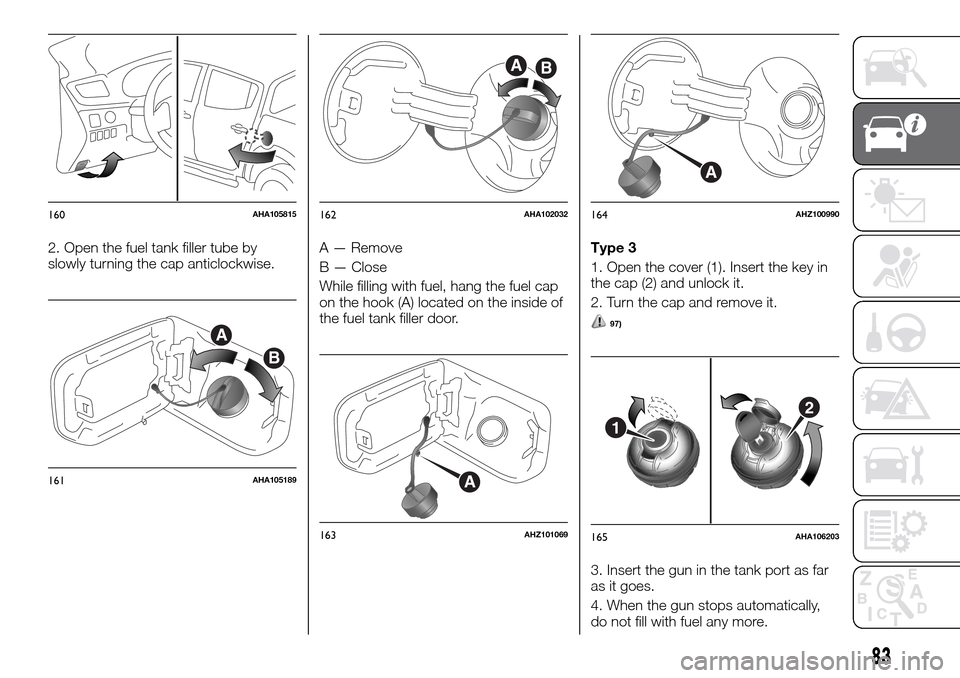

2. Open the fuel tank filler tube by
slowly turning the cap anticlockwise.A — Remove
B — Close
While filling with fuel, hang the fuel cap
on the hook (A) located on the inside of
the fuel tank filler door.Type 3
1. Open the cover (1). Insert the key in
the cap (2) and unlock it.
2. Turn the cap and remove it.
97)
3. Insert the gun in the tank port as far
as it goes.
4. When the gun stops automatically,
do not fill with fuel any more.
160AHA105815
A
B
161AHA105189
AB
162AHA102032
A
163AHZ101069
A
164AHZ100990
1
2
165AHA106203
83

5. To close, turn the fuel cap slowly
clockwise until you hear clicking
sounds, then gently push the fuel tank
filler door closed.
WARNING
86)When handling fuel, comply with the
safety regulations displayed by garages
and filling stations.
87)Fuel is highly flammable and explosive.
You could be burned or seriously injured
when handling it. When refueling your
vehicle, always turn the engine off and
keep away from flames, sparks and
smoking materials. Always handle fuel in
well ventilated outdoor areas.
88)Before removing the fuel cap, be sure
to get rid of your body’s static electricity by
touching a metal part of the vehicle or fuel
pump. Any static electricity on your body
could create a spark that ignites fuel vapor.
89)Perform the whole refueling process
(opening the fuel tank filler door, removing
the fuel cap, etc.) by yourself. Do not let
any other person come near the fuel tank
filler. If you allowed a person to help you
and that person was carrying static
electricity, fuel vapor could be ignited.
90)Do not move away from the fuel tank
filler until refueling is finished. If you moved
away and did something else (for example,
sitting on a seat) part-way through the
refueling process, you could pick up a
fresh charge of static electricity.
91)Be careful not to inhale fuel vapor. Fuel
contains toxic substances.92)Keep the doors and windows closed
while refueling the vehicle. If they were
open, fuel vapor could get into the cabin.
93)If the fuel cap must be replaced, use
only a Fiat genuine part.
94)Since the fuel system may be under
pressure, remove the fuel cap slowly. This
relieves any pressure or vacuum that might
have built up in the fuel tank. If you hear a
hissing sound, wait until it stops before
removing the cap. Otherwise, fuel may
spray out, injuring you or others.
95)Do not apply any object/plug to the
end of the filler which is not provided for
the car. The use of non-compliant
objects/plugs could cause a pressure
increase inside the tank, resulting in
dangerous situations.
96)Do not use a mobile phone near the
refuelling pump: risk of fire.
97)Do not tilt the gun.
84
GETTING TO KNOW YOUR VEHICLE

KNOWING THE INSTRUMENT PANEL
This section of the booklet gives you all
the information you need to
understand, interpret and use the
instrument panel correctly.INSTRUMENTS..............86
MULTI INFORMATION DISPLAY....86
INDICATOR AND WARNING
LAMPS...................94
85

INSTRUMENTS
1. Tachometer — The tachometer
indicates the engine speed (r/min). The
tachometer can help you obtain more
economical driving and also warns you
of excessive engine speed (Red zone).
2. Multi information display
3. Speedometer (km/h or mph + km/h)
4. Multi information display switch
39)
IMPORTANT
39)When driving, watch the tachometer to
make sure that the engine speed indication
does not rise into the red zone (excessive
engine rpm).
MULTI INFORMATION
DISPLAY
Always stop the vehicle in a safe place
before operating.
The following information is included on
the multi information display: odometer,
tripmeter, average fuel consumption
etc.
1. Engine coolant temperature display
2. Selector lever position display*
3. Fuel remaining display 4. Frozen
road warning* 5. Information display
6. Service reminder
* If so equipped
NOTE When the ignition switch or the
operation mode is OFF, the speed
limiter display, gearshift indicator,
selector lever position display, fuel
remaining display, engine coolant
temperature display and frozen road
warning are not displayed.
166AHA103361
167AA0110510
6
5
3
2
4
1
168AHA101279
86
KNOWING THE INSTRUMENT PANEL

INFORMATION DISPLAY
Each time you lightly press the multi information display switch (A), the display switches in the following order.
1. Odometer 2. Tripmeter A 3. Tripmeter B 4. Meter illumination control 5. Driving range display 6. Average fuel
consumption display 7. Outside temperature display* 8. Service reminder (distance) 9. Service reminder (month)
* — if so equipped
NOTE When the ignition switch or the operation mode is OFF, the driving range display, average fuel consumption display and
outside temperature display are not displayed.
NOTE While driving, the service reminder is not displayed even if you operate the multi information display switch.
89
169AH1100267
87

Odometer
The odometer indicates the distance
travelled
Tripmeter
The tripmeter indicates the distance
travelled between two points.
Example usage of tripmeter A and
tripmeter B.
It is possible to measure two currently
travelled distances, from home using
tripmeter A and from a particular point
on the way using tripmeter B.
To reset tripmeter
To return the display to 0, hold down
the multi information display switch for
about 2 seconds or more. Only the
currently displayed value will be reset.
Example
If tripmeter A is displayed, only
tripmeter A will be reset.
NOTE When disconnecting the battery
terminal, the memory of tripmeter A and
B are cleared, and the display returns to
“0”.
Meter illumination control
Each time you press and hold the multi
information display switch (2) for about
2 seconds or more, there is a sound
and the brightness of the instruments
changes.NOTE You can adjust to 8 different
levels respectively for when the position
lamps are illuminated and when they
are not. Each time you reduce two
brightness levels, the segment display
of the brightness level decreases one
by one.
NOTE If the vehicle is equipped with
the automatic lamp control, when the
lamp switch is in a position other than
the “OFF” position, the meter
illumination switches automatically to
the adjusted brightness, depending on
the brightness outside the vehicle.
NOTE The brightness level of the
instruments is stored when the ignition
switch is turned off or the operation
mode is put in OFF.Driving range display
This displays the approximate driving
range (how many more kilometres or
miles you can drive). When the driving
range falls below approximately 50 km
(30 miles), “---” is displayed.
NOTE The driving range is determined
based on the fuel consumption data.
This may vary depending on the driving
conditions and habits. Treat the
distance displayed as just a rough
guideline.
NOTE When you refuel, the driving
range display is updated. However, if
you only add a small amount of fuel, the
correct value will not be displayed. Fill
with a full tank whenever possible.
NOTE On rare occasions, the value
displayed for the driving range may
change if you are parked on an
extremely steep incline. This is due to
the movement of fuel in the tank and
does not indicate any malfunction.
NOTE The display setting can be
changed to the preferred units (km or
miles). Refer to “Changing the function
settings”.
Average fuel consumption display
This displays the average fuel
consumption from the last reset to the
present time. The reset mode
conditions for the average fuel
consumption display can be switched
170AHA101282
88
KNOWING THE INSTRUMENT PANEL
