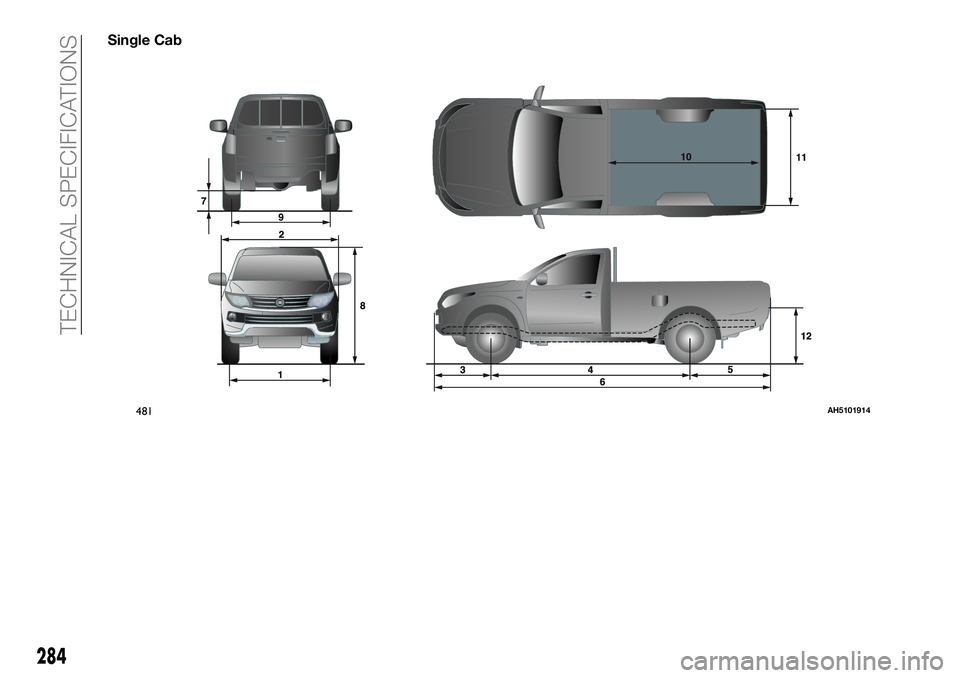

Single Cab
481AH5101914
284
TECHNICAL SPECIFICATIONS

VEHICLE PERFORMANCE
Single cab
Maximum speed 169 km/h
Club cab
Vehicles without wide fender Vehicles with wide fender
Maximum speed 169 km/h 179 km/h
Double cab
Vehicles without wide
fenderVehicles with wide fender
M/T A/T
Maximum speed 169 km/h174 km/h
179 km/h173 km/h
177 km/h(1)
(1)Vehicles with high power engine
286
TECHNICAL SPECIFICATIONS

Club Cab
Vehicles without wide fenderVehicles with
wide fender
LHD RHD
Kerb weightWithout optional
parts1,820 kg 1,805 kg 1,840 kg
With full optional
parts1,910 kg 1,895 kg 1,930 kg
Maximum gross vehicle weight 2,850 kg
Maximum axle weightFront 1,260 kg
Rrear 1,840 kg
Maximum towable weightWith brake 3,000 kg
Without brake 750 kg
Maximum trailer-nose weight 120 kg
Maximum gross combination weight 5,820 kg
Maximum permissible weight of the coupling device 34 kg
Seating capacity
4 persons, 2 persons
(*)
(*) Vehicles equipped with rear seatless option
NOTE: Trailer specifications indicate the manufacturer’s recommendation.
NOTE: When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
NOTE: The trailer weights related specifications are not applicable to use in some markets, the correct maximum weights are
stated in the registration book of the vehicle.
288
TECHNICAL SPECIFICATIONS

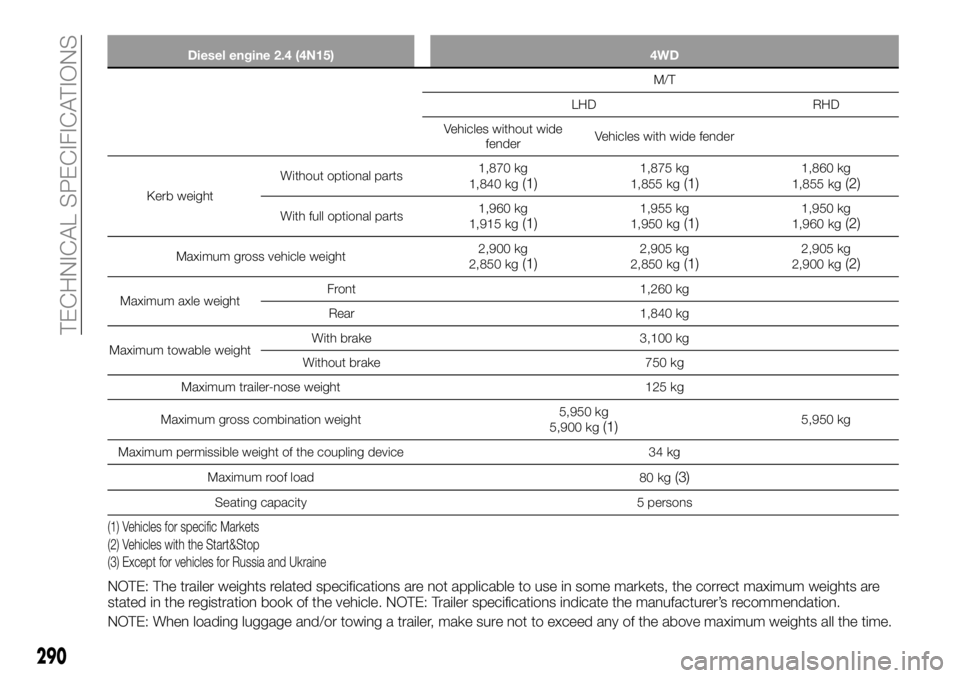

Diesel engine 2.4 (4N15) 4WD
M/T
LHD RHD
Vehicles without wide
fenderVehicles with wide fender
Kerb weightWithout optional parts1,870 kg
1,840 kg
(1)1,875 kg
1,855 kg(1)1,860 kg
1,855 kg(2)
With full optional parts1,960 kg
1,915 kg(1)1,955 kg
1,950 kg(1)1,950 kg
1,960 kg(2)
Maximum gross vehicle weight2,900 kg
2,850 kg(1)2,905 kg
2,850 kg(1)2,905 kg
2,900 kg(2)
Maximum axle weightFront 1,260 kg
Rear 1,840 kg
Maximum towable weightWith brake 3,100 kg
Without brake 750 kg
Maximum trailer-nose weight 125 kg
Maximum gross combination weight5,950 kg
5,900 kg
(1)5,950 kg
Maximum permissible weight of the coupling device 34 kg
Maximum roof load
80 kg
(3)
Seating capacity 5 persons
(1) Vehicles for specific Markets
(2) Vehicles with the Start&Stop
(3) Except for vehicles for Russia and Ukraine
NOTE: The trailer weights related specifications are not applicable to use in some markets, the correct maximum weights are
stated in the registration book of the vehicle. NOTE: Trailer specifications indicate the manufacturer’s recommendation.
NOTE: When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
290
TECHNICAL SPECIFICATIONS

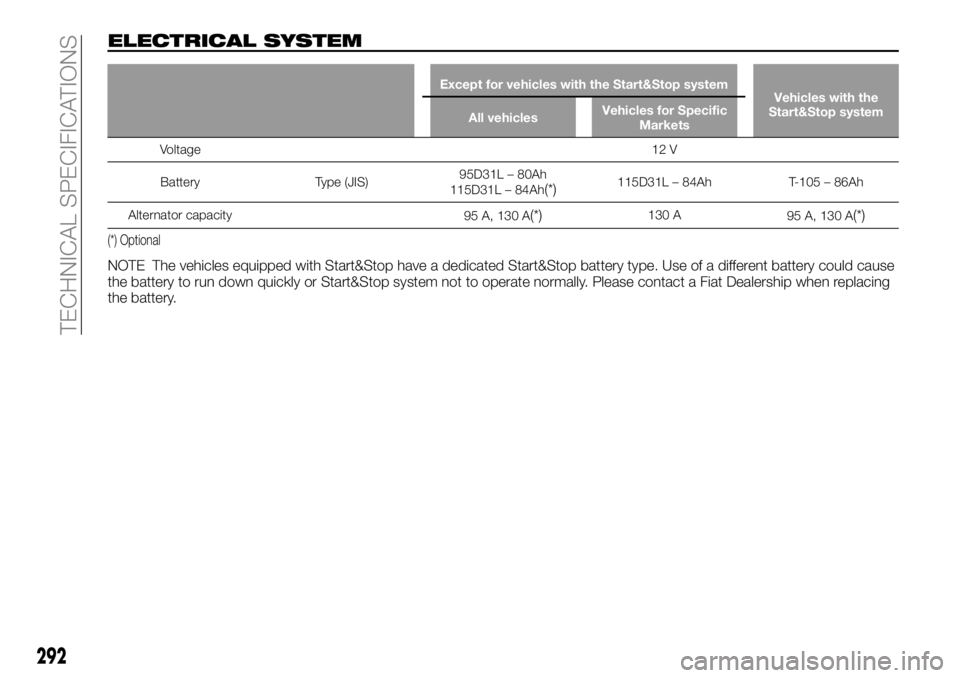

ELECTRICAL SYSTEM
Except for vehicles with the Start&Stop system
Vehicles with the
Start&Stop system
All vehiclesVehicles for Specific
Markets
Voltage12 V
Battery Type (JIS)95D31L – 80Ah
115D31L – 84Ah
(*)115D31L – 84Ah T-105 – 86Ah
Alternator capacity
95 A, 130 A
(*)130 A
95 A, 130 A(*)
(*) Optional
NOTE The vehicles equipped with Start&Stop have a dedicated Start&Stop battery type. Use of a different battery could cause
the battery to run down quickly or Start&Stop system not to operate normally. Please contact a Fiat Dealership when replacing
the battery.
292
TECHNICAL SPECIFICATIONS

CAPACITY
A— RHD vehicles
No. Quantity Lubricants
1Engine coolant
(Includes 0.65 litre in the reserve tank)7.7 litresPARAFLU UPContractual Technical Reference
N° F101.M01 (1)
2 Brake fluid As requiredDOT4
TUTELA TOP 4/SContractual Technical Reference
N° F005.F15
482VANODIESEL3231EM
294
TECHNICAL SPECIFICATIONS

No. Quantity Lubricants
Refrigerant (Air
conditioning)Amount 0.52 kg
HFC-134a(2)Co2equivalent0.743 t
GWP 1,430
(2) Contains fluorinated greenhouse gases
NOTE For the Automatic transmission fluid, use only the Fiat Genuine products. Use of a different fluid could damage the
transmission.

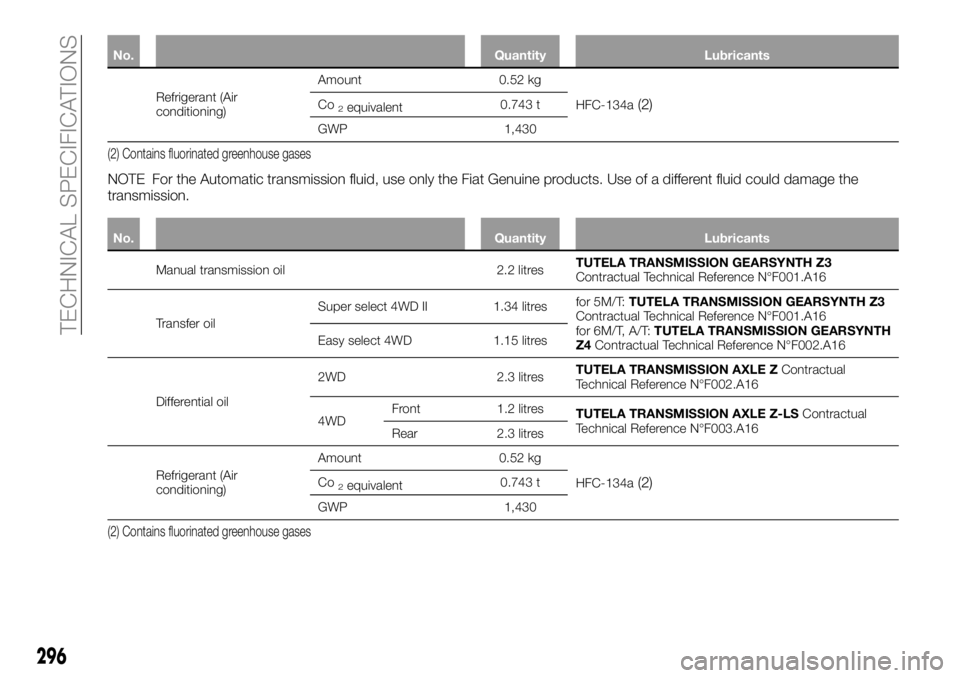

No. Quantity Lubricants
Manual transmission oil 2.2 litresTUTELA TRANSMISSION GEARSYNTH Z3
Contractual Technical Reference N°F001.A16
Transfer oilSuper select 4WD II 1.34 litresfor 5M/T:TUTELA TRANSMISSION GEARSYNTH Z3
Contractual Technical Reference N°F001.A16
for 6M/T, A/T:TUTELA TRANSMISSION GEARSYNTH
Z4Contractual Technical Reference N°F002.A16 Easy select 4WD 1.15 litres
Differential oil2WD 2.3 litresTUTELA TRANSMISSION AXLE ZContractual
Technical Reference N°F002.A16
4WDFront 1.2 litres
TUTELA TRANSMISSION AXLE Z-LSContractual
Technical Reference N°F003.A16
Rear 2.3 litres
Refrigerant (Air
conditioning)Amount 0.52 kg
HFC-134a
(2)Co2equivalent0.743 t
GWP 1,430
(2) Contains fluorinated greenhouse gases
296
TECHNICAL SPECIFICATIONS

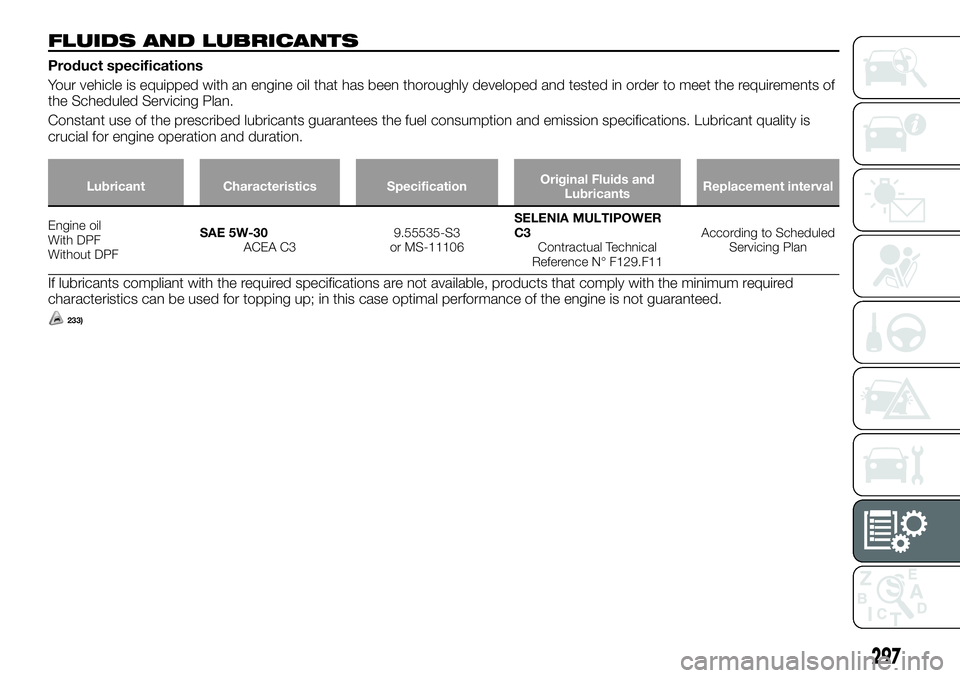

FLUIDS AND LUBRICANTS
Product specifications
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan.
Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications. Lubricant quality is
crucial for engine operation and duration.
Lubricant Characteristics SpecificationOriginal Fluids and
LubricantsReplacement interval
Engine oil
With DPF
Without DPFSAE 5W-30
ACEA C39.55535-S3
or MS-11106SELENIA MULTIPOWER
C3
Contractual Technical
Reference N° F129.F11According to Scheduled
Servicing Plan
If lubricants compliant with the required specifications are not available, products that comply with the minimum required
characteristics can be used for topping up; in this case optimal performance of the engine is not guaranteed.
233)
297

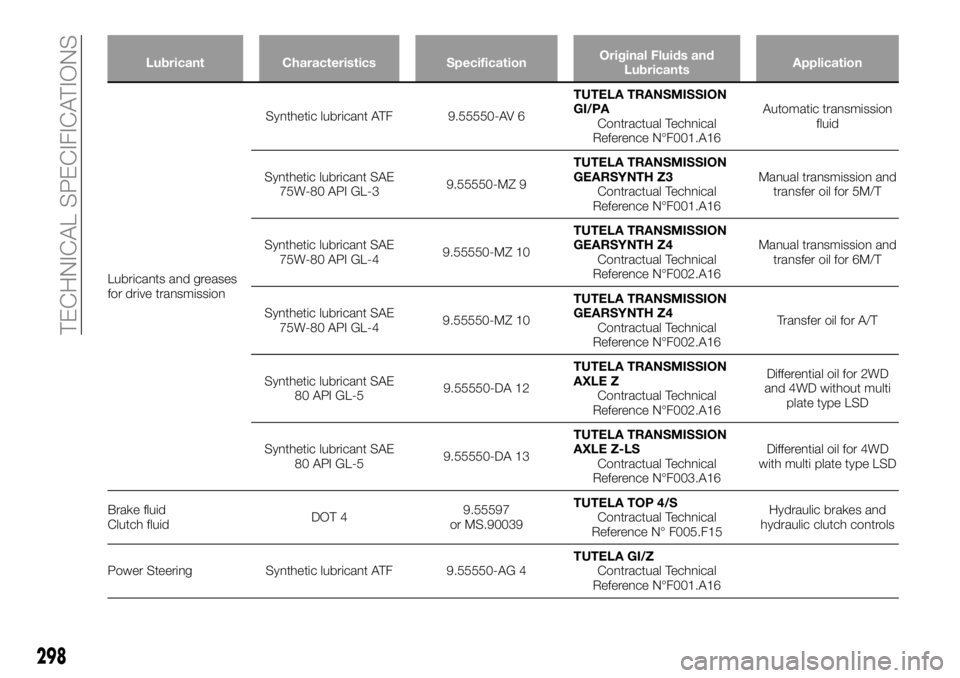

Lubricant Characteristics SpecificationOriginal Fluids and
LubricantsApplication
Lubricants and greases
for drive transmissionSynthetic lubricant ATF 9.55550-AV 6TUTELA TRANSMISSION
GI/PA
Contractual Technical
Reference N°F001.A16Automatic transmission
fluid
Synthetic lubricant SAE
75W-80 API GL-39.55550-MZ 9TUTELA TRANSMISSION
GEARSYNTH Z3
Contractual Technical
Reference N°F001.A16Manual transmission and
transfer oil for 5M/T
Synthetic lubricant SAE
75W-80 API GL-49.55550-MZ 10TUTELA TRANSMISSION
GEARSYNTH Z4
Contractual Technical
Reference N°F002.A16Manual transmission and
transfer oil for 6M/T
Synthetic lubricant SAE
75W-80 API GL-49.55550-MZ 10TUTELA TRANSMISSION
GEARSYNTH Z4
Contractual Technical
Reference N°F002.A16Transfer oil for A/T
Synthetic lubricant SAE
80 API GL-59.55550-DA 12TUTELA TRANSMISSION
AXLE Z
Contractual Technical
Reference N°F002.A16Differential oil for 2WD
and 4WD without multi
plate type LSD
Synthetic lubricant SAE
80 API GL-59.55550-DA 13TUTELA TRANSMISSION
AXLE Z-LS
Contractual Technical
Reference N°F003.A16Differential oil for 4WD
with multi plate type LSD
Brake fluid
Clutch fluidDOT 49.55597
or MS.90039TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
hydraulic clutch controls
Power Steering Synthetic lubricant ATF 9.55550-AG 4TUTELA GI/Z
Contractual Technical
Reference N°F001.A16
298

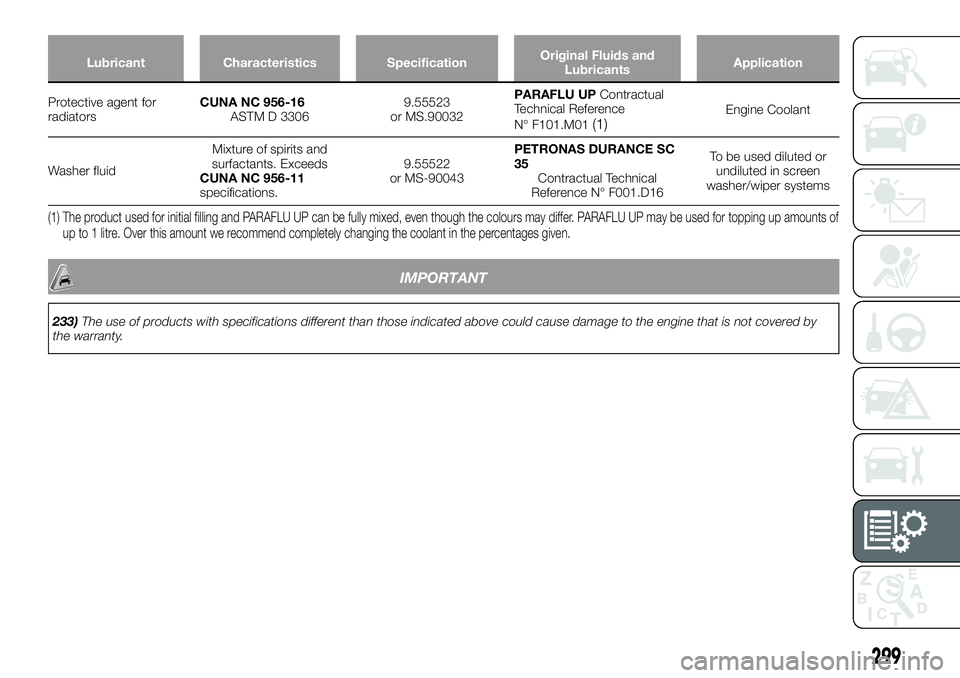

TECHNICAL SPECIFICATIONS

Lubricant Characteristics SpecificationOriginal Fluids and
LubricantsApplication
Protective agent for
radiatorsCUNA NC 956-16
ASTM D 33069.55523
or MS.90032PARAFLU UPContractual
Technical Reference
N° F101.M01
(1)Engine Coolant
Washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC 956-11
specifications.9.55522
or MS-90043PETRONAS DURANCE SC
35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in screen
washer/wiper systems
(1) The product used for initial filling and PARAFLU UP can be fully mixed, even though the colours may differ. PARAFLU UP may be used for topping up amounts of
up to 1 litre. Over this amount we recommend completely changing the coolant in the percentages given.
IMPORTANT
233)The use of products with specifications different than those indicated above could cause damage to the engine that is not covered by
the warranty.
