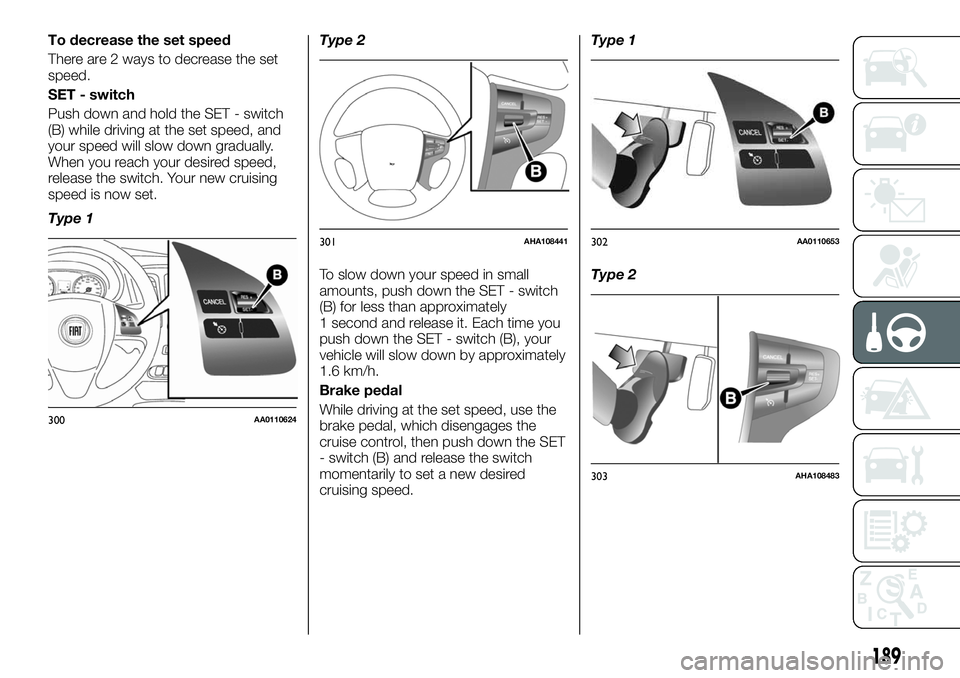

To decrease the set speed
There are 2 ways to decrease the set
speed.
SET - switch
Push down and hold the SET - switch
(B) while driving at the set speed, and
your speed will slow down gradually.
When you reach your desired speed,
release the switch. Your new cruising
speed is now set.
Type 1Type 2
To slow down your speed in small
amounts, push down the SET - switch
(B) for less than approximately
1 second and release it. Each time you
push down the SET - switch (B), your
vehicle will slow down by approximately
1.6 km/h.
Brake pedal
While driving at the set speed, use the
brake pedal, which disengages the
cruise control, then push down the SET
- switch (B) and release the switch
momentarily to set a new desired
cruising speed.Type 1
Type 2
300AA0110624
301AHA108441302AA0110653
303AHA108483
189

To temporarily decrease the speed
Depress the brake pedal to decrease
the speed. To return to the previously
set speed, push up the RES + switch
(C). Refer to “To resume the set speed”.
Type 1Type 2
To deactivate
The set speed driving can be
deactivated as follows:Press the CRUISE CONTROL
ON/OFF switch (A) (Cruise control will
be turned off).
Press the CANCEL switch (D).
Depress the brake pedal.
Type 1Type 2
The set speed driving is deactivated
automatically in any of the following
ways.
When you depress the clutch pedal
(on vehicles with M/T).
When your speed slows to
approximately 15 km/h or more below
the set speed because of a hill, etc.
When your speed slows to
approximately 40 km/h or less.
When the Electronic Stability Control
(ESC) starts operating (if so equipped).
Refer to “Electronic Stability Control
(ESC)”.
252)
Also, the set speed driving may be
deactivated when the engine speed
rises and approaches the tachometer’s
red zone (the red-coloured part of the
tachometer dial).
155)
304AA0001395
305AA0110666
306AHA108496
307AA0110679
308AHA108438
190
STARTING AND DRIVING

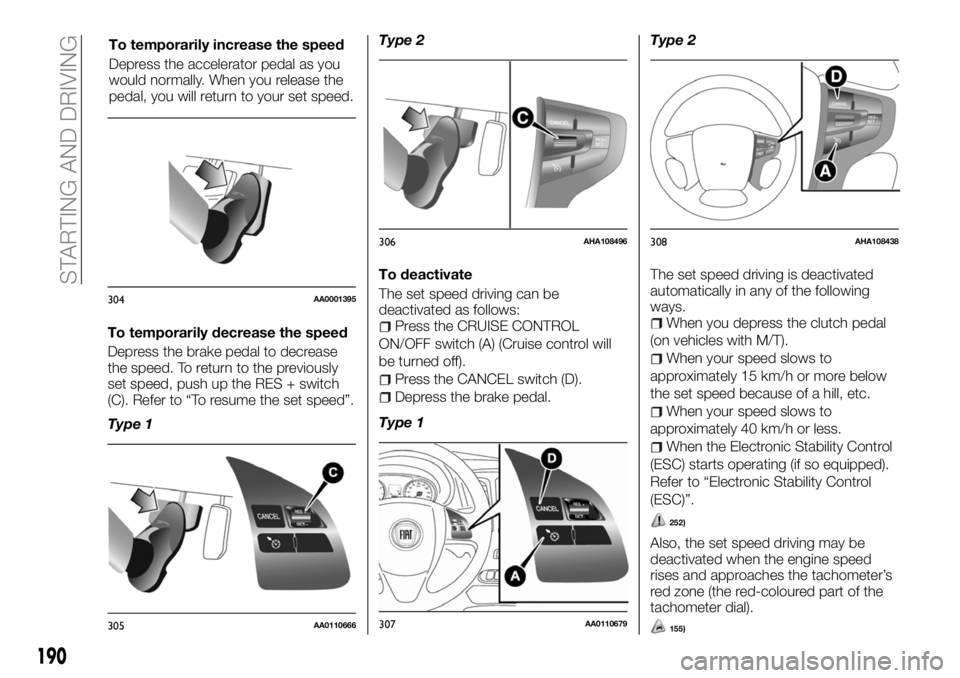

To temporarily increase the speed
Depress the accelerator pedal as you
would normally. When you release the
pedal, you will return to your set speed.

To resume the set speed
If the set speed driving is deactivated
by the condition described in “To
deactivate”, you can resume the
previously set speed by push up the
RES + switch (C) while driving at a
speed of approximately 40 km/h or
higher.
Type 1
Type 2Under either of the following conditions,
however, using the switch does not
allow you to resume the previously set
speed. In these situations, repeat the
speed setting procedure:
The CRUISE CONTROL ON/OFF
switch is pressed.
The ignition switch is turned OFF or
the operation mode is put in OFF.
Indicator lamp go off.
WARNING
250)If the device is faulty, turn ring nut A to
O, check the condition of the fuse and
contact a Fiat Dealership.
251)When travelling with the device active,
never move the gear lever to neutral.
252)On vehicles equipped with A/T,
although the set speed driving will be
deactivated when shifting to the “N”
(NEUTRAL) position, never move the
selector lever to the “N” (NEUTRAL)
position while driving. You would have no
engine braking and could cause a serious
accident.
IMPORTANT
152)When you do not wish to drive at a
set speed, turn off the cruise control for
safety.
153)On vehicles with M/T, do not move the
gearshift lever to the “N” (Neutral) position
while driving at a set speed without
depressing the clutch pedal. The engine will
run too fast and might be damaged.
154)Do not use cruise control when driving
conditions will not allow you to stay at the
same speed, such as in heavy traffic or on
roads that are winding, icy, snow-covered,
wet, slippery, on a steep downhill slope.
155)When the set speed driving is
deactivated automatically in any situation
other than those listed above, there may be
a system malfunction. Press the CRUISE
CONTROL ON/OFF switch to turn off the
cruise control and have your vehicle
inspected by a Fiat Dealership.
309AA0110637
310AHA108454
191

SPEED LIMITER
The Speed Limiter is a driver assist
function to prevent from exceeding the
speed set by driver while engine power
control.
156)
NOTE If depressing the clutch pedal
(M/T), the Speed Limiter does not
activate.
If the vehicle speed exceeds the set
speed, control state “LIMIT” and the
Speed Limiter’s symbol will blink in the
combination meter.
If the vehicle speed exceeds the set
speed after indicated, control state
“LIMIT” and the beep alert will sound a
certain period of time.
While running without blinked control
state “LIMIT” and the Speed Limiter’s
symbol, if you decrease the set speed
and vehicle speed is more than set
speed, control state “LIMIT” and the
Speed Limiter’s symbol blinking starts
but beep alert is delayed.
In this case, when vehicle speed keeps
exceeding set speed for about
30 seconds after control state “LIMIT”
and the Speed Limiter’s symbol are
blinked, beep alert will sound a certain
period of time.
If the vehicle speeds decreases less
than set speeds, control state “LIMIT”
and the Speed Limiter’s symbol stop
blinking. When beep alert is sounding,
the beep alert also goes off.NOTE However, this gives priority to
audio and visual signal of safety
reasons or driver’s demand. If the set
speed is too lower based on current
shift position, the Speed Limiter may
not limit the vehicle speed to prevent
engine stall.
Speed Limiter control switches
There are 4 switches which relate to the
Speed Limiter on the steering wheel.
Type 1Type 2
A — SPEED LIMITER ON/OFF switch
To turn on/off the Speed Limiter.
B — SET - switch
To set the current vehicle speed to a set
speed decrease the set speed.
C — RES + switch
To resume the Speed Limiter with set
speed memorized or increase the set
speed.
D — CANCEL switch
To cancel the Speed Limiter.
NOTE Press the switch one by one.
The Speed Limiter may be cancelled
automatically, if two or more switches
are pressed at the same time.
Speed Limiter information on the
multi information display area
The Speed Limiter information is
displayed on the multi information
display area in the combination meter.
311AA0113771
312AHA110510
192
STARTING AND DRIVING

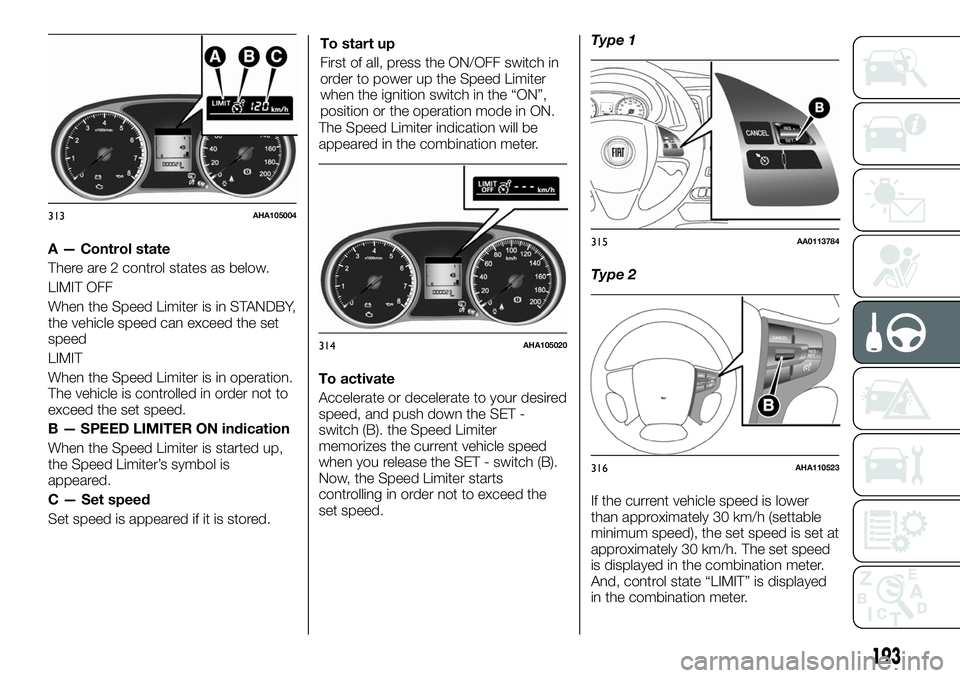

A — Control state
There are 2 control states as below.
LIMIT OFF
When the Speed Limiter is in STANDBY,
the vehicle speed can exceed the set
speed
LIMIT
When the Speed Limiter is in operation.
The vehicle is controlled in order not to
exceed the set speed.
B — SPEED LIMITER ON indication
When the Speed Limiter is started up,
the Speed Limiter’s symbol is
appeared.
C — Set speed
Set speed is appeared if it is stored.To start up
First of all, press the ON/OFF switch in
order to power up the Speed Limiter
when the ignition switch in the “ON”,
position or the operation mode in ON.
The Speed Limiter indication will be
appeared in the combination meter.
To activate
Accelerate or decelerate to your desired
speed, and push down the SET -
switch (B). the Speed Limiter
memorizes the current vehicle speed
when you release the SET - switch (B).
Now, the Speed Limiter starts
controlling in order not to exceed the
set speed.Type 1
Type 2
If the current vehicle speed is lower
than approximately 30 km/h (settable
minimum speed), the set speed is set at
approximately 30 km/h. The set speed
is displayed in the combination meter.
And, control state “LIMIT” is displayed
in the combination meter.
313AHA105004
314AHA105020
315AA0113784
316AHA110523
193

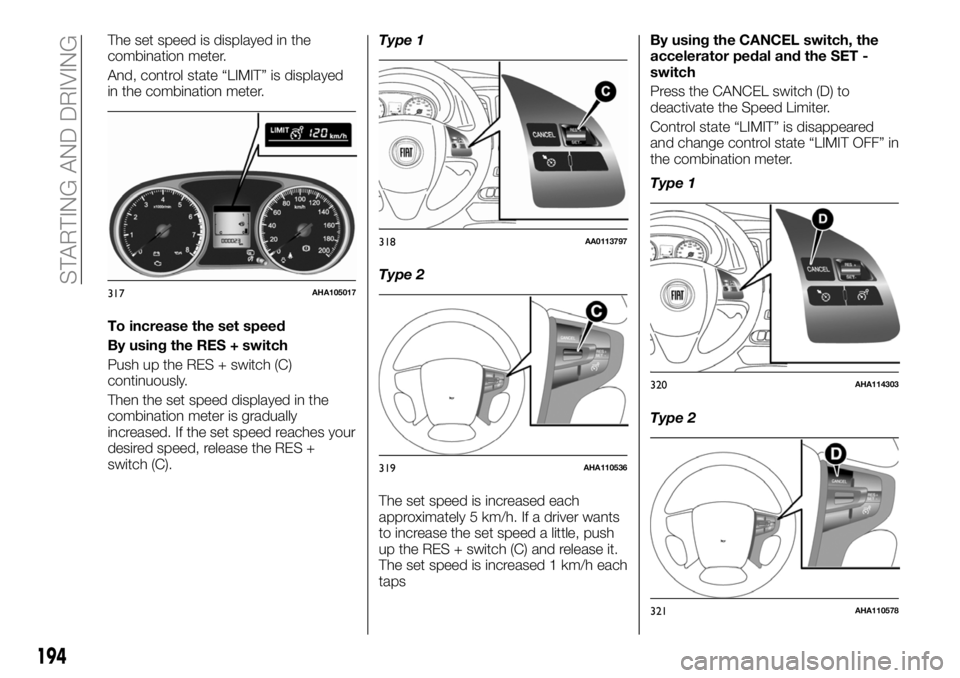

The set speed is displayed in the
combination meter.
And, control state “LIMIT” is displayed
in the combination meter.
To increase the set speed
By using the RES + switch
Push up the RES + switch (C)
continuously.
Then the set speed displayed in the
combination meter is gradually
increased. If the set speed reaches your
desired speed, release the RES +
switch (C).Type 1
Type 2
The set speed is increased each
approximately 5 km/h. If a driver wants
to increase the set speed a little, push
up the RES + switch (C) and release it.
The set speed is increased 1 km/h each
tapsBy using the CANCEL switch, the
accelerator pedal and the SET -
switch
Press the CANCEL switch (D) to
deactivate the Speed Limiter.
Control state “LIMIT” is disappeared
and change control state “LIMIT OFF” in
the combination meter.
Type 1
Type 2
317AHA105017
318AA0113797
319AHA110536
320AHA114303
321AHA110578
194
STARTING AND DRIVING

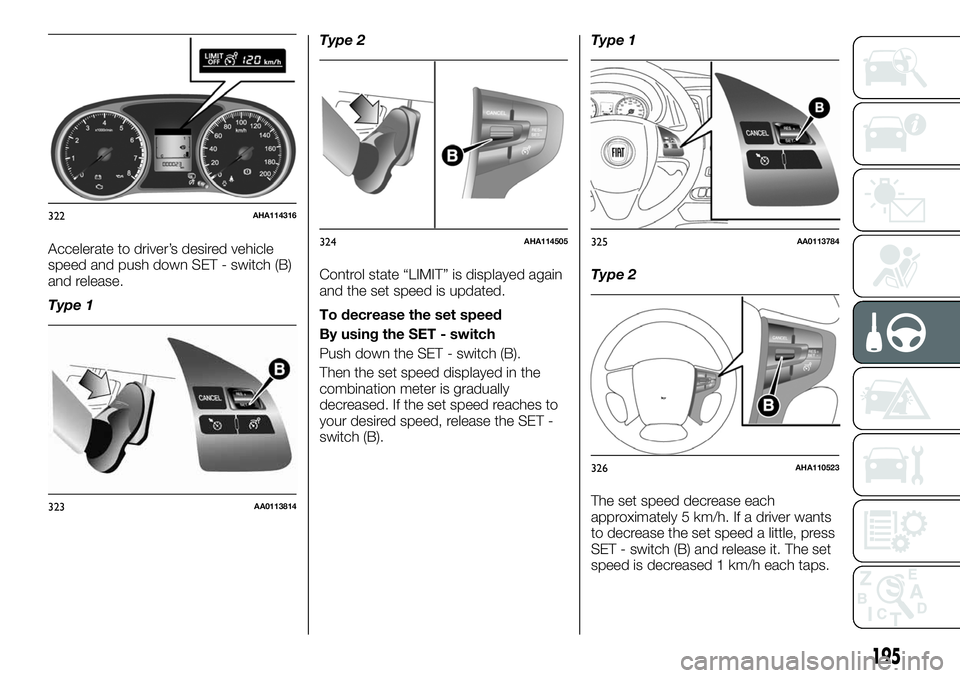

Accelerate to driver’s desired vehicle
speed and push down SET - switch (B)
and release.
Type 1Type 2
Control state “LIMIT” is displayed again
and the set speed is updated.
To decrease the set speed
By using the SET - switch
Push down the SET - switch (B).
Then the set speed displayed in the
combination meter is gradually
decreased. If the set speed reaches to
your desired speed, release the SET -
switch (B).Type 1
Type 2
The set speed decrease each
approximately 5 km/h. If a driver wants
to decrease the set speed a little, press
SET - switch (B) and release it. The set
speed is decreased 1 km/h each taps.
322AHA114316
323AA0113814
324AHA114505325AA0113784
326AHA110523
195

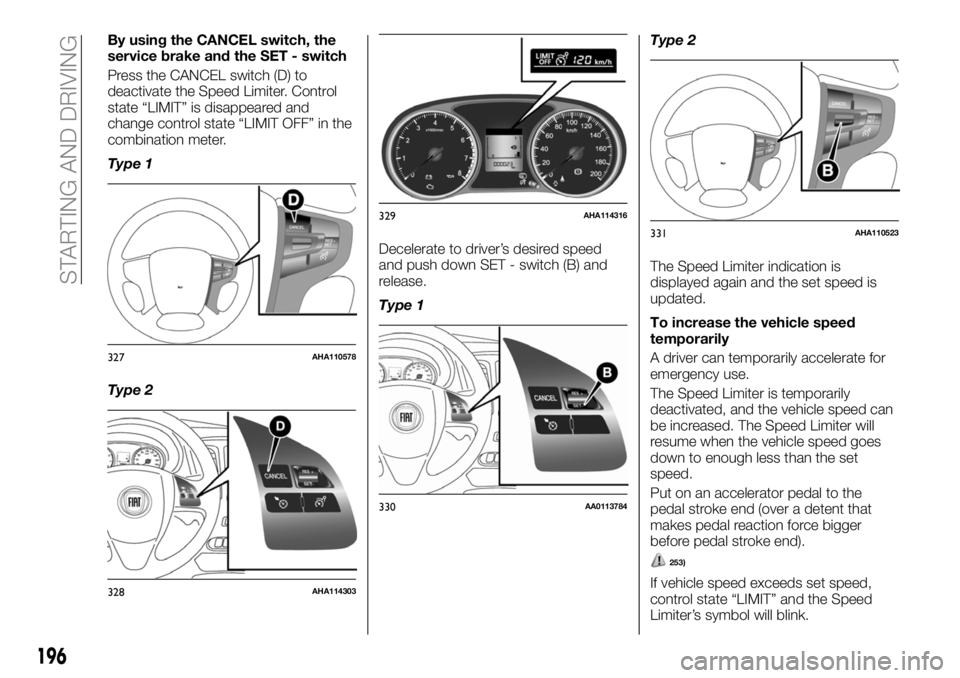

By using the CANCEL switch, the
service brake and the SET - switch
Press the CANCEL switch (D) to
deactivate the Speed Limiter. Control
state “LIMIT” is disappeared and
change control state “LIMIT OFF” in the
combination meter.
Type 1
Type 2Decelerate to driver’s desired speed
and push down SET - switch (B) and
release.
Type 1Type 2
The Speed Limiter indication is
displayed again and the set speed is
updated.
To increase the vehicle speed
temporarily
A driver can temporarily accelerate for
emergency use.
The Speed Limiter is temporarily
deactivated, and the vehicle speed can
be increased. The Speed Limiter will
resume when the vehicle speed goes
down to enough less than the set
speed.
Put on an accelerator pedal to the
pedal stroke end (over a detent that
makes pedal reaction force bigger
before pedal stroke end).
253)
If vehicle speed exceeds set speed,
control state “LIMIT” and the Speed
Limiter’s symbol will blink.
327AHA110578
328AHA114303
329AHA114316
330AA0113784
331AHA110523
196
STARTING AND DRIVING

254)
A driver can change the set speed
during this emergency use.
To deactivate
Use whichever following ways to
deactivate.
Press CANCEL switch
Press the Speed Limiter ON/OFF
switch
NOTE If the Speed Limiter is cancelled
by other states, it may be a system
malfunction. Stop using the Speed
Limiter and turn off the Speed Limiter.
Have your vehicle inspected by a Fiat
Dealership.
255)
To resume
The Speed Limiter memorizes the set
speed when system has been
deactivated, the Speed Limiter can
resume by push up the RES(C).Type 1
Type 2
However, the Speed Limiter
immediately starts controlling and the
vehicle decreases as if an accelerator
pedal is closed fully, when the vehicle
speed is higher than the set speed.
256)
IMPORTANT
156)Because the system does not use
service brake (hydraulic brake), the vehicle
speed may exceed the set speed on the
downhill.
WARNING
253)There is a possibility for the Speed
Limiter to allow abrupt acceleration
corresponding to accelerator pedal
position. So be careful of the abrupt
acceleration.
254)Be careful about over speed.
255)There is a possibility for the Speed
Limiter to allow abrupt acceleration
corresponding to accelerator pedal
position when the Speed Limiter is
deactivated. Be careful.
256)There is a possibility to occur jerk,
depending on a running resistance. Be
careful.
332AHA105033
333AA0113797
334AHA110536
197
+ switch

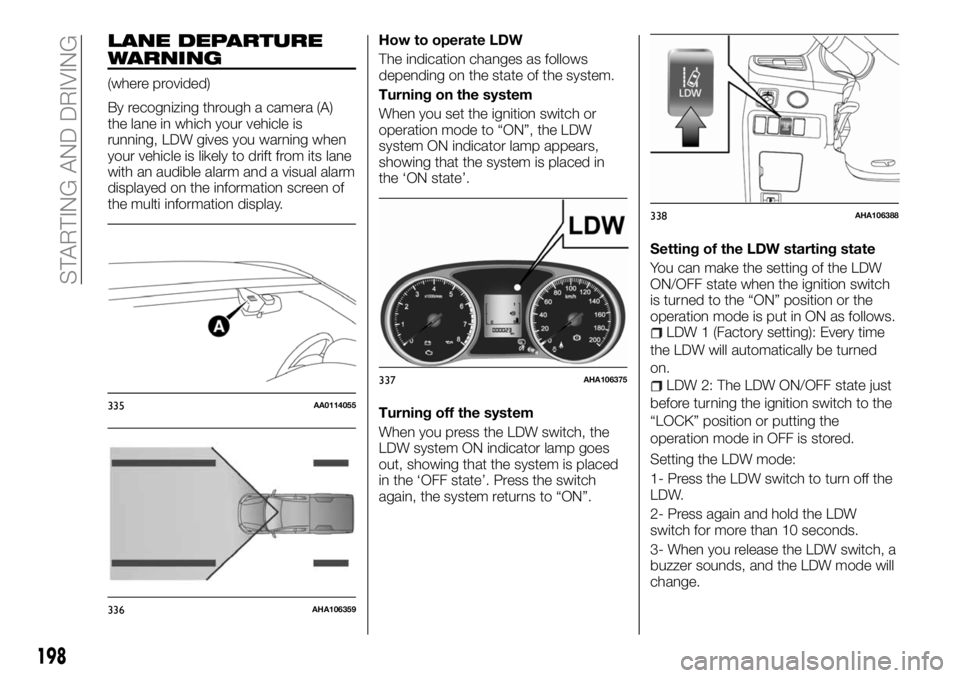

LANE DEPARTURE
WARNING
(where provided)
By recognizing through a camera (A)
the lane in which your vehicle is
running, LDW gives you warning when
your vehicle is likely to drift from its lane
with an audible alarm and a visual alarm
displayed on the information screen of
the multi information display.How to operate LDW
The indication changes as follows
depending on the state of the system.
Turning on the system
When you set the ignition switch or
operation mode to “ON”, the LDW
system ON indicator lamp appears,
showing that the system is placed in
the ‘ON state’.
Turning off the system
When you press the LDW switch, the
LDW system ON indicator lamp goes
out, showing that the system is placed
in the ‘OFF state’. Press the switch
again, the system returns to “ON”.Setting of the LDW starting state
You can make the setting of the LDW
ON/OFF state when the ignition switch
is turned to the “ON” position or the
operation mode is put in ON as follows.
LDW 1 (Factory setting): Every time
the LDW will automatically be turned
on.
LDW 2: The LDW ON/OFF state just
before turning the ignition switch to the
“LOCK” position or putting the
operation mode in OFF is stored.
Setting the LDW mode:
1- Press the LDW switch to turn off the
LDW.
2- Press again and hold the LDW
switch for more than 10 seconds.
3- When you release the LDW switch, a
buzzer sounds, and the LDW mode will
change.
335AA0114055
336AHA106359
337AHA106375
338AHA106388
198
STARTING AND DRIVING
