FIAT FULLBACK 2018 Owner handbook (in English)

3. While pressing the snap pin (F) on
the assembled handle (E), insert the
whitemarked handle (G) until it is locked
by snap pin as illustrated.HOW TO CHANGE A
TYRE
302)
166) 167)
Before changing a tyre, first stop your
vehicle in a safe, flat location.
1. Park the vehicle on level and stable
ground, free of loose pebbles, etc.
2. Set the parking brake firmly.
3. On vehicles with manual
transmission, turn the ignition switch to
the “LOCK” position or put the
operation mode in OFF, and move the
gearshift lever to the “R” (Reverse)
position. On vehicles with automatic
transmission, move the selector lever to
the “P” (PARK) position, and turn the
ignition switch to the “LOCK” position
or put the operation mode in OFF.
4. Turn on the hazard flashers and set
up a warning triangle, flashing signal
lamp, etc., at an adequate distance
from the vehicle, and have all your
passengers leave the vehicle.
5. To prevent the vehicle from rolling
when jacking up the vehicle, place
chocks or blocks (A) at the tyre that is
diagonally opposite from the tyre (B)
you are changing.
303) 304) 305) 306) 307) 308)
NOTE The chocks shown in the
illustration do not come with your
vehicle. It is recommended that you
keep ones in the vehicle for use if
needed.
NOTE If chocks are not available, use
stones or any other objects that are
large enough to hold the wheel in
position.
6. Get the jack, jack handle and wheel
nut wrench ready. Refer to “Tools, jack
and jack handle”.
Spare wheel information
The spare wheel is stored under the
floor of the cargo bed. Check the air
pressure of the spare tyre frequently
and make sure it is ready for
emergency use at any time.
Maintaining the spare wheel at the
highest specified air pressure will
ensure that it can always be used under384AHA104238
385AHA102162
219

any conditions (city/high-speed driving,
varying load weight, etc.).
To remove the spare wheel
1. Set the jack handle. (Club cab) (Refer
to “To use the jack handle (Club cab)”.
2. Insert the jack handle (A) in the hole
(B) below the rear gate.
3. Securely insert the pin (C) on the jack
handle into the holder (D) of the spare
wheel carrier.4. Insert the wheel nut wrench (E)
through the end of the jack handle hole
(F), and then turn it anticlockwise to
lower the spare wheel completely to the
ground and to slack the chain.
168)
5. Remove the hanger disc (G) from the
spare wheel.NOTE Put the spare wheel under the
vehicle body near the flat tyre. This
makes it safer if the jack slips out of
position.
To change a tyre
1. Loosen the wheel nuts a quarter turn
with the wheel nut wrench. Do not
remove the wheel nuts yet.
2. Place the jack under one of the
jacking points shown in the illustration.386AHA102263
387AHA102276
388AHA102289
389AHA102292
390AHA102322
391AHA102335
220
IN AN EMERGENCY

Use the jacking point closest to the tyre
you wish to change.
A — Front jacking point
B — Rear jacking point
309) 310)
NOTE When jacking up the rear of the
vehicle, turn the tip of the jack so that
the grooved portion (C) properly meets
the designated point.3. Using the jack handle, turn the
release valve (D) clockwise until it stops.
4. Insert the jack handle in the bracket
of the jack and hook the notch (E) on
the jack handle end to the claw (F) of
the bracket.
5. Move the jack handle up and down
to raise the ram until just before the jack
contacts the jacking point of the
vehicle. Ensure that the jack willproperly contact the vehicle jacking
point. Move the jack handle up and
down to raise the vehicle.
NOTE This jack is a 2 stage expansion
type.
311) 312) 313) 314) 315) 316) 317) 318)
6. Remove the wheel nuts with the
wheel nut wrench, then take the wheel
off.
7. Clean out any mud, etc. on the hub
surface (G), hub bolts (H) or in the
installation holes (I) in the wheel, and
then mount the spare wheel.
319)
392AHA105730
393AHA105743
C
394AHZ101102
395AHA105756
396AHA105769
221

320)
8. Turn the wheel nuts clockwise by
hand to initially tighten them.
Type 1: On vehicles with steel
wheelsTemporarily tighten the wheel
nuts by hand until the tapered parts of
the wheel nuts make light contact with
the seats of the wheel holes and the
wheel is not loose.Type 2: On vehicles with aluminium
wheelsTemporarily tighten the wheel
nuts by hand until the flange parts of
the wheel nuts make light contact with
the wheel and the wheel is not loose.
NOTE Flange nuts can be temporarily
used on the steel spare wheel as
shown in the illustration below, but
return to the original wheel and tyre as
soon as possible.
169)
NOTE If all 4 aluminium wheels are
changed to steel wheels. e. g. when
fitting winter tyres, use tapered nuts.
9. Put the notch (K) provided on the
jack handle end on the valve (L) of the
jack. Using the jack handle, turn the
release valve anticlockwise slowly to
lower the vehicle until the tyre touches
the ground.
397AHA105772
398AHA105785
399AA0027931
400AHA102364
401AHZ100596
402AHA105798
222
IN AN EMERGENCY

321)
10. Tighten the nuts crisscross in 2 or
3 steps until each nut has been
tightened securely.
Tightening torque
Steel wheel: 137 to 157 Nm
Aluminium wheel: 118 to 137 Nm
(Achieved by applying a force at the
end of the wheel nut wrench supplied
with the vehicle. Steel wheel: 510 to
580 N; Aluminium wheel: 440 to 500 N)
322)
11. Lower the jack all the way and
remove it.
170) 171)
NOTE Occasionally when the vehicle is
jacked up, the grooved portion of the
designated point will not come off.
When this happens, rock the vehicle to
lower the ram.
If the jack is difficult to remove by hand,
insert the jack handle (M) into the
bracket (N). Then using the handle,
remove the jack.
12. Press the piston down all the way,
and turn the release valve clockwise as
far as possible.
13. Check your tyre inflation pressure.
The correct pressures are shown on the
door label. See the illustration.
323) 324) 325) 326)
To store the spare wheel
1. Install the hanger disc (A) in the
wheel disc hole.
2. Turn the wheel nut wrench (B)
clockwise to wind up the chain.
403AHA102377
404AHZ101131
405AHA105538
406AHA102306
223

NOTE Confirm that the hanger disc is
securely fitted in the wheel disc hole
when the wheel is just lifted off the
ground.
3. After winding up the spare wheel
sufficiently, make sure it is not loose (the
tightening torque should be
approximately 40 Nm (achieved by
applying a force of 200 N at the end of
the wheel nut wrench) then withdraw
the jack handle.
4. Have your damaged tyre repaired as
soon as possible.
327) 328) 329)
To store the tools, jack and jack
handle
Reverse the removing procedure when
storing the jack, jack handle and wheel
nut wrench. Refer to “Tools, jack and
jack handle”.
WARNING
302)It is extremely dangerous to attempt
to change a wheel on the side of the
vehicle next to the driving lane: make sure
that the vehicle is at a sufficient distance
from the road, to avoid being run over.
303)Use the jack only to replace wheels
on the vehicle with which it is supplied or
on other vehicles of the same model. Never
use the jack for other purposes, such as
lifting other car models. Never use the jack
to carry out repairs under the vehicle.
Incorrect positioning of the jack may cause
the lifted vehicle to fall. Do not use the jack
for loads higher than those shown on the
label.
304)Have the wheel repaired and refitted
as soon as possible. Do not apply grease
to the bolt threads before fitting: they could
come unscrewed.
305)The spare wheel supplied (for
versions/markets, where provided) is
specific for your vehicle. Therefore, it must
not be used on other models. Do not use
spare wheels of other models on your
vehicle. The wheel bolts are specific for
your vehicle: do not use them on different
models and do not use bolts from other
models on your car.
306)Use your hazard lights, warning
triangle, etc. to show that your vehicle is
stationary according to the regulations in
force. Passengers should get out of the
vehicle, particularly if it is heavily loaded,
and wait for the wheel to be changed away
from the traffic.Apply the handbrake. in the event of a
wheel change on a slope or on unsurfaced
roads, put any object as stop under the
wheels.
307)Be sure to apply chocks or blocks to
the correct tyre when jacking up the
vehicle. If the vehicle moves while jacked
up, the jack could slip out of position,
leading to an accident.
308)The pressure should be periodically
checked and maintained at the specified
pressure while the tyre is stowed. Driving
with an insufficient tyre pressure can lead
to an accident. If you have no choice but to
drive with an insufficient tyre pressure,
keep your speed down and inflate the tyre
to the correct pressure as soon as
possible. (Refer to “Tyre inflation
pressures”).
309)Set the jack only at the positions
shown here. If the jack is set at a wrong
position, it could dent your vehicle or the
jack might fall over and cause personal
injury.
310)Do not use the jack on a tilted or soft
surface. Otherwise, the jack might slip and
cause personal injury. Always use the jack
on a flat, hard surface. Before setting the
jack, make sure there are no sand or
pebbles under the jack base.
407AHA102319
224
IN AN EMERGENCY

311)Stop jacking up the vehicle as soon
as the tyre is raised off the ground. It is
dangerous to raise the vehicle any higher.
Do not get under your vehicle while using
the jack. Do not bump the raised vehicle or
leave it sitting on the jack for a long time.
Both are very dangerous. Do not use a jack
except the one that came with your
vehicle. The jack should not be used for
any purpose other than to change a tyre.
No one should be in your vehicle when
using the jack. Do not start or run the
engine while your vehicle is on the jack. Do
not turn the raised wheel. The tyres still on
the ground could turn and make your
vehicle fall off the jack.
312)Do not get under your vehicle while
using the jack.
313)Do not bump the raised vehicle or
leave it sitting on the jack for a long time.
Both are very dangerous.
314)Do not use a jack except the one that
came with your vehicle.
315)The jack should not be used for any
purpose other than to change a tyre.
316)No one should be in your vehicle
when using the jack.
317)Do not start or run the engine while
your vehicle is on the jack.
318)Do not turn the raised wheel. The
tyres still on the ground could turn and
make your vehicle fall off the jack.
319)Handle the wheel carefully when
changing the tyre, to avoid scratching the
wheel surface.
320)Mount the spare wheel with the valve
stem K) facing outboard fig. 0. If you
cannot see the valve stem (K), you have
installed the wheel backwards.Operating the vehicle with the spare wheel
installed backwards can cause vehicle
damage and result in an accident.
321)Be sure to open the release valve
slowly. If it is opened quickly, the vehicle will
drop abruptly and the jack may come out
of position, causing a serious accident.
322)Never use your foot or a pipe
extension for extra force in the wheel nut
wrench. If you do so, you will tighten the
nut too much.
323)The tyre pressure should be
periodically checked and maintained at the
specified pressure while the tyre is stowed.
324)After changing the tyre and driving the
vehicle about 1,000 km, retighten the wheel
nuts to make sure that they have not come
loose.
325)If the steering wheel vibrates when
driving after changing the tyre, we
recommend you to have the tyres checked
for balance.
326)Do not mix one type of tyre with
another or use a different size from the one
listed. This would cause early wear and
poor handling.
327)The spare wheel should always be
securely in position. If a flat tyre is changed,
put the flat tyre in the spare wheel
mounting position with the wheel outer
surface upward, and use the wheel nut
wrench to secure it firmly.
328)Never tamper with the inflation valve.
Never introduce tools of any kind between
rim and tyre. Check tyre and spare wheel
pressure regularly, referring to the values
shown in the "Technical specifications"
section.329)The moving components of the jack
(screw and joints) can also cause injuries:
do not touch them. If you come into
contact with lubricating grease, clean
yourself thoroughly.
IMPORTANT
166)Avoid using different size tyres from
the one listed and the combined use of
different types of tyres, as this can affect
driving safety.
167)Even if a wheel has the same rim size
and offset as the specified type of wheel,
its shape may prevent it from being fitted
correctly. Consult an authorised Fiat
Dealership before using wheels that you
have.
168)When installing or removing the spare
wheel, please observe the followings. If you
do not follow them, it could result in break
the spare wheel carrier. Do not use the
power tool. Use the wheel nut wrench
stowed on the vehicle. Do not apply a force
of 400 N or more at the end of the wheel
nut wrench.
169)Never apply oil to either the wheel
bolts or the nuts or they will tighten too
much.
170)If the release valve is loosened too
much (2 or more turns) in the anticlockwise
direction, the jack’s oil will leak and the jack
cannot be used.
171)Close the release valve slowly when
lowering the vehicle, or the valve may be
damaged.
225

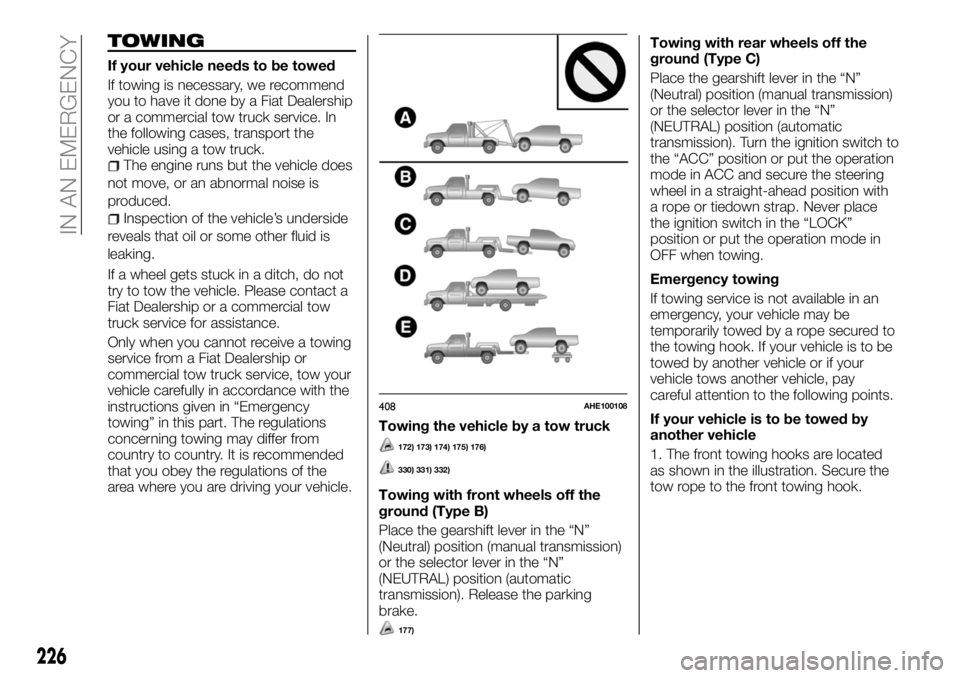

TOWING
If your vehicle needs to be towed
If towing is necessary, we recommend
you to have it done by a Fiat Dealership
or a commercial tow truck service. In
the following cases, transport the
vehicle using a tow truck.
The engine runs but the vehicle does
not move, or an abnormal noise is
produced.
Inspection of the vehicle’s underside
reveals that oil or some other fluid is
leaking.
If a wheel gets stuck in a ditch, do not
try to tow the vehicle. Please contact a
Fiat Dealership or a commercial tow
truck service for assistance.
Only when you cannot receive a towing
service from a Fiat Dealership or
commercial tow truck service, tow your
vehicle carefully in accordance with the
instructions given in “Emergency
towing” in this part. The regulations
concerning towing may differ from
country to country. It is recommended
that you obey the regulations of the
area where you are driving your vehicle.Towing the vehicle by a tow truck
172) 173) 174) 175) 176)
330) 331) 332)
Towing with front wheels off the
ground (Type B)
Place the gearshift lever in the “N”
(Neutral) position (manual transmission)
or the selector lever in the “N”
(NEUTRAL) position (automatic
transmission). Release the parking
brake.
177)
Towing with rear wheels off the
ground (Type C)
Place the gearshift lever in the “N”
(Neutral) position (manual transmission)
or the selector lever in the “N”
(NEUTRAL) position (automatic
transmission). Turn the ignition switch to
the “ACC” position or put the operation
mode in ACC and secure the steering
wheel in a straight-ahead position with
a rope or tiedown strap. Never place
the ignition switch in the “LOCK”
position or put the operation mode in
OFF when towing.
Emergency towing
If towing service is not available in an
emergency, your vehicle may be
temporarily towed by a rope secured to
the towing hook. If your vehicle is to be
towed by another vehicle or if your
vehicle tows another vehicle, pay
careful attention to the following points.
If your vehicle is to be towed by
another vehicle
1. The front towing hooks are located
as shown in the illustration. Secure the
tow rope to the front towing hook.
408AHE100108
226
IN AN EMERGENCY

NOTE Using any part other than the
designated towing hooks could result in
damage to the vehicle body.
Using a wire rope or metal chain can
result in damage to the vehicle body. It
is best to use a non-metallic rope. If you
use a wire rope or metal chain, wrap it
with cloth at any point where it touches
the vehicle body.
Use care that the tow rope is kept as
horizontal as possible. An angled tow
rope can damage the vehicle body.
Secure the tow rope to the same side
towing hook, to keep the tow rope as
straight as possible.
2. Keep the engine running. If the
engine is not running, perform the
following operation to unlock the
steering wheel.
[Except for vehicles with the keyless
operation system] On vehicles with
manual transmission, turn the ignition
switch to the “ACC” or “ON” position.On vehicles with automatic
transmission, turn the ignition switch to
the “ON” position. [For vehicles with the
keyless operation system] On vehicles
with manual transmission, put the
operation mode in ACC or ON. On
vehicles with automatic transmission,
put the operation mode in ON.
NOTE For vehicles equipped with the
Start&Stop system, press the
“Start&Stop OFF” switch to deactivate
the Start&Stop system before stopping
the vehicle. Refer to “To deactivate”.178) 179)
3. Place the gearshift lever in the “N”
(Neutral) position (manual transmission)
or the selector lever in the “N”
(NEUTRAL) position (automatic
transmission).
4. On 4WD vehicles, set the drive
modes elector to “2H” position.
5. Turn on the hazard warning lamps if
required by law. (Follow the local driving
laws and regulations).
6. During towing make sure that close
contact is maintained between the
drivers of both vehicles, and that the
vehicles travel at low speed.
333) 334) 335)
If your vehicle tows another vehicle
(vehicles with rear towing hook
only)
336) 337) 338) 339) 340) 341)
The rear towing hook is located as
shown in the illustration. Secure the tow
rope to the rear towing hook.
Otherwise, the instructions are the
same as for “When being towed by
another vehicle”.
NOTE Using any part other than the
designated towing hook could result in
damage to the vehicle body.
180)
NOTE Do not tow a vehicle heavier
than your own vehicle.
409AHA102423
410AHA104326
227

WARNING
330)Towing must not be made for getting
past significant obstacles on the road (e.g.
heaps of snow or material on the road
surface).
331)Towing must be made exclusively on
roads/streets; the device must not be used
to recover the vehicle if it got off the road.
332)As your vehicle is equipped with ESC,
if the vehicle is towed with the ignition
switch in the “ON” position or the operation
mode in ON and only the front wheels or
only the rear wheels raised off the ground,
the active traction control system may
operate, resulting in an accident.
333)Avoid sudden braking, acceleration
and steering wheel movements; such
driving operation could cause damage to
the towing hook or towing rope. People in
the vicinity could be injured as a result.334)When going down a long slope, the
brakes may overheat, reducing
effectiveness. Have your vehicle transport
by a tow truck.
335)The person in the vehicle being towed
must pay attention to the brake lamps of
the towing vehicle and make sure the rope
never becomes slack.
336)Do not use flexible cables for towing
and avoid jerking. During towing
operations, make sure that the fastened
joint does not damage adjoining
components.
337)When towing the vehicle comply with
the specific rules of the Highway Code
regarding the towing device and the
behaviour on the road.
338)Do not start the engine while towing
the vehicle.
339)Towing must be made exclusively on
roads/streets; the device must not be used
to recover the vehicle if it got off the road.
340)Towing must not be made for getting
past significant obstacles on the road (e.g.
heaps of snow or material on the road
surface).
341)Towing must take place with the two
vehicles (one towing, the other towed)
aligned as much as possible; towing by
roadside assistance vehicles, too, must
take place with the two vehicles aligned as
much as possible.
IMPORTANT
172)This vehicle must not be towed by a
tow truck using sling lift type equipment
(Type A) as illustrated fig. 408. Using a sling
lift will damage the bumper and front end.
173)On 4WD vehicles, be sure to shift the
transfer shift lever or set the drive
mode-selector to “2H” position and
transport the vehicle with the driving wheels
on a carriage {Type C (vehicles with the
transfer shift lever), D or E} as illustrated.
Never try to tow with the transfer shift lever
or the drive mode-selector in “4H” or “4L”
positions (Easy Select 4WD), “4H”, “4HLc”
or “4LLc” positions (Super Select 4WD II)
and with the front or rear wheels on the
ground (Type B or C) as illustrated. This
could result in the driving system damage
or vehicle may jump at the carriage. If you
cannot shift the transfer shift lever or set
the drive mode-selector to “2H” position or
the transmission is malfunctioning or
damaged, transport the vehicle with the all
wheels on a carriage (Type D or E) as
illustrated fig. 0.
174)On 2WD vehicles, if the transmission
is malfunctioning or damaged, transport the
vehicle with the driving wheels on a
carriage (Type C, D or E) as illustrated.
411AHZ101027
228
IN AN EMERGENCY
