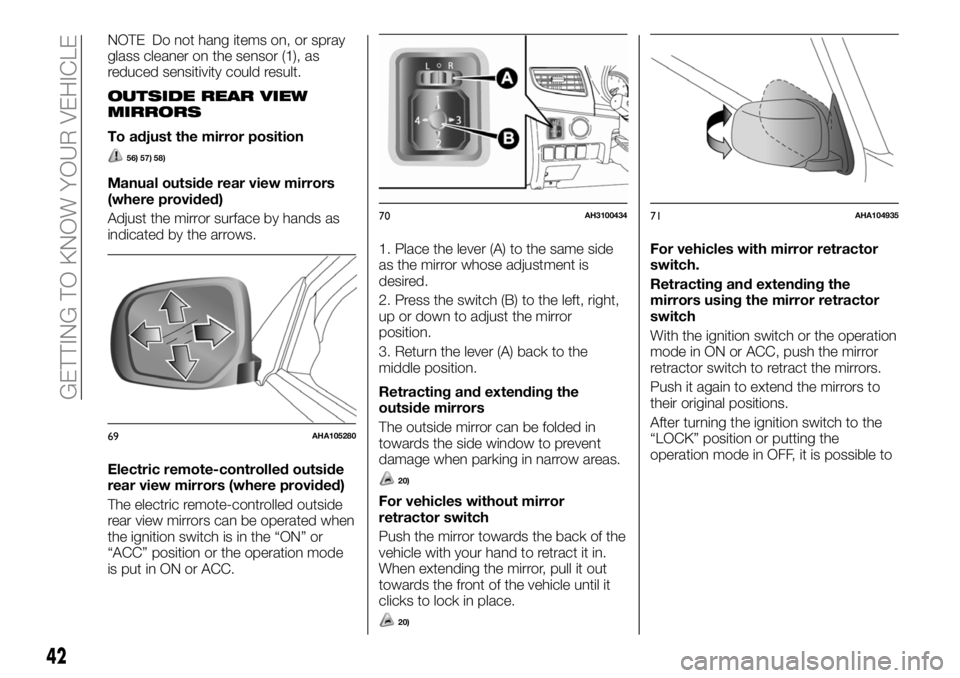

NOTE Do not hang items on, or spray
glass cleaner on the sensor (1), as
reduced sensitivity could result.
OUTSIDE REAR VIEW
MIRRORS
To adjust the mirror position
56) 57) 58)
Manual outside rear view mirrors
(where provided)
Adjust the mirror surface by hands as
indicated by the arrows.
Electric remote-controlled outside
rear view mirrors (where provided)
The electric remote-controlled outside
rear view mirrors can be operated when
the ignition switch is in the “ON” or
“ACC” position or the operation mode
is put in ON or ACC.1. Place the lever (A) to the same side
as the mirror whose adjustment is
desired.
2. Press the switch (B) to the left, right,
up or down to adjust the mirror
position.
3. Return the lever (A) back to the
middle position.
Retracting and extending the
outside mirrors
The outside mirror can be folded in
towards the side window to prevent
damage when parking in narrow areas.
20)
For vehicles without mirror
retractor switch
Push the mirror towards the back of the
vehicle with your hand to retract it in.
When extending the mirror, pull it out
towards the front of the vehicle until it
clicks to lock in place.
20)
For vehicles with mirror retractor
switch.
Retracting and extending the
mirrors using the mirror retractor
switch
With the ignition switch or the operation
mode in ON or ACC, push the mirror
retractor switch to retract the mirrors.
Push it again to extend the mirrors to
their original positions.
After turning the ignition switch to the
“LOCK” position or putting the
operation mode in OFF, it is possible to
69AHA105280
70AH310043471AHA104935
42
GETTING TO KNOW YOUR VEHICLE

NOTE When the headlamps are turned
off by the automatic on/off control with
the ignition switch in the “ON” position
or the operation mode in ON, the front
fog lamps (if so equipped) and rear fog
lamps (if so equipped) also go off.
When the headlamps are subsequently
turned back on by the automatic on/off
control, the front fog lamps also come
on but the rear fog lamp stay off. If you
wish to turn the rear fog lamp back on,
operate the switch again.
NOTE Do not cover the sensor (A) for
the automatic on/off control by affixing
a sticker or label to the windscreen.
NOTE If the lamps do not turn on or off
with the switch in the “AUTO” position,
manually operate the switch and we
recommend you to have your vehicle

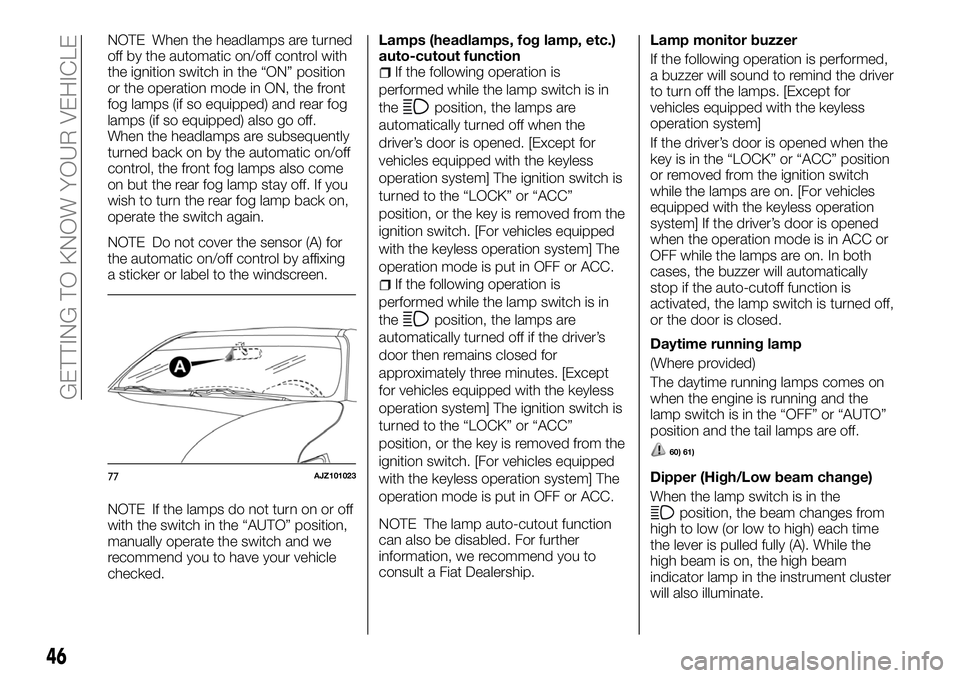

checked.Lamps (headlamps, fog lamp, etc.)
auto-cutout function
If the following operation is
performed while the lamp switch is in
the
position, the lamps are
automatically turned off when the
driver’s door is opened. [Except for
vehicles equipped with the keyless
operation system] The ignition switch is
turned to the “LOCK” or “ACC”
position, or the key is removed from the
ignition switch. [For vehicles equipped
with the keyless operation system] The
operation mode is put in OFF or ACC.
If the following operation is
performed while the lamp switch is in
the
position, the lamps are
automatically turned off if the driver’s
door then remains closed for
approximately three minutes. [Except
for vehicles equipped with the keyless
operation system] The ignition switch is
turned to the “LOCK” or “ACC”
position, or the key is removed from the
ignition switch. [For vehicles equipped
with the keyless operation system] The
operation mode is put in OFF or ACC.
NOTE The lamp auto-cutout function
can also be disabled. For further
information, we recommend you to
consult a Fiat Dealership.Lamp monitor buzzer
If the following operation is performed,
a buzzer will sound to remind the driver
to turn off the lamps. [Except for
vehicles equipped with the keyless
operation system]
If the driver’s door is opened when the
key is in the “LOCK” or “ACC” position
or removed from the ignition switch
while the lamps are on. [For vehicles
equipped with the keyless operation
system] If the driver’s door is opened
when the operation mode is in ACC or
OFF while the lamps are on. In both
cases, the buzzer will automatically
stop if the auto-cutoff function is
activated, the lamp switch is turned off,
or the door is closed.
Daytime running lamp
(Where provided)
The daytime running lamps comes on
when the engine is running and the
lamp switch is in the “OFF” or “AUTO”
position and the tail lamps are off.
60) 61)
Dipper (High/Low beam change)
When the lamp switch is in the
position, the beam changes from
high to low (or low to high) each time
the lever is pulled fully (A). While the
high beam is on, the high beam
indicator lamp in the instrument cluster
will also illuminate.
77AJZ101023
46
GETTING TO KNOW YOUR VEHICLE

When the keyless entry system or
the keyless operation system is
operated.
When all doors are closed.
C — OFF
The lamp goes off regardless of
whether a door is open or closed.
NOTE When the key was used to start
the engine, if the key is removed while
the doors are closed, the lamp is
illuminated and after a few seconds it
goes off.
NOTE When the keyless operation
function was used to start the engine, if
the operation mode is put in OFF while
the door are closed, the lamp
illuminates and after about 15 seconds
it goes off (if so equipped).
NOTE The time until the lamp goes off
(delayed off) can be adjusted. For
details, please consult a Fiat Dealership.
NOTE The auto cut-out function
cannot be operated when the room
lamp switch is in the “ON” position (1).
Also, this function can be deactivated.
For details, please consult a Fiat

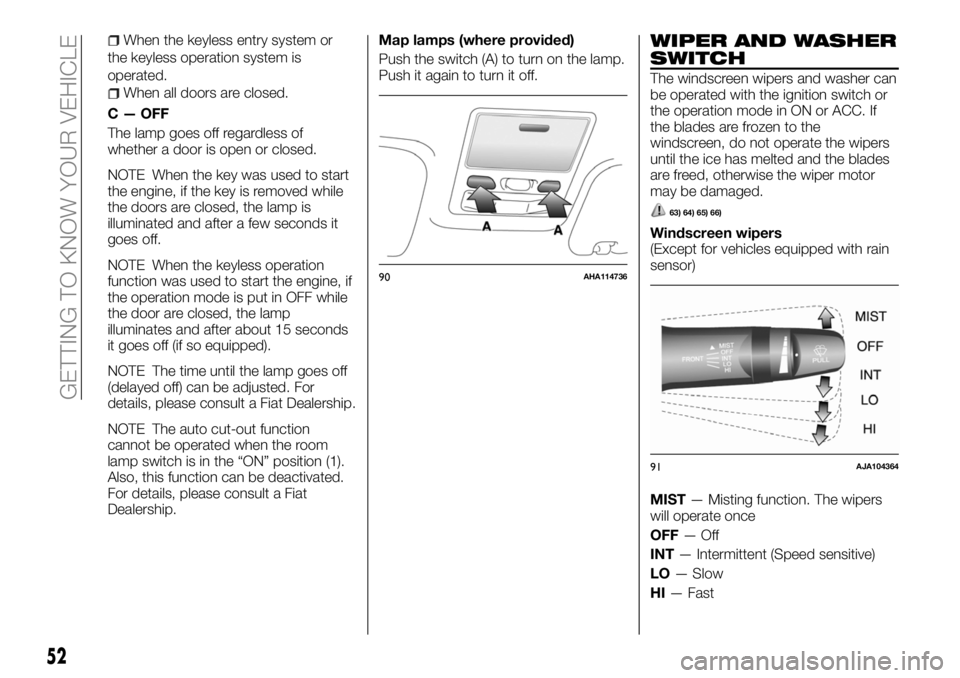

Dealership.Map lamps (where provided)
Push the switch (A) to turn on the lamp.
Push it again to turn it off.
WIPER AND WASHER
SWITCH
The windscreen wipers and washer can
be operated with the ignition switch or
the operation mode in ON or ACC. If
the blades are frozen to the
windscreen, do not operate the wipers
until the ice has melted and the blades
are freed, otherwise the wiper motor
may be damaged.
63) 64) 65) 66)
Windscreen wipers
(Except for vehicles equipped with rain
sensor)
MIST— Misting function. The wipers
will operate once
OFF—Off
INT— Intermittent (Speed sensitive)
LO— Slow
HI— Fast
90AHA114736
91AJA104364
52
GETTING TO KNOW YOUR VEHICLE

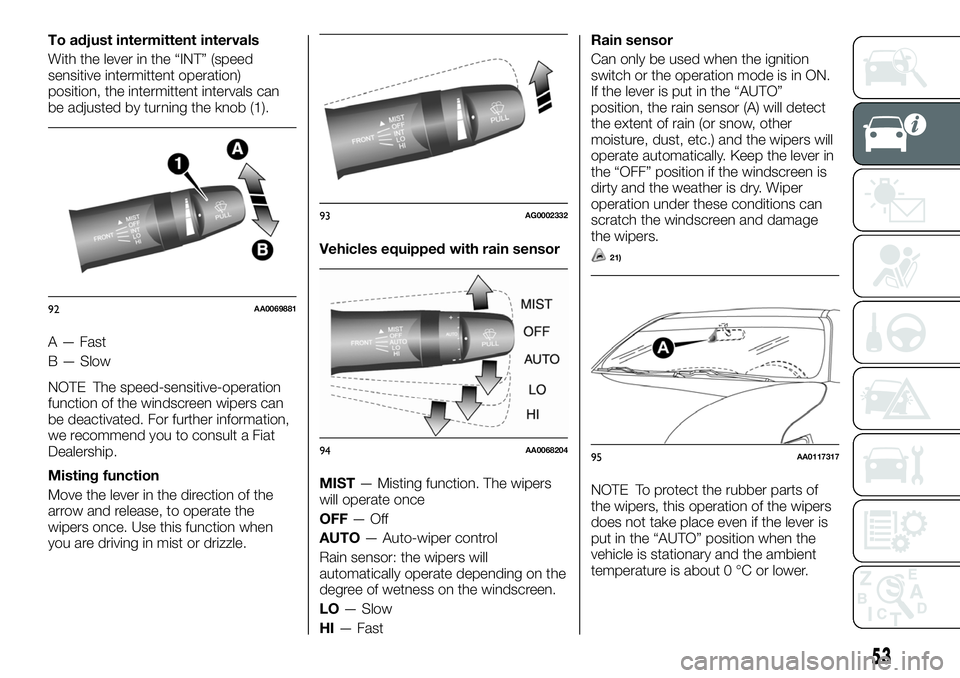

To adjust intermittent intervals
With the lever in the “INT” (speed
sensitive intermittent operation)
position, the intermittent intervals can
be adjusted by turning the knob (1).
A — Fast
B — Slow
NOTE The speed-sensitive-operation
function of the windscreen wipers can
be deactivated. For further information,
we recommend you to consult a Fiat
Dealership.
Misting function
Move the lever in the direction of the
arrow and release, to operate the
wipers once. Use this function when
you are driving in mist or drizzle.Vehicles equipped with rain sensor
MIST— Misting function. The wipers
will operate once
OFF—Off
AUTO— Auto-wiper control
Rain sensor: the wipers will
automatically operate depending on the
degree of wetness on the windscreen.
LO— Slow
HI— FastRain sensor
Can only be used when the ignition
switch or the operation mode is in ON.
If the lever is put in the “AUTO”
position, the rain sensor (A) will detect
the extent of rain (or snow, other
moisture, dust, etc.) and the wipers will
operate automatically. Keep the lever in
the “OFF” position if the windscreen is
dirty and the weather is dry. Wiper
operation under these conditions can
scratch the windscreen and damage
the wipers.
21)
NOTE To protect the rubber parts of
the wipers, this operation of the wipers
does not take place even if the lever is
put in the “AUTO” position when the
vehicle is stationary and the ambient
temperature is about 0 °C or lower.
92AA0069881
93AG0002332
94AA006820495AA0117317
53

NOTE Do not cover the sensor by
affixing a sticker or label to the
windscreen. Also, do not put any
water-repellent coating on the
windscreen. The rain sensor would not
be able to detect the extent of rain, and
the wipers might stop working normally.
In the following cases, the rain sensor
may be malfunctioning. For further
information, we recommend you to
consult a Fiat Dealership:
When the wipers operate at a
constant interval despite changes in the
extent of rain.
When the wipers do not operate
even though it is raining.
NOTE The wipers may automatically
operate when things such as insects or
foreign objects are affixed to the
windscreen on top of the rain sensor or
when the windscreen is frozen. Objects
affixed to the windscreen will stop the
wipers when the wipers cannot remove
them. To operate the wipers again,
move the lever in the “LO” or “HI”
position. Also, the wipers may operate
automatically due to strong direct
sunlight or electromagnetic wave. To
stop the wipers, place the lever in the
“OFF” position.
NOTE Contact a Fiat Dealership when
replacing the windscreen or reinforcing

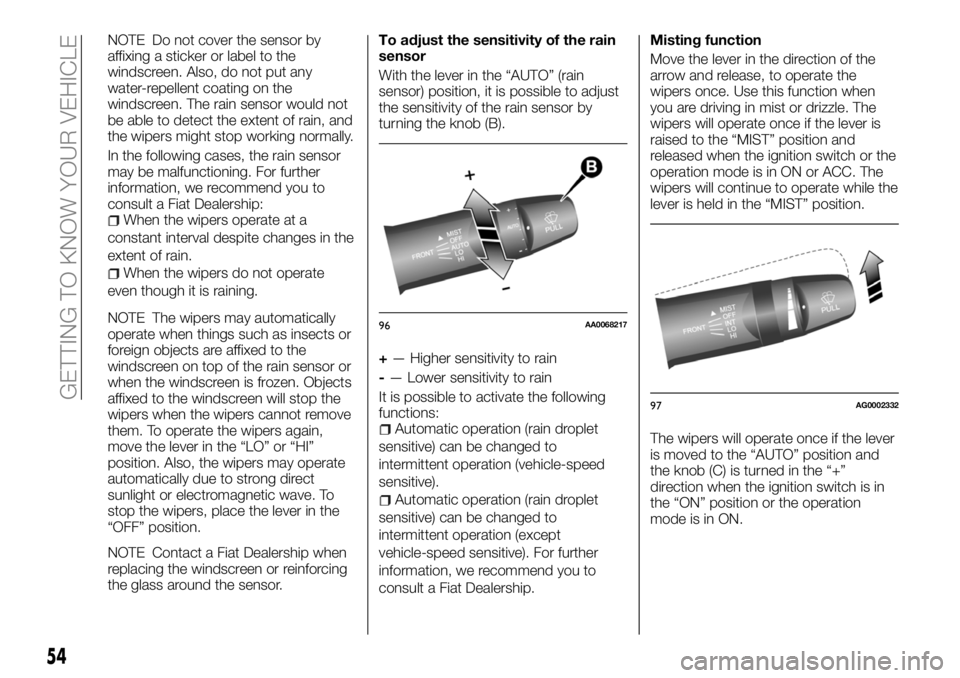

the glass around the sensor.To adjust the sensitivity of the rain
sensor
With the lever in the “AUTO” (rain
sensor) position, it is possible to adjust
the sensitivity of the rain sensor by
turning the knob (B).
+— Higher sensitivity to rain
-— Lower sensitivity to rain
It is possible to activate the following
functions:
Automatic operation (rain droplet
sensitive) can be changed to
intermittent operation (vehicle-speed
sensitive).
Automatic operation (rain droplet
sensitive) can be changed to
intermittent operation (except
vehicle-speed sensitive). For further
information, we recommend you to
consult a Fiat Dealership.Misting function
Move the lever in the direction of the
arrow and release, to operate the
wipers once. Use this function when
you are driving in mist or drizzle. The
wipers will operate once if the lever is
raised to the “MIST” position and
released when the ignition switch or the
operation mode is in ON or ACC. The
wipers will continue to operate while the
lever is held in the “MIST” position.
The wipers will operate once if the lever
is moved to the “AUTO” position and
the knob (C) is turned in the “+”
direction when the ignition switch is in
the “ON” position or the operation
mode is in ON.
96AA0068217
97AG0002332
54
GETTING TO KNOW YOUR VEHICLE

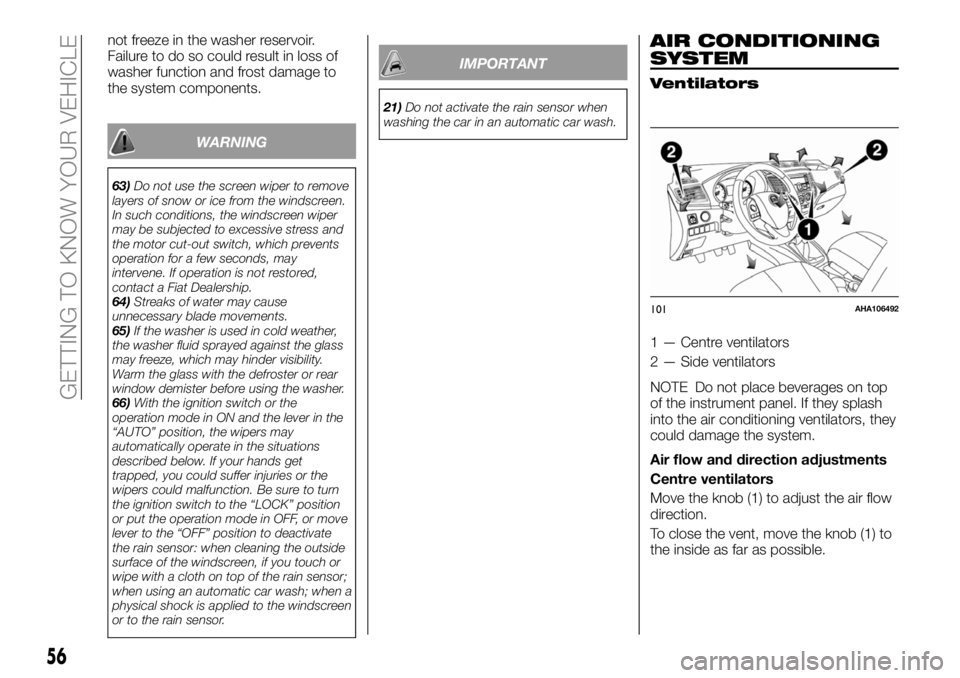

not freeze in the washer reservoir.
Failure to do so could result in loss of
washer function and frost damage to
the system components.
WARNING
63)Do not use the screen wiper to remove
layers of snow or ice from the windscreen.
In such conditions, the windscreen wiper
may be subjected to excessive stress and
the motor cut-out switch, which prevents
operation for a few seconds, may
intervene. If operation is not restored,
contact a Fiat Dealership.
64)Streaks of water may cause
unnecessary blade movements.
65)If the washer is used in cold weather,
the washer fluid sprayed against the glass
may freeze, which may hinder visibility.
Warm the glass with the defroster or rear
window demister before using the washer.
66)With the ignition switch or the
operation mode in ON and the lever in the
“AUTO” position, the wipers may
automatically operate in the situations
described below. If your hands get
trapped, you could suffer injuries or the
wipers could malfunction. Be sure to turn
the ignition switch to the “LOCK” position
or put the operation mode in OFF, or move
lever to the “OFF” position to deactivate
the rain sensor: when cleaning the outside
surface of the windscreen, if you touch or
wipe with a cloth on top of the rain sensor;
when using an automatic car wash; when a
physical shock is applied to the windscreen
or to the rain sensor.
IMPORTANT
21)Do not activate the rain sensor when
washing the car in an automatic car wash.
AIR CONDITIONING
SYSTEM
Ventilators
1 — Centre ventilators
2 — Side ventilators
NOTE Do not place beverages on top
of the instrument panel. If they splash
into the air conditioning ventilators, they
could damage the system.
Air flow and direction adjustments
Centre ventilators
Move the knob (1) to adjust the air flow
direction.
To close the vent, move the knob (1) to
the inside as far as possible.
101AHA106492
56
GETTING TO KNOW YOUR VEHICLE

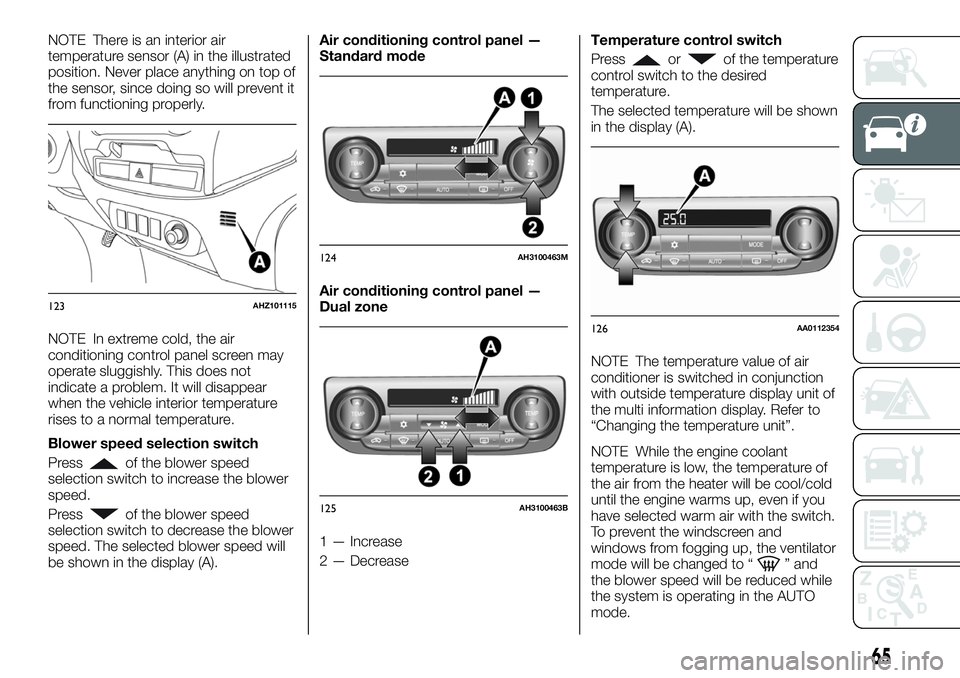

NOTE There is an interior air
temperature sensor (A) in the illustrated
position. Never place anything on top of
the sensor, since doing so will prevent it
from functioning properly.
NOTE In extreme cold, the air
conditioning control panel screen may
operate sluggishly. This does not
indicate a problem. It will disappear
when the vehicle interior temperature
rises to a normal temperature.
Blower speed selection switch
Press
of the blower speed
selection switch to increase the blower
speed.
Press
of the blower speed
selection switch to decrease the blower
speed. The selected blower speed will
be shown in the display (A).Air conditioning control panel —
Standard mode
Air conditioning control panel —
Dual zone
1 — Increase
2 — DecreaseTemperature control switch
Press
orof the temperature
control switch to the desired
temperature.
The selected temperature will be shown
in the display (A).
NOTE The temperature value of air
conditioner is switched in conjunction
with outside temperature display unit of
the multi information display. Refer to
“Changing the temperature unit”.
NOTE While the engine coolant
temperature is low, the temperature of
the air from the heater will be cool/cold
until the engine warms up, even if you
have selected warm air with the switch.
To prevent the windscreen and
windows from fogging up, the ventilator
mode will be changed to “
” and
the blower speed will be reduced while
the system is operating in the AUTO
mode.
123AHZ101115
124AH3100463M
125AH3100463B
126AA0112354
65

70)Do not insert any foreign objects
(pieces of plastic, paper clips, buttons, etc.)
in the buckle or retractor mechanism
fig. 200. In addition, do not modify, remove,
or install the seat belt. Otherwise, the seat
belt may not be able to provide adequate
protection in a collision or other situation.
71)A dirty belt should be cleaned with
neutral detergent in warm water. After
rinsing in water, let it dry in the shade. Do
not attempt to bleach or re-dye the belts
because this affects their characteristics.SBR SYSTEM

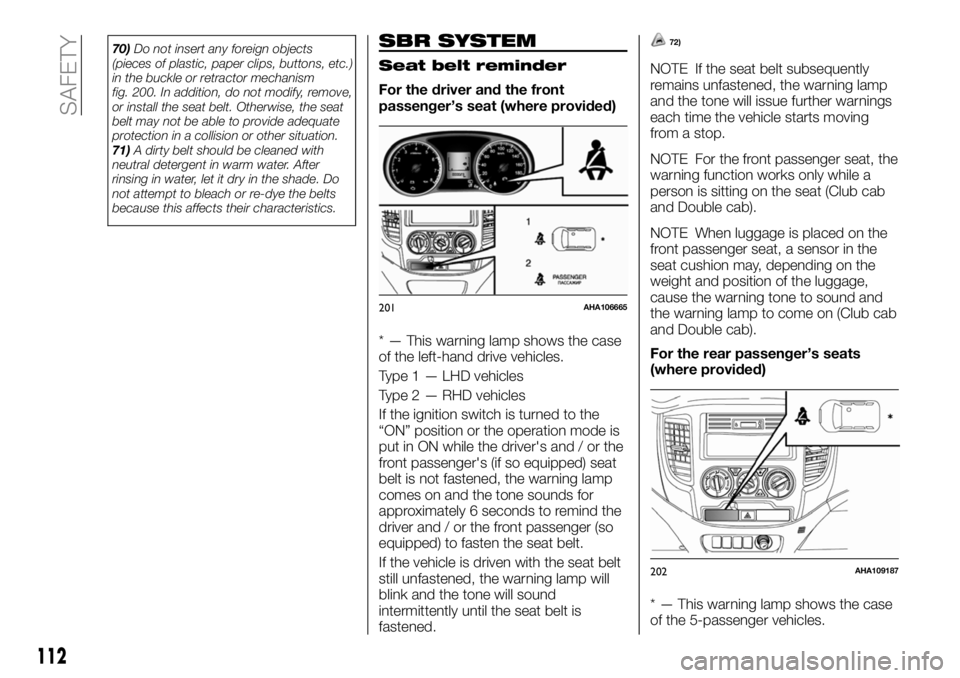

Seat belt reminder
For the driver and the front
passenger’s seat (where provided)
* — This warning lamp shows the case
of the left-hand drive vehicles.
Type 1 — LHD vehicles
Type 2 — RHD vehicles
If the ignition switch is turned to the
“ON” position or the operation mode is
put in ON while the driver's and / or the
front passenger's (if so equipped) seat
belt is not fastened, the warning lamp
comes on and the tone sounds for
approximately 6 seconds to remind the
driver and / or the front passenger (so
equipped) to fasten the seat belt.
If the vehicle is driven with the seat belt
still unfastened, the warning lamp will
blink and the tone will sound
intermittently until the seat belt is
fastened.
72)
NOTE If the seat belt subsequently
remains unfastened, the warning lamp
and the tone will issue further warnings
each time the vehicle starts moving
from a stop.
NOTE For the front passenger seat, the
warning function works only while a
person is sitting on the seat (Club cab
and Double cab).
NOTE When luggage is placed on the
front passenger seat, a sensor in the
seat cushion may, depending on the
weight and position of the luggage,
cause the warning tone to sound and
the warning lamp to come on (Club cab
and Double cab).
For the rear passenger’s seats
(where provided)
* — This warning lamp shows the case
of the 5-passenger vehicles.
201AHA106665
202AHA109187
112
SAFETY

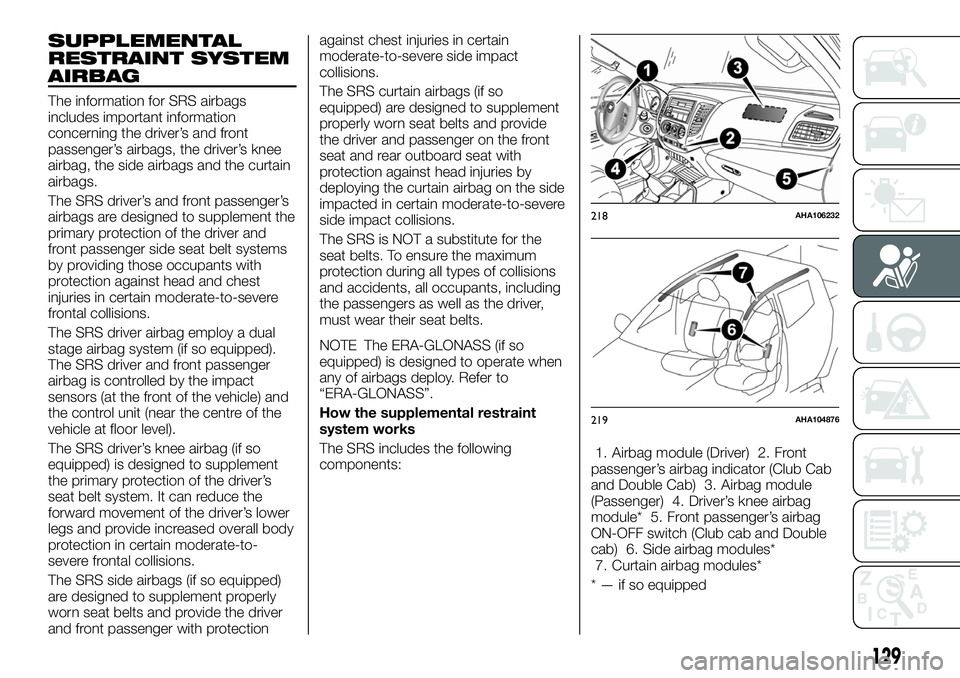

SUPPLEMENTAL
RESTRAINT SYSTEM
AIRBAG
The information for SRS airbags
includes important information
concerning the driver’s and front
passenger’s airbags, the driver’s knee
airbag, the side airbags and the curtain
airbags.
The SRS driver’s and front passenger’s
airbags are designed to supplement the
primary protection of the driver and
front passenger side seat belt systems
by providing those occupants with
protection against head and chest
injuries in certain moderate-to-severe
frontal collisions.
The SRS driver airbag employ a dual
stage airbag system (if so equipped).
The SRS driver and front passenger
airbag is controlled by the impact
sensors (at the front of the vehicle) and
the control unit (near the centre of the
vehicle at floor level).
The SRS driver’s knee airbag (if so
equipped) is designed to supplement
the primary protection of the driver’s
seat belt system. It can reduce the
forward movement of the driver’s lower
legs and provide increased overall body
protection in certain moderate-to-
severe frontal collisions.
The SRS side airbags (if so equipped)
are designed to supplement properly
worn seat belts and provide the driver
and front passenger with protectionagainst chest injuries in certain
moderate-to-severe side impact
collisions.
The SRS curtain airbags (if so
equipped) are designed to supplement
properly worn seat belts and provide
the driver and passenger on the front
seat and rear outboard seat with
protection against head injuries by
deploying the curtain airbag on the side
impacted in certain moderate-to-severe
side impact collisions.
The SRS is NOT a substitute for the
seat belts. To ensure the maximum
protection during all types of collisions
and accidents, all occupants, including
the passengers as well as the driver,
must wear their seat belts.
NOTE The ERA-GLONASS (if so
equipped) is designed to operate when
any of airbags deploy. Refer to
“ERA-GLONASS”.
How the supplemental restraint
system works
The SRS includes the following
components:1. Airbag module (Driver) 2. Front
passenger’s airbag indicator (Club Cab
and Double Cab) 3. Airbag module
(Passenger) 4. Driver’s knee airbag
module* 5. Front passenger’s airbag
ON-OFF switch (Club cab and Double
cab) 6. Side airbag modules*
7. Curtain airbag modules*
* — if so equipped
218AHA106232
219AHA104876
129

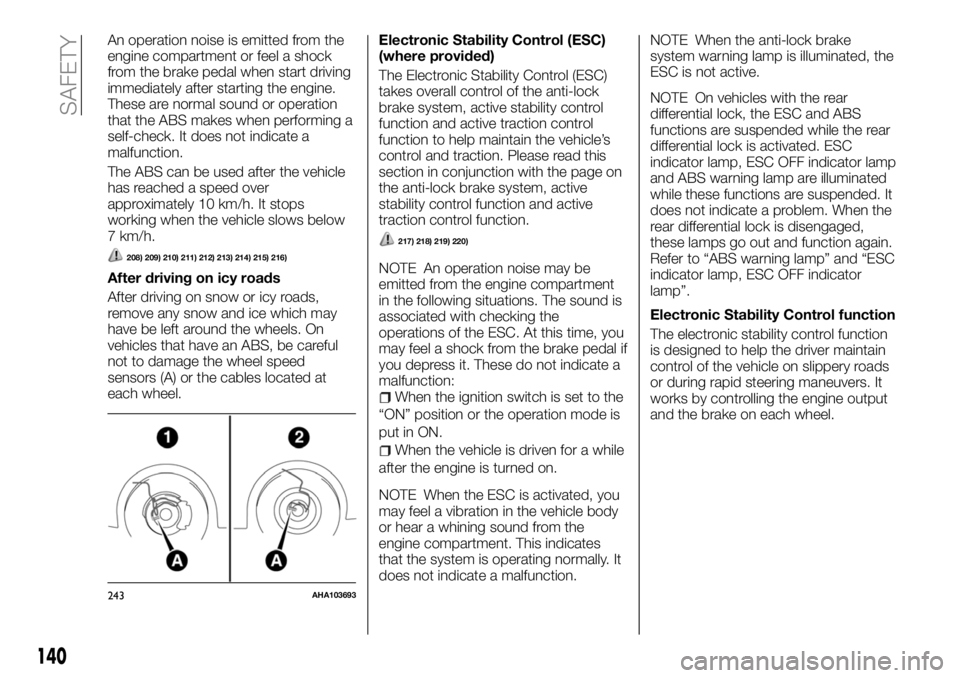

An operation noise is emitted from the
engine compartment or feel a shock
from the brake pedal when start driving
immediately after starting the engine.
These are normal sound or operation
that the ABS makes when performing a
self-check. It does not indicate a
malfunction.
The ABS can be used after the vehicle
has reached a speed over
approximately 10 km/h. It stops
working when the vehicle slows below
7 km/h.
208) 209) 210) 211) 212) 213) 214) 215) 216)
After driving on icy roads
After driving on snow or icy roads,
remove any snow and ice which may
have be left around the wheels. On
vehicles that have an ABS, be careful
not to damage the wheel speed
sensors (A) or the cables located at
each wheel.Electronic Stability Control (ESC)
(where provided)
The Electronic Stability Control (ESC)
takes overall control of the anti-lock
brake system, active stability control
function and active traction control
function to help maintain the vehicle’s
control and traction. Please read this
section in conjunction with the page on
the anti-lock brake system, active
stability control function and active
traction control function.
217) 218) 219) 220)
NOTE An operation noise may be
emitted from the engine compartment
in the following situations. The sound is
associated with checking the
operations of the ESC. At this time, you
may feel a shock from the brake pedal if
you depress it. These do not indicate a
malfunction:
When the ignition switch is set to the
“ON” position or the operation mode is
put in ON.
When the vehicle is driven for a while
after the engine is turned on.
NOTE When the ESC is activated, you
may feel a vibration in the vehicle body
or hear a whining sound from the
engine compartment. This indicates
that the system is operating normally. It
does not indicate a malfunction.NOTE When the anti-lock brake
system warning lamp is illuminated, the
ESC is not active.
NOTE On vehicles with the rear
differential lock, the ESC and ABS
functions are suspended while the rear
differential lock is activated. ESC
indicator lamp, ESC OFF indicator lamp
and ABS warning lamp are illuminated
while these functions are suspended. It
does not indicate a problem. When the
rear differential lock is disengaged,
these lamps go out and function again.
Refer to “ABS warning lamp” and “ESC
indicator lamp, ESC OFF indicator
lamp”.
Electronic Stability Control function
The electronic stability control function
is designed to help the driver maintain
control of the vehicle on slippery roads
or during rapid steering maneuvers. It
works by controlling the engine output
and the brake on each wheel.
243AHA103693
140
SAFETY
