Page 3 of 82
The innovating Windows Mobile™-based Telematic
Solution for the car
CONTENTS
OVERVIEW ................................................................................ 3
The hands-free kit ...................................................................... 3
Media player ............................................................................... 5
Road safety ................................................................................. 6
DISPLAY AND BUTTONS ON THE STEERING
WHEEL ......................................................................................... 7
HANDS-FREE KIT QUICK REFERENCE GUIDE ............ 9
Prepare your mobile phone phonebook ............................ 9
Try out the voice commands ................................................. 9
Pair your mobile phone ........................................................... 10
Make a phone call ..................................................................... 11

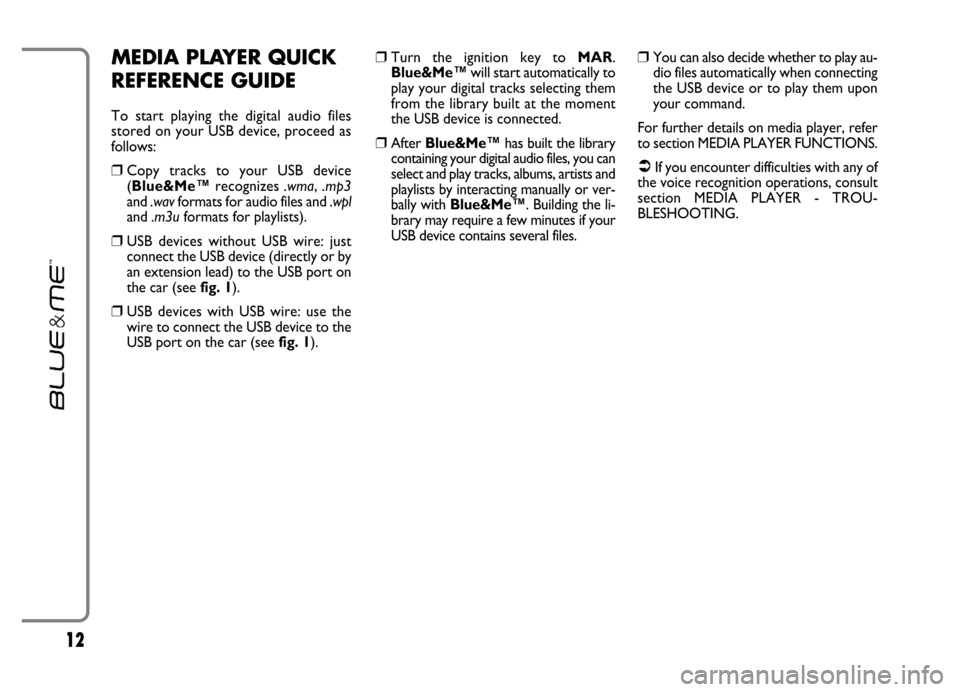

MEDIA PLAYER QUICK REFERENCE GUIDE ................ 12
HOW TO USE Blue&Me™ ................................................. 13
Steering wheel controls .......................................................... 13

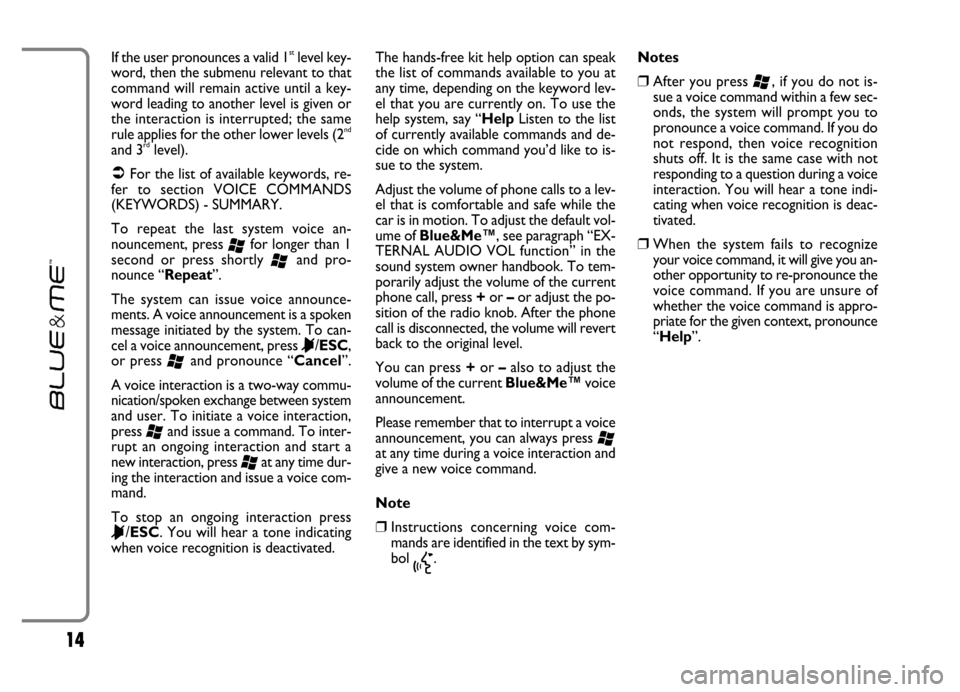

Voice commands ....................................................................... 13
Display ......................................................................................... 15

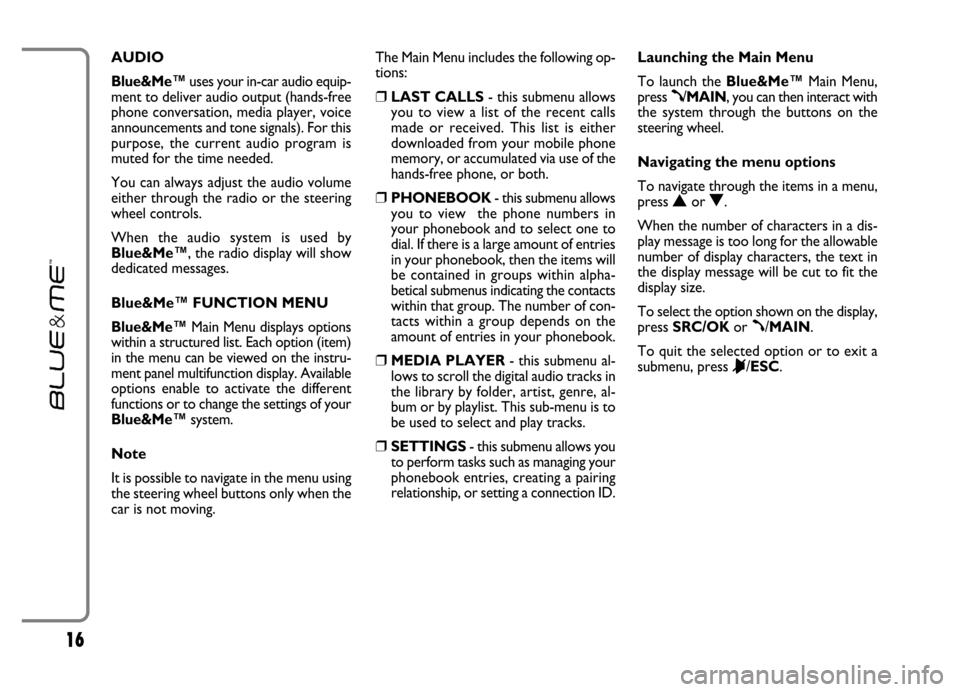

Audio ........................................................................................... 16
Blue&Me™ function menu .................................................. 16HANDS-FREE KIT FUNCTIONS .......................................... 17
Making a phone call .................................................................. 17
Incoming calls ............................................................................. 21
Managing phone calls ................................................................ 21

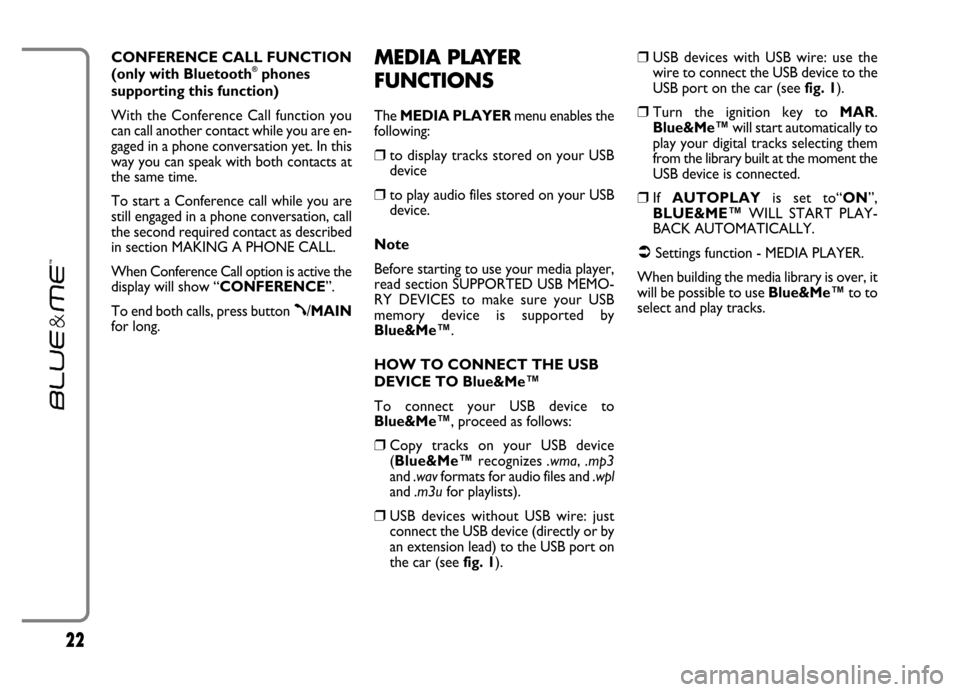

Conference call function ......................................................... 22
MEDIA PLAYER FUNCTIONS ............................................. 22
How to connect the USB device to Blue&Me™ ............ 22

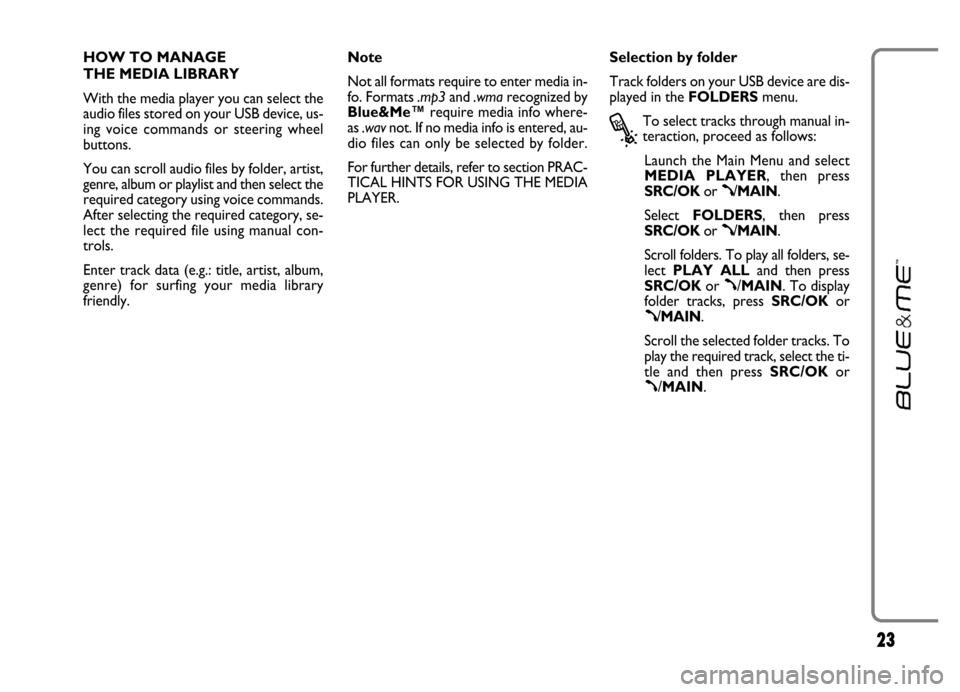

How to manage the media library ........................................ 23
- Selection by folder ................................................................. 23
- Selection by artist .................................................................. 24
- Selection by genre .................................................................. 25
- Selection by album ................................................................. 25
- Selection by playlist ............................................................... 26
Playing audio tracks .................................................................. 26
- Shuffle playback of the whole media library...................... 26
- Now playing (track data) ...................................................... 26
- Audio play ................................................................................ 27
- Pause ......................................................................................... 27
- Play ............................................................................................. 27
- Stop ........................................................................................... 27
- Next track ............................................................................... 27
- Previous track ......................................................................... 27
Page 4 of 82
- Changing audio source ......................................................... 27
Practical hints for using the media player ............................ 28
- Scrolling .................................................................................... 28
- Organizing media files ........................................................... 28
- Building the media library on Blue&Me™ .................... 28
- Building playlists for Blue&Me™ ..................................... 29
SETTINGS FUNCTIONS......................................................... 29
Pairing a mobile phone ............................................................ 29
Managing user data ................................................................... 33
Managing updates ...................................................................... 35
- Updating Blue&Me™ ......................................................... 36
- Pausing the update ................................................................. 37
- Using the phone during the updating procedure ........... 37
- Resuming the update ............................................................. 37
Advanced options ..................................................................... 38
- Changing the GPRS code ..................................................... 39
Media player settings ................................................................ 39
- Autoplay ................................................................................... 39
- Shuffle ........................................................................................ 40
- Loop .......................................................................................... 41
Exit the settings menu ............................................................. 41
Blue&Me™ SUPPORTED MOBILE PHONES ................ 42
Mobile phones with Bluetooth
®wireless technology ... 42
- “Pull” phones
(phonebook automatically downloaded) .......................... 42
- “Push” phones
(phonebook not automatically downloaded) .................. 42
- List of Blue&Me™ supported mobile phones ............. 43
Supported USB memory devices .......................................... 45
- USB memory devices ............................................................ 45- Supported digital audio files ................................................ 45
- Supported playlist formats .................................................... 46
VOICE COMMANDS (KEYWORDS) - SUMMARY ....... 47
Always available voice commands.......................................... 47
Hands-free phone kit voice commands ................................ 48
Media player voice commands................................................ 51
Settings function voice commands......................................... 55
TROUBLESHOOTING ............................................................ 58
Hands-free kit ............................................................................ 58
- General - display screen ....................................................... 58
- Phone-specific: Audiovox
®/Orange®.................................. 65
- Phone-specific: Motorola®.................................................... 66
- Phone-specific: Nokia®.......................................................... 68
- Phone-specific: Sony-Ericsson®........................................... 71
Media player ................................................................................ 73
PERSONAL DATA PROTECTION ..................................... 76
SYSTEM SOFTWARE USE NOTICE .................................. 77
Page 6 of 82
4
Note
During the mobile phone pairing proce-
dure, Blue&Me™attempts to detect a
phone equipped with Bluetooth
®wire-
less technology within range and then es-
tablishes the connection using a Personal
Identification Number (PIN).
Once your phone is paired, you have the
option to transfer your mobile phone con-
tacts to the hands-free kit, to make a
phone call either by using the contacts list
or directly pronouncing the phone num-
ber, to answer a call and also to answer
another incoming phone call.
To interact with Blue&Me
™you can use
either buttons on the steering wheel and
voice commands. With voice recognition,
you can perform system function by
speaking voice commands, also identified
as “keywords”. When the system recog-
nizes a keyword, it will respond with the
appropriate action. Voice recognition is an
easy and convenient way to use
Blue&Me
™.All the system functions are available with-
in the Blue&Me
™Main Menu. When the
car is not moving, you can surf through the
menu using either buttons on the steering
wheel and voice commands. When you
are travelling, you can interact with
Blue&Me
™using buttons on the steer-
ing wheel or voice commands relevant on-
ly to phone functions (Last callsand
Phonebook) and media player. To acti-
vate settings when travelling you can on-
ly use voice commands.
The hands-free kit enables the following
operations:
❒Contact calling by voice- you can call
a contact in your mobile phone phone-
book using your voice. You can also call
a contact in your phonebook by scan-
ning through the entries on the multi-
function display.
(To use this option you have to transfer
your mobile phone contacts to the hands-
free kit phonebook).
❒Digit-dialling by voice- you can dial a
phone number by speaking the digits to
be dialled.
❒Receiving phone calls- you can ac-
cept an incoming call simply by pressing
a button on the steering wheel.
❒Conference Call- you can call anoth-
er contact while you are engaged in a
phone conversation (with Bluetooth
®
phones supporting this option)
❒
Call waiting- while engaged in a phone
conversation, you can receive notifica-
tion of another incoming phone call, an-
swer the other incoming phone call, and
switch between two ongoing phone con-
versations. (Call waiting is only support-
ed by a subset of compatible mobile
phones).
After you place your mobile phone in the
car environment and create a pairing rela-
tionship with Blue&Me™, you can make
phone calls by speaking keywords or press-
ing buttons on the steering wheel. When
using the hands-free phone, the audio out-
put of a phone conversation is heard
through your car sound speakers.
Page 7 of 82
5
MEDIA PLAYER
With the Blue&Me™media player you
can play, via the car sound system, the dig-
ital audio files stored on a USB device by
simply connecting it to the USB port lo-
cated in the car.
In this way, while you are driving you can
play your favourite personal music collec-
tions.
The media player enables the following op-
erations:
❒Digital audio playback- you can play
all your digital audio files (.mp3, .wma,
.wav) or play a customized playlist (.m3u
or .wplformat).
❒Audio file selection by category-
you can play all audio files of a certain
category, e.g.: album, artist or genre.
❒Playback options- while playing tracks
you can select the following options: Play,
Stop, Next track, Previous track, Shuffle and
Loop track.
Note
The media player does not support audio
files compressed with other formats (e.g.:
.aac) and DRM (Digital Right Management)
protected audio files. Non-supported au-
dio files that may be present on the USB
device will be ignored.To use the media player, you have to sim-
ply connect (directly or by an extension
lead) your USB device to the car USB
port. Turning the ignition key to MAR,
Blue&Me™will start building your me-
dia library. At the end of this operation
you can surf the whole library and scroll
its categories as required using the but-
tons on the steering wheel or voice com-
mands. Blue&Me™will then play your
selection via the car sound system.
Page 10 of 82
8
Button
ß/MAIN
&/ESC
‘
+/–
N/O
SRC/OK
Notes
❒For many tasks, the steering wheel buttons SRC/OKand ß/MAINcan be used interchangeably, and you can use the key that is
more convenient for you to press.
❒For both operating modes of steering wheel buttons (short or long press), the function chosen will be activated when you release
the button.
❒On certain versions symbol ‘could be replaced by ô. The relevant button keeps the same functions. Short press function
(less than 1 second)
– Launch Blue&Me™Main Menu
– Confirm selected menu option
– Accept an incoming phone call
– Switch between two ongoing phone conversations
(call waiting)
– Cancel voice recognition
– Cancel a voice announcement
– Exit Blue&Me™Main Menu
– Exit the sub-menu and return to the previous menu option
– Exit current menu option without storing settings
– Turn the microphone on/off during a phone conversation
– Mute the ring tone of an incoming call
– Media player Pause on/off
– Activate voice recognition
– Interrupt voice announcement to provide a new voice command
– Adjust the volume of the following Blue&Me™functions: hands-free kit,
media player, voice announcements
– Scroll Blue&Me™ menu items – Select media player tracks
– Confirm manually selected menu option
– Switch phone conversation from the hands-free phone to your mobile phone
and vice versa
– Select audio sources (Radio, CD, CD Changer, Media Player)Long press function
(more than 1 second)
– Reject an incoming phone
call
– End a phone call (hang up)
–
– Repeat the last utterance
in a voice interaction
–
–
–
Page 14 of 82
12
MEDIA PLAYER QUICK
REFERENCE GUIDE
To start playing the digital audio files
stored on your USB device, proceed as
follows:
❒Copy tracks to your USB device
(Blue&Me™recognizes .wma, .mp3
and .wavformats for audio files and .wpl
and .m3uformats for playlists).
❒USB devices without USB wire: just
connect the USB device (directly or by
an extension lead) to the USB port on
the car (see fig. 1).
❒USB devices with USB wire: use the
wire to connect the USB device to the
USB port on the car (see fig. 1).
❒Turn the ignition key to MAR.
Blue&Me™will start automatically to
play your digital tracks selecting them
from the library built at the moment
the USB device is connected.
❒After Blue&Me™has built the library
containing your digital audio files, you can
select and play tracks, albums, artists and
playlists by interacting manually or ver-
bally with Blue&Me™. Building the li-
brary may require a few minutes if your
USB device contains several files.
❒You can also decide whether to play au-
dio files automatically when connecting
the USB device or to play them upon
your command.
For further details on media player, refer
to section MEDIA PLAYER FUNCTIONS.
If you encounter difficulties with any of
the voice recognition operations, consult
section MEDIA PLAYER - TROU-
BLESHOOTING.
Page 16 of 82
14
If the user pronounces a valid 1stlevel key-
word, then the submenu relevant to that
command will remain active until a key-
word leading to another level is given or
the interaction is interrupted; the same
rule applies for the other lower levels (2
nd
and 3rdlevel).
For the list of available keywords, re-
fer to section VOICE COMMANDS
(KEYWORDS) - SUMMARY.
To repeat the last system voice an-
nouncement, press
‘for longer than 1
second or press shortly
‘and pro-
nounce “Repeat”.
The system can issue voice announce-
ments. A voice announcement is a spoken
message initiated by the system. To can-
cel a voice announcement, press
&/ESC,
or press
‘and pronounce “Cancel”.
A voice interaction is a two-way commu-
nication/spoken exchange between system
and user. To initiate a voice interaction,
press
‘and issue a command. To inter-
rupt an ongoing interaction and start a
new interaction, press
‘at any time dur-
ing the interaction and issue a voice com-
mand.
To stop an ongoing interaction press
&/ESC. You will hear a tone indicating
when voice recognition is deactivated.The hands-free kit help option can speak
the list of commands available to you at
any time, depending on the keyword lev-
el that you are currently on. To use the
help system, say “HelpListen to the list
of currently available commands and de-
cide on which command you’d like to is-
sue to the system.
Adjust the volume of phone calls to a lev-
el that is comfortable and safe while the
car is in motion. To adjust the default vol-
ume of Blue&Me™, see paragraph “EX-
TERNAL AUDIO VOL function” in the
sound system owner handbook. To tem-
porarily adjust the volume of the current
phone call, press +or –or adjust the po-
sition of the radio knob. After the phone
call is disconnected, the volume will revert
back to the original level.
You can press +or –also to adjust the
volume of the current Blue&Me™voice
announcement.
Please remember that to interrupt a voice
announcement, you can always press
‘at any time during a voice interaction and
give a new voice command.
Note
❒Instructions concerning voice com-
mands are identified in the text by sym-
bol
}.Notes
❒After you press ‘, if you do not is-
sue a voice command within a few sec-
onds, the system will prompt you to
pronounce a voice command. If you do
not respond, then voice recognition
shuts off. It is the same case with not
responding to a question during a voice
interaction. You will hear a tone indi-
cating when voice recognition is deac-
tivated.
❒When the system fails to recognize
your voice command, it will give you an-
other opportunity to re-pronounce the
voice command. If you are unsure of
whether the voice command is appro-
priate for the given context, pronounce
“Help”.
Page 18 of 82
16
AUDIO
Blue&Me™uses your in-car audio equip-
ment to deliver audio output (hands-free
phone conversation, media player, voice
announcements and tone signals). For this
purpose, the current audio program is
muted for the time needed.
You can always adjust the audio volume
either through the radio or the steering
wheel controls.
When the audio system is used by
Blue&Me™, the radio display will show
dedicated messages.
Blue&Me™ FUNCTION MENU
Blue&Me™Main Menu displays options
within a structured list. Each option (item)
in the menu can be viewed on the instru-
ment panel multifunction display. Available
options enable to activate the different
functions or to change the settings of your
Blue&Me™system.
Note
It is possible to navigate in the menu using
the steering wheel buttons only when the
car is not moving.The Main Menu includes the following op-
tions:
❒LAST CALLS- this submenu allows
you to view a list of the recent calls
made or received. This list is either
downloaded from your mobile phone
memory, or accumulated via use of the
hands-free phone, or both.
❒PHONEBOOK- this submenu allows
you to view the phone numbers in
your phonebook and to select one to
dial. If there is a large amount of entries
in your phonebook, then the items will
be contained in groups within alpha-
betical submenus indicating the contacts
within that group. The number of con-
tacts within a group depends on the
amount of entries in your phonebook.
❒MEDIA PLAYER- this submenu al-
lows to scroll the digital audio tracks in
the library by folder, artist, genre, al-
bum or by playlist. This sub-menu is to
be used to select and play tracks.
❒SETTINGS- this submenu allows you
to perform tasks such as managing your
phonebook entries, creating a pairing
relationship, or setting a connection ID.Launching the Main Menu
To launch the Blue&Me™Main Menu,
press
ß/MAIN, you can then interact with
the system through the buttons on the
steering wheel.
Navigating the menu options
To navigate through the items in a menu,
press
NorO.
When the number of characters in a dis-
play message is too long for the allowable
number of display characters, the text in
the display message will be cut to fit the
display size.
To select the option shown on the display,
press SRC/OKor
ß/MAIN.
To quit the selected option or to exit a
submenu, press
&/ESC.
Page 24 of 82
22
MEDIA PLAYER
FUNCTIONS
The MEDIA PLAYERmenu enables the
following:
❒to display tracks stored on your USB
device
❒to play audio files stored on your USB
device.
Note
Before starting to use your media player,
read section SUPPORTED USB MEMO-
RY DEVICES to make sure your USB
memory device is supported by
Blue&Me™.
HOW TO CONNECT THE USB
DEVICE TO Blue&Me™
To connect your USB device to
Blue&Me™, proceed as follows:
❒Copy tracks on your USB device
(Blue&Me™recognizes .wma, .mp3
and .wavformats for audio files and .wpl
and .m3ufor playlists).
❒USB devices without USB wire: just
connect the USB device (directly or by
an extension lead) to the USB port on
the car (see fig. 1). CONFERENCE CALL FUNCTION
(only with Bluetooth
®phones
supporting this function)
With the Conference Call function you
can call another contact while you are en-
gaged in a phone conversation yet. In this
way you can speak with both contacts at
the same time.
To start a Conference call while you are
still engaged in a phone conversation, call
the second required contact as described
in section MAKING A PHONE CALL.
When Conference Call option is active the
display will show “CONFERENCE”.
To end both calls, press button
ß/MAIN
for long.
❒USB devices with USB wire: use the
wire to connect the USB device to the
USB port on the car (see fig. 1).
❒Turn the ignition key to MAR.
Blue&Me™will start automatically to
play your digital tracks selecting them
from the library built at the moment the
USB device is connected.
❒If AUTOPLAYis set to“ON”,
BLUE&ME™WILL START PLAY-
BACK AUTOMATICALLY.
Settings function - MEDIA PLAYER.
When building the media library is over, it
will be possible to use Blue&Me™to to
select and play tracks.
Page 25 of 82
23
HOW TO MANAGE
THE MEDIA LIBRARY
With the media player you can select the
audio files stored on your USB device, us-
ing voice commands or steering wheel
buttons.
You can scroll audio files by folder, artist,
genre, album or playlist and then select the
required category using voice commands.
After selecting the required category, se-
lect the required file using manual con-
trols.
Enter track data (e.g.: title, artist, album,
genre) for surfing your media library
friendly.Note
Not all formats require to enter media in-
fo. Formats .mp3and .wmarecognized by
Blue&Me™require media info where-
as .wavnot. If no media info is entered, au-
dio files can only be selected by folder.
For further details, refer to section PRAC-
TICAL HINTS FOR USING THE MEDIA
PLAYER.Selection by folder
Track folders on your USB device are dis-
played in the FOLDERSmenu.
?
To select tracks through manual in-
teraction, proceed as follows:
Launch the Main Menu and select
MEDIA PLAYER, then press
SRC/OKor
ß/MAIN.
Select FOLDERS, then press
SRC/OKor
ß/MAIN.
Scroll folders. To play all folders, se-
lect PLAY ALLand then press
SRC/OKor
ß/MAIN. To display
folder tracks, press SRC/OKor
ß/MAIN.
Scroll the selected folder tracks. To
play the required track, select the ti-
tle and then press SRC/OKor
ß/MAIN.
