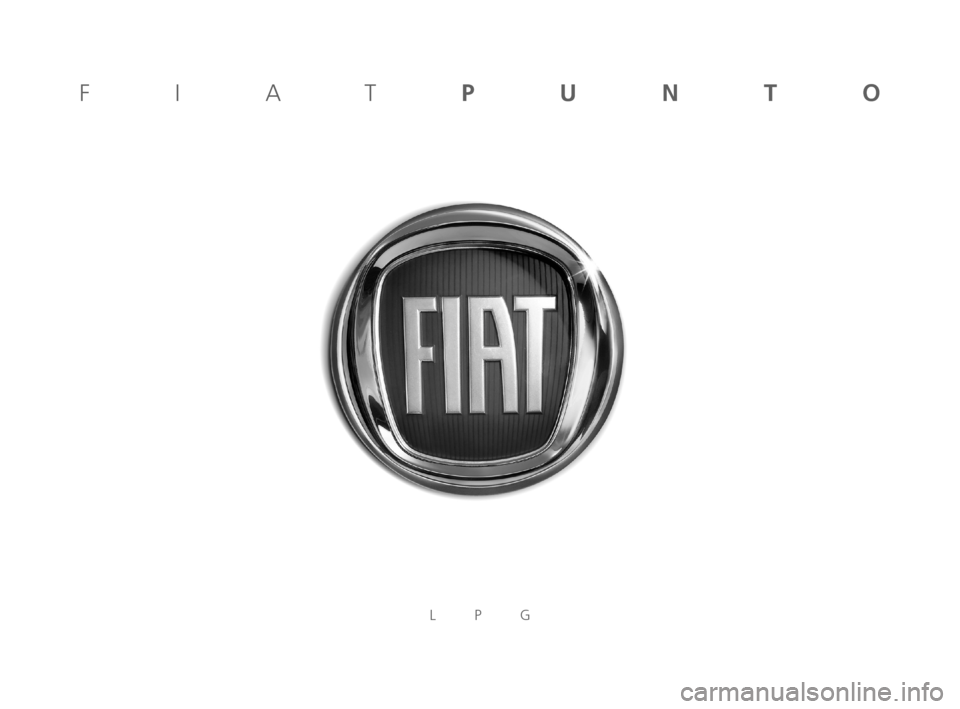

FIAT GRANDE PUNTO 2008 199 / 1.G LPG Supplement Manual LPG
FIATPUNTO
604.39.942 Grande Punto GPL GB.qxp:603.39.944 Grande Punto GPL IT  15-12-2008  9:00  Pagina 1

Page 2 of 24

FIAT GRANDE PUNTO 2008 199 / 1.G LPG Supplement Manual 604.39.942 Grande Punto GPL GB.qxp:603.39.944 Grande Punto GPL IT  15-12-2008  9:00  Pagina 2

Page 3 of 24

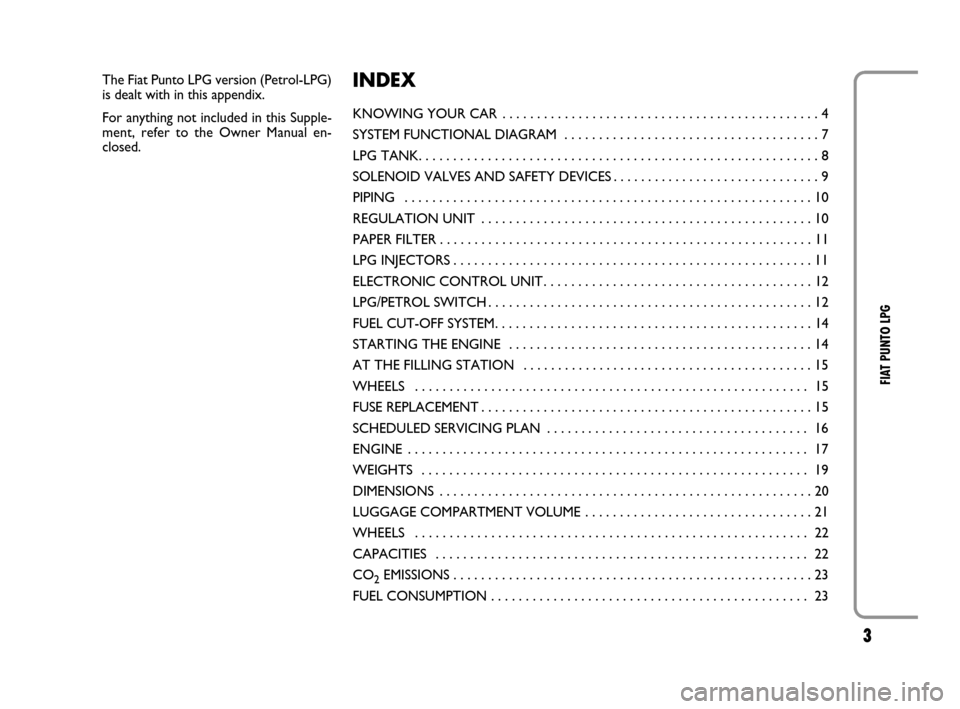

FIAT GRANDE PUNTO 2008 199 / 1.G LPG Supplement Manual 3
FIAT PUNTO LPG
The Fiat Punto LPG version (Petrol-LPG)
is dealt with in this appendix.
For anything not included in this Supple-
ment, refer to the Owner Manual en-
closed.INDEX
KNOWING YOUR CAR . .

Page 4 of 24

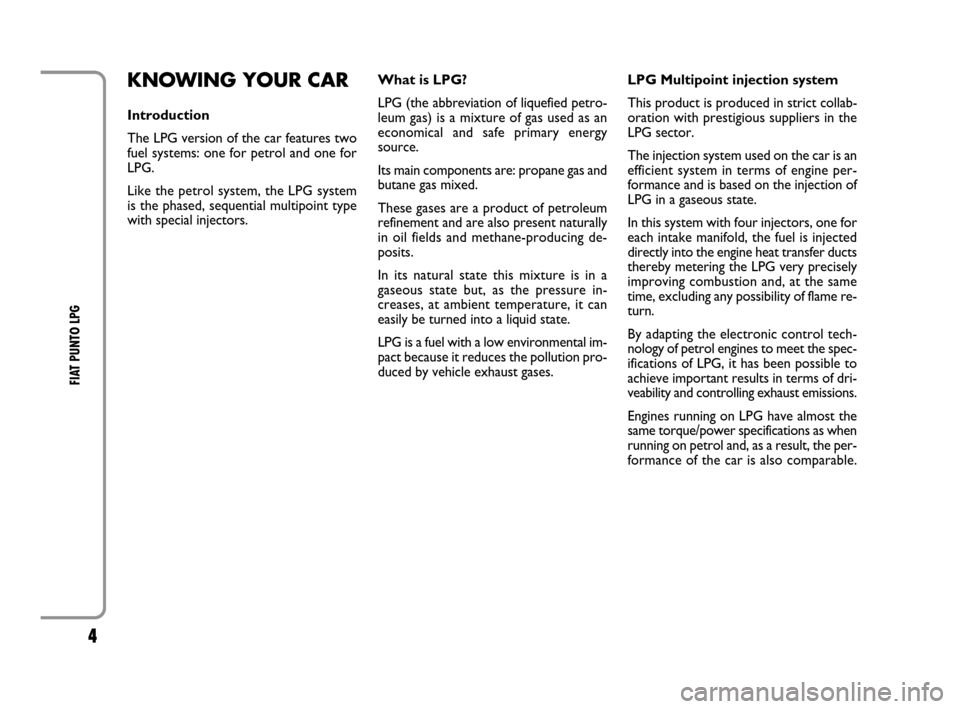

FIAT GRANDE PUNTO 2008 199 / 1.G LPG Supplement Manual 4
FIAT PUNTO LPG
KNOWING YOUR CAR
Introduction
The LPG version of the car features two
fuel systems: one for petrol and one for
LPG.
Like the petrol system, the LPG system
is the phased, sequential

Page 5 of 24

FIAT GRANDE PUNTO 2008 199 / 1.G LPG Supplement Manual 5
FIAT PUNTO LPG
The system extreme operat-
ing temperatures are between
-20°C and 100°C.
Selecting the type of fuel supply
The car is configured for running inde-
pendently on either petrol or LPG

Page 6 of 24

FIAT GRANDE PUNTO 2008 199 / 1.G LPG Supplement Manual 6
FIAT PUNTO LPG
When painting in an oven, the
LPG tank should be removed
from the car and later care-
fully refitted by a Fiat Dealer.
Although the LPG system has numer-
ous safety features, it is a

Page 7 of 24

FIAT GRANDE PUNTO 2008 199 / 1.G LPG Supplement Manual 7
FIAT PUNTO LPG

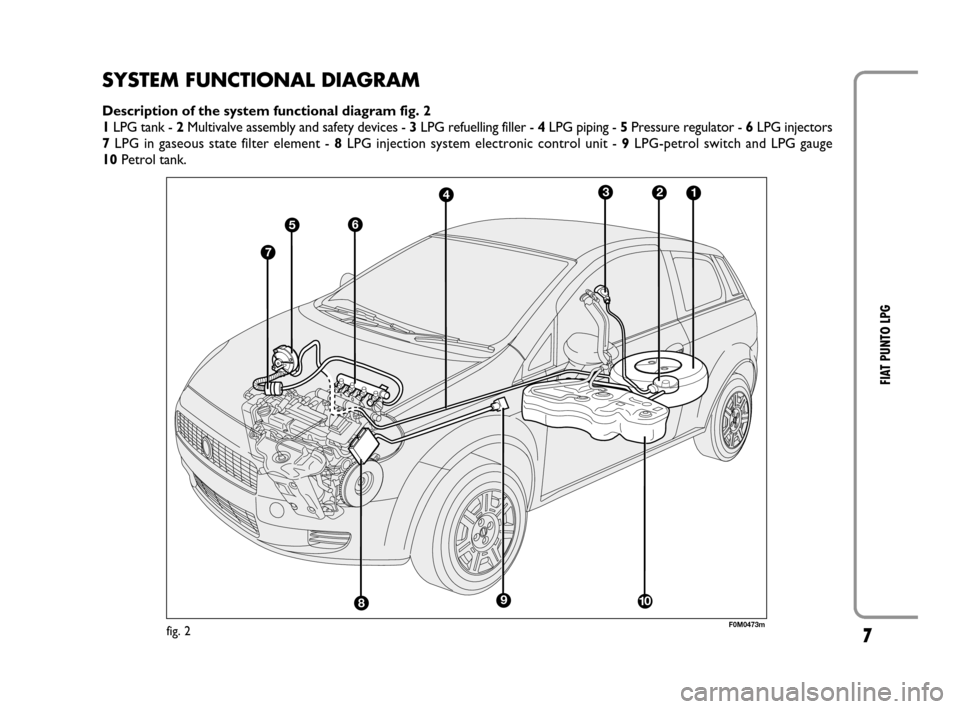

SYSTEM FUNCTIONAL DIAGRAM
Description of the system functional diagram fig. 2
1LPG tank - 2Multivalve assembly and safety devices - 3LPG refuelling filler - 4LPG piping - 5Pressure re

Page 8 of 24

FIAT GRANDE PUNTO 2008 199 / 1.G LPG Supplement Manual 8
FIAT PUNTO LPG
LPG TANK
The vehicle has a (pressurized) tank A-
fig. 3for LPG in a liquid state that is
toroidal in shape and located in the hous-
ing for the spare wheel with suitable pro-
tection

Page 9 of 24

FIAT GRANDE PUNTO 2008 199 / 1.G LPG Supplement Manual 9
FIAT PUNTO LPG

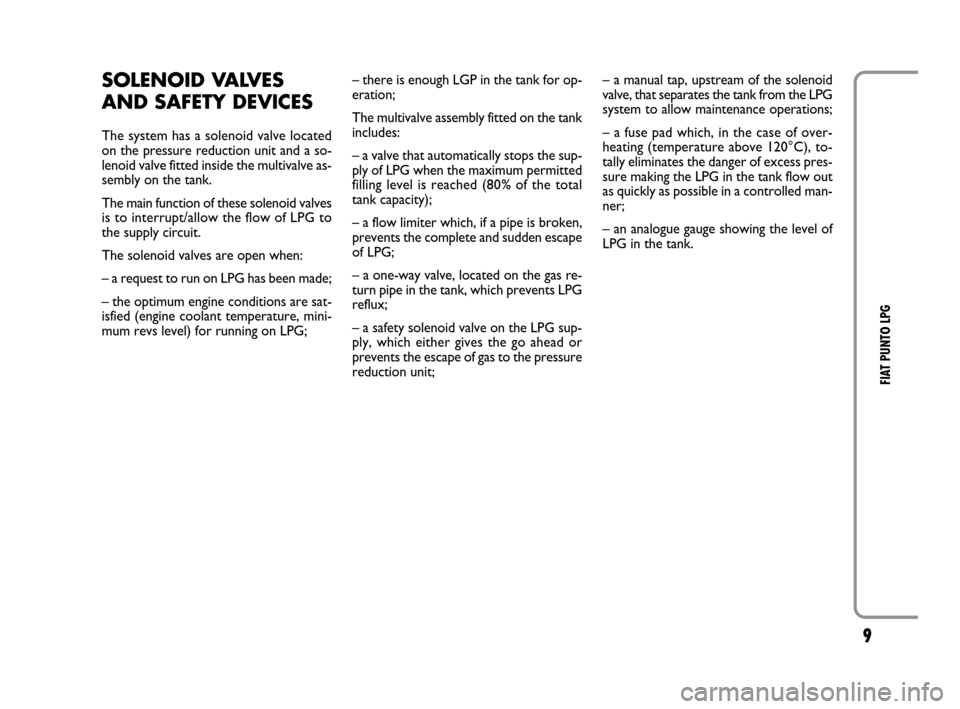

SOLENOID VALVES
AND SAFETY DEVICES
The system has a solenoid valve located
on the pressure reduction unit and a so-
lenoid valve fitted inside the multivalve as-
sembly on the tank.

Page 10 of 24

FIAT GRANDE PUNTO 2008 199 / 1.G LPG Supplement Manual 10
FIAT PUNTO LPG

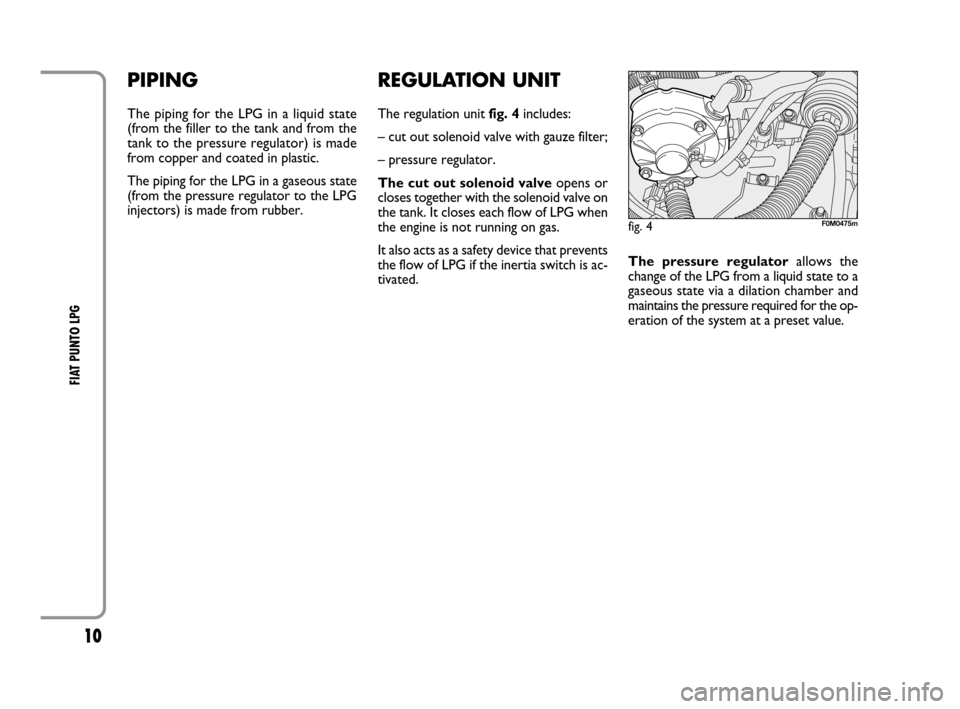

REGULATION UNIT
The regulation unit fig. 4includes:
– cut out solenoid valve with gauze filter;
– pressure regulator.
The cut out solenoid valveopens or
closes together with the
