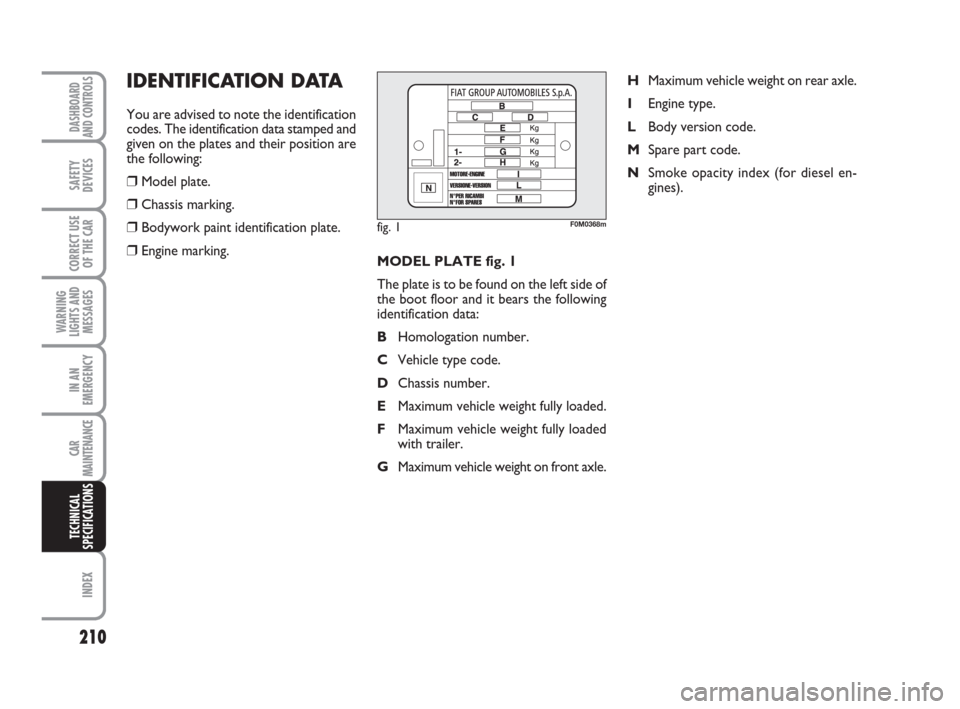

MODEL PLATE fig. 1
The plate is to be found on the left side of
the boot floor and it bears the following
identification data:
BHomologation number.
CVehicle type code.
DChassis number.
EMaximum vehicle weight fully loaded.
FMaximum vehicle weight fully loaded
with trailer.
GMaximum vehicle weight on front axle.HMaximum vehicle weight on rear axle.
IEngine type.
LBody version code.
MSpare part code.
NSmoke opacity index (for diesel en-
gines).
IDENTIFICATION DATA
You are advised to note the identification
codes. The identification data stamped and
given on the plates and their position are
the following:
❒Model plate.
❒Chassis marking.
❒Bodywork paint identification plate.
❒Engine marking.
fig. 1F0M0368m
209-229 Punto GDX GB 6-08-2008 10:11 Pagina 210

CHASSIS MARKING fig. 3
It is printed on the passenger compart-
ment floor, near the right-hand front seat.
❒car model (ZFA 199000);
❒chassis number.ENGINE MARKING
Engine marking is stamped on the cylinder
block and includes the model and the
chassis number.

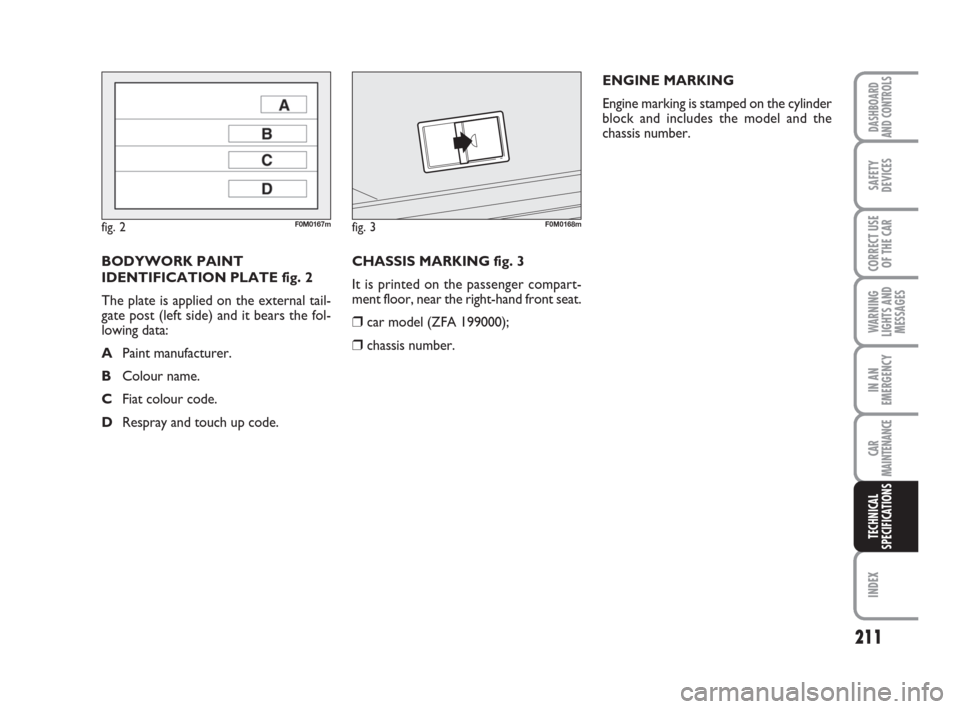

BODYWORK PAINT
IDENTIFICATION PLATE fig. 2
The plate is applied on the external tail-
gate post (left side) and it bears the fol-
lowing data:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
fig. 2F0M0167mfig. 3F0M0168m
211
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
209-229 Punto GDX GB 6-08-2008 10:11 Pagina 211

212
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

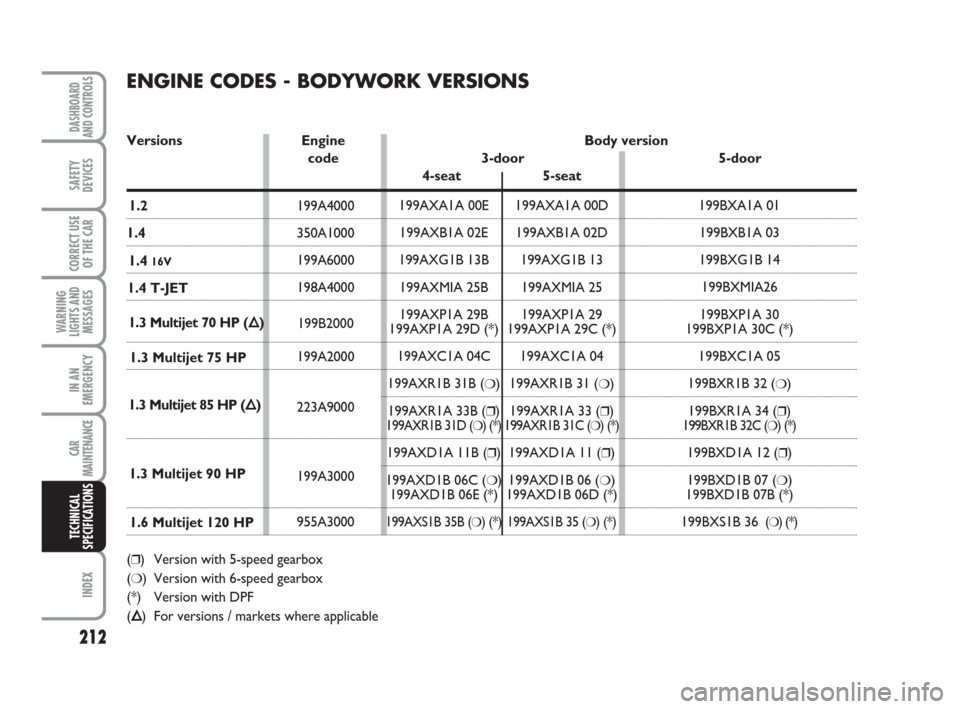

ENGINE CODES - BODYWORK VERSIONS
Versions Engine Body version
code 3-door 5-door
4-seat 5-seat
(❒) Version with 5-speed gearbox
(
❍) Version with 6-speed gearbox
(*) Version with DPF
(Õ) For versions / markets where applicable
199A4000
350A1000
199A6000
198A4000
199B2000
199A2000
223A9000
199A3000
955A3000199BXA1A 01
199BXB1A 03
199BXG1B 14
199BXMIA26
199BXP1A 30
199BXP1A 30C (*)
199BXC1A 05
199BXR1B 32 (
❍)
199BXR1A 34 (
❒)
199BXR1B 32C (❍) (*)
199BXD1A 12 (❒)
199BXD1B 07 (
❍)
199BXD1B 07B (*)
199BXS1B 36
(❍) (*)
199AXA1A 00D
199AXB1A 02D
199AXG1B 13
199AXMIA 25
199AXP1A 29
199AXP1A 29C (*)
199AXC1A 04
199AXR1B 31 (
❍)
199AXR1A 33 (
❒)
199AXR1B 31C (❍) (*)
199AXD1A 11 (❒)
199AXD1B 06 (
❍)
199AXD1B 06D (*)
199AXS1B 35 (❍) (*)
199AXA1A 00E
199AXB1A 02E
199AXG1B 13B
199AXMIA 25B
199AXP1A 29B
199AXP1A 29D (*)
199AXC1A 04C
199AXR1B 31B (
❍)
199AXR1A 33B (
❒)
199AXR1B 31D (❍) (*)
199AXD1A 11B (❒)
199AXD1B 06C (
❍)
199AXD1B 06E (*)
199AXS1B 35B (❍) (*)
1.2
1.4
1.4
16V
1.4 T-JET
1.3 Multijet 75 HP
1.3 Multijet 90 HP
1.6 Multijet 120 HP 1.3 Multijet 70 HP (Õ)
1.3 Multijet 85 HP (Õ)
209-229 Punto GDX GB 2-09-2008 12:13 Pagina 212

213
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
1.4
350A1000
Otto
4 in line
72 x 84
1368
11.1:1
57
77
6000
115
11.7
3000
NGK
ZKR7A-10
Unleaded petrol 95
RON
(Specification
EN228) 1.2
199A4000
Otto
4 in line
70.8 x 78.86
1242
11.1:1
48
65
5500
102
10.4
3000
NGK
ZKR7A-10
Unleaded petrol 95
RON
(Specification
EN228)1.4
16V
199A6000
Otto
4
in line
72 x 84
1368
10.8:1
70
95
6000
125
12.9
4500
NGK
ZKR7A-10
Unleaded petrol 95
RON
(Specification
EN228)1.4 T-JET
198A4000
Otto
4 in line
72,0 x 84,0
1368
9,8
:1
88
120
5000
206
21
1750
NGK
IKR9F8
Unleaded petrol 95
RON
(Specification
EN228)

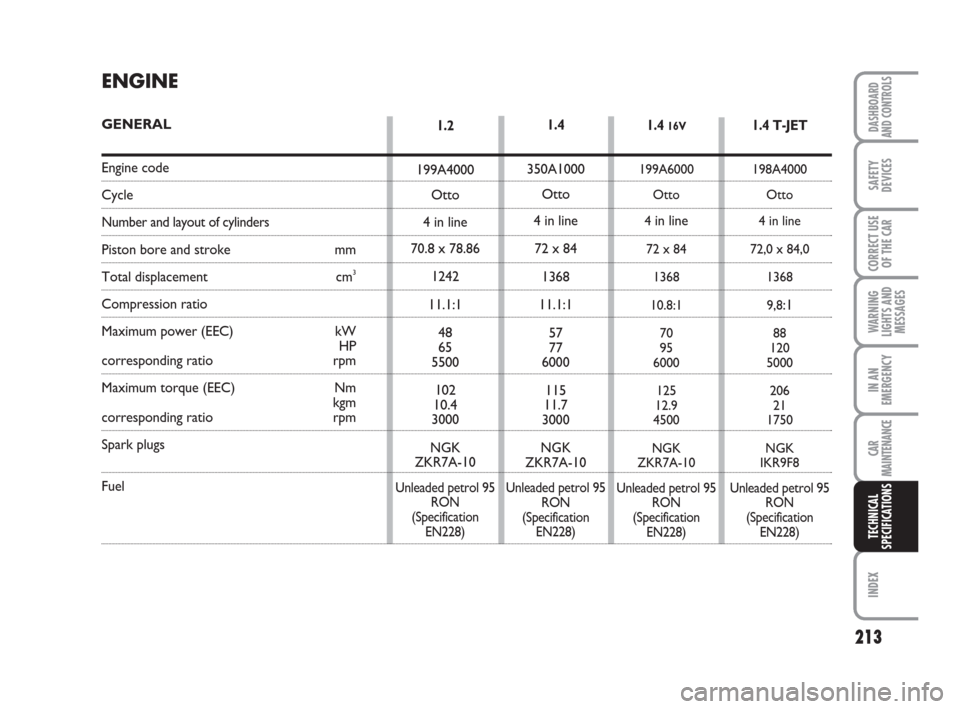

ENGINE
GENERAL
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Spark plugs
Fuel
209-229 Punto GDX GB 6-08-2008 10:11 Pagina 213

214
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

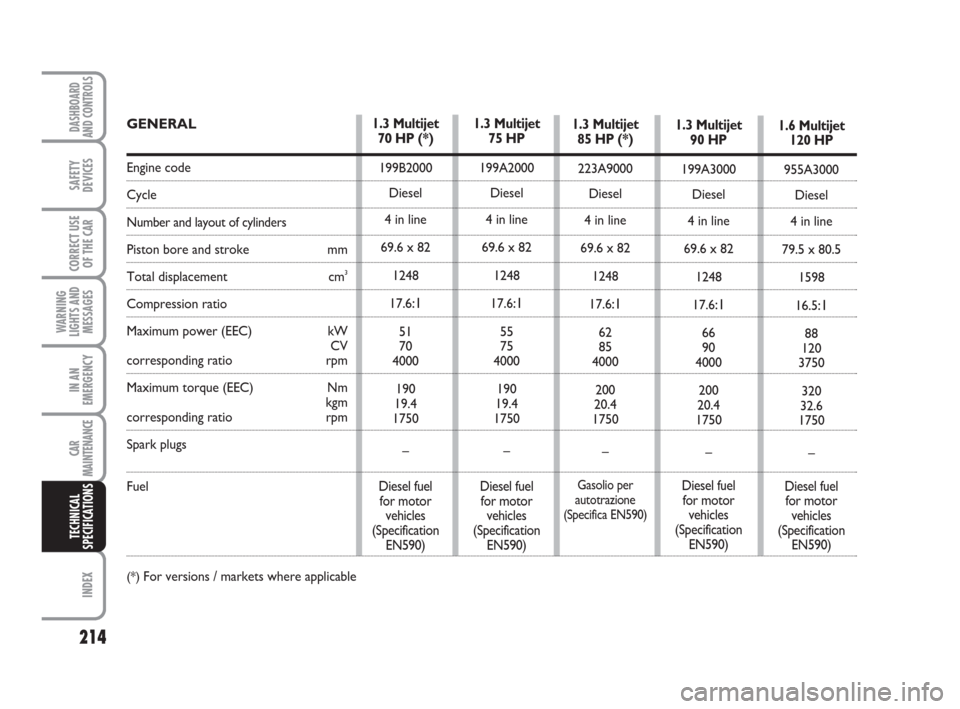

1.3 Multijet
85 HP (*)
223A9000
Diesel
4 in line
69.6 x 82
1248
17.6
:1
62
85
4000
200
20.4
1750
–
Gasolio per
autotrazione
(Specifica EN590)
1.3 Multijet
90 HP
199A3000
Diesel
4 in line
69.6 x 82
1248
17.6
:1
66
90
4000
200
20.4
1750
–
Diesel fuel
for motor
vehicles
(Specification
EN590)
1.6 Multijet
120 HP
955A3000
Diesel
4 in line
79.5 x 80.5
1598
16.5
:1
88
120
3750
320
32.6
1750
–
Diesel fuel
for motor
vehicles
(Specification
EN590) 1.3 Multijet
75 HP
199A2000
Diesel
4 in line
69.6 x 82
1248
17.6
:1
55
75
4000
190
19.4
1750
–
Diesel fuel
for motor
vehicles
(Specification
EN590) 1.3 Multijet
70 HP (*)
199B2000
Diesel
4 in line
69.6 x 82
1248
17.6
:1
51
70
4000
190
19.4
1750
–
Diesel fuel
for motor
vehicles
(Specification
EN590)
GENERAL
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
CV
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Spark plugs
Fuel
(*) For versions / markets where applicable
209-229 Punto GDX GB 6-08-2008 10:11 Pagina 214

215
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

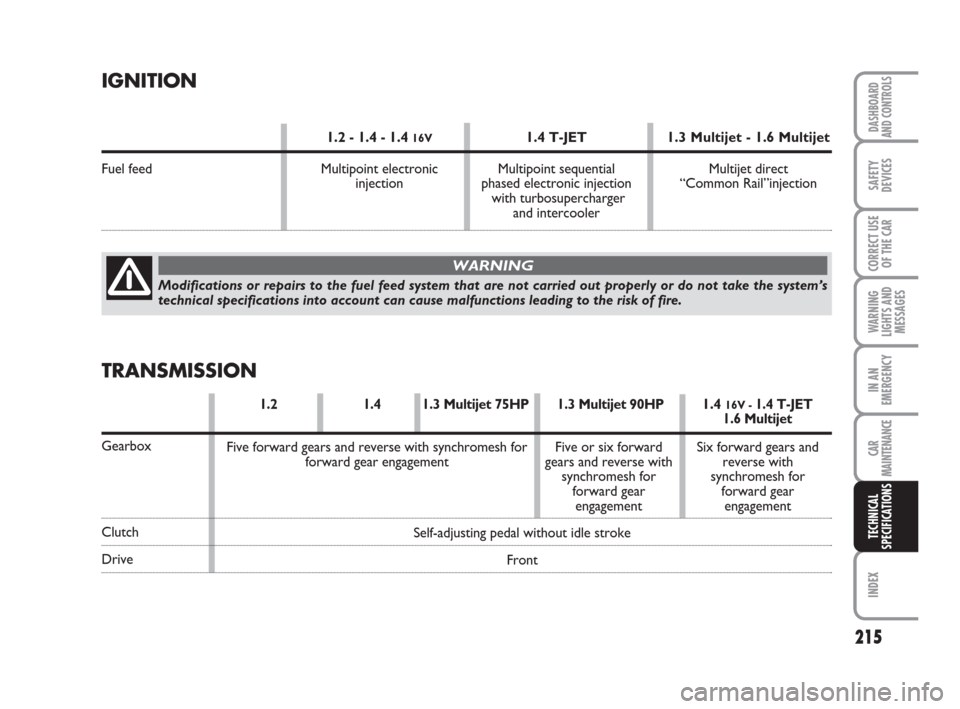

Modifications or repairs to the fuel feed system that are not carried out properly or do not take the system’s
technical specifications into account can cause malfunctions leading to the risk of fire.
WARNING
TRANSMISSION
1.2 1.4 1.3 Multijet 75HP 1.3 Multijet 90HP1.4 16V - 1.4 T-JET1.6 Multijet
Gearbox
Clutch
DriveSelf-adjusting pedal without idle stroke
Front Five forward gears and reverse with synchromesh for
forward gear engagementSix forward gears and
reverse with
synchromesh for
forward gear
engagement Five or six forward
gears and reverse with
synchromesh for
forward gear
engagement
IGNITION
1.2 - 1.4 - 1.4 16V1.4 T-JET1.3 Multijet - 1.6 Multijet
Fuel feed Multipoint electronic Multipoint sequential Multijet direct
injection phased electronic injection “Common Rail”injection
with turbosupercharger
and intercooler
209-229 Punto GDX GB 6-08-2008 10:11 Pagina 215

216
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

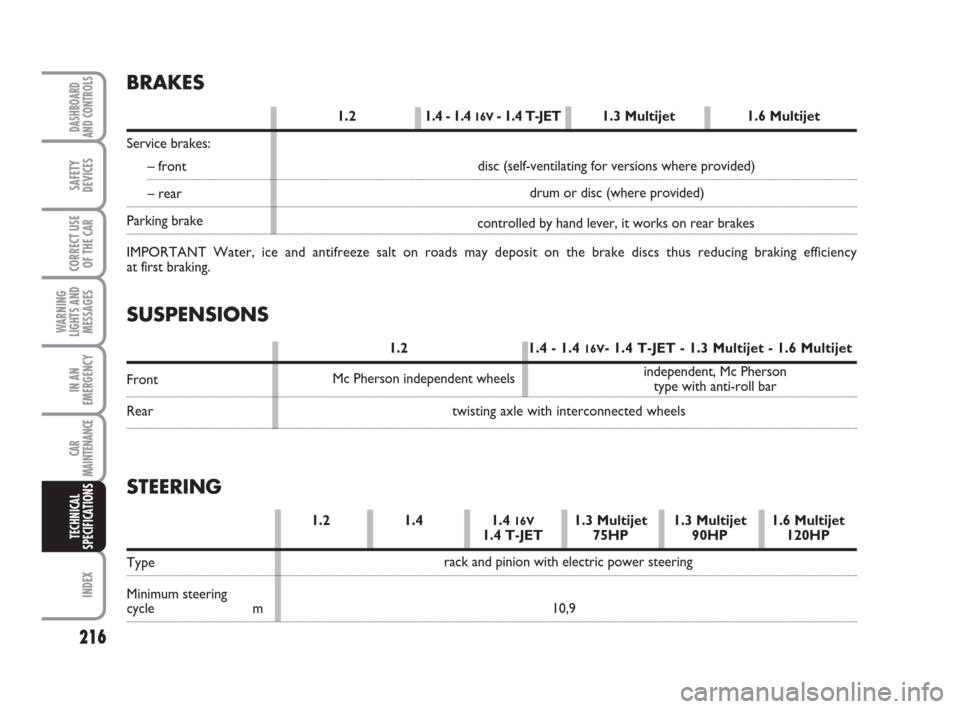

SUSPENSIONS
1.2 1.4 - 1.4 16V- 1.4 T-JET - 1.3 Multijet - 1.6 Multijet
Front
Rear twisting axle with interconnected wheels
BRAKES
1.2 1.4 - 1.4 16V- 1.4 T-JET1.3 Multijet 1.6 Multijet
Service brakes:
– front
– rear
Parking brake
IMPORTANT Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency
at first braking.
independent, Mc Pherson
type with anti-roll bar
rack and pinion with electric power steeringcontrolled by hand lever, it works on rear brakesdrum or disc (where provided) disc (self-ventilating for versions where provided)
STEERING
1.2 1.4 1.4 16V1.3 Multijet 1.3 Multijet 1.6 Multijet1.4 T-JET 75HP 90HP 120HP
Type
Minimum steering
cycle m 10,9Mc Pherson independent wheels
209-229 Punto GDX GB 6-08-2008 10:11 Pagina 216

217
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
UNDERSTANDING TYRE
MARKING fig. 4
Example: 175/65 R 15 84T
175 = Nominal width (S, distance be-
tween sidewalls in mm).
65 = Percentage height/width ratio
(H/ S).
R = Radial tyre.
15 = Rim diameter in inches (Ø).
84 = Load rating (capacity).
T = Maximum speed rating.
WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless tyres
with radial carcass. The homologated tyres
are listed in the Log book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Attaining to the prescribed size, to ensure
safety of the car in movement, it must be
fitted with tyres of the same make and
type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
fig. 4F0M0169m
SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in: 1 ± 1 mm
Rear wheel toe-in: 1.7 ± 2 mm
The values refer to the car in running or-
der.
209-229 Punto GDX GB 6-08-2008 10:11 Pagina 217

UNDERSTANDING RIM
MARKING fig. 4
Example: 6J x 15 ET43
6 = rim width in inches 1.
J = rim drop centre outline (side
projection where the tyre bead
rests) 2.
15 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) 3= Ø.
ET43 = wheel camber angle (distance be-
tween the disc/rim supporting
plane and the wheel rim centre
line). Load rating (capacity)
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg
218
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

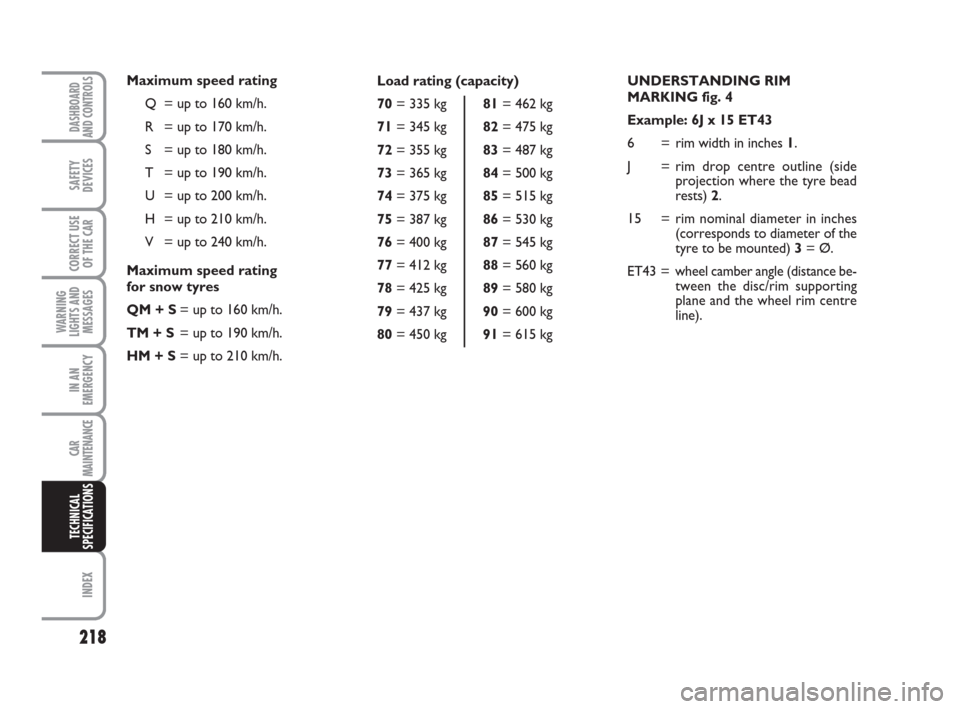

Maximum speed rating
Q = up to 160 km/h.
R = up to 170 km/h.
S = up to 180 km/h.
T = up to 190 km/h.
U = up to 200 km/h.
H = up to 210 km/h.
V = up to 240 km/h.
Maximum speed rating
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.
209-229 Punto GDX GB 6-08-2008 10:11 Pagina 218

219
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
175/65 R15 84T (M+S)
185/65 R15 88T (M+S)
195/55 R16 87H (M+S)
175/65 R15 84T (M+S)
185/65 R15 88T (M+S)
195/55 R16 87H (M+S)
185/65 R15 88T (M+S)
195/55 R16 87H (M+S)
185/65 R15 88T (M+S)
195/55 R16 87H (M+S)
175/65 R15 84T (M+S)
185/65 R15 88T (M+S)
195/55 R16 87H (M+S)
185/65 R15 88T (M+S)
195/55 R16 87H (M+S)
185/65 R15 88H (M+S)
195/55 R16 87H (M+S) 175/65 R15 84T
185/65 R15 88T
195/55 R16 87H
175/65 R15 84T
185/65 R15 88T
195/55 R16 87H
185/65 R15 88T
195/55 R16 87H
205/45 R17 88V
185/65 R15 88H
195/55 R16 87H
205/45 R17 88V
175/65 R15 84T
185/65 R15 88T
195/55 R16 87H
205/45 R17 88V
185/65 R15 88T
195/55 R16 87H
205/45 R17 88V
185/65 R15 88H
195/55 R16 87H
205/45 R17 88V6J X 15'' - ET 43
6J X 15'' - ET 43
6J X 15'' - ET 43
6J X 15'' - ET 43
6J X 15'' - ET 43
6J X 15'' - ET 43
6J X 15'' - ET 43175/65 R15 84T
185/65 R15 88T
175/65 R15 84T
185/65 R15 88T
185/65 R15 88T
185/65 R15 88H
175/65 R15 84T
185/65 R15 88T
185/65 R15 88
185/65 R15 88H 6J X 15'' - ET 43
6J X 15'' - ET 43
6J X 16'' - ET 45
6J X 15'' - ET 43
6J X 15'' - ET 43
6J X 16'' - ET 45
6J X 15'' - ET 43
6J X 16'' - ET 45
6,5J X 17'' - ET 46
6J X 15'' - ET 43
6J X 16'' - ET 45
6,5J X 17'' - ET 46
6J X 15'' - ET 43
6J X 15'' - ET 43
6J X 16'' - ET 45
6J X 17'' - ET 46
6J X 15'' - ET 43
6J X 16'' - ET 45
6,5J X 17'' - ET 46
6J X 15'' - ET 43
6J X 16'' - ET 45
6,5J X 17'' - ET 46
Version Rims (*) Tyres Spare wheel (ç)Standard tyre Snow tyre Rim (*) Tyre
1.2
1.4
1.4 16V
1.4 T-JET
1.3 Multijet 75 HP
1.3 Multijet 90 HP
1.6 Multijet 120 HP
(*) Spacing of studs 100 mm and studs M12 x 1.5 use only wheels specified for this car.
(ç) Depending on the trim level, the spare wheel has a 175/65 R15 84T tyre and a 6Jx15”- ET43 rim. In that case the 175/65
R15 84T has the same specifications as the spare wheel: the text and the warnings in the “Chaging a wheel” paragraph there-
fore refer to the 175/65 R15 84T tyre.
209-229 Punto GDX GB 6-08-2008 10:11 Pagina 219
