FIAT GRANDE PUNTO 2009 199 / 1.G Owners Manual

190
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
175/65 R15 84T (M+S)
185/65 R15 88T (M+S) 175/65 R15 84T
185/65 R15 88T6J × 15'' – ET 43175/65 R15 84T
185/65 R15 88T 6J × 15'' – ET 43
6J × 15'' – ET 43 (alloy)
Version Rims (*) Tyres Spare wheel (ç)
provided snow Rim (*) Tyre
1.2 - 1.4 -
1.3 Multijet
(*) 100 mm wheel stud distance and M12 x 1.5 studs; use only wheels specified for this car.
(
ç) Depending on the configuration, the spare wheel has a 175/65 R15 84T tyre and a 6J×15''- ET43 rim. In this case the
175/65 R15 84T tyre has the same specifications as the spare wheel: the information in “Changing a tyre” therefore refers to
the 175/65 R15 84T tyre.
181-197 ACTUAL 1ed EN 31-08-2009 12:02 Pagina 190

191
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
2.2 2.1
2.2 2.2
2.2 2.0
2.2 2.22.2 2.1
2.2 2.2
2.2 2.0
2.2 2.22.4 2.1
2.5 2.2
2.3 2.1
2.3 2.3
PERFORMANCES
Maximum speeds after initial car use, in km/h.
1.2 1.4 1.3 Multijet
155 165 165 COLD TYRE INFLATION PRESSURE (bar)
Versions 1.2 1.4 1.3 Multijet
Front Rear Front Rear Front Rear
175/65 R15 84T
Medium load
Full load
185/65 R15 88T
Medium load
Full load
Add +0.3 bar to the prescribed pressure when the tyres are warm. However, recheck that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure recommended for standard tyres.
When running at speeds higher than 160 km/h, inflate tyres to full-load pressures.
181-197 ACTUAL 1ed EN 31-08-2009 12:02 Pagina 191

192
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

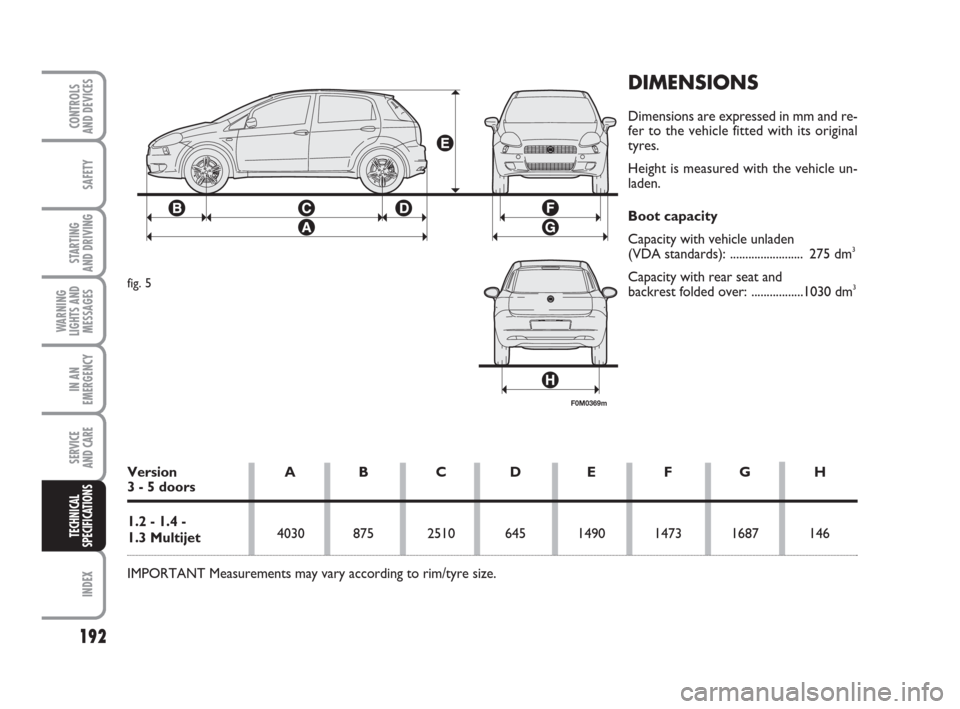

DIMENSIONS
Dimensions are expressed in mm and re-
fer to the vehicle fitted with its original
tyres.
Height is measured with the vehicle un-
laden.
Boot capacity
Capacity with vehicle unladen
(VDA standards): ........................ 275 dm
3
Capacity with rear seat and
backrest folded over: .................1030 dm3
F0M0369m
fig. 5
Version A B C D E F G H3 - 5 doors
1.2 - 1.4 -
1.3 Multijet4030 875 2510 645 1490 1473 1687 146
IMPORTANT Measurements may vary according to rim/tyre size.
181-197 ACTUAL 1ed EN 31-08-2009 12:02 Pagina 192

193
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
3 doors
5 seats
1015
560
850
850
1575
900
400
50
60
5 doors
4 seats
1030
480
850
850
1590
900
400
50
60
5 doors
5 seats
1030
560
850
850
1590
900
400
50
60
3 doors
4 seats
1025
480
850
850
1505
1000
400
50
60
3 doors
5 seats
1025
560
850
850
1585
1000
400
50
60
5 doors
4 seats
1040
480
850
850
1600
1000
400
50
60
5 doors
5 seats
1040
560
850
850
1600
1000
400
50
60
3 doors
4 seats
1090
480
950
850
1570
1000
400
50
60
3 doors
5 seats
1090
560
950
850
1650
1000
400
50
60
5 doors
4 seats
1105
480
950
850
1665
1000
400
50
60
5 doors
5 seats
1105
560
950
850
1665
1000
400
50
60
3 doors
4 seats
1015
480
850
850
1495
900
400
50
60

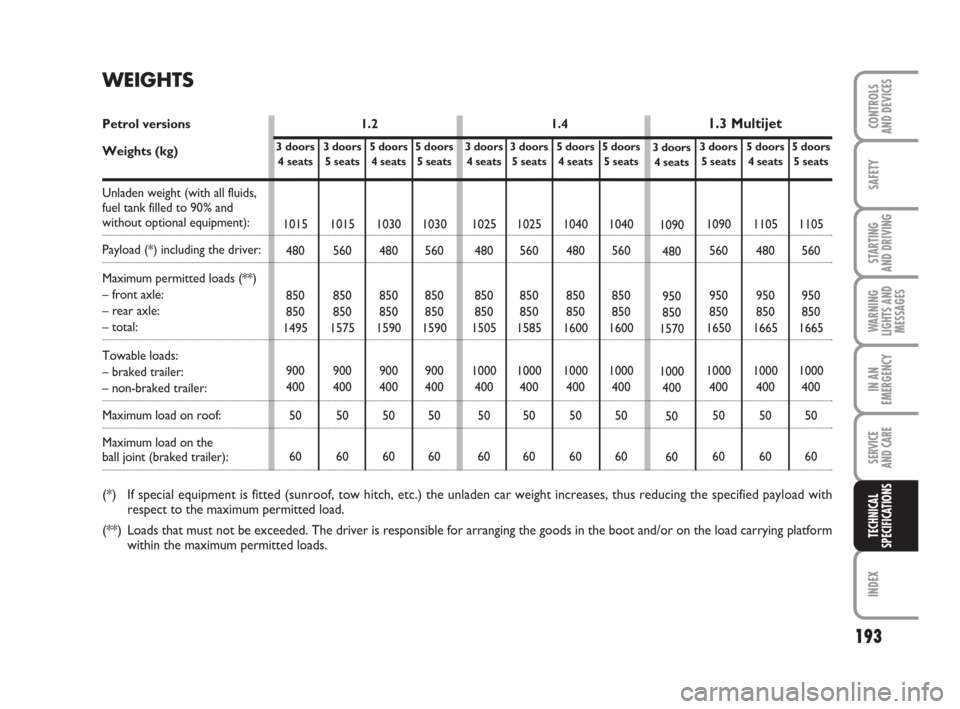

WEIGHTS
Petrol versions 1.2 1.4 1.3 Multijet
Weights (kg)
Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional equipment):
Payload (*) including the driver:
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads:
– braked trailer:
– non-braked trailer:
Maximum load on roof:
Maximum load on the
ball joint (braked trailer):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload with
respect to the maximum permitted load.
(**) Loads that must not be exceeded. The driver is responsible for arranging the goods in the boot and/or on the load carrying platform
within the maximum permitted loads.
181-197 ACTUAL 1ed EN 31-08-2009 12:02 Pagina 193

194
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
1.3 Multijet
–
–
45
5 ÷ 7
7.3
–
–
3.0
3.2
1.7
0.5
2.2
4.5 1.4
45
5 ÷ 7
–
–
5.27
2.4
2.6
–
–
1.5
0.5
2.2
4.5 1.2
45
5 ÷ 7
–
–
5.27
2.4
2.6
–
–
1.5
0.5
2.2
4.5Recommended fuels
and original lubricants
Unleaded petrol with no less
than 95 R.O.N.
(EN 228 Specification)
Diesel for motor vehicles
(EN590 Specification)
50-50 mixture of water and
PARAFLU
UPliquid (❒)
SELENIA K P.E.
SELENIA WR P.E.
TUTELA CAR TECHNYX
TUTELA TOP 4
Mixture of water and
TUTELA
PROFESSIONAL SC 35

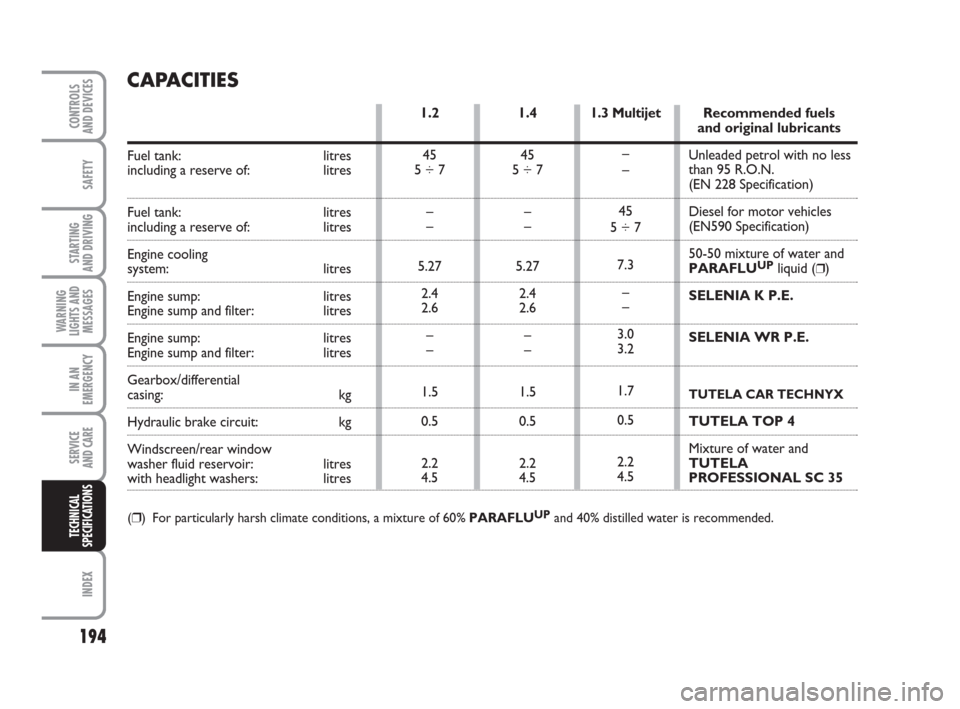

CAPACITIES
Fuel tank: litres
including a reserve of: litres
Fuel tank: litresincluding a reserve of: litres
Engine cooling
system: litres
Engine sump: litres
Engine sump and filter: litres
Engine sump: litres
Engine sump and filter: litres
Gearbox/differential
casing: kg
Hydraulic brake circuit: kg
Windscreen/rear window
washer fluid reservoir: litres
with headlight washers: litres
(❒) For particularly harsh climate conditions, a mixture of 60% PARAFLUUPand 40% distilled water is recommended.
181-197 ACTUAL 1ed EN 31-08-2009 12:02 Pagina 194

195
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
FLUIDS AND LUBRICANTS
SPECIFICATIONS AND RECOMMENDED PRODUCTS
Use Quality specifications of fluids and lubricants Original Replacement
for correct car operation fluids and lubricants interval
Lubricants for
petrol engines
Lubricants for
diesel engines
For diesel engines, in the event of an emergency in which the original products are not available, lubricants with at least ACEA C2
performance are acceptable; however, in this case optimum engine performances are not guaranteed and the lubricants should be
replaced with recommended products as soon as possible at a Fiat Dealership.
The use of products with specifications lower than ACEA C3 and ACEA C2 could cause engine damage not covered under warranty.SAE 5W-40 ACEA C3
grade synthetic base lubricant.
FIAT 9.55535-S2 certification.
SAE 5W-30
grade synthetic base lubricant.
FIAT 9.55535-S1 certification.SELENIA K P.E.
Contractual Technical
Reference
N° F603.C07
SELENIA WR P.E.
Contractual Technical
Reference
N° F510.D07As per
the Scheduled
Servicing Plan
As per
the Scheduled
Servicing Plan
181-197 ACTUAL 1ed EN 31-08-2009 12:02 Pagina 195

196
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
Lubricants and greases
for drive transmission
system
Brake liquid
Radiator protection
Fuel additive
Windscreen/rear
window washer fluidMechanical gearbox
and differential
Wheel side
constant-velocity joints
Differential side
constant-velocity joints
Hydraulic brakes
and hydraulic clutch
controls
Cooling circuit.
Mixture: 50% water and
50% PARAFLU
UP(❒)
Mix 25cc per 10 litres
of diesel
To be used diluted
or undiluted
in windscreen/rear
window washer/wiper
systems TUTELA CAR
TECHNYX
Contractual Technical
Reference N° F010.B05
TUTELA ALL STAR
Contractual Technical
Reference N° F702.G07
TUTELA STAR 700
Contractual Technical
Reference N° F701.C07
TUTELA TOP 4
Contractual Technical
Reference N° F001.A93
PARAFLU
UP(*)
Contractual Technical
Reference N° F101.M01
TUTELA DIESEL ART
Contractual Technical
Reference N° F601.L06
TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference N° F201.D02 SAE 75W-85 grade synthetic base lubricant.
FIAT 9.55550-MX3 certification
Molybdenum disulphide grease, for use at
high temperatures.
FIAT 9.55580 certification. NL.GI. 1-2 consistency
Grease for constant-velocity joints with low
friction coefficient.
FIAT 9.55580 certification. NL.GI. 0-2 consistency
Synthetic fluid FMVSS n° 116 DOT 4, ISO 4925
SAE J1704, CUNA NC 956- 01.
FIAT 9.55597 certification
Inhibited mono ethylene glycol-based antifreeze
protection, red, with organic formulation.
Passes CUNA NC 956-16, ASTM D 3306 specifications.
FIAT 9.55523 certification
Additive for diesel antifreeze, protecting
diesel engines
Mixture of alcohol, water and surfactants
CUNA NC 956-II
FIAT 9.55522 certification.
Use Quality specifications of fluids and lubricants Original Applicationsfor correct car operation fluids and lubricants
(*) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(❒) When the vehicle is used in particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLU
UPand distalled water.
181-197 ACTUAL 1ed EN 31-08-2009 12:02 Pagina 196

197
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
❒extra-urban cycle: driving that simulates
using the vehicle out of town with fre-
quent acceleration in all gears; the
speed varies from 0 to 120 km/h;
❒combined consumption: this is calcu-
lated with a weighting of about 37% ur-
ban cycle consumption and about 63%
extra-urban consumption.
FUEL CONSUMPTION
The fuel consumption figures given in the
table below are determined on the basis
of the homologation tests set down by
specific European Directives.
The procedures below are followed for
measuring consumption:
❒urban cycle: cold starting followed by
driving that simulates urban use of the
car;IMPORTANT The type of route, traffic
situations, weather conditions, driving
style, general state of the car, trim lev-
el/equipment/accessories, load, climate
control system, roof rack, and other sit-
uations that affect how the car moves
through the air may lead to different fuel
consumption levels than those measured.
Fuel consumption according to the current European directive
Versions Urban Extra-urban Combined
1.27.3 4.8 5.7
1.4 7.5 5.0 5.9
1.3 Multijet 75 HP6.2/5.2 () 3.5 4.5/4.1 ()
() ECO version 109 g CO2
CO2EMISSIONS
The CO2emission figures in the table below refer to combined fuel consumption.
Versions CO2emissions according to the current European directive
1.2135
1.4 139
1.3 Multijet 75 HP119
109 ()
(
) ECO version 109 g CO2
181-197 ACTUAL 1ed EN 31-08-2009 12:02 Pagina 197

198
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS

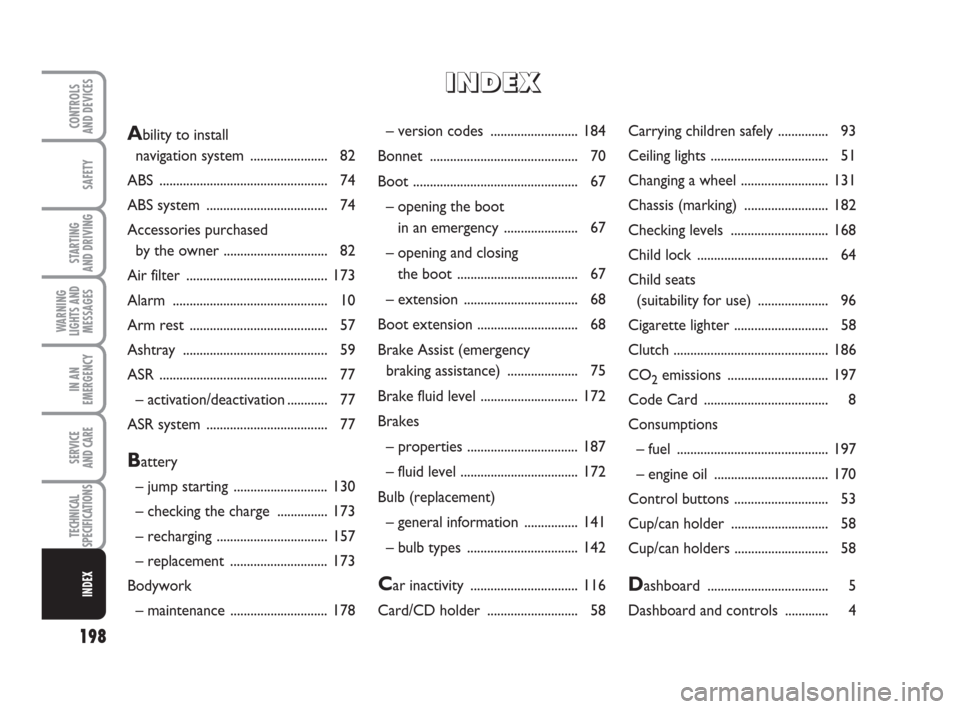

AND DEVICES– version codes .......................... 184
Bonnet ............................................ 70
Boot ................................................. 67
– opening the boot
in an emergency ...................... 67
– opening and closing
the boot .................................... 67
– extension .................................. 68
Boot extension .............................. 68
Brake Assist (emergency
braking assistance) ..................... 75
Brake fluid level ............................. 172
Brakes
– properties ................................. 187
– fluid level ................................... 172
Bulb (replacement)
– general information ................ 141
– bulb types ................................. 142
Car inactivity ................................ 116
Card/CD holder ........................... 58Carrying children safely ............... 93
Ceiling lights ................................... 51
Changing a wheel .......................... 131
Chassis (marking) ......................... 182
Checking levels ............................. 168
Child lock ....................................... 64
Child seats
(suitability for use) ..................... 96
Cigarette lighter ............................ 58
Clutch .............................................. 186
CO
2emissions .............................. 197
Code Card ..................................... 8
Consumptions
– fuel ............................................. 197
– engine oil .................................. 170
Control buttons ............................ 53
Cup/can holder ............................. 58
Cup/can holders ............................ 58
Dashboard .................................... 5
Dashboard and controls ............. 4
Ability to install
navigation system ....................... 82
ABS .................................................. 74
ABS system .................................... 74
Accessories purchased
by the owner ............................... 82
Air filter .......................................... 173
Alarm .............................................. 10
Arm rest ......................................... 57
Ashtray ........................................... 59
ASR .................................................. 77
– activation/deactivation ............ 77
ASR system .................................... 77
Battery
– jump starting ............................ 130
– checking the charge ............... 173
– recharging ................................. 157
– replacement ............................. 173
Bodywork
– maintenance ............................. 178
I I
N N
D D
E E
X X
198-208 ACTUAL 1ed EN 31-08-2009 12:12 Pagina 198

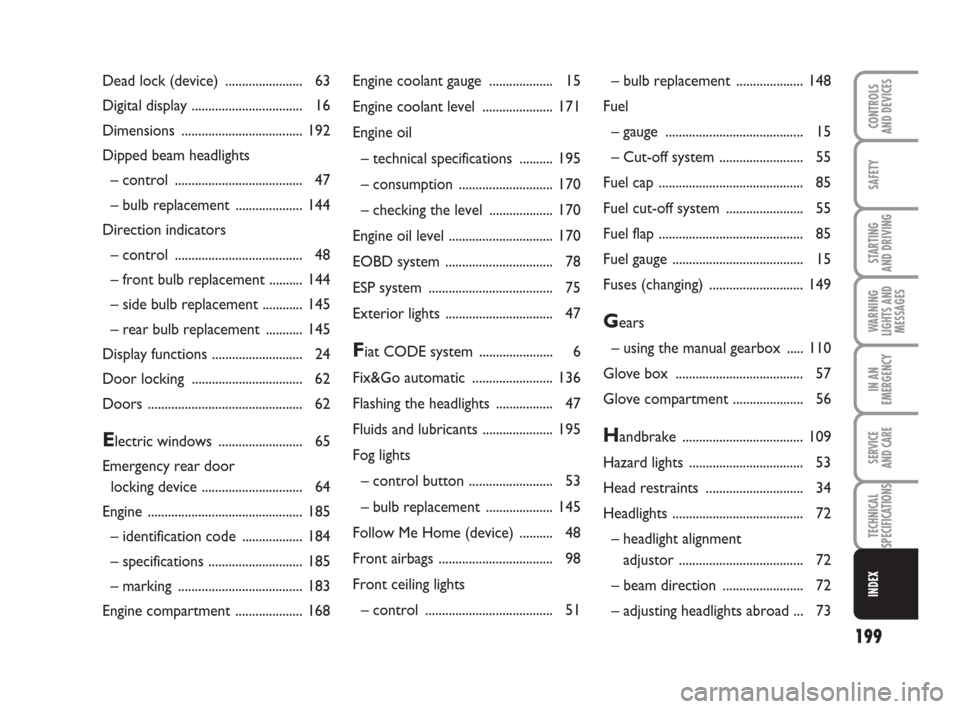

199
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Engine coolant gauge ................... 15
Engine coolant level ..................... 171
Engine oil
– technical specifications .......... 195
– consumption ............................ 170
– checking the level ................... 170
Engine oil level ............................... 170
EOBD system ................................ 78
ESP system ..................................... 75
Exterior lights ................................ 47
Fiat CODE system ...................... 6
Fix&Go automatic ........................ 136
Flashing the headlights ................. 47
Fluids and lubricants ..................... 195
Fog lights
– control button ......................... 53
– bulb replacement .................... 145
Follow Me Home (device) .......... 48
Front airbags .................................. 98
Front ceiling lights
– control ...................................... 51– bulb replacement .................... 148
Fuel
– gauge ......................................... 15
– Cut-off system ......................... 55
Fuel cap ........................................... 85
Fuel cut-off system ....................... 55
Fuel flap ........................................... 85
Fuel gauge ....................................... 15
Fuses (changing) ............................ 149
Gears
– using the manual gearbox ..... 110
Glove box ...................................... 57
Glove compartment ..................... 56
Handbrake .................................... 109
Hazard lights .................................. 53
Head restraints ............................. 34
Headlights ....................................... 72
– headlight alignment
adjustor ..................................... 72
– beam direction ........................ 72
– adjusting headlights abroad ... 73 Dead lock (device) ....................... 63
Digital display ................................. 16
Dimensions .................................... 192
Dipped beam headlights
– control ...................................... 47
– bulb replacement .................... 144
Direction indicators
– control ...................................... 48
– front bulb replacement .......... 144
– side bulb replacement ............ 145
– rear bulb replacement ........... 145
Display functions ........................... 24
Door locking ................................. 62
Doors .............................................. 62Electric windows ......................... 65
Emergency rear door
locking device .............................. 64
Engine .............................................. 185
– identification code .................. 184
– specifications ............................ 185
– marking ..................................... 183
Engine compartment .................... 168
198-208 ACTUAL 1ed EN 31-08-2009 12:12 Pagina 199
