FIAT GRANDE PUNTO ACTUAL 2014 1.G Owners Manual

Pagine_ITA.indd418-05-200511:54:19
®
Always ask your mechanic for
®
Pagine_ITA.indd118-05-200511:53:40
In the heart of your engine.
205-214 ACTUAL 1ed EN 26-07-2010 16:15 Pagina 210

The engine of your car is factory filled with Selenia.

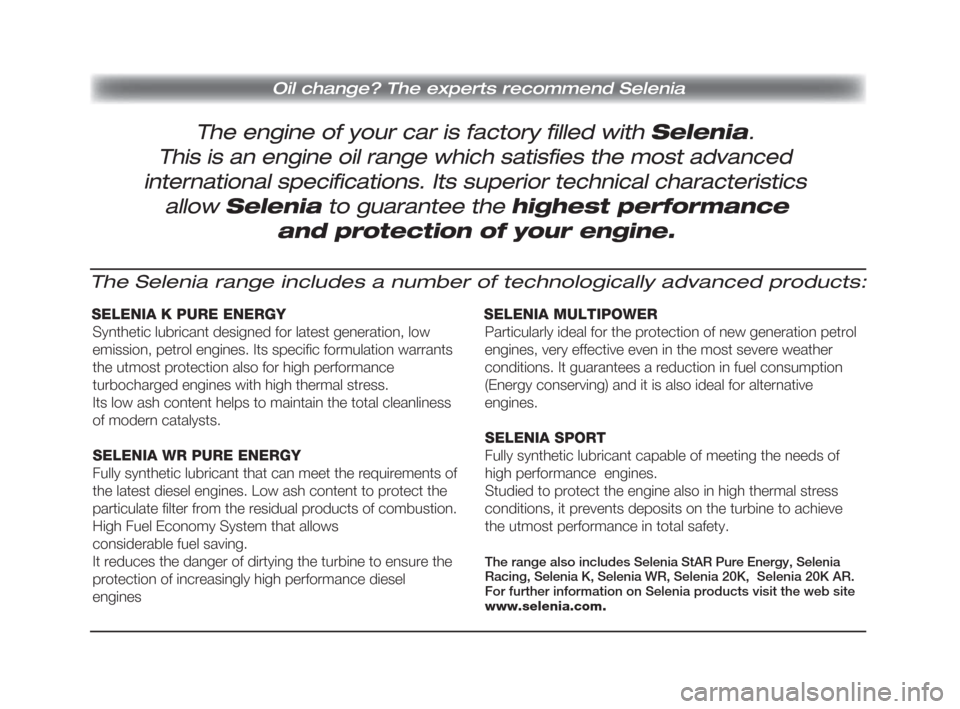

Oil change? The experts recommend Selenia
This is an engine oil range which satisfies the most advanced
international specifications. Its superior technical characteristics
allow Selenia to guarantee the highest performance
and protection of your engine.
The Selenia range includes a number of technologically advanced products:
SELENIA K PURE ENERGY
Pagine_ITA.indd418-05-200511:54:19
Synthetic lubricant designed for latest generation, low
emission, petrol engines. Its specific formulation warrants
the utmost protection also for high performance
turbocharged engines with high thermal stress.
Its low ash content helps to maintain the total cleanliness
of modern catalysts.
SELENIA WR PURE ENERGY
Fully synthetic lubricant that can meet the requirements of
the latest diesel engines. Low ash content to protect the
particulate filter from the residual products of combustion.
High Fuel Economy System that allows
considerable fuel saving.
It reduces the danger of dirtying the turbine to ensure the
protection of increasingly high performance diesel
enginesSELENIA MULTIPOWER
Particularly ideal for the protection of new generation petrol
engines, very effective even in the most severe weather
conditions. It guarantees a reduction in fuel consumption
(Energy conserving) and it is also ideal for alternative
engines.
SELENIA SPORT
Fully synthetic lubricant capable of meeting the needs of
high performance engines.
Studied to protect the engine also in high thermal stress
conditions, it prevents deposits on the turbine to achieve
the utmost performance in total safety.
The range also includes Selenia StAR Pure Energy, Selenia
Racing, Selenia K, Selenia WR, Selenia 20K, Selenia 20K AR.
For further information on Selenia products visit the web site
www.selenia.com.

Pagine_ITA.indd118-05-200511:53:40
205-214 ACTUAL 1ed EN 26-07-2010 16:15 Pagina 211

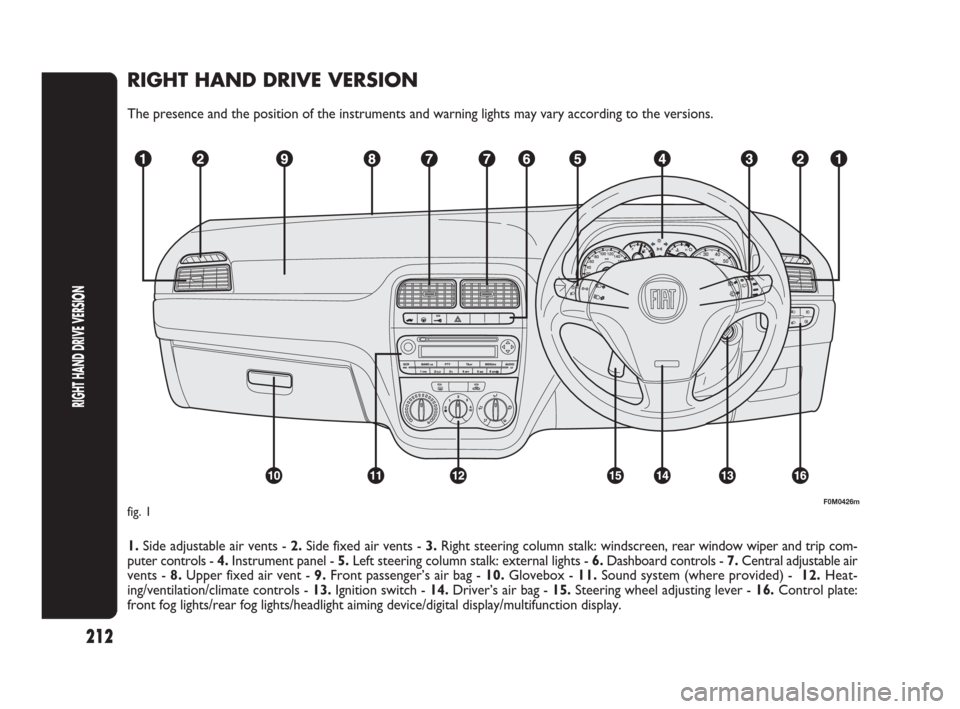

RIGHT HAND DRIVE VERSION
The presence and the position of the instruments and warning lights may vary according to the versions.
1. Side adjustable air vents - 2.Side fixed air vents - 3.Right steering column stalk: windscreen, rear window wiper and trip com-
puter controls - 4.Instrument panel - 5.Left steering column stalk: external lights - 6.Dashboard controls - 7.Central adjustable air
vents - 8.Upper fixed air vent - 9.Front passenger’s air bag - 10.Glovebox - 11.Sound system (where provided) - 12.Heat-
ing/ventilation/climate controls - 13.Ignition switch - 14.Driver’s air bag - 15.Steering wheel adjusting lever - 16.Control plate:
front fog lights/rear fog lights/headlight aiming device/digital display/multifunction display.
F0M0426mfig. 1
212
RIGHT HAND DRIVE VERSION
205-214 ACTUAL 1ed EN 26-07-2010 16:15 Pagina 212

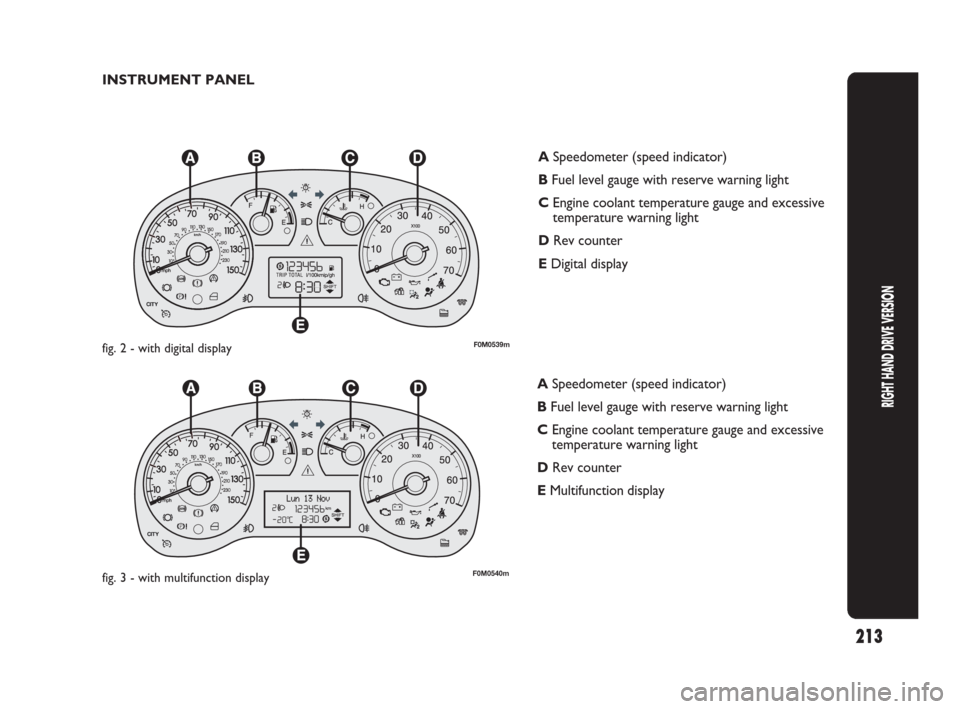

INSTRUMENT PANEL
F0M0539mfig. 2 - with digital display
F0M0540mfig. 3 - with multifunction display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning light
CEngine coolant temperature gauge and excessive
temperature warning light
DRev counter
EDigital display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning light
CEngine coolant temperature gauge and excessive
temperature warning light
DRev counter
EMultifunction display
213
RIGHT HAND DRIVE VERSION
205-214 ACTUAL 1ed EN 26-07-2010 16:15 Pagina 213

Fiat Group Automobiles S.p.A. – Customer Services – Technical Services – Service Engineering – Largo Senatore G. Agnelli, 5 – 10040 Volvera – Torino (Italia)
Print no. 603.81.761 – 07/2010 – 1 edition
CHANGING ENGINE OIL
1.2 - 1.4 - 1.3 Multijet
Tank capacity45
Reserve5 ÷ 7
Refuel petrol cars only with unleaded petrol with an octane rating (RON) of 95 or higher (EN228 specifications).
Refuel diesel cars only with automotive diesel (EN590 specifications).
REFUELLING (litres)
2.2 2.1
2.2 2.2
2.2 2.0
2.2 2.22.2 2.1
2.2 2.2
2.2 2.0
2.2 2.22.4 2.1
2.5 2.2
2.3 2.1
2.3 2.3
1.2 1.41.3 Multijet
litres kg litres kg litres kg
Engine sump and filter 2.6 2.25 2.6 2.25 3.2 2.75
COLD TYRE INFLATION PRESSURE (bar)
Versions1.2 1.4 1.3 MultijetFront Rear Front Rear Front Rear
175/65 R15 84T
Medium load
Full load
185/65 R15 88T
Medium load
Full load
Add +0.3 bar to the prescribed pressure when the tyres are warm. However, recheck that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure recommended for standard tyres.
When running at speeds higher than 160 km/h, inflate tyres at full-load pressures.
205-214 ACTUAL 1ed EN 26-07-2010 16:15 Pagina 214

The data contained in this publication is intended merely as a guide. FIAT reserves the right to modify the models and
versions described in this booklet at any time for technical and commercial reasons.
If you have any further questions please consult your FIAT dealer.
Printed in recycled paper without chlorine.
OWNER HANDBOOK
FIATPUNTO
ENGLISH
