ENGINE CODES – BODYWORK VERSIONS
Version Engine type Engine type body version code
code 3 doors 5 doors
4 seats 5 seats(Õ)4 seats 5 seats(Õ)
1.2 (EURO 4)
1.2 (EURO 5)
1.2 ECO
1.4 (EURO 4)
1.4 (EURO 5)
1.4 (Õ) (EURO 4)
1.4 (Õ) (EURO 5)
1.3 Multijet 75HP
(EURO 4)
1.3 Multijet 75HP
(EURO 5)
1.3 Multijet 70HP (Õ)
(EURO 4)
1.3 Multijet 85HP
ECO
(*) Version with DPF
(
❒) ECO versions
(
Õ) For versions/markets, where provided
(
❍) Version with Start&Stop
199A4000
169A4000
169A4000
350A1000
350A1000
199A7000
199A7000
199A2000
199A9000
199B2000
199B4000199BXA1A 01D
199BXZ1A 51B (❍)
199BXZ1A 51E (❍)
199BXB1A 03P
199BXB1A 03R (❍)
199BXH1A 20D
199BXH1A 20F (❍)
199BXC1A 05E
199BXC1A 05H (*)
199BXC1A 05G (❒)
199BXT1A 38D (❍) (*)
199BXT1A 38H (❍) (*) (❒)
199BXP1A 30F
199BXY1A 49C199BXA1A 01C
199BXZ1A 51 (❍)
199BXZ1A 51D (❍)
199BXB1A 03C
199BXB1A 03Q (❍)
199BXH1A 20
199BXH1A 20E (❍)
199BXC1A 05
199BXC1A 05C (*)
199BXC1A 05F (❒)
199BXT1A 38C (❍) (*)
199BXT1A 38G (❍) (*) (❒)
199BXP1A 30E
199BXY1A 49B 199AXA1A 00G
199AXZ1A 50B (❍)
199AXZ1A 50E (❍)
199AXB1A 02E
199AXB1A 02R (❍)
199AXH1A 19B
199AXH1A 19F (❍)
199AXC1A 04C
199AXC1A 04E (*)
199AXC1A 04G (❒)
199AXT1A 37D (❍) (*)
199AXT1A 37H (❍) (*) (❒)
199AXP1A 29F
199AXY1A 48C199AXA1A 00F
199AXZ1A 50 (❍)
199AXZ1A 50D (❍)
199AXB1A 02D
199AXB1A 02Q (❍)
199AXH1A 19
199AXH1A 19E (❍)
199AXC1A 04
199AXC1A 04D (*)
199AXC1A 04F (❒)
199AXT1A 37C (❍) (*)
199AXT1A 37G (❍) (*) (❒)
199AXP1A 29E
199AXY1A 48B
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 190
Page 192 of 216
191
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
ENGINE
INFORMATION
Type code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total capacity cm3
Compression ratio
Max power (EEC) kW
HP
corresponding speed rpm
Max torque (EEC) Nm
kgm
corresponding speed rpm
Spark plugs
Fuel
(Õ) For versions/markets, where provided
(*) EURO 5
1.3 Multijet
199A2000
199B2000 (Õ)
199A9000 (*)
Diesel
4 in line
69.6 × 82
1248
17.6:1/16.8:1 (*)
55
75/70 (
Õ)
4000
190
19.4
1750/1500 (*)
–
Diesel for
motor vehicles
(EN590
specifications)
1.4
350A1000
199A7000 (Õ)
Otto
4 in line
72 × 84
1368
11.1:1
57
77/75 (
Õ)
6000
115
11.7
3000
NGK
ZKR7A-10
Unleaded petrol
95 RON
(Specification
EN228)
1.2 (Euro 4)
199A4000
Otto
4 in line
70.8 × 78.86
1242
11.1:1
48
65
5500
102
10.4
3000
NGK
ZKR7A-10
Unleaded petrol
95 RON
(Specification
EN228)
1.3 Multijet
85HP ECO
199B4000
Diesel
4 in line
69.6 x 82
1248
16.8:1
62
85
3500
200
20.4
1500
–
Diesel for
motor vehicles
(EN590
specifications)
1.2 (Euro 5)
169A4000
Otto
4 in line
70.8 x 78.86
1242
11.1:1
51
69
5500
102
10.4
3000
NGK
ZKR7A-10
Unleaded petrol
95 RON
(Specification
EN228)
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 191
Page 193 of 216
192
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

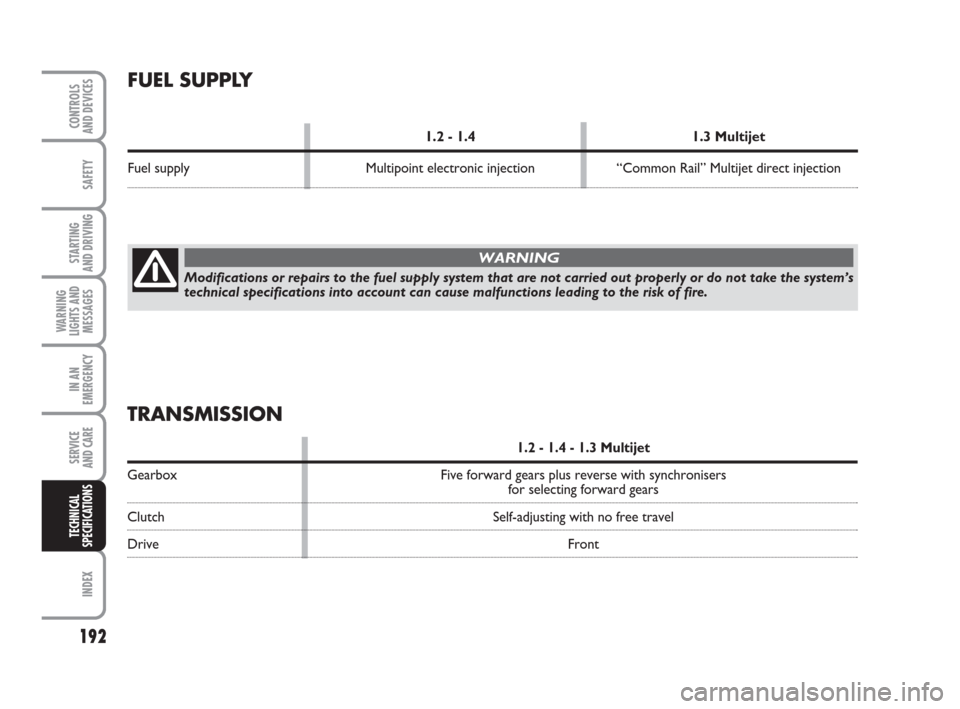

FUEL SUPPLY
1.2 - 1.4 1.3 Multijet
Fuel supply Multipoint electronic injection “Common Rail” Multijet direct injection
Modifications or repairs to the fuel supply system that are not carried out properly or do not take the system’s
technical specifications into account can cause malfunctions leading to the risk of fire.
WARNING
TRANSMISSION
1.2 - 1.4 - 1.3 Multijet
Gearbox Five forward gears plus reverse with synchronisersfor selecting forward gears
Clutch Self-adjusting with no free travel
Drive Front
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 192
Page 194 of 216
torsion beam with interconnected wheels
193
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

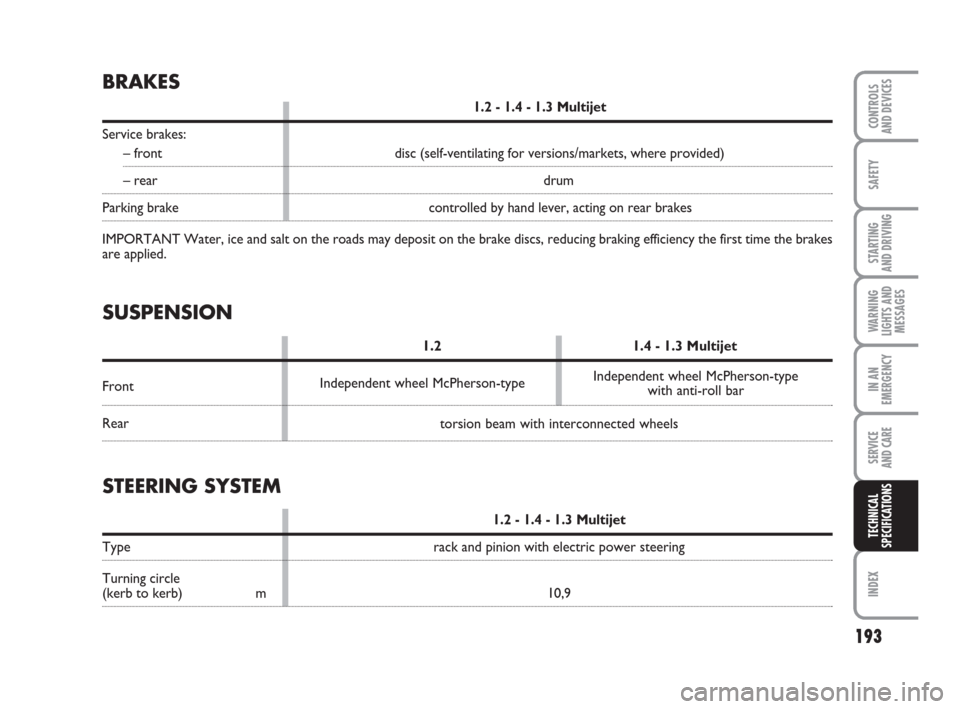

BRAKES
1.2 - 1.4 - 1.3 Multijet
Service brakes:
– front disc (self-ventilating for versions/markets, where provided)
– rear drum
Parking brake controlled by hand lever, acting on rear brakes
IMPORTANT Water, ice and salt on the roads may deposit on the brake discs, reducing braking efficiency the first time the brakes
are applied.
STEERING SYSTEM
1.2 - 1.4 - 1.3 Multijet
Type rack and pinion with electric power steering
Turning circle
(kerb to kerb) m 10,9
Independent wheel McPherson-typeIndependent wheel McPherson-type
with anti-roll bar
SUSPENSION
1.2 1.4 - 1.3 Multijet
Front
Rear
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 193
Page 195 of 216
194
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
Maximum speed index
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
Maximum speed index
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless ra-
dial carcass tyres. All approved tyres are
listed in the Log Book.
IMPORTANT In the event of discrepan-
cies between the information provided in
this Owner Handbook and the Log Book,
the latter takes precedence.
For safety when driving, it is essential that
the car is fitted with tyres of the same
make and type on all wheels.
IMPORTANT Do not use inner tubes
with tubeless tyres.
SPARE WHEEL
Pressed steel rim Tubeless tyre.
WHEEL GEOMETRY
Total front toe-in: 1 ± 1 mm
Total rear toe-in: 1.7 ± 2 mm.
The values refer to the car in running
order.
fig. 4F0M0169m
READING TYRE
MARKINGS fig. 4
Example: 175/65 R 15 84T
175 = Nominal width (S, distance in mm
between sidewalls).
65 = Height/width ratio (H/S) as a per-
centage.
R = Radial tyre.
15 = Rim diameter in inches (Ø).
84 = Load index.
T = Maximum speed index.
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 194
Page 196 of 216
195
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

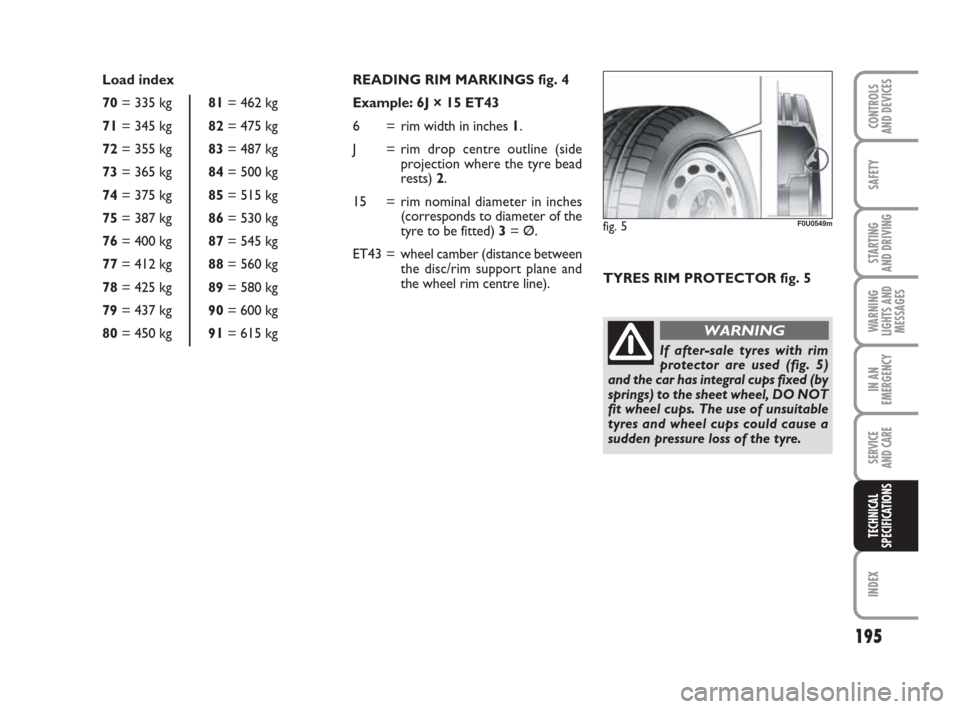

READING RIM MARKINGS fig. 4
Example: 6J × 15 ET43
6 = rim width in inches 1.
J = rim drop centre outline (side
projection where the tyre bead
rests) 2.
15 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be fitted) 3= Ø.
ET43 = wheel camber (distance between
the disc/rim support plane and
the wheel rim centre line). Load index
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg
TYRES RIM PROTECTOR fig. 5
fig. 5F0U0549m
If after-sale tyres with rim
protector are used (fig. 5)
and the car has integral cups fixed (by
springs) to the sheet wheel, DO NOT
fit wheel cups. The use of unsuitable
tyres and wheel cups could cause a
sudden pressure loss of the tyre.
WARNING
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 195
Page 197 of 216
196
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

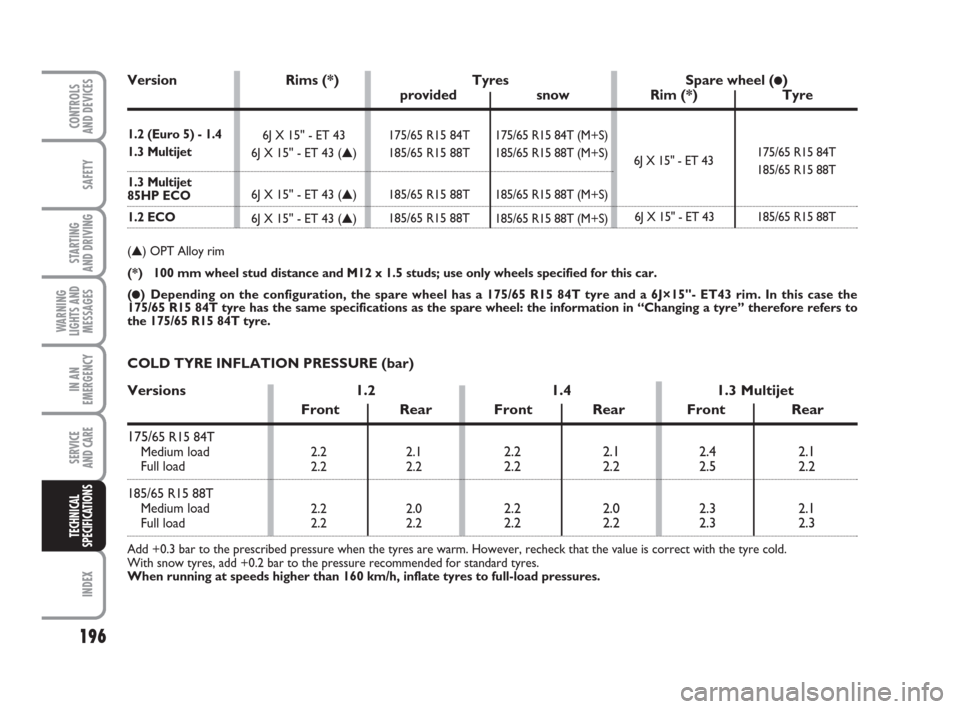

2.2 2.1
2.2 2.2
2.2 2.0
2.2 2.22.2 2.1
2.2 2.2
2.2 2.0
2.2 2.22.4 2.1
2.5 2.2
2.3 2.1
2.3 2.3
Version Rims (*) Tyres Spare wheel (ç)provided snow Rim (*) Tyre
1.2 (Euro 5) - 1.4
1.3 Multijet
1.3 Multijet
85HP ECO
1.2 ECO
(▲) OPT Alloy rim
(*) 100 mm wheel stud distance and M12 x 1.5 studs; use only wheels specified for this car.
(
ç) Depending on the configuration, the spare wheel has a 175/65 R15 84T tyre and a 6J×15''- ET43 rim. In this case the
175/65 R15 84T tyre has the same specifications as the spare wheel: the information in “Changing a tyre” therefore refers to
the 175/65 R15 84T tyre.
COLD TYRE INFLATION PRESSURE (bar)
Versions 1.2 1.4 1.3 Multijet
Front Rear Front Rear Front Rear
175/65 R15 84T
Medium load
Full load
185/65 R15 88T
Medium load
Full load
Add +0.3 bar to the prescribed pressure when the tyres are warm. However, recheck that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure recommended for standard tyres.
When running at speeds higher than 160 km/h, inflate tyres to full-load pressures.175/65 R15 84T (M+S)
185/65 R15 88T (M+S)
185/65 R15 88T (M+S)
185/65 R15 88T (M+S) 175/65 R15 84T
185/65 R15 88T
185/65 R15 88T
185/65 R15 88T6J X 15'' - ET 43175/65 R15 84T
185/65 R15 88T
185/65 R15 88T 6J X 15'' - ET 43
6J X 15'' - ET 43 (▲)
6J X 15'' - ET 43 (▲)
6J X 15'' - ET 43 (▲)6J X 15'' - ET 43
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 196
Page 198 of 216
197
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

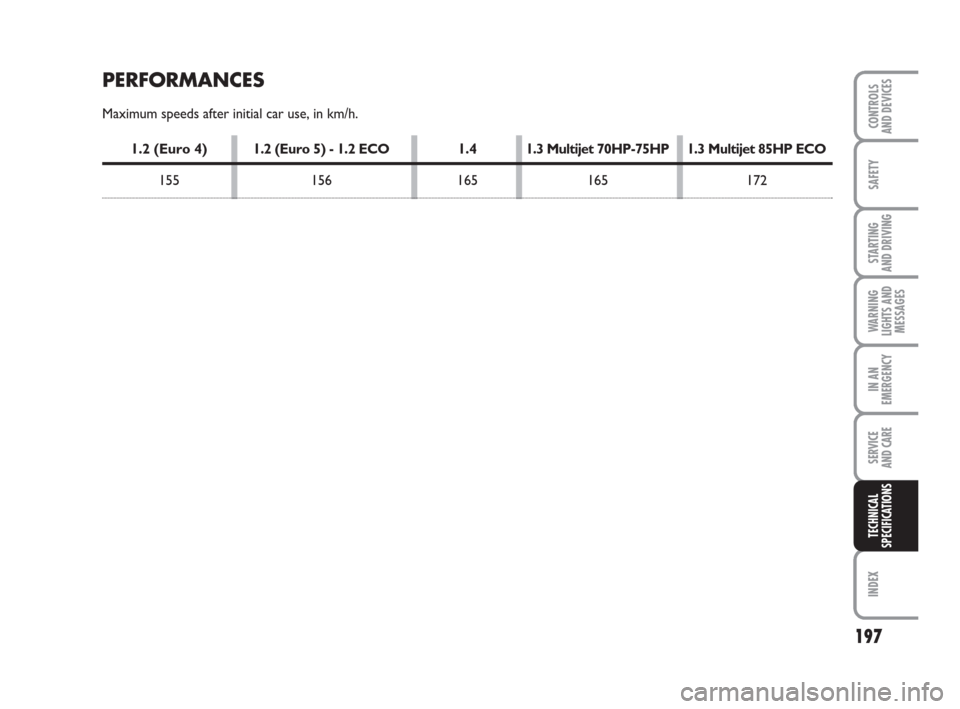

PERFORMANCES
Maximum speeds after initial car use, in km/h.
1.2 (Euro 4) 1.2 (Euro 5) - 1.2 ECO 1.4 1.3 Multijet 70HP-75HP 1.3 Multijet 85HP ECO
155 156 165 165 172
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 197
Page 199 of 216
198
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

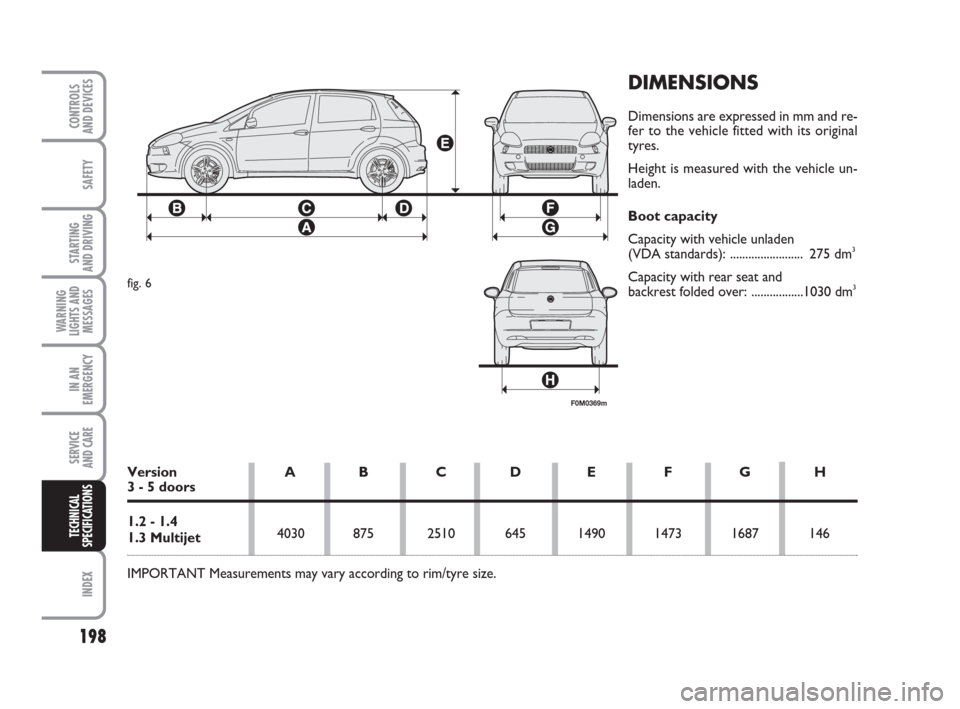

DIMENSIONS
Dimensions are expressed in mm and re-
fer to the vehicle fitted with its original
tyres.
Height is measured with the vehicle un-
laden.
Boot capacity
Capacity with vehicle unladen
(VDA standards): ........................ 275 dm
3
Capacity with rear seat and
backrest folded over: .................1030 dm3
F0M0369m
fig. 6
Version A B C D E F G H3 - 5 doors
1.2 - 1.4
1.3 Multijet4030 875 2510 645 1490 1473 1687 146
IMPORTANT Measurements may vary according to rim/tyre size.
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 198
Page 200 of 216
5 doors
4 seats
1030
480
850
850
1590
900/500(•)
400
50
60
5 doors
5 seats
(Õ)
1030
560
850
850
1590
900/500(•)
400
50
60
3 doors
4 seats
1025
480
850
850
1505
1000
400
50
60
3 doors
5 seats
(Õ)
1025
560
850
850
1585
1000
400
50
60
5 doors
4 seats
1040
480
850
850
1600
1000
400
50
60
5 doors
5 seats
(Õ)
1040
560
850
850
1600
1000
400
50
60
3 doors
4 seats
1015
480
850
850
1495
900/500(•)
400
50
60
3 doors
5 seats
(Õ)
1015
560
850
850
1575
900/500(•)
400
50
60
199
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

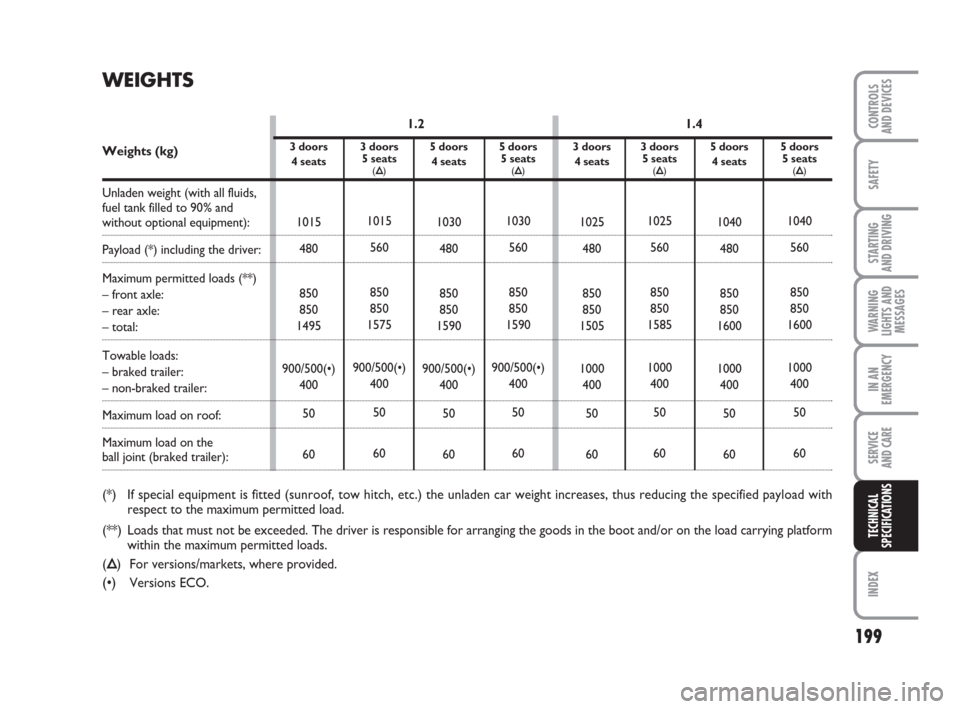

WEIGHTS
1.2 1.4
Weights (kg)
Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional equipment):
Payload (*) including the driver:
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads:
– braked trailer:
– non-braked trailer:
Maximum load on roof:
Maximum load on the
ball joint (braked trailer):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload with
respect to the maximum permitted load.
(**) Loads that must not be exceeded. The driver is responsible for arranging the goods in the boot and/or on the load carrying platform
within the maximum permitted loads.
(Õ) For versions/markets, where provided.
(•)Versions ECO.
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 199
