RADIO WITH COMPACT DISC
AND MP3 CD PLAYERRADIO WITH
COMPACT DISC PLAYER

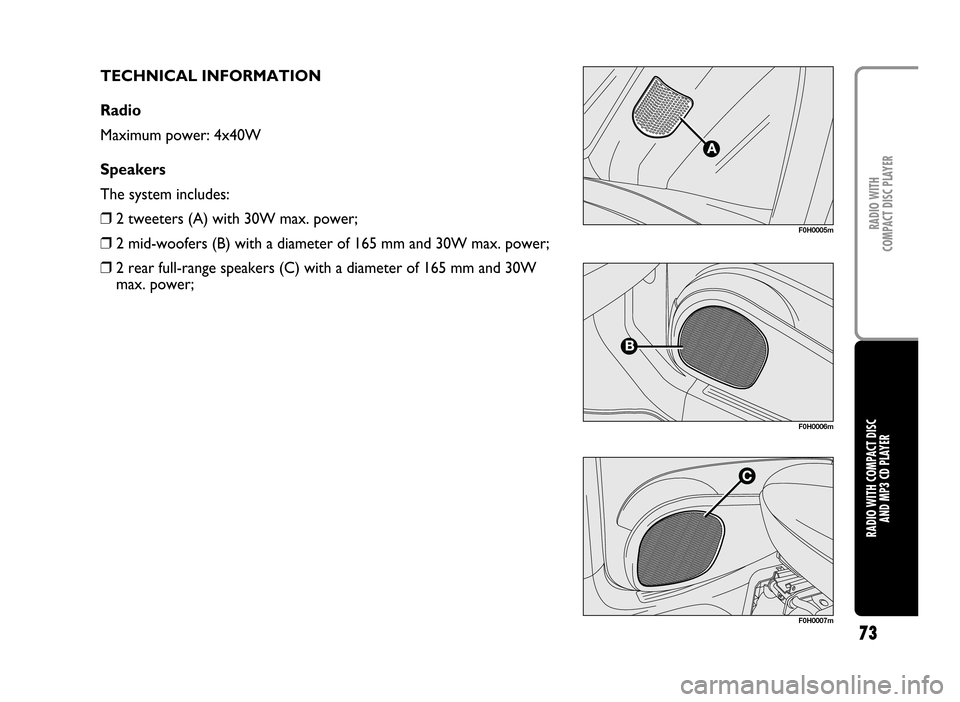

TECHNICAL INFORMATION
Radio
Maximum power: 4x40W
Speakers
The system includes:
❒2 tweeters (A) with 30W max. power;
❒2 mid-woofers (B) with a diameter of 165 mm and 30W max. power;
❒2 rear full-range speakers (C) with a diameter of 165 mm and 30W
max. power;
F0H0005m
F0H0006m
F0H0007m

74
RADIO WITH COMPACT DISC
AND MP3 CD PLAYERRADIO WITH
COMPACT DISC PLAYER
CD Changer (where provided)
The car can be fitted with a CD Changer for 10 discs located in the boot
(see the figure).
Aerial
The aerial is located on the car roof.
Protection fuse
The radio has a 10A fuse.
Hi-Fi system (where provided)
The system includes:
❒two front tweeters and two woofers with a diameter of 165 mm and
40 W max. power (see previous page);
❒two rear tweeters (A) and two woofers with a diameter of 165 mm
and 40 W max. power (see previous page);
❒1 subwoofer, 100 W power set on the right side of the boot (see
figure). Subwoofer is protected by a fuse
F0H0240m
F0H0223m
F0H0224m
