stop start FIAT IDEA 2006 1.G Radio CD MP3 Manual

11
QUICK
GUIDE
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
SELECTING RADIO FUNCTIONS
Pressing briefly and repeatedly button FM-
AS it is possible to select the following
functions in sequence:
❒TUNER (“FM1”, “FM2”, “FMT”);
Pressing briefly and repeatedly button AM
it is possible to select the following func-
tions in sequence:
❒TUNER (“MW”, “LW”).
SELECTING CD/CD CHANGER
FUNCTIONS
Pressing briefly and repeatedly button CD
it is possible to select the following audio
sources in sequence:
❒CD (only if the Compact Disc is in-
serted);
❒CHANGER (CD Changer - only if the
CD Changer is connected).AUDIO SOURCE MEMORY
FUNCTION
If while listening to a CD another function
is selected (e.g.: the radio), playing is
stopped and when the CD mode is re-
sumed, it starts again from the point in
which it was stopped.
If while listening to the radio another func-
tion is selected, when the Radio mode is
resumed, it is tuned to the last station se-
lected.
VOLUME ADJUSTMENT
Adjust volume through button/knob
ON/OFF.
If the volume level is changed during the
broadcast of a traffic bulletin, the new set-
ting is maintained only until the end of the
bulletin.
SPEED VOLUME FUNCTION
The SVC function makes it possible to au-
tomatically adapt the volume level to the
speed of the car, increasing it as the speed
increases to maintain the ratio with the
noise level inside the passenger compart-
ment.
See section MENU for activating/deacti-
vating this function. TURNING THE
SOUND SYSTEM ON
The set is switched on pressing briefly the
button/knob ON/OFF.
When turning the sound system on, the
volume level will be brought to 20 if it was
set to over.
If the radio is turned on with the ignition
key at STOP, it will turn off automatically
after about 20 minutes. It is however pos-
sible to turn the radio on again for other
20 minutes by pressing the button/knob
ON/OFF.
TURNING THE
SOUND SYSTEM OFF
Keep button/knob ON/OFF pressed.
F F F F
U U U U
N N N N
C C C C
T T T T
I I I I
O O O O
N N N N
S S S S

A A A A
N N N N
D D D D

A A A A
D D D D
J J J J
U U U U
S S S S
T T T T
M M M M
E E E E
N N N N
T T T T
S S S S

15
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
RADIO

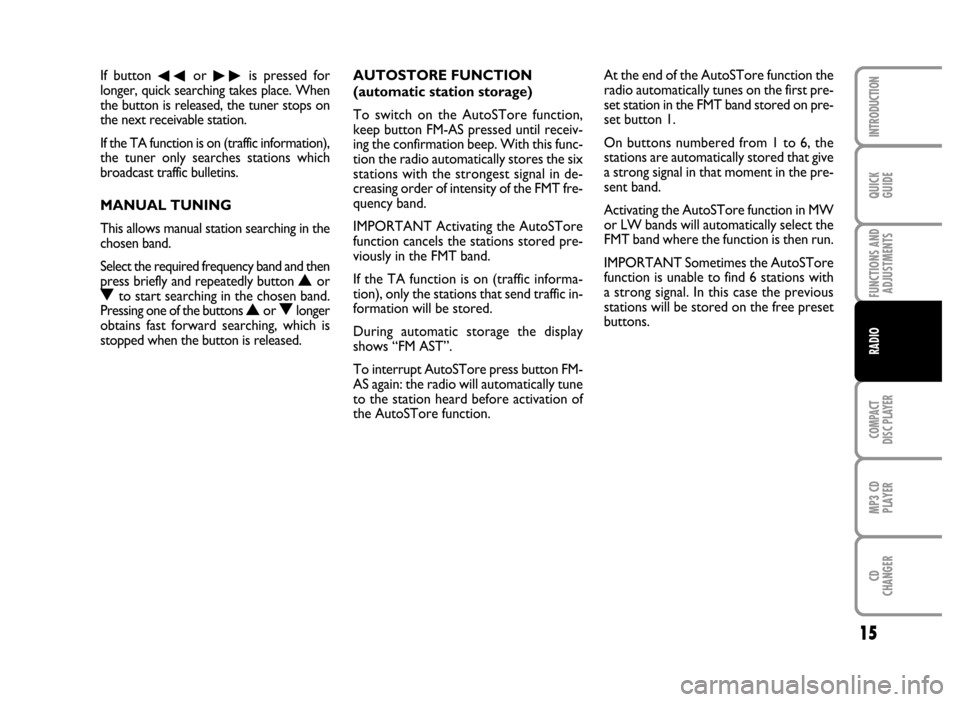

AUTOSTORE FUNCTION
(automatic station storage)
To switch on the AutoSTore function,
keep button FM-AS pressed until receiv-
ing the confirmation beep. With this func-
tion the radio automatically stores the six
stations with the strongest signal in de-
creasing order of intensity of the FMT fre-
quency band.
IMPORTANT Activating the AutoSTore
function cancels the stations stored pre-
viously in the FMT band.
If the TA function is on (traffic informa-
tion), only the stations that send traffic in-
formation will be stored.
During automatic storage the display
shows “FM AST”.
To interrupt AutoSTore press button FM-
AS again: the radio will automatically tune
to the station heard before activation of
the AutoSTore function.At the end of the AutoSTore function the
radio automatically tunes on the first pre-
set station in the FMT band stored on pre-
set button 1.
On buttons numbered from 1 to 6, the
stations are automatically stored that give
a strong signal in that moment in the pre-
sent band.
Activating the AutoSTore function in MW
or LW bands will automatically select the
FMT band where the function is then run.
IMPORTANT Sometimes the AutoSTore
function is unable to find 6 stations with
a strong signal. In this case the previous
stations will be stored on the free preset
buttons. If button ÷or ˜is pressed for
longer, quick searching takes place. When
the button is released, the tuner stops on
the next receivable station.
If the TA function is on (traffic information),
the tuner only searches stations which
broadcast traffic bulletins.
MANUAL TUNING
This allows manual station searching in the
chosen band.
Select the required frequency band and then
press briefly and repeatedly button
NorOto start searching in the chosen band.
Pressing one of the buttons Nor Olonger
obtains fast forward searching, which is
stopped when the button is released.

21
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
RADIO
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
COMPACT
DISC PLAYER

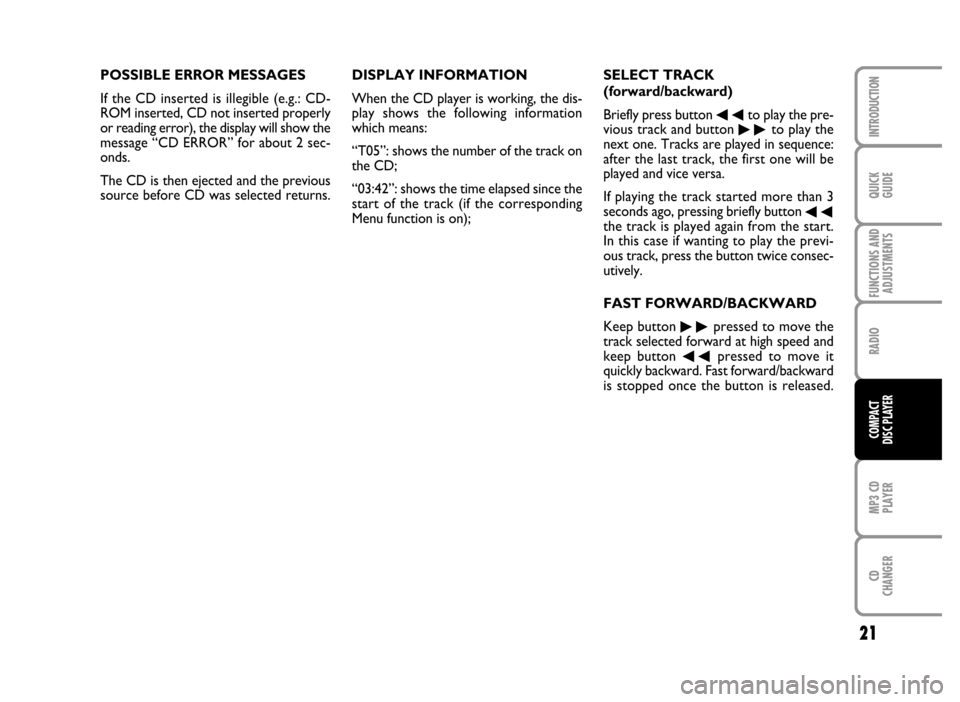

POSSIBLE ERROR MESSAGES
If the CD inserted is illegible (e.g.: CD-
ROM inserted, CD not inserted properly
or reading error), the display will show the
message “CD ERROR” for about 2 sec-
onds.
The CD is then ejected and the previous
source before CD was selected returns.DISPLAY INFORMATION
When the CD player is working, the dis-
play shows the following information
which means:
“T05”: shows the number of the track on
the CD;
“03:42”: shows the time elapsed since the
start of the track (if the corresponding
Menu function is on);SELECT TRACK
(forward/backward)
Briefly press button
÷to play the pre-
vious track and button
˜to play the
next one. Tracks are played in sequence:
after the last track, the first one will be
played and vice versa.
If playing the track started more than 3
seconds ago, pressing briefly button
÷the track is played again from the start.
In this case if wanting to play the previ-
ous track, press the button twice consec-
utively.
FAST FORWARD/BACKWARD
Keep button
˜pressed to move the
track selected forward at high speed and
keep button
÷pressed to move it
quickly backward. Fast forward/backward
is stopped once the button is released.
