technical specifications FIAT IDEA 2007 1.G Owners Manual

124
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0099m
WARNINGAlways remove the ignition key when you get out of the car to prevent the sunroof
being operated accidentally and constituting a danger to the people left in the car.
The improper use of the sunroof can be dangerous. Before and during its operation
ensure that any passengers are not at risk from the moving roof either by personal
objects getting caught in the mechanism or by being injured by it directly. Do not open the sunroof if there is snow or ice on it: it could be damaged.
In case of cross roof rack, you are suggested to use the sunroof only in “spoiler” position.

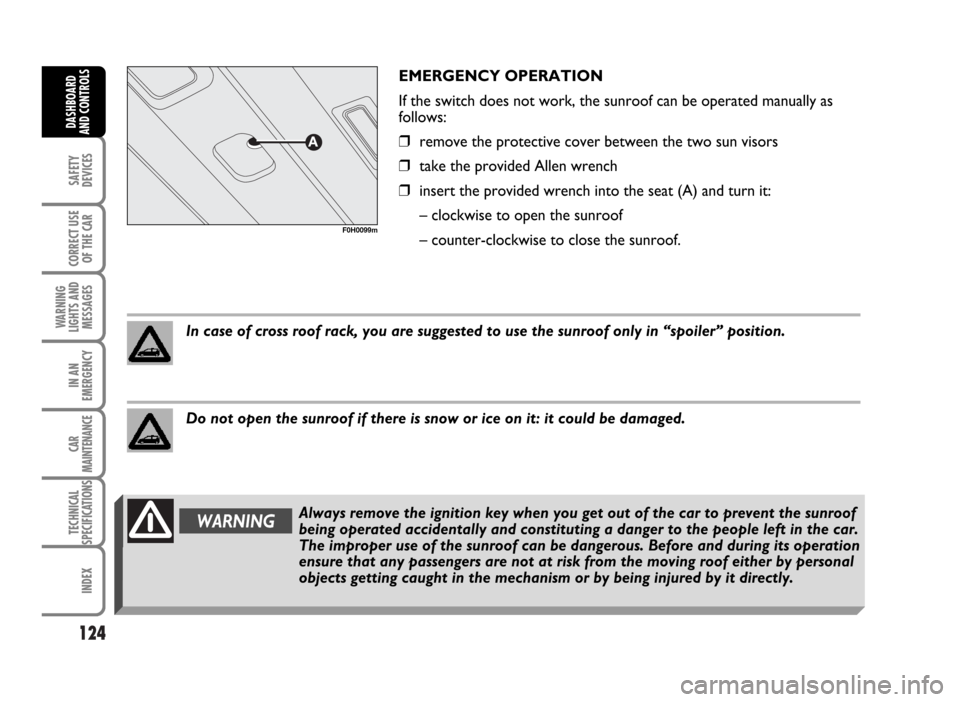

EMERGENCY OPERATION
If the switch does not work, the sunroof can be operated manually as
follows:
❒remove the protective cover between the two sun visors
❒take the provided Allen wrench
❒insert the provided wrench into the seat (A) and turn it:
– clockwise to open the sunroof
– counter-clockwise to close the sunroof.

125
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
POWER WINDOWS
For the 2-button version (only front power windows)
no type of automatism (either opening or closing) is
provided. For the 4-button version (front and rear
power windows), the driver side is provided with both
opening and closing automatism, whereas the
passenger side is only provided with opening
automatism (where provided also closing automatism).
Rear windows are only provided with opening
automatism.
IMPORTANT In the event that the anti-crushing
function is activated 5 times in only 1 minute, the
system will automatically enter the “recovery” mode
(self-protection). This conditions is pointed out by the
fact that, in the closing phase, the window goes up in
jerks.
WARNINGThe system conforms to Standard 2000/4/EC concerning the safety of
passengers leaning out of the windows. The system guarantees protection only
against obstacles set between the inside and the outside of the car but not
vice versa. So, it is necessary to carry out the system restore
procedure, acting as follows:
❒perform opening control;
or
❒turn the key to STOP and then to MAR.
The logic is restored if no malfunction is present, the
window returns to its normal operation automatically;
otherwise contact a Fiat Dealership.

126
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IMPORTANT With the ignition key at STOP or removed, the power
windows remain activated for about 2 minutes and are deactivated
immediately the moment a door is opened.

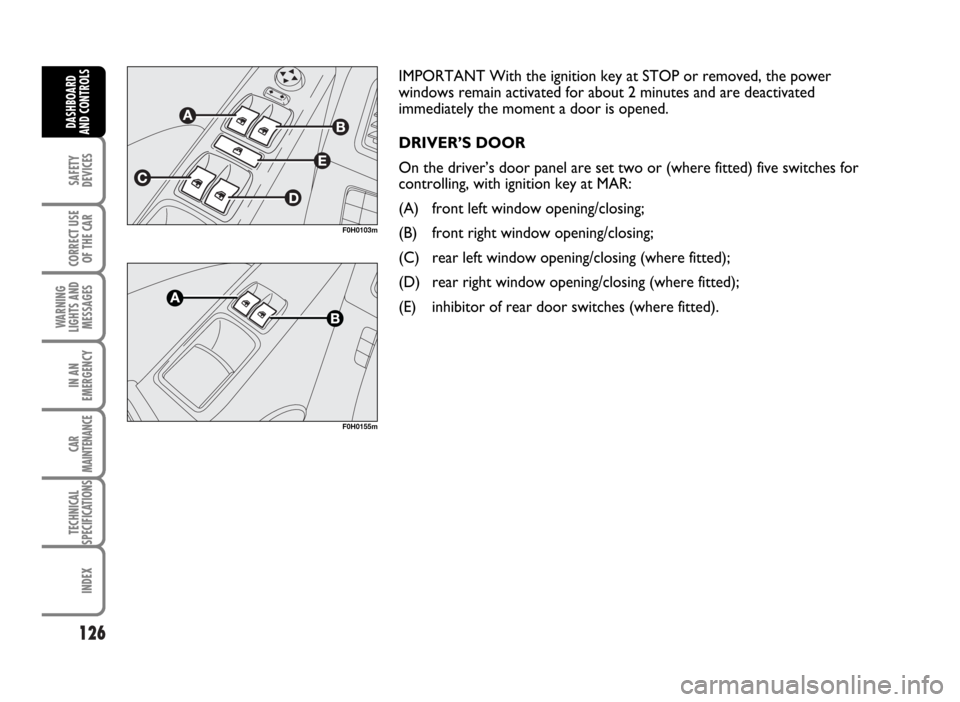

DRIVER’S DOOR
On the driver’s door panel are set two or (where fitted) five switches for
controlling, with ignition key at MAR:
(A) front left window opening/closing;
(B) front right window opening/closing;
(C) rear left window opening/closing (where fitted);
(D) rear right window opening/closing (where fitted);
(E) inhibitor of rear door switches (where fitted).
F0H0103m
F0H0155m

127
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Continuous automatic operation
(only for front windows, where provided)
Certain versions with four power windows with
automatic opening/closing for front (where fitted)
windows and automatic opening only for rear windows
are fitted – just on front (where fitted) doors - with
crush-prevention seal safety system capable of
reversing the window motion when detecting the
contact between an obstacle and the window seal.
(A – B) Buttons with continuous automatic operation
both for lowering and raising the window;
(C – D) Buttons with continuous automatic operation
only for window opening.
Pressing briefly one of the control buttons, the
window moves “jerking” and it stops when the button
is released.PASSENGER’S DOOR AND REAR DOORS
(where fitted)
On each door panel there is the switch for controlling
the respective window.
WARNINGImproper use of the power windows can be dangerous. Before and during its
operation ensure that any passengers are not at risk from the moving glass either
by personal objects getting caught in the mechanism or by being injured by it
directly. Always remove the ignition key when getting out of the car to prevent the
power windows being operated accidentally and constituting a danger to the
passengers in the car.

128
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
BOOT
The boot tailgate (when unlocked) can be opened only from the outside
through the electric opening handle set above the number plate holder.
If doors are unlocked the boot can be opened at any time.
Through the set-up menu of the cluster display (see “Reconfigurable
multifunction display” in the present chapter) it is possible to activate the
“Independent boot unlocking”: in this way the boot is not unlocked
together with the doors; to open it press button
Ron the remote
control.
The tailgate opening is indicated by double flashing of direction indicators.F0H0104m
F0H0016m
REAR MANUAL WINDOW CONTROLS
(where fitted)
Operate the handle to open or to close the window.
F0H0156m

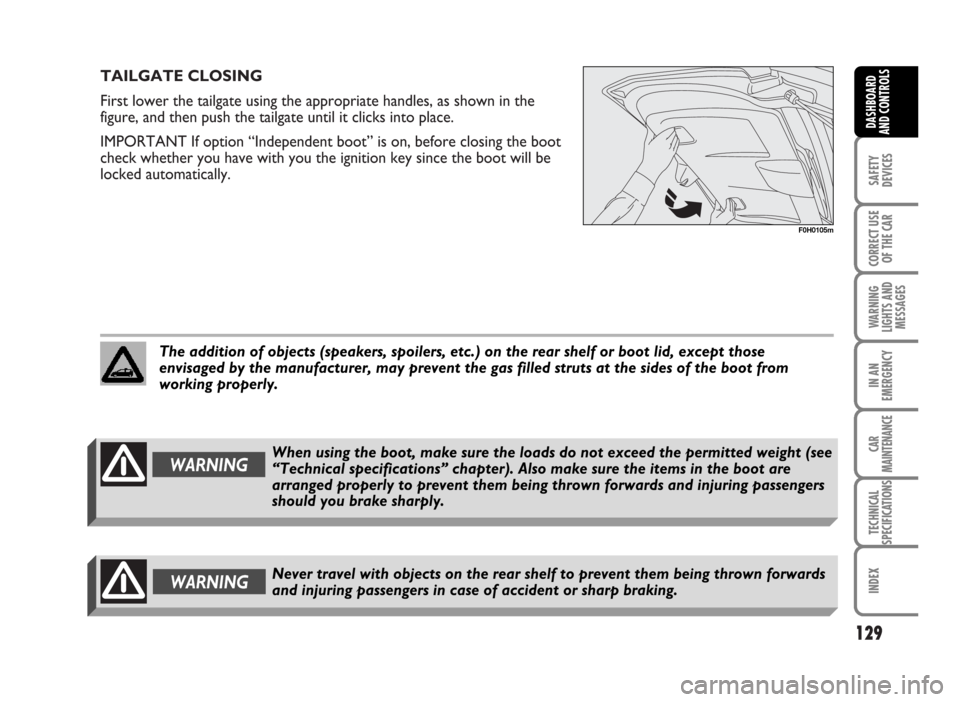

TAILGATE CLOSING
First lower the tailgate using the appropriate handles, as shown in the
figure, and then push the tailgate until it clicks into place.
IMPORTANT If option “Independent boot” is on, before closing the boot
check whether you have with you the ignition key since the boot will be
locked automatically.
129
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0105m
The addition of objects (speakers, spoilers, etc.) on the rear shelf or boot lid, except those
envisaged by the manufacturer, may prevent the gas filled struts at the sides of the boot from
working properly.
WARNING
WARNINGWhen using the boot, make sure the loads do not exceed the permitted weight (see
“Technical specifications” chapter). Also make sure the items in the boot are
arranged properly to prevent them being thrown forwards and injuring passengers
should you brake sharply.
Never travel with objects on the rear shelf to prevent them being thrown forwards
and injuring passengers in case of accident or sharp braking.

EMERGENCY OPENING OF TAILGATE
To succeed in opening the tailgate from the inside, should the car battery
be flat, or because of a defect of the electric lock of the tailgate, proceed
as follows (refer to “Extending the boot” in this section):
❒remove the rear head restraints;
❒tilt seat backrests to "table" configuration;
❒tilt cushion / backrest completely.
❒operate lever (B), to obtain tailgate mechanical release, operating
from the inside of the boot.
REMOVING THE REAR PARCEL SHELF
To remove the rear parcel shelf in order to extend the boot, proceed as
follows:
❒Front parcel shelf: release and turn the parcel shelf from its seat and
release the two pins from the side seats.
❒Rear parcel shelf: release the two pins from the side seats
130
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0108m
F0H0338m

EXTENDING THE BOOT WITH SLIDING SEAT
Before extending the boot, release the seat belt buckle (with black
button, if fastened) and accompany the webbing in the reel to prevent it
from twisting; insert the tongues, overlapping them, in the retaining
system (A) inside the reel compartment.
Moving the seat backwards or forwards
The rear seat is of the double-seat type. It is possible to move the rear
seat backwards or forwards from the boot using handles (B) or (C); pull
the handle and at the same time move the seats forwards. This makes it
possible to extend the boot capacity.
To extend the boot totally
Proceed as follows:
❒remove the rear parcel and previously shown;
❒make sure the headrests are completely lowered;
❒use levers (D) and (E) to fold the rear seat backs on the cushions;
❒make sure the seats are completely in backward position by means of
handles (B) or (C);
❒use tapes (F) and (G) to tilt the seats completely.
IMPORTANT Tilting is only possible with rear seats positioned
completely backwards.
131
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0132m
F0H0109m
F0H0048m
Never pull tapes (B) or (C) with seats in
load position as they will slide vertically
thus hindering seat repositioning.WARNING

The tilted seats are fastened in this position by the action of the side
struts.
Partial extension
Operating the required part (right or left) of the seat in the same way it
is possible to obtain partial extension of the boot as illustrated.
IMPORTANT For rear seat complete tilting it could be necessary to
move the front seats forward.
To return the cushions on the floor
Use tapes (B) to return the cushions on the floor.
132
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0111m
F0H0112m
F0H0110m
With table folded seats, in the event of a
crash it can be dangerous to carry heavy
objects on the rear seat back.WARNING
WARNINGThe position of the rear seat backs folded
on the respective cushions shall not be
considered a loading position and
therefore cannot bear heavy weights.
If the central seat belt is fastened to the
seat, release it before tilting the seat.WARNING

EXTENDING THE BOOT WITH FIXED SEAT
Proceed as follows:
❒fasten the seat buckles to the tabs on the seat back (as shown by
arrows);
❒check that the webbing (C) of each of the two side seat belts is
inserted into the respective belt guiding catch (D);
❒raise the cushion (A) as shown in the figure
❒release the seat back moving the levers (B) as shown by the arrow. Tilt
it to make a single loading surface with the boot floor;
❒if vertical space must be increased, remove Cargo box (where
provided) positioned under load plane mat.
133
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0346m
F0H0347m
