SERVICE SCHEDULE
Thousands of km
Check tyre conditions/wear and
adjust pressure if required
Check light system operation
(headlights, direction indicators, hazard lights, boot lights,
passenger compartment lights, dashboard warning lights, etc.)
Check windscreen/washer
(nozzles/and blade position regulation)
Check front disk brake pad conditions and wear
Check rear drum brake lining conditions
and wear
Sight inspect the conditions of: body external parts, underbody
protection pipes and hoses (exhaust, fuel, brakes),
rubber parts (boots, sleeves, bushes, etc.)
Check for bonnet and boot lock cleanness, lever cleanness
and lubrication
Check tension and adjust accessory drive belts
(excluding engines with automatic belt tighteners)
Check tension and adjust accessory drive belts
Check and adjust tappet clearance
(1.4 8V(where provided) - 1.9 Multijet versions)
20 40 60 80 100 120 140 160 180
●●●●● ●●●●
●●●●● ●●●●
●●●●● ●●●●
●●●●● ●●●●
●●●
●●●●● ●●●●
●●●●● ●●●●
●
●● ● ●
●● ● ●

261
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE
Thousands of km
Check and adjust handbrake lever stroke
Check exhaust emissions/smoke (Multijet versions)
Check exhaust emissions (petrol versions)
Check antievaporation system (petrol versions)
Change fuel filter cartridge (“green filter”)
(Multijet versions)
Change air cleaner cartridge (petrol versions)
Change air cleaner cartridge (1.9 Multijet versions) (❏)
Top up fluids (engine coolant, brakes, windscreen washer,
battery, Dualogic etc.)
Check timing belt conditions (■)
Replace timing belt (*) (■)
Change spark plugs (petrol versions)
Check engine control system operation
(through diagnosis socket)
Change engine oil and oil filter (❏)
Change engine oil and oil filter
(Multijet versions with DPF) (**)
Change brake fluid (or every 2 years)
Change pollen filter (or every year)
(*) Or every 4 years for particularly demanding use:
- cold/hot climates;
- driving in the city idling for a long time;
- dusty roads or roads covered with sand and/or salt
Or every 5 years, regardless of the km covered and conditions of use.
(**) Engine oil and oil filter shall be changed when the corresponding warning light turns on (see section “Warning lights and Messages”), or in
any case every 2 years.
(
❏) Every 30.000 km for 1.3 Multijet versions without DPF
(
■) Excluding 1.3 Multijet versions
20 40 60 80 100 120 140 160 180
●● ● ●
●● ● ●
●● ● ●
●●
●●●
●●●
●●●●● ●●●●
●●●●● ●●●●
●●
●
●● ● ●
●● ● ●
●●●●● ●●●●
(●)(●)(●)(●)(●)(●)(●)(●)(●)
●●●
●●●●● ●●●●

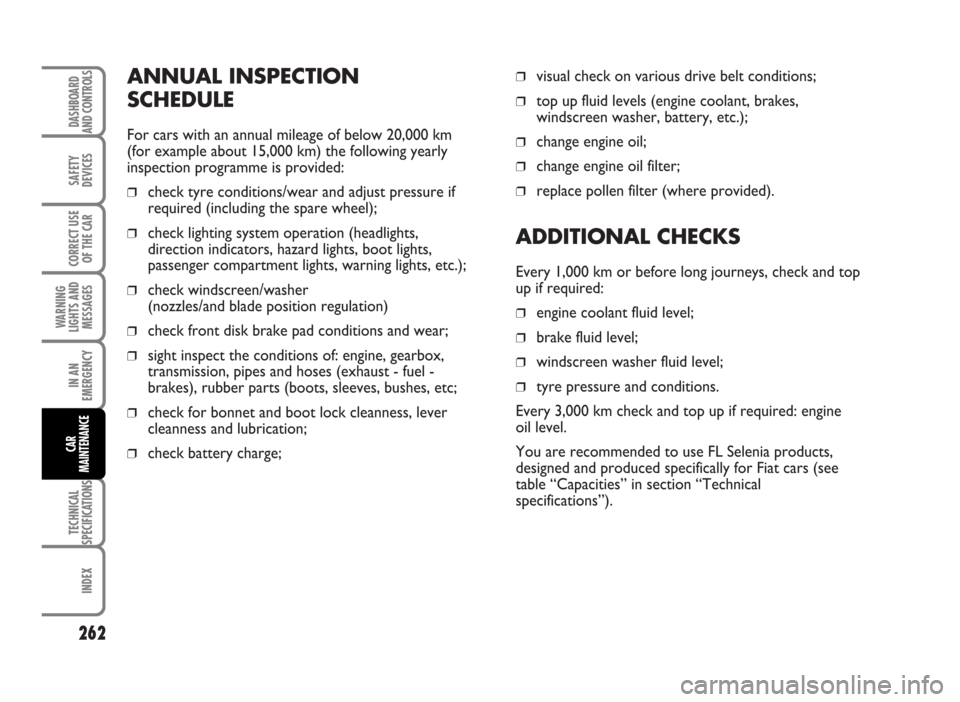

ANNUAL INSPECTION
SCHEDULE
For cars with an annual mileage of below 20,000 km
(for example about 15,000 km) the following yearly
inspection programme is provided:
❒check tyre conditions/wear and adjust pressure if
required (including the spare wheel);
❒check lighting system operation (headlights,
direction indicators, hazard lights, boot lights,
passenger compartment lights, warning lights, etc.);
❒check windscreen/washer
(nozzles/and blade position regulation)
❒check front disk brake pad conditions and wear;
❒sight inspect the conditions of: engine, gearbox,
transmission, pipes and hoses (exhaust - fuel -
brakes), rubber parts (boots, sleeves, bushes, etc;
❒check for bonnet and boot lock cleanness, lever
cleanness and lubrication;
❒check battery charge;
❒visual check on various drive belt conditions;
❒top up fluid levels (engine coolant, brakes,
windscreen washer, battery, etc.);
❒change engine oil;
❒change engine oil filter;
❒replace pollen filter (where provided).
ADDITIONAL CHECKS
Every 1,000 km or before long journeys, check and top
up if required:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer fluid level;
❒tyre pressure and conditions.
Every 3,000 km check and top up if required: engine
oil level.
You are recommended to use FL Selenia products,
designed and produced specifically for Fiat cars (see
table “Capacities” in section “Technical
specifications”).
262
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE

IMPORTANT - Engine oil
Should prevailing use of the car be under one of the
following specially heavy conditions:
❒trailer or caravan towing;
❒dusty roads;
❒short distances (less than 7-8 km) repeated and
with external temperatures below zero;
❒frequently idling engines or long distance low speed
driving (e.g. taxis or door-to-door deliveries) or in
case of a long term inactivity;
replace engine oil more frequently than required on
“Service schedule”.
IMPORTANT - Air cleaner
If the car is used on dusty roads change the air cleaner
more frequently than the indications in the “Service
schedule”.
If in doubt as to how often the engine oil and air
cleaner should be changed according to how you use
the car, contact a Fiat Dealership.IMPORTANT - Pollen filter
If the vehicle is used frequently in dusty or heavily
polluted environments it is advisable to replace the
filtering element more frequently; in particular it
should be replaced if a reduction of the amount of air
admitted to the passenger compartment is noted.
IMPORTANT - Diesel filter
The possibility of topping up with diesel fuel not
complying with EN590 European Norm might make it
necessary to replace the filter more frequently than
indicated in the “Service schedule”.
263
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE

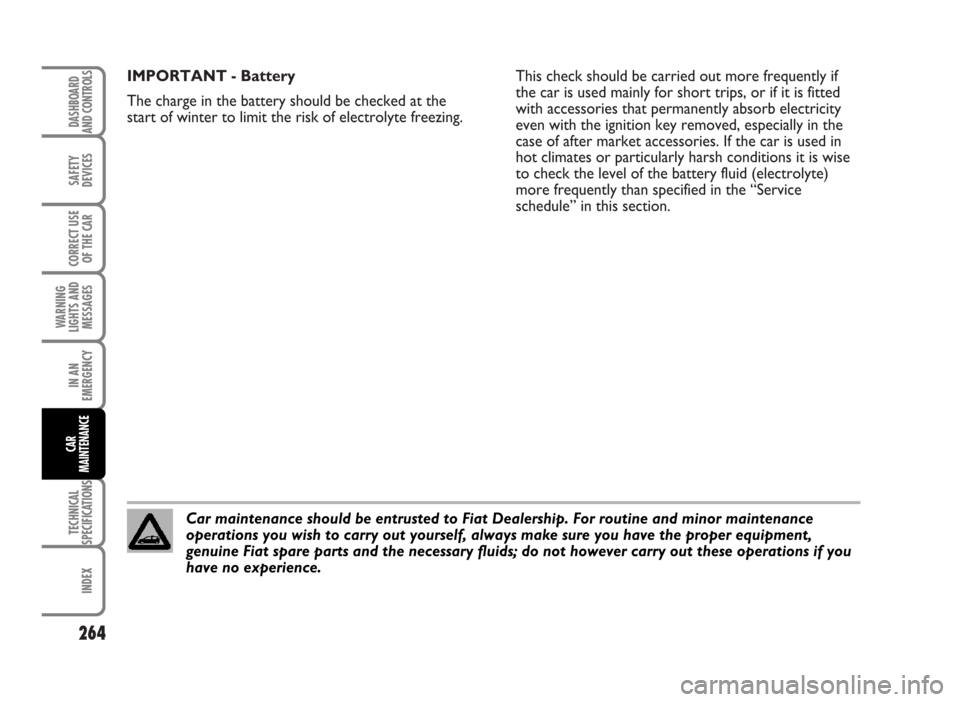

IMPORTANT - Battery
The charge in the battery should be checked at the
start of winter to limit the risk of electrolyte freezing.This check should be carried out more frequently if
the car is used mainly for short trips, or if it is fitted
with accessories that permanently absorb electricity
even with the ignition key removed, especially in the
case of after market accessories. If the car is used in
hot climates or particularly harsh conditions it is wise
to check the level of the battery fluid (electrolyte)
more frequently than specified in the “Service
schedule” in this section.
264
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE
Car maintenance should be entrusted to Fiat Dealership. For routine and minor maintenance
operations you wish to carry out yourself, always make sure you have the proper equipment,
genuine Fiat spare parts and the necessary fluids; do not however carry out these operations if you
have no experience.

265
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE
CHECKING FLUID
LEVELS
IMPORTANT When topping up
take care not to confuse the
various types of fluids: they are all
incompatible with one another
and could seriously damage the
car.
IMPORTANT Never smoke
while working in the engine
compartment: gas and
inflammable vapours may be
present, with the risk of fire.

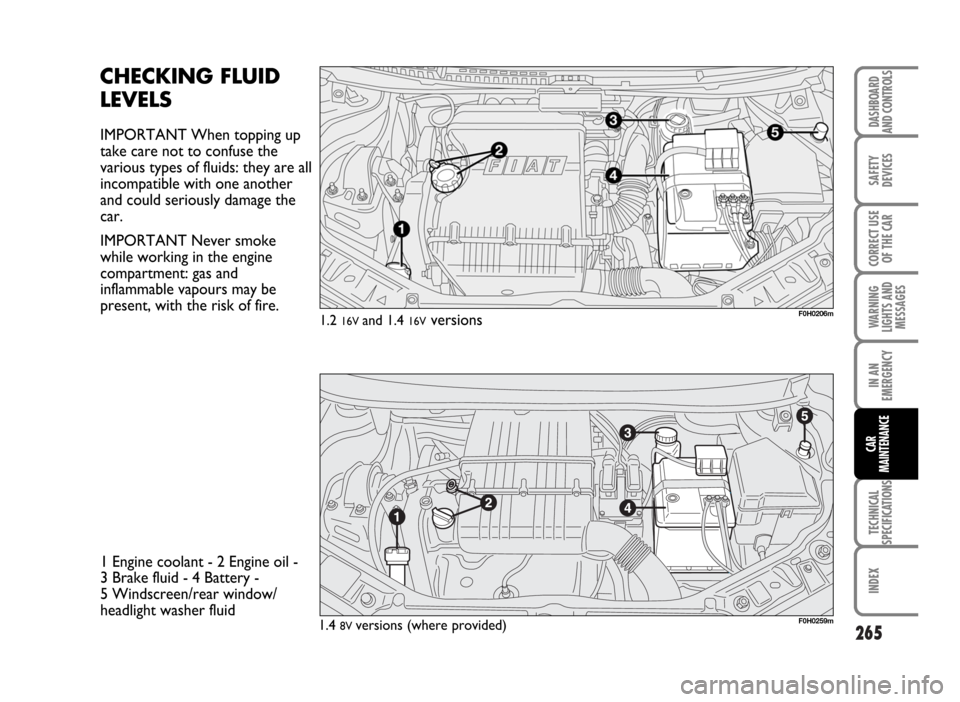

1 Engine coolant - 2 Engine oil -
3 Brake fluid - 4 Battery -
5 Windscreen/rear window/
headlight washer fluid
F0H0206m1.2 16V and 1.4 16Vversions
F0H0259m1.4 8V versions (where provided)

266
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE

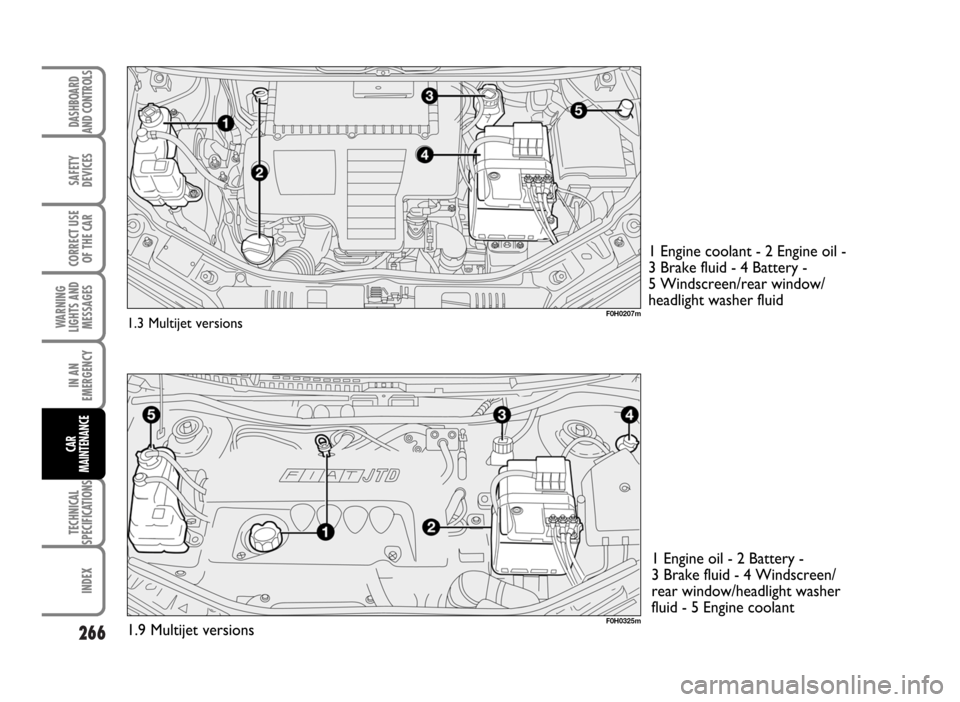

1 Engine oil - 2 Battery -
3 Brake fluid - 4 Windscreen/
rear window/headlight washer
fluid - 5 Engine coolant
F0H0325m1.9 Multijet versions
F0H0207m1.3 Multijet versions
1 Engine coolant - 2 Engine oil -
3 Brake fluid - 4 Battery -
5 Windscreen/rear window/
headlight washer fluid

ENGINE OIL
Checking engine oil
Check the oil level a few minutes (about 5) after the engine has stopped,
with the car parked on level ground.
Check that the level is within the MIN and MAX marks on the dipstick.
The interval between the MIN and MAX marks corresponds to about
one litre of oil.
Topping up engine oil
If the oil level is near or even below the MIN mark, add oil through the
filler neck, until reaching the MAX mark. Oil level shall never exceed the
MAX mark.
IMPORTANT If a routine check reveals that the oil level is above the
MAX mark, contact Fiat Dealership to have the correct level restored.
IMPORTANT After adding or changing the oil, let the engine turn over
for a few seconds and wait a few minutes after turning it off before you
check the level.
267
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE
F0H0208m
F0H0209mF0H0326m
1.2 16V - 1.4 16V versions
1.3 Multijet versions 1.9 Multijet versions
F0H0258m1.4 8V versions (where provided)

Engine oil consumption
Max engine oil consumption is usually 400 grams every
1000 km.
When the car is new, the engine needs to run in,
therefore the engine oil consumption can only be
considered stabilised after the first 5000 - 6000 km.IMPORTANT The oil consumption depends on driving
style and the conditions under which the car is used.
IMPORTANT Do not add oil with specifications other
than that already in the engine.
268
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE
WARNINGWhen the engine is hot, take care when working inside the engine compartment to
avoid burns. Remember that when the engine is hot, the fan may cut in: danger of
injury. Scarves, ties and other loose clothing might be pulled by moving parts.
Used engine oil and filter contain harmful substances for the environment.
Contact Fiat Dealership to have the oil and filter changed.

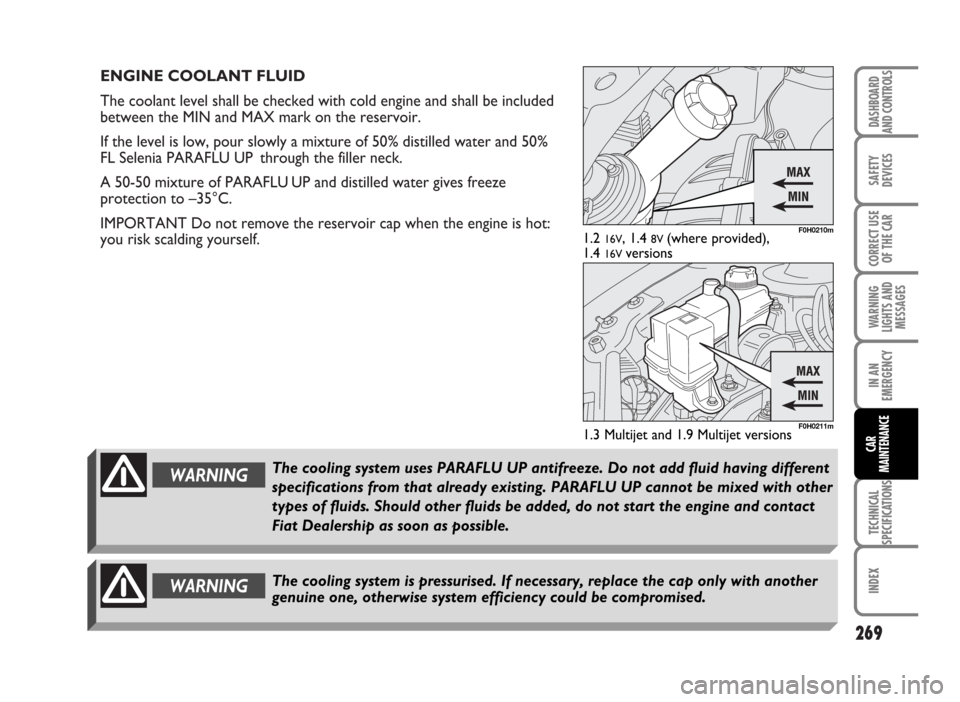

ENGINE COOLANT FLUID
The coolant level shall be checked with cold engine and shall be included
between the MIN and MAX mark on the reservoir.
If the level is low, pour slowly a mixture of 50% distilled water and 50%
FL Selenia PARAFLU UP through the filler neck.
A 50-50 mixture of PARAFLU UP and distilled water gives freeze
protection to –35°C.
IMPORTANT Do not remove the reservoir cap when the engine is hot:
you risk scalding yourself.
269
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE
F0H0210m
F0H0211m
1.2 16V, 1.4 8V (where provided),
1.4 16V versions
1.3 Multijet and 1.9 Multijet versions
The cooling system is pressurised. If necessary, replace the cap only with another
genuine one, otherwise system efficiency could be compromised.WARNING
WARNINGThe cooling system uses PARAFLU UP antifreeze. Do not add fluid having different
specifications from that already existing. PARAFLU UP cannot be mixed with other
types of fluids. Should other fluids be added, do not start the engine and contact
Fiat Dealership as soon as possible.
