CONNECT Nav+
ADVICE, CONTROLS AND GENERAL INFORMATION... 5
ADVICE .......................................................................................................... 5
CONTROLS .................................................................................................. 10
Front panel controls .................................................................................... 10
Steering wheel controls .............................................................................. 14
GENERAL INFORMATION ...................................................................... 15
System power on ......................................................................................... 16
System power off ......................................................................................... 17
Main mode ..................................................................................................... 18
Protection against theft ............................................................................... 19
AUDIO......................................................................................................... 21
SCREEN OPTIONS AND FUNCTIONS ............................................... 21
RADIO MODE ............................................................................................. 22
Traffic information ....................................................................................... 24
Seeking alternative frequencies ................................................................. 26
“Frequency” function ................................................................................... 26
Autostore function ....................................................................................... 27
Band Scan function ....................................................................................... 28
Preset Scan function .................................................................................... 28
Radio setup function .................................................................................... 29
LOC/DX function ......................................................................................... 29
Mono/Stereo function ................................................................................. 29
PTY-Prog. Type function ............................................................................ 30
RDS function ................................................................................................. 31
Regional function .......................................................................................... 31
Audio setup function ................................................................................... 32
Bass .................................................................................................................. 33
Treble .............................................................................................................. 33
Balance/Fader function ................................................................................ 33
Loudness ........................................................................................................ 33
Equalizer ......................................................................................................... 34
Auto Vol. Cont. function ............................................................................ 35
CD MODE ..................................................................................................... 37
Shuffle function .............................................................................................. 38
Scan function ................................................................................................. 39Compression function ................................................................................. 39
CD setup function ........................................................................................ 39
Audio setup function ................................................................................... 42
CD-CHANGER MODE .............................................................................. 42
Shuffle function .............................................................................................. 44
Prog function ................................................................................................. 45
Scan function ................................................................................................. 45
Compression function ................................................................................. 45
CDC setup function ..................................................................................... 45
Audio setup function ................................................................................... 47
MP3 MODE ................................................................................................... 47
Main screen options and functions............................................................ 49
Audio setup function ................................................................................... 50
Direct selection function ............................................................................ 50
Define Playlist function ................................................................................ 50
Playlist function ............................................................................................. 50
Compression function ................................................................................. 51
Scan function ................................................................................................. 51
Shuffle function .............................................................................................. 51
Playing the Playlist ........................................................................................ 52
Playing MP3 CD ............................................................................................ 53
Define Playlist function ................................................................................ 54
CELLULAR TELEPHONE WITH VOICE COMMANDS...60
GENERAL INFORMATION...................................................................... 60
PRELIMINARY OPERATIONS .................................................................. 61
Entering and exiting the telephone mode ............................................... 61
Inserting the telephone card ...................................................................... 63
Entering the PIN code ................................................................................. 64
INCOMING CALLS .................................................................................... 65
OUTGOING CALLS ................................................................................... 65
DIALLING A SERVICE NUMBER ............................................................. 66
Frequent Numbers function ....................................................................... 67
Ph/Book function .......................................................................................... 68
Message function............................................................................................ 75
LAST CALL function .................................................................................... 79
001-020 Connect IDEA GB 17-01-2008 13:32 Pagina 3

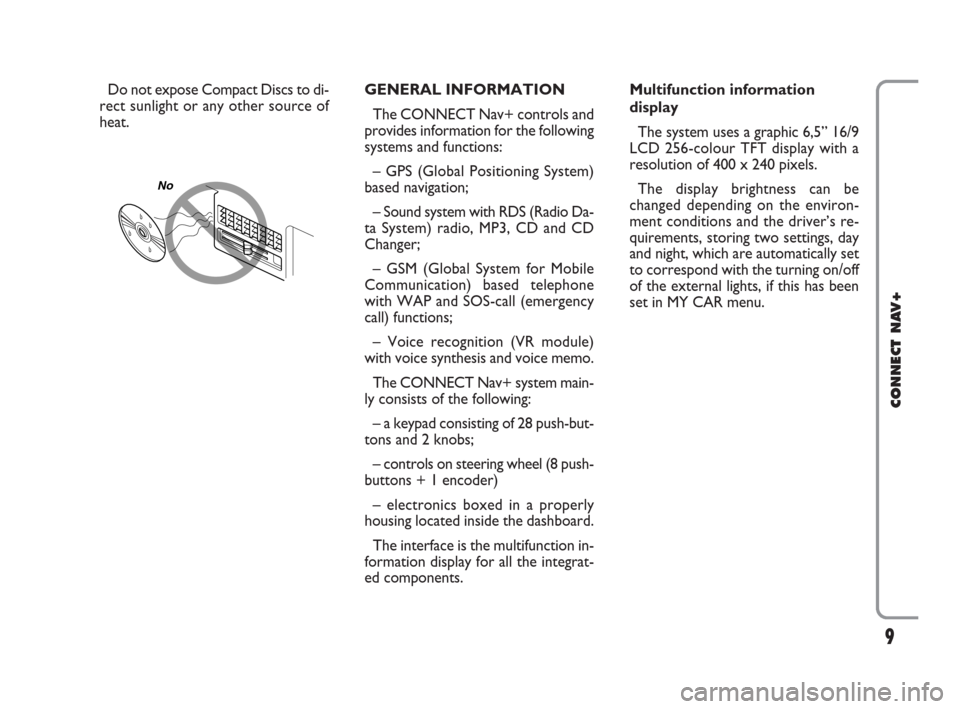

9
CONNECT NAV+
Do not expose Compact Discs to di-
rect sunlight or any other source of
heat.GENERAL INFORMATION
The CONNECT Nav+ controls and
provides information for the following
systems and functions:
– GPS (Global Positioning System)
based navigation;
– Sound system with RDS (Radio Da-
ta System) radio, MP3, CD and CD
Changer;
– GSM (Global System for Mobile
Communication) based telephone
with WAP and SOS-call (emergency
call) functions;
– Voice recognition (VR module)
with voice synthesis and voice memo.
The CONNECT Nav+ system main-
ly consists of the following:
– a keypad consisting of 28 push-but-
tons and 2 knobs;
– controls on steering wheel (8 push-
buttons + 1 encoder)
– electronics boxed in a properly
housing located inside the dashboard.
The interface is the multifunction in-
formation display for all the integrat-
ed components.Multifunction information
display
The system uses a graphic 6,5” 16/9
LCD 256-colour TFT display with a
resolution of 400 x 240 pixels.
The display brightness can be
changed depending on the environ-
ment conditions and the driver’s re-
quirements, storing two settings, day
and night, which are automatically set
to correspond with the turning on/off
of the external lights, if this has been
set in MY CAR menu.
No
001-020 Connect IDEA GB 17-01-2008 13:32 Pagina 9

14
CONNECT NAV+
fig. 2
F0H0331m

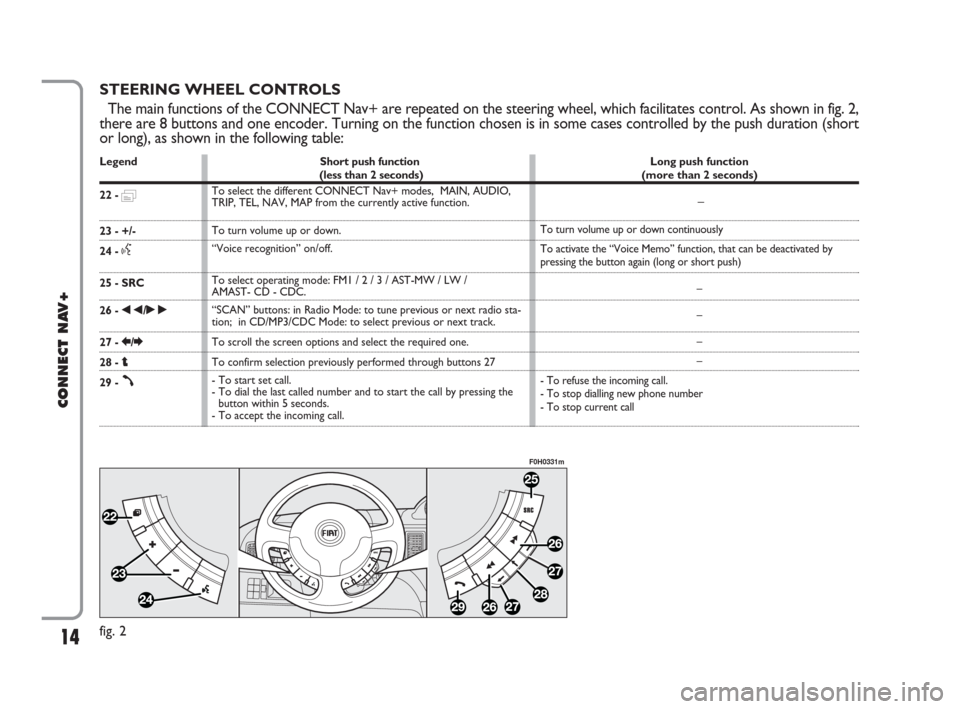

STEERING WHEEL CONTROLS
