10
WARNING LIGHTS
AND MESSAGESREDUCE GEARS
(amber)
Warning light comes on (to-
gether with the message on the
multifunction display) to warn the driver
of the incorrect use of the gearbox.
In this event, the system could automati-
cally activate system protection proce-
dure.MANUAL METHOD
UNAVAILABLE (amber)
The message on the multifunc-
tion display comes on when, with
engine on, the MANUALmode cannot
be selected. CHECK
TRANSMISSION -
SEE HANDBOOK (red)
Turning the ignition key to MARthe
warning light shall come on, but it should
go off a few seconds after.
The warning light comes on flashing on the
cluster (together with the message on the
multifunction display and the buzzer) to
indicate a gearbox failure.
t
In the case of a gearbox
fault, contact Fiat Dealer-
ship as soon as possible to
have the system checked.
If the warning light continues
to stay on (together with the
message on the multifunc-
tion display), contact Fiat
Dealership.
If the warning light continues
to stay on (together with the
message on the multifunc-
tion display), contact Fiat
Dealership.
èè
603.83.871 IDEA LOGIC 1a GB 17-01-2008 11:24 Pagina 10
Page 12 of 22

11

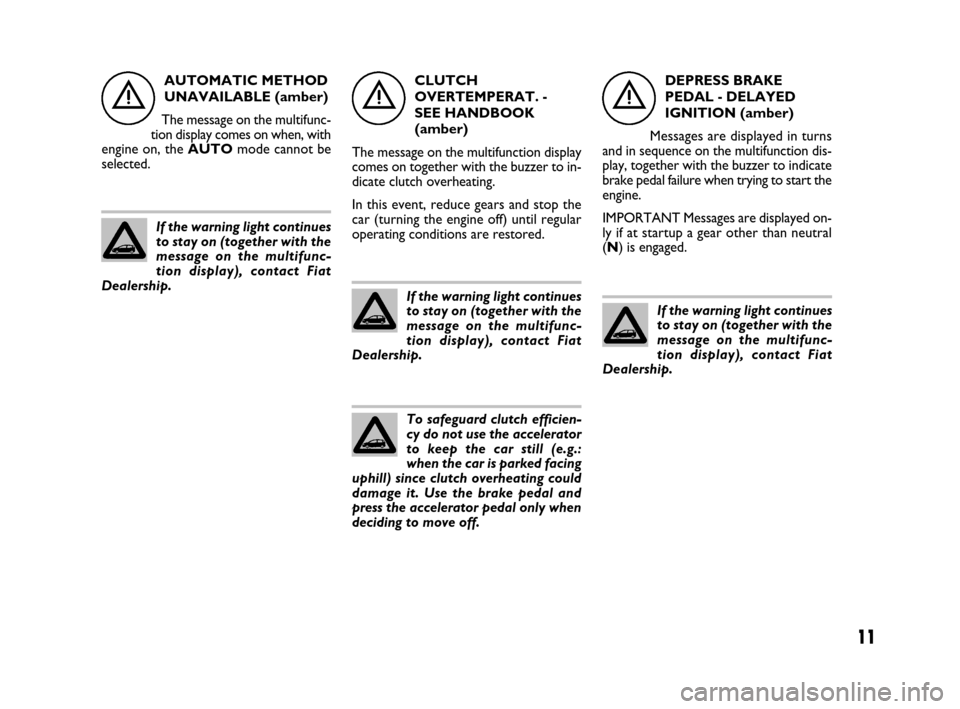

AUTOMATIC METHOD
UNAVAILABLE (amber)
The message on the multifunc-
tion display comes on when, with
engine on, the AUTOmode cannot be
selected.CLUTCH
OVERTEMPERAT. -
SEE HANDBOOK
(amber)
The message on the multifunction display
comes on together with the buzzer to in-
dicate clutch overheating.
In this event, reduce gears and stop the
car (turning the engine off) until regular
operating conditions are restored.DEPRESS BRAKE
PEDAL - DELAYED
IGNITION (amber)
Messages are displayed in turns
and in sequence on the multifunction dis-
play, together with the buzzer to indicate
brake pedal failure when trying to start the
engine.
IMPORTANT Messages are displayed on-
ly if at startup a gear other than neutral
(N) is engaged. If the warning light continues
to stay on (together with the
message on the multifunc-
tion display), contact Fiat
Dealership.
If the warning light continues
to stay on (together with the
message on the multifunc-
tion display), contact Fiat
Dealership.
To safeguard clutch efficien-
cy do not use the accelerator
to keep the car still (e.g.:
when the car is parked facing
uphill) since clutch overheating could
damage it. Use the brake pedal and
press the accelerator pedal only when
deciding to move off.
If the warning light continues
to stay on (together with the
message on the multifunc-
tion display), contact Fiat
Dealership.
èèè
603.83.871 IDEA LOGIC 1a GB 17-01-2008 11:24 Pagina 11
Page 13 of 22

12
GEAR UNAVAILABLE
(amber)
The message on the multifunc-
tion display comes on together
with the buzzer in the following cases:
❒system failure inhibiting gear shifting;
or
❒system failure allowing to engage only
first gear (1), second gear (2) or reverse
(R).OPERATION NOT
ADMISSIBLE (amber)
The message on the multifunc-
tion display comes on together
with the buzzer when the system refuses
the request to change gear since certain
indispensable conditions are lacking.
DEPRESS BRAKE PEDAL AND
REPEAT OPERATION (amber)
The message on the multifunction display
comes on, in certain cases with the buzzer
when under certain conditions, due to
safety reasons, you try to change gears
without pressing the brake pedal.SET GEARBOX LEV.
TO NEUTR. (amber)
The message on the multifunc-
tion display comes on together
with the buzzer to warn the driver that neu-
tral shall be engaged.
Engaging neutral (N), displayed message
shall turn off.
If the warning light continues
to stay on (together with the
message on the multifunc-
tion display), contact Fiat
Dealership.If the warning light continues
to stay on (together with the
message on the multifunc-
tion display), contact Fiat
Dealership.
If the warning light continues
to stay on (together with the
message on the multifunc-
tion display), contact Fiat
Dealership.
èèè
603.83.871 IDEA LOGIC 1a GB 17-01-2008 11:24 Pagina 12
Page 14 of 22

13
TOWING THE CAR
Make sure that the gearbox is in neutral
(N) (checking that the car moves if
pushed) and tow as for a car with tradi-
tional mechanical gearbox (see Owner
Handbook).
Should it be impossible to set to neutral,
do not tow the car and contact Fiat
Dealership.
IF A FUSE BLOWS
For fuse location see pictures in paragraph “If a fuse blows” in section “In an emergency”
in the Owner Handbook.
FUSE AMPERE
Dualogic gearbox fuse box F23 15
Dualogic gearbox oil pump P01 30
Dualogic gearbox fuse box power supply (+ key) F16 7,5
603.83.871 IDEA LOGIC 1a GB 17-01-2008 11:24 Pagina 13
Page 15 of 22

14

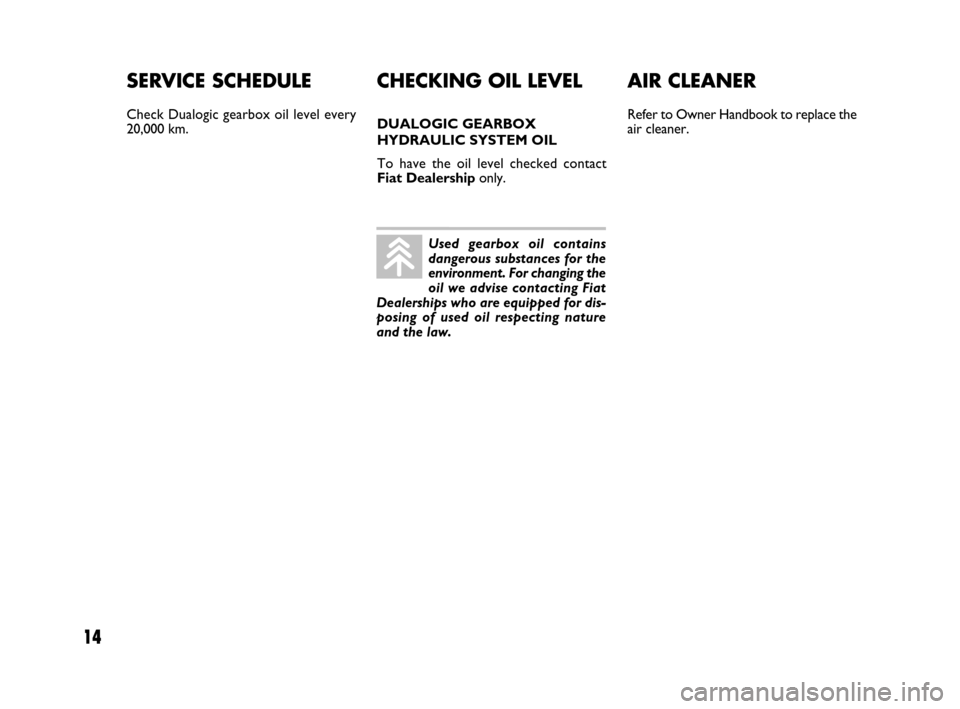

SERVICE SCHEDULE
Check Dualogic gearbox oil level every
20,000 km.
AIR CLEANER
Refer to Owner Handbook to replace the
air cleaner.
CHECKING OIL LEVEL
DUALOGIC GEARBOX
HYDRAULIC SYSTEM OIL
To have the oil level checked contact
Fiat Dealershiponly.
Used gearbox oil contains
dangerous substances for the
environment. For changing the
oil we advise contacting Fiat
Dealerships who are equipped for dis-
posing of used oil respecting nature
and the law.
603.83.871 IDEA LOGIC 1a GB 17-01-2008 11:24 Pagina 14
Page 16 of 22

15

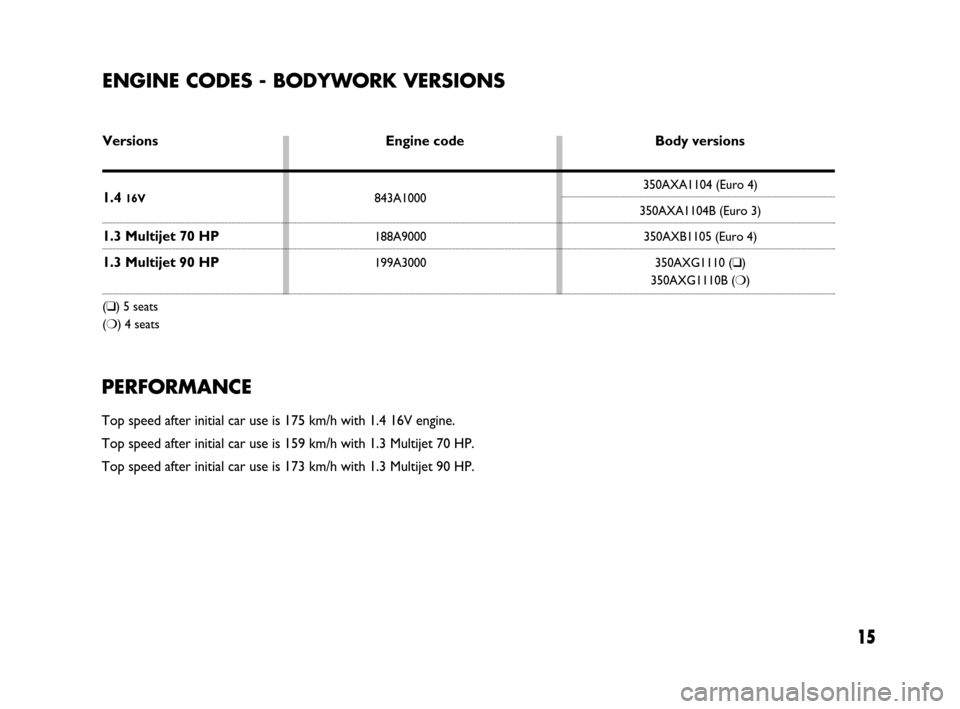

ENGINE CODES - BODYWORK VERSIONS
Versions Engine code Body versions
1.4 16V843A1000350AXA1104 (Euro 4)350AXA1104B (Euro 3)
1.3 Multijet 70 HP188A9000 350AXB1105 (Euro 4)
1.3 Multijet 90 HP199A3000 350AXG1110 (❑)
350AXG1110B (❍)
(❑) 5 seats
(❍) 4 seats
PERFORMANCE
Top speed after initial car use is 175 km/h with 1.4 16V engine.
Top speed after initial car use is 159 km/h with 1.3 Multijet 70 HP.
Top speed after initial car use is 173 km/h with 1.3 Multijet 90 HP.
603.83.871 IDEA LOGIC 1a GB 17-01-2008 11:24 Pagina 15
Page 17 of 22

16

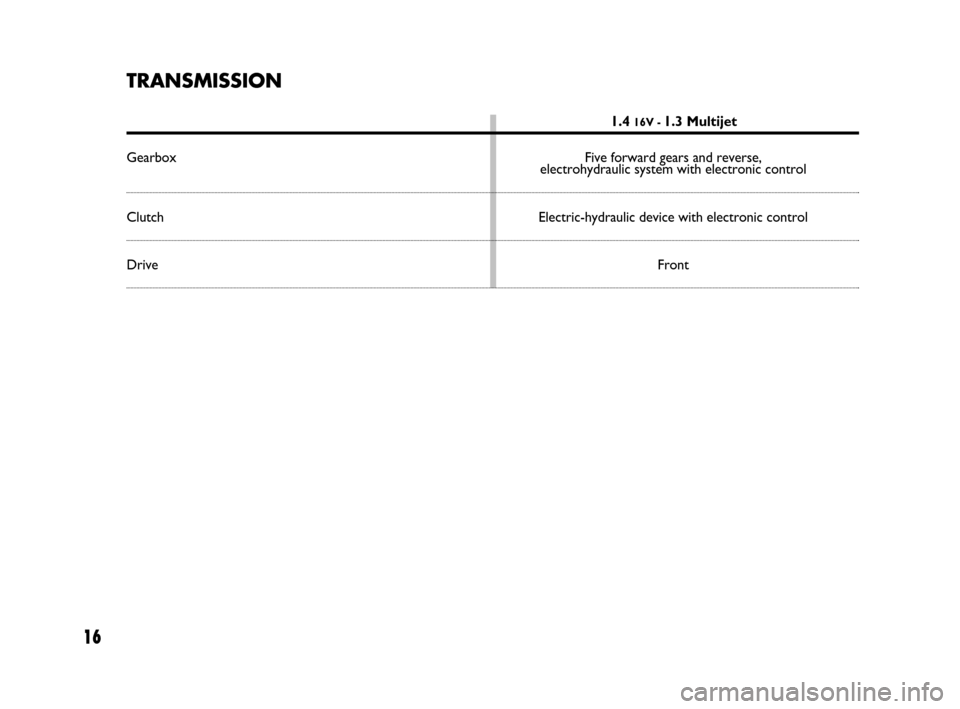

TRANSMISSION
1.4 16V - 1.3 Multijet
Gearbox Five forward gears and reverse,
electrohydraulic system with electronic control
Clutch Electric-hydraulic device with electronic control
DriveFront
603.83.871 IDEA LOGIC 1a GB 17-01-2008 11:24 Pagina 16
Page 18 of 22

17
1.3 Multijet
1205
500
940
805
1705
1000
400
75
60

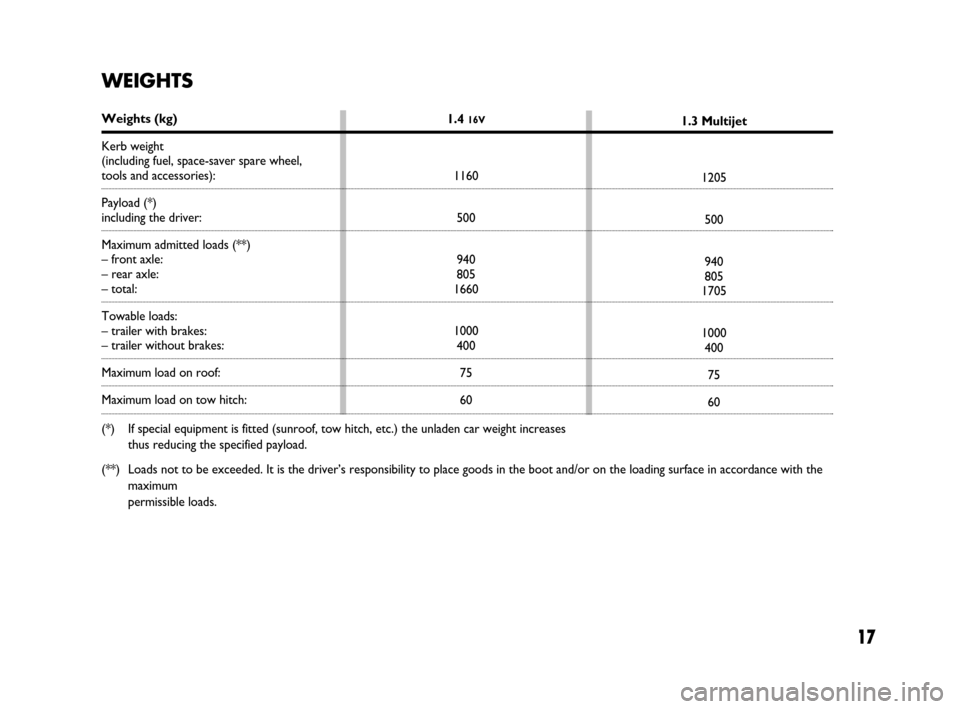

WEIGHTS
Weights (kg)
Kerb weight
(including fuel, space-saver spare wheel,
tools and accessories):
Payload (*)
including the driver:
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads:
– trailer with brakes:
– trailer without brakes:
Maximum load on roof:
Maximum load on tow hitch:
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases
thus reducing the specified payload.
(**) Loads not to be exceeded. It is the driver’s responsibility to place goods in the boot and/or on the loading surface in accordance with the
maximum
permissible loads.1.4
16V
1160
500
940
805
1660
1000
400
75
60
603.83.871 IDEA LOGIC 1a GB 17-01-2008 11:24 Pagina 17
Page 19 of 22

18
Specified fuels
Recommended products
TUTELA CAR CS SPEED -
Special oil with
“ATF DEXRON III” additive
CO2EMISSIONS
CO2emissions according to 1999/100/EC Directive (gr x 100 km)
CO
2emission value referred to combined consumption is 153 (gr x 100 km) with 1.4 16V engine.
CO
2emission value referred to combined consumption is 127 (gr x 100 km) with 1.3 Multijet 70 HP.
CO
2emission value referred to combined consumption is 118 (gr x 100 km) with 1.3 Multijet 90 HP.
1.4 16V1.3 Multijet
litres
0.70kg
0.59litres
0.70kg
0.59
CAPACITIES
Dualogic gearbox hydraulic system
603.83.871 IDEA LOGIC 1a GB 17-01-2008 11:24 Pagina 18
Page 20 of 22

19
FUEL CONSUMPTION
Fuel consumption according to 1999/100/EC Directive(litres x 100 km) Urban Extra-urban Combined
1.4 16V8,3 5,4 6,4
1.3 Multijet 70 HP5,8 4,2 4,8
1.3 Multijet 90 HP5,6 3,8 4,5
Consumption in AUTO–ECO logic.
