engine FIAT IDEA 2008 1.G LPG Supplement Manual

17
FIAT IDEA LPG

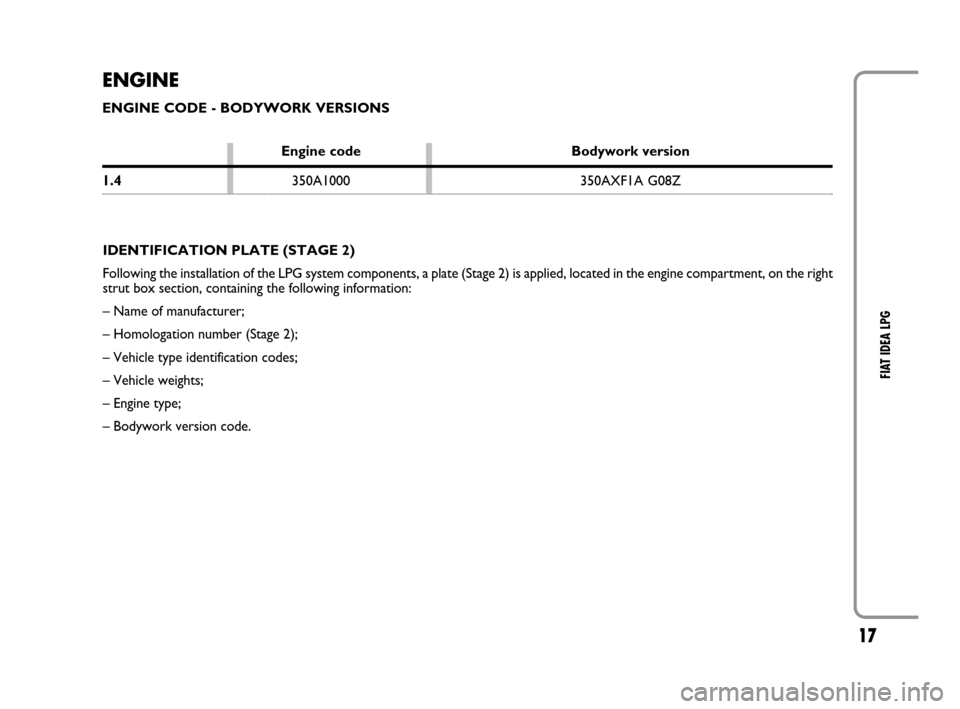

ENGINE
ENGINE CODE - BODYWORK VERSIONS
IDENTIFICATION PLATE (STAGE 2)
Following the installation of the LPG system components, a plate (Stage 2) is applied, located in the engine compartment, on the right
strut box section, containing the following information:
– Name of manufacturer;
– Homologation number (Stage 2);
– Vehicle type identification codes;
– Vehicle weights;
– Engine type;
– Bodywork version code.
Engine code Bodywork version
1.4350A1000 350AXF1A G08Z
603_97_611_IDEA_GPL_GB_1ed 15-12-2009 12:07 Pagina 17

18
FIAT IDEA LPG
LPG FUEL SYSTEM
Electronic injection with special LPG injec-
tors.
Type: Phased, sequential, multipoint.
Stoichiometric metering of the air/gas mix-
ture.
Engine idle speed: 700 ± 50 rpm
The LPG injection system is controlled by
a dedicated control unit (connected to the
petrol one) using the sensors already on
the car.
IGNITION
Static advance, electronic, integrated with
the injection.
PERFORMANCE
Top speed in km/h.
Running on petrol: 163
Running on LPG: 163
Modifications or repairs to
the fuel feed system that are
not carried out properly or do not
take the system’s technical specifica-
tions into account can cause mal-
functions leading to fire risk.
WARNING
GENERAL FEATURES 1.4
Engine identification code 350A1000
Cycle Otto
Number and layout of cylinders 4 in line
Piston bore and stroke mm 72 x 84
Total displacement cm31368
Compression ratio 11.1 : 1
LPG Petrol
kW 57 57
Max. EEC power HP 77 77
at a speed of rpm 6000 6000
Nm 115 115
Max. EEC torque kgm 11.7 11.7
at a speed of rpm 3000 3000
Spark plugs NGK ZKR7A-10
Fuel
LPGGreen petrol
unleaded
95 RON
603_97_611_IDEA_GPL_GB_1ed 15-12-2009 12:07 Pagina 18

Fiat Group Automobiles S.p.A. - Customer Services - Technical Services - Service Engineering
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print no. 603.97.611 -12/2009 - 1 Edition
FLUIDS AND LUBRICANTS
CHARACTERISTICS OF PRODUCTS
Use Quality specifications of fluids and lubricants Fluids and lubricants Interval
for correct car operation original replacements
Lubricants
for petrol/
LPG-engines
For petrol engines running on LPG, we recommend using the original product formulated specifically for the type of use.
The use of products with specifications below ACEA C3 – SAE 5W-40 could cause damage to the engine not covered
by the warranty.According to annual
maintenance and in-
spection schedule SELENIA
MULTIPOWER
GAS 5W-40
Contractual
Technical Reference
N° F922.E09 SAE 5W-40 ACEA C3
grade totally synthetic lubricant.
FIAT 9.55535-T2specification
