FIAT IDEA 2008 1.G LPG Supplement Manual

21
FIAT IDEA LPG

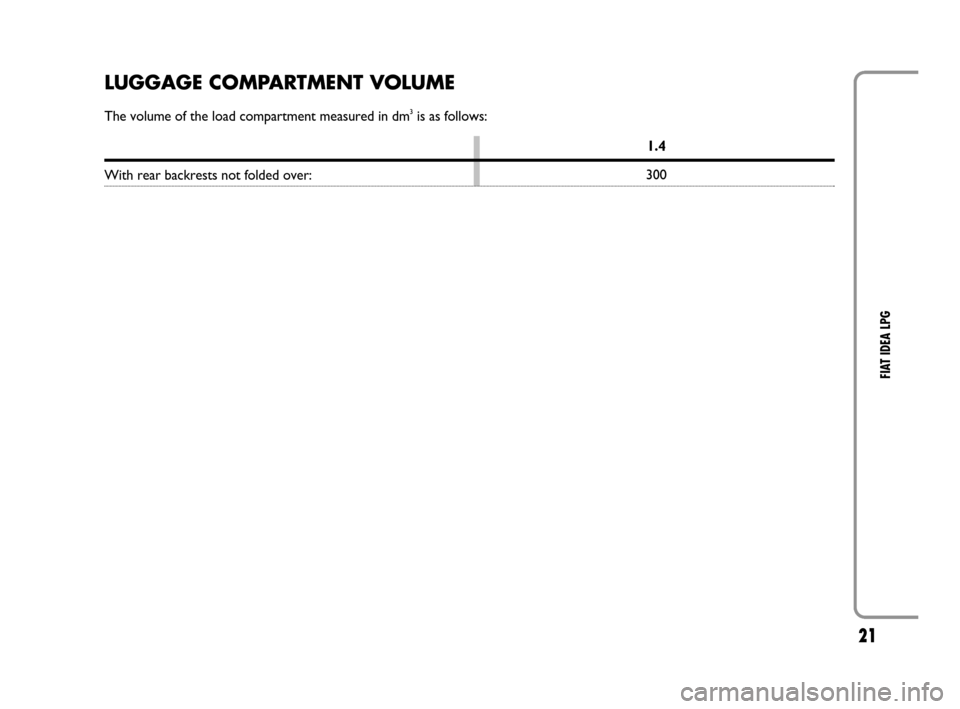

LUGGAGE COMPARTMENT VOLUME
The volume of the load compartment measured in dm3is as follows:
With rear backrests not folded over: 1.4
300
603_97_611_IDEA_GPL_GB_1ed 15-12-2009 12:07 Pagina 21

22
FIAT IDEA LPG
CAPACITIES
Petrol
Petrol . . . . . . . . . . . . . . . . . litres 47
– reserve . . . . . . . . . . . . . . . litres 5÷7
LPG
– maximum refuelling
capacity (*) . . . . . . . . . . . . . litres 31
(*) The figure already takes into account
the 80% tank filling limit and the residual
fluid required for the pump, it is the max-
imum permitted capacity. There may be
slight variations to this figure as a re-
sult of: differences between the supply
pressures of pumps in the network,
pumps with different supply/cut off
specifications, tank not completely in
reserve condition.Note than when using a fuel such as LPG,
the range is very variable because, in ad-
dition to the vehicle driving and mainte-
nance conditions, it also depends on the
composition of the gas which may vary,
not only seasonally, but also from suppli-
er to supplier. LPG is, in effect, a compo-
sition of gas (butane and propane) mixed
in a way that may not be standardised.
The trip meter indication on range is in-
dicative and refers to petrol operation on-
ly.
During LPG operation, the ‘Instant con-
sumption’ and ‘Average consumption’
readings are not significant, whereas all
other functions remain valid.
IMPORTANT Only use LPG for mo-
tor vehicles. If, when refuelling with LPG,
the tank is filled with more
than the 31 litres, seek imme-
diate assistance from a Fiat
Dealer. Periodically (at least once
every six months) it is advisable to let
the LPG in the tank run out and, at the
first refuelling, check that it does not
exceed the maximum capacity of 31
litres.
The LPG supply system is
equipped with a "consump-
tion" function linked to the LED display
of LPG level on the switch; this function
activates only after a consistent varia-
tion in fuel level has been detected. You
are therefore advised to fill up with fu-
el at the first LPG refuelling to obtain a
more precise indication of the “level".
WARNING
603_97_611_IDEA_GPL_GB_1ed 15-12-2009 12:07 Pagina 22

23
FIAT IDEA LPG
FUEL CONSUMPTION
The fuel consumption figures given in the
table below are determined on the basis
of the homologation tests laid down by
specific European Directives.
The procedures below are followed for
measuring consumption:
– urban cycle: cold starting followed by
driving that simulates urban use of the car;
– extra-urban cycle: driving simulating the
use of the vehicle in a non-urban situation
with frequent acceleration in all gears; the
speed varies between 0 and 120 km/h;
– combined consumption: calculated
weighing about 37% of urban cycle con-
sumption and about 63% of extra urban
consumption.IMPORTANT The type of route, traffic
situations, weather conditions, driving
style, general conditions of the car, trim
level/equipment/accessories, use of the cli-
mate control system, vehicle load, roof
rack and other situations that affect air
drag may lead to different fuel consump-
tion levels than those measured.(see
‘Saving fuel’ in the ‘Starting and dri-
ving’ chapter in the handbook).
LPG range
With reference to the combined con-
sumption figures, the range running on
LPG is 441 km.
According to European Directive in force
(litres x 100 km)
CO2EMISSIONS
The CO2emission figures in the table be-
low refer to combined fuel consumption.
According to European Directive
in force (g/km)
LPG . . . . . . . . . . . . . . . . . . . . . . . . . 114
Petrol . . . . . . . . . . . . . . . . . . . . . . . 139
Sedan Petrol LPG
Urban 7.5 9.1
Extra urban 4.9 5.9
Combined 5.9 7.1
603_97_611_IDEA_GPL_GB_1ed 15-12-2009 12:07 Pagina 23

Fiat Group Automobiles S.p.A. - Customer Services - Technical Services - Service Engineering
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print no. 603.97.611 -12/2009 - 1 Edition
FLUIDS AND LUBRICANTS
CHARACTERISTICS OF PRODUCTS
Use Quality specifications of fluids and lubricants Fluids and lubricants Interval
for correct car operation original replacements
Lubricants
for petrol/
LPG-engines
For petrol engines running on LPG, we recommend using the original product formulated specifically for the type of use.
The use of products with specifications below ACEA C3 – SAE 5W-40 could cause damage to the engine not covered
by the warranty.According to annual
maintenance and in-
spection schedule SELENIA
MULTIPOWER
GAS 5W-40
Contractual
Technical Reference
N° F922.E09 SAE 5W-40 ACEA C3
grade totally synthetic lubricant.
FIAT 9.55535-T2specification
603_97_611_IDEA_GPL_GB_1ed 15-12-2009 12:07 Pagina 24
