FIAT IDEA LPG
This appendix deals with the LPG version
of the Fiat Idea (Petrol-LPG).
For anything not included in this Supple-
ment, please refer to the enclosed Own-
er’s Manual.CONTENTS
KNOWING YOUR CAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FUNCTIONAL SYSTEM DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
LPG TANK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
SOLENOID VALVES AND SAFETY DEVICES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
PIPING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
REGULATION UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
PAPER FILTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
LPG INJECTORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
ELECTRONIC CONTROL UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
LPG/PETROL SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
FUEL CUT-OFF SYSTEM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
STARTING THE ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
AT THE PETROL STATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
WHEELS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
REPLACING FUSES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
MAINTENANCE SCHEDULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
WEIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
LUGGAGE COMPARTMENT VOLUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
CAPACITIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
CO
2EMISSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
FUEL CONSUMPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
FLUIDS AND LUBRICANTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
603_97_611_IDEA_GPL_GB_1ed 15-12-2009 12:07 Pagina 3

22
FIAT IDEA LPG
CAPACITIES
Petrol
Petrol . . . . . . . . . . . . . . . . . litres 47
– reserve . . . . . . . . . . . . . . . litres 5÷7
LPG
– maximum refuelling
capacity (*) . . . . . . . . . . . . . litres 31
(*) The figure already takes into account
the 80% tank filling limit and the residual
fluid required for the pump, it is the max-
imum permitted capacity. There may be
slight variations to this figure as a re-
sult of: differences between the supply
pressures of pumps in the network,
pumps with different supply/cut off
specifications, tank not completely in
reserve condition.Note than when using a fuel such as LPG,
the range is very variable because, in ad-
dition to the vehicle driving and mainte-
nance conditions, it also depends on the
composition of the gas which may vary,
not only seasonally, but also from suppli-
er to supplier. LPG is, in effect, a compo-
sition of gas (butane and propane) mixed
in a way that may not be standardised.
The trip meter indication on range is in-
dicative and refers to petrol operation on-
ly.
During LPG operation, the ‘Instant con-
sumption’ and ‘Average consumption’
readings are not significant, whereas all
other functions remain valid.
IMPORTANT Only use LPG for mo-
tor vehicles. If, when refuelling with LPG,
the tank is filled with more
than the 31 litres, seek imme-
diate assistance from a Fiat
Dealer. Periodically (at least once
every six months) it is advisable to let
the LPG in the tank run out and, at the
first refuelling, check that it does not
exceed the maximum capacity of 31
litres.
The LPG supply system is
equipped with a "consump-
tion" function linked to the LED display
of LPG level on the switch; this function
activates only after a consistent varia-
tion in fuel level has been detected. You
are therefore advised to fill up with fu-
el at the first LPG refuelling to obtain a
more precise indication of the “level".
WARNING
603_97_611_IDEA_GPL_GB_1ed 15-12-2009 12:07 Pagina 22

23
FIAT IDEA LPG

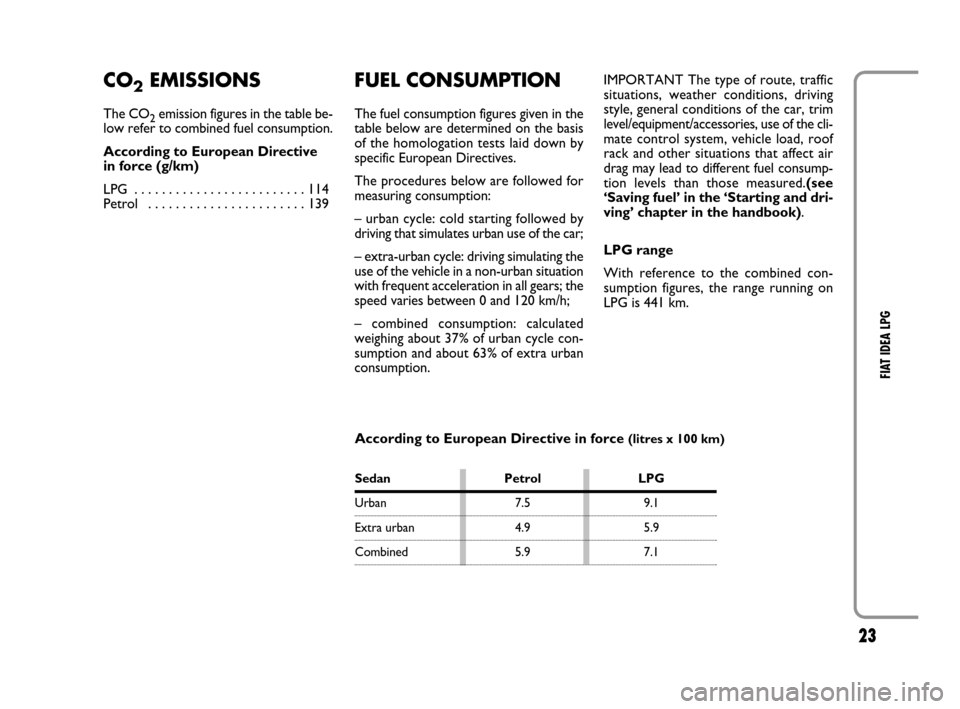

FUEL CONSUMPTION
The fuel consumption figures given in the
table below are determined on the basis
of the homologation tests laid down by
specific European Directives.
The procedures below are followed for
measuring consumption:
– urban cycle: cold starting followed by
driving that simulates urban use of the car;
– extra-urban cycle: driving simulating the
use of the vehicle in a non-urban situation
with frequent acceleration in all gears; the
speed varies between 0 and 120 km/h;
– combined consumption: calculated
weighing about 37% of urban cycle con-
sumption and about 63% of extra urban
consumption.IMPORTANT The type of route, traffic
situations, weather conditions, driving
style, general conditions of the car, trim
level/equipment/accessories, use of the cli-
mate control system, vehicle load, roof
rack and other situations that affect air
drag may lead to different fuel consump-
tion levels than those measured.(see
‘Saving fuel’ in the ‘Starting and dri-
ving’ chapter in the handbook).
LPG range
With reference to the combined con-
sumption figures, the range running on
LPG is 441 km.
According to European Directive in force
(litres x 100 km)
CO2EMISSIONS
The CO2emission figures in the table be-
low refer to combined fuel consumption.
According to European Directive
in force (g/km)
LPG . . . . . . . . . . . . . . . . . . . . . . . . . 114
Petrol . . . . . . . . . . . . . . . . . . . . . . . 139
Sedan Petrol LPG
Urban 7.5 9.1
