FIAT IDEA LPG
ELECTRONIC
CONTROL UNIT
The vehicle has a dedicated electronic
control unit for the LPG system; it uses
the incoming signals from the petrol in-
jection control unit and converts them in-
to signals for LPG injection.
The injector control unit works in the
same way as the petrol control unit
(phased, sequential, multipoint).
LPG/PETROL SWITCH

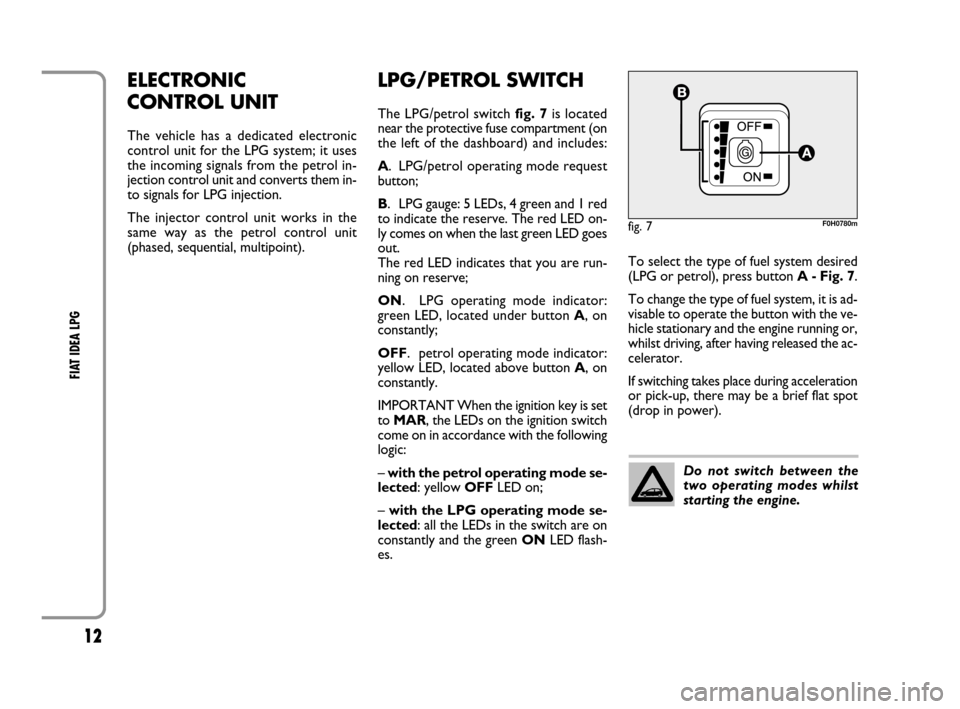

The LPG/petrol switch fig. 7is located
near the protective fuse compartment (on
the left of the dashboard) and includes:
A. LPG/petrol operating mode request
button;
B. LPG gauge: 5 LEDs, 4 green and 1 red
to indicate the reserve. The red LED on-
ly comes on when the last green LED goes
out.
The red LED indicates that you are run-
ning on reserve;
ON. LPG operating mode indicator:
green LED, located under button A, on
constantly;
OFF. petrol operating mode indicator:
yellow LED, located above button A, on
constantly.
IMPORTANT When the ignition key is set
to MAR, the LEDs on the ignition switch
come on in accordance with the following
logic:
– with the petrol operating mode se-
lected: yellow OFFLED on;
– with the LPG operating mode se-
lected: all the LEDs in the switch are on
constantly and the green ONLED flash-
es.To select the type of fuel system desired
(LPG or petrol), press button A - Fig. 7.
To change the type of fuel system, it is ad-
visable to operate the button with the ve-
hicle stationary and the engine running or,
whilst driving, after having released the ac-
celerator.
If switching takes place during acceleration
or pick-up, there may be a brief flat spot
(drop in power).
fig. 7F0H0780m
Do not switch between the
two operating modes whilst
starting the engine.
