check engine FIAT IDEA 2008 1.G Owners Manual

18
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IGNITION SWITCH
The key can be turned to 3 different po-
sitions fig. 24:
❒STOP: engine off, key can be re-
moved, steering column locked. Cer-
tain electrical devices (e.g.: sound sys-
tem, power windows…) can work.
❒MAR: driving position. All electrical
devices are powered.
❒AVV: engine starting (unstable posi-
tion).
The ignition switch is fitted with a safety
mechanism that, in the event the engine is
not started, turns back the ignition key to
STOPbefore repeating the starting op-
eration.
fig. 24F0H0021m
STEERING COLUMN LOCK
Engaging
When the key is to STOPremove the
key and turn the steering wheel until it
locks.
Disengaging
Rock the steering wheel slightly as you
turn the ignition key to MAR.
If the ignition device is tam-
pered with (e.g.: attempted
theft), have it checked over by a Fiat
Dealership.
WARNING
Never remove the ignition
key while the car is moving.
The steering wheel would automati-
cally lock as soon as you try to turn
it. This also applies when the car is
being towed.
WARNING
When getting out of the car,
always remove the key to
prevent any occupants from acci-
dentally activating the controls. Re-
member to engage the handbrake. If
the car is parked on uphill slope to
engage the first gear. If the car is fac-
ing downhill, engage the reverse gear.
Never leave unsupervised children in
the car.
WARNING
001-035 idea GB 1 ed 10-07-2008 8:27 Pagina 18

36
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 35F0H0737m
STEERING WHEEL
ADJUSTMENT
The steering wheel can be adjusted both
in height A-fig. 35and axially B.
Proceed as follows:
❒release the lever pulling it towards the
steering wheel (position 2);
❒adjust the steering wheel as required;
❒lock the lever pushing it forwards (po-
sition 1).
Any adjustment of the steer-
ing wheel position must be
carried out only with the car station-
ary and the engine turned off.
WARNING
It is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and result in car non-
compliance with the regulations in
force.
WARNING
ADJUSTMENT
OF THE SEATS
FRONT SEATS
Moving the seat backwards
or forwards
Lift the lever A-fig. 36and push the seat
forwards or backwards: in the driving po-
sition the arms should rest on the rim of
the steering wheel.
Always check that the seat is firmly locked
in the runners by trying to move it back
and forth.
Seat height adjustment
(driver’s side) (where provided)
Move repeatedly lever B-fig. 36upwards
or downwards to achieve the required
height.
IMPORTANT Adjustment must be car-
ried out only seated in the driver’s seat
with the car at a standstill.
036-092 idea GB 1 ed 10-07-2008 16:12 Pagina 36

64
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

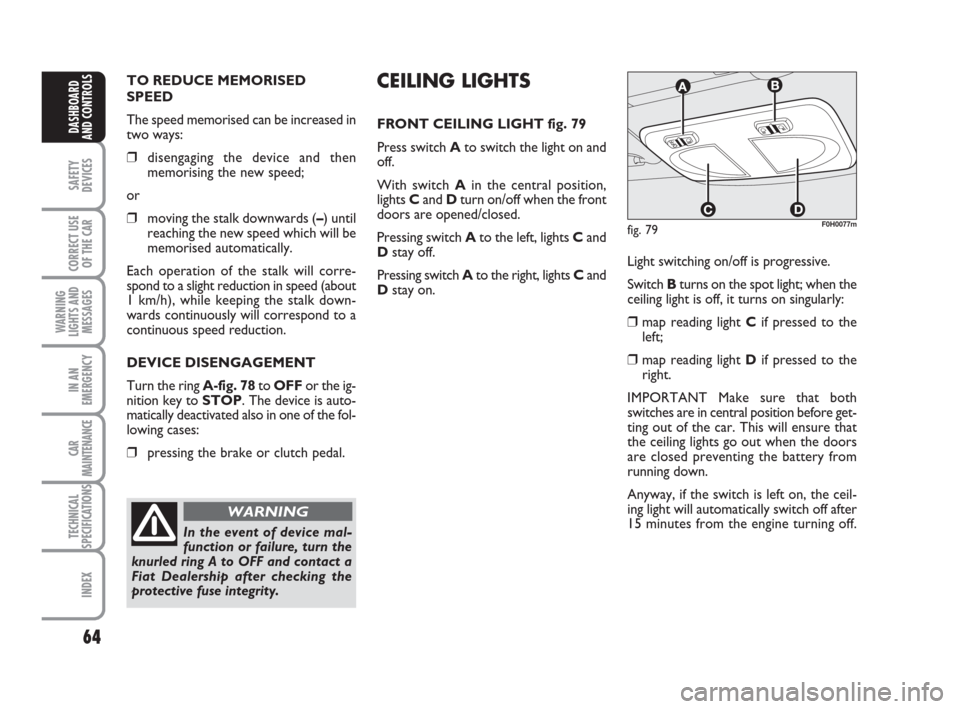

TO REDUCE MEMORISED
SPEED
The speed memorised can be increased in
two ways:
❒disengaging the device and then
memorising the new speed;
or
❒moving the stalk downwards (–) until
reaching the new speed which will be
memorised automatically.
Each operation of the stalk will corre-
spond to a slight reduction in speed (about
1 km/h), while keeping the stalk down-
wards continuously will correspond to a
continuous speed reduction.
DEVICE DISENGAGEMENT
Turn the ring A-fig. 78to OFFor the ig-
nition key to STOP. The device is auto-
matically deactivated also in one of the fol-
lowing cases:
❒pressing the brake or clutch pedal.
In the event of device mal-
function or failure, turn the
knurled ring A to OFF and contact a
Fiat Dealership after checking the
protective fuse integrity.
WARNING
CEILING LIGHTS
FRONT CEILING LIGHT fig. 79
Press switch Ato switch the light on and
off.
With switch Ain the central position,
lights Cand Dturn on/off when the front
doors are opened/closed.
Pressing switch Ato the left, lights Cand
Dstay off.
Pressing switch Ato the right, lights Cand
Dstay on.
fig. 79F0H0077m
Light switching on/off is progressive.
Switch Bturns on the spot light; when the
ceiling light is off, it turns on singularly:
❒map reading light Cif pressed to the
left;
❒map reading light Dif pressed to the
right.
IMPORTANT Make sure that both
switches are in central position before get-
ting out of the car. This will ensure that
the ceiling lights go out when the doors
are closed preventing the battery from
running down.
Anyway, if the switch is left on, the ceil-
ing light will automatically switch off after
15 minutes from the engine turning off.
036-092 idea GB 1 ed 10-07-2008 16:12 Pagina 64

80
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

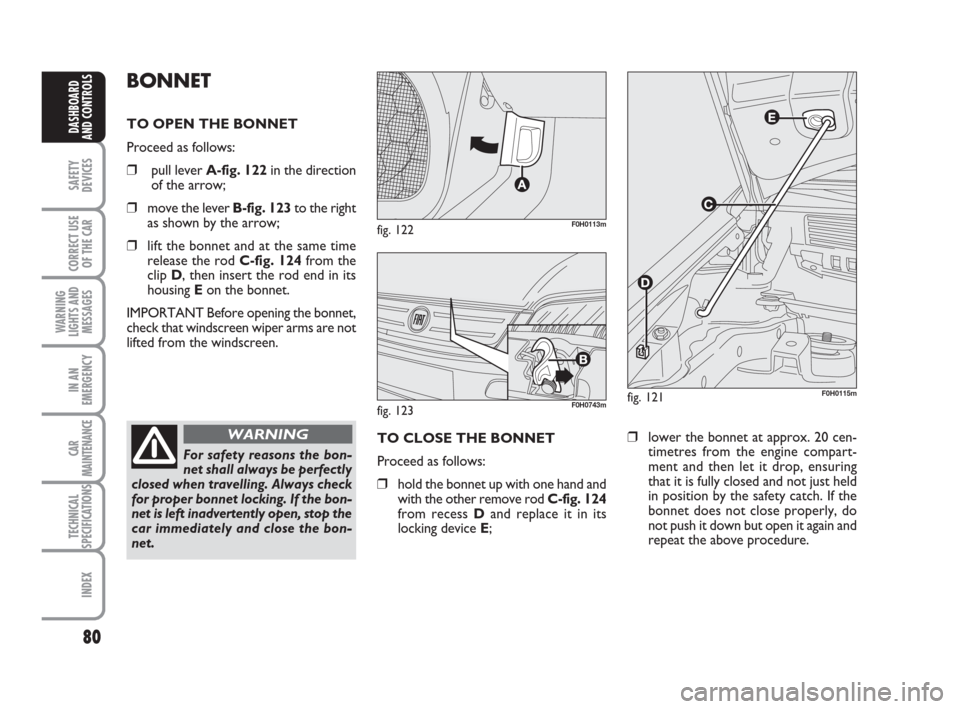

BONNET
TO OPEN THE BONNET
Proceed as follows:
❒pull lever A-fig. 122in the direction
of the arrow;
❒move the lever B-fig. 123to the right
as shown by the arrow;
❒lift the bonnet and at the same time
release the rod C-fig. 124from the
clip D, then insert the rod end in its
housing Eon the bonnet.
IMPORTANT Before opening the bonnet,
check that windscreen wiper arms are not
lifted from the windscreen.
For safety reasons the bon-
net shall always be perfectly
closed when travelling. Always check
for proper bonnet locking. If the bon-
net is left inadvertently open, stop the
car immediately and close the bon-
net.
WARNING
fig. 122F0H0113m
fig. 123F0H0743mfig. 121F0H0115m
TO CLOSE THE BONNET
Proceed as follows:
❒hold the bonnet up with one hand and
with the other remove rod C-fig. 124
from recess Dand replace it in its
locking device E;❒lower the bonnet at approx. 20 cen-
timetres from the engine compart-
ment and then let it drop, ensuring
that it is fully closed and not just held
in position by the safety catch. If the
bonnet does not close properly, do
not push it down but open it again and
repeat the above procedure.
036-092 idea GB 1 ed 10-07-2008 16:12 Pagina 80

84
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

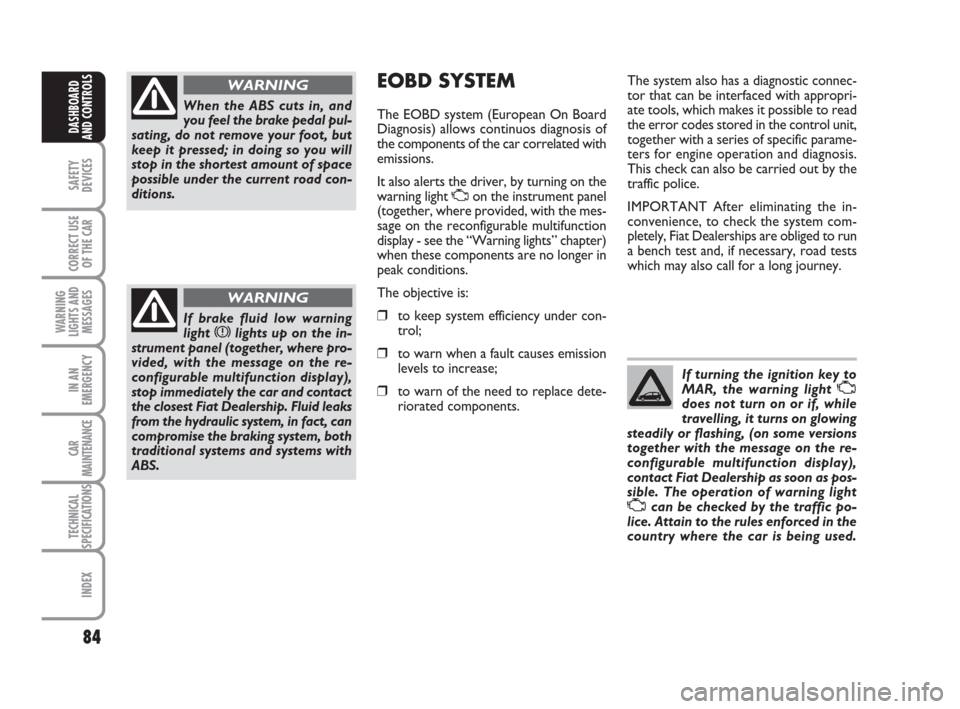

When the ABS cuts in, and
you feel the brake pedal pul-
sating, do not remove your foot, but
keep it pressed; in doing so you will
stop in the shortest amount of space
possible under the current road con-
ditions.
WARNING
If brake fluid low warning
light xlights up on the in-
strument panel (together, where pro-
vided, with the message on the re-
configurable multifunction display),
stop immediately the car and contact
the closest Fiat Dealership. Fluid leaks
from the hydraulic system, in fact, can
compromise the braking system, both
traditional systems and systems with
ABS.
WARNING
EOBD SYSTEM
The EOBD system (European On Board
Diagnosis) allows continuos diagnosis of
the components of the car correlated with
emissions.
It also alerts the driver, by turning on the
warning light Uon the instrument panel
(together, where provided, with the mes-
sage on the reconfigurable multifunction
display - see the “Warning lights” chapter)
when these components are no longer in
peak conditions.
The objective is:
❒to keep system efficiency under con-
trol;
❒to warn when a fault causes emission
levels to increase;
❒to warn of the need to replace dete-
riorated components.The system also has a diagnostic connec-
tor that can be interfaced with appropri-
ate tools, which makes it possible to read
the error codes stored in the control unit,
together with a series of specific parame-
ters for engine operation and diagnosis.
This check can also be carried out by the
traffic police.
IMPORTANT After eliminating the in-
convenience, to check the system com-
pletely, Fiat Dealerships are obliged to run
a bench test and, if necessary, road tests
which may also call for a long journey.
If turning the ignition key to
MAR, the warning light
Udoes not turn on or if, while
travelling, it turns on glowing
steadily or flashing, (on some versions
together with the message on the re-
configurable multifunction display),
contact Fiat Dealership as soon as pos-
sible. The operation of warning light
Ucan be checked by the traffic po-
lice. Attain to the rules enforced in the
country where the car is being used.
036-092 idea GB 1 ed 10-07-2008 16:12 Pagina 84

95
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

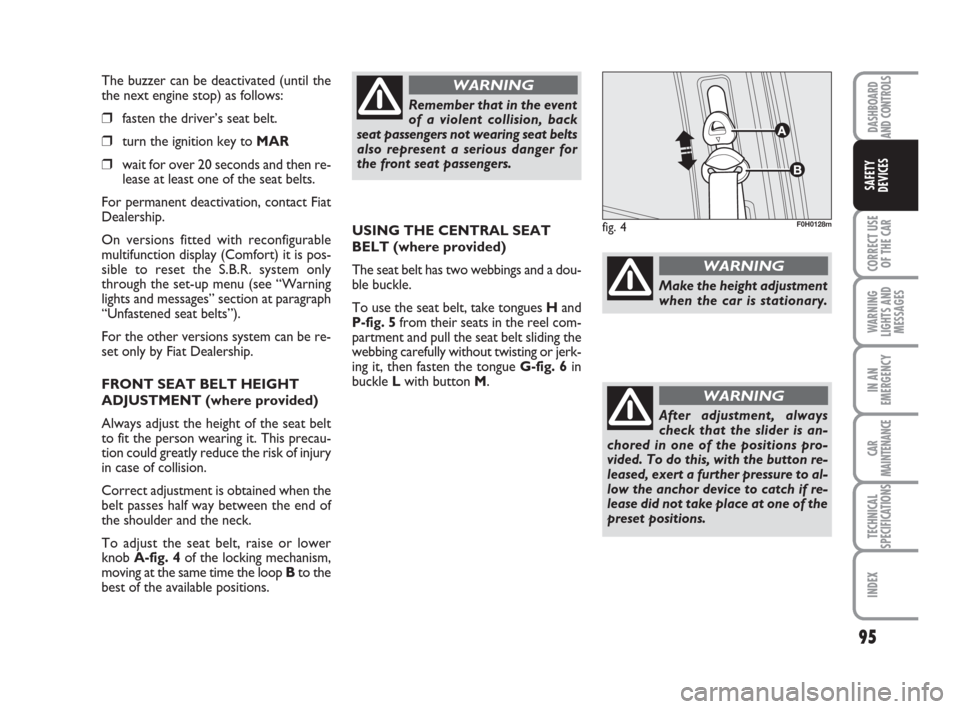

The buzzer can be deactivated (until the
the next engine stop) as follows:
❒fasten the driver’s seat belt.
❒turn the ignition key to MAR
❒wait for over 20 seconds and then re-
lease at least one of the seat belts.
For permanent deactivation, contact Fiat
Dealership.
On versions fitted with reconfigurable
multifunction display (Comfort) it is pos-
sible to reset the S.B.R. system only
through the set-up menu (see “Warning
lights and messages” section at paragraph
“Unfastened seat belts”).
For the other versions system can be re-
set only by Fiat Dealership.
FRONT SEAT BELT HEIGHT
ADJUSTMENT (where provided)
Always adjust the height of the seat belt
to fit the person wearing it. This precau-
tion could greatly reduce the risk of injury
in case of collision.
Correct adjustment is obtained when the
belt passes half way between the end of
the shoulder and the neck.
To adjust the seat belt, raise or lower
knob A-fig. 4of the locking mechanism,
moving at the same time the loop Bto the
best of the available positions.USING THE CENTRAL SEAT
BELT (where provided)
The seat belt has two webbings and a dou-
ble buckle.
To use the seat belt, take tongues Hand
P-fig. 5from their seats in the reel com-
partment and pull the seat belt sliding the
webbing carefully without twisting or jerk-
ing it, then fasten the tongue G-fig. 6in
buckle Lwith button M.
Remember that in the event
of a violent collision, back
seat passengers not wearing seat belts
also represent a serious danger for
the front seat passengers.
WARNING
Make the height adjustment
when the car is stationary.
WARNING
After adjustment, always
check that the slider is an-
chored in one of the positions pro-
vided. To do this, with the button re-
leased, exert a further pressure to al-
low the anchor device to catch if re-
lease did not take place at one of the
preset positions.
WARNING
fig. 4F0H0128m
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 95

110
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROL
SAFETY
DEVICES

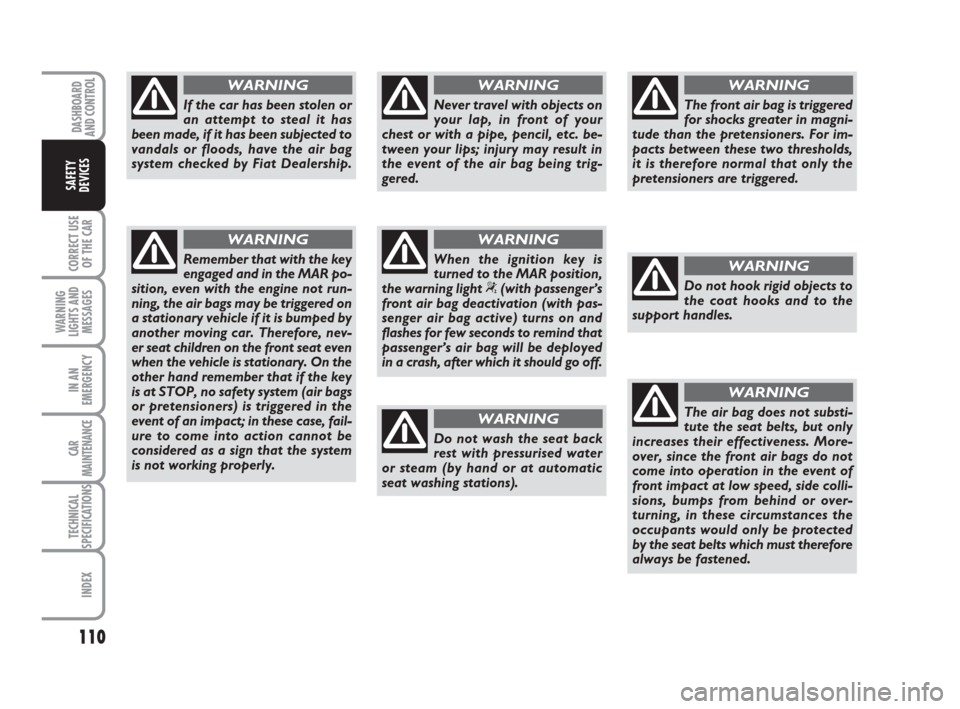

If the car has been stolen or
an attempt to steal it has
been made, if it has been subjected to
vandals or floods, have the air bag
system checked by Fiat Dealership.
WARNING
Remember that with the key
engaged and in the MAR po-
sition, even with the engine not run-
ning, the air bags may be triggered on
a stationary vehicle if it is bumped by
another moving car. Therefore, nev-
er seat children on the front seat even
when the vehicle is stationary. On the
other hand remember that if the key
is at STOP, no safety system (air bags
or pretensioners) is triggered in the
event of an impact; in these case, fail-
ure to come into action cannot be
considered as a sign that the system
is not working properly.
WARNING
Never travel with objects on
your lap, in front of your
chest or with a pipe, pencil, etc. be-
tween your lips; injury may result in
the event of the air bag being trig-
gered.
WARNING
When the ignition key is
turned to the MAR position,
the warning light “(with passenger’s
front air bag deactivation (with pas-
senger air bag active) turns on and
flashes for few seconds to remind that
passenger’s air bag will be deployed
in a crash, after which it should go off.
WARNING
Do not wash the seat back
rest with pressurised water
or steam (by hand or at automatic
seat washing stations).
WARNING
The front air bag is triggered
for shocks greater in magni-
tude than the pretensioners. For im-
pacts between these two thresholds,
it is therefore normal that only the
pretensioners are triggered.
WARNING
Do not hook rigid objects to
the coat hooks and to the
support handles.
WARNING
The air bag does not substi-
tute the seat belts, but only
increases their effectiveness. More-
over, since the front air bags do not
come into operation in the event of
front impact at low speed, side colli-
sions, bumps from behind or over-
turning, in these circumstances the
occupants would only be protected
by the seat belts which must therefore
always be fastened.
WARNING
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 110

116
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR

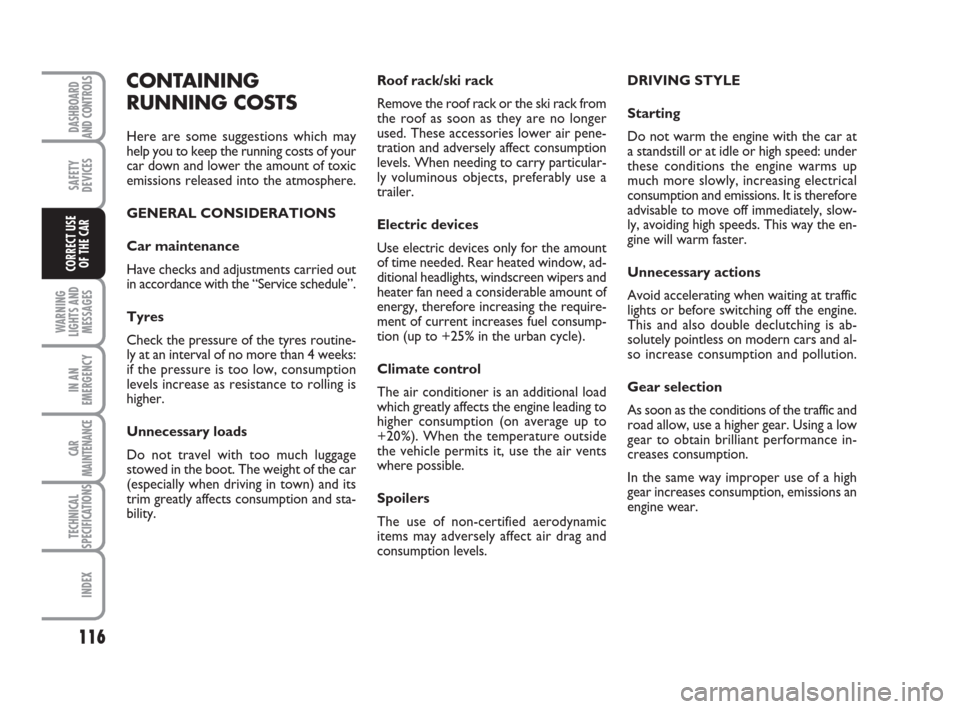

CONTAINING
RUNNING COSTS
Here are some suggestions which may
help you to keep the running costs of your
car down and lower the amount of toxic
emissions released into the atmosphere.
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out
in accordance with the “Service schedule”.
Tyres
Check the pressure of the tyres routine-
ly at an interval of no more than 4 weeks:
if the pressure is too low, consumption
levels increase as resistance to rolling is
higher.
Unnecessary loads
Do not travel with too much luggage
stowed in the boot. The weight of the car
(especially when driving in town) and its
trim greatly affects consumption and sta-
bility.Roof rack/ski rack
Remove the roof rack or the ski rack from
the roof as soon as they are no longer
used. These accessories lower air pene-
tration and adversely affect consumption
levels. When needing to carry particular-
ly voluminous objects, preferably use a
trailer.
Electric devices
Use electric devices only for the amount
of time needed. Rear heated window, ad-
ditional headlights, windscreen wipers and
heater fan need a considerable amount of
energy, therefore increasing the require-
ment of current increases fuel consump-
tion (up to +25% in the urban cycle).
Climate control
The air conditioner is an additional load
which greatly affects the engine leading to
higher consumption (on average up to
+20%). When the temperature outside
the vehicle permits it, use the air vents
where possible.
Spoilers
The use of non-certified aerodynamic
items may adversely affect air drag and
consumption levels.DRIVING STYLE
Starting
Do not warm the engine with the car at
a standstill or at idle or high speed: under
these conditions the engine warms up
much more slowly, increasing electrical
consumption and emissions. It is therefore
advisable to move off immediately, slow-
ly, avoiding high speeds. This way the en-
gine will warm faster.
Unnecessary actions
Avoid accelerating when waiting at traffic
lights or before switching off the engine.
This and also double declutching is ab-
solutely pointless on modern cars and al-
so increase consumption and pollution.
Gear selection
As soon as the conditions of the traffic and
road allow, use a higher gear. Using a low
gear to obtain brilliant performance in-
creases consumption.
In the same way improper use of a high
gear increases consumption, emissions an
engine wear.
111-122 idea GB 1 ed 10-07-2008 8:29 Pagina 116

122
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR

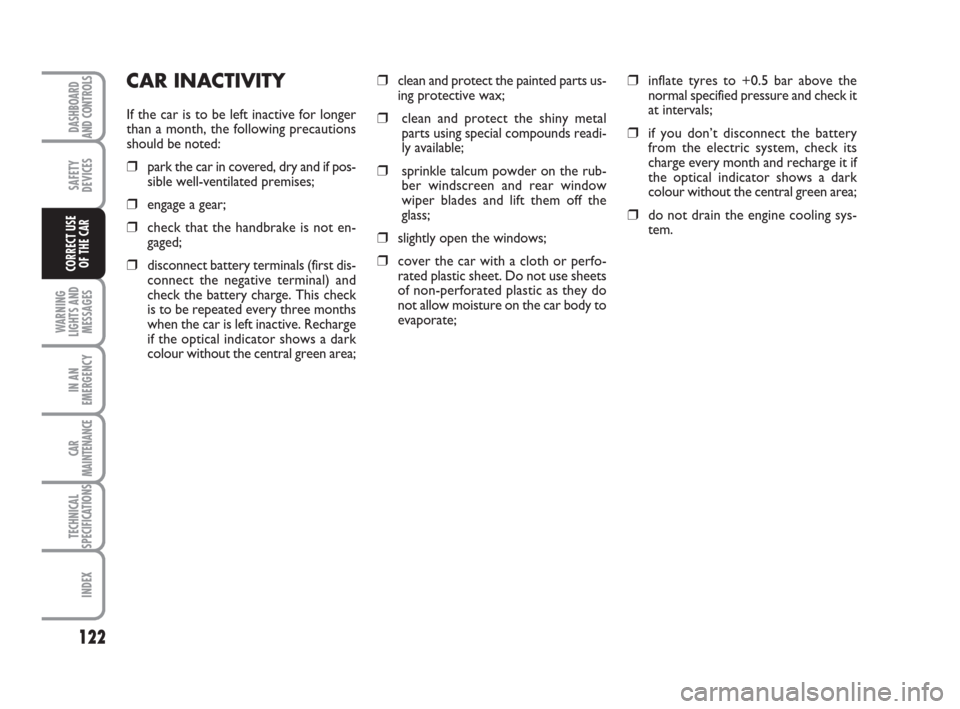

CAR INACTIVITY
If the car is to be left inactive for longer
than a month, the following precautions
should be noted:
❒park the car in covered, dry and if pos-
sible well-ventilated premises;
❒engage a gear;
❒check that the handbrake is not en-
gaged;
❒disconnect battery terminals (first dis-
connect the negative terminal) and
check the battery charge. This check
is to be repeated every three months
when the car is left inactive. Recharge
if the optical indicator shows a dark
colour without the central green area;
❒clean and protect the painted parts us-
ing protective wax;
❒clean and protect the shiny metal
parts using special compounds readi-
ly available;
❒sprinkle talcum powder on the rub-
ber windscreen and rear window
wiper blades and lift them off the
glass;
❒slightly open the windows;
❒cover the car with a cloth or perfo-
rated plastic sheet. Do not use sheets
of non-perforated plastic as they do
not allow moisture on the car body to
evaporate;
❒inflate tyres to +0.5 bar above the
normal specified pressure and check it
at intervals;
❒if you don’t disconnect the battery
from the electric system, check its
charge every month and recharge it if
the optical indicator shows a dark
colour without the central green area;
❒do not drain the engine cooling sys-
tem.
111-122 idea GB 1 ed 10-07-2008 8:29 Pagina 122

125
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES

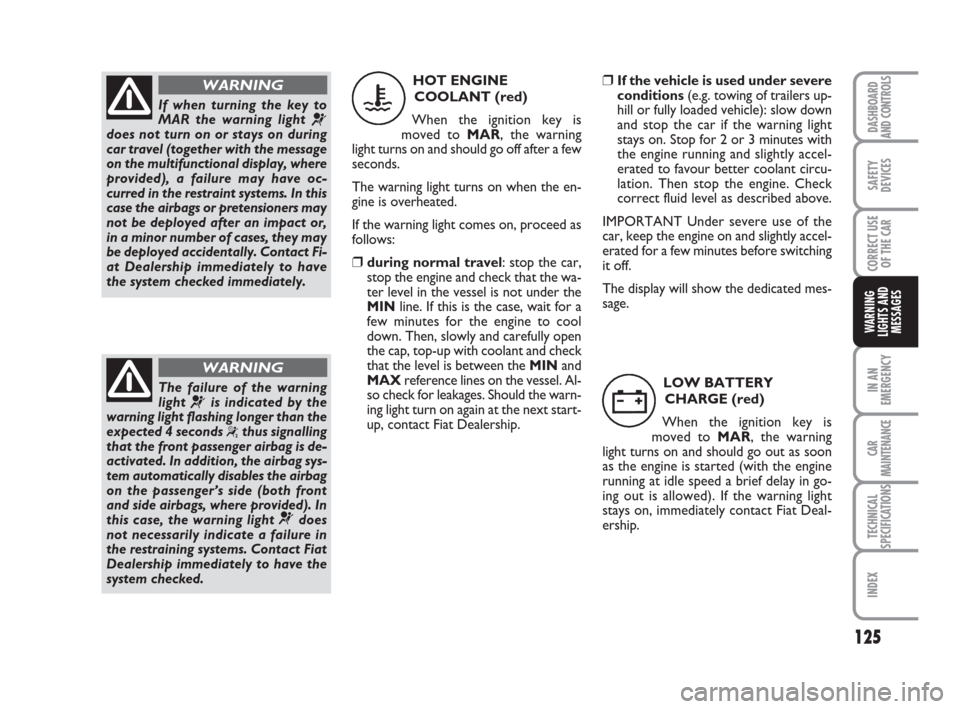

If when turning the key to
MAR the warning light
¬does not turn on or stays on during
car travel (together with the message
on the multifunctional display, where
provided), a failure may have oc-
curred in the restraint systems. In this
case the airbags or pretensioners may
not be deployed after an impact or,
in a minor number of cases, they may
be deployed accidentally. Contact Fi-
at Dealership immediately to have
the system checked immediately.
WARNING
The failure of the warning
light
¬is indicated by the
warning light flashing longer than the
expected 4 seconds
“thus signalling
that the front passenger airbag is de-
activated. In addition, the airbag sys-
tem automatically disables the airbag
on the passenger’s side (both front
and side airbags, where provided). In
this case, the warning light
¬does
not necessarily indicate a failure in
the restraining systems. Contact Fiat
Dealership immediately to have the
system checked.
WARNING
HOT ENGINE
COOLANT (red)
When the ignition key is
moved to MAR, the warning
light turns on and should go off after a few
seconds.
The warning light turns on when the en-
gine is overheated.
If the warning light comes on, proceed as
follows:
❒during normal travel: stop the car,
stop the engine and check that the wa-
ter level in the vessel is not under the
MINline. If this is the case, wait for a
few minutes for the engine to cool
down. Then, slowly and carefully open
the cap, top-up with coolant and check
that the level is between the MINand
MAXreference lines on the vessel. Al-
so check for leakages. Should the warn-
ing light turn on again at the next start-
up, contact Fiat Dealership.
u
❒If the vehicle is used under severe
conditions(e.g. towing of trailers up-
hill or fully loaded vehicle): slow down
and stop the car if the warning light
stays on. Stop for 2 or 3 minutes with
the engine running and slightly accel-
erated to favour better coolant circu-
lation. Then stop the engine. Check
correct fluid level as described above.
IMPORTANT Under severe use of the
car, keep the engine on and slightly accel-
erated for a few minutes before switching
it off.
The display will show the dedicated mes-
sage.
LOW BATTERY
CHARGE (red)
When the ignition key is
moved to MAR, the warning
light turns on and should go out as soon
as the engine is started (with the engine
running at idle speed a brief delay in go-
ing out is allowed). If the warning light
stays on, immediately contact Fiat Deal-
ership.
w
123-132 idea GB 1 ed 10-07-2008 8:29 Pagina 125
