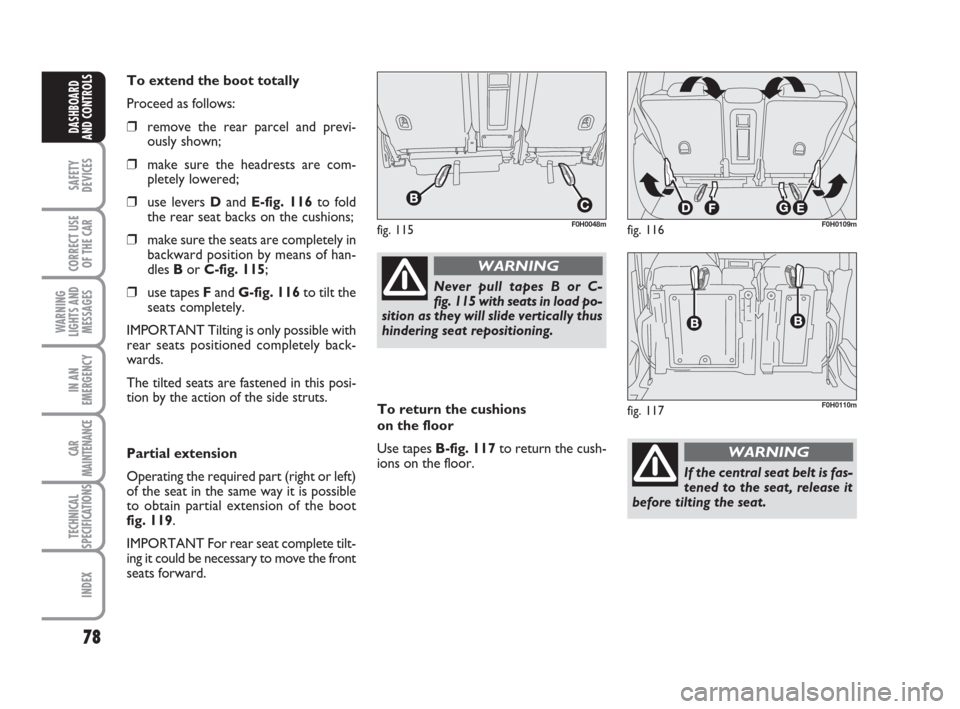

To extend the boot totally
Proceed as follows:
❒remove the rear parcel and previ-
ously shown;
❒make sure the headrests are com-
pletely lowered;
❒use levers Dand E-fig. 116to fold
the rear seat backs on the cushions;
❒make sure the seats are completely in
backward position by means of han-
dles Bor C-fig. 115;
❒use tapes Fand G-fig. 116to tilt the
seats completely.
IMPORTANT Tilting is only possible with
rear seats positioned completely back-
wards.
The tilted seats are fastened in this posi-
tion by the action of the side struts.
Partial extension
Operating the required part (right or left)
of the seat in the same way it is possible
to obtain partial extension of the boot
fig. 119.
IMPORTANT For rear seat complete tilt-
ing it could be necessary to move the front
seats forward.
fig. 115F0H0048mfig. 116F0H0109m
Never pull tapes B or C-
fig. 115 with seats in load po-
sition as they will slide vertically thus
hindering seat repositioning.
WARNING
fig. 117F0H0110mTo return the cushions
on the floor
Use tapes B-fig. 117to return the cush-
ions on the floor.
If the central seat belt is fas-
tened to the seat, release it
before tilting the seat.
WARNING
