wiper fluid FIAT IDEA 2008 1.G Owners Manual

161
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE

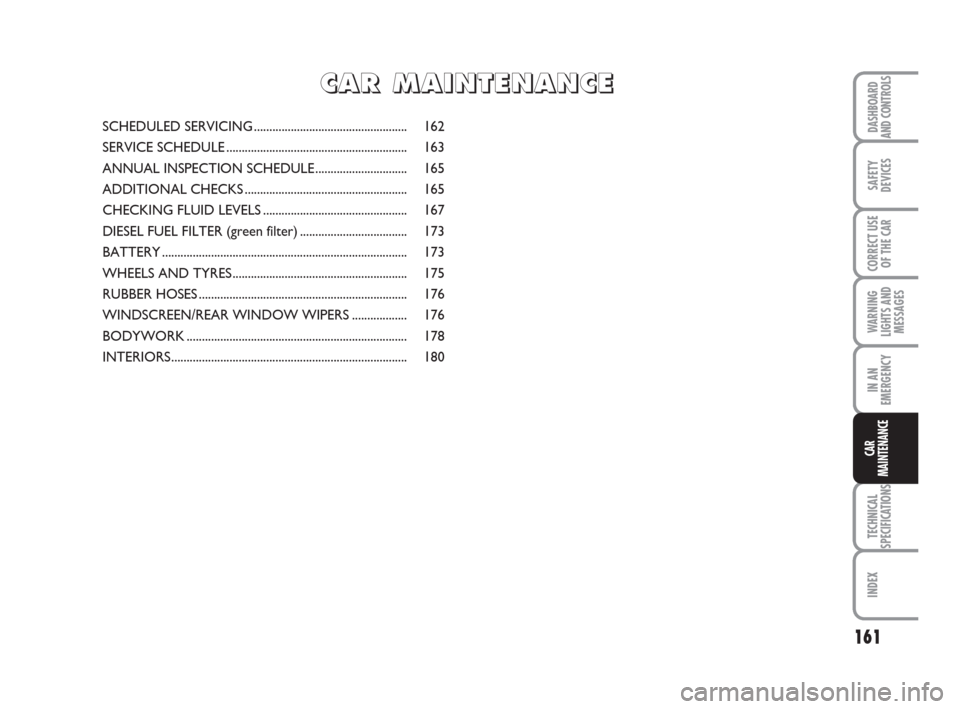

SCHEDULED SERVICING .................................................. 162
SERVICE SCHEDULE ........................................................... 163
ANNUAL INSPECTION SCHEDULE .............................. 165
ADDITIONAL CHECKS ..................................................... 165
CHECKING FLUID LEVELS ............................................... 167
DIESEL FUEL FILTER (green filter) ................................... 173
BATTERY ................................................................................ 173
WHEELS AND TYRES ......................................................... 175
RUBBER HOSES .................................................................... 176
WINDSCREEN/REAR WINDOW WIPERS .................. 176
BODYWORK ........................................................................ 178
INTERIORS............................................................................. 180
CC C
A A
R R
M M
A A
I I
N N
T T
E E
N N
A A
N N
C C
E E
161-180 idea GB 1 ed 10-07-2008 8:30 Pagina 161

176
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE

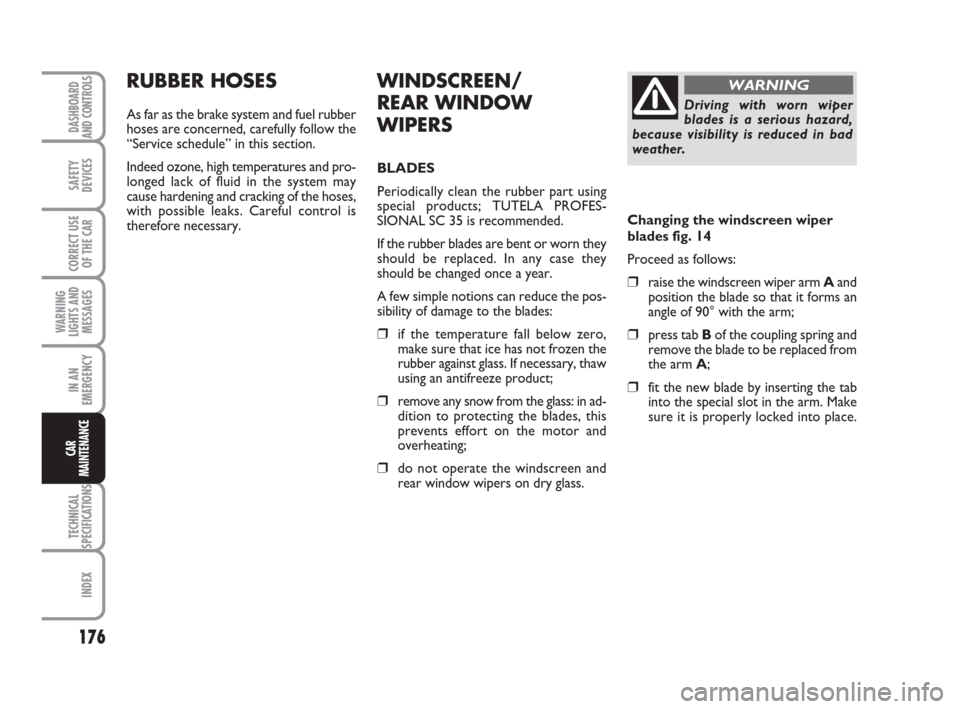

RUBBER HOSES
As far as the brake system and fuel rubber
hoses are concerned, carefully follow the
“Service schedule” in this section.
Indeed ozone, high temperatures and pro-
longed lack of fluid in the system may
cause hardening and cracking of the hoses,
with possible leaks. Careful control is
therefore necessary.
WINDSCREEN/
REAR WINDOW
WIPERS
BLADES
Periodically clean the rubber part using
special products; TUTELA PROFES-
SIONAL SC 35 is recommended.
If the rubber blades are bent or worn they
should be replaced. In any case they
should be changed once a year.
A few simple notions can reduce the pos-
sibility of damage to the blades:
❒if the temperature fall below zero,
make sure that ice has not frozen the
rubber against glass. If necessary, thaw
using an antifreeze product;
❒remove any snow from the glass: in ad-
dition to protecting the blades, this
prevents effort on the motor and
overheating;
❒do not operate the windscreen and
rear window wipers on dry glass.
Driving with worn wiper
blades is a serious hazard,
because visibility is reduced in bad
weather.
WARNING
Changing the windscreen wiper
blades fig. 14
Proceed as follows:
❒raise the windscreen wiper arm Aand
position the blade so that it forms an
angle of 90° with the arm;
❒press tab Bof the coupling spring and
remove the blade to be replaced from
the arm A;
❒fit the new blade by inserting the tab
into the special slot in the arm. Make
sure it is properly locked into place.
161-180 idea GB 1 ed 10-07-2008 8:30 Pagina 176

177
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE

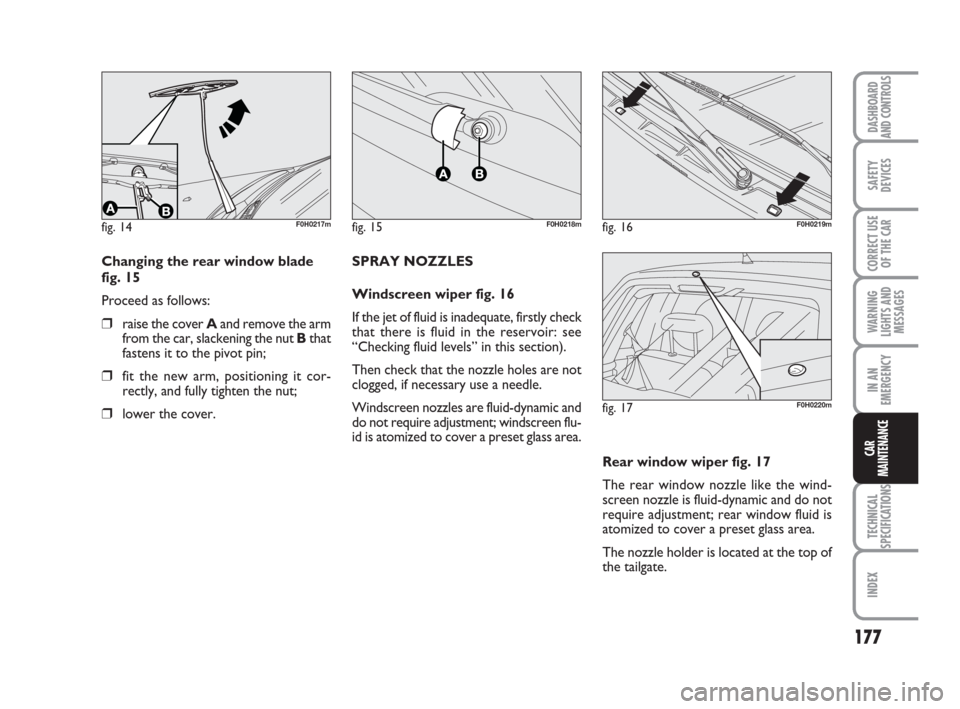

fig. 14F0H0217mfig. 15F0H0218m
Changing the rear window blade
fig. 15
Proceed as follows:
❒raise the cover Aand remove the arm
from the car, slackening the nut Bthat
fastens it to the pivot pin;
❒fit the new arm, positioning it cor-
rectly, and fully tighten the nut;
❒lower the cover.SPRAY NOZZLES
Windscreen wiper fig. 16
If the jet of fluid is inadequate, firstly check
that there is fluid in the reservoir: see
“Checking fluid levels” in this section).
Then check that the nozzle holes are not
clogged, if necessary use a needle.
Windscreen nozzles are fluid-dynamic and
do not require adjustment; windscreen flu-
id is atomized to cover a preset glass area.
fig. 16F0H0219m
fig. 17F0H0220m
Rear window wiper fig. 17
The rear window nozzle like the wind-
screen nozzle is fluid-dynamic and do not
require adjustment; rear window fluid is
atomized to cover a preset glass area.
The nozzle holder is located at the top of
the tailgate.
161-180 idea GB 1 ed 10-07-2008 8:30 Pagina 177

197
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Windscreen/
rear window Protective agent
for radiator Brake liquid Lubricants and
greases for
transmission
Use
(●) IMPORTANT Do not add or mix with fluids with specifications other than the specified ones.
(❒) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLU UP and demineralised water.
Fluid and lubricant specifications
for correct car operation
Fully synthetic oil, grade SAE 75W-85 that passes API GL-4
PLUS, FIAT 9.55550 MIL-L- 2105 D LEV. Specifications
Qualification FIAT 9.55550-MX3
Specific transmission fluid with “ATF DEXTRON III”
type additives.
Qualification FIAT 9.55550-AG2
Grease containing Molybdenum bisulphide for high
temperature appliances. N.L.G.I. 1-2 consistency.
Qualification FIAT 9.55580
Poly-urea oil synthetic-based grease suitable for high
temperatures. NL.GI. 2 consistency
Qualification FIAT 9.55580
Specifc grease to be used for constant-velocity joints with
low friction coefficient. N.L.G.I. 0-1 consistency.
Qualification FIAT 9.55580
Synthetic fluid FMVSS no. 116 DOT 4, ISO 4925 SAE J1704,
CUNA NC 956- 0
Qualification FIAT 9.55597
Red protective with antifreeze action, based on inhibited
monoethylen glycol with organic formula based on O.A.T,
that passes CUNA NC 956-16, ASTM D 3306 specifications.
Qualification FIAT 9.55523
Additive for diesel fuel, protecting Diesel engines.
Mixture of alcohol, water and surfactants CUNA NC 956-II
Qualification FIAT 9.55522Original fluids
and lubrificants
TUTELA CAR
TECHNYX
Contractual Technical
Reference
N° F010.B05
TUTELA CAR GI/E
Contractual Technical
Reference
N° F001.C94
TUTELA ALL STAR
Contractual Technical
Reference
N° F702.G07
TUTELA STAR 325
Contractual Technical
Reference
N° F301.D03
TUTELA STAR 700
Contractual Technical
Reference
N° F701.C07
TUTELA TOP 4
Contractual Technical
Reference
N° F001.A93
PARAFLU UP (●)
Contractual Technical
Reference
N° F101.M01
TUTELA DIESEL ART
Contractual Technical
Reference
N° F601.L06
TUTELA PROFES-
SIONAL SC 35
Contractual Technical
Reference N° F201.D02 Additive for
diesel fluidApplications
Mechanical gearbox
and differential
Hydraulic power
steering
CV joints
on wheel side
CV joints on differential
side (1.4 16V)
CV joints on
differential side
Brake and clutch
hydraulic controls
Cooling circuits
Proportion: 50% down
to -35° C (❒). Not to be
mixed with products
having different formulas
To be mixed with fuel
oil(25 cc per 10 litres)
To be used diluted or
undiluted in windscreen/
rear window washer/
wiper systems
181-199 idea GB 1 ed 13-10-2008 12:12 Pagina 197

202
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
DASHBOARD
AND CONTROLS
INDEX
In an emergency ........................ 133
Instrument panel ....................... 7
Instruments ................................. 19
Interior equipment ................... 68
Interior fittings
– glass / can holder ................. 69
– magnetic card/ticket slots .. 69
– oddment compartments .... 68
– rear CD compartment
with glass/can holder .......... 70
– roof bracket .......................... 68
– roof console.......................... 70
– upper oddment
compartments ....................... 68
Interiors ...................................... 180
Isofix ............................................. 103
Jack .............................................. 141
Jacking the car ............................ 158
Key kit and door locking ........ 10
Light control buttons ............. 58Load limiters ............................... 97
Lubricants (specifications)........ 196
Magnetic card/ticket slots ...... 69
Main beam headlights
– bulb replacement ................. 147
– control .................................. 58
– flashing .................................... 58
Manual climate control
system ....................................... 48
Multifunction display (on
comfort instrument panel) ... 20
– controls .................................. 21
Multifunction display
(on modal instrument panel) 23
– controls .................................. 23
Number plate light
– bulb replacement ................ 151
Oddment compartments ........ 68
Outlets ......................................... 70
Parking ....................................... 114
Parking sensors .......................... 88
Performance................................ 193
Plates ........................................... 182
Pollen filter ................................. 166
Power windows ......................... 74
Pretensioners.............................. 97
Prolonged car inactivity .......... 122
Protecting the environment .... 92
Radio transmitters and
cellular telephones .................. 86
Rain sensor ................................ 61
Rear fog lights
– bulb replacement ................. 150
– control button ...................... 66
Rear window washer
– control .................................. 62
– fluid level ............................... 171
Rear window wipers
– control .................................. 62
200-208 idea GB 1 ed 13-10-2008 10:54 Pagina 202

204
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
DASHBOARD
AND CONTROLS
INDEX
Wheel geometry ....................... 189
Windows (cleaning) .................. 60
Windscreen washer
– control ................................. 60
– fluid level ................................ 60
Windscreen wiper
– blades .................................... 171
– nozzles .................................. 60
200-208 idea GB 1 ed 13-10-2008 10:54 Pagina 204
