stop start FIAT IDEA 2008 1.G Radio CD Manual

9
RADIO
COMPACT DISC
PLAYER
INTRODUCTION
QUICK
REFERENCE
GUIDE
FUNCTIONS AND
ADJUSTMENTS
SELECTING RADIO AND CD
FUNCTIONS
Pressing briefly and repeatedly button SRC
it is possible to select the following Ra-
dio (Tuner) and CD functions in sequence:
❒TUNER (“FM1”, “FM2”, “FMT”, “AM”);
❒CD (only if the Compact Disc is in-
serted).
Pressing button SRC when no CD is
loaded will display the message “NO CD”.
While this message is displayed, the Mute
function is activated automatically.
Sound system will then resume automat-
ically the Radio (Tuner) mode.AUDIO SOURCE MEMORY
FUNCTION
If while listening to a CD the radio func-
tion is selected, playing is stopped and
when the CD mode is resumed, it starts
again from the point in which it was
stopped.
If while listening to the radio the CD func-
tion is selected, when the Radio mode is
resumed, it is tuned to the last station se-
lected.
VOLUME ADJUSTMENT
To adjust the volume (from minimum lev-
el 0 to max level 40) turn the button/knob
ON/OFF.
If the volume level is changed during the
broadcast of a traffic bulletin, the new set-
ting is maintained only until the end of the
bulletin. TURNING THE SOUND SYSTEM
ON
The set is switched on by pressing the
ON/OFF button/knob.
When turning the sound system on, the
volume level will be brought to 20 if it was
set to over.
If the radio is turned on with the ignition
key at STOP, it will turn off automatically
after about 20 minutes. It is however pos-
sible to turn the radio on again for other
20 minutes by pressing the button/knob
ON/OFF.
TURNING THE SOUND SYSTEM
OFF
Keep button/knob ON/OFF pressed.
F F F F
U U U U
N N N N
C C C C
T T T T
I I I I
O O O O
N N N N
S S S S

A A A A
N N N N
D D D D

A A A A
D D D D
J J J J
U U U U
S S S S
T T T T
M M M M
E E E E
N N N N
T T T T
S S S S
603_83_847 Radio Fun IDEA GB 17-01-2008 10:21 Pagina 9

13
COMPACT DISC
PLAYER
INTRODUCTION
QUICK
REFERENCE
GUIDE
FUNCTIONS AND
ADJUSTMENTS
RADIO

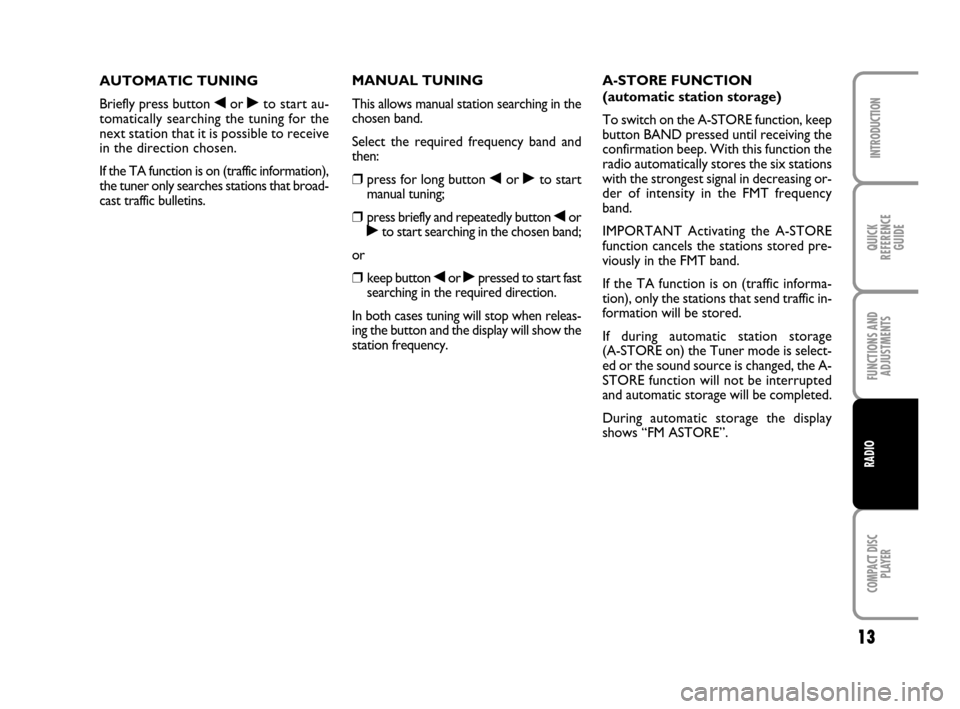

MANUAL TUNING
This allows manual station searching in the
chosen band.
Select the required frequency band and
then:
❒press for long button ¯or ˙to start
manual tuning;
❒press briefly and repeatedly button ¯or˙to start searching in the chosen band;
or
❒keep button ¯or ˙pressed to start fast
searching in the required direction.
In both cases tuning will stop when releas-
ing the button and the display will show the
station frequency.A-STORE FUNCTION
(automatic station storage)
To switch on the A-STORE function, keep
button BAND pressed until receiving the
confirmation beep. With this function the
radio automatically stores the six stations
with the strongest signal in decreasing or-
der of intensity in the FMT frequency
band.
IMPORTANT Activating the A-STORE
function cancels the stations stored pre-
viously in the FMT band.
If the TA function is on (traffic informa-
tion), only the stations that send traffic in-
formation will be stored.
If during automatic station storage
(A-STORE on) the Tuner mode is select-
ed or the sound source is changed, the A-
STORE function will not be interrupted
and automatic storage will be completed.
During automatic storage the display
shows “FM ASTORE”. AUTOMATIC TUNING
Briefly press button
¯or ˙to start au-
tomatically searching the tuning for the
next station that it is possible to receive
in the direction chosen.
If the TA function is on (traffic information),
the tuner only searches stations that broad-
cast traffic bulletins.
603_83_847 Radio Fun IDEA GB 17-01-2008 10:21 Pagina 13

QUICK
REFERENCE
GUIDE
18
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT DISC
PLAYER

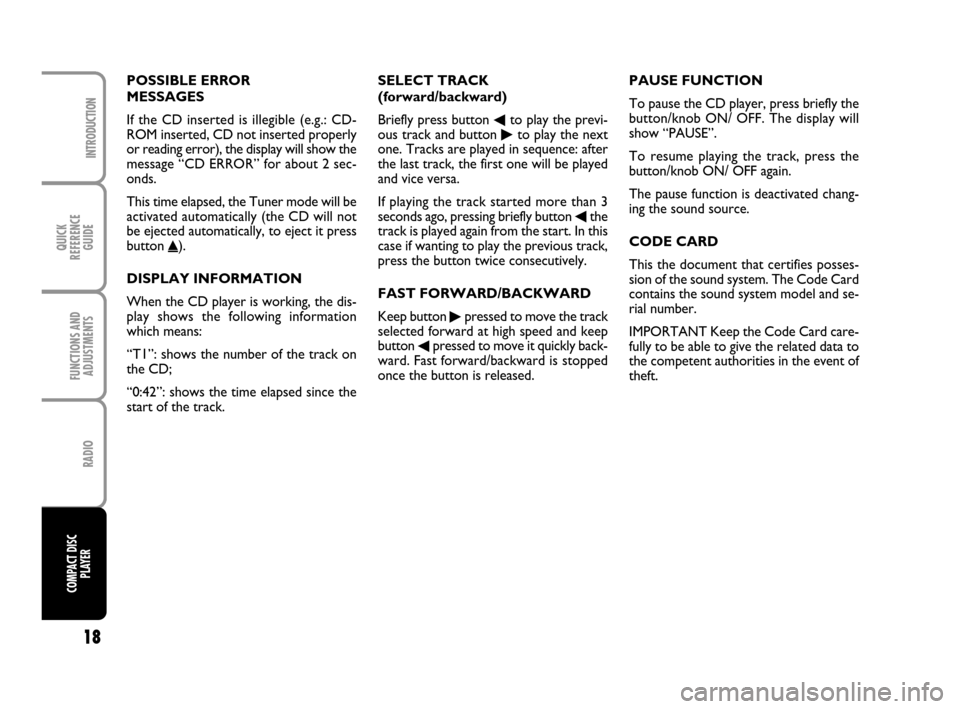

POSSIBLE ERROR
MESSAGES
If the CD inserted is illegible (e.g.: CD-
ROM inserted, CD not inserted properly
or reading error), the display will show the
message “CD ERROR” for about 2 sec-
onds.
This time elapsed, the Tuner mode will be
activated automatically (the CD will not
be ejected automatically, to eject it press
button
˚).
DISPLAY INFORMATION
When the CD player is working, the dis-
play shows the following information
which means:
“T1”: shows the number of the track on
the CD;
“0:42”: shows the time elapsed since the
start of the track.SELECT TRACK
(forward/backward)
Briefly press button
¯to play the previ-
ous track and button
˙to play the next
one. Tracks are played in sequence: after
the last track, the first one will be played
and vice versa.
If playing the track started more than 3
seconds ago, pressing briefly button
¯the
track is played again from the start. In this
case if wanting to play the previous track,
press the button twice consecutively.
FAST FORWARD/BACKWARD
Keep button
˙pressed to move the track
selected forward at high speed and keep
button
¯pressed to move it quickly back-
ward. Fast forward/backward is stopped
once the button is released.PAUSE FUNCTION
To pause the CD player, press briefly the
button/knob ON/ OFF. The display will
show “PAUSE”.
To resume playing the track, press the
button/knob ON/ OFF again.
The pause function is deactivated chang-
ing the sound source.
CODE CARD
This the document that certifies posses-
sion of the sound system. The Code Card
contains the sound system model and se-
rial number.
IMPORTANT Keep the Code Card care-
fully to be able to give the related data to
the competent authorities in the event of
theft.
603_83_847 Radio Fun IDEA GB 17-01-2008 10:21 Pagina 18
