ESP FIAT IDEA 2009 1.G Owner's Guide
[x] Cancel search | Manufacturer: FIAT, Model Year: 2009, Model line: IDEA, Model: FIAT IDEA 2009 1.GPages: 210, PDF Size: 3.62 MB
Page 157 of 210

156
STARTING
AND DRIVING
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
FUSE TABLE
Dashboard fusebox
USERSFUSE AMPERES
Right dipped beam headlightF12 7,5
Left dipped-beam/headlight beam correctorF13 7.5
Engine compartment relay/body computerF31 7,5
SpareF32 –
Left rear window winderF33 20
Right rear window winderF34 20
+15 Cruise control, brake pedal signal to ECUs, reversing light (*) F35 7,5
+30 Trailer ECU setup, rear locks, front locks with single door ECU (*) F36 10
+15 Third brake light, instrument panel, brake lights (*) F37 7.5
Unlock boot (*)F38 20
+30 EOBD diagnostic socket, sound system, navigator, tyre pressure ECU (*)F39 10
Heated rear windowF40 30
Heater mirrorsF41 7,5
+15 ABS / ESP ECU (*)F42 7.5
Windscreen wiper/washerF43 30
Cigar lighter/power current on tunnelF44 15
Heated seatsF45 15
Boot power socketF46 15
Driver’s door ECU power (window winder)F47 20
Driver’s door ECU power (window winder)F48 20
+15 Services (left and middle control lights, electric mirrors, heated seat control light,
radio-telephone setup, navigator, rain/dusk sensors, parking sensor ECU,
sunroof control lights) (*)F49 7,5
Airbag ECUF50 7.5
+15 Tyre pressure unit, ECO / Sport (*)F51 7.5
Rear window wiper/washerF52 15
+30 Direction indicators, hazard lights, instrument panel (*) F53 7.5
(*) +30 = battery direct positive pole (not ignition switch)
+15 = positive pole ignition switch
Page 160 of 210

159
STARTING
AND DRIVING
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

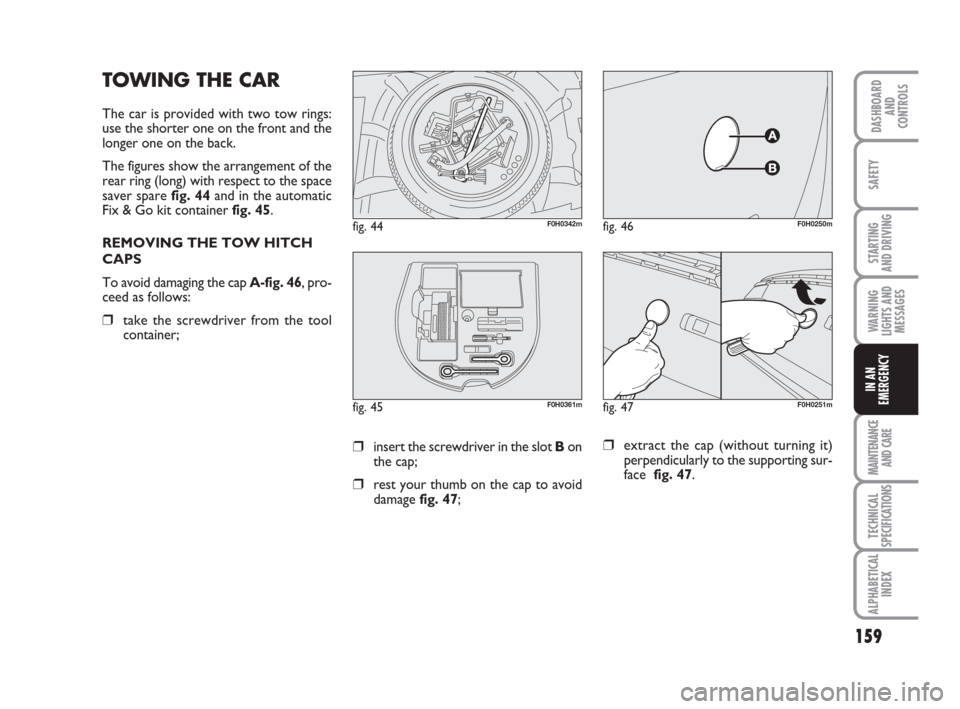

TOWING THE CAR
The car is provided with two tow rings:
use the shorter one on the front and the
longer one on the back.
The figures show the arrangement of the
rear ring (long) with respect to the space
saver spare fig. 44and in the automatic
Fix & Go kit container fig. 45.
REMOVING THE TOW HITCH
CAPS
To avoid damaging the cap A-fig. 46, pro-
ceed as follows:
❒take the screwdriver from the tool
container;
fig. 46F0H0250m
fig. 47F0H0251m
❒insert the screwdriver in the slot Bon
the cap;
❒rest your thumb on the cap to avoid
damage fig. 47;
fig. 44F0H0342m
fig. 45F0H0361m
❒extract the cap (without turning it)
perpendicularly to the supporting sur-
face fig. 47.
Page 161 of 210

160
STARTING
AND DRIVING
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
FASTENING THE TOW RING
Proceed as follows:
❒take the tow hook Bfrom the sup-
port;
❒tighten the ring on the rear fig. 48 or
front threaded pin fig. 49.
fig. 48F0H0204mfig. 49F0H0205m
Before towing, turn the key
to MAR and then to STOP
without extracting it. The steering co-
lumn will automatically lock when
the key is removed and the wheels
cannot be steered.
WARNING
The power brakes and
power steering will not work
while the car is being towed. More
effort on the brake pedal and steering
wheel will therefore be required. Do
not use flexible cables when towing
and avoid jerky movements. Make su-
re not to damage parts in contact
with the car while towing. Respect
the specific rules of the Highway Co-
de when towing the car specifically in
relation to the towing device and the
behaviour to maintain on the road.
WARNING
Do not start the engine whi-
le towing the car.
WARNING
Page 170 of 210

169
STARTING
AND DRIVING
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE
3
12
45
F0H0763mfig. 5 - 1.6 Multijet version
1. Engine coolant
2. Engine oil
3. Brake fluid
4. Battery
5.Windscreen/rear window/headlamp
washer fluid levelENGINE OIL fig. 6-7-8-9-10
Checking engine oil level
Check the oil level a few minutes (about
5) after the engine has stopped, with the
car parked on level ground.
The oil level shall be included between the
MINand MAXmarks on the dipstick .
The range between the MINand MAX-
levels corresponds to approximately 1 li-
tre of oil.
fig. 6 - versions 1.2 16V- 1.4 16VF0H0754m
Waste engine oil and oil filters
contains substances which are
dangerous for the environ-
ment. You are advised to go to
a Fiat Dealership to have the oil and
filters replaced.
Page 175 of 210

174
STARTING
AND DRIVING
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE
IMPORTANT A battery which is kept at
a charge of less than 50% for any length of
time will be damaged by sulphation leading
to a reduction in cranking power.
The battery will also be more at risk of
freezing (already at –10 °C).
Refer to the paragraph “Car inactivity” in
“Starting and driving” if the car is left
parked for a long time.
If after buying the car, you want to install
electric accessories which require per-
manent electric supply (alarm, etc.) con-
tact Fiat Dealership whose qualified per-
sonnel, in addition to suggesting the mo-
st suitable devices from Lineaccessori Fiat,
will evaluate the overall electric absorp-
tion, checking whether the car’s electric
system is capable of withstanding the load
required, or whether it should be inte-
grated with a more powerful battery.
Since these devices continue absorbing
energy even when the ignition key is off,
they gradually run down the battery. USEFUL ADVICE FOR
LENGTHENING THE LIFE OF
YOUR BATTERY
To avoid draining your battery and
lengthen its life, observe the following in-
dications:
❒when the car is parked, make sure that
the doors, bonnet and tailgate are clo-
sed properly to make sure that the li-
ghts inside the passenger compart-
ment go out;
❒switch off all lights inside the vehicle:
the car is however equipped with a sy-
stem which switches all internal lights
off automatically;
❒do not keep devices (e.g. sound sy-
stem, hazard lights, etc.) on for a long
time with the engine off;
❒before performing any operation on the
electrical system, disconnect the bat-
tery negative cable;
❒battery terminals shall always be per-
fectly tightened.Batteries contain very dange-
rous substances for the envi-
ronment. You are recommen-
ded to go to a Fiat Dealership
to have the battery replaced where the
old battery will be disposed of respec-
ting both the environment and the laws
in force.
If the vehicle needs to be off
the road for a long period
under conditions of intense cold, re-
move the battery and take it to a
heated place, otherwise it may free-
ze.
WARNING
When performing any ope-
ration on the battery or near
it, always protect your eyes with the
special goggles.
WARNING
Page 184 of 210

183
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
CHASSIS MARKING fig. 3
This is printed on the passenger com-
partment floor bed near the front right
seat.
The label can be accessed by lifting the
window in the mat and comprises:
❒vehicle model;
❒chassis number.
fig. 3F0H0227m
fig. 4F0H0228m
BODYWORK PAINT
IDENTIFICATION PLATE fig. 4
This plate is applied to the bonnet and
shows the following data:
A- Paint manufacturer.
B- Colour name.
C- Fiat colour code.
D- Respray and touch up code.
ENGINE MARKING
It is stamped onto the cylinder block (pas-
senger compartment side) and shows the
type and the serial number.
Page 186 of 210

185
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
(◊) Engine version for some versions/markets only
ENGINE
INTRODUCTION
Type code:
Cycle
Cylinder number and position
Number of valves per cylinder
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Max. EEC power kW
HP
corresponding rpm rpm
Max. EEC torque Nm
kgm
corresponding rpm: rpm
Spark plugs
Fuel
1.2 16V
188A5000
Otto
4 in line
4
70.8 x 78.86
1242
10.6±0.2
59
80
5000
114
11.6
4000
NGK DCPR7E-N-10
BOSCH YR7DEU
Unleaded petrol
95 RON
(EN228 specifications)1.4
16V
843A1000
Otto
4 in line
4
72 x 84
1368
11±0,2
70
95
5800
128
13
4500
NGK ZKR7A-10
Unleaded petrol
95 RON
(EN228 specifications) 1.4
8V(◊)
350A1000
Otto
4 in line
2
72 x 84
1368
11±0,2
57
77
6000
115
11,7
3000
NGK ZKR7A-10
Unleaded petrol
95 RON
(EN228 specifications)
Page 187 of 210

186
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INTRODUCTION
Type code:
Cycle:
Cylinder number and position:
Number of valves per cylinder:
Piston bore and stroke: mm
Total capacity: cm3
Compression ratio:
Max. EEC power: kW
HP
corresponding rpm rpm
Max. EEC torque: Nm
kgm
corresponding rpm: rpm
Spark plugs:
Fuel:
1.6 Multijet
350A2000
Diesel
4 in line
4
79.5 x 80.5
1598
16,5 ±1
88
120
3500
300
30,5
1500
–
Diesel fuel for
motor vehicles
(EN590 specifications) 1.3 Multijet 90CV
199A3000
Diesel
4 in line
4
69.6 x 82
1248
17,6 ±0,4
66
90
4000
200
20
1750
–
Diesel fuel for
motor vehicles
(EN590 specifications) 1.3 Multijet 70CV
188A9000
Diesel
4 in line
4
69.6 x 82
1248
18 ±0,4
51
70
4000
180
18,3
1750
–
Diesel fuel for
motor vehicles
(EN590 specifications)1.3 Multijet 95CV
199B1000
Diesel
4 in line
4
69.6 x 82
1248
16,8 + 0,2 / - 0,4
70
95
4000
200
20
1500
–
Diesel fuel for
motor vehicles
(EN590 specifications)
Page 190 of 210

189
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
fig. 5F0H0229m
WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Radial type tu-
beless tyres. All approved tyres are listed
in the Log Book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner’s handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Respect the prescribed size to ensure sa-
fety of the car in movement. Fit tyres of
the same make and type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.HOW TO READ TYRE DATA
Example: 185/65 R 14 86 T
185 = Nominal width (S, distance in mm
between sidewalls).
65 = Height/width ratio (H/S) as a per-
centage.
R = Radial tyre
14 = Rim diameter in inches (Ø).
86 = Load rating (capacity)
T = Maximum speed rating SPACE SAVER SPARE WHEEL
(where provided)
Pressed steel rim Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured between
rims: 0 ±1 mm.
The values refer to the car in running or-
der.
Page 191 of 210

190
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
W= up to 270 km/h.
Y= up to 300 km/h.HOW TO READ THE
RIM DATA
Example: 6 J x 14 ET 40
6 = rim diameter in inches (1).
j) = rim drop centre outline (side
projection where the tyre bead
rests) (2).
14 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) (3 = Ø).
ET = shape and number of humps (used
for withholding tubeless tyre
beads on the rim).
40 = wheel camber angle (distance
between the disc/rim supporting
plane and the wheel rim centre li-
ne). Load rating (capacity)
60= 250 kg 84= 500 kg
61= 257 kg 85= 515 kg
62= 265 kg 86= 530 kg
63= 272 kg 87= 545 kg
64= 280 kg 88= 560 kg
65= 290 kg 89= 580 kg
66= 300 kg 90= 600 kg
67 = 307 kg 91= 615 kg
68= 315 kg 92= 630 kg
69 = 325 kg 93= 650 kg
70 = 335 kg 94= 670 kg
71 = 345 kg 95= 690 kg
72= 355 kg 96= 710 kg
73= 365 kg 97= 730 kg
74 = 375 kg 98= 750 kg
75= 387 kg 99= 775 kg
76 = 400 kg 100= 800 kg
77= 412 kg
101= 825 kg
78= 425 kg 102= 850 kg
79= 437 kg 103= 875 kg
80= 450 kg 104= 900 kg
81= 462 kg 105= 925 kg
82= 475 kg 106= 950 kg
83= 487 kg
