FIAT LINEA 2009 1.G Radio CD MP3 Manual

20
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE

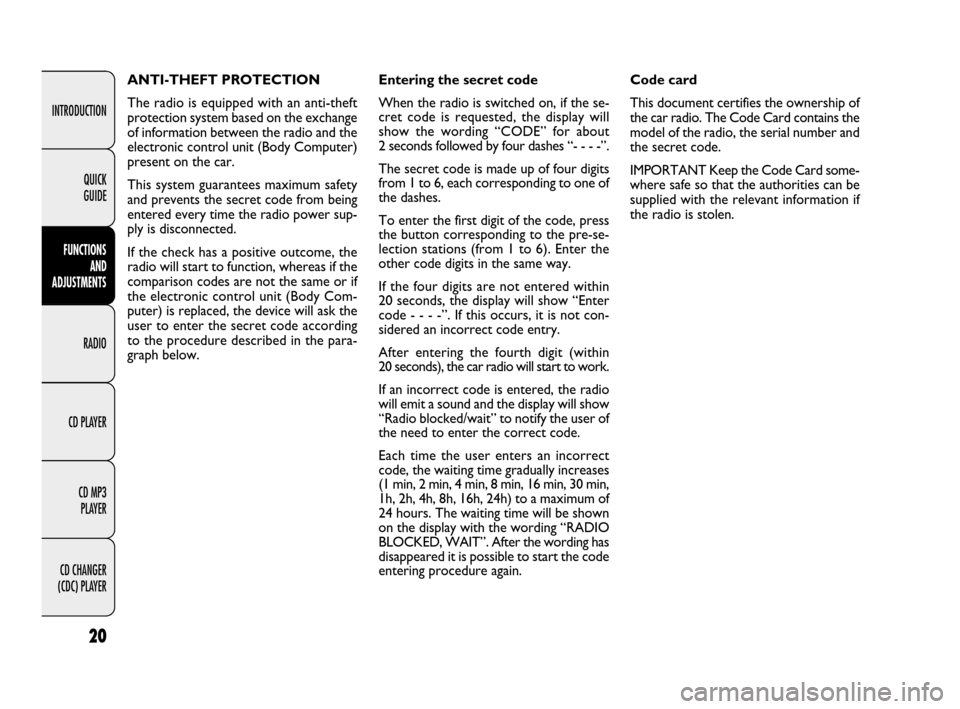

ANTI-THEFT PROTECTION
The radio is equipped with an anti-theft
protection system based on the exchange
of information between the radio and the
electronic control unit (Body Computer)
present on the car.
This system guarantees maximum safety
and prevents the secret code from being
entered every time the radio power sup-
ply is disconnected.
If the check has a positive outcome, the
radio will start to function, whereas if the
comparison codes are not the same or if
the electronic control unit (Body Com-
puter) is replaced, the device will ask the
user to enter the secret code according
to the procedure described in the para-
graph below.Entering the secret code
When the radio is switched on, if the se-
cret code is requested, the display will
show the wording “CODE” for about
2 seconds followed by four dashes “- - - -”.
The secret code is made up of four digits
from 1 to 6, each corresponding to one of
the dashes.
To enter the first digit of the code, press
the button corresponding to the pre-se-
lection stations (from 1 to 6). Enter the
other code digits in the same way.
If the four digits are not entered within
20 seconds, the display will show “Enter
code - - - -”. If this occurs, it is not con-
sidered an incorrect code entry.
After entering the fourth digit (within
20 seconds), the car radio will start to work.
If an incorrect code is entered, the radio
will emit a sound and the display will show
“Radio blocked/wait” to notify the user of
the need to enter the correct code.
Each time the user enters an incorrect
code, the waiting time gradually increases
(1 min, 2 min, 4 min, 8 min, 16 min, 30 min,
1h, 2h, 4h, 8h, 16h, 24h) to a maximum of
24 hours. The waiting time will be shown
on the display with the wording “RADIO
BLOCKED, WAIT”. After the wording has
disappeared it is possible to start the code
entering procedure again.Code card
This document certifies the ownership of
the car radio. The Code Card contains the
model of the radio, the serial number and
the secret code.
IMPORTANT Keep the Code Card some-
where safe so that the authorities can be
supplied with the relevant information if
the radio is stolen.
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:49 Pagina 20

21
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE

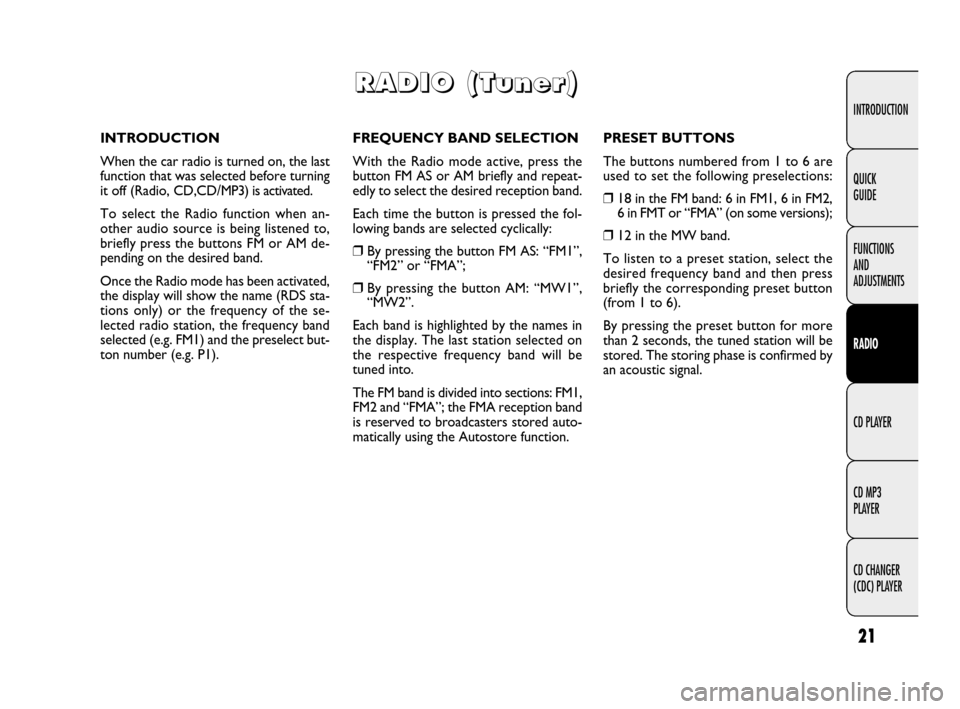

FREQUENCY BAND SELECTION
With the Radio mode active, press the
button FM AS or AM briefly and repeat-
edly to select the desired reception band.
Each time the button is pressed the fol-
lowing bands are selected cyclically:
❒By pressing the button FM AS: “FM1”,
“FM2” or “FMA”;
❒By pressing the button AM: “MW1”,
“MW2”.
Each band is highlighted by the names in
the display. The last station selected on
the respective frequency band will be
tuned into.
The FM band is divided into sections: FM1,
FM2 and “FMA”; the FMA reception band
is reserved to broadcasters stored auto-
matically using the Autostore function.PRESET BUTTONS
The buttons numbered from 1 to 6 are
used to set the following preselections:
❒18 in the FM band: 6 in FM1, 6 in FM2,
6 in FMT or “FMA” (on some versions);
❒12 in the MW band.
To listen to a preset station, select the
desired frequency band and then press
briefly the corresponding preset button
(from 1 to 6).
By pressing the preset button for more
than 2 seconds, the tuned station will be
stored. The storing phase is confirmed by
an acoustic signal. INTRODUCTION
When the car radio is turned on, the last
function that was selected before turning
it off (Radio, CD,CD/MP3) is activated.
To select the Radio function when an-
other audio source is being listened to,
briefly press the buttons FM or AM de-
pending on the desired band.
Once the Radio mode has been activated,
the display will show the name (RDS sta-
tions only) or the frequency of the se-
lected radio station, the frequency band
selected (e.g. FM1) and the preselect but-
ton number (e.g. P1).
R R
A A
D D
I I
O O

( (
T T
u u
n n
e e
r r
) )
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:49 Pagina 21

22
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE

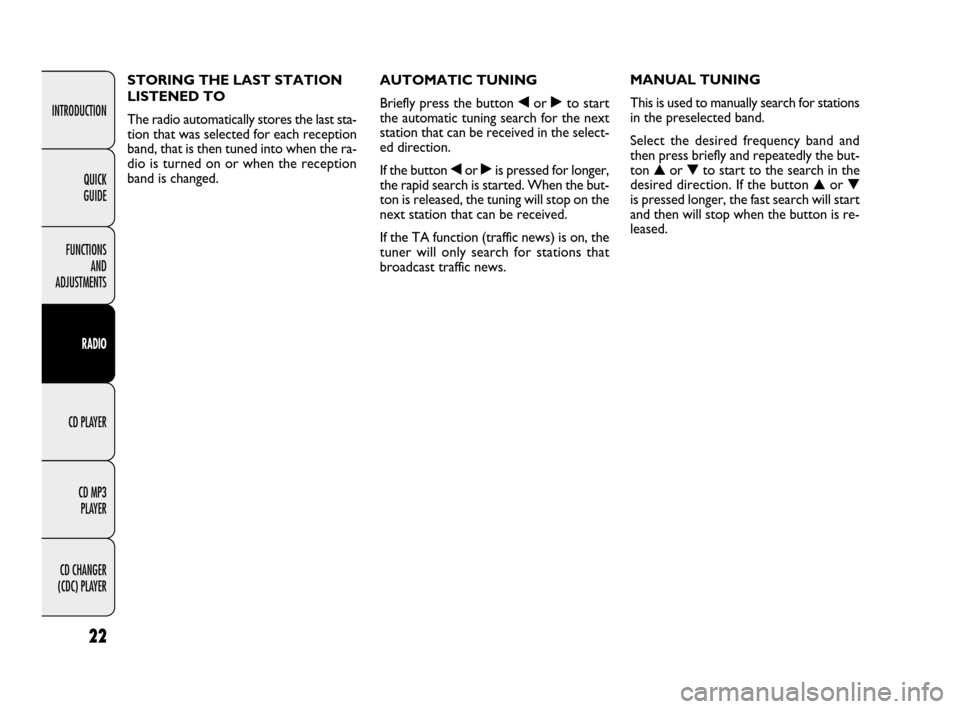

AUTOMATIC TUNING
Briefly press the button ¯or ˙to start
the automatic tuning search for the next
station that can be received in the select-
ed direction.
If the button ¯or ˙is pressed for longer,
the rapid search is started. When the but-
ton is released, the tuning will stop on the
next station that can be received.
If the TA function (traffic news) is on, the
tuner will only search for stations that
broadcast traffic news.MANUAL TUNING
This is used to manually search for stations
in the preselected band.
Select the desired frequency band and
then press briefly and repeatedly the but-
ton ▲or ▼to start to the search in the
desired direction. If the button ▲or ▼
is pressed longer, the fast search will start
and then will stop when the button is re-
leased. STORING THE LAST STATION
LISTENED TO
The radio automatically stores the last sta-
tion that was selected for each reception
band, that is then tuned into when the ra-
dio is turned on or when the reception
band is changed.
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:49 Pagina 22

23
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE

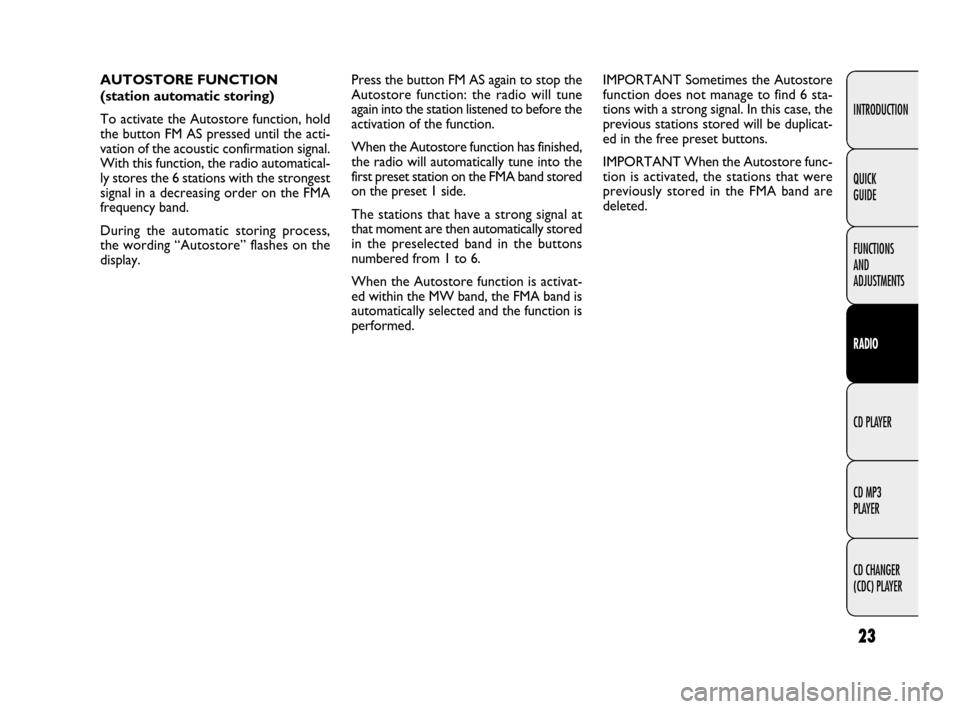

AUTOSTORE FUNCTION
(station automatic storing)
To activate the Autostore function, hold
the button FM AS pressed until the acti-
vation of the acoustic confirmation signal.
With this function, the radio automatical-
ly stores the 6 stations with the strongest
signal in a decreasing order on the FMA
frequency band.
During the automatic storing process,
the wording “Autostore” flashes on the
display.Press the button FM AS again to stop the
Autostore function: the radio will tune
again into the station listened to before the
activation of the function.
When the Autostore function has finished,
the radio will automatically tune into the
first preset station on the FMA band stored
on the preset 1 side.
The stations that have a strong signal at
that moment are then automatically stored
in the preselected band in the buttons
numbered from 1 to 6.
When the Autostore function is activat-
ed within the MW band, the FMA band is
automatically selected and the function is
performed.IMPORTANT Sometimes the Autostore
function does not manage to find 6 sta-
tions with a strong signal. In this case, the
previous stations stored will be duplicat-
ed in the free preset buttons.
IMPORTANT When the Autostore func-
tion is activated, the stations that were
previously stored in the FMA band are
deleted.
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:49 Pagina 23

24
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE

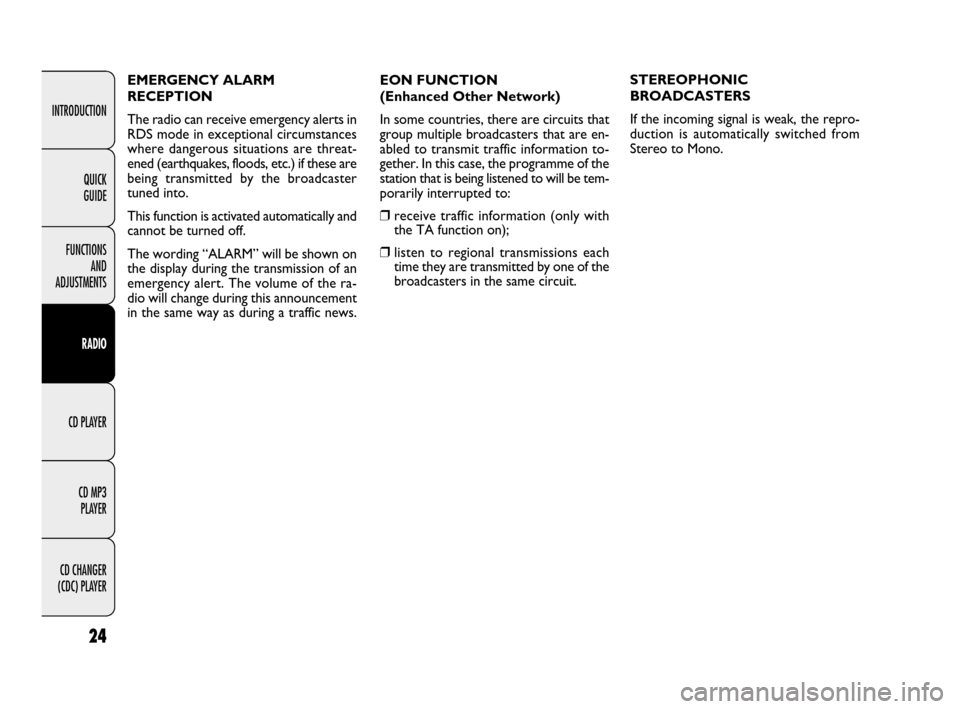

EON FUNCTION
(Enhanced Other Network)
In some countries, there are circuits that
group multiple broadcasters that are en-
abled to transmit traffic information to-
gether. In this case, the programme of the
station that is being listened to will be tem-
porarily interrupted to:
❒receive traffic information (only with
the TA function on);
❒listen to regional transmissions each
time they are transmitted by one of the
broadcasters in the same circuit. EMERGENCY ALARM
RECEPTION
The radio can receive emergency alerts in
RDS mode in exceptional circumstances
where dangerous situations are threat-
ened (earthquakes, floods, etc.) if these are
being transmitted by the broadcaster
tuned into.
This function is activated automatically and
cannot be turned off.
The wording “ALARM” will be shown on
the display during the transmission of an
emergency alert. The volume of the ra-
dio will change during this announcement
in the same way as during a traffic news.STEREOPHONIC
BROADCASTERS
If the incoming signal is weak, the repro-
duction is automatically switched from
Stereo to Mono.
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:49 Pagina 24

25
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE

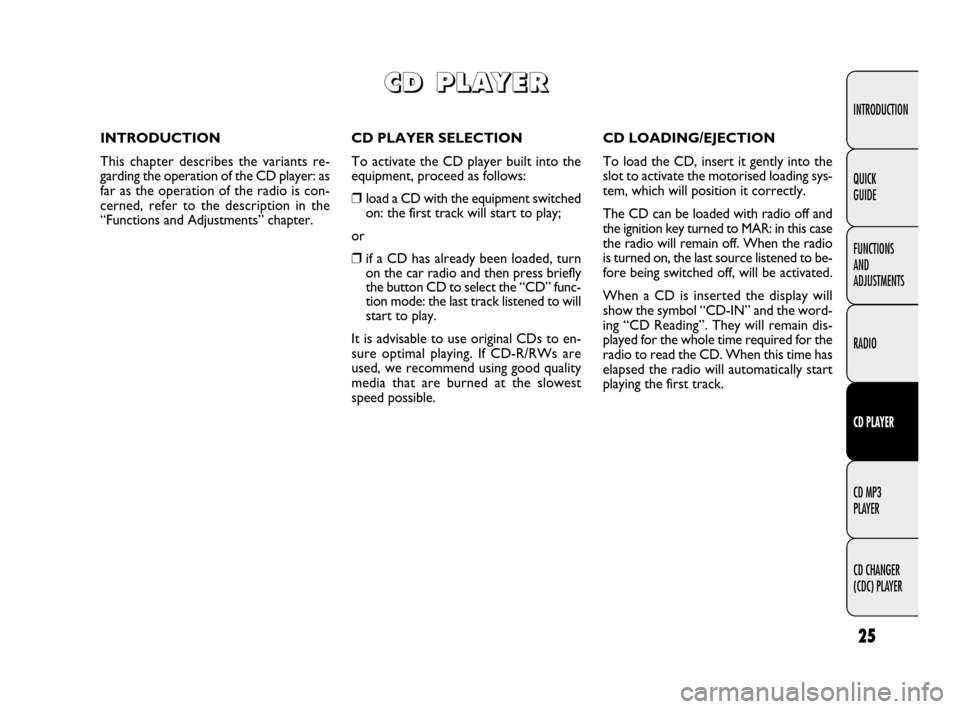

INTRODUCTION
This chapter describes the variants re-
garding the operation of the CD player: as
far as the operation of the radio is con-
cerned, refer to the description in the
“Functions and Adjustments” chapter.CD PLAYER SELECTION
To activate the CD player built into the
equipment, proceed as follows:
❒load a CD with the equipment switched
on: the first track will start to play;
or
❒if a CD has already been loaded, turn
on the car radio and then press briefly
the button CD to select the “CD” func-
tion mode: the last track listened to will
start to play.
It is advisable to use original CDs to en-
sure optimal playing. If CD-R/RWs are
used, we recommend using good quality
media that are burned at the slowest
speed possible.CD LOADING/EJECTION
To load the CD, insert it gently into the
slot to activate the motorised loading sys-
tem, which will position it correctly.
The CD can be loaded with radio off and
the ignition key turned to MAR: in this case
the radio will remain off. When the radio
is turned on, the last source listened to be-
fore being switched off, will be activated.
When a CD is inserted the display will
show the symbol “CD-IN” and the word-
ing “CD Reading”. They will remain dis-
played for the whole time required for the
radio to read the CD. When this time has
elapsed the radio will automatically start
playing the first track.
C C
D D

P P
L L
A A
Y Y
E E
R R
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:49 Pagina 25

26
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE

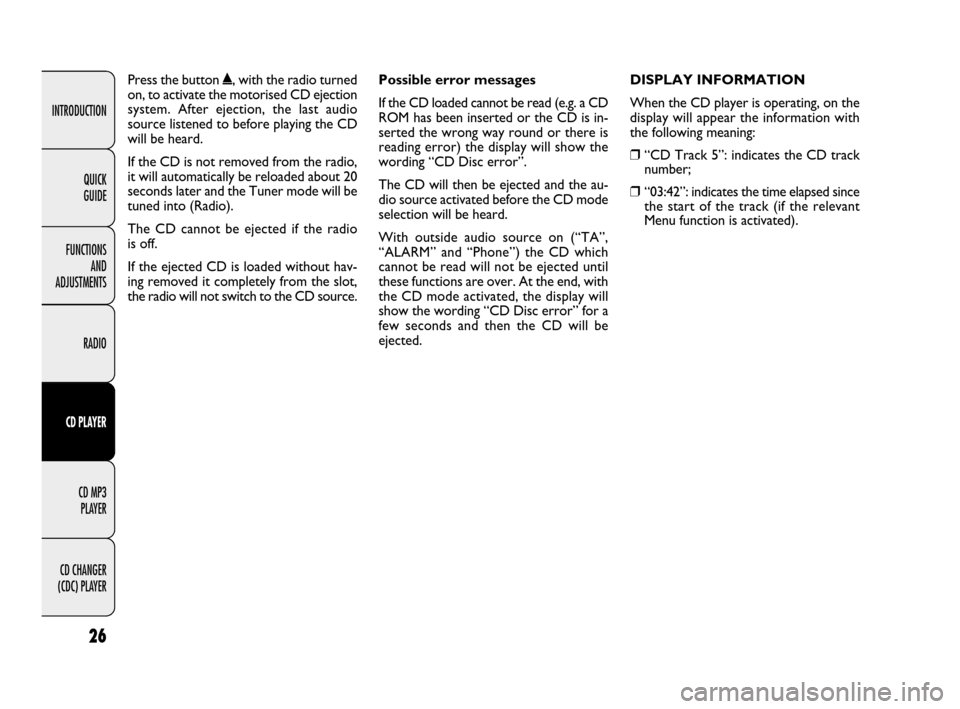

Press the button ˚, with the radio turned
on, to activate the motorised CD ejection
system. After ejection, the last audio
source listened to before playing the CD
will be heard.
If the CD is not removed from the radio,
it will automatically be reloaded about 20
seconds later and the Tuner mode will be
tuned into (Radio).
The CD cannot be ejected if the radio
is off.
If the ejected CD is loaded without hav-
ing removed it completely from the slot,
the radio will not switch to the CD source.Possible error messages
If the CD loaded cannot be read (e.g. a CD
ROM has been inserted or the CD is in-
serted the wrong way round or there is
reading error) the display will show the
wording “CD Disc error”.
The CD will then be ejected and the au-
dio source activated before the CD mode
selection will be heard.
With outside audio source on (“TA”,
“ALARM” and “Phone”) the CD which
cannot be read will not be ejected until
these functions are over. At the end, with
the CD mode activated, the display will
show the wording “CD Disc error” for a
few seconds and then the CD will be
ejected.DISPLAY INFORMATION
When the CD player is operating, on the
display will appear the information with
the following meaning:
❒“CD Track 5”: indicates the CD track
number;
❒“03:42”: indicates the time elapsed since
the start of the track (if the relevant
Menu function is activated).
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:49 Pagina 26

27
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE

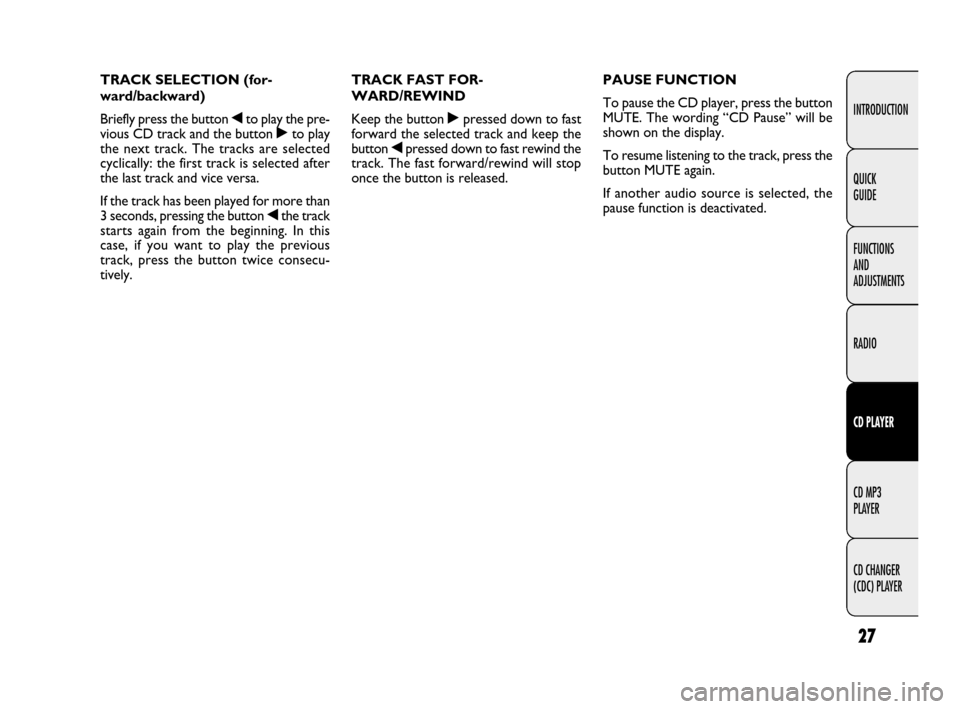

TRACK SELECTION (for-
ward/backward)
Briefly press the button ¯to play the pre-
vious CD track and the button ˙to play
the next track. The tracks are selected
cyclically: the first track is selected after
the last track and vice versa.
If the track has been played for more than
3 seconds, pressing the button ¯the track
starts again from the beginning. In this
case, if you want to play the previous
track, press the button twice consecu-
tively.TRACK FAST FOR-
WARD/REWIND
Keep the button ˙pressed down to fast
forward the selected track and keep the
button ¯pressed down to fast rewind the
track. The fast forward/rewind will stop
once the button is released.PAUSE FUNCTION
To pause the CD player, press the button
MUTE. The wording “CD Pause” will be
shown on the display.
To resume listening to the track, press the
button MUTE again.
If another audio source is selected, the
pause function is deactivated.
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:49 Pagina 27

28
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE

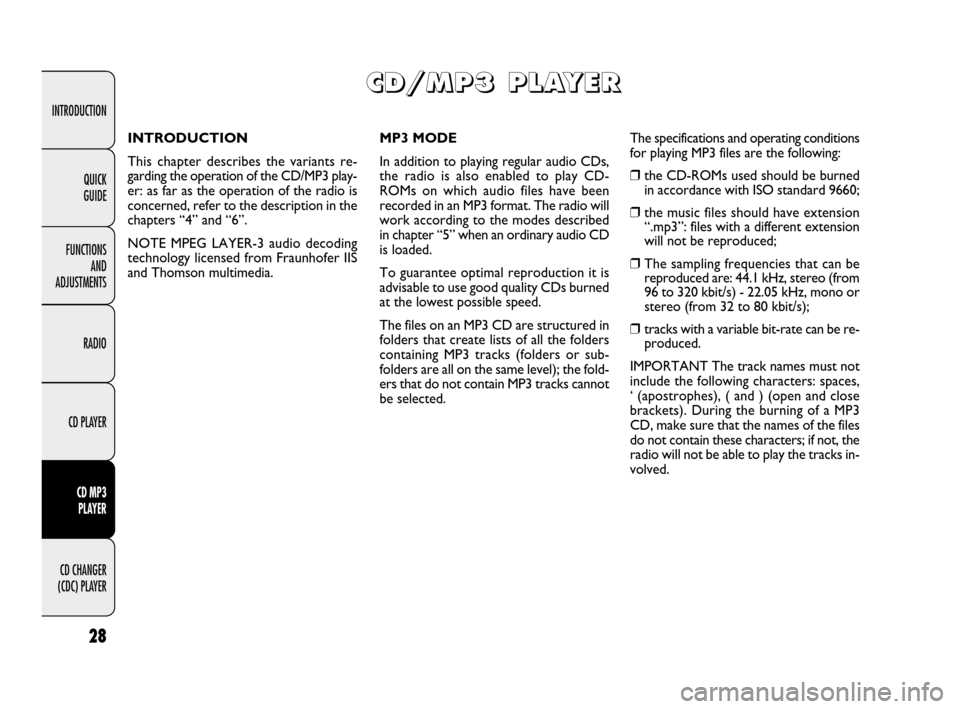

INTRODUCTION
This chapter describes the variants re-
garding the operation of the CD/MP3 play-
er: as far as the operation of the radio is
concerned, refer to the description in the
chapters “4” and “6”.
NOTE MPEG LAYER-3 audio decoding
technology licensed from Fraunhofer IIS
and Thomson multimedia.MP3 MODE
In addition to playing regular audio CDs,
the radio is also enabled to play CD-
ROMs on which audio files have been
recorded in an MP3 format. The radio will
work according to the modes described
in chapter “5” when an ordinary audio CD
is loaded.
To guarantee optimal reproduction it is
advisable to use good quality CDs burned
at the lowest possible speed.
The files on an MP3 CD are structured in
folders that create lists of all the folders
containing MP3 tracks (folders or sub-
folders are all on the same level); the fold-
ers that do not contain MP3 tracks cannot
be selected.The specifications and operating conditions
for playing MP3 files are the following:
❒the CD-ROMs used should be burned
in accordance with ISO standard 9660;
❒the music files should have extension
“.mp3”: files with a different extension
will not be reproduced;
❒The sampling frequencies that can be
reproduced are: 44.1 kHz, stereo (from
96 to 320 kbit/s) - 22.05 kHz, mono or
stereo (from 32 to 80 kbit/s);
❒tracks with a variable bit-rate can be re-
produced.
IMPORTANT The track names must not
include the following characters: spaces,
‘ (apostrophes), ( and ) (open and close
brackets). During the burning of a MP3
CD, make sure that the names of the files
do not contain these characters; if not, the
radio will not be able to play the tracks in-
volved.
C C
D D
/ /
M M
P P
3 3

P P
L L
A A
Y Y
E E
R R
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:49 Pagina 28

29
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE

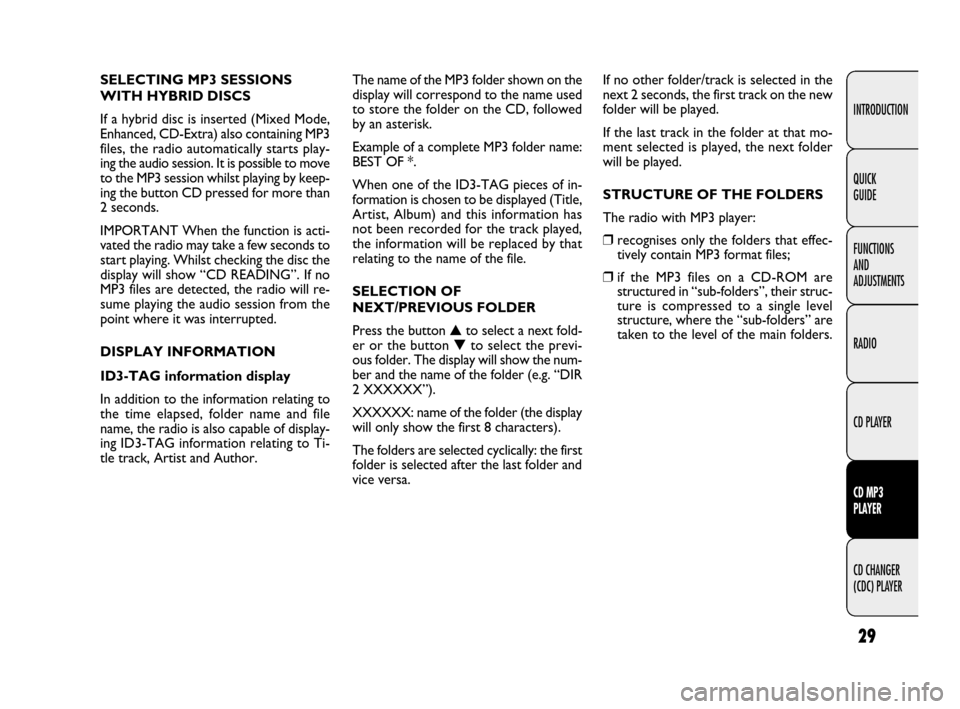

SELECTING MP3 SESSIONS
WITH HYBRID DISCS
If a hybrid disc is inserted (Mixed Mode,
Enhanced, CD-Extra) also containing MP3
files, the radio automatically starts play-
ing the audio session. It is possible to move
to the MP3 session whilst playing by keep-
ing the button CD pressed for more than
2 seconds.
IMPORTANT When the function is acti-
vated the radio may take a few seconds to
start playing. Whilst checking the disc the
display will show “CD READING”. If no
MP3 files are detected, the radio will re-
sume playing the audio session from the
point where it was interrupted.
DISPLAY INFORMATION
ID3-TAG information display
In addition to the information relating to
the time elapsed, folder name and file
name, the radio is also capable of display-
ing ID3-TAG information relating to Ti-
tle track, Artist and Author.The name of the MP3 folder shown on the
display will correspond to the name used
to store the folder on the CD, followed
by an asterisk.
Example of a complete MP3 folder name:
BEST OF *.
When one of the ID3-TAG pieces of in-
formation is chosen to be displayed (Title,
Artist, Album) and this information has
not been recorded for the track played,
the information will be replaced by that
relating to the name of the file.
SELECTION OF
NEXT/PREVIOUS FOLDER
Press the button ▲to select a next fold-
er or the button ▼to select the previ-
ous folder. The display will show the num-
ber and the name of the folder (e.g. “DIR
2 XXXXXX”).
XXXXXX: name of the folder (the display
will only show the first 8 characters).
The folders are selected cyclically: the first
folder is selected after the last folder and
vice versa. If no other folder/track is selected in the
next 2 seconds, the first track on the new
folder will be played.
If the last track in the folder at that mo-
ment selected is played, the next folder
will be played.
STRUCTURE OF THE FOLDERS
The radio with MP3 player:
❒recognises only the folders that effec-
tively contain MP3 format files;
❒if the MP3 files on a CD-ROM are
structured in “sub-folders”, their struc-
ture is compressed to a single level
structure, where the “sub-folders” are
taken to the level of the main folders.
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:49 Pagina 29
