Engine
Fuel feed system
10.
DIAGRAM SHOWING INFORMATION FLOW BETWEN THE INJECTION CONTROL UNIT AND
SENSORS/ACTUATORS
1. Auxiliary fuel pump
2. Variable geometry turbocharger control sole­
noid
3. Climate control compressor
4. Electric EGR valve
5. Rev counter
6. Engine radiator fan
7. Glow plug preheating control unit
8. Potentiometer on accelerator pedal
9. Brake and clutch pedal switches
10. Fuel pressure sensor
11. Intake air flow and temperature sensor (de-
bimeter)
12. Coolant temperature sensor
13. Fuel temperature sensor
14. Pressure relief sensor
15. Timing sensor
16. Rpm sensor
17. Vehicle speed signal
18. Battery
19. Four stage pressure switch
20. Fiat CODE control unit
21. Diagnostic socket
22. Fuel pressure regulator
23. Injectors
24. Throttle valve control solenoid
25. Glow plug preheating warning light
26. Injection system failure warning light
Copyright by Fiat Auto 1

Marea- Marea Weekend 9 ™
2000 range ©) Fuel feed system
Engine
10.
Compents of injection system wiring diagram
1. Vehicle speepd
2. Rev counter
3. Engine radiator fan low speed relay
4. Radiator fan high speed activation relay
5. Potentiometer on accelerator pedal
6. Timing sensor
7. Fuel pressure sensor
8. EGR system modulator solenoid
9. Fuel pressure regulator
10. Glow plug preheating warning light on control panel
11. Injection system failure warning light
12. Air conditioning system relay
13. Coolant temperature sensor
14. Rpm sensor
15. Fuel temperature sensor
16. Diagnostic socket
17. Fiat CODE control unit
18. Four stage pressure switch
19. Injection electronic control unit
20. Pressure relief sensor
21. 7.5A fuse protecting electronic injection system ( + 15 power supply from ignition switch)
22. 7.5A fuse protecting electronic injection system ( + 30 power supply from ignition switch)
23. Main injection system relay
24. 30A fuse protecting injection system
25. Auxiliary fuel pump relay
26. Glow plug preheating control unit
27. Intake air flow and temperature sensor (debimeter)
28. Brake pedal switch
29. Clutch pedal switch
30. Ignition switch
31. Battery
32. Inertia switch
33. Auxiliary fuel pump (submerged in tank)
34. 60A fuse protecting glow plug control unit
35. Cylinder no. 1 glow plug
36. Cylinder no. 2 glow plug
37. Cylinder no. 3 glow plug
38. Cylinder no. 4 glow plug
39. Cylinder no. 1 injector
40. Cylinder no. 2 injector
41. Cylinder no. 3 injector
42. Cylinder no. 4 injector
43. Throttle valve control solenoid
44. Variable geometry turbocharger control solenoid
45. Diesel filter heater relay
Copyright by Fiat Auto 9

Ma tea- Ma tea Weekend !@ ™
2000 range ©
Engine
Fuel feed system
10.
37 Not connected
38 Not connected
39 Not connected
40 Not connected
41 Not connected
42 Not connected
43 Not connected
44 Not connected
45 Not connected
46 Not connected
47 Engine rpm signal output
48 Diagnostic line k
49 Vehicle speed signal input
50 Not connected
51 Activation signal from 4-stage pressure switch
52 Activation signal from 3-stage pressure switch
53 Not connected
54 Not connected
55 Not connected
56 Not connected
57 Not connected
58 Key ON signal
59 Brake switch
60 Air conditioner activation request
61 Clutch switch
62 Glow plug diagnosis
63 Not connected
64 Not connected
65 Not connected
66 Not connected
67 Not connected
68 Not connected
69 Not connected
70 Not connected
71 Not connected
72 Not connected
73 Not connected
74 Not connected
75 Not connected
76 Accelerator pedal 1 earth
77 Accelerator pedal 1 signal
78 Accelerator pedal 1 power supply
79 Accelerator pedal 2 earth
80 Accelerator pedal 2 signal
81 Accelerator pedal 2 power supply
82 Diesel temperature sensor (pin 1)
83 Diesel temperature sensor (pin 2)
84 Coolant temperature sensor (pin 1)
85 Coolant temperature sensor (pin 2)
86 Air flow meter (pin 1)
87 Not connected
88 Air flow meter (pin 3)
89 Air flow meter (pin 5)
90 Fuel pressure sensor (pin 3)
91 Fuel pressure sensor (pin 2)
92 Fuel pressure sensor (pin 1)
93 Turbo pressure sensor (pin 1)
94 Turbo pressure sensor (pin 3)
95 Turbo pressure sensor (pin 2)
96 Not connected
97 Air flow meter (pin 4)
98 Not connected
99 RPM sensor (pin 1)
100 RPM sensor (pin 2)
101 RPM sensor (pin 3)
102 RPM sensor (pin 1)
103 Timing sensor (pin 2)
104 Timing sensor (pin 3)
105 Not connected
106 Not connected
107 Not connected
108 Fuel pressure regulator
109 Fuel pressure regulator
110 Not connected
111 Heater relay control Fuel filter
112 Not connected
113 Not connected
114 Cylinder 4 injector control
115 Not connected
116 Not connected
117 Cylinder 1 and 2 injector power supply
118 Cylinder 3 and 4 injector power supply
119 Cylinder 1 injector control
120 Cylinder 2 injector control
121 Cylinder 3 injector control
Copyright by Fiat Auto 11

Marea- Marea Weekend 9"°
2000 range ©
Engine
Fuel feed system
10.
TIMING SENSOR
The Hall effect sensor is fitted to the cylinder head and faces the camshaft pulley.
An opening on the pulley allows the timing sensor to detect the engine timing position and indicate it to
the injection control unit.
The injection control unit uses the timing sensor signal to detect TDC at the end of compression.
Operation
A semi-condulator layer, through which a current passes, immersed in a magnetic field (lines of force per­
pendicular to the direction of the current), produces a difference in power, known as Hall voltage.
If the intensity of the current remains constant, the voltage produced only depends on the intensity of the
magnetic field. The intensity of the field can simply be altered periodically to produce a modulated electri­
cal signal. Signal frequency is proportional to the speed with which the magnetic field changes.
To achieve this change, the sensor is crossed by a metal ring (inner part of the pulley) with an opening.
When it moves, the metal part of the ring covers the sensor to magnetic field and the output signal is
therefore low; Conversely, the sensor generates a high signal at the opening when the magnetic field is
present.
This signal, together with the rpm and TDC signals, allows the injection control unit to identify piston po­
sition and determine injection point.
AIR FLOW METER
(DEBIMETER)
The debimeter is located on the air intake
sleeve and is hot film type.
The debimeter contains an intake air tem­
perature sensor.
Operation
The principle of operation is based on a
heated membrane fitted into a measurement
channel through which engine intake air
flows.
The hot film membrane is maintained at a
constant temperature (about 120 °C higher
than incoming air) by the heater coil.
The mass of air flowing through the measure­
ment channel tends to take heat from the
membrane. To keep the membrane at constant
temperature, a certain current level must flow
through the resistance.
Because this current is proportional to the
mass of air that flows to the engine, it can be
measured with a Wheatstone bridge and the
resulting signal is sent to the injection control
unit.
1. Covers
2. Electronic card
3. Sensor
4. Mounting plate
5. Mount
6. o-ring
7. Temperature sensor
Copyright by Fiat Auto 13

Electrical equipment
Component location
Marea-Marea Weekend
2000 range ©
55.
Starting - Electronic ignition and injection - Recharging and warning light
light - Injection system failure warning light - Rev counter (1596)
Insufficient engine oil pressure warning
Component key
3 Power fusebox
4 Junction unit:
6 Instrument panel
8 Left front earth
10 Engine battery earth
12 Ignition switch
18 Left rear earth
2 Left facia earth
55 Front/engine lead connection
56 Fuel level gauge control unit
57 Inertia switch
70 Connection between dashborad/front
cables
132 Petrol vapour cut out solenoid valve
136 Knock sensor
138 Idle adjustment actuator
141A Heated Lambda sensor (upstream of
cat.)
141 B Heated Lambda sensor (downstream of
cat.)
143 Alternator
144 Rpm and TDC sensor
145 Starter motor
146 Potentiometer on throttle valve
150 Injection system relay feed
152 Fuse protecting injection system
155 Ignition coil unit
156 Spark plugs
162 Injector (1st)
163 Injector (2nd)
164 Injector (3rd)
165 Injector (4th)
168 Timing sensor
193 Earth for electronic injection
194 Injection lead/injector braid connection
195 Ignition/ injection control unit (1596)
334 Dual engine temperature sender unit
373 Air pressure and temperature sensor
375 Standardized diagnostic socket
55 Front/engine lead connection
1596
CN6A.
HG6A.
* HN 6A
1 CN n.d.
MB6A.
NZ8_
* ZB n.d
*RG195A_
HM6A
CN n.d. HN 143 *
HG 142
1 95A Injection/ignition electronic control unit (1596)
1596 1 N 141A* 20 L 141A* 29 RN n.d. *
2 NZ141B* 21 BN 127 35 B 127
4 L6A* 23 GN 6A* 36 LR252 [c*
5 V252 0 23 GN70 0 40 AG 127
9 LN 141A* 24 B141B* 41 MG 127
12 R 141B* 25 BR n.d. 0 44 Vn.d.*
13 GV131 25 BR 375 * 46 BG 268 [a
14 AB 127 26 LN6A* 47 C n.d. *
15 SB 150* 27 N 193* 48 S 127
16 GN 252 [cal 28 N 193* 49 NZ252
27 282,9 41 52
O I I I I I I -r-r-r'n , , r'l -r-
rrrri '/ 1 1 1 1 1 1 1 1 1 1 1 \1 L/-HJ 'A i I I i i ,I
40
1 95B Injection/ignition electronic control unit (1596)
1596 53 R144* 65 VB 138* JL. NZn.d. *
54 N n.d. * 66 LR 155 * _ZL HM194*
55 ZB 278 * 67 B 144* _7JL HV194*
56 L136* 68 V278*
57 C138* 69 B 168*
58 HN 138* 70 Z136*
59 GN 155 * 71 HG 194 *
60 S 146* 72 HL194*
62 SN 339 * 75 RN 278 *
64 GR138* 76 BR 146 *
74
67-Jf Mill i i r r-l I I I
60-
IE
L -j |l
53 59
The cables involved in the wiring diagram are marked with an asterisk.
70 Print n° 506.763/23

Electrical equipment
Component location
Marea-Marea Weekend
2000 range ®
Starting - Electronic ignition and injection - Recharging and warning light
light- Injection system failure warning ilight - Rev counter (1998)
Insufficient engine oil pressure warning
Component key
3 Power fusebox
4 Junction unit
6 Instrument panel
8 Left front earth
10 Engine battery earth
12 Ignition switch
18 Left rear earth
22 Left facia earth
40 Brake lights control switch
55 Connection between front/engine cables
57 Inertia switch
70 Connection between dashborad/front
cables
68 Right door mirror
70 Connection between dashborad/front
cables
127 Connection between front left cable/ca­
ble on relay holder bracket
132 Petrol vapour cut out solenoid valve
136 Knock sensor
141A Heated Lambda sensor (upstream of cat.)
141 B Heated Lambda sensor (downstream of
cat.)
143 Alternator
145 Starter motor
148 Earth for electronic injection
150 Injection system relay feed
151 Relay feed for Lambda sensor, electric
fuel pump, injectors
152 Fuse protecting injection system
162 Injector (1st)
163 Injector (2nd)
164 Injector (3rd)
165 Injector (4th)
167 Air flow meter
168 Timing sensor
184 Ignition coils (2nd)
185 Ignition coils (3rd)
186 Ignition coils (4th)
187 Ignition coils (5th) (1998)
189 Variable valve timing
193 I.E. control unit earth
223 Rpm sensors
291 Potentiometer on accelerator pedal
292 Clutch pedal switch
296 Accelerator control lever potentiometer
334 Dual engine temperature sender unit
363 Variable valve timing actuator (998)
364 Motorized throttle body
375 Standardized diagnostic socket
376 Acceleration sensor
55.
55 Front/engine lead connection
1998
* BV n.d
MN 127
' HN 6A
* AR n.d
1 27 Connection between front left cable/cable on relay holder bracket
1998
A1 R n.d.'
HL RN 13
HL BG 190A
A4 AB 190A
HL AG 190A
A6 M3A
HL MN55
HL C n.d. *
J*L MB 4C *
J*L AN n.d.
_§§_ MG 190A
_§£. S 190A
VN3A
66 B190A
_§7_ VG70
R n.d.
C2 BN190A
_2L HL n.d.
C4_ SG n.d.
C5 HRn.fi.'
C6 AR n.d. *
_5L G 190A
A1 R n.d. * B4 S365
HL RN98 B5 VN 98 A3 BV 151 * B6 B365 A4 AB 123 J7_ VG365 J*I
HL AG 122 B8 R 150 A6 M 124 C2 BN365 A7 MN 124 C3 HL98 A8 Cn.d.* C4 SG 98 B1 MB 151 * C5 HR152A* B2 AN 124 C6 AR 152B *
B3 MG 124 C7 G 150*
1 90A Injection/ignition electronic control unit (1998)
1998 3 GV131 22 GN6A 41 BN 127 57 V 167*
6 S 127 24 ZB 291 * 44 VB6A* 59 SB 292 *
7 AN 291 * 25 A n.d* 46 LN6A* 62 AB 127
"U 8 GN 291 * 27 RN n.d. * 47 Cn.d* 63 H 167* "U
9 B 127 30 BG 127 * 48 BV n.d *
13 MG 127 31 G 127* 50 AG 127
15 RV n.d. * 32 BV n.d * 53 BR 375 *
16 BV n.d * 35 L6A* 54 MN 167 *
21 VG376 40 HB 291 * 56 ZN 291 *
32 16
49 33
1 90B Injection/ignition electronic control unit (1998)
1998 1 G n.d. * 17 V n.d. * 32 V184* 52 L165A*
2 G 141B* 19 V162* 33 B n.d. * 54 L 136*
3 G 165* 20 V164* 34 B 141A* 55 L 141 *
4 G 189* 22 V136* 35 B 163* 58 L364*
5 G 132* 23 V141A* 36 B363* 59 L223*
6 G 136A* 24 V364* 38 B 136A*. 60 L141B*
10 G223* 25 V334* 40 B364*
14 G 185* 26 V n.d. * 42 B 168*
15 G 186* 28 V 141B* 49 L n.d. *
16 G 183* 31 V187* 51 L 168*
49 33
* The cables involved in the wiring diagram are marked with an asterisk.
72 Print n° 506.763/23

Electrical equipment
Component location
Marea-Marea Weekend
2000 range ©
55.
Starting - Electronic injection - Recharging and warning light - Low engine oil pressure warning
warning light - Injection system failure warning light - Fuel preheating (1910 JTD)
ight - Heater plugs
Component key
3 Power fusebox
4 Junction unit
6 Instrument panel
8 Left front earth
10 Engine battery earth
12 Ignition switch
18 Left rear earth
22 Left facia earth
40 Brake lights control switch
55 Front/engine lead connection
56 Fuel level gauge control unit
57 Inertia switch
70 Connection between dashborad/front ca­
bles
127 Connection between front left ca­
ble/cable on relay holder bracket
143 Alternator
144 Rpm and TDC sensor
145 Starter motor
150 Injection system relay feed
151 Relay feed for Lambda sensor, electric
fuel pump, injectors
152 Fuse protecting injection system
167 Air flow meter (debimeter)
168 Timing sensor
193 I.E. control unit earth
201 Heater plugs control unit
228 Heater plugs (TD)
289 Thermal contact (PCT)
290 Heater coil (PCT)
291 Potentiometer on accelerator pedal
292 Clutch pedal switch
303 Diesel preheating protection fuse
304 Diesel preheating protection relay
333 Injection control unit (JTD)
334 Dual engine temperature sender unit
336 Injector 1 cyl (JTD)
337 Injector 2. cyl (JTD)
338 Injector 3. cyl (JTD)
339 Injector 4. cyl (JTD)
341 Fuel pressure regulator (JTD)
342 Fuel pressure sensor (JTD)
343 Turbo pressure sensor (JTD)
344 I.E. protective fuse (JTD)
334B I.E. protective fuse (JTD)
345 Fuel temperature sensor (JTD)
375 Standardized diagnostic socket
377 Variable geometry solenoid valve
378 Throttle adjustment solenoid valve
379 EGR solenoid valve
333A Injection control unit (JTD)
JTD 1 N n.d. * 16 BV55* 48 BR 375 76 ZB 291 *
2 N n.d. * 17 CR 377 * 49 VB6A* 77 GN 291 *
3 N n.d. * 18 MG 127 51 BN 127 78 ZN 291 * A 4 Rn.d.* 19 AB 127 52 B 127 79 A 291 *
5 RN n.d. * 20 AG 127 58 CB n.d. * 80 MB 291 * ,
11 GV131 21 LN6A 59 LRn.d. * 81 AN 291 * ' >
13 SB 150 22 RV201B* 60 S 127
14 CL6A 24 SN 151 * 61 BL 292 * 1
15 BG55* 47 Ln.d. * 62 NZ 201B*
5 43 24
-o
T7
2 62 81
oooooooooooooooooc oooooooooooooooooc
oooooooooooooooooc oooooooooooooooooc
~7
63 44
333B Injection control unit (JTD)
JTD 82 SN55* 92 H342* 103 L168* 120 V337*
83 S55* 93 LR 343* 104 C 168* 121 MV 338 *
84 BN 334 * 94 HM 343 * 108 CB 341 *
85 LN 334 * 95 HN 343 * 109 HB 341 *
86 G 167* 97 CN 167* 111 MB 55*
88 NZ167* 99 R144* 114 VB 339 *
89 HR167* 100 B 144* 117 VN n.d. *
90 LG 342 * 101 N 144* 118 NVn.d. *
91 HV 342 * 102 BV168* 119 NL 336 *
114
AA 115 117
116.
89 97 82 90
oooooc OOOOOOG OOOOOOO 'OOOOOC
119113105106 98
* The cables involved in the wiring diagram are marked with an asterisk.
74 Print n° 506.763/23

Electrical equipment
Connector blocks
Marea-Marea Weekend
2000 range ©
55.

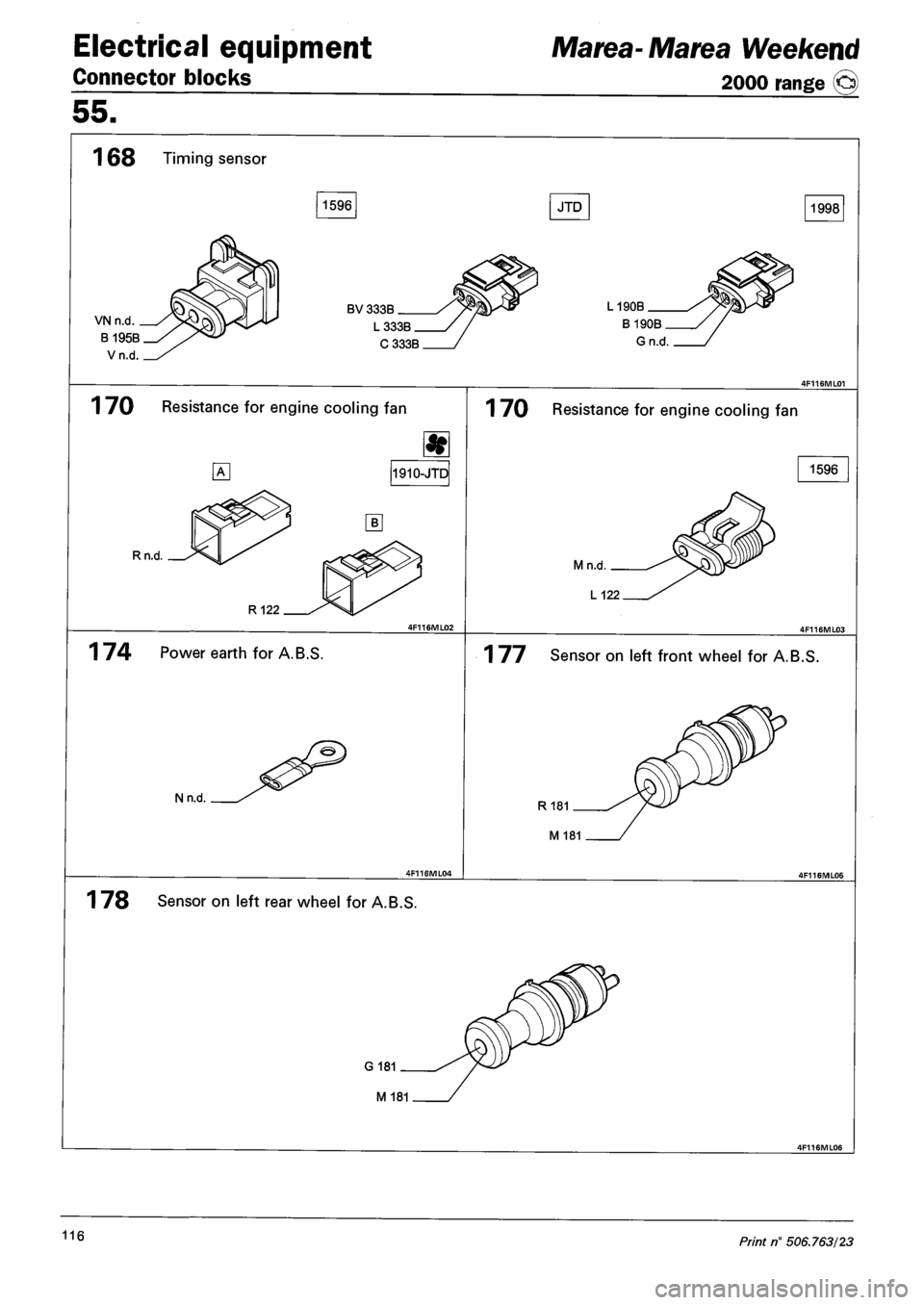

1 68 Timing sensor
1596 JTD 1998
VN n.d.
B 195B
Vn.d.
BV 333B _
L333B
C333B
L190B
1 70 Resistance for engine cooling fan
Rn.d.
R122
1 74 Power earth for A.B.S.
Nn.d.
1 70 Resistance for engine cooling fan
1596
Mn.d.
L122
1 77 Sensor on left front wheel for A.B.S.
1 78 Sensor on left rear wheel for A.B.S.
G 181
M 181
116 Print n° 506.763/23

A
21
128 Connection between front/radiator cables
129 Engine cooling fan protection power fuse
129A Power fuse protecting engine cooling fan
no.2
131 Fiat-CODE electronic control unit
132 Petrol vapours cut-out solenoid valve
134 Connection between rear/heated driver's
seat cables
135 Connection between rear/heated passenger
seat cables
136 Detonation sensor
136A 2nd Detonation sensor
137 Vehicle speed sensor
138 Idle adjustment actuator
139 Tester socket for injection system
141A Heated Lambda sensor (upstream of cat.)
141B Heated Lambda sensor (downstream of
cat.)
142 Switch signalling insufficient engine oil
pressure
143 Alternator
144 Rev and TDC sensor
145 Starter motor
146 Throttle valve potentiometer
147 Compressor for air conditioning
148 Earth for electronic injection
150 Injection system relay feed
151 Relay feed for Lambda sensor, electric fuel
pump, injectors
152 Fuse protecting injection system
152A Fuse protecting injection system
152B Fuse protecting injection system
154 Engine cooling fan
155 Ignition coil unit
156 Spark plugs
159 Reversing lights control switch
162 Injector (1)
163 Injector (2)
164 Injector (3)
165 Injector (4)
165A Injector (5) (1998)
166 Idle adjustment actuator
167 Air flow meter
168 Timing sensor
170 Resistance for engine cooling fan
174 Power earth for A.B.S.
177 Sensor on left front wheel for A.B.S.
178 Sensor on left rear wheel for A.B.S.
179 Sensor on right front wheel for A.B.S.
180 Sensor on right rear wheel for A.B.S.
181 A.B.S. hydraulic control unit
182A Right brake pad wear sensor cable connec­
tion
183 Ignition coil (1°)
184 Ignition coil (2°)
185 Ignition coil (3°)
186 Ignition coil (4°)
187 Ignition coil (5°) (1998)
189 Variable valve timing
190 Injection/ignition electronic control unit
(1998)
193 Earth for electronic injection
194 Injection/injector braid lead connection
195 Injection/ignition electronic control unit
(1596)
199 FIAT CODE aerial
201 Heaer plugs control unit
202 Heater/air conditioning unit symbol lighting
bulbs
206 Car interior climate control fan
209 Intake air flap control actuator
211 Frost sensor
222 Climate control system earth
223 RPM sensor
228 Heater plugs (TD)
231 Clock spring connector
236 Connection betwen rear lead and tail-gate
238 Rear electric windows control unit
239 Connection between Air Bag/left preten­
sioner cables
240 Connection between Air Bag/right preten­
sioner cables
241 Left pretensioner
242 Right pretensioner
243 Luggage compartment light button
244 Integrated services control system
245 Rear courtesy light
248 Radio controls on steering wheel
252 Connection between automatic transmis­
sion/engine cables
253 Air conditioner control unit
254 Climate control system controls with pas­
senger compartment temperature sensor
255 Electronic speed governor for climate con­
trol fan
256 Air mixture control actuator
257 Fuel pump relay feed
258 Treated air temperature sensor
259 Required temperature adjustment switch
260 MAX-DEF microswitch
261 Tailgate locking/unlocking actuator
262 Seat belts warning light switch
264 Left rear vehicle interior courtesy light
265 Right rear vehicle interior courtesy light
267 Automatic transmission control unit
268 Connection between automatic transmis­
sion/front cables
269 Connection between automatic transmis­
sion/dashboard cables
270 Connection between automatic transmis­
sion/rear cables
271 Kick-down switch
272 Ignition switch solenoid
273 Automatic transmission system protective
fuse
Co
