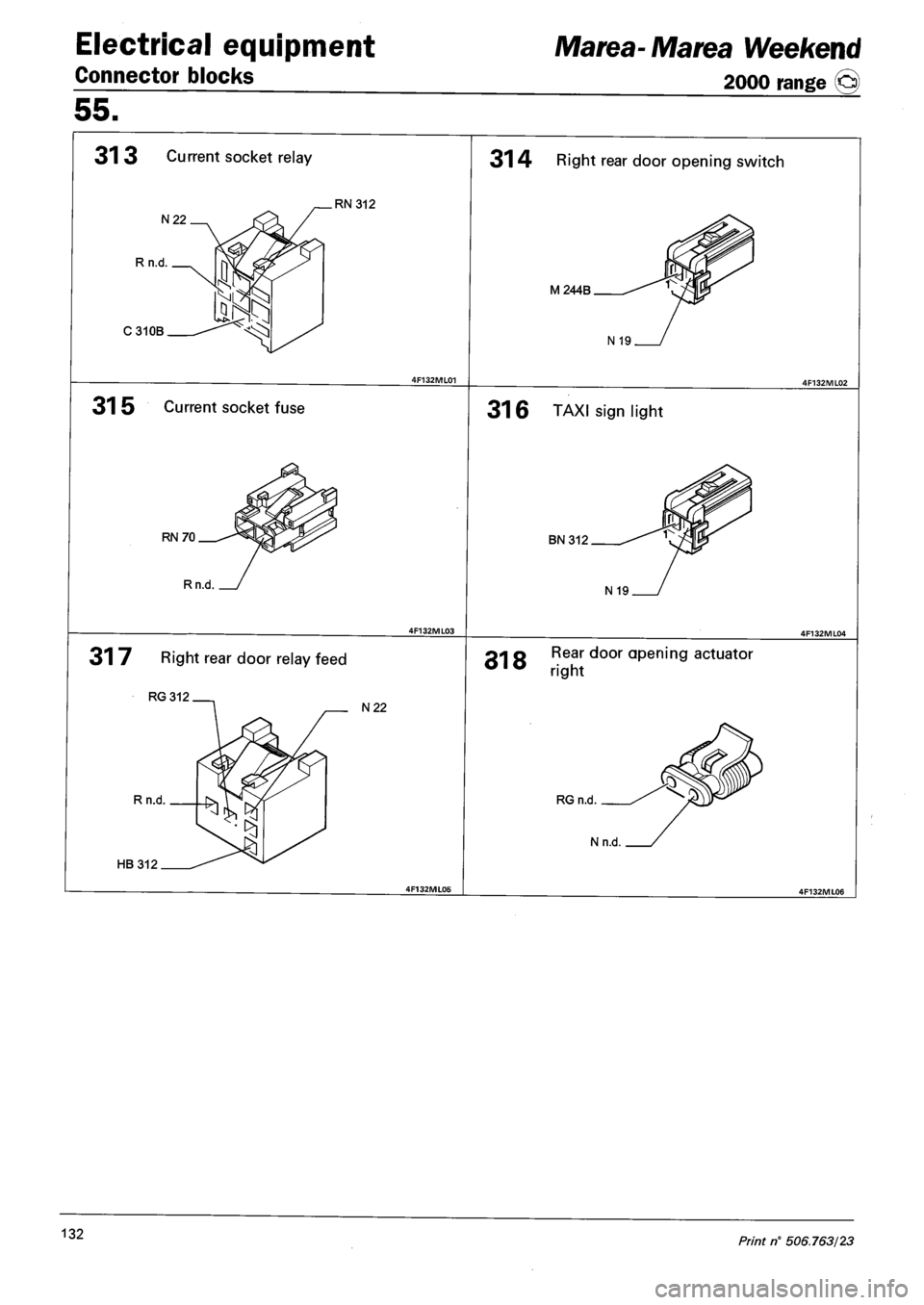

relay FIAT MAREA 2000 1.G Repair Manual

Electrical equipment
Connector blocks
Marea-Marea Weekend
2000 range ©)
55.
31 3 Current socket relay
N22
Rn.d
C310B
RN 312
31 5 Current socket fuse
RN70
Rn.d
31 7 Right rear door relay feed
RG 312.
Rn.d.
HB312
N22
314 Right rear door opening switch
M244B
31 6 TAXI sign light
BN 312
^1 tt Rear °-00r °Per|iN9 actuator °' ° right
RG n.d.
N n.d
132 Print n° 506.763/23

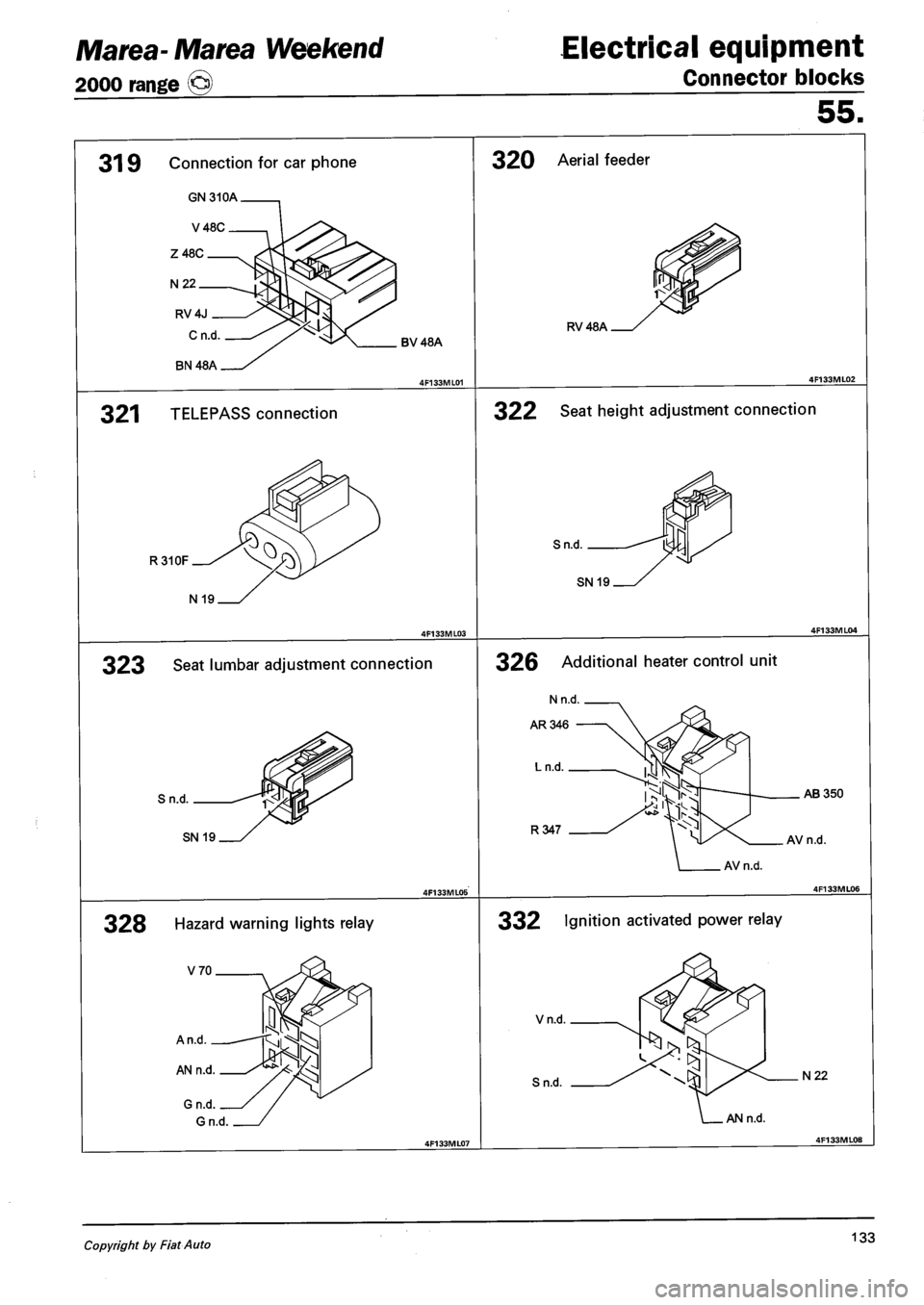

Marea- Marea Weekend
2000 range ©
Electrical equipment
Connector blocks
55.
319 Connection for car phone
GN310A.
V48C.
Z48C.
N 22.
RV4J
BV48A
321 TELEPASS connection
R310F
320 Aerial feeder
RV48A
322 Seat height adjustment connection
N 19
323 Seat lumbar adjustment connection
Sn.d.
SN 19
328 Hazard warning lights relay
Sn.d.
SN 19
326 Additional heater control unit
AB350
R347 AV n.d.
332 Ignition activated power relay
Vn.d.
Sn.d. N22
AN n.d.
Copyright by Fiat Auto 133

Electrical equipment
Connector blocks
Marea-Marea Weekend
2000 range @)
55.
344B I.E. protective fuse (JTD)
RN n.d.
RN n.d.
345 Fuel temperature sensor (JTD)
S55
SN 55
346 Additional heater relay 347 Additional heater relay
AR326
Mn.d
AG n.d.
Mn.d
Rn.d.
Rn.d
R326
AG n.d.
348 Additional heater remote control
swictch 349 Additional heater protection fuse
Mn.d
AV n.d
N n.d.
NZ 351D
Rn.d.
350 Additional heater sensor 351
AB326
Nn.d.
Additional heater spark plugs
\ N n.d.
N n.d.
0
NZ 348
0 N n.d.
136 Print n° 506.763/23

nent
Key
55.
Component key
1 Left front light cluster
2 Right front light cluster
3 Power fusebox
4 Junction unit
5 Dipped headlamps relay feed
6 Instrument panel
7 Steering column switch unit
8 Left front earth
9 Right front earth
10 Engine battery earth
10A Bodyshell battery earth
11 Battery
12 Ignition switch
13 Connection between right/left front cables
14 Left number plate light bulb
15 Right number plate light bulb
16 Left rear light cluster
17S Right rear light cluster
18 Left rear earth
19 Right rear earth
20 Left front side direction indicator
21 Right front side direction indicator
22 Left facia earth
23 Hazard warning lights switch unit
24 Windscreen wiper motor
25 Electric windscreen/rearscreen washer pump
26 Windscreen wiper motor
28 Connection between dashboard/rear cables
29 Connection between front/fog light cables
30 Left fog light
31 Right fog light
32 Fog lamp control relay
34 Switch control panel
35 Connection between dashboard/left front
door cables
36 Connection between dashboard/right front
door cables
39 Heated rear windscreen
40 Brake lights control switch
41 Additional brake light
42 Right dashborad earth
43 Left headlamp alignment corrector actuator
44 Right headlamp alignment corrector actuaor
45 Headlamp alignment control unit
46 Left low tone horn
47 Right high tone horn
48 Radio receiver with clock
49 Left front tweeter speaker
50 Right front tweeter speaker
52 Speaker in right front door
53 Left rear speaker
54 Right rear speaker
55 Front/engine lead connection
56 Fuel gauge unit
57 Inertia switch
58 Control panel light dimmer
64 Glove compartment light bulb with built in
switch
65 Luggage compartment light
66 Electrically-adjustable door mirror contro
buttons
67 Left door mirror
68 Right door mirror
69 Cigar lighter
70 Connection between dashborad/front ca­
bles
73 Pushbutton unit for front electric windows
on left arm-rest
74 Pushbutton unit for right front electric win­
dows on right arm-rest
76 Left front electric window motor
77 Right front electric window motor
78 Pushbutton unit for rear electric windows
on left front door
80 Rear electric window inhibition switch
82 Pushbutton unit for left rear electric win
dows on left front door
83 Pushbutton unit for right rear electric win­
dows on right rear door
84 Left rear electric window motor
85 Right rear electric window motor
86 Connection between rear/left rear door ca
bles
87 Connection between rear/right rear doo
cables
88 Insufficient brake fluid level sensor
89A Left brake pad wear sensor cable connec
tion
90 Switch signalling handbrake applied
92A Electric sun-roof lead connection
93A Electric sun roof control unit
95 Connection between front/anti-lock brake;
A.B.S. cables
96 Power fuse for anti-lock brakes A.B.S.
97 Electric headlamp washer pump
98 Headlamp washer intermittence
100 Alarm electronic control unit
105 Alarm deactivation switch
106 Alarm switch on engine bonnet
107A Door remote control receiver
107B Vehicle interior front courtesy light
108 Left rear central locking
109 Right rear central locking
110 Left front central locking
111 Right front central locking
114 Air bag electronic contol unit
115 Passenger Air Bag
116 Driver's Air Bag
117 Air Bag/facia cables connection
120 Connection for air conditioning unit cables
121 Three stage pressure switch
122 Engine cooling fan low speed relay
122 Engine cooling fan low speed relay
123 Engine cooling fan high speed relay feed
124 Air condiitoning compressor control relay
127 Connection between front left cable/cabli
on relay holder bracket
141

A
21
128 Connection between front/radiator cables
129 Engine cooling fan protection power fuse
129A Power fuse protecting engine cooling fan
no.2
131 Fiat-CODE electronic control unit
132 Petrol vapours cut-out solenoid valve
134 Connection between rear/heated driver's
seat cables
135 Connection between rear/heated passenger
seat cables
136 Detonation sensor
136A 2nd Detonation sensor
137 Vehicle speed sensor
138 Idle adjustment actuator
139 Tester socket for injection system
141A Heated Lambda sensor (upstream of cat.)
141B Heated Lambda sensor (downstream of
cat.)
142 Switch signalling insufficient engine oil
pressure
143 Alternator
144 Rev and TDC sensor
145 Starter motor
146 Throttle valve potentiometer
147 Compressor for air conditioning
148 Earth for electronic injection
150 Injection system relay feed
151 Relay feed for Lambda sensor, electric fuel
pump, injectors
152 Fuse protecting injection system
152A Fuse protecting injection system
152B Fuse protecting injection system
154 Engine cooling fan
155 Ignition coil unit
156 Spark plugs
159 Reversing lights control switch
162 Injector (1)
163 Injector (2)
164 Injector (3)
165 Injector (4)
165A Injector (5) (1998)
166 Idle adjustment actuator
167 Air flow meter
168 Timing sensor
170 Resistance for engine cooling fan
174 Power earth for A.B.S.
177 Sensor on left front wheel for A.B.S.
178 Sensor on left rear wheel for A.B.S.
179 Sensor on right front wheel for A.B.S.
180 Sensor on right rear wheel for A.B.S.
181 A.B.S. hydraulic control unit
182A Right brake pad wear sensor cable connec­
tion
183 Ignition coil (1°)
184 Ignition coil (2°)
185 Ignition coil (3°)
186 Ignition coil (4°)
187 Ignition coil (5°) (1998)
189 Variable valve timing
190 Injection/ignition electronic control unit
(1998)
193 Earth for electronic injection
194 Injection/injector braid lead connection
195 Injection/ignition electronic control unit
(1596)
199 FIAT CODE aerial
201 Heaer plugs control unit
202 Heater/air conditioning unit symbol lighting
bulbs
206 Car interior climate control fan
209 Intake air flap control actuator
211 Frost sensor
222 Climate control system earth
223 RPM sensor
228 Heater plugs (TD)
231 Clock spring connector
236 Connection betwen rear lead and tail-gate
238 Rear electric windows control unit
239 Connection between Air Bag/left preten­
sioner cables
240 Connection between Air Bag/right preten­
sioner cables
241 Left pretensioner
242 Right pretensioner
243 Luggage compartment light button
244 Integrated services control system
245 Rear courtesy light
248 Radio controls on steering wheel
252 Connection between automatic transmis­
sion/engine cables
253 Air conditioner control unit
254 Climate control system controls with pas­
senger compartment temperature sensor
255 Electronic speed governor for climate con­
trol fan
256 Air mixture control actuator
257 Fuel pump relay feed
258 Treated air temperature sensor
259 Required temperature adjustment switch
260 MAX-DEF microswitch
261 Tailgate locking/unlocking actuator
262 Seat belts warning light switch
264 Left rear vehicle interior courtesy light
265 Right rear vehicle interior courtesy light
267 Automatic transmission control unit
268 Connection between automatic transmis­
sion/front cables
269 Connection between automatic transmis­
sion/dashboard cables
270 Connection between automatic transmis­
sion/rear cables
271 Kick-down switch
272 Ignition switch solenoid
273 Automatic transmission system protective
fuse
Co

274 Automatic transmission system protective
fuse
276 Starter enablement relay
279 Automatic transmission gear selector
280 ICE/SPORT selector for automatic trans­
mission
281 Shift Lock solenoid
282 Additional PARK cut out for automatic
transmission
283 Safety control unit for automatic transmis­
sion
284 Automatic transmission connection on
gearbox
290 Heater coil (PCT)
291 Potentiometer on accelerator pedal
292 Clutch pedal switch
303 Fuse protecting diesel preheating
304 Diesel preheating protective relay
306 TAXI radio preparation coupling
307 TAXI radio protective fuse
308 Taxi meter protective fuse
309 Taxi meter
31 OA Connection shunt
310B Connection shunt
310C Connection shunt
310D Connection shunt
310E Connection shunt
31 OF Connection shunt
311 Current socket in luggage compartment
312 Coupling for rear/TAXI dashboard cables
313 Current socket relay
314 Right rear door opening switch
315 Current socket fuse
316 TAXI sign light
317 Right rear door relay feed
318 Right rear door control actuator
319 Connection for car phone
320 Aerial feeder
321 Connection for TELEPASS
322 Seat height adjustment connection
323 Seat lumbar adjustment connection
325 Additional heater connection
326 Additional heater control unit
328 Hazard warning lights relay
332 Ignition activated power relay.
333 Injection control unit (JTD)
334 Dual engine temperature sender unit
335 Water in diesel filter sensor
336 Injector 1 cyl (JTD)
337 Injector 2 cyl (JTD)
338 Injector 3 cyl (JTD)
339 Injector 4 cyl (JTD)
341 Fuel pressure regulator (JTD)
342 Fuel pressure sensor (JTD)
343 Turbo pressure sensor (JTD)
344 Protection fuse ie. (JTD)
345 Fuel temperature sensor (JTD)
346 Additional heater relay
347 Additional heater relay
348 Additional heater remote control swictch
349 Additional heater protective fuse
350 Additional heater sensor
351A Additional heater spark plug
351 B Additional heater spark plug
351 C Additional heater spark plug
352 Left Side Bag connection
353 Right Side Bag connection
354 Air Bag earth
355 Pretensioner connection
356 Left side bag sensor
357 Right Side Bag sensor
358 Left Side Bag
359 Right Side Bag
363 Phase transformer actuator (1998)
364 Motorized throttle body
365 4 stage pressure switch
369 Engine cooling fan remote control switch
373 Air temperature and pressure sensor
375 Standardized diagnostic socket
376 Acceleration sensor
377 Variable geometry solenoid valve
378 Throttle adjustment solenoid valve
379 EGR solenoid
N.A. Ultrasound welding taped in cable loom
Cable colour code
B White
BG Beige
C Orange
G Yellow
H Grey
L Dark blue
M Brown
N Black
R Red
S Pink
V Green
Z Purple
