stop start FIAT MAREA 2000 1.G Workshop Manual

Electrical system Marea- Marea Weekend
Radio System 2000 range @
55.
Tuning RDS programmes (IS LEARN) function (see EXP)
The IS LEARN function (which can be run only after activating the EXPERT function) can be used to
store up to 30 programmes in the IS memory (virtual memory area that does not correspond to storage
keys).
Stored programmes can be called up one by one as described in the EXP section.
The IS memory is useful when the station selection keys are restored or when the tuning stops on a new
reception field and you do not wish to deleted stored stations from preset keys.
Starting the automatic IS LEARN function
Use the BN key to select the range «FM 1», «FM 2» or «FM 3».
Press the SRC key for longer than 2 seconds. «IS ...» will appear on the display, the receiver starts the
search.
If an attempt is made to start the IS LEARN search without the IS mode being active (see EXPERT), the
display will show the message "EXPERT".
NOTE: Always wait for the end of the automatic intelligent search (IS).
If no reception is possible, the automatic intelligent research may stay on, e.g. in an underground garage
or if the aerial is defective. In this case, the automatic search can be interrupted by pressing one of the
station selection keys from 1 to 6.
The automatic intelligent search IS ensures up to 30 stations can be stored with optimum reception.
During automatic intelligent search IS, RDS programmes are stored first ordered by programme code, fol­
lowed by FM stations.
Calling up the contents of the IS memory
Stations can be called up from the memory in the required direction by giving a short press to one of the
keys A or B. «IS-SCAN» appears on the display during station selection.
Programme types (PTY)
Many radio programmes offer the programme type service (PTY) in the FM range (FM1, FM 2, FM3) The
message «NEWS» is displayed during a news programme, for example.
The PTY function activates a search filter that allows the radio to tune only to stations that broadcast pro­
grammes with a preset PTY code.
Programme types
The types of programme offered by a radio station vary according to the type of programme transmitted.
NEWS News and topical matters
AFFAIRS Politics and events
INFO Special information programmes
SPORT Sports broadcasts
EDUCATE Education and training
DRAMA Radio plays and readings
CULTURE Culture, church and religion
SCIENCE Science
VARIED Various
POP Pop music (hits and chart music)
ROCK M Rock music
EASY M Easy listening
LIGHT M Light classical music
CLASSICS Classical music
OTHER M Unclassified music programmes
(*) differs from phone-in function, activated only
WEATHER Weather forecasts
FINANCE Financial news
CHILDREN Children's programmes
SOCIAL A Social information
RELIGION Religious and philosophical
broadcasts
PHONE IN Listeners' phone-ins (*)
TRAVEL Tourist information
LEISURE Leisure, hobbies and pastimes
JAZZ Jazz music
COUNTRY Country music
NATIONAL National broadcasts
OLDIES Golden Oldies
FOLK M Folk music
DOCU Special documentaries
NO PTY No identification code
the handsfree connection for mobile phone
38 XII-00 - Update Publication no. 506.763/24

Marea- Marea Weekend Electrical system
2000 range (§) Radio System
55.
Automatic PTY search
When selecting a programme type, an automatic search may be activated in two ways.
4F039LL01
1. Six programme types are allocated to the 6 programme keys (station selection keys). The preset al­
location may be altered as required.
2. A programme type may be selected from the stored list and an automatic search may then be started.
The procedure is described below:
1. Reactivate PTY function
Press the TP for longer than 2 seconds until the message «PTY 0N» appears on the display. Then the last
type of programme selected will appear on the display (e.g. «POP»).
2. setting programme type
Give a short press to a key from 1 to 6. An automatic PTY search is started for the next station offering
the selected programme type and the programme type is briefly displayed (e.g. "POP"), followed by the
station code and the message "PTY".
Alternatively, press one of the keys A or B repeatedly until the required programme type appears on the
display.
Press one of the keys A or B for more than 2 seconds until the automatic PTY search starts. The auto­
matic PTY search stops automatically on the next station offering the preselected programme type, and
shows the programme type (e.g. «POP») and the message «PTY».
NOTE: If no station offers the selected programme type, the last station tuned is played and the PTY
function is abandoned.
3. deactivating the PTY function
This occurs automatically after about 10 seconds.
Storing PTY programme keys: station selection keys
The standard setting is defined in the table:
1 2 3 4 5 6
NEWS SPORT POP ROCK M CLASSICS EDUCATE
Each station selection key may be occupied by any programme type as required:
1. Activating the PTY function:
Press the TP key for longer than 2 seconds until the display shows »PTY ON» and select the set pro­
gramme type (e.g. «NEWS»).
2. Press one of the keys A or B repeatedly until the required programme type appears on the display.
3. Press one of the station selection keys for longer than 2 seconds.
Copyright by Fiat Auto X1I-00- Update 39

Radio System
Electrical system Marea- Marea Weekend
2000 range O
55.

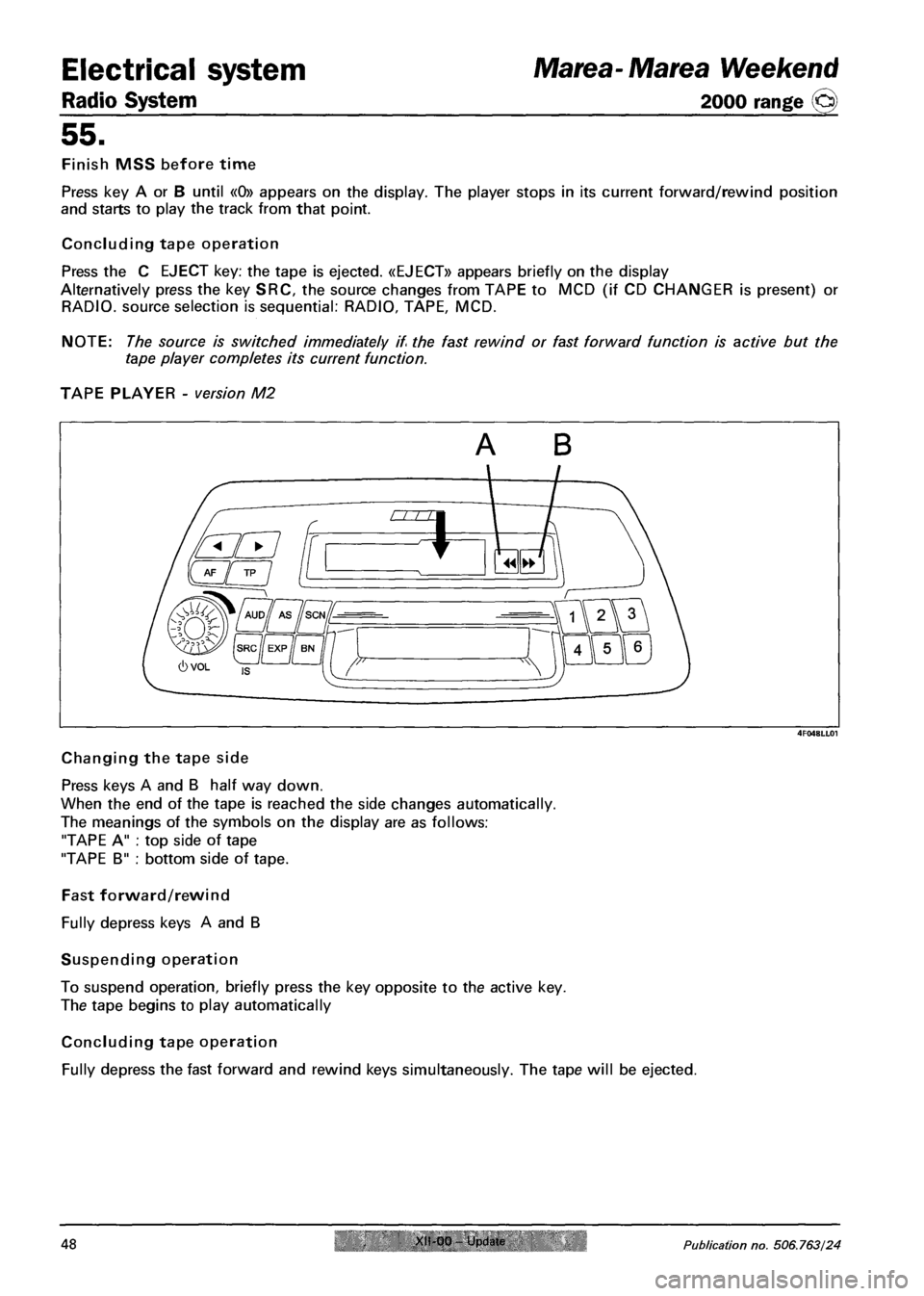

Finish MSS before time
Press key A or B until «0» appears on the display. The player stops in its current forward/rewind position
and starts to play the track from that point.
Concluding tape operation
Press the C EJECT key: the tape is ejected. «EJECT» appears briefly on the display
Alternatively press the key SRC, the source changes from TAPE to MCD (if CD CHANGER is present) or
RADIO, source selection is sequential: RADIO, TAPE, MCD.
NOTE: The source is switched immediately if the fast rewind or fast forward function is active but the
tape player completes its current function.
TAPE PLAYER - version M2
Changing the tape side
Press keys A and B half way down.
When the end of the tape is reached the side changes automatically.
The meanings of the symbols on the display are as follows:
"TAPE A" : top side of tape
"TAPE B" : bottom side of tape.
Fast forward/rewind
Fully depress keys A and B
Suspending operation
To suspend operation, briefly press the key opposite to the active key.
The tape begins to play automatically
Concluding tape operation
Fully depress the fast forward and rewind keys simultaneously. The tape will be ejected.
A B
4FO48LL01
48 XH-00 - Update Publication no. 506.763/24
