automatic FIAT MAREA 2001 1.G User Guide

Marea-Marea Weekend Electrical equipment
2000 range (§) Location of components on the car
55.

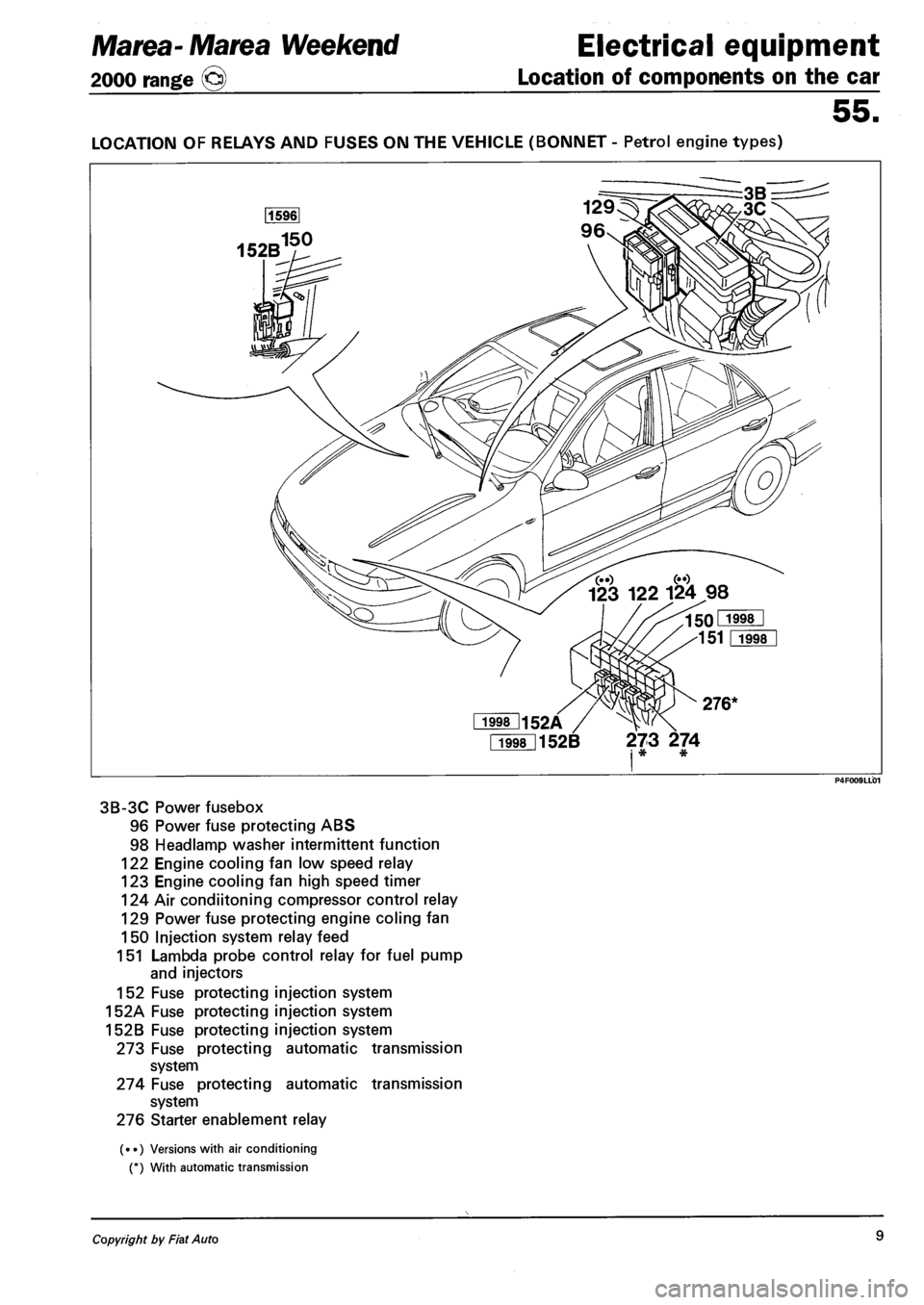

LOCATION OF RELAYS AND FUSES ON THE VEHICLE (BONNET - Petrol engine types)
Fi998l152B 273 274 i * *
3B-3C Power fusebox
96 Power fuse protecting ABS
98 Headlamp washer intermittent function
122 Engine cooling fan low speed relay
123 Engine cooling fan high speed timer
124 Air condiitoning compressor control relay
129 Power fuse protecting engine coling fan
150 Injection system relay feed
151 Lambda probe control relay for fuel pump
and injectors
152 Fuse protecting injection system
152A Fuse protecting injection system
152B Fuse protecting injection system
273 Fuse protecting automatic transmission
system
274 Fuse protecting automatic transmission
system
276 Starter enablement relay
(••) Versions with air conditioning
(*) With automatic transmission
Copyright by Fiat Auto 9

Electrical equipment Marea-Marea Weekend
Location of components on the car 2000 range ©
55.

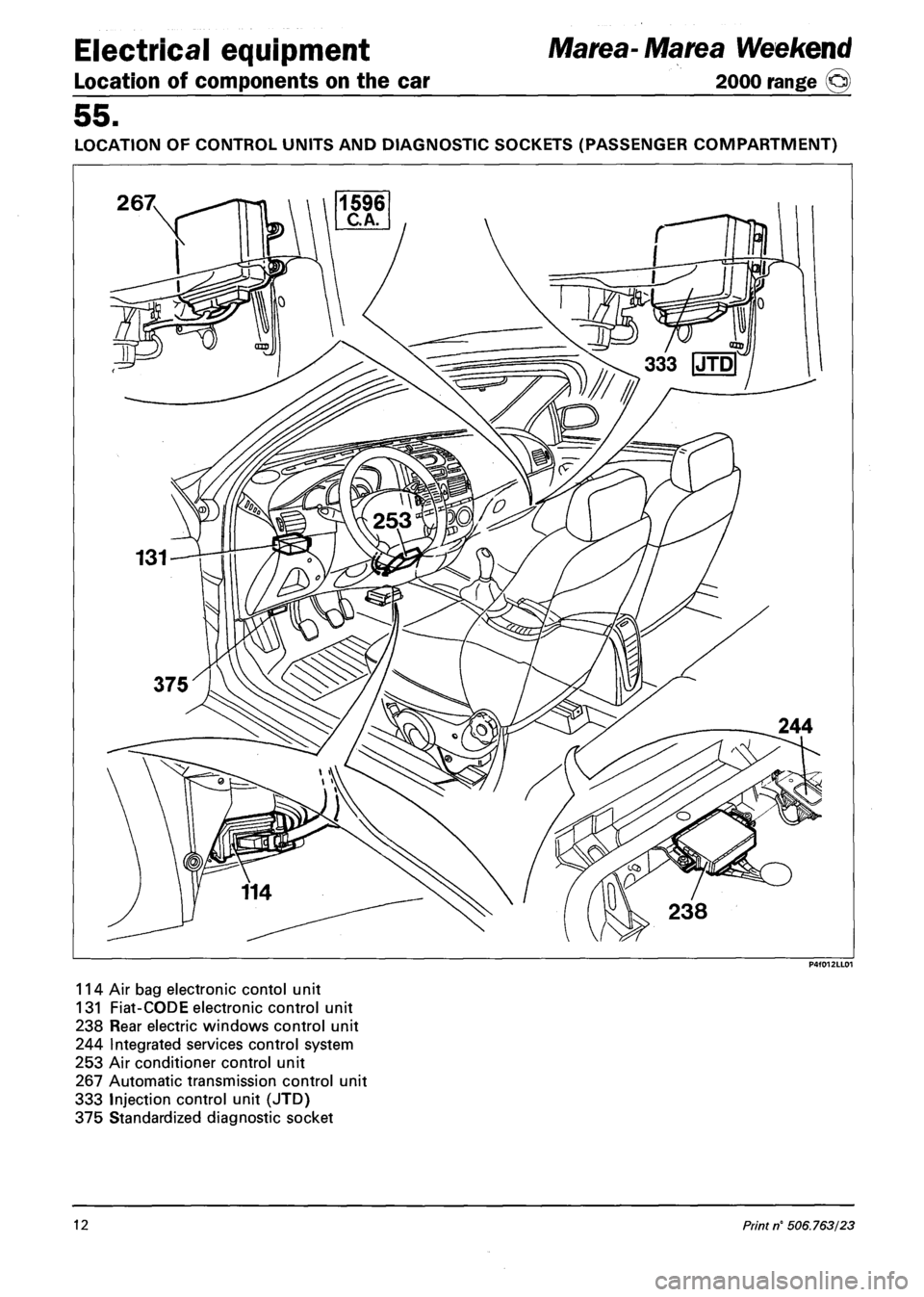

LOCATION OF CONTROL UNITS AND DIAGNOSTIC SOCKETS (PASSENGER COMPARTMENT)
P4f012LL01
114 Air bag electronic contol unit
131 Fiat-CODE electronic control unit
238 Rear electric windows control unit
244 Integrated services control system
253 Air conditioner control unit
267 Automatic transmission control unit
333 Injection control unit (JTD)
375 Standardized diagnostic socket
12 Print n° 506.763/23

Marea- Marea Weekend
2000 range ©
Electrical equipment
Control module
55.
The vehicle is fitted with numerous electronic
control units which have autodiagnostic func­
tions.
When these control units are connected to di­
agnostic equipment (Examiner or other in­
struments) it is possible to read the autodiag­
nostic information (parameters, errors) or carry
out active diagnosis.
On the version with EOBD (European On
Board Diagnosis) which conforms to Directive
98/69/CE (EURO 3), there is not an indi­
vidual diagnostic socket for each control
unit, but a single.- standardized 16-way
diagnostic socket, on the left hand side of
the dashboard, under the junction unit.
The diagnostic equipment (Examiner or other instruments) is connected to it using a special adaptor
known as "MPX 97". Using this adapator it is possible to select the system the autodiagnosis is going to
be carried out on.
Pin- out View of connector, cable entry side
Pin System
1 ABS
2 N.C.
3 Air Bag
4 Power earth
5 Signal earth
6 N.C.
7 Engine management and FIAT CODE
8 N.C.
9 Climate control
10 N.C.
11 Alarm
12 N.C.
13 N.C.
14 N.C.
15 Automatic transmission.
16 Connector supply
Copyright by Fiat Auto 13

Marea- Marea Weekend Electrical equipment
2000 range (Q) Control module
55.

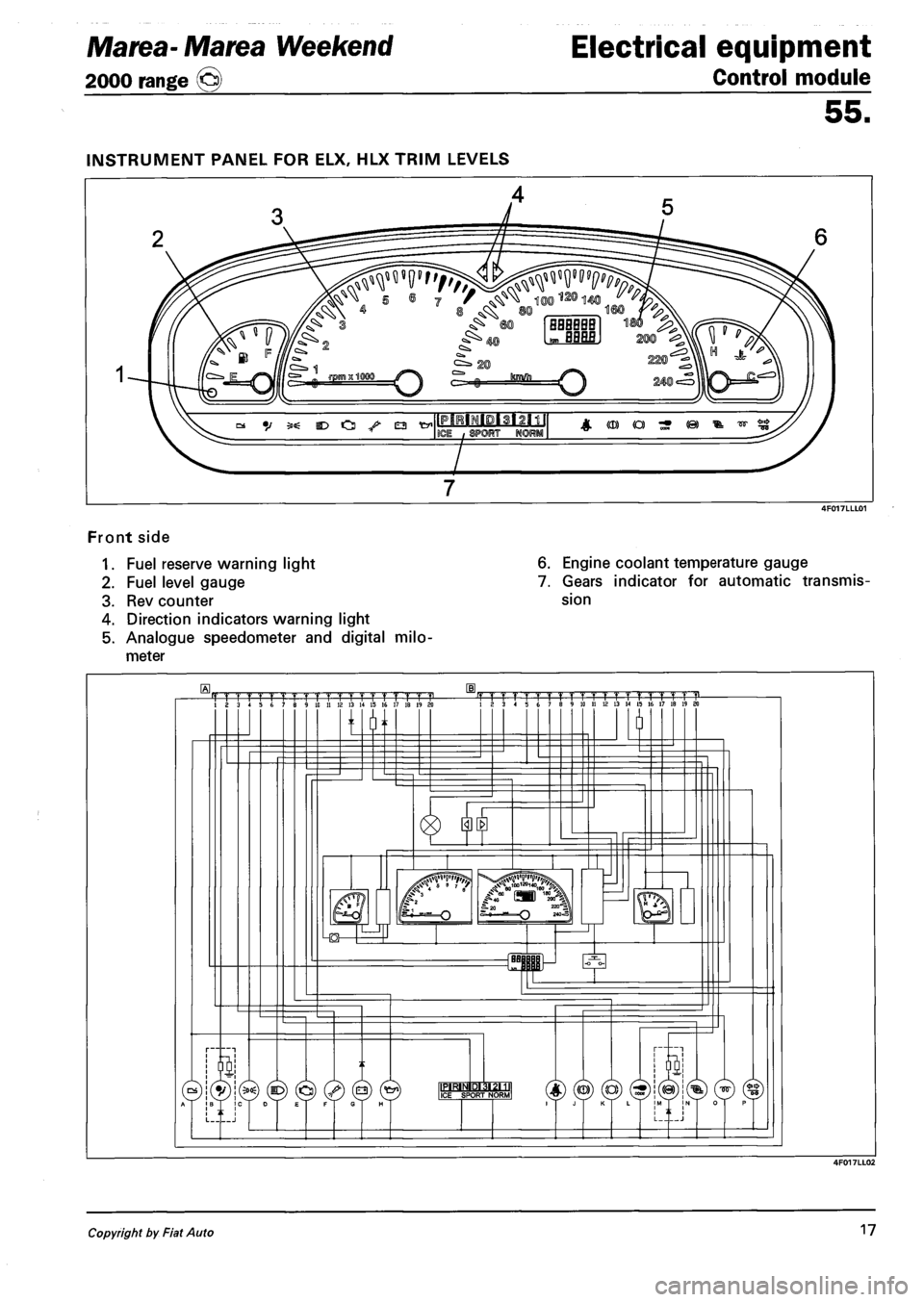

Front side
1. Fuel reserve warning light
2. Fuel level gauge
3. Rev counter
4. Direction indicators warning light
5. Analogue speedometer and digital milo­
meter
6. Engine coolant temperature gauge
7. Gears indicator for automatic transmis­
sion
Copyright by Fiat Auto 17

Electrical equipment
Control module
Marea- Marea Weekend
2000 range ©
55.
Rear side (the connector sockets are shown)
Connector A Connector B
N° Cable
colour Circuit involved
1 HN Generator (G)
2 BN Brake fluid level (J)
3 -Injection system failure (*)
4 AG +30
5 LN EOBD (E)
6 -Not connected
7 -Turbocharging (N)
8 BR Brake pad wear (K)
9 MN Fiat Code (L)
10 -Heater plugs (*)
11 -Not connected
12 HG Minimum oil pressure (H)
13 HM Speedometer signal
14 HL Outside temperature signal
15 CN Speedometer module supply
16 L Rev counter signal
17 HB Coolant temperature gauge
18 -Not connected
19 RV ABS failure (M)
20 -Trailer lights (*)
N° Cable
colour Circuit involved
1 LB Main beam headlamps (D)
2 GR Instrument panel light
3 GN Side lights (C)
4 -Not connected
5 BN Handbrake (J)
6 M Seat belt (I)
7 N Earth
8 -Speedometer signal (*)
9 VB Speedometer signal
10 A Left turn signal
11 AN Right turn signal
12 -Not connected
13 CA Automatic transmission (A)
14 N Earth (electronic)
15 GL Outside temperature switch
16 HG Fuel level
17 R + 15
18 C Air Bag failure (B)
19 GN Fuel reserve
20 -Speedometer signal
(*) not used
18 Print n° 506.763/23

Electrical system
Radio System
55.

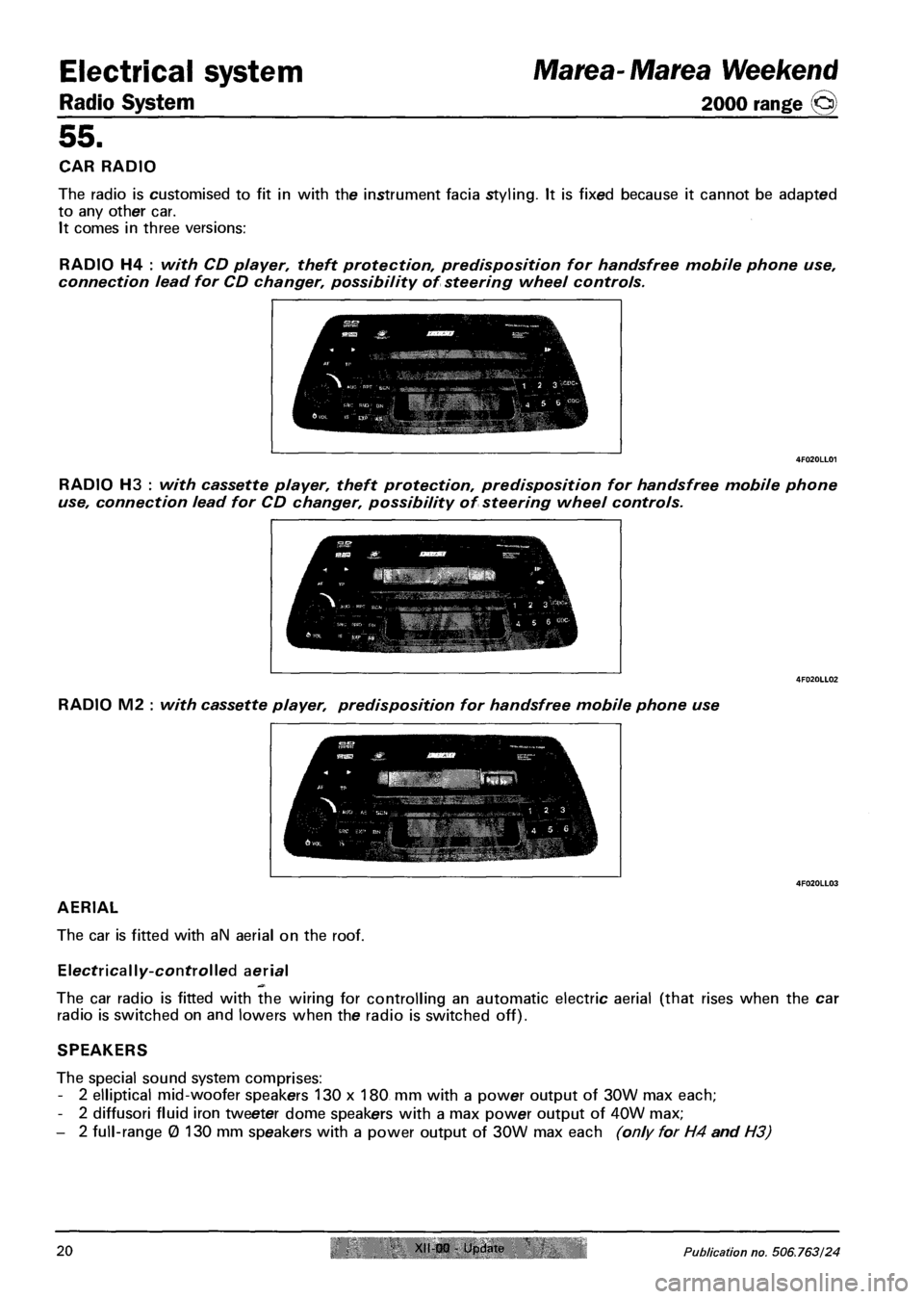

CAR RADIO
The radio is customised to fit in with the instrument facia styling. It is fixed because it cannot be adapted
to any other car.
It comes in three versions:
RADIO H4 : with CD player, theft protection, predisposition for handsfree mobile phone use,
connection lead for CD changer, possibility of steering wheel controls.
RADIO H3 : with cassette player, theft protection, predisposition for handsfree mobile phone
use, connection lead for CD changer, possibility of steering wheel controls.
Marea-Marea Weekend
2000 range ©
RADIO M2 : with cassette player, predisposition for handsfree mobile phone use
AERIAL
The car is fitted with aN aerial on the roof.
Electrically-controlled aerial
The car radio is fitted with the wiring for controlling an automatic electric aerial (that rises when the car
radio is switched on and lowers when the radio is switched off).
SPEAKERS
The special sound system comprises:
- 2 elliptical mid-woofer speakers 130 x 180 mm with a power output of 30W max each;
- 2 diffusori fluid iron tweeter dome speakers with a max power output of 40W max;
- 2 full-range 0 130 mm speakers with a power output of 30W max each (only for H4 and H3)
20 XII-00 - Update Publication no. 506.763/24

Marea-Marea Weekend Electrical system
2000 range ca Radio System
55.

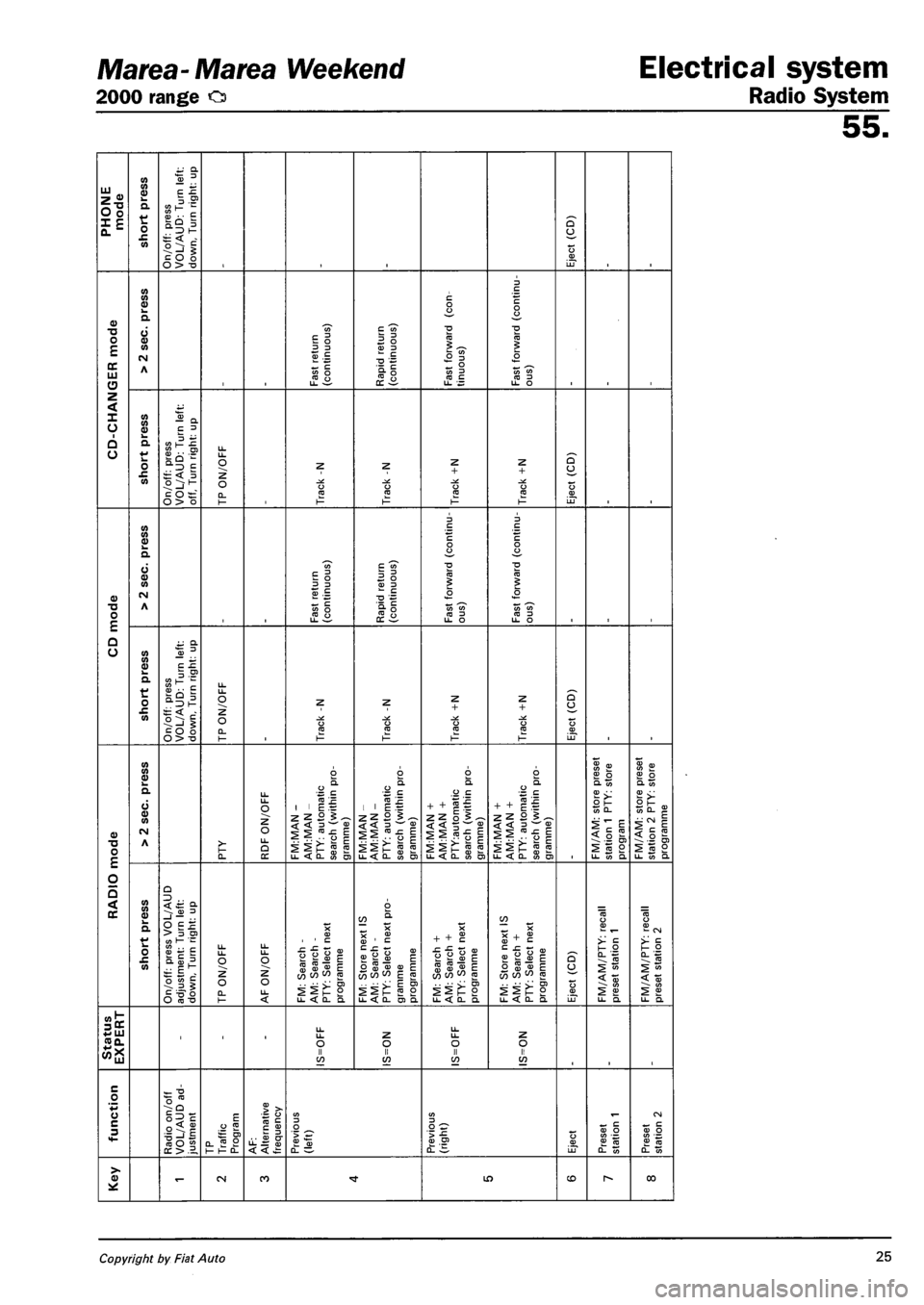

PHONE mode
short press
On/off: press .VOL/AUD:
Turn left:
down.
Turn right: up
Eject
(CD)
CD-CHANGER
mode > 2 sec. press Fast
return
(continuous) Rapid
return
(continuous) Fast
forward
(con­
tinuous) Fast
forward (continu­
ous)
CD-CHANGER
mode
short press
On/off: press .VOL/AUD:
Turn left:
off. Turn right: up
TP ON/OFF Track -N Track -N Track
+N
Track
+N
Eject
(CD)
CD
mode
> 2 sec. press Fast
return
(continuous) Rapid return (continuous) Fast
forward (continu­
ous) Fast forward (continu­ous)
CD
mode
short press
On/off: press VOL/AUD:
Turn left:
down.
Turn right: up
TP ON/OFF Track
-N
Track -N Track +N Track
+N
Eject
(CD)
RADIO
mode
> 2 sec. press Aid
RDF
ON/OFF
FM:MAN
-
AM:MAN
-
PTY: automatic search
(within
pro­
gramme) FM:MAN
-
AM:MAN
-
PTY: automatic search
(within
pro­
gramme) FM:MAN
+
AM:MAN
+
PTY:automatic search
(within
pro­
gramme) FM:MAN
+
AM:MAN
+
PTY: automatic search
(within
pro­
gramme) FM/AM:
store preset
station
1 PTY: store
program FM/AM:
store preset
station 2 PTY: store programme
RADIO
mode
short press
On/off:
press
VOL/AUD
adjustment: Turn left: down.
Turn right: up
TP ON/OFF AF ON/OFF FM: Search -AM: Search -PTY: Select next programme FM: Store next IS AM: Search -PTY: Select next pro­gramme programme FM: Search + AM: Search + PTY: Select next programme FM: Store next IS AM: Search + PTY: Select next programme Eject (CD) FM/AM/PTY:
recall
preset
station 1
FM/AM/PTY:
recall
preset station 2
Status EXPERT IS=OFF
z o II to IS=0FF
z o II to
function Radio
on/off
VOL/AUD
ad­
justment TP Traffic Program AF: Alternative frequency Previous (left) Previous (right) Eject Preset station 1 Preset station 2
Key CN LO CD r^ 00
Copyright by Fiat Auto 25

Electrical system Marea-Marea Weekend
Radio System 2000 range o
55.

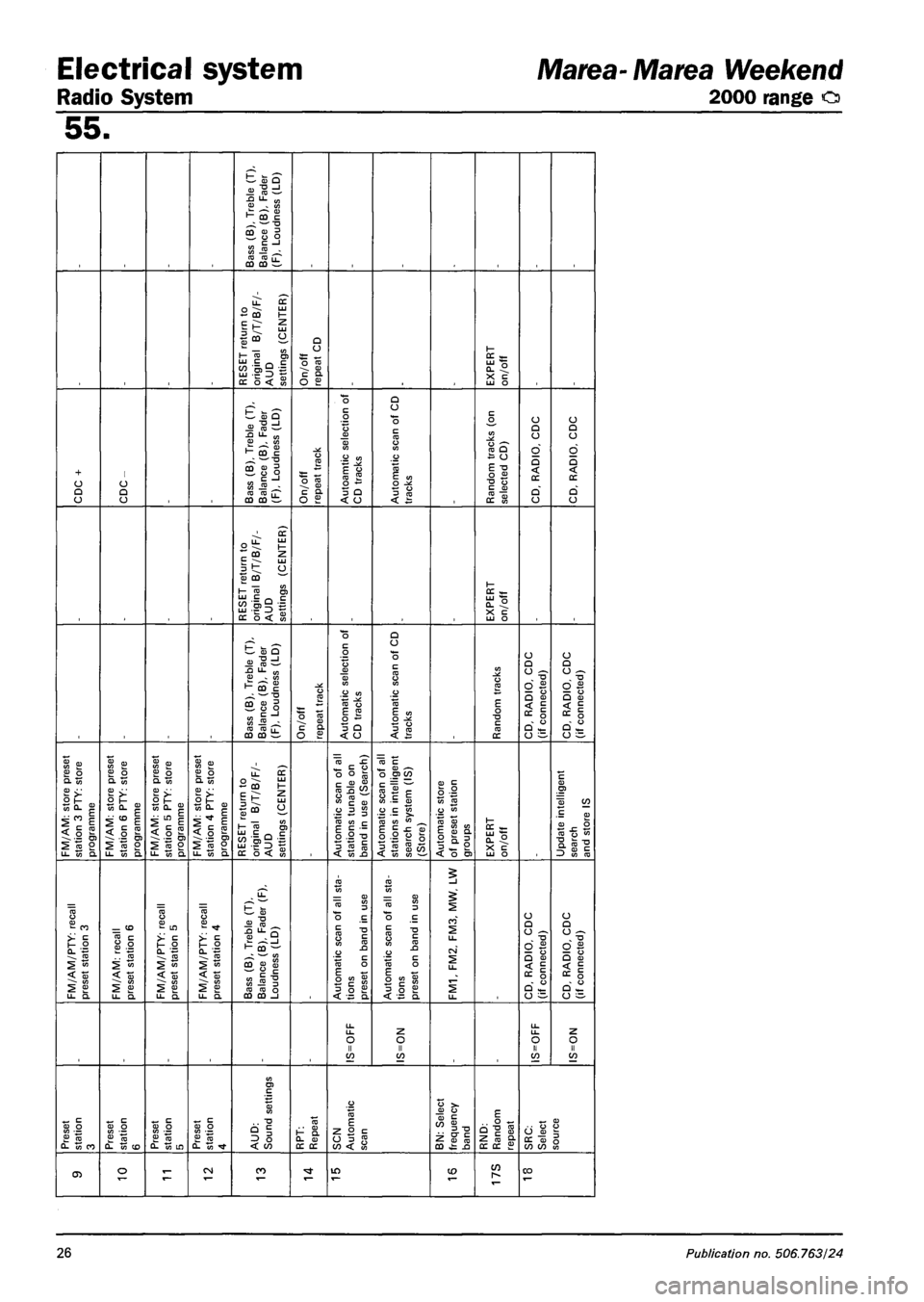

Bass
(B),
Treble
(T),
Balance
(B),
Fader
(F), Loudness
(LD)
RESET return
to
original
B/T/B/F/-
AUD settings
(CENTER)
On/off repeat
CD
EXPERT on/off
CDC
+
CDC-Bass
(B),
Treble
(T),
Balance
(B),
Fader
(F), Loudness
(LD)
On/off repeat track Autoamtic
selection
of
CD tracks Automatic
scan
of CD
tracks Random
tracks
(on
selected
CD)
CD,
RADIO,
CDC
CD,
RADIO,
CDC
RESET return
to
original
B/T/B/F/-
AUD settings
(CENTER)
EXPERT on/off
Bass
(B),
Treble
(T),
Balance
(B),
Fader
(F),
Loudness
(LD)
On/off repeat track Automatic
selection
of
CD tracks Automatic scan
of CD
tracks Random
tracks
CD,
RADIO,
CDC
(if connected) CD,
RADIO,
CDC
(if connected)
FM/AM:
store preset
station
3 PTY: store
programme FM/AM:
store preset
station
6 PTY: store
programme FM/AM:
store preset
station
5 PTY:
store
programme FM/AM:
store preset
station
4 PTY: store
programme RESET
return
to
original
B/T/B/F/-
AUD settings
(CENTER)
Automatic
scan
of all
stations
tunable
on
band
in use
(Search)
Automatic
scan
of all
stations
in intelligent
search system
(IS)
(Store) Automatic
store
of preset station groups EXPERT on/off Update
intelligent
search and store
IS
FM/AM/PTY:
recall
preset station
3
FM/AM:
recall
preset station
6
FM/AM/PTY:
recall
preset
station
5
FM/AM/PTY:
recall
preset
station
4
Bass
(B),
Treble
(T),
Balance
(B),
Fader
(F),
Loudness
(LD)
Automatic
scan
of
all sta­
tions preset
on
band
in use
Automatic
scan
of all
sta­
tions preset
on
band
in use
FM1, FM2. FM3, MW, LW CD,
RADIO,
CDC
j (if connected) CD,
RADIO,
CDC
(if connected)
LL LL O II CO
N0=SI LL LL O II CO
z o II CO
Preset station Preset station Preset station 5 Preset station 4 AUD: Sound
settings
RPT: Repeat SCN Automatic scan BN: Select frequency band RND: Random repeat SRC: Select source
cn o CO LO co 17S co
26 Publication no. 506.763/24

Electrical system Marea-Marea Weekend
Radio System 2000 range Q
55.

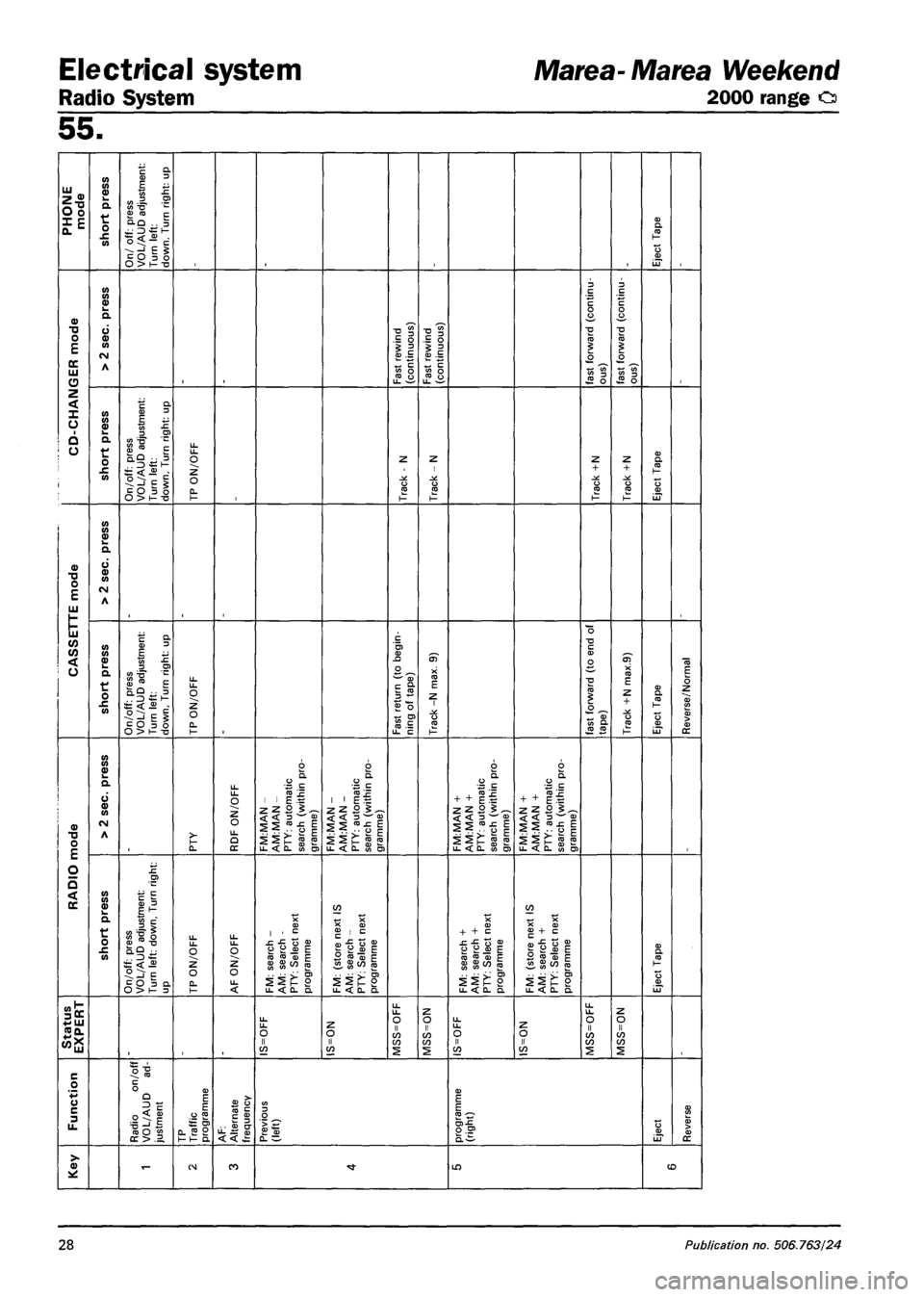

PHONE mode
short press
On/ off:
press
VOL/AUD
adjustment:
Turn left: down.
Turn right: up
Eject
Tape
CD-CHANGER
mode > 2 sec. press Fast
rewind
(continuous) Fast rewind (continuous) fast
forward
(continu­
ous) fast
forward (continu­
ous)
CD-CHANGER
mode
short
press
On/off:
press
VOL/AUD
adjustment:
Turn left: down.
Turn right: up
TP ON/OFF Track - N Track
- N
Track +N Track
+N
Eject
Tape
CASSETTE
mode > 2 sec.
press
CASSETTE
mode
short press
On/off: press VOL/AUD
adjustment:
Turn left: down.
Turn right: up
TP ON/OFF Fast
return (to begin­
ning of tape) Track
-N max. 9)
fast
forward (to end of
tape) Track
+N max.9)
Eject
Tape
Reverse/Normal
RADIO
mode
> 2 sec. press PTY RDF
ON/OFF
FM:MAN
-
AM:MAN
-
PTY:
automatic
search
(within
pro­
gramme) FM:MAN
-
AM:MAN
-
PTY: automatic search
(within
pro­
gramme) FM:MAN
+
AM:MAN
+
PTY: automatic search
(within
pro­
gramme) FM:MAN
+
AM:MAN
+
PTY: automatic search
(within
pro­
gramme)
RADIO
mode
short press
On/off: press VOL/AUD
adjustment:
Turn left:
down.
Turn right:
up TP ON/OFF AF ON/OFF FM: search -AM: search -PTY: Select next programme FM: (store next IS AM: search -PTY: Select next programme FM: search + AM: search + PTY: Select next programme FM: (store next IS AM: search + PTY: Select next programme Eject
Tape
Status EXPERT
Li-Li. O II CO
z o ii CO
LL U_ O II CO CO 5
z o II CO CO
LL LL O II to
z o II CO
LL U_ O II to CO MSS=0N
Function Radio
on/off
VOL/AUD
ad­
justment TP Traffic programme AF: Alternate frequency Previous (left) programme (right) Eject Reverse
Key CM LO CD

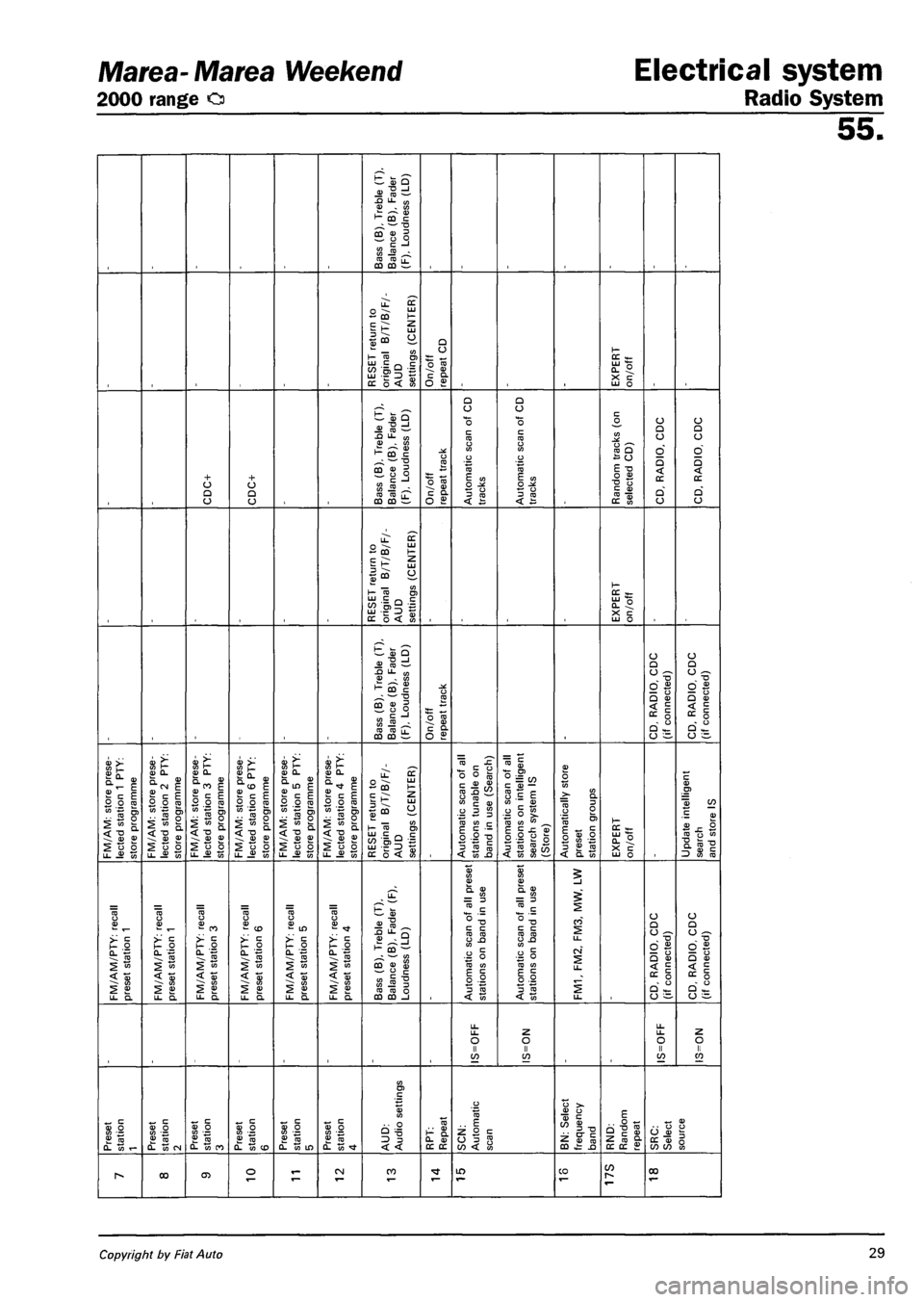

28 Publication no. 506.763/24

Marea- Marea Weekend Electrical system
2000 range o Radio System
55.
Bass (B),
Treble
(T).
Balance (B), Fader (F), Loudness (LD)
RESET return to original
B/T/B/F/-
AUD settings
(CENTER)
On/off repeat CD EXPERT on/off
CDC+ CDC+ Bass (B),
Treble
(T),
Balance (B), Fader (F), Loudness (LD) On/off repeat track Automatic
scan of CD
tracks Automatic
scan of CD
tracks Random
tracks (on
selected CD) CD,
RADIO,
CDC
CD,
RADIO,
CDC
RESET
return to
original
B/T/B/F/-
AUD settings
(CENTER)
EXPERT on/off
Bass (B),
Treble
(T),
Balance (B), Fader (F), Loudness (LD) On/off repeat track CD,
RADIO,
CDC
(if connected) CD,
RADIO,
CDC
(if connected)
FM/AM:
store prese­
lected
station 1 PTY:
store
programme
FM/AM:
store prese­
lected
station 2 PTY:
store programme FM/AM:
store prese­
lected
station
3 PTY:
store
programme
FM/AM:
store prese­
lected
station 6 PTY:
store programme FM/AM:
store prese­
lected
station
5 PTY.
store programme FM/AM:
store prese­
lected
station
4 PTY:
store
programme
RESET return to original
B/T/B/F/-
AUD settings
(CENTER)
Automatic
scan
of all
stations tunable on band
in use
(Search)
Automatic
scan of all
stations on intelligent search
system IS
(Store) Automatically
store
preset station
groups
EXPERT on/off Update
intelligent
search and store IS
FM/AM/PTY:
recall
preset
station
1
FM/AM/PTY:
recall
preset station 1 FM/AM/PTY:
recall
preset station 3 FM/AM/PTY:
recall
preset station 6 FM/AM/PTY:
recall
preset station 5 FM/AM/PTY:
recall
preset station 4 Bass (B),
Treble
(T),
Balance (B), Fader (F), Loudness (LD) Automatic
scan of all preset
stations on
band
in use
Automatic scan of all preset stations on
band
in use
g _l g
CO u_ CN Li¬I Li-CD,
RADIO,
CDC
(if connected) CD,
RADIO,
CDC
(if connected)
IS=0FF
z o u CO IS=OFF
z o II CO
Preset station Preset station Preset station 3 Preset station 6 Preset station 5 Preset station 4 AUD: Audio
settings
RPT: Repeat SCN: Automatic scan BN: Select frequency band RND: Random repeat SRC: Select source
r^ CO CO o CN CO •3-ir> *— co 17S CO T
Copyright by Fiat Auto 29
