automatic FIAT MAREA 2001 1.G Workshop Manual

marea-marea vvvttnviiu miruuuCuuu ciilu iwnniCai data
2000 range © Index
00.
page
INTRODUCTION
- Identification data 1
- Weights 3
- Performance - Fuel consumption 4
- Dimensions 5
- Capacities 7
- Product specifications
FL Group 9
TECHNICAL DATA
Engine l^^) lev |^^) 20v
- Specifications 10
- Typical curves 11
- Cylinder block/crankcase and associ­
ated components 12
- Auxiliary shaft 17
- Cylinder head and valve gear compo­
nents 18
- Timing diagrams 22
- Counter-balance shaft 23
- Lubrication 24
- Cooling system 26
- Fuel feed system 26
- Special tools 27
Engine I^^JJTD
- Specifications 29
- Timing diagrams 30
- Supercharging 31
CLUTCH 32
GEARBOX AND DIFFERENTIAL 33
AUTOMATIC TRANSMISSION DIF­
FERENTIAL 35
BRAKING SYSTEM 36
STEERING 39
WHEELS 40
FRONT SUSPENSION 42
REAR SUSPENSION 44
ELECTRICAL EQUIPMENT 46
- Ignition 47
1 - Recharging 48
- Electronic injection/ignition 50
Copyright by Fiat Auto

Marea- Marea Weekend
2000 range @
Introduction
Weights
ENGINE TYPE
16v 20v
OO.o
Marea
Marea Weekend
+590=
(575)' ¥¥¥¥¥
Marea
+595=
(580)*
Marea Weekend
mrirnT
1140
1165 (•)
1200
1225 (•)
1730
1755 (T)
1795
1820 (T)
1255
1315
1830
1895
1000 1000
Permissible loads on the axles
1000 1000
Maximum permitted load on roof 80 80
Load on tow hook ball
(trailer with braking system) 70 70
Without braking
system 400 400
With braking
system 1200 1300
(1400)«
I Loads that should never be exceeded
(*) Specific figures for 1998 20v version
(•) Specific figures for the Marea Weekend
(T) Specific figures for the 1596 16v automatic transmission version
NOTE FOR VERSIONS WITH ACCESSORIES: In the presence of special equipment (non standard air conditioning, sun
roof, trailer towing device, etc.), the empty weight increases and therefore the carrying capacity may decrease in relation to
the maximum permissible loads.
Copyright by Fiat Auto 3

Marea-Marea Weekend
2000 range (§)
Introduction
Product characteristics FL Group
OO.o
Name of
product
Description
International designation Application
SELENIA 20K
Synthetic SAE 10W40 multigrade engine oil.
Exceeds specifications ACEA A3-96/CCMC G5 and API
SJ
SELENIA
PERFORMER
Synthetic SAE 5W-30 multigrade engine oil. Exceeds
specifications ACEA A1 and API SJ
Temperatures below
- 20°C
SELENIA
Turbo Diesel
Synthetic SAE 10W40 multigrade engine oil
Exceeds specifications ACEA B3 and API CD
SELENIA
WR DIESEL
Synthetic SAE 5W-40 multigrade engine oil. Exceeds
specifications ACEA B3 and API CF
Temperatures below
- 15°C
TUTELA CAR
ZC 75 SYNTH
SAE 75W-80 EP oil. Satisfies standards MIL-L-2105 D
LEV and API GL 5
Manual gearboxes and
differentials
TUTELA Gl/A «ATF DEXR0N II D LEV» SAE 10W type oil for hydraulic
power assisted steering
Hydraulic power as­
sisted steering
TUTELA GI/2 « ATF DEXRON II D LEV» SAE 10W type oil for auto­
matic transmissions
Automatic
gearboxes
TUTELA MRM2 Water repellant, lithium soap based grease containing
molybdenum disulphide, consistency NLGI = 2 Constant velocity joints
TUTELA TOP 4 Synthetic fluid NHTSA n° 116 D0T4, ISO 4925, SAE
J-1703 and CUNA NC 956-01
Hydraulic brakes and
hydraulically operated
clutches
DP1 Mixture of alcohol, water and surface active agents
CUNA NC 956-11
To be used undiluted
or diluted in windscreen
washer systems
Paraflu11
Anti-freeze for cooling systems with mono-ethylene gly­
col base
CUNA NC 956-16
Cooling circuits
Percentage to be used
50% up to -35°C
Diesel Mix Additive for diesel fuel with protective action for Die­
sel engines
To be mixed with die­
sel fuel (25 cc per 10
litres)
Copyright by Fiat Auto 9

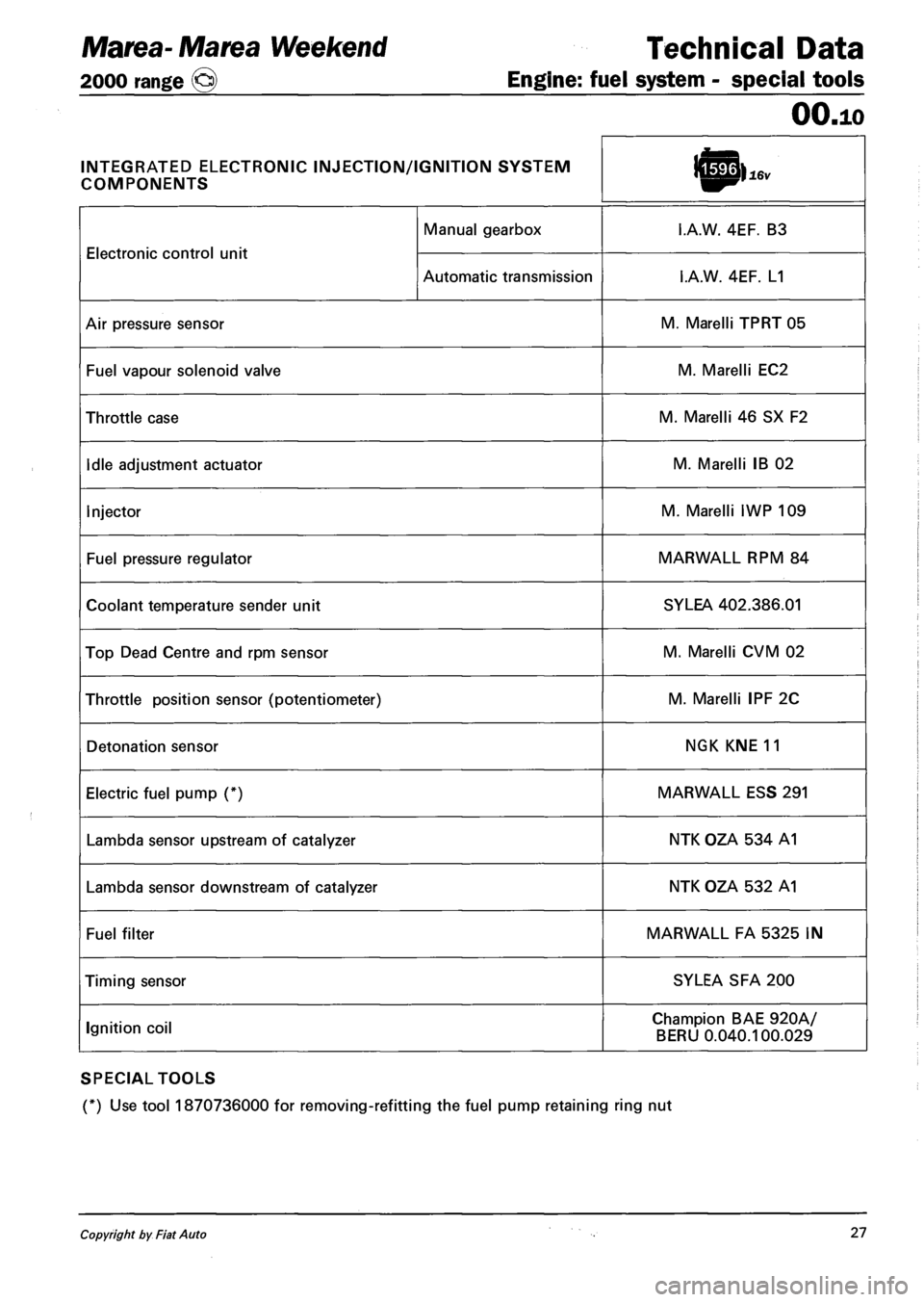

Marea-Marea Weekend Technical Data
2000 range (j§) Engine: fuel system - special tools
OO.io
INTEGRATED ELECTRONIC INJECTION/IGNITION SYSTEM
COMPONENTS
Electronic control unit
Manual gearbox I.A.W. 4EF. B3
Electronic control unit
Automatic transmission I.A.W. 4EF. L1
Air pressure sensor M. Marelli TPRT 05
Fuel vapour solenoid valve M. Marelli EC2
Throttle case M. Marelli 46 SX F2
Idle adjustment actuator M. Marelli IB 02
Injector M. Marelli IWP 109
Fuel pressure regulator MARWALL RPM 84
Coolant temperature sender unit SYLEA 402.386.01
Top Dead Centre and rpm sensor M. Marelli CVM 02
Throttle position sensor (potentiometer) M. Marelli IPF 2C
Detonation sensor NGK KNE 11
Electric fuel pump (*) MARWALL ESS 291
Lambda sensor upstream of catalyzer NTK OZA 534 A1
Lambda sensor downstream of catalyzer NTK OZA 532 A1
Fuel filter MARWALL FA 5325 IN
Timing sensor SYLEA SFA 200
Ignition coil Champion BAE 920A/
BERU 0.040.100.029
SPECIAL TOOLS
(*) Use tool 1870736000 for removing-refitting the fuel pump retaining ring nut
Copyright by Fiat Auto 27

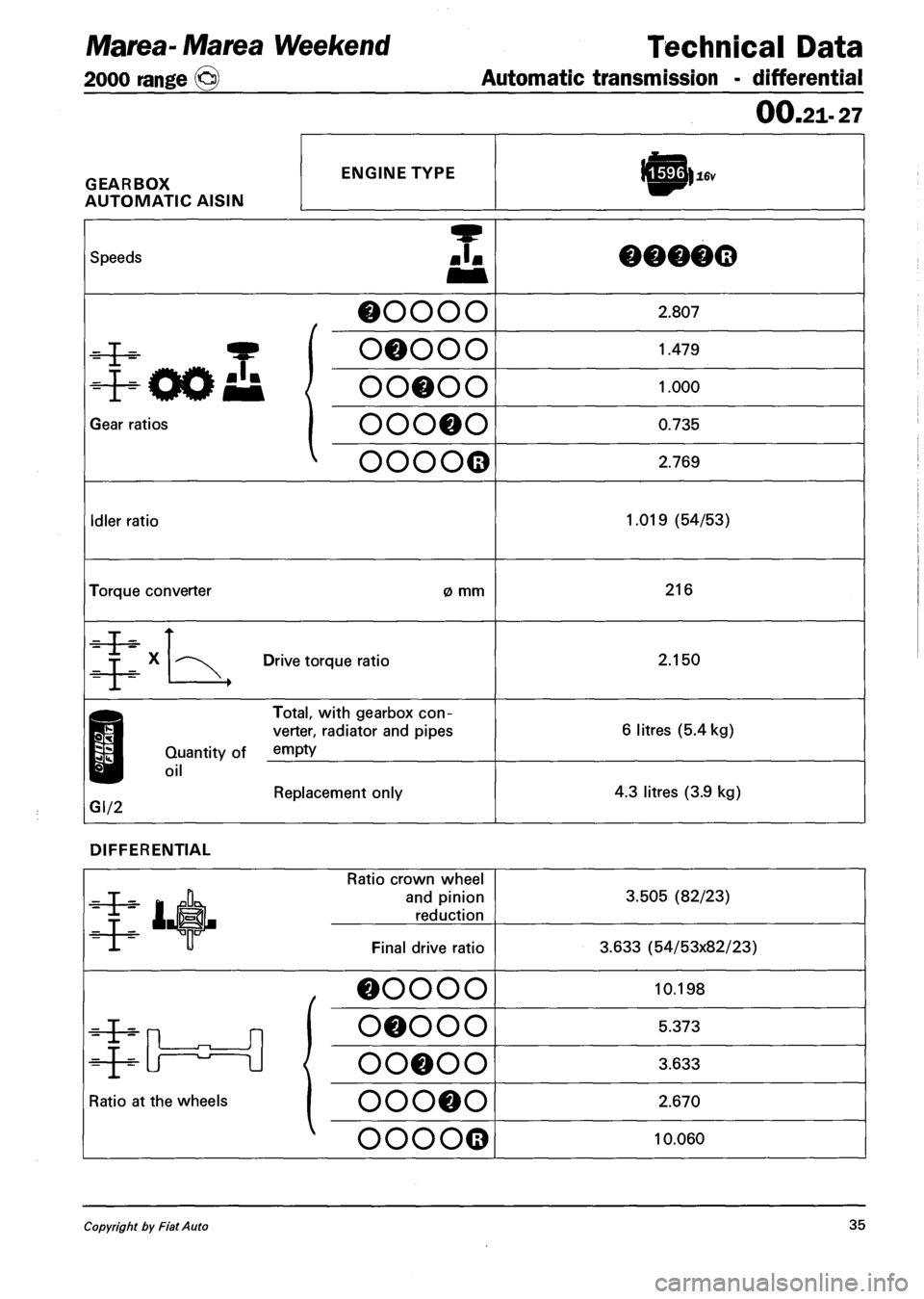

Marea- Marea Weekend
2000 range (§)
Technical Data
Automatic transmission - differential
GEARBOX
AUTOMATIC AISIIM
ENGINE TYPE
00.21-27
Speeds .1. ooooq
ooooo
.1,
OOOOO
ooooo
Gear ratios OOOOO
oooo©
2.807
1.479
1.000
0.735
2.769
Idler ratio 1.019 (54/53)
Torque converter 0 mm 216
T X Drive torque ratio 2.150
Quantity of
oil
Total, with gearbox con­
verter, radiator and pipes
empty
GI/2 Replacement only
6 litres (5.4 kg)
4.3 litres (3.9 kg)
DIFFERENTIAL
Ratio crown wheel
and pinion
reduction
Final drive ratio
3.505 (82/23)
3.633 (54/53x82/23)
OOOOO
OOOOO
OOOOO
Ratio at the wheels OOOOO
OOOO©
10.198
5.373
3.633
2.670
10.060
Copyright by Fiat Auto 35

Technical Data Marea
Braking system 2000 range ©
00.33
FRONT BRAKES
Values in mm
0
Disc
permitted
257
11.80-12.10
11.10
10.20
19.80-20.10
18.55
18.20
1
Brake
pads permitted 1.5
0 Shoe 0 54
jgg^^^^L^^ Master cylinder
*^i?f (pur jmp) 0 22.225 (7/8")
Brake servo
Iso-Vac 8"
pneumatic vacuum
acting on all four wheels
f j..J Distance of hydraulic
piston control rod
\ \ from master cylinder
—>4k- support plate
22,45 - 22,65
(*) For version with automatic transmission
REAR BRAKES
1
203.10 - 203.40
1 Drum 0 204.10
\ ^> permitted 204.70
l°\ /°] Shoes S .„ .
vwy <^ permitted 1.5
^^^J^ Cylinders 0 22.00
( Pressure
Reduction 1 regulators (•) 0.36 -
rat'° j Load proportioing
I valves (•) -0.36
(•) Not fitted on versions with ABS
36 Print n° 506.763/23

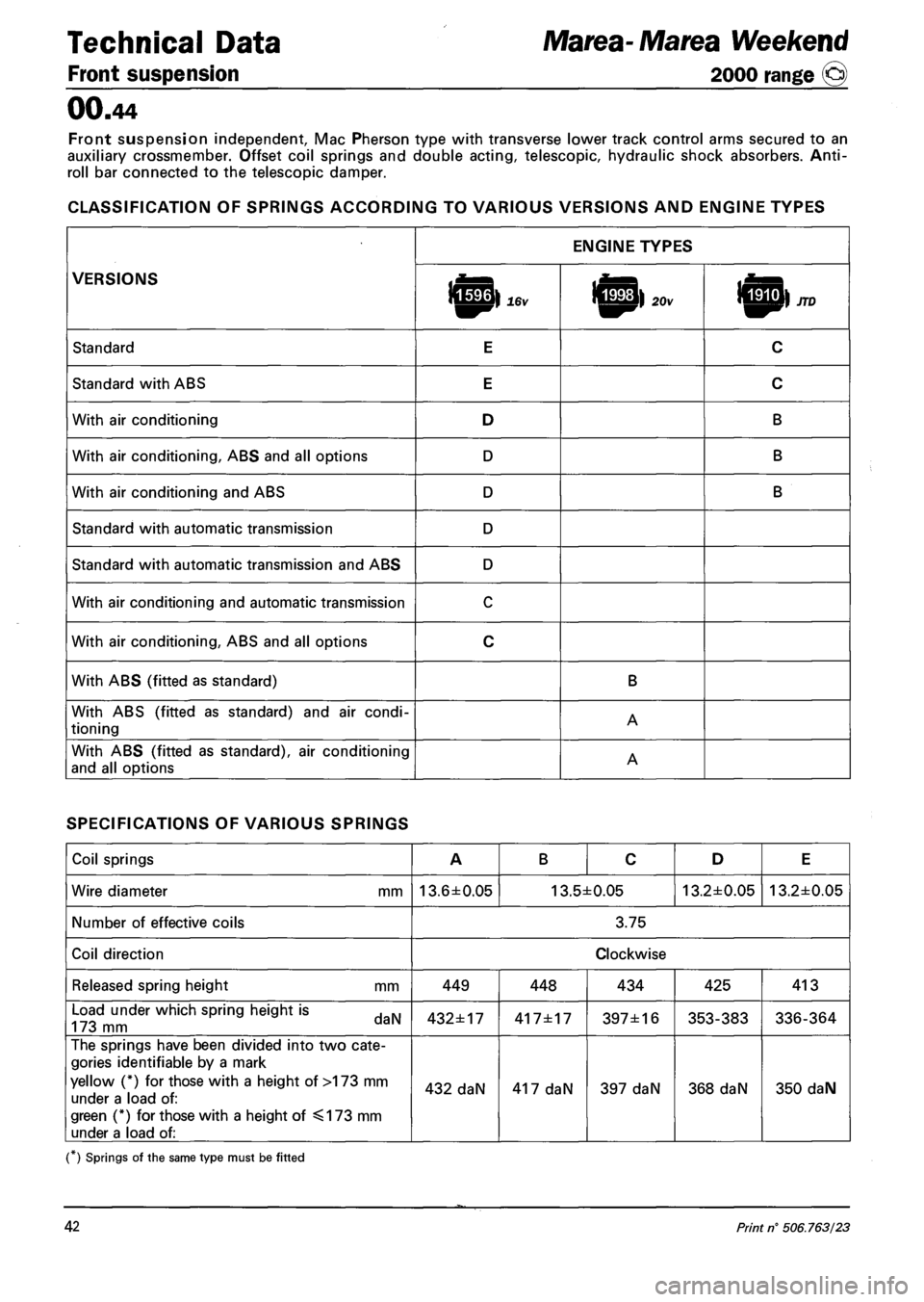

Technical Data
Front suspension
Marea- Marea Weekend
2000 range @
00.44
Front suspension independent, Mac Pherson type with transverse lower track control arms secured to an
auxiliary crossmember. Offset coil springs and double acting, telescopic, hydraulic shock absorbers. Anti-
roll bar connected to the telescopic damper.
CLASSIFICATION OF SPRINGS ACCORDING TO VARIOUS VERSIONS AND ENGINE TYPES
VERSIONS
ENGINE TYPES
VERSIONS
Standard E C
Standard with ABS E C
With air conditioning D B
With air conditioning, ABS and all options D B
With air conditioning and ABS D B
Standard with automatic transmission D
Standard with automatic transmission and ABS D
With air conditioning and automatic transmission C
With air conditioning, ABS and all options C
With ABS (fitted as standard) B
With ABS (fitted as standard) and air condi­
tioning A
With ABS (fitted as standard), air conditioning
and all options A
SPECIFICATIONS OF VARIOUS SPRINGS
Coil springs A B C D E
Wire diameter mm 13.6±0.05 13.5±0.05 13.2±0.05 13.2±0.05
Number of effective coils 3.75
Coil direction Clockwise
Released spring height mm 449 448 434 425 413
Load under which spring height is .
173 mm am 432±17 417±17 397±16 353-383 336-364
The springs have been divided into two cate­
gories identifiable by a mark
yellow (*) for those with a height of >173 mm
under a load of:
green (*) for those with a height of <173 mm
under a load of:
432 daN 417 daN 397 daN 368 daN 350 daN
( ) Springs of the same type must be fitted
42 Print n° 506.763/23

Technical Data Marea-Marea Weekend
Electrical equipment: electronic injection- ignition 2000 range ©)
00.55
INTEGRATED ELECTRONIC
INJECTION/IGNITION SYSTEM r^p) lev
Make I.A.W. M.P.I. WEBER - MARELLI
Firing order 1-3-4-2
INJECTION/IGNITION CONTROL UNIT
Make and versions with manual gearbox I.A.W. 4EF. B3
type versions with automatic transmission I.A.W. 4EF. L1
IGNITION COIL WITH 4 HIGH TENSION INTAKES
Make Champion
Type BAE 920 A
Ohmic resistance of primary winding at 20°C Q 0.580
Ohmic resistance of secondary winding at 20°C Q 9100
SPARK PLUGS
Make and type NGK BKR5EZ
CHAMPION RC10YCC
Thread on engine M14x1.25
Spark gap mm 0.8
TOP DEAD CENTRE AND RPM SENSOR
Make M. Marelli
Type CVM 02
Sensor winding resistance at 20°C Q 575-750
Distance (gap) between sensor and
crankshaft pulley tooth 0.5 + 1.5
ADVANCE ON ENGINE
With engine idling 700±50/min 4°
50 Print n° 506.763/23

Electrical system
Junction unit
Marea- Marea Weekend
2000 range ©
55. 55.
DESCRIPTION OF WIRING AND CONNECTORS (cont)
CONNECTOR G
N.
No.
Wiring
colour Circuit involved
1 HB Right number plate light (without check panel)
2 -N.C.
3 AR Rear view mirror power supply
4 -N.C.
5 A Right rear turn signal
6 BN Left reversing light (only Marea)
7 B Right reversing light
8 GN Left rear side light (without check panel)
9 RG Rear courtesy light power supply (left for Marea Weekend)
10 RN Remote control receiver power sup­ply
11 RN Front courtesy light power supply
12 RN Right rear courtesy light power sup­ply (Marea Weekend)
CONNECTOR 1
N. No. Wiring
colour Circuit involved
1 AN Hazard warning light power supply
2 CB + 15 power supply from ignition
3 -N.C.
4 CB Stalk unit power supply
5 C Power supply, windscreen wiper
6 N Earth
7 LN Horn signal
8 AG + 15 power supply from ignition (start-up excluded)
9 AB Hazard warning light power supply
10 AB Hazard warning lights and instru­ment panel power supply (from January 2001)
11 AB Hazard warning light power supply
12 AR Turn signal power supply
13 R Instrument panel power supply
14 -N.C.
CONNECTOR H
N.
No.
Wiring
colour Circuit involved
1 AN Right turn signal warning light
2 C Power supply, door lock, radio
3 AN Right turn signal control
4 RN Right brake light (versions with Check Panel)
5 A Left turn signal control
6 A Left turn signal control
7 A Left turn signal warning light
8 AN Right turn signal control
9 RV Brake light control (versions with
Check Panel)
10 MN Mirror demister control
CONNECTOR J
N.
No.
Wiring colour Circuit involved
1 RG Left brake light (versions with check
panel)
2 AG Alarm and instrument panel power
supply (to December 2000)
3 GN Side light warning light, switch panel lighting, automatic transmis­sion control lighting
4 BC Rear window control
5 R Power supply, radio
6 LB Main beam warning light
7 RV Radio phone power supply
8 -N.C.
9 R Radio power supply
10 GN Radio lighting
11 GN Instrument lighting dimmer
12 GN Cigar lighter lighting
6 Publication no. 506. 763/24

Marea-Marea Weekend Electrical system
2000 range @ Junction unit
55.
LIST OF FUSES AND MAJOR PROTECTED CIRCUITS
Fuse
No. Amp Symbol Protected circuit Fuse
No. Amp Symbol Protected circuit
1 ion SERVIZI SERVICES
Brake light - Supple­
mentary brake light -
Turn signal - Instrument
power supply
6 10 ID Right main beam
headlamp
7 10 ID
Left main beam
headiamp - main beam
headlamp warning light
Right front side light -
Left rear side light
Right number plate light
- Radio light - Instru­
8 20 0*
Radio - Door lock -
Boot light
2 10 3> ment dimmer lighting -
Side light warning light -
Cigarette lighter light -
Switch panel light -
9 10 A
Hazard warning lamps -
Instrument power supply
(from January 2001)
Automatic transmission
control light - Carphone
light - heater/air condi­
tioner control lighting 10 10 SERVIZI SERVICES
Internal lights (front and
back) - Instrument sup­
ply (to December 2000)
- remote control receiver
and alarm control unit
supply - Car phone
power supply - Tester
output power supply
3 10 -;o oi-
left front side light
Right rear side light -Left
11 30 Heated rear windscreen
- Mirror demisting
3 10 -;o oi-number plate light
Mirror control light -12 30 8
Car interior climate con­
trol fan motor (air con­
ditioned).
lO Right dipped beam
headlamp
13 20 Air conditioner control
unit - horns
4 10 lO Right dipped beam
headlamp
14 20
Windscreen wiper - Rear
windscreen wiper
Windscreen / Rear wind­
screen wiper - Headlamp
washer intermittence
5 10 %o
Left dipped beam
headlamp - Headlamp
alignment corrector
Headlamp washers inter-
mittence
15 20 La
Air conditioner control
unit - Car interior cli­
mate control fan motor
(heated).
(*) Replaced with 15A if tow-hook installed.
Copyright by Fiat Auto XII 00 - Supersedes previous version 7
