Marea- Marea Weekend Summary
TECHNICAL SERVICE MANUAL COMPOSITION
At present, June 2001, the Marea-Marea Weekend 4th volume manual is composed of the following
sections
Print N° Sections Page
Nos. Notes
506.763/18
(XI/1999)
00 1 - 12 Marea bipower technical data (99 range)
506.763/18
(XI/1999) 10 1 - 59 Marea bipower fuel system (99 range) 506.763/18
(XI/1999)
55 1 - 2 Marea bipower wiring diagram (99 range)
506.763/21
(IX/2000) 10
1 - 38 Marea bipower (99 range) fault diagnosis
506.763/21
(IX/2000) 10
60 - 61
Marea bipower (99 range) fuel system
Replacing solenoid valve on methane canister
506.763/23
(IX/2000)
00 1 - 51 2000 range technical data
506.763/23
(IX/2000)
10
1 - 7 Fuel system l^pl i6v 2000 range
506.763/23
(IX/2000)
10
1 - 7 Fuel system l^pt 20v 2000 range 506.763/23
(IX/2000)
50 1 - 4 2000 range climate control
506.763/23
(IX/2000)
55
1 - 18 2000 range electrical equipment
506.763/23
(IX/2000)
55
1 - 141 2000 range wiring diagrams
506.763/24
(XII/2000)
00
15 - 16 2000 range technical data update
506.763/24
(XII/2000)
00
1 - 3 Marengo 2000 range technical data
506.763/24
(XII/2000)
10 1 - 29 Fuel system l^p) JTD 2000 range
506.763/24
(XII/2000)
55 5 - 8
19-52 2000 range electrical equipment update
Copyright by Fiat Auto

Summary Marea- Marea Weekend
Print N° Sections Page
Nos. Notes
506.763/24
(XI1/2000) 55
Index
11-14
27 - 28
47 - 48
83 - 88
99 - 100
103 - 104
2000 range wiring diagrams update
506.763/25
VI/2001)
00 1 - 2
Marea Weekend 1910 JTD - 100 CV Introduction -
Technical data 506.763/25
VI/2001)
10
5 - 6
25 - 26
29 - 37
1910 JTD 2000 range fuel system update
Print n° 506.763/25

Marea - Marea Weekend Summary
TECHNICAL SERVICE MANUAL COMPOSITION
As of December 2000, the Marea-Marea Weekend 4th volume manual is composed of the sections
listed below
Print N° Sections Page
Nos. Notes
506.763/18
(XI/1999)
00 1 - 12 Marea bipower technical data (99 range)
506.763/18
(XI/1999) 10 1 - 59 Marea bipower fuel system (99 range) 506.763/18
(XI/1999)
55 1 - 2 Marea bipower wiring diagram (99 range)
506.763/20
(IV/2000)
00 1 - 15 Marea GPL technical data
506.763/20
(IV/2000) 10 1 - 26 Marea GPL fuel system 506.763/20
(IV/2000)
55 1 - 9 Marea GPL wiring diagram
506.763/21
(IX/2000) 10
1 - 38 Marea bipower fault diagnosis (99 range)
506.763/21
(IX/2000) 10
60 - 61 Marea bipower fuel system (99 range)
Replacing solenoid on methane canister
506.763/23
(IX/2000)
00 1 - 50 2000 range technical data
506.763/23
(IX/2000)
10
1 - 7 2000 range lev fuel system
506.763/23
(IX/2000)
10
1 - 7 2000 range ^||) 20v fuel system 506.763/23
(IX/2000)
50 1-4 2000 range climate control system
506.763/23
(IX/2000)
55
1 - 18 2000 range electrical equipment
506.763/23
(IX/2000)
55
1 - 141 2000 range wiring diagrams
Copyright by Fiat Auto

Summary Marea-Marea Weekend
15 - 16 2000 range technical data update
00 00
1 - 3 2000 range Marengo technical data
506.763/24
10 1 - 29 Fuel system l|pl m> 2000 range
(XII/2000) 5 -8
19 -52 Updated 2000 range electrical equipment
55
Contents
11 - 14
27 - 28
47 - 48
83 - 88
99 - 100
103 - 104
Update to wiring diagrams - 2000 range
Publication no. 506.763/24

Marea- Marea Weekend Summary
TECHNICAL SERVICE MANUAL COMPOSITION
At present, September 2000, the Marea-Marea Weekend 4th volume manual is composed of the fol­
lowing booklets
Print N° Sections Page
Nos. Notes
506.763/18
(XI/1999)
00 1 - 12 Technical data on Marea bipower (99 range)
506.763/18
(XI/1999) 10 1 - 59 Marea bipower fuel system (99 range) 506.763/18
(XI/1999)
55 1 - 2
Marea bipower electrical equipment wiring diagrams (99
range)
506.763/20
(IV/2000)
00 1 - 15 Marea GPL technical data
506.763/20
(IV/2000) 10 1 - 26 Marea GPL fuel system 506.763/20
(IV/2000)
55 1 - 9 Marea GPL electrical equipment wiring diagram
506.763/21
(IX/2000) 10
1 - 38 Marea bipower fault diagnosis (99 range)
506.763/21
(IX/2000) 10
60 - 61
Marea bipower fuel system (99 range)
Replacing solenoid valve on methane canister
506.763/23
(IX/2000)
00 1 - 50 Technical data 2000 range
506.763/23
(IX/2000)
10
1 - 7 Fuel system @> 16v 2000 range
506.763/23
(IX/2000)
10
1 - 7 Fuel system l^l 20v 2000 range
506.763/23
(IX/2000)
50 1 - 4 Climate control system 2000 range
506.763/23
(IX/2000)
55
1 - 18 Electrical equipment 2000 range
506.763/23
(IX/2000)
55
1 - 141 Electrical equipment wiring diagrams 2000 range
Copyright by Fiat Auto

Marea-Marea Weekend Introduction
2000 range (§) Identification data
OO.o
CHASSIS ENGINE VERSION MAREA MAREA
WEEKEND
GEARBOX
CHASSIS ENGINE VERSION MAREA MAREA
WEEKEND 999
666
ZFA 185 000
182B6.000
185AXR1A 25 •
•
ZFA 185 000
182B6.000
185BXR1A 26 •
•
ZFA 185 000
182B6.000
185AXR11 27 •
•
ZFA 185 000
182B6.000
185BXR11 28 •
•
ZFA 185 000
185A8.000
185AXS1A29 •
•
ZFA 185 000
185A8.000
185BXS1A30 •
•
ZFA 185 000
186A6.000
185AXT1A 31 •
•
ZFA 185 000
186A6.000
185BXT1A 32 •
•
NOTE
This section deals with the EEC F3 2000 range engine types.
For the subjects not dealt with, refer to the Marea-Marea Weekend manual print n° 506.763 and subse­
quent updates.
Copyright by Fiat Auto 1

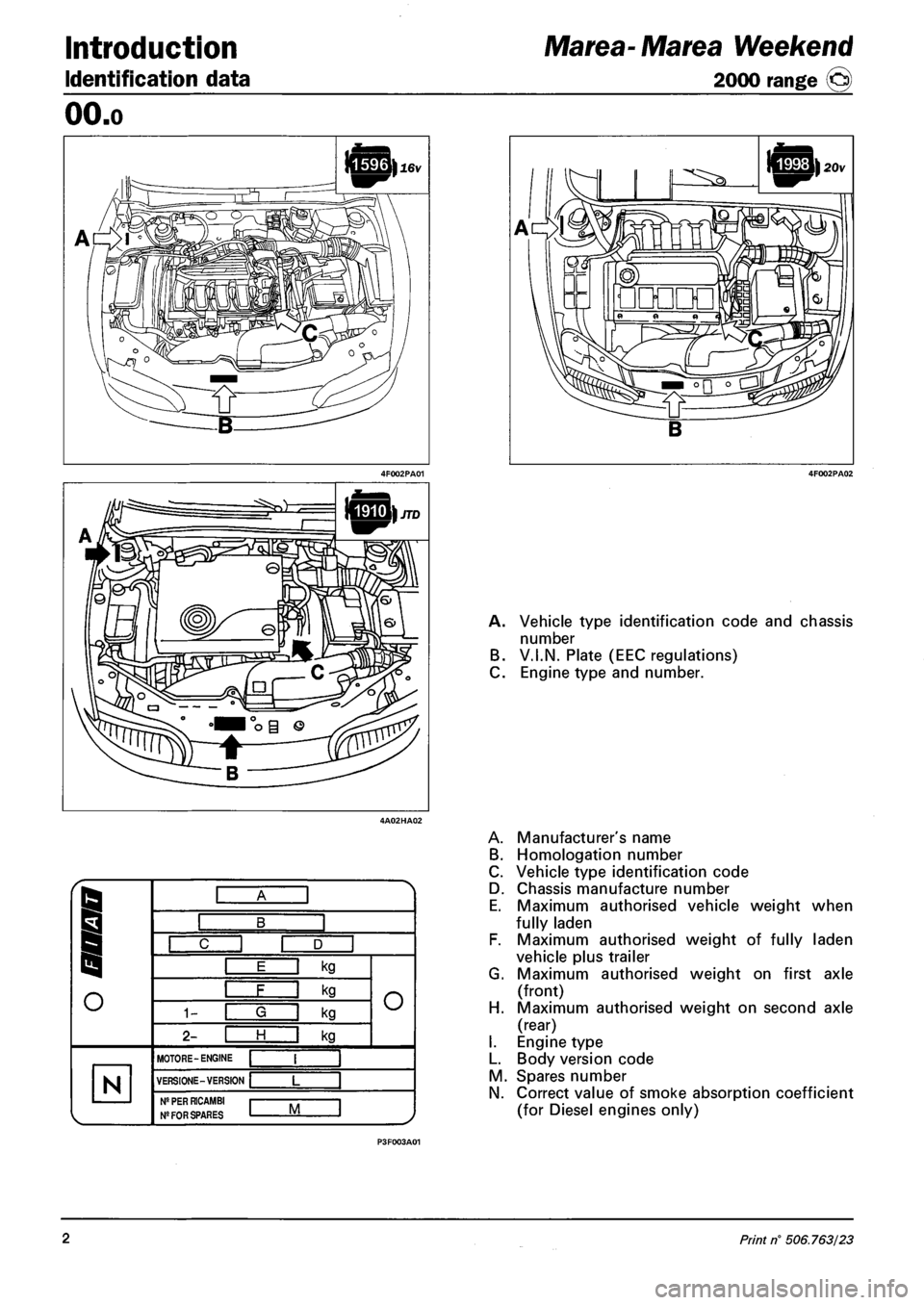

Introduction
Identification data
Matea- Marea Weekend
2000 range @)
I
o
N
kg
F ] kg
1-G ] kg
2- [ kg
o
M0TORE- ENGINE
VERSIONE-VERSION
N2 PER RICAMBI N8 FOR SPARES M
A. Vehicle type identification code and chassis
number
B. V.I.N. Plate (EEC regulations)
C. Engine type and number.
A. Manufacturer's name
B. Homologation number
C. Vehicle type identification code
D. Chassis manufacture number
E. Maximum authorised vehicle weight when
fully laden
F. Maximum authorised weight of fully laden
vehicle plus trailer
G. Maximum authorised weight on first axle
(front)
H. Maximum authorised weight on second axle
(rear)
I. Engine type
L. Body version code
M. Spares number
N. Correct value of smoke absorption coefficient
(for Diesel engines only)
2 Print n° 506.763/23

Marea- Marea Weekend
2000 range @
Introduction
Weights
ENGINE TYPE
16v 20v
OO.o
Marea
Marea Weekend
+590=
(575)' ¥¥¥¥¥
Marea
+595=
(580)*
Marea Weekend
mrirnT
1140
1165 (•)
1200
1225 (•)
1730
1755 (T)
1795
1820 (T)
1255
1315
1830
1895
1000 1000
Permissible loads on the axles
1000 1000
Maximum permitted load on roof 80 80
Load on tow hook ball
(trailer with braking system) 70 70
Without braking
system 400 400
With braking
system 1200 1300
(1400)«
I Loads that should never be exceeded
(*) Specific figures for 1998 20v version
(•) Specific figures for the Marea Weekend
(T) Specific figures for the 1596 16v automatic transmission version
NOTE FOR VERSIONS WITH ACCESSORIES: In the presence of special equipment (non standard air conditioning, sun
roof, trailer towing device, etc.), the empty weight increases and therefore the carrying capacity may decrease in relation to
the maximum permissible loads.
Copyright by Fiat Auto 3

Introduction
Performance - Fuel consumption
Marea-Marea Weekend
2000 range ©
OO.o
ENGINE TYPE
16v 16v C.A 20v JTD
Speed km/h (half laden)
(*) For Marea Weekend
46
80
124
173
187
(185)'
46
MAX
187
(185)*
59
94
139
182
208
(206)*
54
Max. clima-
ble gradient
fully laden
Marea 36 32 39
Marea Weekend 33 30 36
Urban
Out-of-town
Marea 11.2 12.2 13.7
Marea Weekend 11.3 12.4 13.8
Marea 6.3 6.7 7.6
Fuel consumption in accor­
dance with directive
1999/100/CE (litres/100 km) Combined
Marea Weekend 6.5 6.7 7.7
Marea 8.1 8.7 9.8
Marea Weekend 8.2 8.8 9.9
CO2 exhaust emissions (g/km)
Marea 192 207 234
Marea Weekend 195 210 237
The fuel consumption figures in accordance with directive 1999/100/CE have been defined during the course of homologation
tests which include:
- An urban cycle which includes a cold start followed by a simulated varied urban cycle.
- A non-urban cycle which includes frequent acceleration in all gears simulating normal out-of-town use of the vehicle.
The speed varies between 0 and 120 km/h.
- The average combined consumption includes 37% urban cycle and 63% non-urban cycle.
The type of route, traffic conditions, driving style, weather conditions, trim level/equipment/accessories, presence of special
equipment and the state of the vehicle in general can lead to different fuel consumption figures from those established
using the above mentioned procedures.
The CO2 exhaust emissions (in g/km) are measured during the average combined cycle.
4 Print n° 506.763/23

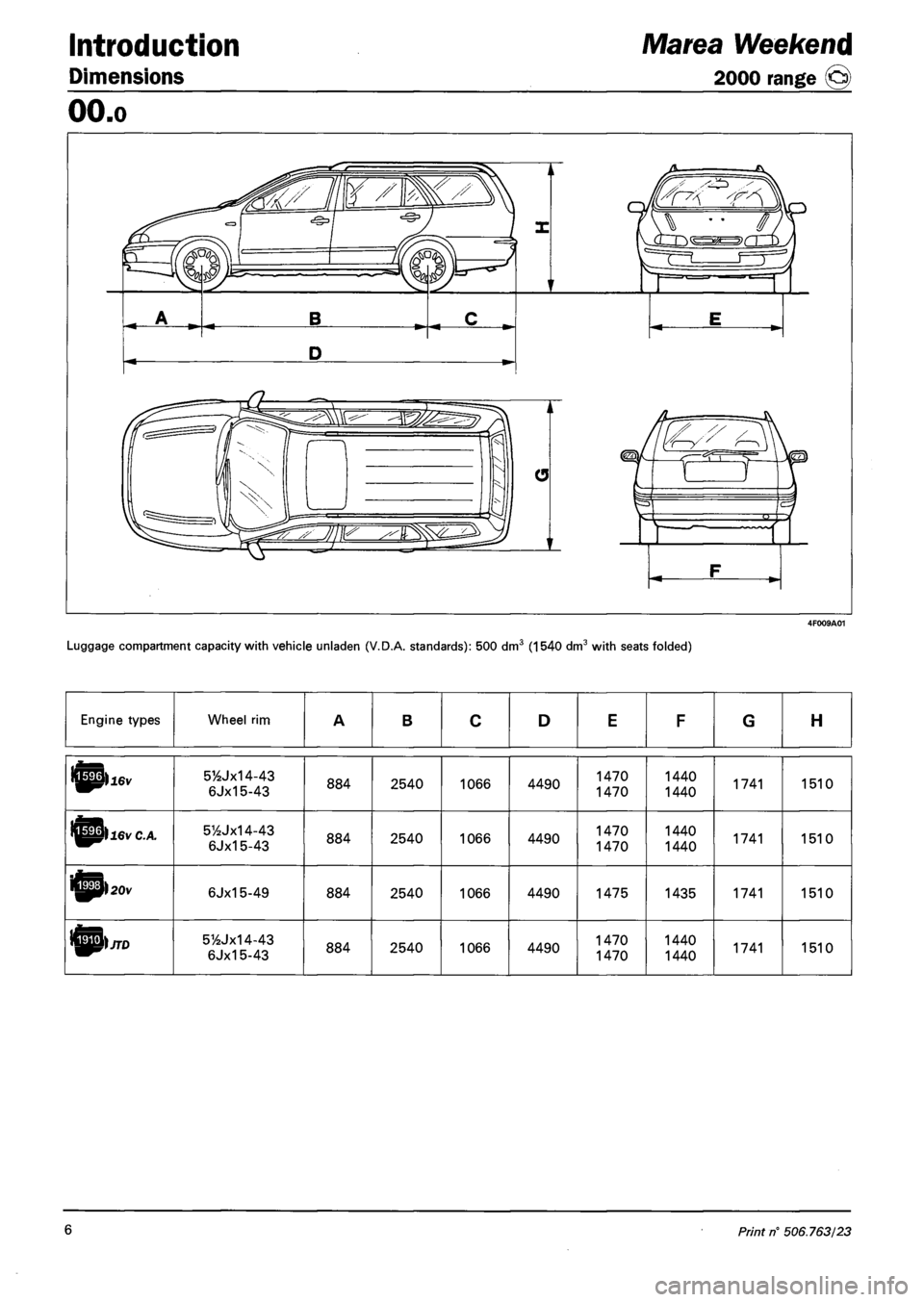

Introduction
Dimensions
Marea Weekend
2000 range @)
OO.o
Luggage compartment capacity with vehicle unladen (V.D.A. standards): 500 dm3 (1540 dm3 with seats folded)
Engine types Wheel rim A B C D E F G H
5Y2Jx14-43
6Jx15-43 884 2540 1066 4490 1470 1470 1440
1440 1741 1510
5%Jx14-43 6Jx15-43 884 2540 1066 4490 1470
1470 1440 1440 1741 1510
ifipl 20 v 6Jx15-49 884 2540 1066 4490 1475 1435 1741 1510
51/2Jx14-43
6Jx15-43 884 2540 1066 4490 1470
1470 1440 1440 1741 1510
6 Print rf 506.763/23
