dimensions FIAT MULTIPLA 2006 1.G Owners Manual

93
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0E0384m
FAILURE WARNINGS
In the event of failure, the ESP system is automatically disconnected and
the instrument panel warning light (A) comes on together with the
message on the display (see section “Warning lights and messages”).
In this case, go to a Fiat Dealership as soon as possible.
WARNINGDuring the use of the space-saver spare wheel, the ESP system carries on working.
However, you must remind that the space-saver spare wheel presents dimensions
smaller than the standard tyre and therefore its grip is reduced as to the other car
tyres.
For correct operation of the ESP system, the tyres must absolutely be of the same
brand and type on all wheels, in perfect conditions and, above all, of type, brand
and size specified.WARNING

233
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
IDENTIFICATION DATA ................................................. 234
ENGINE CODES - BODYWORK VERSIONS .............. 236
ENGINE ................................................................................. 237
FUEL FEED/IGNITION ....................................................... 238
TRANSMISSION .................................................................. 238
BRAKES .................................................................................. 239
SUSPENSIONS ..................................................................... 239
STEERING ............................................................................. 239
WHEELS ................................................................................. 240
DIMENSIONS ....................................................................... 244
PERFORMANCE ................................................................... 246
WEIGHTS ............................................................................... 247
CAPACITIES ......................................................................... 249
FLUIDS AND LUBRICANTS ........................................... 250
FUEL CONSUMPTION ....................................................... 252
CO
2EMISSIONS .................................................................. 253
RADIOFREQUENCY REMOTE CONTROL
MINISTERIAL HOMOLOGATION ................................. 254

244
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS

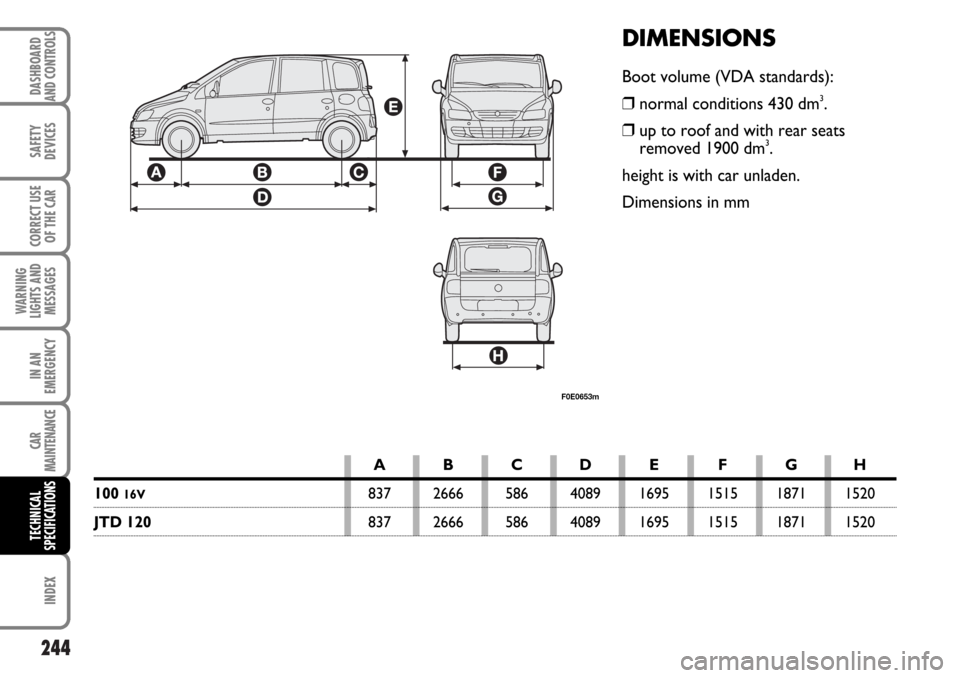

DIMENSIONS
Boot volume (VDA standards):
❒normal conditions 430 dm
3.
❒up to roof and with rear seats
removed 1900 dm
3.
height is with car unladen.
Dimensions in mm
F0E0653m
ABCDE FGH
100 16V837 2666 586 4089 1695 1515 1871 1520
JTD 120837 2666 586 4089 1695 1515 1871 1520

TECHNICAL
SPECIFICATIONS
257
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
– hazard lights................................ 65
– heated rear window ................. 65
– rear fog lights ............................. 65
Consumption
– engine oil ..................................... 215
– fuel ................................................ 252
Current sockets .............................. 70
Dashboard ....................................... 5
Demisting/defrosting................ 51-53-55
– rear window ............................... 51-53
– windscreen and windows ..... 51-53
Diesel fuel filter ............................... 221
Differential ........................................ 238
Dimensions ....................................... 244
Dipped beam headlights
– bulb replacement ...................... 187
– control ......................................... 59
Direction indicators
– control ......................................... 60
– front bulb replacement ............ 188
– rear bulb replacement ............. 190
– side bulb replacement .............. 188
Doors
– child safety device ..................... 75
– opening/closing .......................... 74
Fiat Code (system) ........................ 8
FIX & GO automatic
(quick tyre repair kit) .................. 175
Fluids and lubricants ....................... 250
Front fog lights ................................. 65
– bulb replacement ..................... 187
– control ......................................... 65
Fuel
– consumption ............................. 252
– fuel cut-off switch .................... 66
– gauge ........................................... 18
Fuel filler cap .................................... 108
Fuses replacement .......................... 194
Gearbox
– type............................................... 238
– use ............................................... 142
Glove compartments/oddment trays
– driver's side ................................ 67
– passenger's side ........................ 67
– under seat .................................. 68
– under sun visors ........................ 68
Handbrake ....................................... 141
Hazard lights .................................... 65
Headlights.......................................... 88
– adjusting the headlight beam .. 88
Electric windows ............................ 76
– front ............................................. 76
– rear ............................................... 77
Electrically controlled sunroof ..... 72
– controls ....................................... 73
– roof closure safety system ...... 72
Electronic alarm............................... 11
– deactivation ................................ 13
– operation .................................... 11
– programming .............................. 12
– self-test ........................................ 12
– when alarm is triggered ........... 14
Engine
– identification code..................... 236
– marking ........................................ 235
– technical data ............................. 237
Engine codes ..................................... 236
Engine coolant level ........................ 216
Engine compartment (washing) .... 231
Engine oil
– checking level ............................. 214
– consumption............................... 215
– specifications .............................. 249
EOBD system ................................... 96
ESP (system) ..................................... 92
