FIAT MULTIPLA 2006 1.G Owners Manual

Dear Customer,
Thank you for selecting Fiat and congratulations on your choice of a Fiat Multipla.
We have written this handbook to help you get to know all your new Fiat Multipla’s features and use it in the best possible way.
You should read it right through before taking the road for the first time.
You will find information, tips and important warnings regarding the driving of your car to help you derive the maximum from your
Fiat Multipla’s technological features.
You are recommended to read carefully the warnings and indications, marked with the respective symbols, at the end of the page:
personal safety;
the car’s wellbeing;
environmental protection.
The enclosed Fiat warranty booklet lists the Services that Fiat offers to its Customers:
❒the Warranty Certificate with terms and conditions for maintaining its validity
❒the range of additional services available to Fiat Customers.
Best regards and good motoring!
This Owner Handbook describes all Fiat Multipla versions.
As a consequence, you should consider only the information which is related to the engine
and bodywork version of the car you purchased.

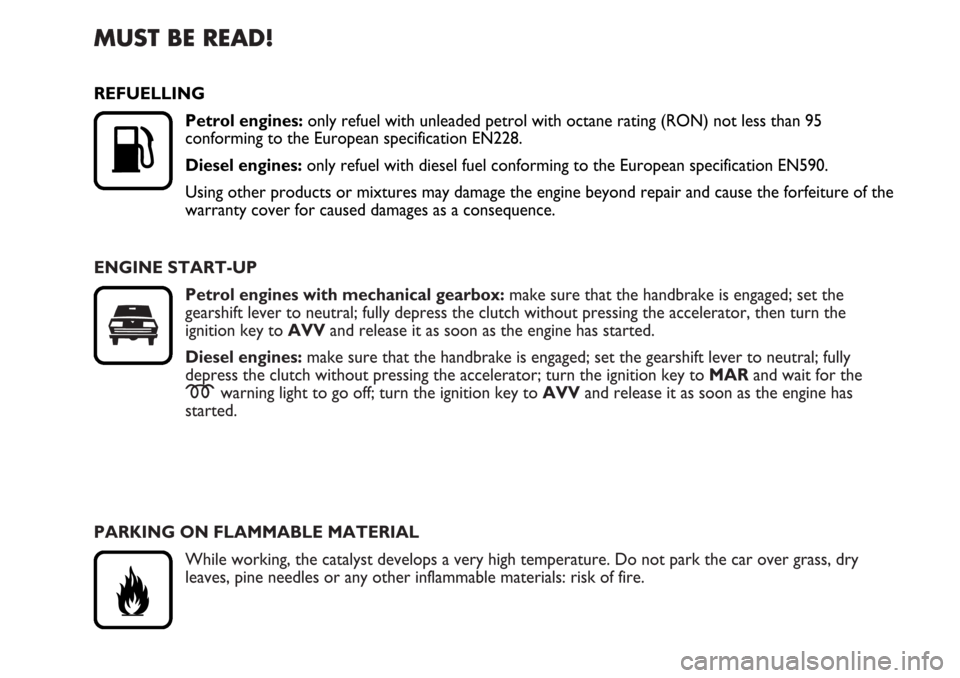

PARKING ON FLAMMABLE MATERIAL
While working, the catalyst develops a very high temperature. Do not park the car over grass, dry
leaves, pine needles or any other inflammable materials: risk of fire.
MUST BE READ!
ENGINE START-UP
Petrol engines with mechanical gearbox:make sure that the handbrake is engaged; set the
gearshift lever to neutral; fully depress the clutch without pressing the accelerator, then turn the
ignition key to AVVand release it as soon as the engine has started.
Diesel engines:make sure that the handbrake is engaged; set the gearshift lever to neutral; fully
depress the clutch without pressing the accelerator; turn the ignition key to MARand wait for the
mwarning light to go off; turn the ignition key to AVVand release it as soon as the engine has
started.

REFUELLING
Petrol engines:only refuel with unleaded petrol with octane rating (RON) not less than 95
conforming to the European specification EN228.
Diesel engines:only refuel with diesel fuel conforming to the European specification EN590.
Using other products or mixtures may damage the engine beyond repair and cause the forfeiture of the
warranty cover for caused damages as a consequence.
K

THE OWNER HANDBOOK CONTAINS …
…information, tips and important warnings regarding the safe, correct driving of your car, and its
maintenance. Pay particular attention to the symbols
"(personal safety) #(environmental protection)
(the car’s wellbeing).
SERVICE
Correct maintenance of the car is essential for ensuring it stays in tip-top condition and safeguards its
safety features, its environmental friendliness and low running costs for a long time to come. CODE card
Keep the code card in a safe place, not in the car. You should always keep the electronic code written
on the CODE card with you in case you need to carry out an emergency start-up procedure. ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical accessories (that will gradually drain the battery),
visit a Fiat Dealership. They can calculate the overall electrical requirement and check that the car’s
electric system can support the required load. RESPECTING THE ENVIRONMENT
The car is fitted with a system that allows continuous diagnosis of the components correlated with
emissions to ensure better respect for the environment.

U

4
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLSDASHBOARD ...................................................................... 5
SYMBOLS ............................................................................... 6
THE FIAT CODE SYSTEM ................................................ 6
THE KEYS .............................................................................. 8
ELECTRONIC ALARM ....................................................... 11
IGNITION SWITCH ........................................................... 15
INSTRUMENT PANEL ....................................................... 17
INSTRUMENTS .................................................................... 18
RICONFIGURABLE MULTIFUNCTION DISPLAY ..... 22
SEATS ..................................................................................... 41
HEAD RESTRAINTS ........................................................... 44
STEERING WHEEL ............................................................. 45
REARVIEW MIRRORS ........................................................ 46
HEATING/AND CLIMATE CONTROL SYSTEM ....... 48
HEATING AND VENTILATION ..................................... 50
MANUAL CLIMATE CONTROL SYSTEM ................... 52
AUTOMATIC CLIMATE CONTROL SYSTEM ............. 54
EXTERNAL LIGHTS ........................................................... 59
WINDOW CLEANING ..................................................... 61
CEILING LIGHT ................................................................... 63
CONTROLS .......................................................................... 65INTERIOR EQUIPMENT ................................................... 67
ELECTRICALLY CONTROLLED
DOUBLE SUNROOF ........................................................... 72
DOORS .................................................................................. 74
ELECTRIC WINDOWS ..................................................... 76
BOOT ..................................................................................... 78
BONNET ............................................................................... 85
ROOF RACK/SKI RACK ................................................... 87
HEADLIGHTS ....................................................................... 88
ABS SYSTEM .......................................................................... 90
ESP SYSTEM .......................................................................... 92
EOBD SYSTEM ..................................................................... 96
PARKING SENSORS ........................................................... 97
MULTIPLA VAN ................................................................... 99
SOUND SYSTEM ................................................................. 102
AT THE FILLING STATION ............................................. 107
PROTECTING THE ENVIRONMENT ........................... 109
D D
A A
S S
H H
B B
O O
A A
R R
D D
A A
N N
D D
C C
O O
N N
T T
R R
O O
L L
S S

5
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DASHBOARD
1 Fixed vent to send air to the side windows - 2 Adjustable and swivel air vents - 3 Horn - 4 Oddments tray -
5 Driver’s airbag - 6 Hazard light switch - 7 Instrument panel and warning lights - 8 Fixed air vent - 9 Adjustable and
swivel air vents - 10 Oddments tray - 11 Passenger’s airbag (where fitted) - 12 External light stalk - 13 Glove
compartment - 14 Bonnet lever - 15 Steering wheel adjustment lever - 16 Windscreen wiper/washer lever -
17 Headlight beam adjuster - 18 Gearshift lever - 19 Heating and ventilation controls - 20 Coin/credit card holder -
21 Cigar lighter and ashtray flap - 22 Current socket - 23 Oddment tray/glass holder

F0E0003m

6
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SYMBOLS
Special coloured labels have been attached near or actually on some of
the components of your Fiat Multipla. These labels bear symbols that
remind you of the precautions to be taken as regards that particular
component.
The plate summarising the symbols used (A) can be found under the
bonnet.
THE FIAT CODE SYSTEM
To further protect your car from attempted theft, it has been fitted with
an electronic engine immobiliser (Fiat CODE) which is automatically
activated when the ignition key is removed.
An electronic device, in fact, is fitted in each ignition key grip. The device
transmits a radio-frequency signal when the engine is started through a
special aerial built into the ignition switch. The modulated signal, which
changes each time the engine is started, is the password by means of
which the control unit recognises the key and enables to start the engine.
OPERATION
Each time the ignition key is removed from STOP, or PARK, the
protection system will immobilise the engine.
When the key is turned to MAR at engine startup:
❒If the code is acknowledged warning light (A)
¢on the instrument
panel will flash briefly; the code system has acknowledged the key code
and deactivates the engine immobiliser. When the key is turned to
AVV, the engine starts up.
F0E0657m
F0E0379m

The electronic components inside the key may be damaged if the key is submitted to sharp knocks.
7
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
❒If warning light ¢remains lit (together with
warning light
Uon petrol engine versions only) the
code is not acknowledged. Bring the key back to
STOP then onto MAR again. If it still remains
immobilised, try with another key.
If it is still not possible to start the engine, you will
have to use the emergency procedure (see section “In
an emergency”) and contact Fiat Dealership.
Starting up with ignition key at MAR:
❒If warning light
¢comes on, it means that the
system is making a self-test (e.g. for a voltage drop).
The first time you stop you can test the system:
switch off the engine turning the key to STOP; then
turn to MAR again: warning light
¢comes on and
should go out after about one second. If it remains
alight, repeat the operations described above,
leaving the key at STOP for more than 30 seconds. If the problem persists, go to a Fiat Dealership.
❒If warning light
¢flashes it means that the car is
not protected by the immobiliser. Contact a Fiat
Dealership immediately and get them to store the
codes of all the keys in the memory.
IMPORTANT The electronic components inside the
key may be damaged if the key is submitted to sharp
knocks.
IMPORTANT Each key handed over with the car has
its own code, different from all the others, which must
be stored in the memory of the system’s control unit.
To have new keys memorised (maximum seven) go to
a Fiat Dealership taking with you all the keys in your
possession, the CODE card, personal identification
and car documents.

8
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
All the keys and the CODE card must be handed over to the new owner when selling the car.
THE KEYS
CODE CARD
The car is delivered with:
❒key (B) and key (A) when the car is fitted with door remote control.
❒two copies of key (B) when the car is fitted with electronic alarm.
Keys are delivered with a CODE card that bears the following:
A - the electronic code to be used for emergency starting (see
“Emergency starting” in section “In an emergency”);
B - the mechanical key code to be given to the Fiat Dealership when
ordering duplicate keys;
C - spaces for any remote control stickers when the car is fitted with the
remote control option.
Make sure you have the electronic code of the CODE card with you at
all times in the event you have to perform an emergency start-up.
IMPORTANT In order to ensure perfect efficiency of the electronic
devices contained inside the keys, they should never be exposed to direct
sunlight.
F0E0005m
F0E0004m

9
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
KEY WITHOUT REMOTE CONTROL
Key (A) (delivered in one copy only) is the one to be used normally for:
❒starting up
❒locking/unlocking the doors
❒locking/unlocking the fuel cap
❒deactivating the passenger’s airbag.
Key (B), with built-in remote control, performs the same functions as key
(A) for cars fitted with door remote control and/or electronic alarm.
KEY WITH REMOTE CONTROL
The remote control built into the ignition key has a button (C) and a led
(D) (where required); the button activates the remote control and the
led flashes to show that the transmitter is sending the code to the
receiver. The remote control operates at radio-frequency.
Ministerial homologation
In accordance with the regulations in force in each country as concerns
radio-frequency, the following shall be pointed out: the specific
homologation numbers for each country are indicated in the last pages of
this handbook and for markets requiring transmitter code marking, the
homologation number is printed directly on the key grip.
F0E0600m
F0E0004m
