FIAT MULTIPLA 2007 1.G Bluetooth Manual

11

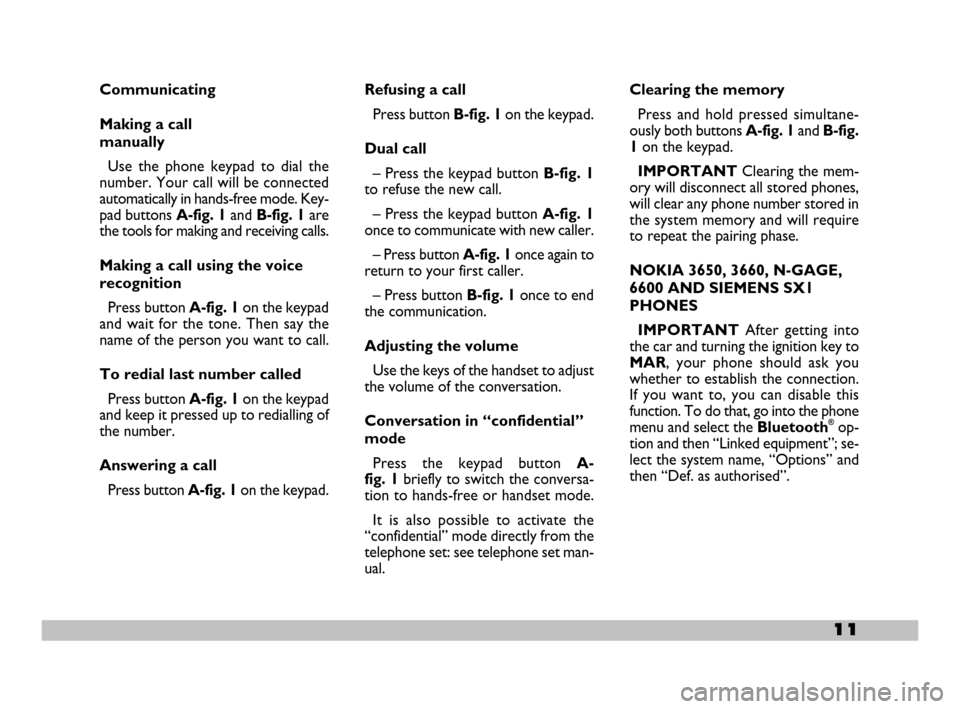

Communicating
Making a call
manually
Use the phone keypad to dial the
number. Your call will be connected
automatically in hands-free mode. Key-
pad buttons A-fig. 1and B-fig. 1are
the tools for making and receiving calls.
Making a call using the voice
recognition
Press button A-fig. 1on the keypad
and wait for the tone. Then say the
name of the person you want to call.
To redial last number called
Press button A-fig. 1on the keypad
and keep it pressed up to redialling of
the number.
Answering a call
Press button A-fig. 1on the keypad.Refusing a call
Press button B-fig. 1on the keypad.
Dual call
– Press the keypad button B-fig. 1
to refuse the new call.
– Press the keypad button A-fig. 1
once to communicate with new caller.
– Press buttonA-fig. 1once again to
return to your first caller.
– Press button B-fig. 1once to end
the communication.
Adjusting the volume
Use the keys of the handset to adjust
the volume of the conversation.
Conversation in “confidential”
mode
Press the keypad button A-
fig. 1briefly to switch the conversa-
tion to hands-free or handset mode.
It is also possible to activate the
“confidential” mode directly from the
telephone set: see telephone set man-
ual.Clearing the memory
Press and hold pressed simultane-
ously both buttons A-fig. 1andB-fig.
1on the keypad.
IMPORTANTClearing the mem-
ory will disconnect all stored phones,
will clear any phone number stored in
the system memory and will require
to repeat the pairing phase.
NOKIA 3650, 3660, N-GAGE,
6600 AND SIEMENS SX1
PHONES
IMPORTANTAfter getting into
the car and turning the ignition key to
MAR, your phone should ask you
whether to establish the connection.
If you want to, you can disable this
function. To do that, go into the phone
menu and select theBluetooth
®op-
tion and then “Linked equipment”; se-
lect the system name, “Options” and
then “Def. as authorised”.
603.83.430 Multipla Bluet GB 5-10-2007 15:17 Pagina 11

12

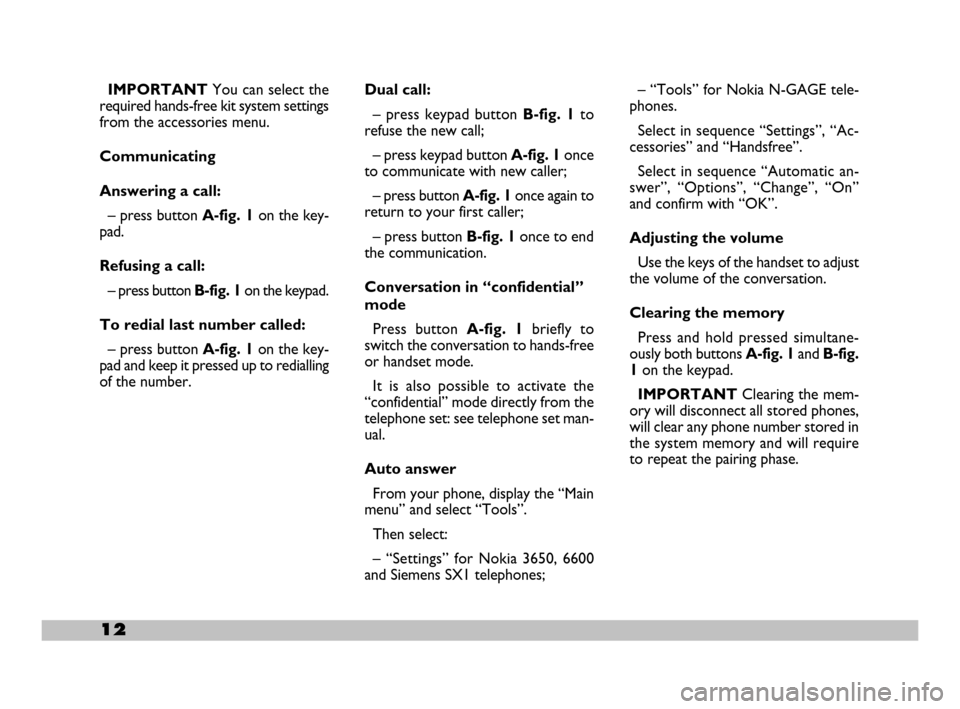

Dual call:
– press keypad button B-fig. 1to
refuse the new call;
– press keypad button A-fig. 1once
to communicate with new caller;
– press button A-fig. 1once again to
return to your first caller;
– press button B-fig. 1once to end
the communication.
Conversation in “confidential”
mode
Press button A-fig. 1briefly to
switch the conversation to hands-free
or handset mode.
It is also possible to activate the
“confidential” mode directly from the
telephone set: see telephone set man-
ual.
Auto answer
From your phone, display the “Main
menu” and select “Tools”.
Then select:
– “Settings” for Nokia 3650, 6600
and Siemens SX1 telephones;– “Tools” for Nokia N-GAGE tele-
phones.
Select in sequence “Settings”, “Ac-
cessories” and “Handsfree”.
Select in sequence “Automatic an-
swer”, “Options”, “Change”, “On”
and confirm with “OK”.
Adjusting the volume
Use the keys of the handset to adjust
the volume of the conversation.
Clearing the memory
Press and hold pressed simultane-
ously both buttons A-fig. 1and B-fig.
1on the keypad.
IMPORTANTClearing the mem-
ory will disconnect all stored phones,
will clear any phone number stored in
the system memory and will require
to repeat the pairing phase. IMPORTANTYou can select the
required hands-free kit system settings
from the accessories menu.
Communicating
Answering a call:
– press button A-fig. 1on the key-
pad.
Refusing a call:
– press button B-fig. 1on the keypad.
To redial last number called:
– press button A-fig. 1on the key-
pad and keep it pressed up to redialling
of the number.
603.83.430 Multipla Bluet GB 5-10-2007 15:17 Pagina 12

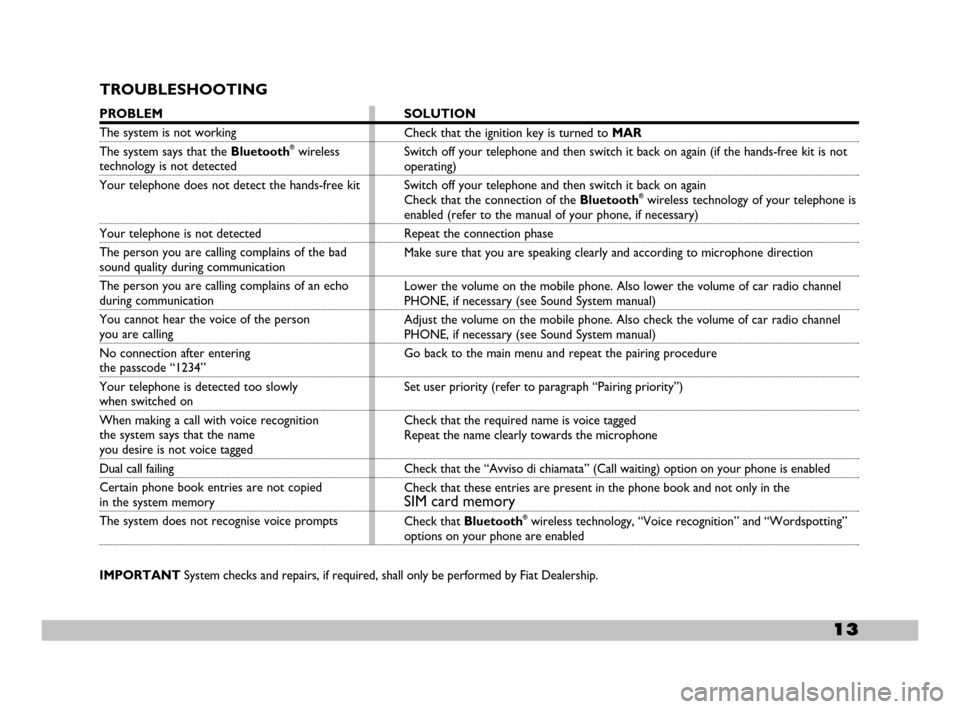

TROUBLESHOOTING
PROBLEM
The system is not working
The system says that the Bluetooth®wireless technology is not detected
Your telephone does not detect the hands-free kit
Your telephone is not detected
The person you are calling complains of the bad
sound quality during communication
The person you are calling complains of an echo
during communication
You cannot hear the voice of the person
you are calling
No connection after entering
the passcode “1234”
Your telephone is detected too slowly
when switched on
When making a call with voice recognition
the system says that the name
you desire is not voice tagged
Dual call failing
Certain phone book entries are not copied
in the system memory
The system does not recognise voice prompts
13
SOLUTION
Check that the ignition key is turned to MAR
Switch off your telephone and then switch it back on again (if the hands-free kit is not
operating)
Switch off your telephone and then switch it back on again
Check that the connection of the Bluetooth
®wireless technology of your telephone is
enabled (refer to the manual of your phone, if necessary)
Repeat the connection phase
Make sure that you are speaking clearly and according to microphone direction
Lower the volume on the mobile phone. Also lower the volume of car radio channel
PHONE, if necessary (see Sound System manual)
Adjust the volume on the mobile phone. Also check the volume of car radio channel
PHONE, if necessary (see Sound System manual)
Go back to the main menu and repeat the pairing procedure
Set user priority (refer to paragraph “Pairing priority”)
Check that the required name is voice tagged
Repeat the name clearly towards the microphone
Check that the “Avviso di chiamata” (Call waiting) option on your phone is enabled
Check that these entries are present in the phone book and not only in the
SIM card memory
Check that Bluetooth®wireless technology, “Voice recognition” and “Wordspotting”
options on your phone are enabled
IMPORTANT System checks and repairs, if required, shall only be performed by Fiat Dealership.
603.83.430 Multipla Bluet GB 5-10-2007 15:17 Pagina 13

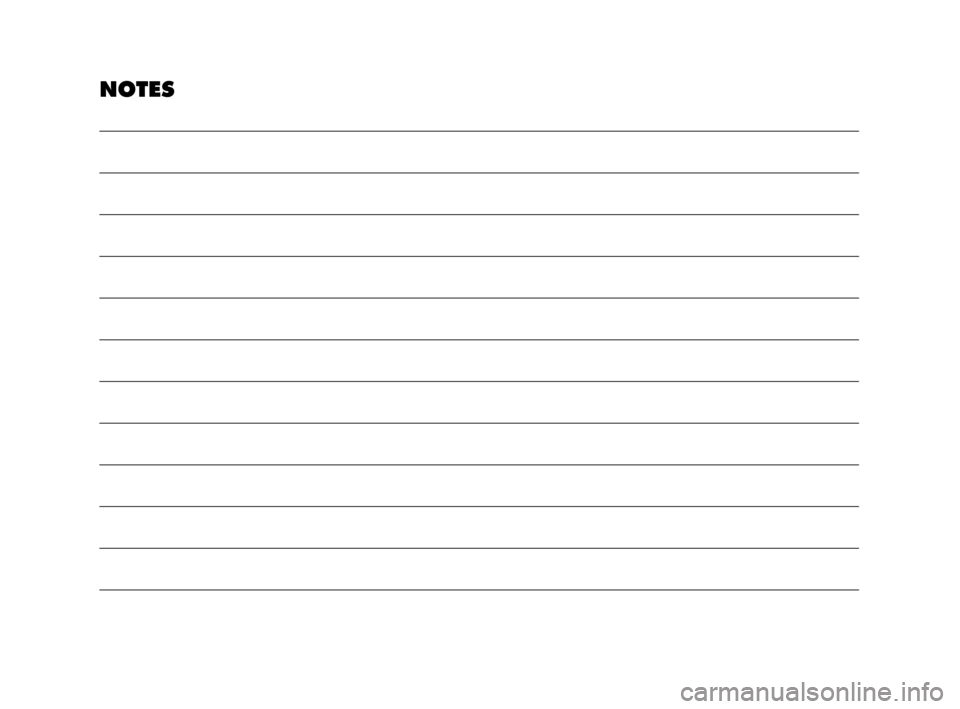

NOTES
603.83.430 Multipla Bluet GB 5-10-2007 15:17 Pagina 14

603.83.430 Multipla Bluet GB 5-10-2007 15:17 Pagina 15

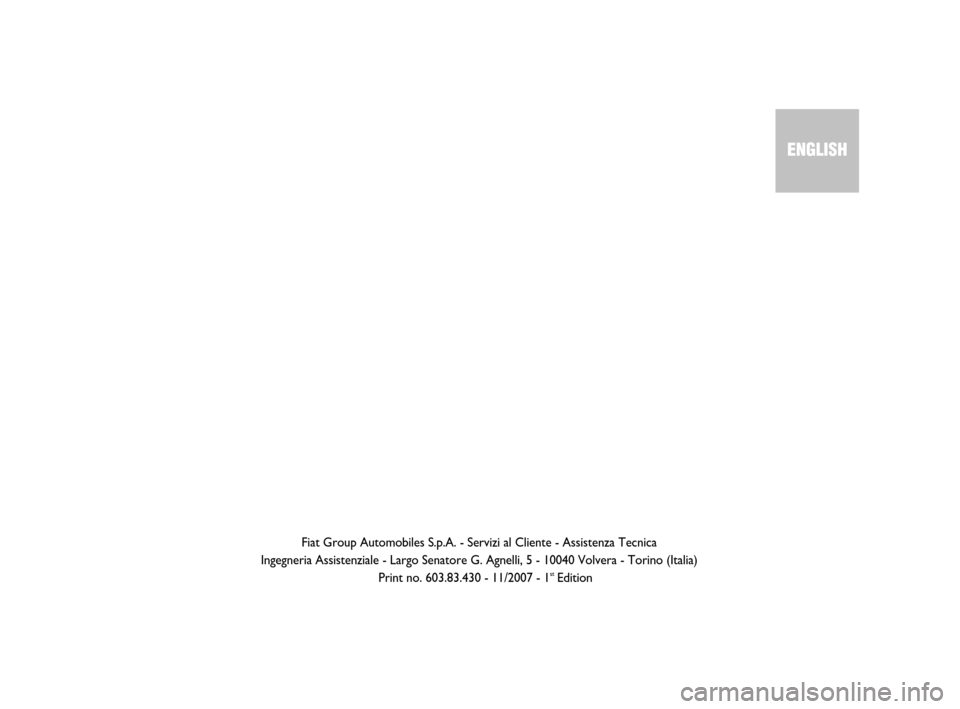

Fiat Group Automobiles S.p.A. - Servizi al Cliente - Assistenza Tecnica
Ingegneria Assistenziale - Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print no. 603.83.430 - 11/2007 - 1
