21

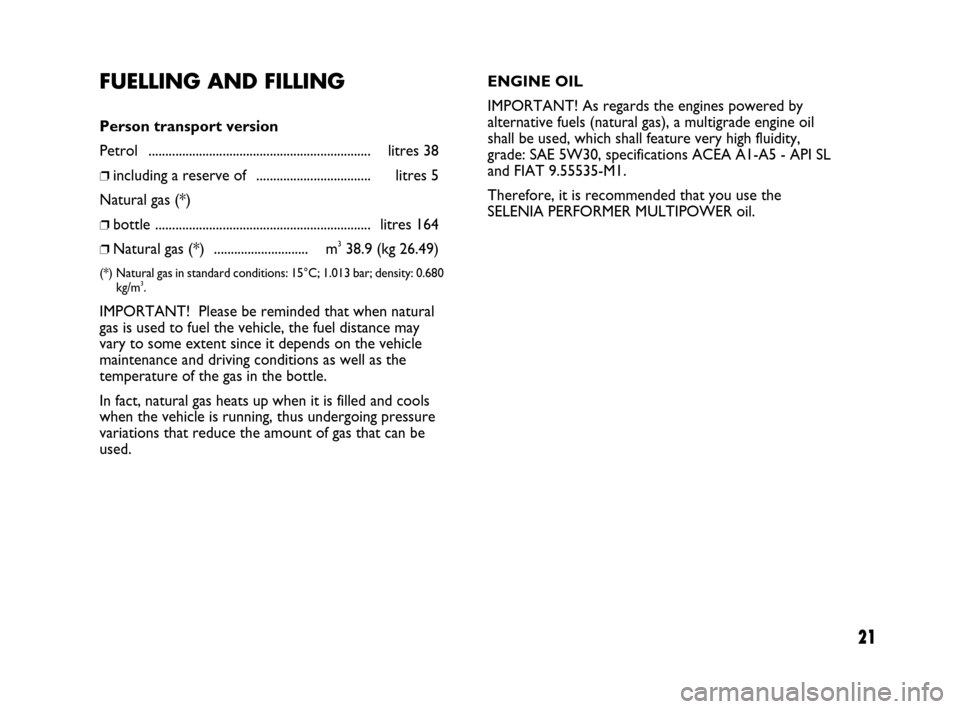

FUELLING AND FILLING
Person transport version
Petrol .................................................................. litres 38
❐ including a reserve of .................................. litres 5
Natural gas (*)
❐ bottle ................................................................ litres 164
❐ Natural gas (*) ............................ m338.9 (kg 26.49)
(*) Natural gas in standard conditions: 15°C; 1.013 bar; density: 0.680
kg/m3.
IMPORTANT! Please be reminded that when natural
gas is used to fuel the vehicle, the fuel distance may
vary to some extent since it depends on the vehicle
maintenance and driving conditions as well as the
temperature of the gas in the bottle.
In fact, natural gas heats up when it is filled and cools
when the vehicle is running, thus undergoing pressure
variations that reduce the amount of gas that can be
used.ENGINE OIL
IMPORTANT! As regards the engines powered by
alternative fuels (natural gas), a multigrade engine oil
shall be used, which shall feature very high fluidity,
grade: SAE 5W30, specifications ACEA A1-A5 - API SL
and FIAT 9.55535-M1.
Therefore, it is recommended that you use the
SELENIA PERFORMER MULTIPOWER oil.
603.83.424 Multipla NatPow gb 5-10-2007 15:27 Pagina 21
22

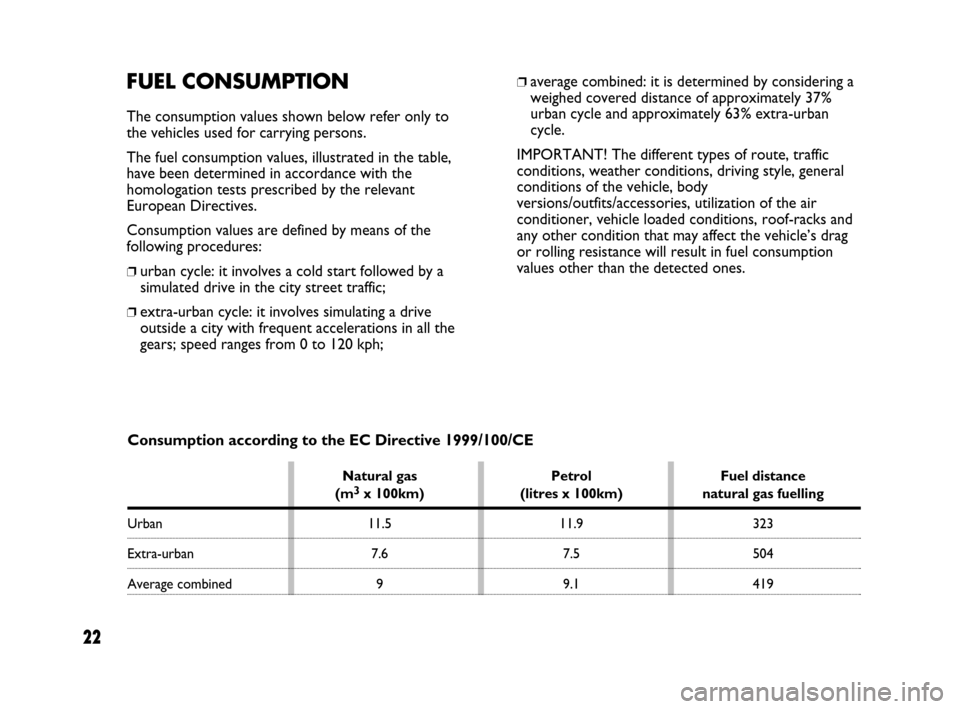

FUEL CONSUMPTION
The consumption values shown below refer only to
the vehicles used for carrying persons.
The fuel consumption values, illustrated in the table,
have been determined in accordance with the
homologation tests prescribed by the relevant
European Directives.
Consumption values are defined by means of the
following procedures:
❐ urban cycle: it involves a cold start followed by a
simulated drive in the city street traffic;
❐ extra-urban cycle: it involves simulating a drive
outside a city with frequent accelerations in all the
gears; speed ranges from 0 to 120 kph;
❐ average combined: it is determined by considering a
weighed covered distance of approximately 37%
urban cycle and approximately 63% extra-urban
cycle.
IMPORTANT! The different types of route, traffic
conditions, weather conditions, driving style, general
conditions of the vehicle, body
versions/outfits/accessories, utilization of the air
conditioner, vehicle loaded conditions, roof-racks and
any other condition that may affect the vehicle’s drag
or rolling resistance will result in fuel consumption
values other than the detected ones.
Consumption according to the EC Directive 1999/100/CE
Natural gas Petrol Fuel distance
(m3x 100km) (litres x 100km) natural gas fuelling
Urban 11.5 11.9 323
Extra-urban 7.6 7.5 504
Average combined 9 9.1 419
603.83.424 Multipla NatPow gb 5-10-2007 15:27 Pagina 22
23

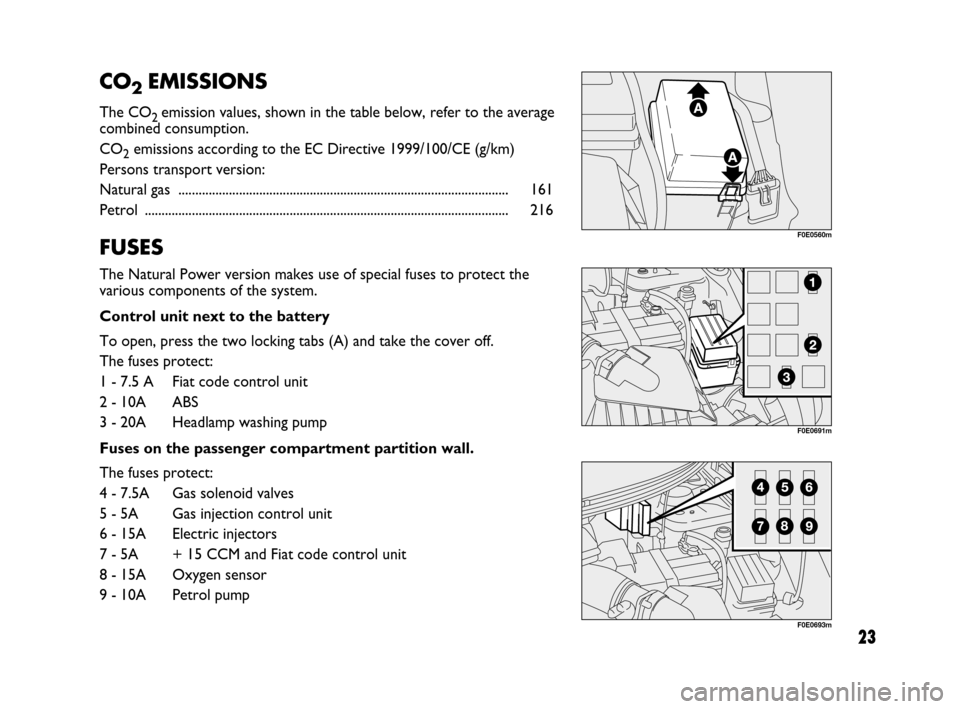

CO2 EMISSIONS
The CO2 emission values, shown in the table below, refer to the average
combined consumption.
CO
2emissions according to the EC Directive 1999/100/CE (g/km)
Persons transport version:
Natural gas .................................................................................................. 161
Petrol ............................................................................................................ 216
FUSES
The Natural Power version makes use of special fuses to protect the
various components of the system.
Control unit next to the battery
To open, press the two locking tabs (A) and take the cover off.
The fuses protect:
1 - 7.5 A Fiat code control unit
2 - 10A ABS
3 - 20A Headlamp washing pump
Fuses on the passenger compartment partition wall.
The fuses protect:
4 - 7.5A Gas solenoid valves
5 - 5A Gas injection control unit
6 - 15A Electric injectors
7 - 5A + 15 CCM and Fiat code control unit
8 - 15A Oxygen sensor
9 - 10A Petrol pump
F0E0560m
F0E0691m
F0E0693m
603.83.424 Multipla NatPow gb 5-10-2007 15:27 Pagina 23

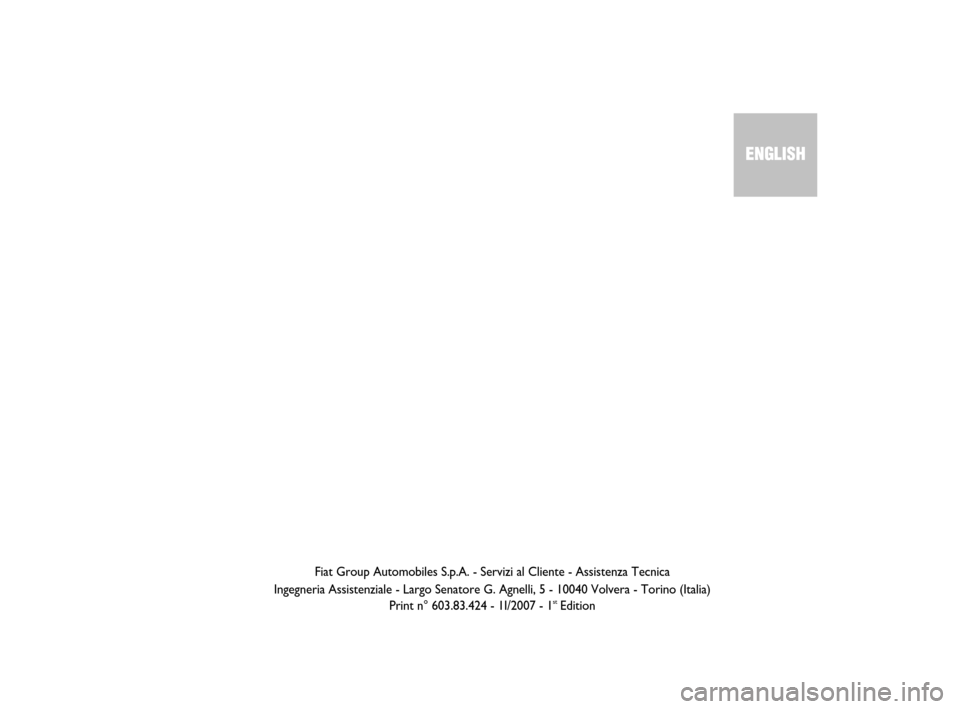

Fiat Group Automobiles S.p.A. - Servizi al Cliente - Assistenza Tecnica
Ingegneria Assistenziale - Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print n° 603.83.424 - 1I/2007 - 1
stEdition
