technical specifications FIAT MULTIPLA 2007 1.G Repair Manual

64
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

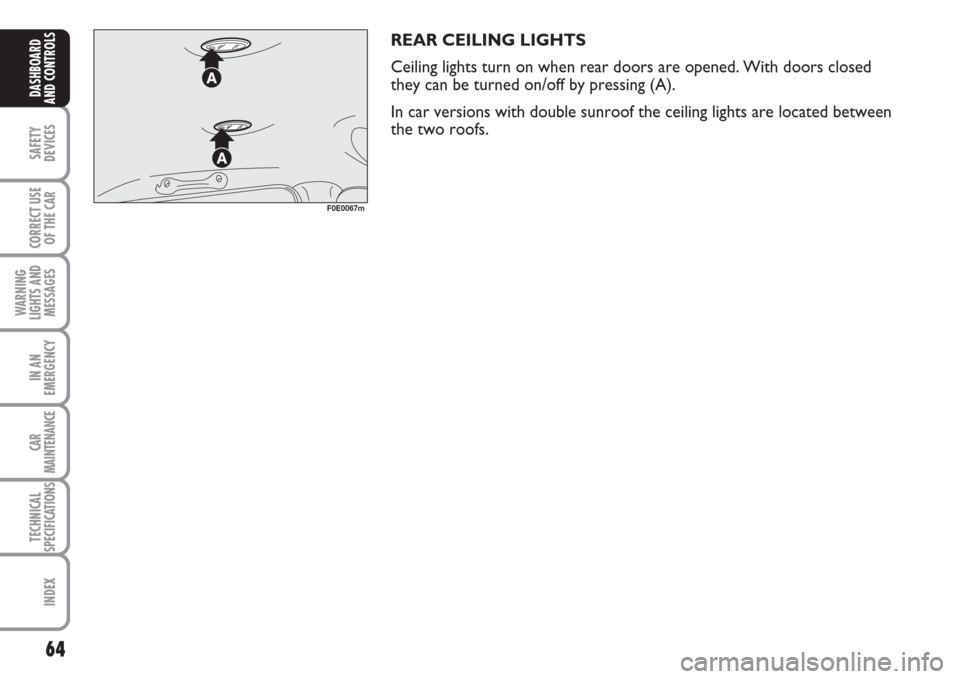

REAR CEILING LIGHTS
Ceiling lights turn on when rear doors are opened. With doors closed
they can be turned on/off by pressing (A).
In car versions with double sunroof the ceiling lights are located between
the two roofs.
F0E0067m

65
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

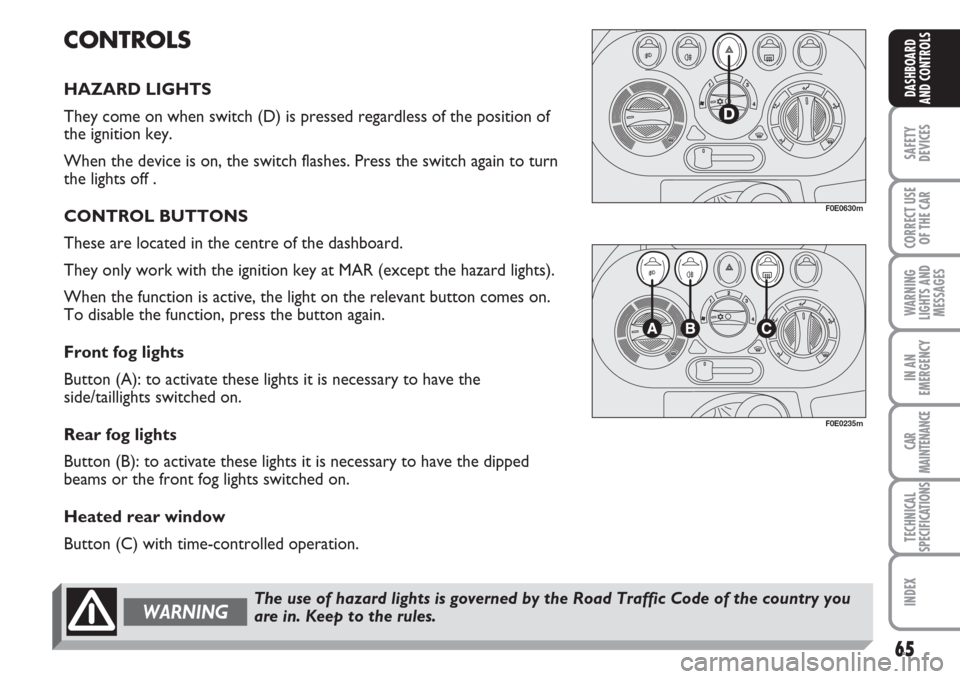

CONTROLS
HAZARD LIGHTS
They come on when switch (D) is pressed regardless of the position of
the ignition key.
When the device is on, the switch flashes. Press the switch again to turn
the lights off .
CONTROL BUTTONS
These are located in the centre of the dashboard.
They only work with the ignition key at MAR (except the hazard lights).
When the function is active, the light on the relevant button comes on.
To disable the function, press the button again.
Front fog lights
Button (A): to activate these lights it is necessary to have the
side/taillights switched on.
Rear fog lights
Button (B): to activate these lights it is necessary to have the dipped
beams or the front fog lights switched on.
Heated rear window
Button (C) with time-controlled operation.
F0E0630m
F0E0235m
The use of hazard lights is governed by the Road Traffic Code of the country you
are in. Keep to the rules.WARNING

66
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FUEL CUT-OFF SWITCH
It is located under the dashboard on driver’s side and comes into
operation in the event of a crash.
It is a safety switch (A) that comes into operation in the event of a crash,
cutting off the fuel supply thus stopping the engine.
Carefully inspect the car to find fuel leaks, e.g. in the engine
compartment, under the car or near the tank.
If no fuel leaks are found and the car can be started again, press button
(A) to reset the fuel system and the lights.
After a crash, remember to turn the ignition key to STOP to prevent
battery run-down.
If, after a crash, you smell fuel or see leaks from the fuel system, do not reset the
switch to avoid fire risk.WARNING
F0E0737m

67
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

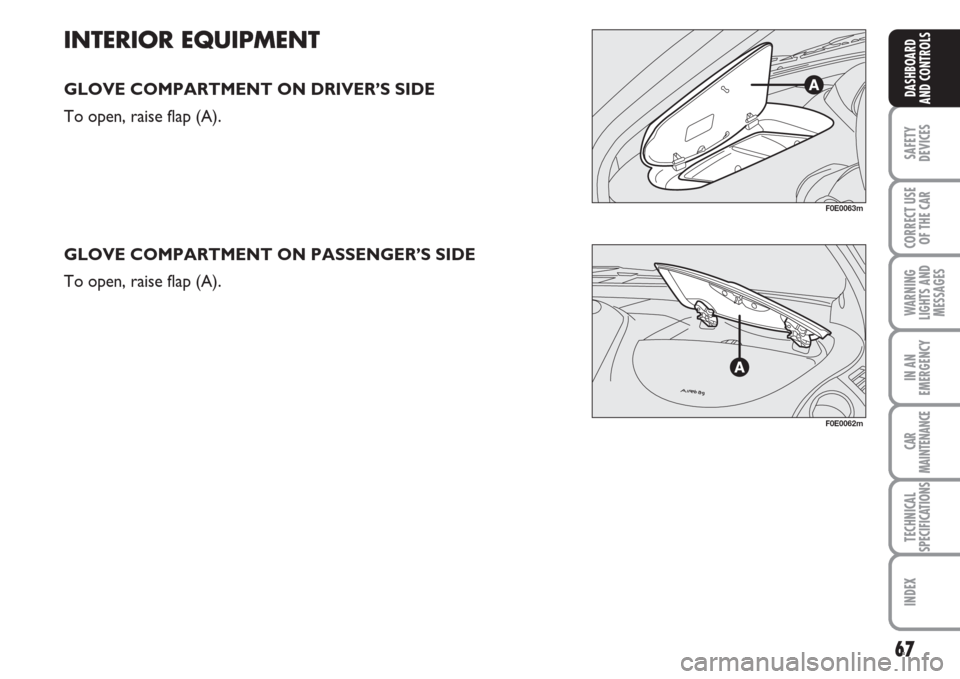

INTERIOR EQUIPMENT
GLOVE COMPARTMENT ON DRIVER’S SIDE
To open, raise flap (A).
GLOVE COMPARTMENT ON PASSENGER’S SIDE
To open, raise flap (A).
F0E0063m
F0E0062m

68
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

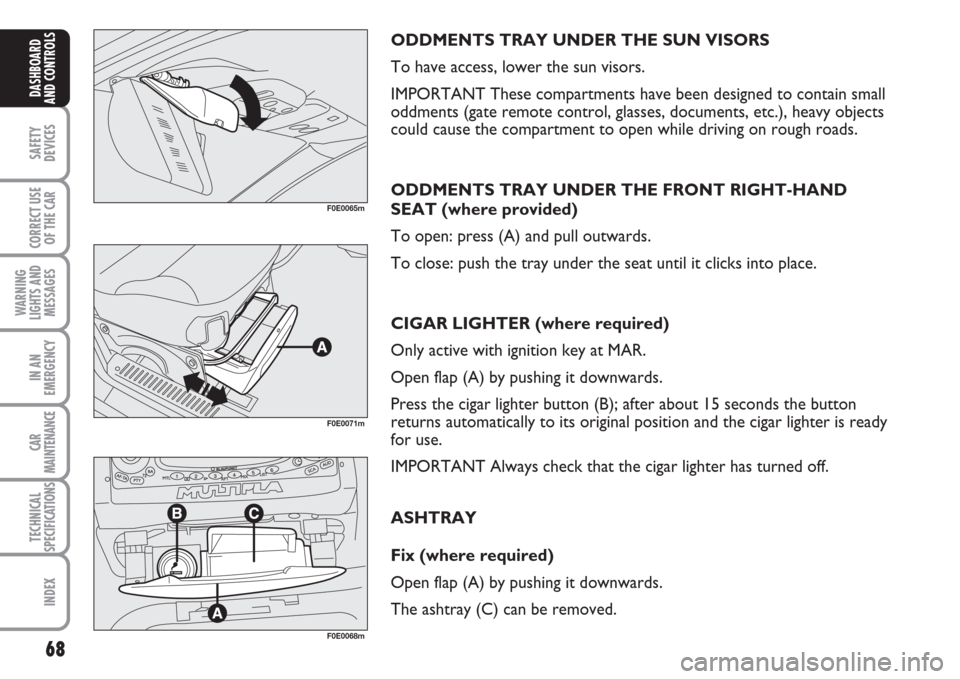

ODDMENTS TRAY UNDER THE SUN VISORS
To have access, lower the sun visors.
IMPORTANT These compartments have been designed to contain small
oddments (gate remote control, glasses, documents, etc.), heavy objects
could cause the compartment to open while driving on rough roads.
ODDMENTS TRAY UNDER THE FRONT RIGHT-HAND
SEAT (where provided)
To open: press (A) and pull outwards.
To close: push the tray under the seat until it clicks into place.
CIGAR LIGHTER (where required)
Only active with ignition key at MAR.
Open flap (A) by pushing it downwards.
Press the cigar lighter button (B); after about 15 seconds the button
returns automatically to its original position and the cigar lighter is ready
for use.
IMPORTANT Always check that the cigar lighter has turned off.
ASHTRAY
Fix (where required)
Open flap (A) by pushing it downwards.
The ashtray (C) can be removed.
F0E0071m
F0E0065m
F0E0068m

69
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

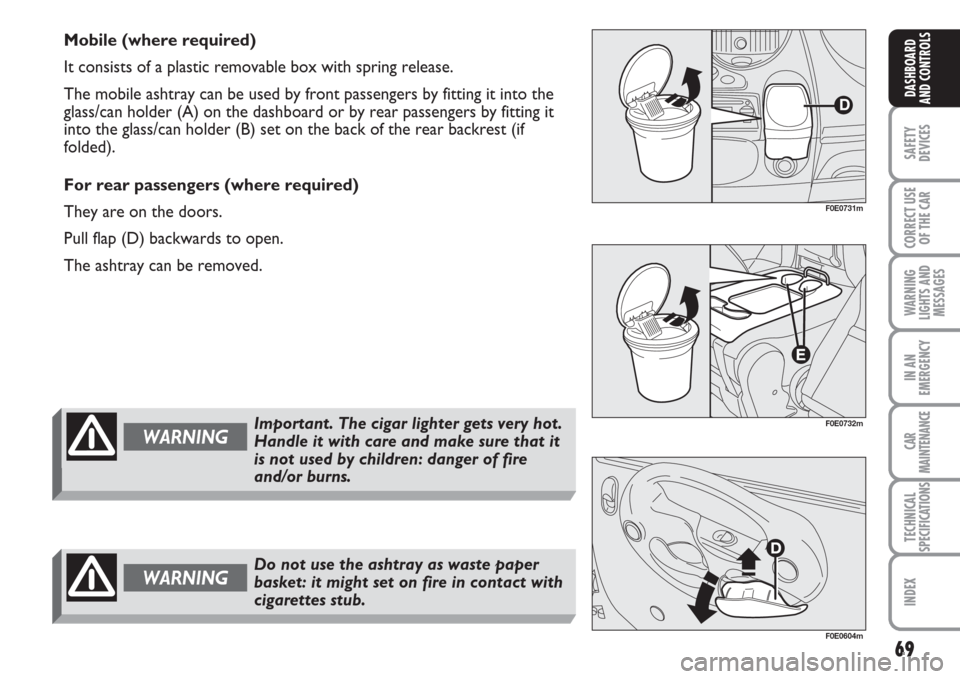

Mobile (where required)
It consists of a plastic removable box with spring release.
The mobile ashtray can be used by front passengers by fitting it into the
glass/can holder (A) on the dashboard or by rear passengers by fitting it
into the glass/can holder (B) set on the back of the rear backrest (if
folded).
For rear passengers (where required)
They are on the doors.
Pull flap (D) backwards to open.
The ashtray can be removed.
Important. The cigar lighter gets very hot.
Handle it with care and make sure that it
is not used by children: danger of fire
and/or burns.WARNING
Do not use the ashtray as waste paper
basket: it might set on fire in contact with
cigarettes stub.WARNING
F0E0731m
F0E0732m
F0E0604m

70
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

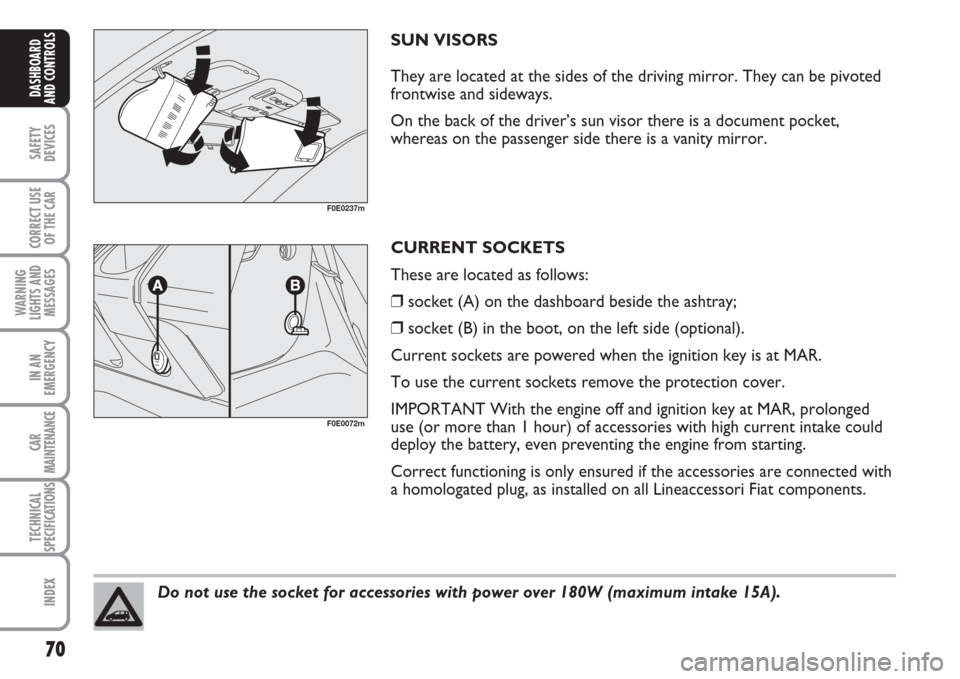

SUN VISORS
They are located at the sides of the driving mirror. They can be pivoted
frontwise and sideways.
On the back of the driver’s sun visor there is a document pocket,
whereas on the passenger side there is a vanity mirror.
CURRENT SOCKETS
These are located as follows:
❒socket (A) on the dashboard beside the ashtray;
❒socket (B) in the boot, on the left side (optional).
Current sockets are powered when the ignition key is at MAR.
To use the current sockets remove the protection cover.
IMPORTANT With the engine off and ignition key at MAR, prolonged
use (or more than 1 hour) of accessories with high current intake could
deploy the battery, even preventing the engine from starting.
Correct functioning is only ensured if the accessories are connected with
a homologated plug, as installed on all Lineaccessori Fiat components.
F0E0237m
Do not use the socket for accessories with power over 180W (maximum intake 15A).
F0E0072m

71
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

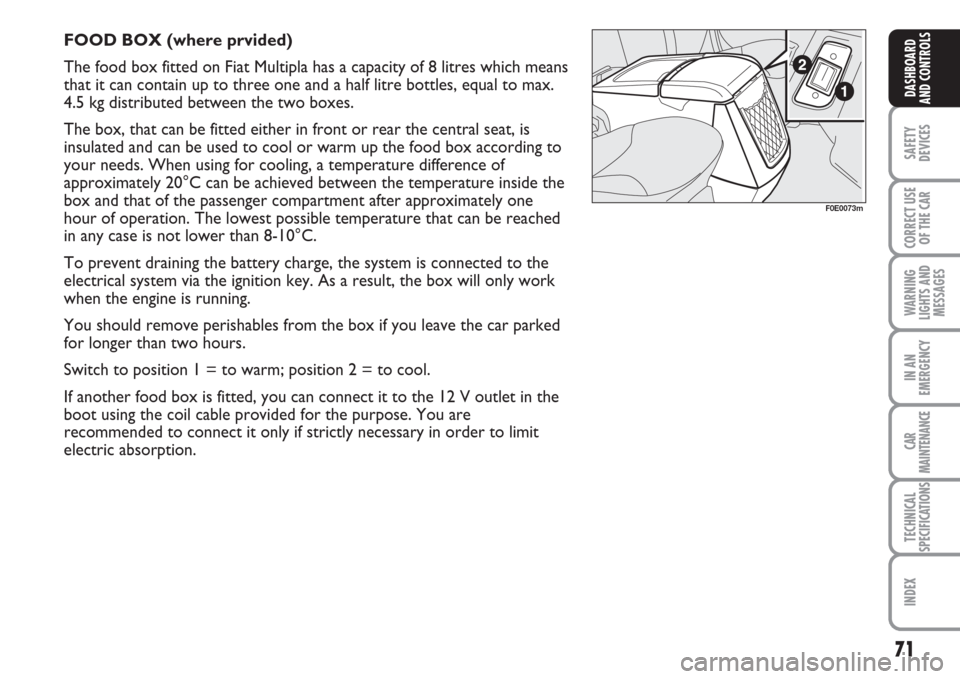

FOOD BOX (where prvided)
The food box fitted on Fiat Multipla has a capacity of 8 litres which means
that it can contain up to three one and a half litre bottles, equal to max.
4.5 kg distributed between the two boxes.
The box, that can be fitted either in front or rear the central seat, is
insulated and can be used to cool or warm up the food box according to
your needs. When using for cooling, a temperature difference of
approximately 20°C can be achieved between the temperature inside the
box and that of the passenger compartment after approximately one
hour of operation. The lowest possible temperature that can be reached
in any case is not lower than 8-10°C.
To prevent draining the battery charge, the system is connected to the
electrical system via the ignition key. As a result, the box will only work
when the engine is running.
You should remove perishables from the box if you leave the car parked
for longer than two hours.
Switch to position 1 = to warm; position 2 = to cool.
If another food box is fitted, you can connect it to the 12 V outlet in the
boot using the coil cable provided for the purpose. You are
recommended to connect it only if strictly necessary in order to limit
electric absorption.
F0E0073m

72
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

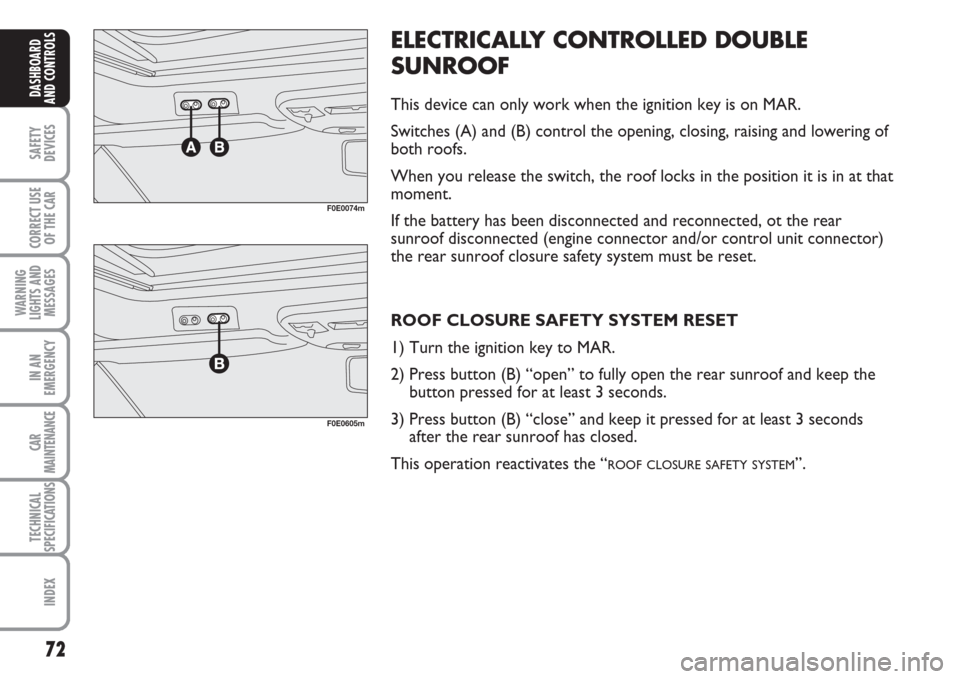

ELECTRICALLY CONTROLLED DOUBLE
SUNROOF
This device can only work when the ignition key is on MAR.
Switches (A) and (B) control the opening, closing, raising and lowering of
both roofs.
When you release the switch, the roof locks in the position it is in at that
moment.
If the battery has been disconnected and reconnected, ot the rear
sunroof disconnected (engine connector and/or control unit connector)
the rear sunroof closure safety system must be reset.
ROOF CLOSURE SAFETY SYSTEM RESET
1) Turn the ignition key to MAR.
2) Press button (B) “open” to fully open the rear sunroof and keep the
button pressed for at least 3 seconds.
3) Press button (B) “close” and keep it pressed for at least 3 seconds
after the rear sunroof has closed.
This operation reactivates the “
ROOF CLOSURE SAFETY SYSTEM”.
F0E0074m
F0E0605m

73
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

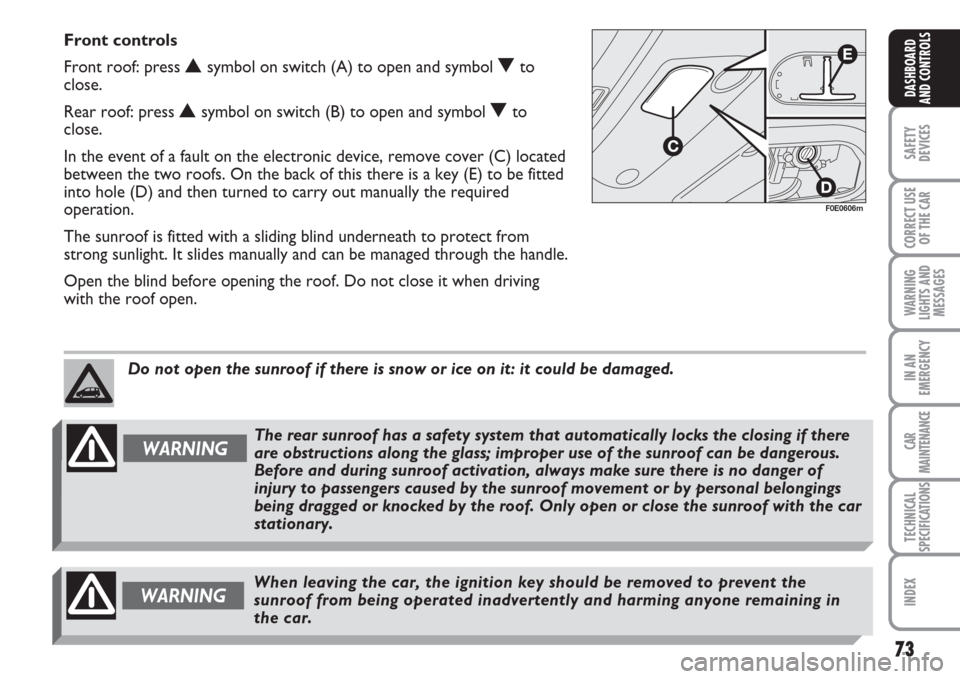

Front controls
Front roof: press
Nsymbol on switch (A) to open and symbol Oto
close.
Rear roof: press
Nsymbol on switch (B) to open and symbol Oto
close.
In the event of a fault on the electronic device, remove cover (C) located
between the two roofs. On the back of this there is a key (E) to be fitted
into hole (D) and then turned to carry out manually the required
operation.
The sunroof is fitted with a sliding blind underneath to protect from
strong sunlight. It slides manually and can be managed through the handle.
Open the blind before opening the roof. Do not close it when driving
with the roof open.
F0E0606m
WARNINGThe rear sunroof has a safety system that automatically locks the closing if there
are obstructions along the glass; improper use of the sunroof can be dangerous.
Before and during sunroof activation, always make sure there is no danger of
injury to passengers caused by the sunroof movement or by personal belongings
being dragged or knocked by the roof. Only open or close the sunroof with the car
stationary. Do not open the sunroof if there is snow or ice on it: it could be damaged.
When leaving the car, the ignition key should be removed to prevent the
sunroof from being operated inadvertently and harming anyone remaining in
the car.WARNING
