FIAT PANDA 4 x 4

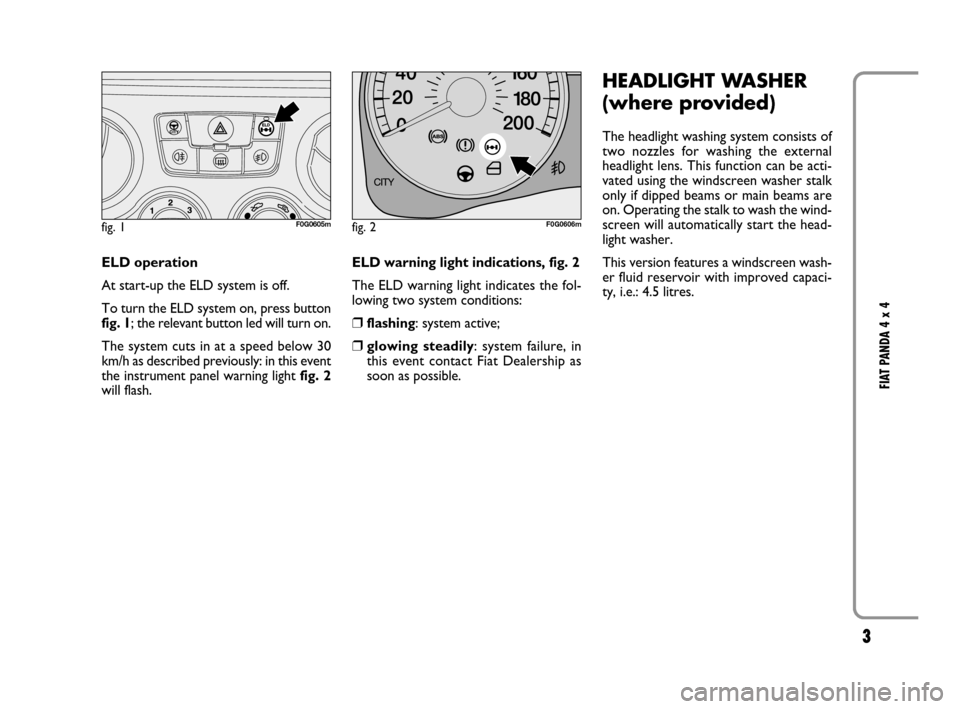

ELD operation
At start-up the ELD system is off.
To turn the ELD system on, press button
fig. 1; the relevant button led will turn on.
The system cuts in at a speed below 30
km/h as described previously: in this event
the instrument panel warning light fig. 2
will flash.ELD warning light indications, fig. 2
The ELD warning light indicates the fol-
lowing two system conditions:
❒flashing: system active;
❒glowing steadily: system failure, in
this event contact Fiat Dealership as
soon as possible.
HEADLIGHT WASHER
(where provided)
The headlight washing system consists of
two nozzles for washing the external
headlight lens. This function can be acti-
vated using the windscreen washer stalk
only if dipped beams or main beams are
on. Operating the stalk to wash the wind-
screen will automatically start the head-
light washer.
This version features a windscreen wash-
er fluid reservoir with improved capaci-
ty, i.e.: 4.5 litres.
fig. 1F0G0605mfig. 2F0G0606m
603.83.460 PANDA 4X4 GB 26-06-2007 11:19 Pagina 3

7
FIAT PANDA 4 x 4

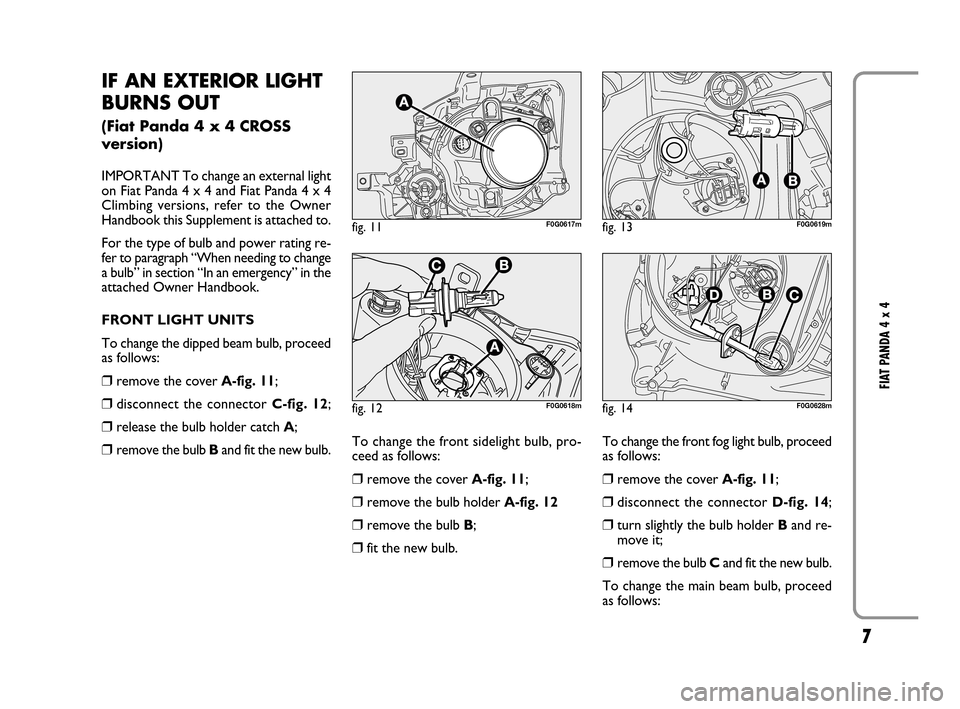

IF AN EXTERIOR LIGHT
BURNS OUT
(Fiat Panda 4 x 4 CROSS
version)
IMPORTANT To change an external light
on Fiat Panda 4 x 4 and Fiat Panda 4 x 4
Climbing versions, refer to the Owner
Handbook this Supplement is attached to.
For the type of bulb and power rating re-
fer to paragraph “When needing to change
a bulb” in section “In an emergency” in the
attached Owner Handbook.
FRONT LIGHT UNITS
To change the dipped beam bulb, proceed
as follows:
❒remove the cover A-fig. 11;
❒disconnect the connector C-fig. 12;
❒release the bulb holder catch A;
❒remove the bulb Band fit the new bulb.To change the front sidelight bulb, pro-
ceed as follows:
❒remove the cover A-fig. 11;
❒remove the bulb holder A-fig. 12
❒remove the bulb B;
❒fit the new bulb.To change the front fog light bulb, proceed
as follows:
❒remove the cover A-fig. 11;
❒disconnect the connector D-fig. 14;
❒turn slightly the bulb holder B and re-
move it;
❒remove the bulb C and fit the new bulb.
To change the main beam bulb, proceed
as follows:
fig. 11F0G0617m
fig. 12F0G0618m
fig. 13F0G0619m
fig. 14F0G0628m
