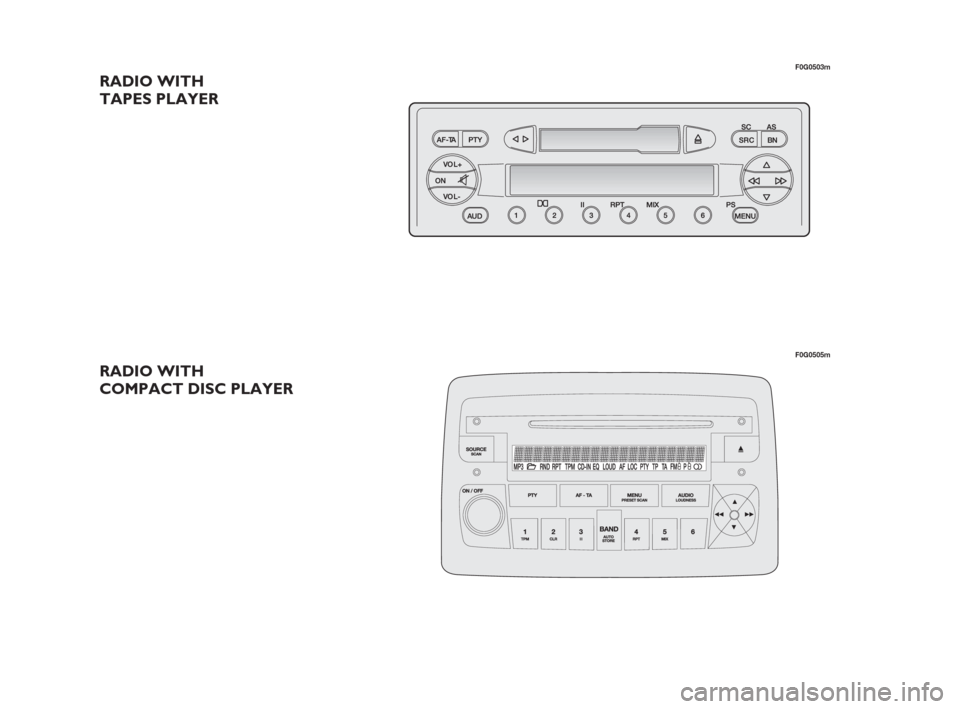

RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
F0G0503m
F0G0505m
001-050 ING 21-06-2007 15:48 Pagina 1
Page 3 of 122

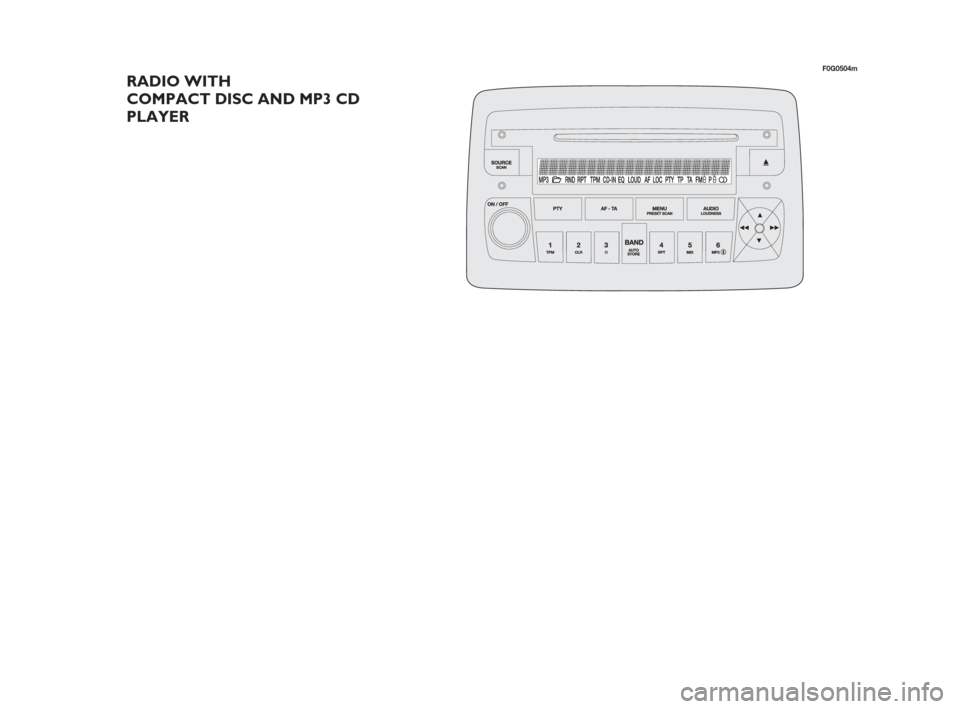

RADIO WITH
COMPACT DISC AND MP3 CD
PLAYER
F0G0504m
001-050 ING 21-06-2007 15:48 Pagina 2
Page 4 of 122

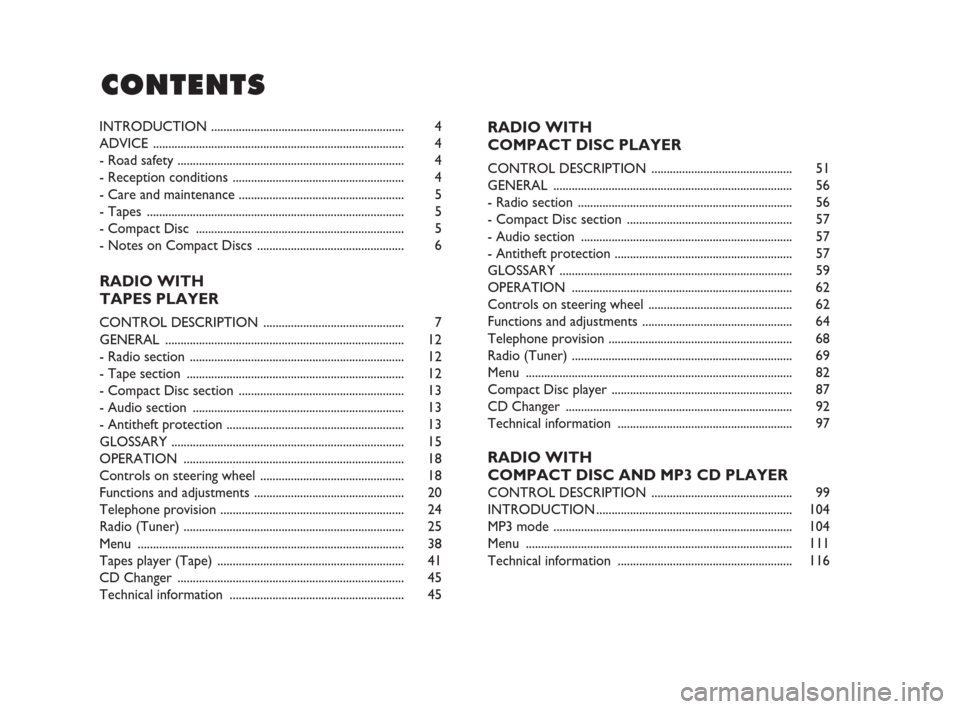

INTRODUCTION ............................................................... 4
ADVICE .................................................................................. 4
- Road safety .......................................................................... 4
- Reception conditions ........................................................ 4
- Care and maintenance ...................................................... 5
- Tapes .................................................................................... 5
- Compact Disc .................................................................... 5
- Notes on Compact Discs ................................................ 6
RADIO WITH
TAPES PLAYER
CONTROL DESCRIPTION .............................................. 7
GENERAL .............................................................................. 12
- Radio section ...................................................................... 12
- Tape section ....................................................................... 12
- Compact Disc section ...................................................... 13
- Audio section ..................................................................... 13
- Antitheft protection .......................................................... 13
GLOSSARY ............................................................................ 15
OPERATION ........................................................................ 18
Controls on steering wheel ............................................... 18
Functions and adjustments ................................................. 20
Telephone provision ............................................................ 24
Radio (Tuner) ........................................................................ 25
Menu ....................................................................................... 38
Tapes player (Tape) ............................................................. 41
CD Changer .......................................................................... 45
Technical information ......................................................... 45
RADIO WITH
COMPACT DISC PLAYER
CONTROL DESCRIPTION .............................................. 51
GENERAL .............................................................................. 56
- Radio section ...................................................................... 56
- Compact Disc section ...................................................... 57
- Audio section ..................................................................... 57
- Antitheft protection .......................................................... 57
GLOSSARY ............................................................................ 59
OPERATION ........................................................................ 62
Controls on steering wheel ............................................... 62
Functions and adjustments ................................................. 64
Telephone provision ............................................................ 68
Radio (Tuner) ........................................................................ 69
Menu ....................................................................................... 82
Compact Disc player ........................................................... 87
CD Changer .......................................................................... 92
Technical information ......................................................... 97
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
CONTROL DESCRIPTION .............................................. 99
INTRODUCTION ................................................................ 104
MP3 mode .............................................................................. 104
Menu ....................................................................................... 111
Technical information ......................................................... 116
C C
O O
N N
T T
E E
N N
T T
S S
001-050 ING 21-06-2007 15:48 Pagina 3
Page 5 of 122
4
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER

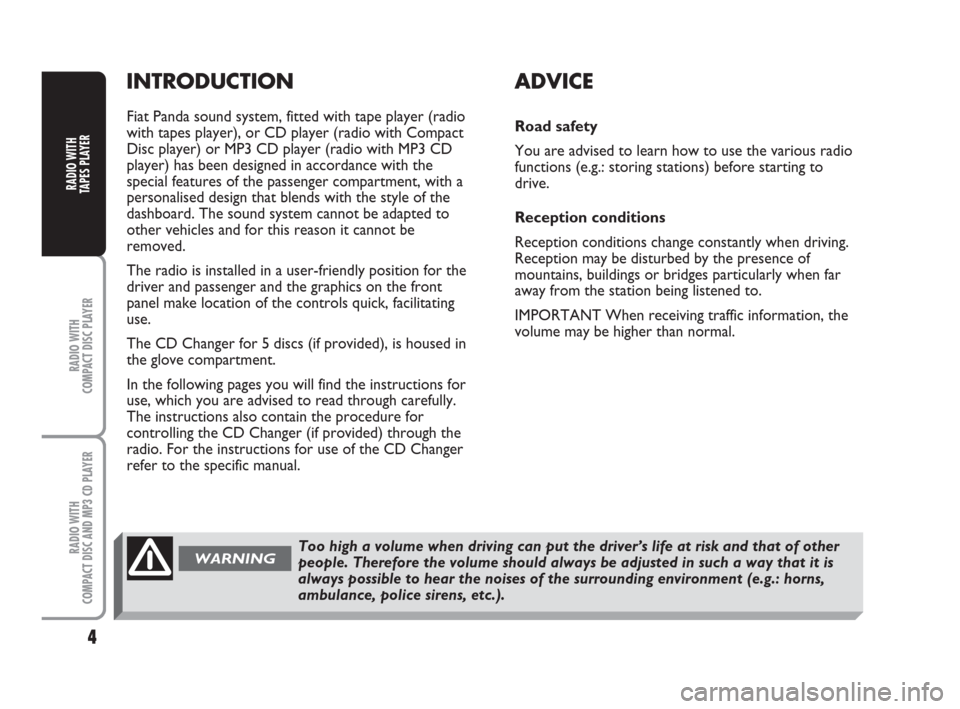

INTRODUCTION
Fiat Panda sound system, fitted with tape player (radio
with tapes player), or CD player (radio with Compact
Disc player) or MP3 CD player (radio with MP3 CD
player) has been designed in accordance with the
special features of the passenger compartment, with a
personalised design that blends with the style of the
dashboard. The sound system cannot be adapted to
other vehicles and for this reason it cannot be
removed.
The radio is installed in a user-friendly position for the
driver and passenger and the graphics on the front
panel make location of the controls quick, facilitating
use.
The CD Changer for 5 discs (if provided), is housed in
the glove compartment.
In the following pages you will find the instructions for
use, which you are advised to read through carefully.
The instructions also contain the procedure for
controlling the CD Changer (if provided) through the
radio. For the instructions for use of the CD Changer
refer to the specific manual.
ADVICE
Road safety
You are advised to learn how to use the various radio
functions (e.g.: storing stations) before starting to
drive.
Reception conditions
Reception conditions change constantly when driving.
Reception may be disturbed by the presence of
mountains, buildings or bridges particularly when far
away from the station being listened to.
IMPORTANT When receiving traffic information, the
volume may be higher than normal.
WARNINGToo high a volume when driving can put the driver’s life at risk and that of other
people. Therefore the volume should always be adjusted in such a way that it is
always possible to hear the noises of the surrounding environment (e.g.: horns,
ambulance, police sirens, etc.).
001-050 ING 21-06-2007 15:48 Pagina 4
Page 6 of 122
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
TAPES PLAYER
5

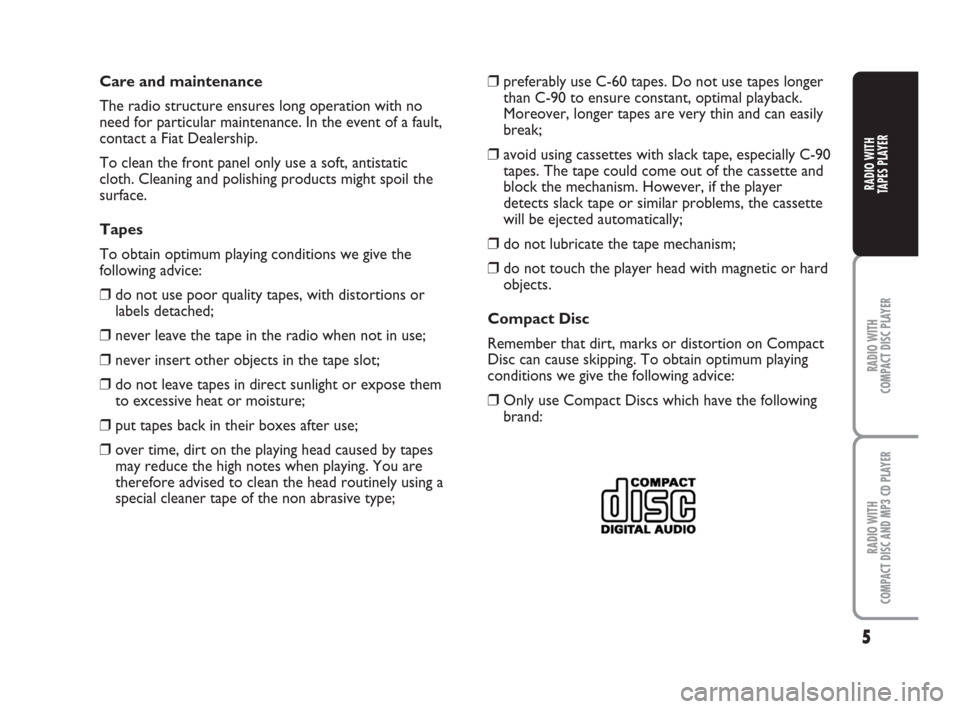

Care and maintenance
The radio structure ensures long operation with no
need for particular maintenance. In the event of a fault,
contact a Fiat Dealership.
To clean the front panel only use a soft, antistatic
cloth. Cleaning and polishing products might spoil the
surface.
Tapes
To obtain optimum playing conditions we give the
following advice:
❒do not use poor quality tapes, with distortions or
labels detached;
❒never leave the tape in the radio when not in use;
❒never insert other objects in the tape slot;
❒do not leave tapes in direct sunlight or expose them
to excessive heat or moisture;
❒put tapes back in their boxes after use;
❒over time, dirt on the playing head caused by tapes
may reduce the high notes when playing. You are
therefore advised to clean the head routinely using a
special cleaner tape of the non abrasive type;❒preferably use C-60 tapes. Do not use tapes longer
than C-90 to ensure constant, optimal playback.
Moreover, longer tapes are very thin and can easily
break;
❒avoid using cassettes with slack tape, especially C-90
tapes. The tape could come out of the cassette and
block the mechanism. However, if the player
detects slack tape or similar problems, the cassette
will be ejected automatically;
❒do not lubricate the tape mechanism;
❒do not touch the player head with magnetic or hard
objects.
Compact Disc
Remember that dirt, marks or distortion on Compact
Disc can cause skipping. To obtain optimum playing
conditions we give the following advice:
❒Only use Compact Discs which have the following
brand:
001-050 ING 21-06-2007 15:48 Pagina 5
Page 7 of 122
6
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER

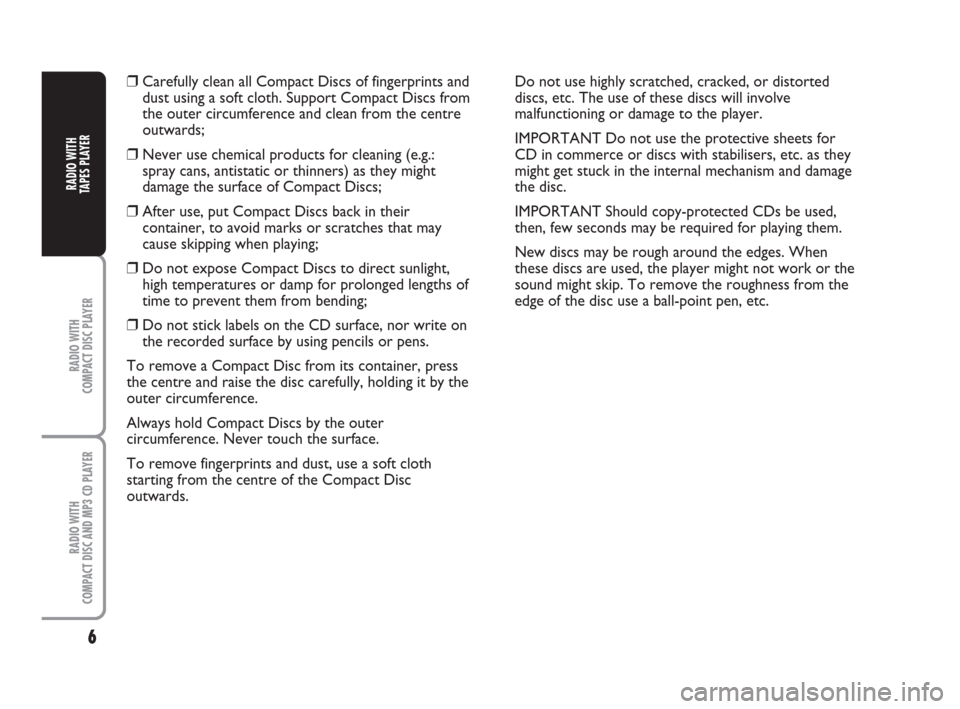

❒Carefully clean all Compact Discs of fingerprints and
dust using a soft cloth. Support Compact Discs from
the outer circumference and clean from the centre
outwards;
❒Never use chemical products for cleaning (e.g.:
spray cans, antistatic or thinners) as they might
damage the surface of Compact Discs;
❒After use, put Compact Discs back in their
container, to avoid marks or scratches that may
cause skipping when playing;
❒Do not expose Compact Discs to direct sunlight,
high temperatures or damp for prolonged lengths of
time to prevent them from bending;
❒Do not stick labels on the CD surface, nor write on
the recorded surface by using pencils or pens.
To remove a Compact Disc from its container, press
the centre and raise the disc carefully, holding it by the
outer circumference.
Always hold Compact Discs by the outer
circumference. Never touch the surface.
To remove fingerprints and dust, use a soft cloth
starting from the centre of the Compact Disc
outwards.Do not use highly scratched, cracked, or distorted
discs, etc. The use of these discs will involve
malfunctioning or damage to the player.
IMPORTANT Do not use the protective sheets for
CD in commerce or discs with stabilisers, etc. as they
might get stuck in the internal mechanism and damage
the disc.
IMPORTANT Should copy-protected CDs be used,
then, few seconds may be required for playing them.
New discs may be rough around the edges. When
these discs are used, the player might not work or the
sound might skip. To remove the roughness from the
edge of the disc use a ball-point pen, etc.
001-050 ING 21-06-2007 15:48 Pagina 6
Page 8 of 122
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
TAPES PLAYER
7
RR R
A A
D D
I I
O O
W W
I I
T T
H H
T T
A A
P P
E E
S S
P P
L L
A A
Y Y
E E
R R

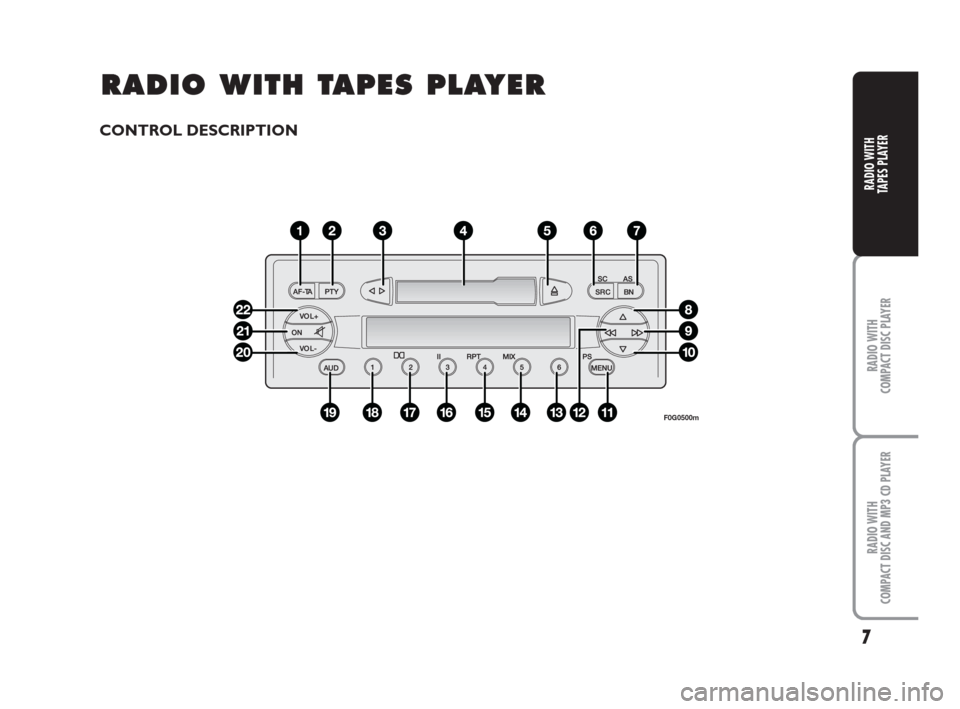

CONTROL DESCRIPTION
F0G0500m
001-050 ING 21-06-2007 15:48 Pagina 7
Page 9 of 122
8
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
1
2
3
4
5
6
7
8
9
10
11
12
AF-TA
PTY
¯˙
Tape slot
˚
SRC-SC
BN-AS
N
˜
O
MENU-PS
÷
Alternative frequency (AF) /Traffic
information (TA)
Programme Type
Reverse
ject Tape
Audio source selection/Scan function
Frequency band selection
Automatic station tuning
Manual station tuning
Automatic station tuning
Menu function/Scan function
Manual station tuningTA ON/OFF
PTY ON/OFF
Eject Tape
Select Tape, Radio or
CD Changer (if provided)
FM1, FM2, FMT, MW, LW
Automatic station tuning
TP: seek +
PTY: seek +
AF: seek +
Manual station tuning
TP: seek +
PTY: seek +
AF: seek +
Automatic station tuning
TP: seek -
PTY: seek -
AF: seek -
Menu on/off
Manual station tuning
TP: seek -
PTY: seek -
AF: seek - AF ON/OFF
PTY: displays selected programme type
FM/AM station scan
Store automatically
in FMT station range
Fast automatic station tuning
TP: seek +
PTY: seek +
AF: seek +
Fast manual station tuning
TP: seek +
PTY: seek +
AF: seek +
Fast automatic station tuning
TP: seek -
PTY: seek -
AF: seek -
Scan preset stations
Fast manual station tuning
TP: seek -
PTY: seek -
AF: seek -

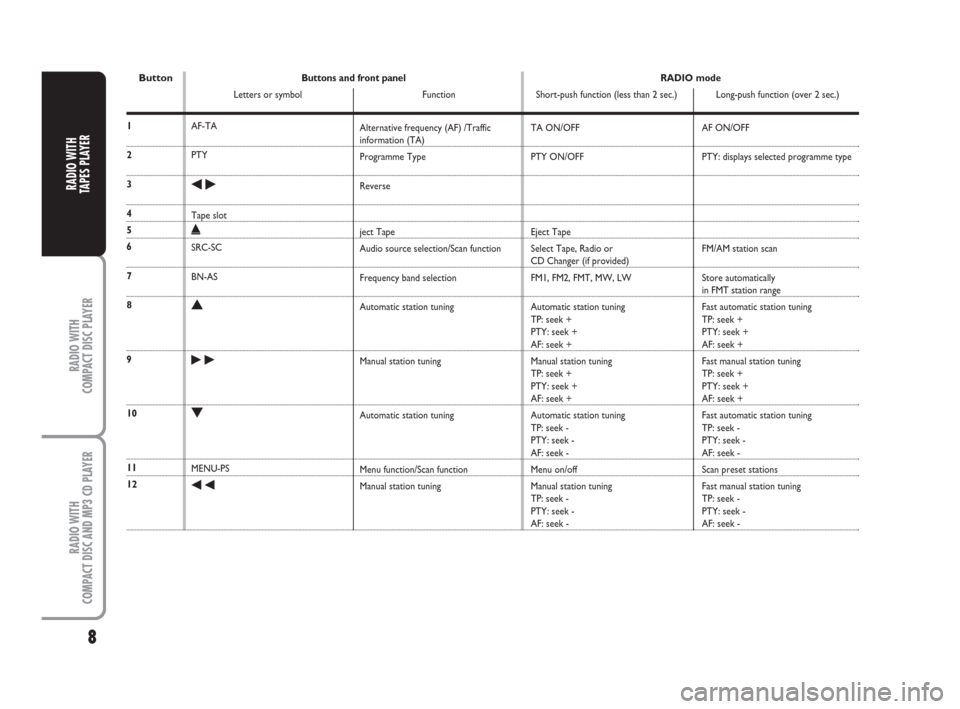

ButtonButtons and front panel
Letters or symbol FunctionRADIO mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)
001-050 ING 21-06-2007 15:48 Pagina 8
Page 10 of 122
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
TAPES PLAYER
9

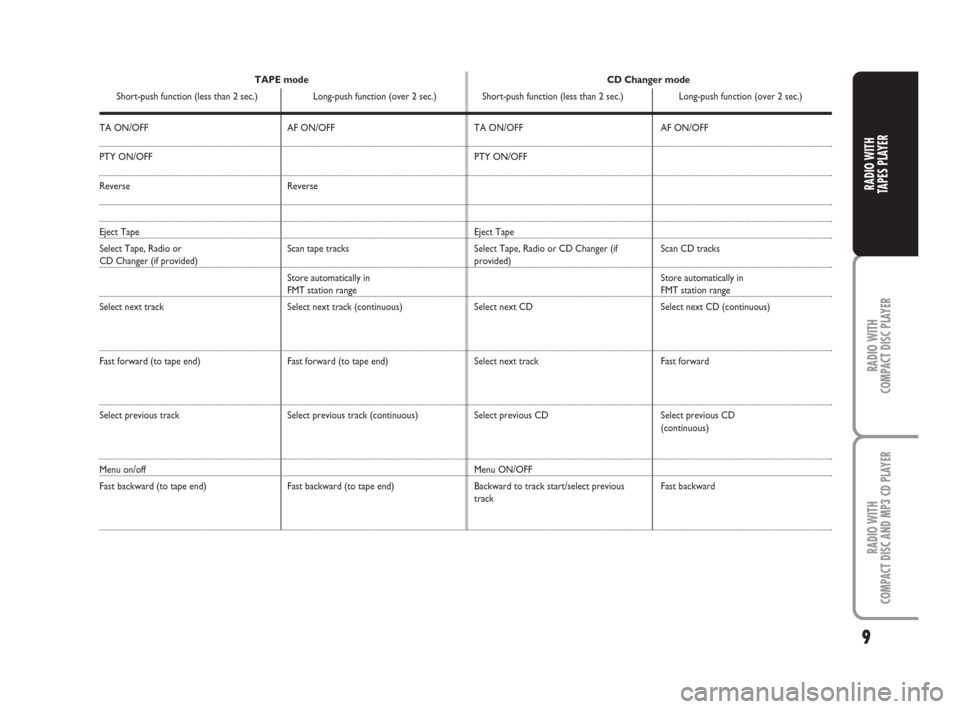

TA ON/OFF
PTY ON/OFF
Reverse
Eject Tape
Select Tape, Radio or
CD Changer (if provided)
Select next track
Fast forward (to tape end)
Select previous track
Menu on/off
Fast backward (to tape end)
AF ON/OFF
Reverse
Scan tape tracks
Store automatically in
FMT station range
Select next track (continuous)
Fast forward (to tape end)
Select previous track (continuous)
Fast backward (to tape end)TA ON/OFF
PTY ON/OFF
Eject Tape
Select Tape, Radio or CD Changer (if
provided)
Select next CD
Select next track
Select previous CD
Menu ON/OFF
Backward to track start/select previous
trackAF ON/OFF
Scan CD tracks
Store automatically in
FMT station range
Select next CD (continuous)
Fast forward
Select previous CD
(continuous)
Fast backward
TAPE mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)CD Changer mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)
001-050 ING 21-06-2007 15:48 Pagina 9
