FIAT PANDA 2007 169 / 2.G Bluetooth Manual

10
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth
®TECHNOLOGY
Answering/refusing/ ending a call
using the “Wordspotting” option:
IMPORTANT The “Wordspotting” op-
tion (for answering, refusing or ending a
call through voice prompts) is variable and
it depends on the type of cellular phone
being used. For certain models it may
therefore be necessary to press first but-
tons
£and Ôand then pronounce the
“Wordspotting” required to answer, to
refuse or to end a call.
❒to answer a call say “Telephone”;
❒to hang up say “Hang up”;
❒to refuse a call say “Hang up”.Copying the phone book to hands-
free kit system memory
Bluetooth
®wireless technology enables
to copy the cellular phone book to the
hands-free kit system memory.
IMPORTANT You can only copy the en-
tries stored in phone memory, therefore
before copying your phone book to the
system memory, you are recommended
to transfer all entries from the SIM card
to the phone memory.
Copying the phone book:
❒from the “Connectivity” menu, select
“Accessories”;
❒select the system menu;
❒the system will start data transfer and
display a message on the phone;
❒at the end of operation another mes-
sage will be displayed.Clearing the system memory
❒Press and hold simultaneously both but-
tons
£and Ô;
❒reset will be announced by the system.
IMPORTANT Clearing the memory will
disconnect all stored phones, will clear any
phone number stored in the system mem-
ory and will require to repeat the pairing
phase.
Adjusting the volume
Use the keys of the handset to adjust the
volume of the conversation.
603.83.479 Panda Bluet GB 21-06-2007 15:01 Pagina 10

11
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth
®TECHNOLOGY
NOKIA 6310, 6310i, 6650, 7600,
8910 PHONES
IMPORTANT After getting into the car
and turning the ignition key to MAR, your
phone should ask you whether to estab-
lish the connection. If you want to, you can
disable this function. To do that, go into
the phone menu and select the Blue-
tooth
®wireless technology option and
then “View paired devices”; when the sys-
tem name is displayed select “Options”
and then “Request conn. Authorisation”.Storing names
To assign a voice tag to a name, access
your phone book, find the desired name
and click in sequence on “Details”, “Op-
tions” and “Add voice tag”. The follow-
ing message is displayed “Press Start then
speak after the tone”. Then press “Start”
and say the name.
To remove the voice tag for any name, ac-
cess your phone book and click in se-
quence on “Details”, “Options” and
“Voice tag”.
By clicking “Change” you can re-record
over the voice tag.
By clicking “Erase” you will delete the
voice tag recording.Communicating
Making a call manually
Use the phone keypad to dial the number.
Your call will be connected automatically
in hands-free mode. Buttons
£and Ôare
the tools for making and receiving calls.
Making a call using the voice
recognition
Press button
£and wait for the tone.
Then say the name of the person you want
to call.
To redial last number called
Press button
£and keep it pressed up to
redialling of the number.
Answering a call
Press button
£.
603.83.479 Panda Bluet GB 21-06-2007 15:01 Pagina 11

12
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth
®TECHNOLOGY
Refusing a call
Press button
Ô.
Dual call
❒Press button Ôto refuse the new call.
❒Press button £once to communicate
with new caller.
❒Press button £once again to return to
your first caller.
❒Press button Ôonce to end the com-
munication.Adjusting the volume
Use the keys of the handset to adjust the
volume of the conversation.
Conversation in “confidential”
mode
Press button
£briefly to switch the con-
versation to hands-free or handset mode.
It is also possible to activate the “confi-
dential” mode directly from the telephone
set: see telephone set manual.Clearing the memory
Press and hold pressed simultaneously
both buttons
£and Ô.
IMPORTANT Clearing the memory will
disconnect all stored phones, will clear any
phone number stored in the system mem-
ory and will require to repeat the pairing
phase.
603.83.479 Panda Bluet GB 21-06-2007 15:01 Pagina 12

13
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth
®TECHNOLOGY
NOKIA 3650, 3660, N-GAGE, 6600
and SIEMENS SX1 PHONES
IMPORTANT After getting into the car
and turning the ignition key to MAR, your
phone should ask you whether to estab-
lish the connection. If you want to, you can
disable this function. To do that, go into
the phone menu and select the Blue-
tooth
®option and then “Linked equip-
ment”; select the system name, “Options”
and then “Def. as authorised”.
IMPORTANT You can select the required
hands-free kit system settings from the ac-
cessories menu.
Communicating
Answering a call:
❒press button £.
Refusing a call:
❒press button Ô.To redial last number called:
❒press button £and keep it pressed up
to redialling of the number.
Dual call:
❒press button Ôto refuse the new call;
❒press button £once to communicate
with new caller;
❒press £once again to return to your
first caller;
❒press button Ôonce to end the com-
munication.
Conversation in “confidential”
mode
Press button
£briefly to switch the con-
versation to hands-free or handset mode.
It is also possible to activate the “confi-
dential” mode directly from the telephone
set: see telephone set manual.Auto answer
From your phone, display the “Main
menu” and select “Tools”.
Then select:
❒“Settings” for Nokia 3650, 6600 and
Siemens SX1 telephones;
❒“Tools” for Nokia N-GAGE tele-
phones.
Select in sequence “Settings”, “Acces-
sories” and “Handsfree”.
Select in sequence “Automatic answer”,
“Options”, “Change”, “On” and confirm
with “OK”.
Adjusting the volume
Use the keys of the handset to adjust the
volume of the conversation.
Clearing the memory
Press and hold pressed simultaneously
both buttons
£and Ô.
IMPORTANT Clearing the memory will
disconnect all stored phones, will clear any
phone number stored in the system mem-
ory and will require to repeat the pairing
phase.
603.83.479 Panda Bluet GB 21-06-2007 15:01 Pagina 13

14
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth
®TECHNOLOGY
SOLUTION
Check that the ignition key is turned to MAR
Switch off your telephone and then switch it back on again
(if the hands-free kit is not operating)
Switch off your telephone and then switch it back on again
Check that the connection of the Bluetooth
®wireless technology of your
telephone is enabled (refer to the manual of your phone, if necessary)
Repeat the connection phase
Make sure that you are speaking clearly and according to microphone
direction
Lower the volume on the mobile phone. Also lower the volume of car
radio channel PHONE, if necessary (see Sound System Supplement)
Adjust the volume on the mobile phone. Also check the volume of car
radio channel PHONE, if necessary (see Sound System Supplement)
Go back to the main menu and repeat the pairing procedure
Set user priority (refer to paragraph “Pairing priority”)
Check that the required name is voice tagged
Repeat the name clearly towards the microphone
Check that the “Avviso di chiamata”
(Call waiting) option on your phone is enabled
Check that these entries are present in the phone book and not only in the
SIM card memory
Check that Bluetooth
®wireless technology, “Voice recognition” and
“Wordspotting” options on your phone are enabled
TROUBLESHOOTING PROBLEM
PROBLEM
The system is not working
The system says that the Bluetooth
®
wireless technology is not detected
Your telephone does not detect the hands-free kit
Your telephone is not detected
The person you are calling complains of the bad sound
quality during communication
The person you are calling complains of an echo
during communication
You cannot hear the voice of the person you are calling
No connection after entering the passcode “1234”
Your telephone is detected too slowly when
switched on
When making a call with voice recognition the system
says that the name you desire is not voice tagged
Dual call failing
Certain phone book entries are not copied in the system memory
The system does not recognise voice prompts
IMPORTANT System checks and repairs, if required, shall only be performed by Fiat Dealership.
603.83.479 Panda Bluet GB 21-06-2007 15:01 Pagina 14

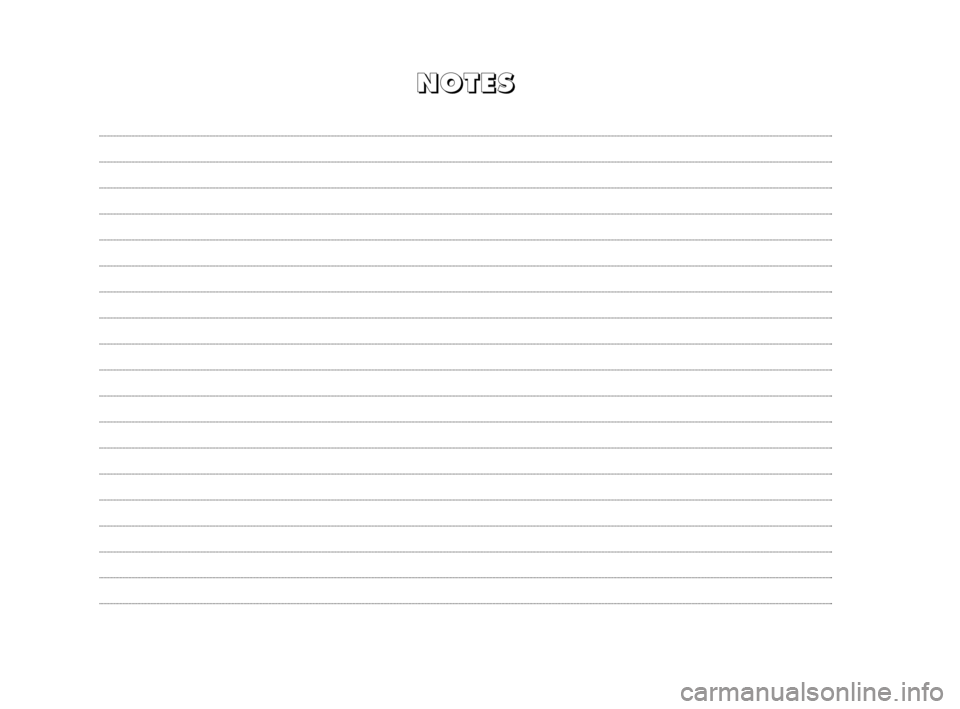

N N N N
O O O O
T T T T
E E E E
S S S S
603.83.479 Panda Bluet GB 21-06-2007 15:01 Pagina 15

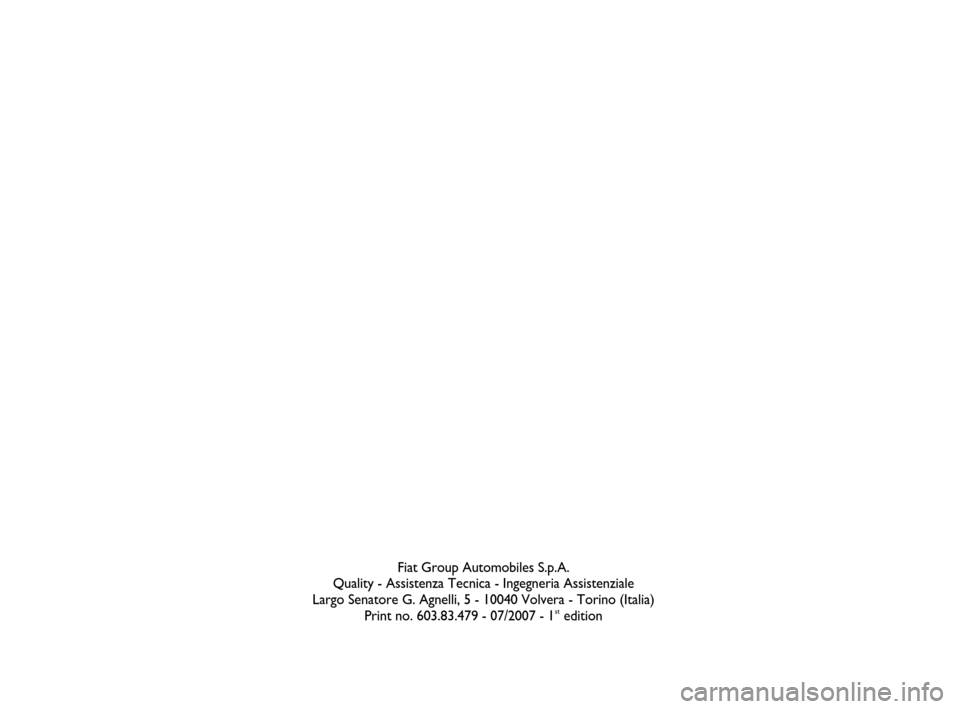

Fiat Group Automobiles S.p.A.
