fuse FIAT PANDA 2007 169 / 2.G Dualogic Transmission Manual

1

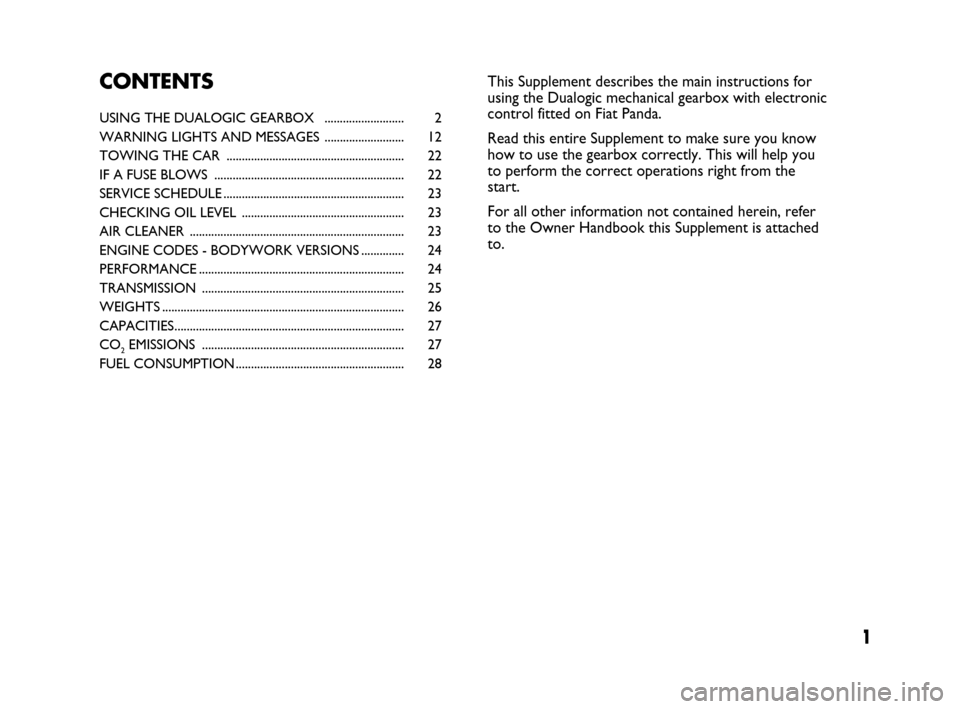

USING THE DUALOGIC GEARBOX .......................... 2
WARNING LIGHTS AND MESSAGES .......................... 12
TOWING THE CAR .......................................................... 22
IF A FUSE BLOWS .............................................................. 22
SERVICE SCHEDULE ........................................................... 23
CHECKING OIL LEVEL ..................................................... 23
AIR CLEANER ...................................................................... 23
ENGINE CODES - BODYWORK VERSIONS .............. 24
PERFORMANCE ................................................................... 24
TRANSMISSION .................................................................. 25
WEIGHTS ............................................................................... 26
CAPACITIES........................................................................... 27
CO
2EMISSIONS .................................................................. 27
FUEL CONSUMPTION ....................................................... 28
This Supplement describes the main instructions for
using the Dualogic mechanical gearbox with electronic
control fitted on Fiat Panda.
Read this entire Supplement to make sure you know
how to use the gearbox correctly. This will help you
to perform the correct operations right from the
start.
For all other information not contained herein, refer
to the Owner Handbook this Supplement is attached
to.CONTENTS
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 1

19

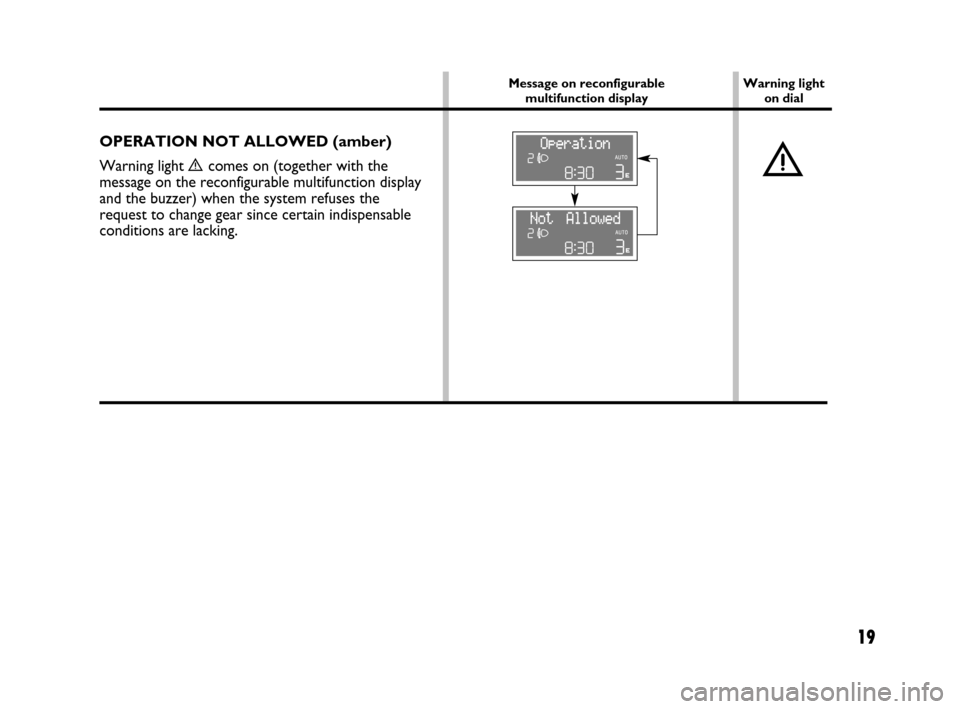

OPERATION NOT ALLOWED (amber)
Warning light
ècomes on (together with the
message on the reconfigurable multifunction display
and the buzzer) when the system refuses the
request to change gear since certain indispensable
conditions are lacking.è
Warning light
on dial Message on reconfigurable
multifunction display
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 19

22

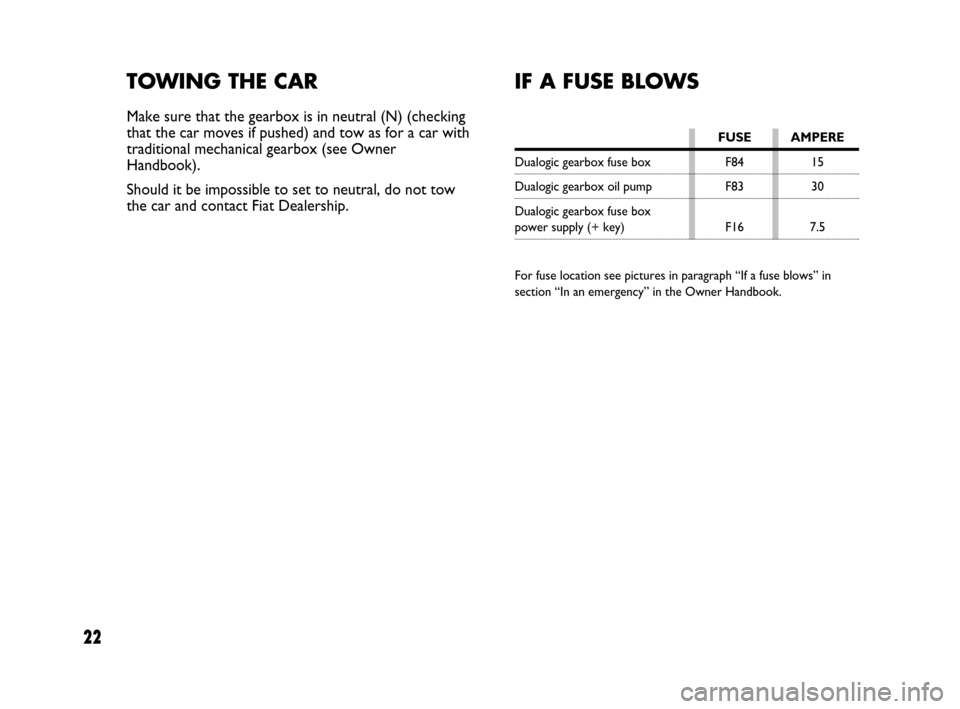

TOWING THE CAR
Make sure that the gearbox is in neutral (N) (checking
that the car moves if pushed) and tow as for a car with
traditional mechanical gearbox (see Owner
Handbook).
Should it be impossible to set to neutral, do not tow
the car and contact Fiat Dealership.
IF A FUSE BLOWS
FUSE AMPERE
Dualogic gearbox fuse box F84 15
Dualogic gearbox oil pump F83 30
Dualogic gearbox fuse box
power supply (+ key) F16 7.5
For fuse location see pictures in paragraph “If a fuse blows” in
section “In an emergency” in the Owner Handbook.
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 22
