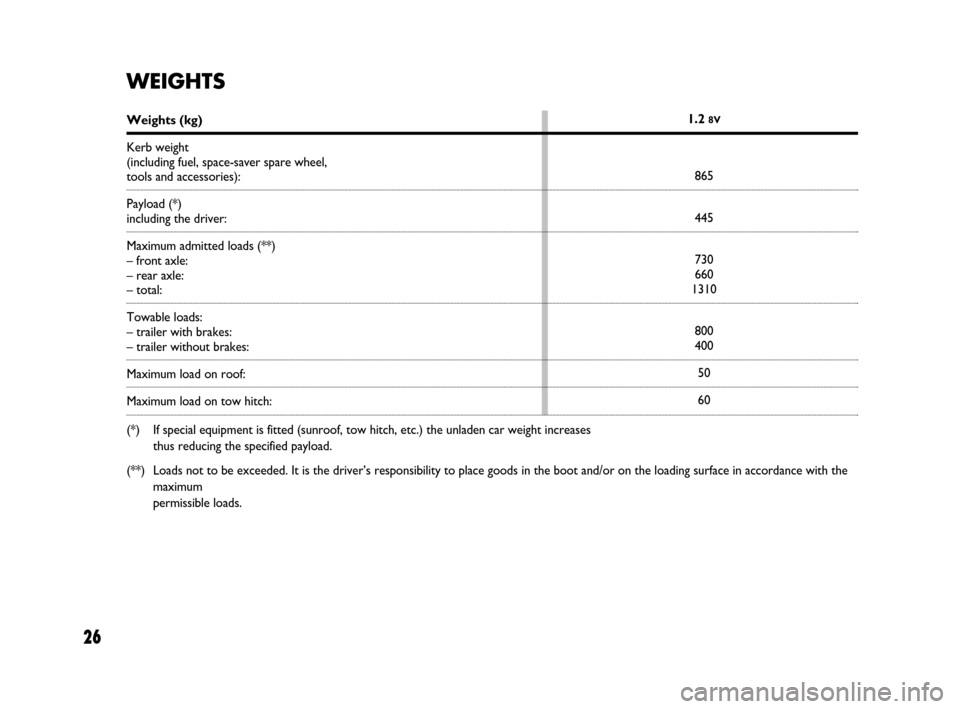

WEIGHTS
Weights (kg)
Kerb weight
(including fuel, space-saver spare wheel,
tools and accessories):
Payload (*)
including the driver:
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads:
– trailer with brakes:
– trailer without brakes:
Maximum load on roof:
Maximum load on tow hitch:
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases
thus reducing the specified payload.
(**) Loads not to be exceeded. It is the driver’s responsibility to place goods in the boot and/or on the loading surface in accordance with the
maximum
permissible loads.1.2
8V
865
445
730
660
1310
800
400
50
60
