Fiat code system FIAT PANDA 2007 169 / 2.G Owners Manual

ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical accessories (that will gradually drain the battery), visit a Fiat
Dealership. They can calculate the overall electrical requirement and check that the car’s electric system can sup-
port the required load.
CODE card
Keep the code card in a safe place, not in the car. You should always keep the electronic card code written on the
CODE card with you in case you need to carry out an emergency start-up procedure.
SCHEDULED SERVICING
Correct maintenance of the car is essential for ensuring it stays in tip-top condition and safeguards its safety fea-
tures, its environmental friendliness and low running costs for a long time to come.
THE OWNER HANDBOOK CONTAINS…
… information, tips and important warnings regarding the safe, correct driving of your car, and its maintenance. Pay
particular attention to the symbols
"(personal safety) #(environmental protection) !(the car’s wellbeing).

001-031 Panda New GB 21-06-2007 13:47 Pagina 3

4
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLSDASHBOARD ...................................................................... 5
SYMBOLS ............................................................................... 7
THE FIAT CODE SYSTEM ................................................. 7
THE KEYS .............................................................................. 8
INSTRUMENT PANEL ........................................................ 13
INSTRUMENTS..................................................................... 16
DIGITAL DISPLAY ............................................................... 18
MULTIFUNCTION DISPLAY ............................................ 19
RECONFIGURABLE MULTIFUNCTION DISPLAY .... 21
TRIP COMPUTER ................................................................ 29
SEATS....................................................................................... 32
HEAD RESTRAINTS............................................................. 33
STEERING WHEEL............................................................... 35
REARVIEW MIRRORS......................................................... 35
HEATING AND VENTILATION...................................... 37
MANUAL CLIMATE CONTROL SYSTEM .................... 41
AUTOMATIC CLIMATE CONTROL SYSTEM ............. 44
EXTERNAL LIGHTS............................................................. 48
WINDOW WASHING....................................................... 49
CEILING LAMP...................................................................... 50
CONTROLS .......................................................................... 52
INTERIOR FITTINGS .......................................................... 53SUNROOF ............................................................................. 55
DOORS .................................................................................. 57
POWER WINDOWS/WINDOW WINDERS .............. 59
BOOT ...................................................................................... 62
BONNET................................................................................. 63
ROOF RACK/SKI RACK .................................................... 65
HEADLIGHTS........................................................................ 65
ABS SYSTEM ......................................................................... 67
ESP SYSTEM ........................................................................... 69
EOBD SYSTEM ..................................................................... 72
“DUALDRIVE” ELECTRIC POWER STEERING SYSTEM 72
PARKING SENSORS ........................................................... 74
SOUND SYSTEM.................................................................. 76
AT THE FILLING STATION.............................................. 78
PROTECTING THE ENVIRONMENT............................. 79
DD D
A A
S S
H H
B B
O O
A A
R R
D D
A A
N N
D D
C C
O O
N N
T T
R R
O O
L L
S S
001-031 Panda New GB 21-06-2007 13:47 Pagina 4

THE FIAT CODE SYSTEM
To further protect your car from theft, it
has been fitted with an engine immobilising
system. This system is automatically acti-
vated when the ignition key is removed.
An electronic device, in fact, is fitted in each
ignition key grip. The device transmits a ra-
dio-frequency signal when the engine is
started through a special aerial built into the
ignition switch. The modulate signal, which
changes each time the engine is started, is
the password by means of which the con-
trol unit recognises the key and enables to
start the engine.
OPERATION
Each time the car is started turning the ig-
nition key to MAR, the Fiat CODE system
control unit sends a recognition code to
the engine control unit to deactivate the in-
hibitor.
The code is sent only if the system con-
trol unit has recognised the code trans-
mitted from the key.
Each time the ignition key is turned to the
STOPposition, the Fiat CODE system
deactivates the functions of the engine
electronic control unit.
If the code has not been recognised cor-
rectly, the instrument panel warning light
Yturns on.
SYMBOLS
Special coloured labels have been attached
near or actually on some of the compo-
nents of your Fiat Panda. These labels bear
symbols that remind you of the precau-
tions to be taken as regards that particu-
lar component.
fig. 3F0G0003m
7
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
The plate summarising the symbols used
can be found under the bonnet fig. 3.
001-031 Panda New GB 21-06-2007 13:47 Pagina 7

THE KEYS
CODE CARD fig. 4
The car is delivered with two copies of the
key, and the CODE card which bears the
following:
Athe electronic code to be used for
emergency starting (see “Emergency
starting” in section “Correct use of the
car”).
Bthe mechanical key code to be given to
the Fiat Dealership when ordering du-
plicate keys.
Make sure you have the electronic code
Awith you at all times in the event you
have to perform an emergency start-up.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices con-
tained inside the keys, they should never
be exposed to direct sunlight.
8
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
In this case, the key should be moved to
the STOPposition and then back to
MAR; if the lock continues, possibly try
again with the other key provided with the
car. If it is still not possible to start the car,
follow the instructions given in the section
“In an emergency” and then contact a Fi-
at Dealership.
IMPORTANT Every key has its own code,
which must be memorised by the system
control unit. To memorise new keys, up
to a maximum of eight, apply solely to Fi-
at Dealership.Warning light Ycoming on when
driving
❒If the warning light Yturns on, this
means that the system is running a self-
test (for example for a voltage drop).
At the first stop, turn the ignition key
to STOPand then back to MAR: if no
failure is detected, warning light
Ywill not come on.
❒If the warning light Ystays on, repeat
the procedure described previously
leaving the key at STOPfor over 30
seconds. Should the inconvenience per-
sists, contact a Fiat Dealership.
❒If the warning light Ystays on this
means that the code has not been
recognised. In this case the key should
be moved to the STOPposition and
then back to MAR; if the lock contin-
ues, possibly try again with the other
keys provided with the car. If it is still
not possible to start the car, follow the
instructions given in section “In an
emergency” and then contact a Fiat
Dealership.
The electronic components
inside the key may be dam-
aged if the key is submitted to
sharp knocks.
001-031 Panda New GB 21-06-2007 13:47 Pagina 8

IGNITION SWITCH fig. 9
The key can be turned to 3 different po-
sitions:
❒STOP: engine off, key can be removed,
steering column locked. Certain elec-
trical devices (e.g. sound system, cen-
tral door locking, etc.) can work
❒MAR: driving position. All electrical de-
vices are powered
❒AVV: engine starting.
The ignition switch is fitted with a safety
mechanism that, in the event the engine is
not started, turns back the ignition key to
STOPbefore repeating the starting oper-
ation. REQUEST FOR ADDITIONAL
REMOTE CONTROLS
The system can recognise up to 8 keys
with incorporated remote control. Should
a new key with remote control be nec-
essary, contact directly a Fiat Dealership,
taking with you the CODE card, a per-
sonal identity document and the car’s
ownership documents.
REPLACING THE BATTERY
OF THE KEY WITH REMOTE
CONTROL
Battery replacement:
❒open the snap-fitted lid A-fig. 7as
shown by the arrow
❒remove the exhaust battery and replace
it making sure that the bias is correct
(positive pole + up)
fig. 7F0G0683mfig. 8F0G0684mfig. 9F0G0026m
11
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Used batteries are harmful to
the environment. They should
be disposed of as specified by
law in the special containers
provided, or take them to a Fiat Deal-
ership, which will deal with their dis-
posal.
❒new battery shall be fitted under catch
C-fig. 8; then refit the lid and press it
down until hearing the locking click.
001-031 Panda New GB 21-06-2007 13:47 Pagina 11

72
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IMPORTANT After eliminating the in-
convenience, to check the system com-
pletely, Fiat Dealerships are obliged to run
a bench test and, if necessary, road tests
which may also call for a long journey.
“DUALDRIVE” ELECTRIC
POWER STEERING
SYSTEM
(where provided)
Certain versions feature a new electrical-
ly controlled power steering system called
“Dualdrive” working only with ignition key
at MARand engine running, that can be
customised by the driver according to the
driving conditions.
IMPORTANT When turning quickly the
ignition key, power steering full operation
is obtained after 1-2 seconds.
EOBD SYSTEM (petrol
versions)
The EOBD system (European On Board
Diagnosis) allows continuous diagnosis of
the components of the car correlated with
emissions. It also alerts the driver, by turn-
ing on the warning light
Ufig. 91on the
instrument panel together with relevant
message on the reconfigurable multifunc-
tion display (where provided), when these
conditions are no longer in peak condi-
tions (see section “Warning lights and
messages”).
The objective is:
❒to keep the system efficiency under
control;
❒warn when a fault causes emissions lev-
els to increase;
❒warn of the need to replace deterio-
rated components.
The system has a diagnostic connector
that can be interfaced with appropriate
tools, which makes it possible to read the
error codes stored in the control unit, to-
gether with a series of specific parameters
for engine operation and diagnosis.
This check can also be performed by traf-
fic controller agents.
fig. 91F0G0161m
If turning the ignition key to
MAR, the warning light Udoes not turn on or if, while
travelling it turns on glowing
steadily or flashing (together with the
message on the reconfigurable multi-
function display (where provided), con-
tact Fiat Dealership as soon as possi-
ble. Warning light
Uoperation can be
checked by means of special equip-
ment by traffic agents. Always comply
with the traffic regulations in force in
the country where you are travelling.
060-080 Panda New GB 21-06-2007 13:48 Pagina 72

STARTING PROCEDURE
FOR PETROL VERSIONS
Proceed as follows:
❒ensure that the handbrake is up;
❒put the gear lever in neutral;
❒press the clutch pedal down to the
floor without touching the accelerator;
❒turn the ignition key to AVVand let
it go the moment the engine starts.
If the engine does not start at the first at-
tempt, return the ignition key to STOP
before repeating starting.
If, when the ignition key is at MAR, warn-
ing light
Yremains lit together with
warning light Uturn the key to STOP
STOP and then back to MAR; if the warn-
ing light remains on, try with the other
keys provided with the car.
If you are still unable to start the engine,
perform the emergency start-up proce-
dure (see “Emergency start-up” in “In an
emergency” chapter) and contact Fiat
Dealership.

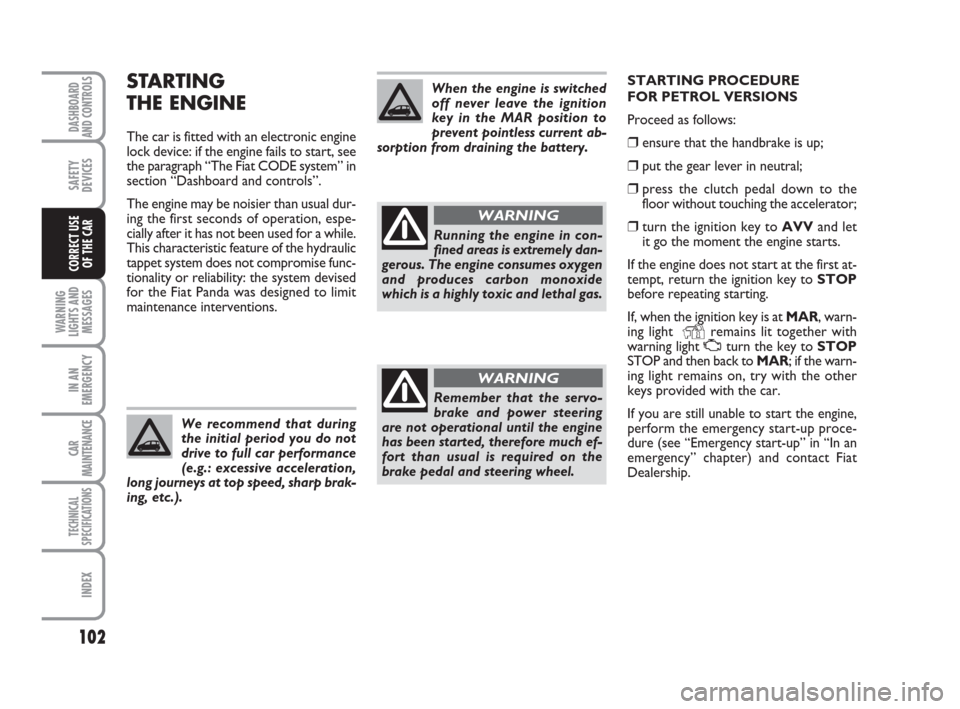

STARTING
THE ENGINE
The car is fitted with an electronic engine
lock device: if the engine fails to start, see
the paragraph “The Fiat CODE system” in
section “Dashboard and controls”.
The engine may be noisier than usual dur-
ing the first seconds of operation, espe-
cially after it has not been used for a while.
This characteristic feature of the hydraulic
tappet system does not compromise func-
tionality or reliability: the system devised
for the Fiat Panda was designed to limit
maintenance interventions.
102
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
We recommend that during
the initial period you do not
drive to full car performance
(e.g.: excessive acceleration,
long journeys at top speed, sharp brak-
ing, etc.).
When the engine is switched
off never leave the ignition
key in the MAR position to
prevent pointless current ab-
sorption from draining the battery.
Running the engine in con-
fined areas is extremely dan-
gerous. The engine consumes oxygen
and produces carbon monoxide
which is a highly toxic and lethal gas.
WARNING
Remember that the servo-
brake and power steering
are not operational until the engine
has been started, therefore much ef-
fort than usual is required on the
brake pedal and steering wheel.
WARNING
101-112 Panda New GB 21-06-2007 13:50 Pagina 102

If the engine does not start at the first at-
tempt, return the ignition key to STOP
before repeating starting.
If, when the ignition key is at MAR, warn-
ing light
Yremains lit, turn the key to
STOPand then back to MAR; if the
warning light remains on, try with the oth-
er keys provided with the car.
If you still cannot start the engine, contact
Fiat Dealership.HOW TO WARM UP THE
ENGINE AFTER IT HAS JUST
STARTED
Proceed as follows:❒ Drive off slowly, letting the engine turn
at medium revs. Do not accelerate
abruptly;
❒Do not drive at full performance for the
initial kilometres. Wait until the coolant
temperature gauge starts moving.
EMERGENCY START-UP
If the instrument panel warning light
Ystays on with fixed light, the emergency
start-up can be performed by using the
CODE card code (see section “In an
emergency”). STARTING PROCEDURE
FOR DIESEL VERSIONS
Proceed as follows:
❒ Ensure that the handbrake is up;
❒ Put the gear lever into neutral;
❒Turn the ignition key to MAR: the
warning lights
mand Yon the in-
strument panel will turn on;
❒Wait for the warning lights Yand
mto turn off. The hotter the engine
is, the quicker this will happen;
❒ Press the clutch pedal down to the
floor without touching the accelerator;
❒Turn the ignition key to AVVas soon
as warning light
mgoes out. If you
wait too long you will lose the benefit
of the work done by the glow plugs.
Release the key as soon as the engine
starts.
IMPORTANT With cold engine, the ac-
celerator pedal shall be completely re-
leased while turning the ignition key to
AVV.
103
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
The warning light mwill
flash for 60 seconds at start-
up or during prolonged crank-
ing to indicate a fault in the
glow plug heating system. You can use
the car as usual if the engine starts but
you should contact Fiat Dealership as
soon as possible.
Never bump start the engine
by pushing, towing or coast-
ing downhill. These opera-
tions could cause fuel to flow
into the catalytic exhaust system and
damage it beyond repair.
101-112 Panda New GB 21-06-2007 13:50 Pagina 103

113
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES

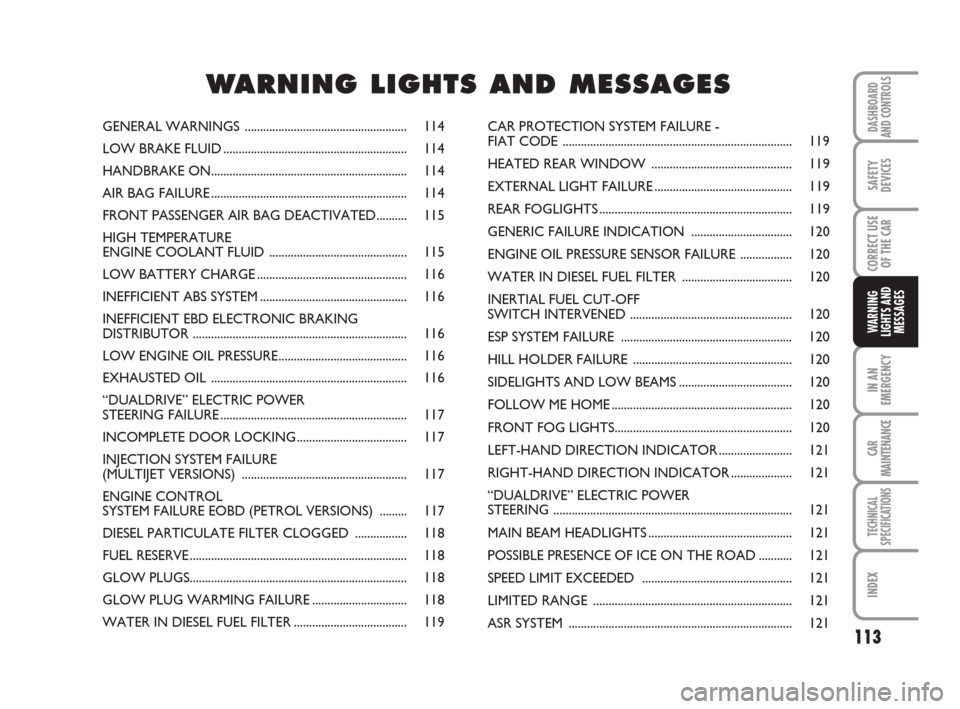

GENERAL WARNINGS ..................................................... 114
LOW BRAKE FLUID............................................................ 114
HANDBRAKE ON................................................................ 114
AIR BAG FAILURE................................................................ 114
FRONT PASSENGER AIR BAG DEACTIVATED.......... 115
HIGH TEMPERATURE
ENGINE COOLANT FLUID ............................................. 115
LOW BATTERY CHARGE................................................. 116
INEFFICIENT ABS SYSTEM................................................ 116
INEFFICIENT EBD ELECTRONIC BRAKING
DISTRIBUTOR ...................................................................... 116
LOW ENGINE OIL PRESSURE.......................................... 116
EXHAUSTED OIL ................................................................ 116
“DUALDRIVE” ELECTRIC POWER
STEERING FAILURE............................................................. 117
INCOMPLETE DOOR LOCKING.................................... 117
INJECTION SYSTEM FAILURE
(MULTIJET VERSIONS) ...................................................... 117
ENGINE CONTROL
SYSTEM FAILURE EOBD (PETROL VERSIONS) .........117
DIESEL PARTICULATE FILTER CLOGGED ................. 118
FUEL RESERVE....................................................................... 118
GLOW PLUGS....................................................................... 118
GLOW PLUG WARMING FAILURE............................... 118
WATER IN DIESEL FUEL FILTER..................................... 119CAR PROTECTION SYSTEM FAILURE -
FIAT CODE ........................................................................... 119
HEATED REAR WINDOW .............................................. 119
EXTERNAL LIGHT FAILURE............................................. 119
REAR FOGLIGHTS............................................................... 119
GENERIC FAILURE INDICATION ................................. 120
ENGINE OIL PRESSURE SENSOR FAILURE ................. 120
WATER IN DIESEL FUEL FILTER .................................... 120
INERTIAL FUEL CUT-OFF
SWITCH INTERVENED ..................................................... 120
ESP SYSTEM FAILURE ........................................................ 120
HILL HOLDER FAILURE .................................................... 120
SIDELIGHTS AND LOW BEAMS..................................... 120
FOLLOW ME HOME........................................................... 120
FRONT FOG LIGHTS.......................................................... 120
LEFT-HAND DIRECTION INDICATOR........................ 121
RIGHT-HAND DIRECTION INDICATOR.................... 121
“DUALDRIVE” ELECTRIC POWER
STEERING .............................................................................. 121
MAIN BEAM HEADLIGHTS............................................... 121
POSSIBLE PRESENCE OF ICE ON THE ROAD ........... 121
SPEED LIMIT EXCEEDED ................................................. 121
LIMITED RANGE ................................................................. 121
ASR SYSTEM ......................................................................... 121
WW W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S
113-122 Panda New GB 26-06-2007 11:04 Pagina 113

119
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES

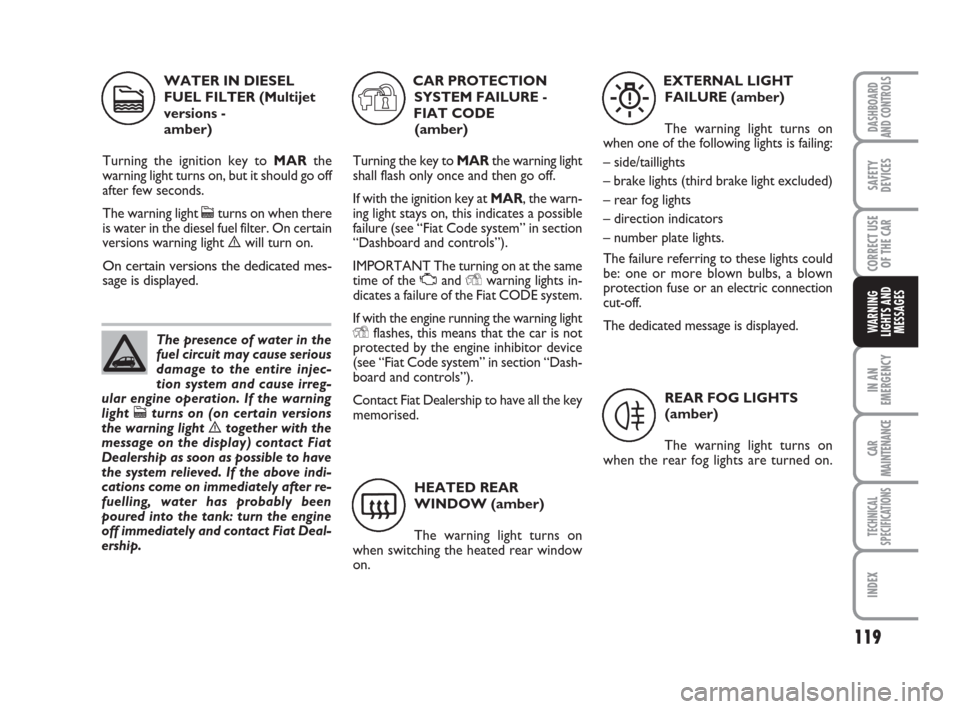

WATER IN DIESEL
FUEL FILTER (Multijet
versions -
amber)
Turning the ignition key to MARthe
warning light turns on, but it should go off
after few seconds.
The warning light cturns on when there
is water in the diesel fuel filter. On certain
versions warning light èwill turn on.
On certain versions the dedicated mes-
sage is displayed.
c
The presence of water in the
fuel circuit may cause serious
damage to the entire injec-
tion system and cause irreg-
ular engine operation. If the warning
light cturns on (on certain versions
the warning light ètogether with the
message on the display) contact Fiat
Dealership as soon as possible to have
the system relieved. If the above indi-
cations come on immediately after re-
fuelling, water has probably been
poured into the tank: turn the engine
off immediately and contact Fiat Deal-
ership.
EXTERNAL LIGHT
FAILURE (amber)
The warning light turns on
when one of the following lights is failing:
– side/taillights
– brake lights (third brake light excluded)
– rear fog lights
– direction indicators
– number plate lights.
The failure referring to these lights could
be: one or more blown bulbs, a blown
protection fuse or an electric connection
cut-off.
The dedicated message is displayed.
W
REAR FOG LIGHTS
(amber)
The warning light turns on
when the rear fog lights are turned on.
HEATED REAR
WINDOW (amber)
The warning light turns on
when switching the heated rear window
on.
4
(
CAR PROTECTION
SYSTEM FAILURE -
FIAT CODE
(amber)
Turning the key to MARthe warning light
shall flash only once and then go off.
If with the ignition key at MAR, the warn-
ing light stays on, this indicates a possible
failure (see “Fiat Code system” in section
“Dashboard and controls”).
IMPORTANT The turning on at the same
time of the Uand Ywarning lights in-
dicates a failure of the Fiat CODE system.
If with the engine running the warning light
Yflashes, this means that the car is not
protected by the engine inhibitor device
(see “Fiat Code system” in section “Dash-
board and controls”).
Contact Fiat Dealership to have all the key
memorised.
Y
113-122 Panda New GB 26-06-2007 11:04 Pagina 119
